304635 - Network card / adapter CSL - Free user manual and instructions

Brand	CSL
Model	304635
Product type	Network card / WLAN PCIe adapter
Interface	PCI Express
Chipset	Intel AX200NGW
Frequency bands	2.4 GHz and 5 GHz
Maximum data rate	600 Mbit/s (2.4 GHz) / 2400 Mbit/s (5 GHz)
Antenna configuration	2T2R, 2 external antennas
Transmit power	14.96 dBm
Compatible operating systems	Microsoft Windows 7, 8, 10 (Plug&Play)
Power supply	Via PCI Express bus
Dimensions (approx.)	120 x 80 x 20 mm
Weight (approx.)	50 g
Package contents	WLAN PCIe adapter card, 2 external antennas, user manual
Maintenance and cleaning	Disconnect the device before cleaning. Use a dry, soft cloth. Avoid moisture and chemicals.
Safety	Disconnect the computer before installation. Avoid electrostatic discharge. Indoor use only.
Spare parts and repairability	Not user-serviceable. Any modification voids the warranty. Contact the manufacturer for parts.
General information	Compliant with directive 2014/53/EU. WEEE: 2012/19/EU, registration number: DE 67896761.

Frequently Asked Questions - 304635 CSL

How to install the CSL 304635 network card?

Turn off and unplug your computer. Open the case, insert the card into a free PCIe slot, secure it with a screw, then connect the two external antennas. Close the case and turn on the computer.

Do drivers install automatically?

Yes, under Windows 7/8/10, drivers are installed automatically via Plug&Play. If not, you can use the supplied CD or download the Intel AX200NGW drivers.

Which operating systems are compatible?

The card is compatible with Microsoft Windows 7, 8 and 10. Plug&Play works on these versions.

Can I use this card under Linux?

The Intel AX200NGW chipset is well supported under Linux (recent kernel). However, the manufacturer only officially provides Windows drivers. You may need to install open source drivers.

What is the range of the Wi-Fi signal?

The range depends on the environment. Indoors, expect about 30 to 50 meters on 2.4 GHz and 15 to 30 meters on 5 GHz. Obstacles reduce range.

Does the card support Wi-Fi 6 (802.11ax)?

Yes, the Intel AX200NGW chipset supports Wi-Fi 6 (802.11ax) on the 2.4 GHz and 5 GHz bands, offering higher speeds and better efficiency.

What if my computer does not detect the card?

Check that the card is properly inserted in the PCIe slot. Ensure your computer's power supply is sufficient. Try restarting or reinstalling drivers manually.

Can I replace the antennas?

Yes, the external antennas are connected via standard connectors (RP-SMA). You can replace them with compatible antennas of the same type to improve reception.

Is the card compatible with Bluetooth?

Yes, the Intel AX200NGW chipset also integrates Bluetooth 5.0, allowing connection of Bluetooth devices if your system supports it.

How to dispose of this card?

Do not throw the card in household waste. In accordance with the WEEE directive, take it to a collection point or to the retailer for recycling. The WEEE registration number is DE 67896761.

USER MANUAL 304635 CSL

Thank you for having chosen this CSL product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1. Scope of delivery

PCIe WLAN adapter card
- 2x external antenna
- User manual

2. Technical specifications

Interface PCI Express
Transmission rate	b/g/n/h/ac /ax 600Mbit for 2.4GHz 2T2R / 2400 Mbit/s for 5Ghz 2T2R * Transmission rate varies depending on the distance and external interferences
Chipset Intel AX200NGW
Frequency band 2.4 GHz / 5 GHz
Frequency range 2,4GHz: 2412MHz - 2472; 5GHz: 5180-5240 MHz
Transmission power 14,96 dBm
Compatibility Microsoft Windows 7/8/10 (Plug&Play)

3. Installation

Please disconnect your PC completely from the power supply before starting installation. Avoid touching sensitive components on the plug-in card and in your PC.

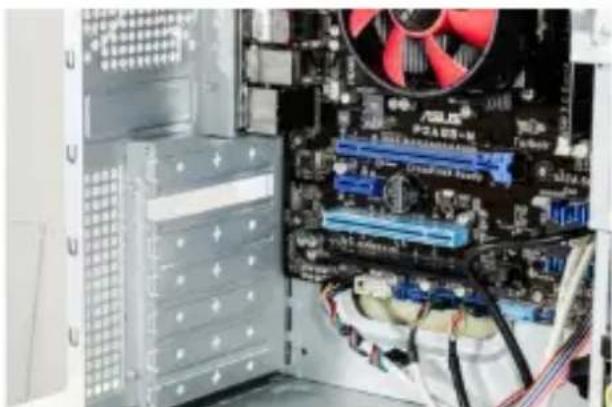

Open the housing of your PC. Then look for a free PCI slot and carefully remove the associated slot bracket.

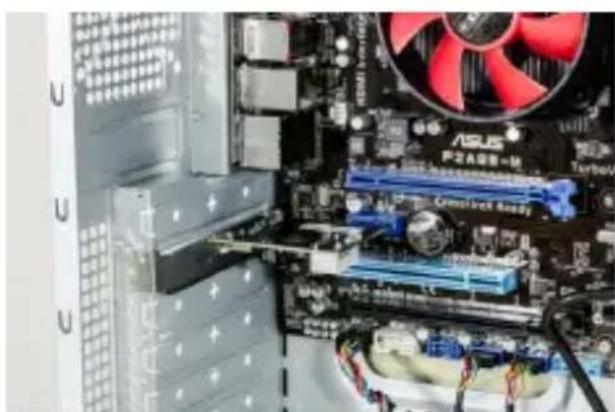

PlugthePClcardintotheslot provided. Make sure that the card sits tightly in the slot. Then use a screw to fix the card to the PC housing.

Then connect the two external antennas to the antenna connectors.

4. Driver installation

For operating systems with Microsoft Windows 7 or higher, the driver installation will be done automatically. The PCIe card is ready for use after a few minutes.

If this doesn't work with your system, continue as described above. Remove the driver cd from packaging and insert the driver CD into your drive. Then you have to start "Setup.exe".

The installation wizard will now be started. To start the installation, you have to agree to the terms of the license agreement. Follow the installation wizard in order to complete the driver installation.

After the installation has been completed successfully, click the "Finish" button. Finally, the PCIe WLAN adapter card is ready for operation.

5. Safety instructions and liability disclaimer

Please do not attempt to perform repairs or conversions of the plug-in card. Avoid contact with the power grid. The product is only voltage-free once it has been unplugged. Always ensure that you are grounded before you touch electronic components. This will prevent damage caused by electrostatic discharge from your body.

Electrostatic discharge (ESD) can cause irreparable damage to your plug-in card and all the connected hardware components! The installation of the plug-in card is performed at your own risk. Please have the installation of the card performed by a specialised company if you do not have any technical and practical experience in the field of computer and electrical technology. The manufacturer cannot be held liable for any direct or indirect damage caused by improper installation or use. It is the customer's responsibility to back up any data.

The device has not been approved for outdoor use. It should therefore only be used in dry areas. Protect it against high humidity levels, water and snow. Always keep the device away from high temperatures. Do not expose the device to any sudden temperature changes or strong vibrations, as this could damage the electronic components. Check the device for possible damage before using it. The device should not be used when it has been subjected to impact or damaged in any other way. Please also take the national regulations and restrictions into account. Do not use the device for any purposes other than those described in these instructions. This product is not a toy. Store it outside the reach of children or intellectually disabled persons. Any repairs or changes to the device not carried out by the original supplier will result in the expiry of any warranty or guarantee claims. The device specifications may change without any prior notice.

6. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WD Plus GmbH, herewith declares that this product 304635/20200604SZ172 conforms to the principle requirements and other relevant stipulations of the directive 2014/53/EU. The complete De clarification of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, http://downloads.ganzeinfach.de/search/model/304635
