Product type	USB WiFi adapter with external antennas
Brand	CSL
Model	300649
Connectivity	USB 2.0 Hi-Speed
WiFi standards	IEEE 802.11 b/g/n
Frequency bands	2.4 GHz and 5 GHz
Maximum speed	300 Mbit/s (802.11n)
Chipset	Ralink RT5572
WPS function	Yes, by button press (PBC)
Power supply	Via USB port (5V)
Dimensions (adapter)	Approximately 10 x 2 x 2 cm
Weight (adapter)	Approximately 20 g
Package contents	Adapter, 2 antennas, driver CD, user manual
Safety	Indoor use, avoid humidity and high temperatures
Maintenance and cleaning	Clean with a soft, dry cloth
Spare parts	Removable external antennas
Reparability	Not user repairable, opening voids warranty
General information	WEEE Directive 2012/19/EU, registration DE 94495668

Frequently Asked Questions - 300649 CSL

How to install the CSL 300649 WiFi adapter?

Insert the driver CD into your computer, then plug the adapter into a free USB port. Run the Setup.exe file located in the Drivers > Windows folder and follow the instructions.

Are the drivers compatible with Windows 10?

Yes, the provided CD contains drivers for Windows. If you encounter issues, download the latest version from www.csl-computer.com in the Service > Driver download section.

Why is my adapter not connecting in 5 GHz?

Make sure you are using the latest drivers. If the problem persists, install the Ralink WLAN Utility offered during installation to manually configure the 5 GHz band.

How to connect the external antennas?

The two antennas screw onto the connectors at the back of the adapter. Tighten them by hand without forcing to avoid damaging the threads.

Is this adapter compatible with Mac OS?

The manual does not explicitly mention Mac OS. However, the Ralink RT5572 chipset may be compatible via third-party drivers. Check the manufacturer's website.

What is the maximum range of the WiFi antenna?

Range varies depending on the environment. Indoors, expect up to 30-50 meters for 2.4 GHz and 15-30 meters for 5 GHz, with optimal speed at short distance.

How to use the WPS function?

Press the WPS button on your router, then within 2 minutes, press the WPS button on the adapter (or via the software). The connection establishes automatically.

Can I use this adapter outdoors?

No, the device is designed for indoor use only. Keep it in a dry place, away from water and moisture.

What should I do if the adapter is not recognized by the computer?

Try a different USB port. Reinstall the drivers by downloading the latest version from the CSL website. If nothing works, test on another computer to check the hardware.

Is this adapter covered by a warranty?

Yes, a legal warranty applies. Any unauthorized opening or modification voids the warranty. Keep the invoice and manual for any claims.

USER MANUAL 300649 CSL

Black wireless router with two Ethernet antennas attached to a small USB flash drive (no text or symbols visible)

USB 2.0 WLAN-Adapter 300Mbit, 2,4/5GHz

Mod.-Nr.: 27395

WDP.-Nr.: 300649

Table of contents

1. Deutsch .... 3
2. English 8
3. Français 13
4. Italiano 18
5. Español....23

Many thanks for purchasing a CSL product. Please read the following user manual carefully to ensure that the device you have purchased will give you many years of pleasure.

1 Scope of delivery

• USB 2.0 WLAN adapter
• 2x WLAN antenna
• Driver CD
• User manual

2 Technical specifications

Port USB 2.0 Hi-Speed
Data rate	IEEE 802.11n: bis zu 300Mbit/s*IEEE 802.11g: bis zu 54Mbit/s*IEEE 802.11b: bis zu 11Mbit/s**The transmission rate depends on distance and outside differences
Chipset Ralink RT5572
Frequency range 2,4 GHz /	5 GHz
Features WPS PBC – configuration via button

3 Driver installations

Insert the driver CD into your CD-ROM drive and plug the wireless adapter into a free USB 2.0 port (or higher) on your computer. Call up the contents of the driver CD and navigate to the subfolder "Drivers". Open the folder "Windows".

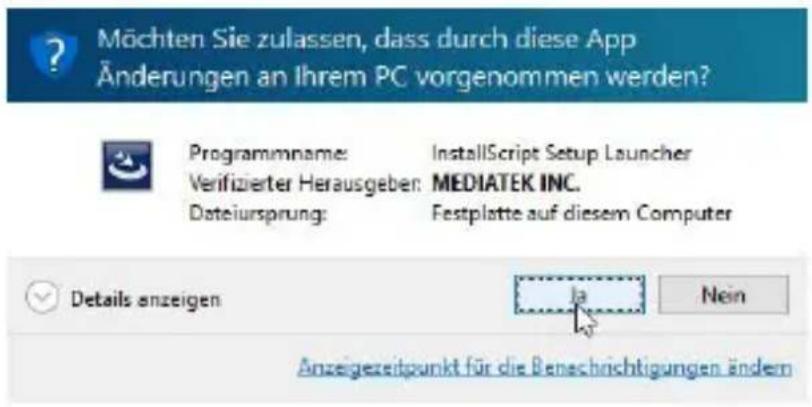

Please answer the security question with "Yes".

Setup

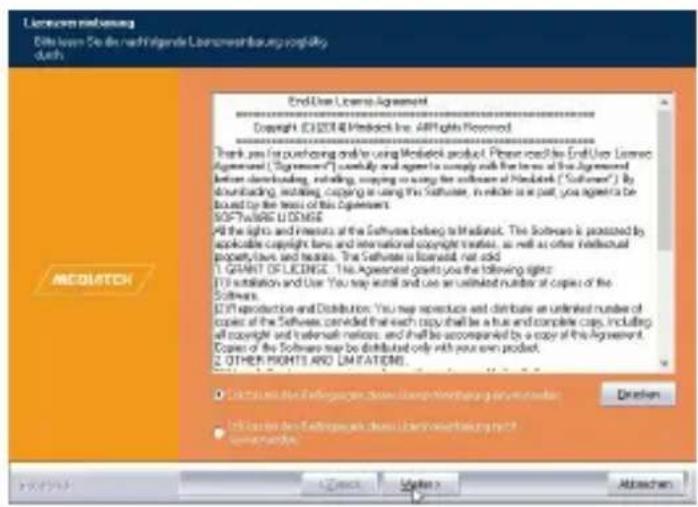

The installation assistant is running now. To start the installation, you have to agree with the terms of the license agreement. Then press the button "Next".

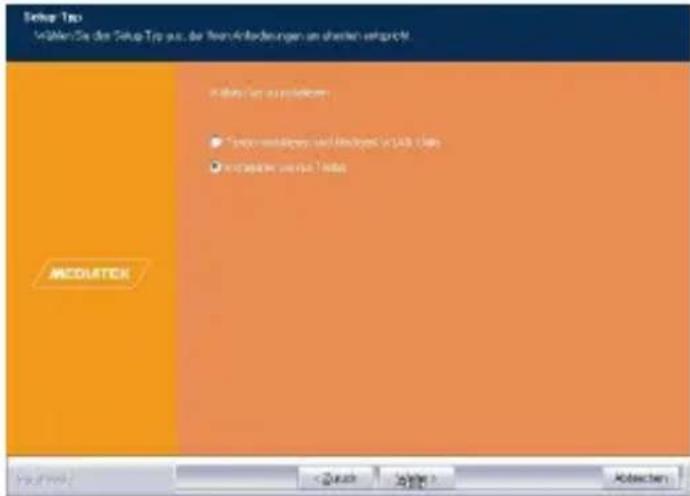

In the following window, a prompt asks if you want to install the software "Ralink Wireless Utility".

Windows system already provides and allows all basic functions so that the installation of additional software is not required.

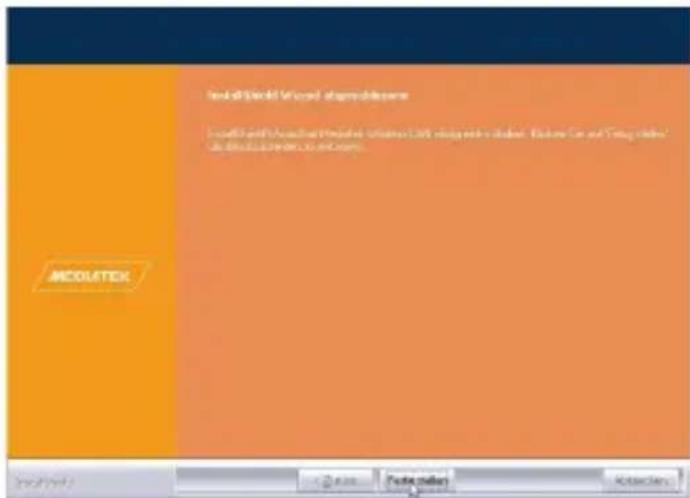

Click on "Next" and in it the following installation section on "Install". The installation will begin. After successful installation please click on the button "Finish".

The wireless adapter is now ready for use.

Note: In case of connecting problems while using 5 GHz frequency band, we recommend you to use the latest driver from our website www.csl-computer.com. Therefore please visit our download section and navigate to "Service" and finally to "Driver download".

4 Safety instructions and disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components.

Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

5 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 94495668

WD Plus GmbH, herewith declares that this product 27395 conforms to the principle requirements and other relevant stipulations of Directive 1999/5/EG. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
