USER MANUAL 306915 Brandson

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Thank you for purchasing a product from the Brandon range. Please read the following quick guide carefully so that you can enjoy your purchased appliance for a long time.

1. Scope of delivery

• LED night light + rechargeable battery
• Wall mount with adhesive pad
• USB A to USB C charging cable
- Quick guide

2. Technical data

Power supply 5V DC
rechargeable battery Li-ion 1500mAh (removable)
Battery dimensions 10 mm x 41 mm x 400 mm
Detection range	• 120°• 3-5m distance
Light source 72x SMD LED (warm white); 72x SMD LED (cool white)
Features • 3 modes (ON/Auto/OFF)• Magnetic holder• Wall bracket• Motion detection• Dimmable• Twilight sensor• 3 light modes

3. Start-up

Remove the device from the packaging and remove all packaging material. Connect the USB charging cable to a 5V DC power supply and the battery to fully charge it. During the charging process, the status LED lights up red. As soon as the device is fully charged, the status LED lights up green. To put the device into operation, plug the battery into the device or connect the charging cable to the USB-C port.

There is a button on the side of the device. The function cycle is ON -> AUTO -> OFF. You also have the option of using the button to switch through the 3 colour modes.

ON The device is permanently switched on. The light is permanently on.
AUTO	Switches the light on automatically in the dark as soon as movement is detected. The lighting time is approx. 35 seconds.
OFF The device is switched off.
Colour mode	Press the button twice in quick succession to select between the different colour modes. You can choose between warm white, cool white and mixed white.
Dimming Press	and hold the button. The brightness is dimmed. Release the button as soon as you have reached the desired brightness.

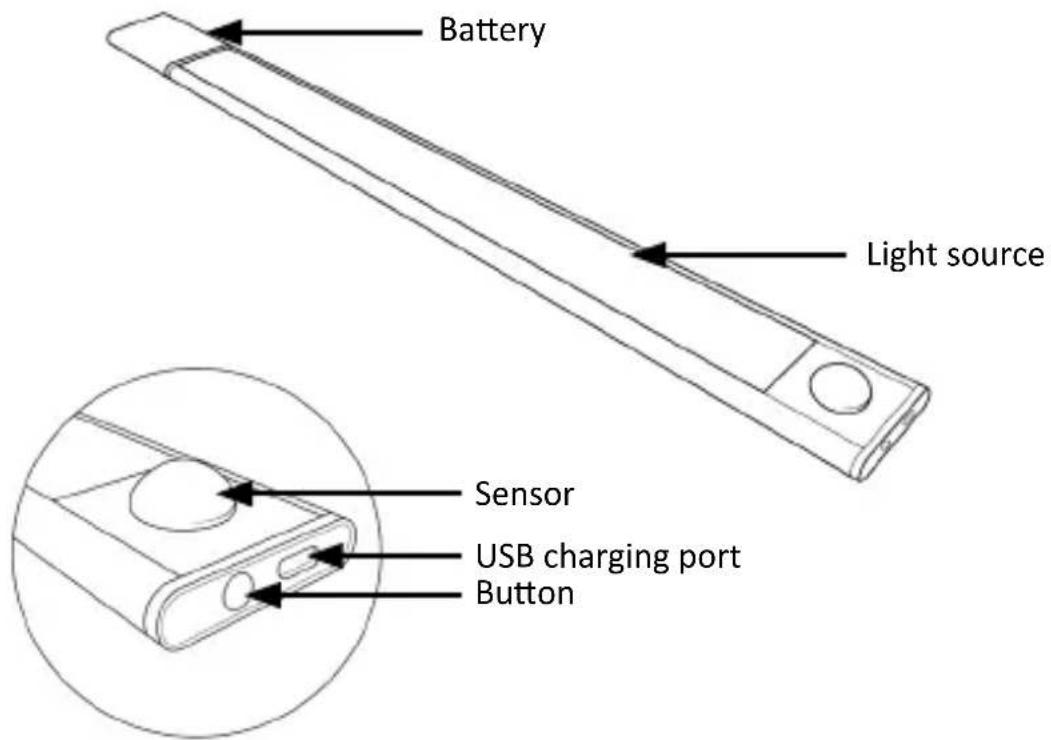

4. Product details

Battery Light source Sensor USB charging port Button

5. Montage

The night light can either be attached to all ferromagnetic materials such as refrigerators, magnetic boards etc. using the two magnets on the back, or mounted using the wall bracket.

If you want to use the wall bracket, you need to mount it in the desired position on a wall. Simply use the adhesive pad for this.

Once you have attached the wall bracket, you can attach the night light to the bracket using the magnets.

6. Additional information

• Do not install the device near cold or warm air inlets or outlets.
• Do not install the device in a humid environment or in strong light, so as not to affect the sensitivity and avoid malfunction.
• When the light is dim and the battery is exhausted, please charge the product in time.
• The detection area of the product surface must not be covered by other objects. When cleaning the surface of the product. Wipe it with a soft, dry cotton cloth. Remember to wipe the device with a damp cloth immediately after switching on the light.
• Do not place the product on an unstable surface to avoid damage to the device and sensor due to impact.

7. Safety instructions and disclaimer

Never attempt to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, please only use it in dry conditions. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden temperature changes or strong vibrations, as this could damage the electronic parts. Check the device for damage before use.

The appliance should not be used if it has been knocked or damaged in any other way. Please observe the national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy.

Keep it out of the reach of children or mentally impaired persons. Any repair or modification to the appliance that is not carried out by the original supplier will invalidate the warranty or guarantee. The appliance may only be used by persons who have read and understood these instructions. The device specifications may change without prior notice.

8. Disposal instructions

According to the European WEEE Directive, electrical and electronic devices may not be disposed of with household waste. Their components must be recycled or disposed of separately, as toxic and hazardous components can cause lasting damage to the environment if disposed of incorrectly. As a consumer, you are obliged under the Electrical and Electronic Equipment Act (ElektroG) to return electrical and electronic equipment free of charge at the end of its life to the manufacturer, the point of sale or to public collection centres set up for this purpose. Details are regulated by the respective state law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating, recycling and disposing of old appliances in this way, you are making an important contribution to protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

9. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer:

The customer is legally obliged to return used batteries. The customer can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries mean the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery must not be disposed of in household waste.

WEEE Directive: 2012/19/EU

WEEE Register No.: DE 67896761

Hereby, WD Plus GmbH declares that the device 306915 is in compliance with the essential requirements and other relevant provisions. You can obtain a complete declaration of conformity from WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, Germany

MO-FR 9:30am - 18pm CET

QR code image containing encoded data, no visible human-readable text

brandson-equipment.de
