USER MANUAL 303628 Mybeo

• This device is suitable only for domestic use. Use the scales only to check your body weight!
• Do not use the device on carpets or similar surfaces. Always use the scales on a flat and hard surface. This ensures consistent measurement.
• Do not use the product outdoors!
• Ensure that your feet are not wet and that the device is dry when using it.
• Ensure that the scales does not topple over. There is a risk of injury here!
• Do not use the scales if it is defective.

• Do not use the device if it has fallen down or the surface is damaged.

• Never place any objects on the scales.

• Do not immerse the device under water and ensure that it does not come into contact with water.
• Please ensure the correct polarity when inserting the batteries! Ensure that you do not reverse the battery polarity under any circumstances!
• Never dismantle the device. Warranty claims are rendered void in the event of improper use.
• Do not jump on and off the device under any circumstances.
• This product is not a toy! Keep it out of the reach of children.
• Avoid exposing the scales to direct

sunlight. As far as possible, avoid placing the scales in places where the temperature and humidity are very high.

• This device is not intended to be used, cleaned or maintained by people (including children) with reduced physical, sensory or mental abilities or lack of experience and/or knowledge. Unless they are supervised by a person who is responsible for their safety or have received instructions from this person about how the device is to be properly used.

• Never overload the product. The maximum weighing capacity of the product is 180 ~kg .

• Do not use the scales near combustible or inflammable surroundings or objects.

• Use only high-quality batteries. Inferior quality batteries may leak and damage the device.
• Batteries should never be thrown into the fire nor be charged.
• If the scales is not used for a long period of time, then ensure that the batteries are removed and stored in a dry place.
• Do not use any chemical cleaning agents. Use only a soft cloth for cleaning.

Thank you for choosing a mybeo product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Digital weighing scales
• User manual

2. Technical data

Power supply Three AAA 1	5V batteries
Loading capacity: 5 - 180 kg
Resolution 0.1kg
Units KG, lb
Features • Auto-off function	• LC display • Body fat display

3. Initial use

Take the device out of the package and remove all the packaging material. Before using the weighing scales, insert three AAA batteries into the battery compartment at the bottom of the scales. Pay attention to the correct polarity of the contacts. Place the product only on a firm, even and dry surface.

4. Usage and function

Tap the scales with your foot to turn on the device. The display shows "0.0". Then stand with your feet evenly apart on the scales and do not move. Your weight is shown on the display after a few seconds. Wait until the display stops flashing. Press the "Unit" button at the bottom of the device to change the displayed unit. You can choose between the following units:

$$ K G = K i l o g r a m s; L B = P o u n d $$

The scales has an "Auto-OFF" function. It automatically switches off after about 10 seconds of inactivity.

5. Parameter settings for body fat

You can store up to 10 personal parameters on the scales. Make sure that you set the correct parameters to ensure accurate measurement.

The parameters have the following setting range:

Profile Gender	Height Age
1-10 Male or female 100 - 250 cm 10 - 100 years

1. Press the "SET" button once briefly to turn on the scales. Press and hold the "SET" button on the scales for about 3 seconds.
2. The profile number starts flashing. Select the desired profile number using the "UP" and "DOWN" buttons and confirm with "SET".
3. Select your gender using the "UP" and "DOWN" buttons and confirm with "SET".
4. Select your height using the "UP" and "DOWN" buttons and confirm with "SET".
5. Select your age using the "UP" and "DOWN" buttons and confirm with "SET".

Note:

If you do not press any button for 6 seconds when setting the parameter, the configured value is automatically saved.

If the setting mode is cancelled when setting the parameter and the display shows the number "0", press the "SET" button for about 3 seconds to return to the setting mode.

Always remember your profile number!

6. Measuring body fat

An example of how to measure body fat using the scales is shown below.

Example:

Profile number 3, Female, 163 cm, 27 years old.

1. Press the "SET" button to turn on the scales.
2. Press the "UP" and "DOWN" buttons to select the appropriate profile number.
3. Press the scales once your profile number starts flashing.
4. Then step on the scales. Make sure that both feet touch the electrode at the top of the scales.
5. Wait until the weight display stops flashing and is "locked".
6. The display shows "0000". This means that the additional readings are being taken. Remain standing on the scales!

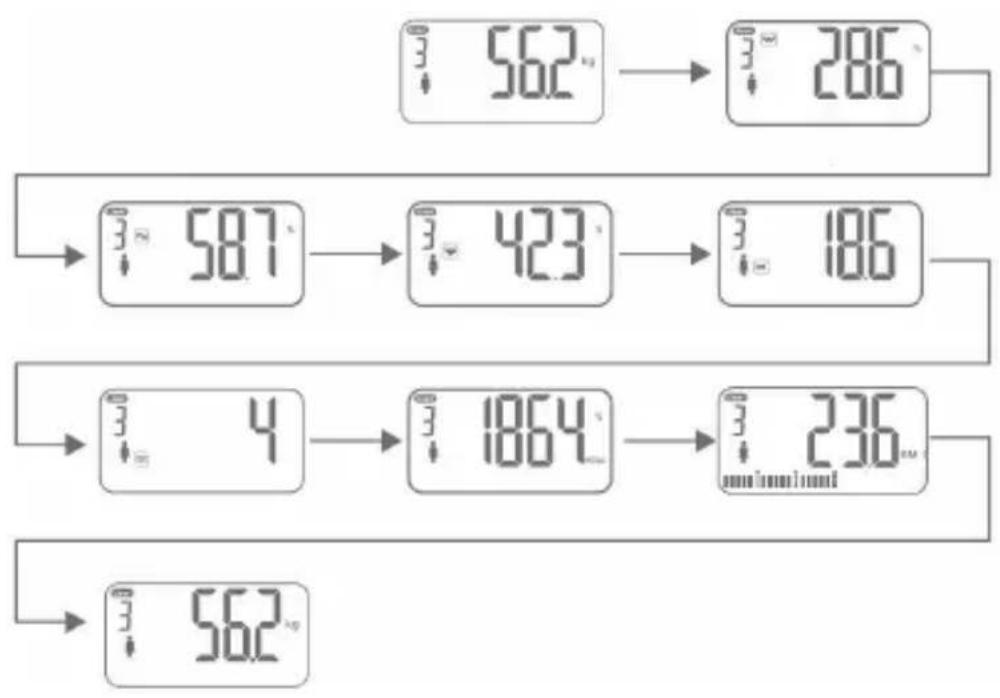

7. The readings are now displayed in the following order:

Weight
Body fat in%
Water content in%
- Muscle mass in %
Bone mass
- Visceral fat
Average daily requirement (kcal)
BMI (Body Mass Index)

Note: An approximate reference is given in the table at the end of this manual.

5. Replacing the batteries

Open the battery compartment at the back of the device. Remove the discharged battery from the battery compartment and dispose of it properly.

Then insert a new AAA battery into the battery compartment and pay attention to the correct polarity of the contacts. Remove the battery if you have not used the device for a long period.

Note: Do not use rechargeable batteries as far as possible since this may eventually lead to restrictions in the functioning of the device!

6. Warning display

"Err" display:

The "Err" display implies that the device is overloaded. Step off to avoid any damage to the product.

"Lo" display:

The "Lo" display signals that the battery level is too low. Replace the batteries as soon as possible.

"C" display:

When the "C" indicator appears on the display, the balance notices that recalibration is required and performs it. Please weigh yourself again after that.

7. Cleaning and Care

Follow the safety instructions when cleaning. Once the scales is switched off, you can clean the surface using a damp, soft cloth. Do not use any cleaning agents, solvents or scouring agents for cleaning. Use only a soft cloth to clean the scales.

8. Safety instructions and disclaimer

Please do not try to open the device to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof. Please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which are not carried out by the original supplier, will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior notice.

9. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be separately sent for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard.

The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE Guideline: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303628 /20190906ZS026 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

ATTENTION!

Reference table (women)

Body composition % Assessment chart
Age	Standard	Female
		Fat%	Hydration%	Muscle%	Bone	Kcal	Visceral fat
<20 years old	Low	<17	<43	<35		<1100
	Normal	17~25	43~68	35~56	1.8~3.9	1100~2400	1~9
	High	>25	>68	>56		>2400	>10
20-30 years old	Low	<17	<43	<38		<1050
	Normal	17~25	43~67	38~58	1.5~3.8	1050~2600	1~9
	High	>25	>67	>58		>2600	>10
30-40 years old	Low	<19	<40	<42		<1000
	Normal	19~27	40~69	42~58	1.5~3.8	1000~2200	1~9
	High	>27	>69	>58		>2200	>10
40-50 years old	Low	<20	<42	<40		<950
	Normal	20~28	42~68	40~56	1.6~3.7	950~2050	1~9
	High	>28	>68	>56		>2050	>10
50-60 years old	Low	<21	<42	<39		<950
	Normal	21~29	42~65	39~55	1.5~3.6	950~2000	1~9
	High	>29	>65	>55		>2000	>10
>60 years old	Low	<21	<41	<35		<600
	Normal	21~29	41~64	35~51	1.3~3.5	600~1500	1~9
	High	>29	>64	>51		>1500	>10
