USER MANUAL TFR441 THOMSON

Line drawing of a rectangular container or shelf with a flat top and side clip (no text or symbols)

USER MANUAL

IMPORTANT SAFETY INSTRUCTIONS

PLEASE FOLLOW THE PRECAUTIONS BELOW FOR YOUR NEW REFRIGERATOR

1. This refrigerator must be properly installed and located in accordance with the Installation Instructions before it is used.
2. Do not allow children to climb, stand or hang on the shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.
3. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
4. Keep finger out of the clearances between the doors and cabinet. Be careful closing doors when children are in the area.
5. Unplug the refrigerator before cleaning and making repairs.
6. We strongly recommend that any servicing be performed by a qualifie individual.
7. Turning the temperature control dial to the "0" position stops cooling but does not shut off power to the refrigerator.
8. Do not leave refrigerator in extreme cold or warm temperatures.
9. Do not place refrigerator near heat sources or open flames.
10. Clean the refrigerator with a soft, damp cloth. Remove stains with a mild soap. Do not clean the unit with industrial grade solvents, or abrasive chemicals.
11. Do not place heavy items on top of the refrigerator.
12. Never install the refrigerator where there is a lot of moisture and water can splash.
13. Do not allow children to hang on the doors; the refrigerator may be tipped over and hurt children.
14. Never eat spoiled food stored too long in the refrigerator or in an out-of-order refrigerator.
15. Do not use sharp tools inside the refrigerator – for example – to remove ice as damage may occur.
16. Unplug and remove food from the refrigerator if not used for a long period of time.

PROPER DISPOSAL

An empty refrigerator is an extremely dangerous attraction to children. If you are getting rid of your old refrigerator, please follow the instructions in the Child Entrapment Warning.

CHILD ENTRAPMENT WARNING

Risk of child entrapment. Before you throw away your old refrigerator or freezer:

1. Take off the doors.
2. Leave the shelves in place so that children may not easily climb inside.

CAUTION: USE OF AN EXTENSION CORD IS NOT RECOMMENDED

FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be inserted into an outlet that is properly installed and grounded.

WARNING

Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a three wire extension cord that has a three blade grounding plug, and a three slot receptacle that will accept the plug on the appliance.

The marked rating of the extension cord should be equal to or greater than the electrical rating of the appliance.

INSTALLATION

1. Steady, flat location:

If the refrigerator is not leveled during installation, the doors may not close or seal properly, causing cooling, frost, or moisture problems. It is very important for the refrigerator to be level in order to function properly. To level your refrigerator, you may either turn the level leg clockwise to raise that side to the refrigerator or turn counter-clockwise to lower that side. Having someone push against the top of the refrigerator will take some weight off the leveling leg. This makes it easier to adjust the leveling leg.

2. Ventilation:

Place refrigerator approximately 5 inches from the wall to ensure proper airflow to the compressor. Do not place refrigerator near any heat resources such as a heater or stove as it will put a strain on the power supply

3. Power supply:

• Check your local power source. This refrigerator requires a 110V-120V, 60Hz power supply.
• Use a receptacle that will accept the ground prong. The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.

(a) Longer cord sets or extension cords are available and may be used if care is exercised in their use.
(b) If a long cord or extension cord is used, (1) the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, (2) the extension cord must be a grounding-type 3-wire cord, and (3) the longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over unintentionally.

When using a 3-pronged plug:

13-PRONGED PLUG
2 3-PRONGED RECEPTACLE
3 RECEPTACLE BOX COVER

Diagram showing a hand holding an electrical plug and connected to a power outlet with three labeled points.

When using a grounding adaptor:

1 GROUNDING LEAD
2 SCREW
3 RECEPTACLE
4 GROUNDING ADAPTOR
5 RECEPTACLE BOX COVER

Make sure the receptacle box is fully grounded.

Diagram showing electrical connections with labeled components including a plug, switch, and power outlet

FEATURES

DOOR CLOSED

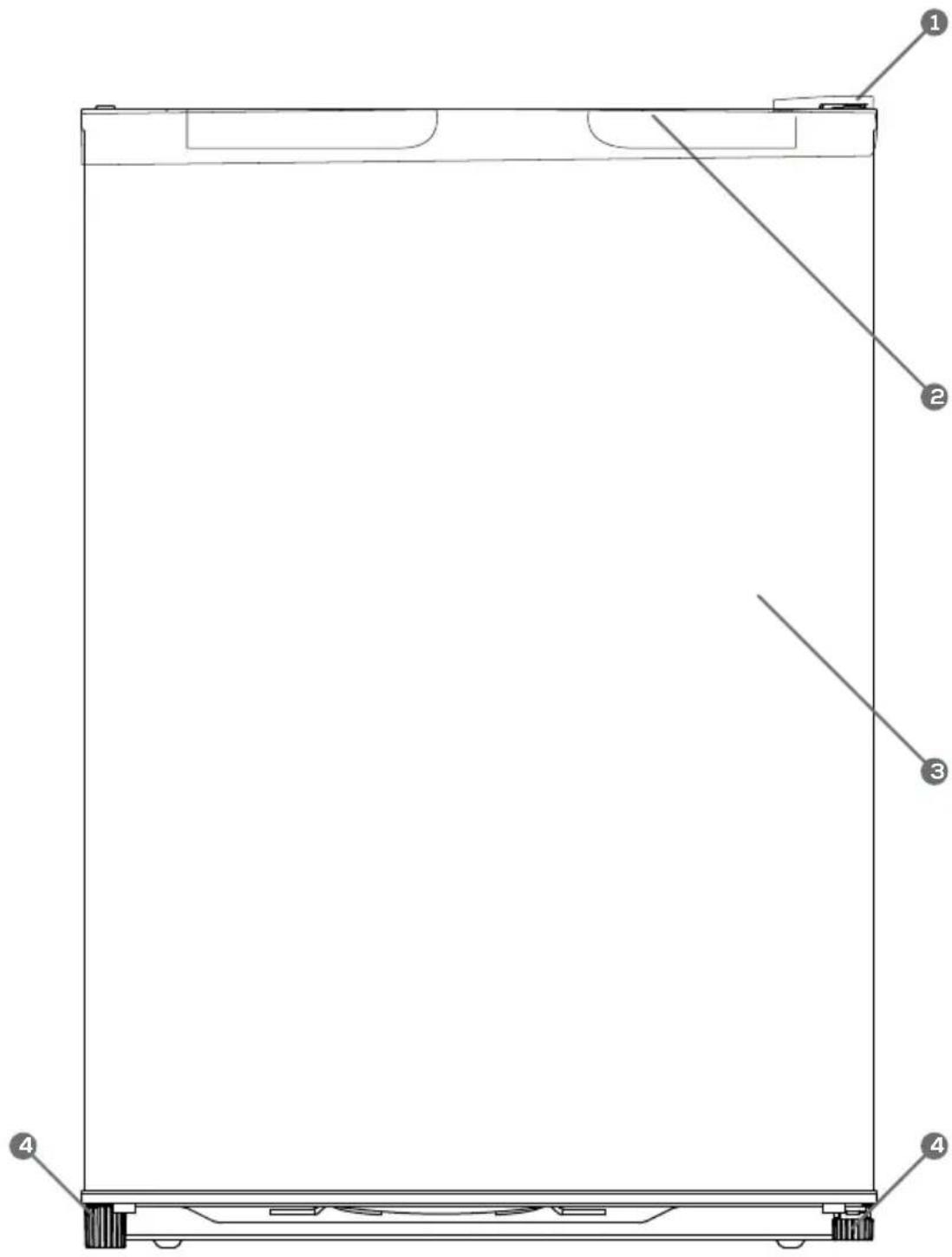

Technical diagram of a rectangular device with numbered annotations pointing to different components.

1 TOP HINGE
2 HANDLE
3 REFRIGERATOR DOOR
4 LEVELING FEET

DOOR OPEN

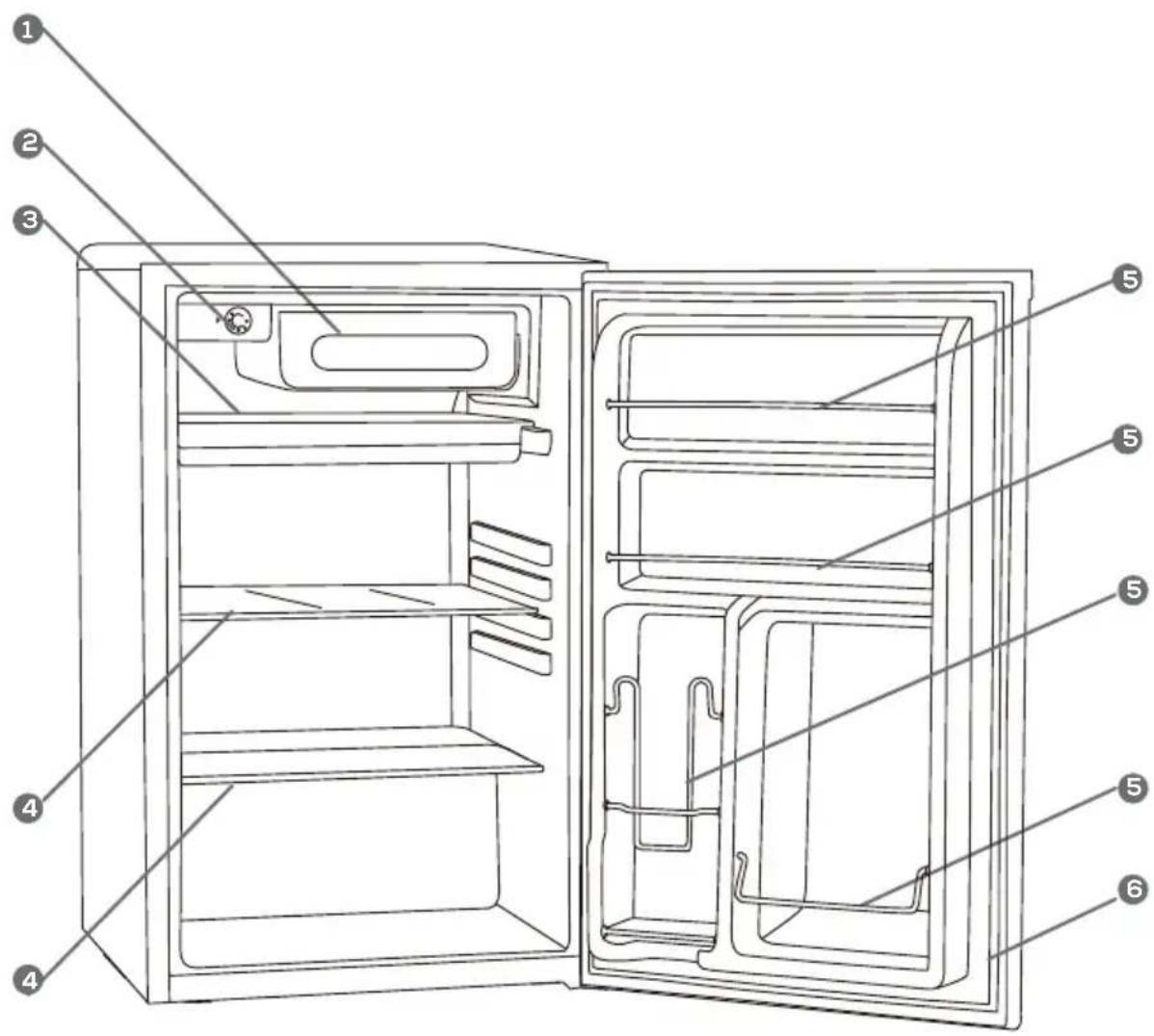

Labeled diagram of an open refrigerator showing six interior compartments with numbered parts for identification.

1 CHILLER COMPARTMENT
2 THERMOSTAT
3 DRIP TRAY
4 GLASS SHELF
5 BOTTLE STORAGE

6 DOOR GASKET

OPERATION (CONT.)

REVERSING THE DOOR POSITION

CAUTION

To avoid injury to yourself and/or property, we recommend someone assist you during the door reversal process.

• Ensure the appliance is unplugged and empty.
• Adjust the two leveling feet to their highest position.
  • We recommend you have someone to assist you.

Note:

To take the door off, it is necessary to tilt the appliance backward. You should rest the appliance on something solid, e.g. a chair just below the top panel.

DO NOT lay the appliance completely flat, as this may damage the coolant system.

TOOLS REQUIRED (NOT INCLUDED)

10 mm Socket Screwdriver

Philips Style Screwdriver

FRIDGE COMPONENTS

1× Upper Hinge Bracket
1× each Leveling Foot
4× Machine Screw
1× Bottom Hinge Bracket

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a table with three circular components and dashed lines indicating measurement or alignment (no text or symbols)

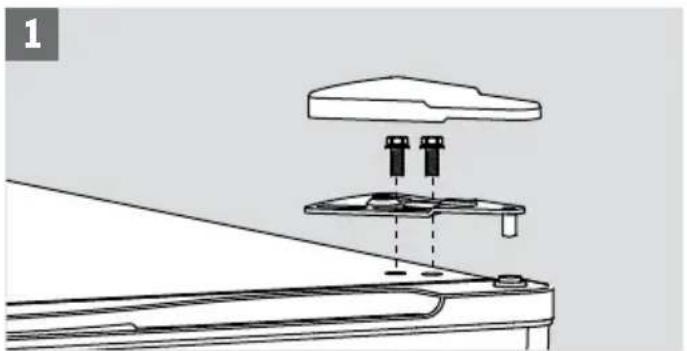

Remove the upper hinge cover, then unscrew the upper screws of the metal hinge bracket and take off the hinge. Then take off the left side screw covers. Pull the appliance door upward to take it off.

Technical line drawing of a mechanical assembly with no visible text or symbols

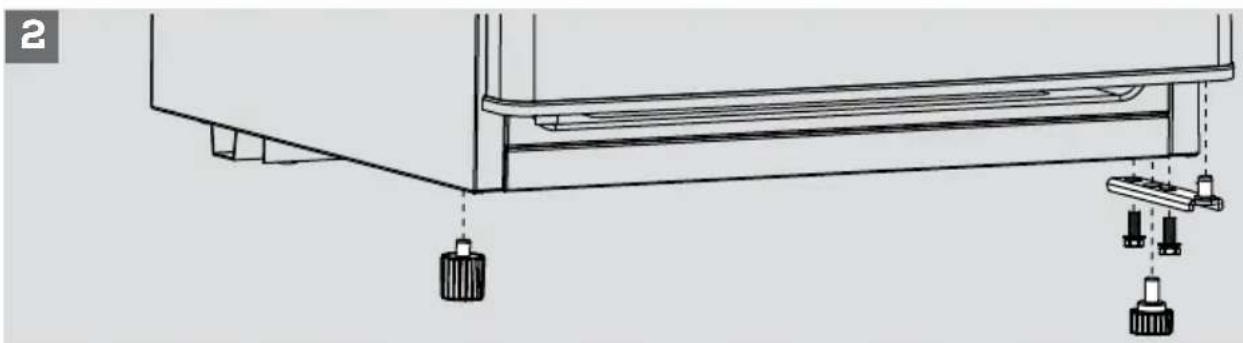

Remove the left leveling foot, the bottom hinge bracket by unscrewing the mounting screws.

OPERATION (CONT.)

3

Technical line drawing of a mechanical bracket with screws and a gear assembly (no text or symbols)

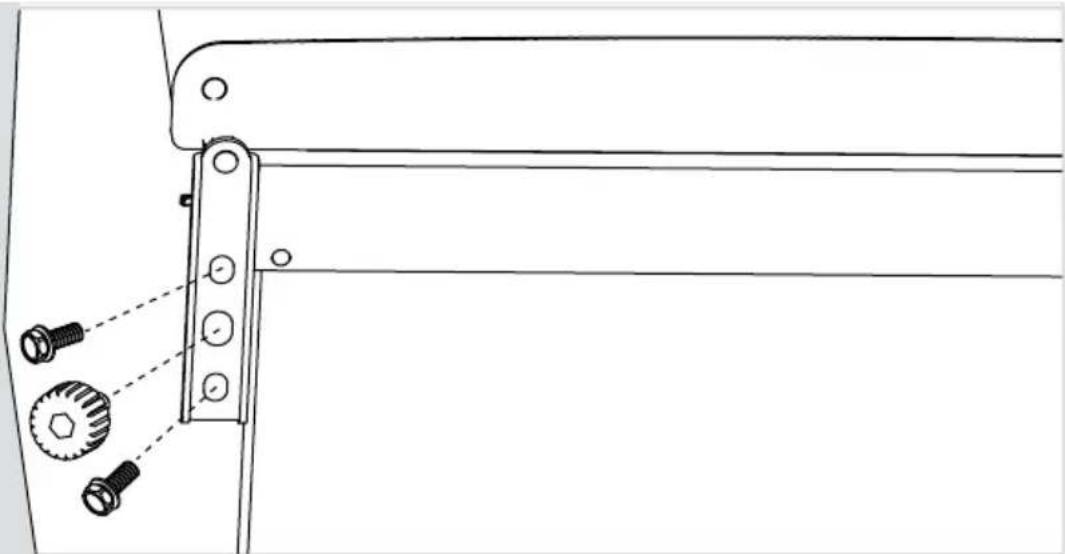

Install the leveling foot and the bottom hinge backet on the new bottom side. Then tighten the bottom hinge bracket.

4

Technical line drawing of a mechanical assembly with bolts and a bracket (no text or symbols)

Technical line drawing of a mechanical bracket with mounting holes and a diagonal guide (no text or symbols)

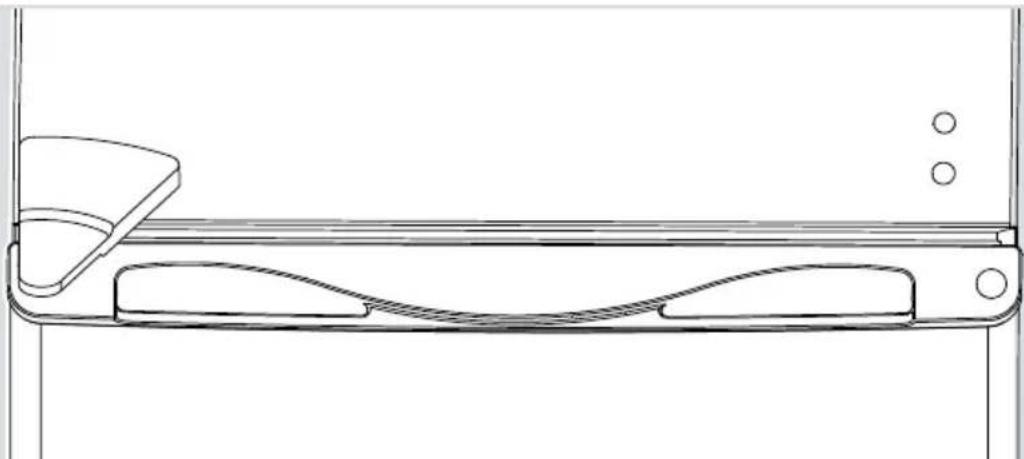

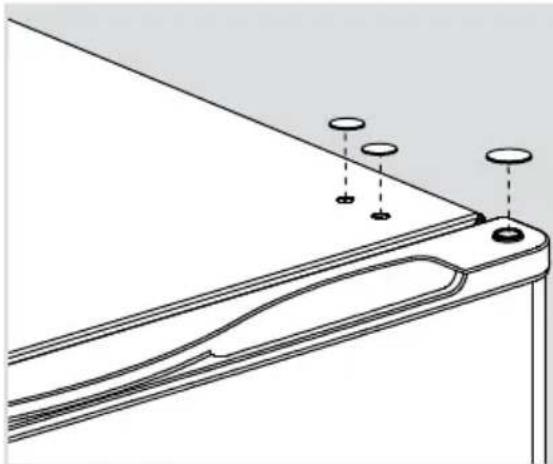

Slot the appliance door into the bottom hinge pin. Replace the upper hinge bracket on the new side and check the fitting between the door/hinge moving smoothly. Then tighten the screws of the upper hinge bracket. Replace the hinge cover and the right side screw covers. Then tighten the the top hinge cover.

5

Technical line drawing of a mechanical component with no visible text or symbols

Check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the upper hinge. Readjust the leveling feet.

TROUBLESHOOTING

The refrigerator will not operate:

• The power supply cord is unplugged.
• The thermostat knob is set to the "0" position.
• A household fuse or circuit breaker has tripped.

Food in the refrigerator compartment is freezing:

- The thermostat knob is set too cold.

Food in the refrigerator compartment is not cold:

• The air vents on the drip tray are blocked in the compartment; this prevents the movement of cold air.
• The door is opened too often or not closed properly.
• A large amount of food has just been added to the refrigerator or chiller compartment.
• The position of thermostat knob is adjusted too low.

The refrigerator seems to make unusual noise:

• The refrigerator is not leveled on the floor.
• The body of the refrigerator touches a wall.
  • The drip tray is not placed properly.

There is interior moisture build-up:

• The door is opened too often or not closed properly.
  • The room is humid.
  • The food is not packaged correctly.

The door will not close completely:

• Food packages are keeping the door from closing properly.
  • The shelves are out of position
  • The gaskets are dirty.
  • The refrigerator is not level.

Line drawing of a rectangular container or shelf with a flat top and side margin (no text or symbols)

MANUEL DE L'UTILISATEUR

CONSIGNES DE SÉCURITÉ IMPORTANTES

VEUILLEZ SUIVRE LES PRÉCAUTIONS CI-DESSOUS POUR VOTRE NOUVEAU RÉFRIGÉRATEUR

MISE AU REBUT CORRECTE

Diagram showing a hand holding an electrical plug connected to a power outlet, with three labeled parts.

Diagram of an electrical switch or relay with numbered components and wiring connections

CARACTÉRISTIQUES

PORTE FERMÉE

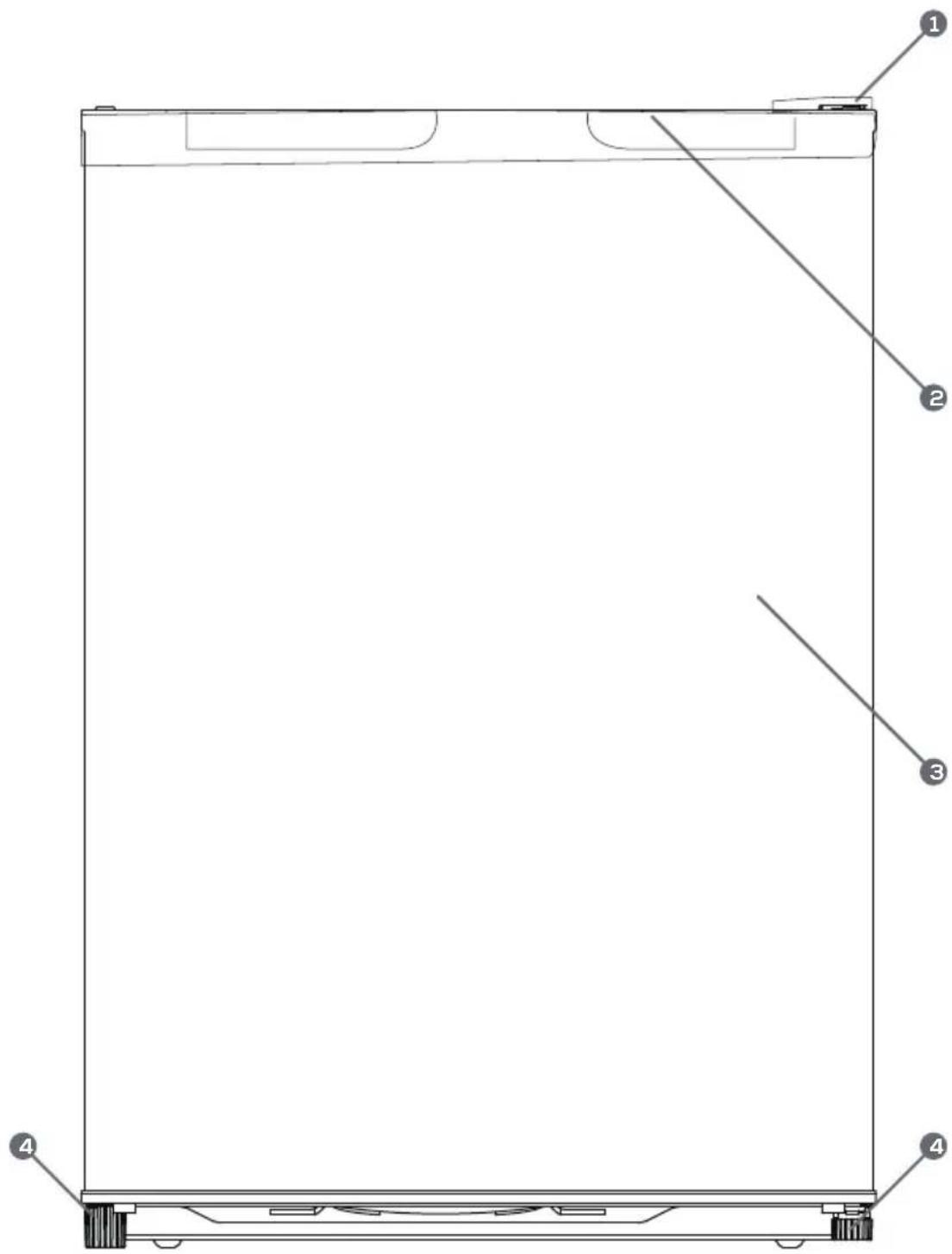

Technical diagram of a rectangular device with numbered annotations pointing to different components.

1 CHARNIÈRE SUPÉRIEURE

2 POIGNÉE

3 RÉFRIGÉRATEUR PORTES

4 PIEDS DE NIVELLEMENT

CARACTÉRISTIQUES

PORTE OUVERTE

Technical diagram of an open refrigerator with numbered parts for identification

1 REFROIDISSEUR COMPARTIMENT
2 THERMOSTAT
3 ÉGOUTTOIR
4 PLATEAU EN VERRE
5 BOUTEILLE STOCKAGE

6 JOINT DE PORTE

OPÉRATION (CONT.)

INVERSION DE LA POSITION DE LA PORTE

MISE EN GARDE

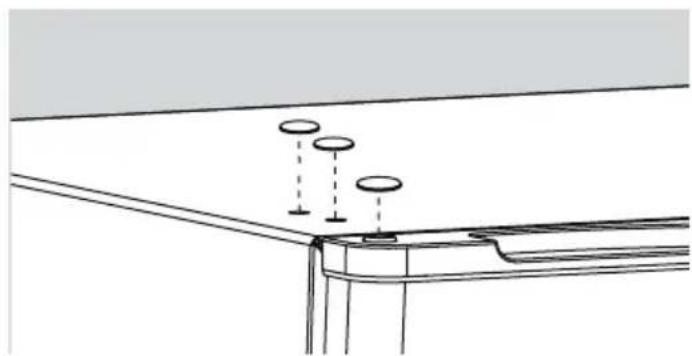

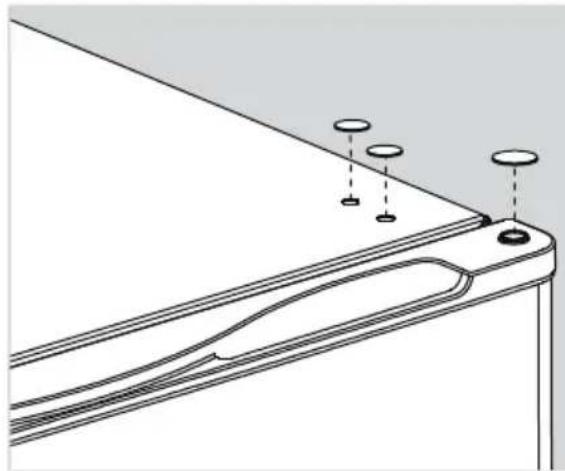

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a structural support frame with three circular components and vertical dashed lines indicating hidden edges (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical bracket with screws and gears (no text or symbols)

Technical line drawing of a mechanical assembly with bolts and a bracket (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a curved edge (no text or symbols)

Line drawing of a mechanical component with no text or symbols
