TFR441-C - Refrigerator THOMSON - Free user manual and instructions

Product Type	Free-standing Refrigerator
Brand	Thomson
Model	TFR441-C
Total Gross Capacity	200 L
Refrigerator Net Capacity	180 L
Freezer Net Capacity	20 L
Energy Efficiency Class	A+
Annual Energy Consumption	150 kWh
Climate Class	N-ST
Noise Level	42 dB(A)
Dimensions (H x W x D)	1400 x 550 x 600 mm
Weight	35 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	100 W
Refrigerant	R600a
Defrost System	Automatic (frost-free)
Adjustable Thermostat	Yes, dial control
Interior Light	LED
Shelves Material	Tempered glass
Door Reversibility	Yes, reversible door
Cleaning & Maintenance	Clean interior with mild soap; defrost freezer compartment regularly
Safety Features	Stabilizer legs; temperature fuse; child lock on door handle
Spare Parts Availability	Shelves, door bins, thermostat available from authorized service
Repairability Index	7.5/10

Frequently Asked Questions - TFR441-C THOMSON

How do I adjust the temperature on my Thomson TFR441-C fridge?

The thermostat dial is located inside the refrigerator compartment. Turn it clockwise to lower the temperature and counterclockwise to raise it. The recommended setting is medium (3-4).

How to defrost the freezer compartment?

This model is frost-free, so manual defrosting is not required. However, if ice builds up, unplug the appliance, leave the door open, and allow ice to melt. Do not use sharp tools.

Why is my refrigerator not cooling properly?

Check if the thermostat is set correctly, ensure the door is fully closed, and that the condenser coils (at the back) are clean. Also, avoid overloading the fridge.

How to clean the interior of the fridge?

Unplug the fridge and remove all food. Wipe with a soft cloth dipped in warm water and mild detergent. Rinse with clean water and dry thoroughly before restocking.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the user manual for step-by-step instructions. Typically, you need to remove hinges and reposition them on the opposite side.

What does the 'E' error code mean?

An 'E' error usually indicates a sensor fault. Try unplugging the fridge for 10 minutes and plugging it back in. If the error persists, contact Thomson customer service.

Is there a child lock feature?

Some models include a child lock on the door handle. Refer to your manual to see if your model has this feature. If equipped, activate it by turning the lock mechanism.

How much energy does this fridge consume?

The Thomson TFR441-C has an annual energy consumption of approximately 150 kWh, earning it an A+ energy efficiency rating.

What is the capacity of the fridge?

The total gross capacity is 200 liters, with about 180 liters for the refrigerator and 20 liters for the freezer compartment.

Where can I find spare parts?

Spare parts such as shelves, door bins, and thermostats are available through authorized Thomson service centers. Check the support section on the official website.

USER MANUAL TFR441-C THOMSON

User Manual

TFR441-C

THOMSON™ and the THOMSON™ logo are trademarks of Curtis International Ltd.

THOMSON™

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

SAFETY REQUIREMENTS

DANGER: Risk of fire or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing.

• Do not use mechanical devices to defrost refrigerator.
• Ensure that servicing is done by factory authorized service personnel, to minimize product damage or safety issues.
• Consult repair manual or owner's guide before attempting to service this product. All safety precautions must be followed.

- Dispose of properly in accordance with federal or local regulations.

- Follow handling instructions carefully.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

CAUTION: Children should be supervised to ensure that they do not play with the appliance.

DANGER: Risk of child entrapment. Before throwing away an old appliance:

• Remove the door or lid.
• Leave shelves in place so that children may not easily climb inside. This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments; • Bed and breakfast type environments; • Catering and similar non-retail applications.

SAFETY REQUIREMENTS

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

GROUNDING INSTRUCTIONS

This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.

LOCATION

• Two people should be used when moving the appliance.
• Remove interior and exterior packaging prior to installation. Wipe the outside of the appliance with a soft, dry cloth and the inside with a lukewarm wet cloth.
• Place the appliance on a floor that is strong enough to support it when it is fully loaded.

- Do not place the appliance in direct sunlight or near sources of heat, such as a stove or heater, as this can increase electrical consumption. Near sources of heat, such as a stove or heater, can cause the appliance to perform improperly.

- Do not use the appliance near water, for example in a wet basement or near a sink.

- This appliance is intended for household use only. It is not designed for outside installation, including anywhere that is not temperature controlled (garages, porches, vehicles, etc.).

- Before connecting the appliance to a power source, let it stand upright for approximately 6 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

- This appliance is 52.6 cm (20.7 inches) wide by 83.3 cm (32.8 inches) high by 53 cm (20.9 inches) deep. Make sure that you leave the minimum amount of space between the appliance and all surrounding walls and vents.

- Allow 12.7 cm (5 inches) of space between the back of the appliance and the wall. Allow 5 cm (2 inches) between the sides and top of the appliance and any walls or counter tops.

- This appliance is intended for free-standing installation only and is not intended to be built into a cabinet or counter. Building in this appliance can cause it to malfunction.

THOMSON™

OPERATING INSTRUCTIONS

FEATURES

1. Freezer Compartment with Door
2. Thermostat Dial and Push Button Defrost
3. Drip Tray
4. Glass Shelves
5. Magnetic Gasket: Tight fitting door seal keeps all the cooling power locked inside.
6. Door Liner With Can Dispenser: Holds 355ml cans of pop, juice, or beer.
7. Bottle Rack: For tall, small and medium cans or jars.
8. Leveling Leg: Adjust so the unit is level.

TEMPERATURE SELECTION

The temperature of the appliance can be adjusted by turning the thermostat dial.

The thicker, darker part of the blue line is the coldest setting.

The thinner, lighter part of the blue line is the warmest setting.

The "O" position will turn off the cooling function.

If the temperature control knob is set to the maximum setting, the compressor may run continuously. This is the coldest mode. Please do not adjust to the maximum setting frequently.

The internal temperature of the appliance can vary based on the ambient temperature, the quantity of items stored, and how frequently the door is opened.

LEVELING INSTRUCTIONS

There is an adjustable foot on the bottom of the appliance that can be turned up or down to ensure that the appliance is level.

1. Turn the leveling foot counter-clockwise until the top of the foot is touching the bottom of the cabinet.
2. Slowly turn the leveling foot clockwise until the appliance is level.

DEFROSTING THE APPLIANCE

This refrigerator is equipped with a "Push Button" defrost system. To activate the defrost cycle, push the red defrost button located on the center of the thermostat dial. The defrost cycle is initiated immediately.

When defrosting is complete, the red button will release and the refrigerator will resume normal operating conditions.

Note: If the red defrost button is pressed accidentally, it is not possible to manually deactivate the defrost cycle. The defrost cycle must be allowed to run its course.

Defrosting the refrigerator should take place whenever ice build-up inside the freezer compartment reaches 6 mm (1/4") thick. Defrosting may take a few hours, depending on the amount of accumulated ice and ambient indoor temperature.

To speed up the defrosting process, remove all frozen foods from the freezer section and leave the door open for a short period of time.

Monitor the refrigerator closely during the defrosting process to avoid water spilling and causing damage to flooring or counter tops.

Important: Remember to close the refrigerator door before the defrost cycle terminates and normal operating conditions resume. The drip tray should be in position directly below the freezer compartment to catch condensed water during defrosting.

Note: Never use sharp or pointed instruments to remove ice from the freezer compartment. The freezer compartment contains refrigerated gas lines and if accidentally pierced it will render the refrigerator inoperable and void the manufacturers warranty. Do not allow the refrigerator to continue operation if the freezer compartment is pierced.

DOOR REVERSAL INSTRUCTIONS

If the appliance is placed on its back or side for any length of time during this process, it must be allowed to remain upright for 6 hours before plugging it in to avoid damage to the internal components.

1. Remove the screw securing the hinge cover and remove the hinge cover. Remove the two screws securing the upper hinge and remove the upper hinge. Remove the hinge hole covers from the top left side of the cabinet. Remove the door from the cabinet. See figure A.

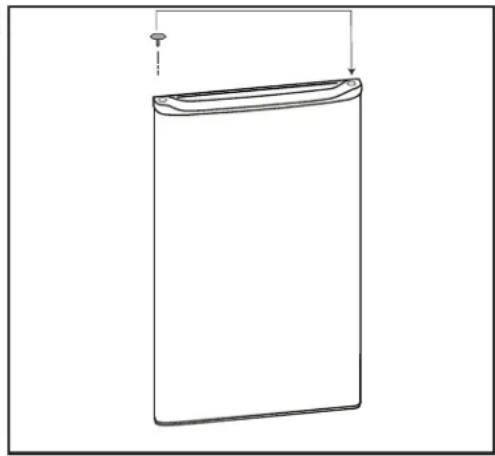

2. Remove the hinge hole cover from the top left side of the door and place it in the hinge hole on the top right side of the door. See figure B.
3. Remove the solid foot from the bottom left side of the cabinet and remove the adjustable foot and lower hinge from the bottom right side of the cabinet. Install the lower hinge and adjustable foot on the bottom left side of the cabinet and install the solid floor on the bottom right side of the cabinet. See figure C.
4. Place the door on the cabinet and install the upper hinge on the top left side of the cabinet. Before tightening the screws in the upper hinge, ensure that the top of the door is level with the top of the cabinet and that the rubber gasket is making a good seal with the cabinet all the way around. Install the hinge cover over the hinge and install the hinge hole covers in the screw holes on the top right side of the cabinet. See figure D.

A

B

C

D

CLEANING

Ensure the appliance is unplugged before cleaning.

• To clean the inside of the appliance, use a soft cloth and a solution of a tablespoon of baking soda to one quart of water or some mild detergent.
• Wash removable shelves in a mild detergent solution, then dry and wipe with a soft cloth.
• Clean the outside with a soft, damp cloth and some mild detergent.
• It is important to keep the area clean where the door seals against the cabinet. Clean this area with a soapy cloth. Rinse with a damp cloth and let dry.

Note: Do not use cleaners containing ammonia or alcohol on the appliance. Ammonia or alcohol can damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects on any part of the appliance.

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of the appliance if the door is kept closed as much as possible. If the power is going to be off for a longer period of time, take steps to protect the contents.

Note: Wait 3 to 5 minutes before attempting to restart the refrigerator if operation has been interrupted.

VACATION

• Short vacations: Leave the appliance operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking it open if necessary.

MOVING

• Make sure the appliance is empty.
• Secure the shelves inside the appliance with tape.
• Turn the adjustable leg up to the base to avoid damage.
• Secure the door with tape.
• Be sure the appliance stays in the upright position during transportation. Protect the outside of the appliance with a blanket or similar item.
• If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to remain upright for 6 hours before plugging in to avoid damage to internal components.

DISPOSAL

This appliance may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government office.

ESUAC ELBISSOPMEL
No power A fuse may be blown or the circuit breaker	trippedPlug not fully inserted into the wall outlet
Internal temperature not cold enough	Temperature setting is too warmDoor is not shut properly or opened excessivelyRecently added a large quantity of warm food to the cabinetClose proximity to heat source or direct sunlightAmbient temperature or humidity is very high
Appliance runs continuously	Temperature setting is too coldDoor not shut properly or opened excessivelyRecently added a large quantity of warm food to the cabinetClose proximity to heat source or direct sunlightAmbient temperature or humidity is very high

PRODUCT SPECIFICATIONS
MODEL NO. TFR441-C
CAPACITY OF FRIDGE IN CU FT	4.4 CU.FT.
SHELF MATERIAL	GLASS SHELVES
TEMPERATURE CONTROL TYPE	MECHANICAL
TEMPERATURE RANGE IN FAHRENHEIT AND CELSIUS	32-50°F/0-10°C
DEPTH (EXCLUDING HANDLES) (IN):	18.3
DEPTH (INCLUDING HANDLES) (IN):	20.87
DEPTH (LESS DOOR) (IN):	18.3
DEPTH WITH DOOR OPEN 90 DEGREES (IN):	34.94
HEIGHT TO TOP OF DOOR HINGE (IN):	32.80
HEIGHT TO TOP OF REFRIGERATOR (IN):	32.36
PRODUCT DEPTH (IN):	20.87
PRODUCT HEIGHT (IN):	32.8
PRODUCT WIDTH (IN):	20.7

To make a warranty claim, do not return this product to the store. Please email [e-mail] or call 1-800-968-9853.

1 Year Warranty

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us. If the product or component is no longer available, we will replace with a similar one of equal or greater value. Prior to a replacement being sent, the product must be rendered inoperable or returned to us.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as on the specified rating on the label (e.g., 120V~60Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

For faster service, locate the model, type, and serial numbers on your appliance.

For service assistance and product information, please call: 1-800-968-9853.
