USER MANUAL CAF-Z45FR TOSHIBA

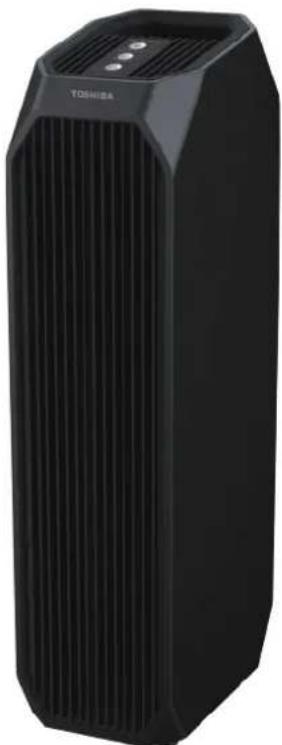

Black TOSHIBA air purifier device with ventilation grilles and control panel (no visible text or symbols on body)

Technical diagram of a three-tiered air conditioner unit with labeled components

LOW MED HIGH Reinigungsanzeige Replace filter when flashing UV-Lampe PVd Jx to next port D b E m R Is a d F H F g

WARNUNG: STROMSCHLAGGEFAHR

READ AND SAVE THESE INSTRUCTIONS

Attention:

Pictures in the IM are for reference only.

Black Toshiba air purifier with ventilation grilles and control panel (no visible text or symbols)

READ AND SAVE THESE INSTRUCTIONS

Statement

With the technological innovation and improvement of the product, the product manual contents of the same model as this product may be changed, and the updated part will not further notify.

All the illustrations shown in this manual are based on the appearance of the standard model purifier. They are for illustrative purposes only. The actual appearance of the purifier is subject to the purchased product.

Due to product improvement, some of the parameters may be changed. The changed parameters have no retroactive effect on this product. Please refer to the product nameplate parameters.

If there is any change in the content of this manual, our company will make announcement through the official website of the company without further notice one by one, and unless otherwise stated in the notice of announcement, the content of the change shall not be retroactive to this product in principle.

IMPORTANT SAFETY INSTRUCTIONS

Caution

Read Rules for Safe Operation and Instructions Carefully.

WARNING

- This appliance has a polarized plug (one blade is wider than the other).

To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

• To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Air Purifier With Any Solid-State Speed Control Device.

• Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. Always disconnect power before relamping or servicing. Never replace the UV lamp without authorized technician!

• Read all safety instructions before using the unit.

• Use only a 220-240 volt outlet.
• Please place the unit on the ground when using.
• Do not use the unit if the power cord or plug is damaged or the connection to the wall outlet is loosened.
• Periodically remove dust from the plug.
• Do not insert fingers or foreign objects into the air intake or air outlet.
• When removing the power plug, always hold the plug and never pull on the cord. Electrical shock and/or fire from a short circuit may occur as a result.

• Do not remove the plug when your hands are wet.

• Do not use this unit near gas appliances or fireplaces.

• When cleaning the unit, or when the unit is not in use, be sure to unplug the unit. Electrical shock and/or fire from a short circuit may occur as a result.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, a Toshiba Service Center or similarly qualified person in order to avoid a hazard.
• Do not operate when using aerosol insecticides or in rooms where there is oily residue, incense, sparks from lit cigarettes, chemical fumes in the air, or in locations where the unit may get wet, such as a bathroom.
• Be cautious when cleaning the unit. Strong corrosive cleansers may damage the exterior
• Only a Toshiba Authorized Service Center should service this air purifier. Contact the nearest Service Center for any problems, adjustments, or repairs.
• When carrying or removing the unit, hold the unit by handle.
• If this air purifier should cause interference to radio or television reception, try to correct the interference by one or more of the following measures:
  1) Reorient or relocate the receiving antenna of radio or TV
  2) Increase the separation distance between the unit and radio/TV receiver.
  3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
  4) Consult the dealer or an experienced radio/TV technician for help.

PRODUCT INTRODUCTION

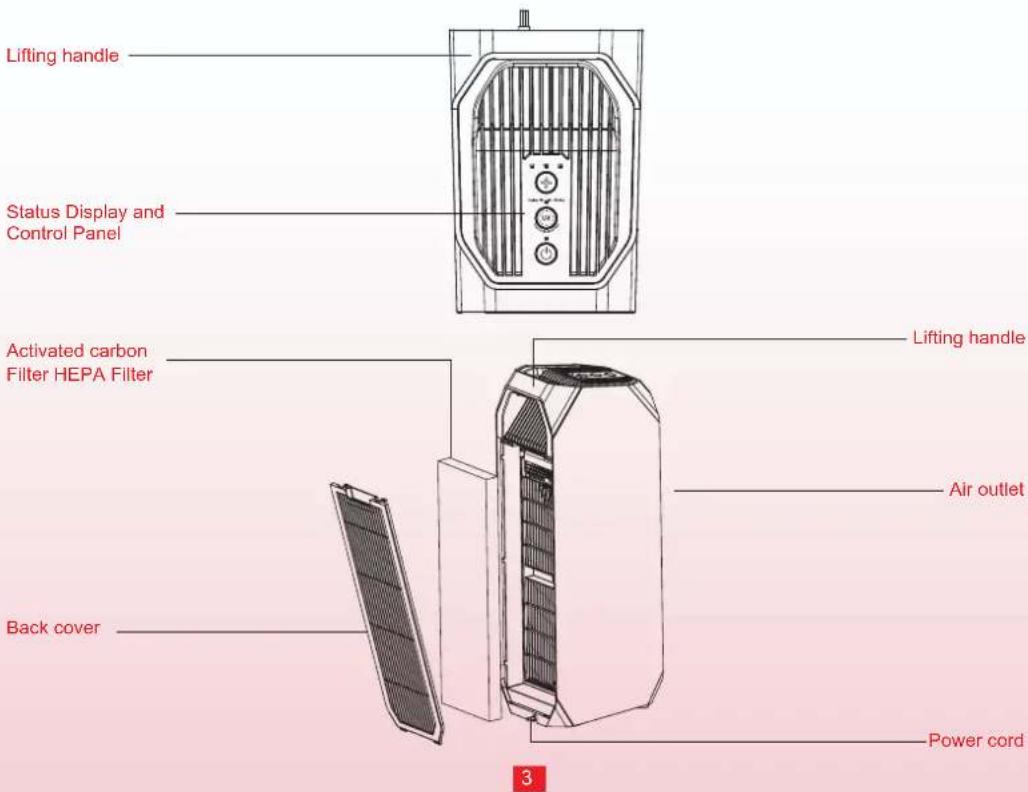

Lifting handle Status Display and Control Panel Activated carbon Filter HEPA Filter Back cover Lifting handle Air outlet Power cord 3

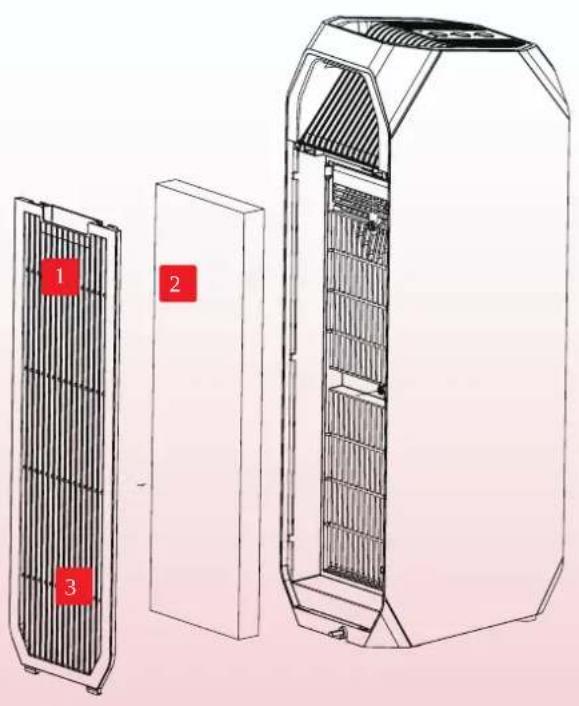

INSTALLATION

Technical diagram of a three-tiered air conditioner unit with labeled components

1 Remove the back cover

Grasp the position of wedging block and pull outwards to remove the back cover

2 Install the Filter

Hold the drawstring at both of Filter assembly and remove the Filter assembly.

Disassemble the packaging bag of the Filter.

over block e

▶ Install the Filter assembly. The activated carbon Filter is on the outside

3 Install the back cover

▶ Simultaneously slide the two left and right buckles at the bottom of the back cover into the machine body with both hands

Press the top with both hands simultaneously and insert the top two buckles into the machine body. At this time, the installation is in place.

USAGE

Purification volume button

Press this button to adjust the volume of purification, with low, medium and high grades

The status of the purification volume can be intuitively indicated by three indicators: LOW, MED, and HIGH.

UV button

Press this button to turn on the UV lamp when the switch is on, then press to off

On/off button

Press this button to start. Press again, it will shut down. This product will default to the last working gear each time you turn on the machine.

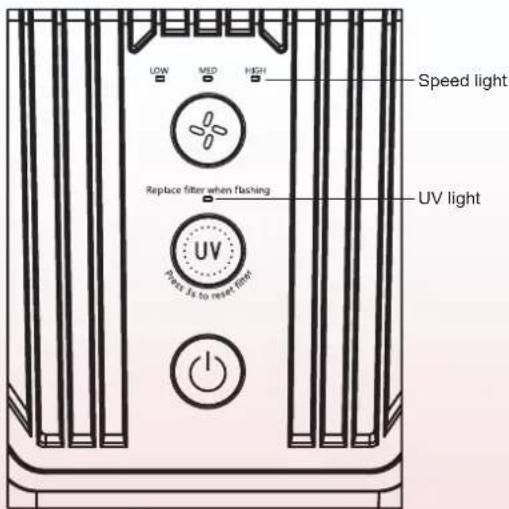

LOW MED HIGH Speed light Replace filter when flashing UV light Press Jx to Next Font

Control and Status Display Panel

This product uses a certain algorithm to calculate the life of the Filter with the opening time accumulated as a reference value.

When the filter life is reached, the UV indicator will flash, at this time to remind the user to replace the filter; After the filter replacement is completed, long press the UV button for 3 seconds to reset the filter status; after reset, the UV indicator will no longer flash.

USAGE MAINTENANCE

Correct placement

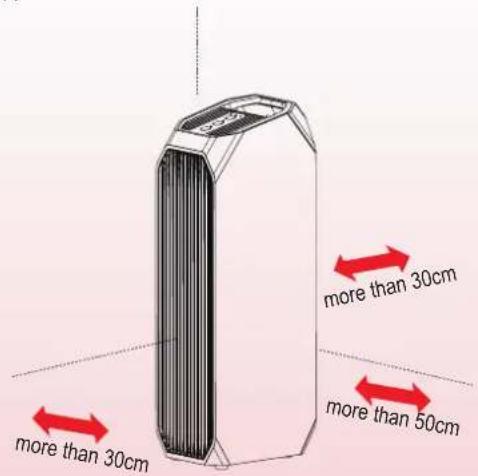

In order to achieve better cleaning effect and avoid the influence of metal shielding effect on communication, please ensure that the air purifier is more than 30cm away from the wall and other obstructions when using it, and maintain a distance of more than 50cm from the metal/appliance.

more than 30cm more than 30cm more than 50cm

READ AND SAVE THESE INSTRUCTIONS

WARNING: RISK OF ELECTRIC SHOCK

These servicing instructions are for use by qualified personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so!

Filter cleaning/replacement

Cleaning

When the UV light on the display panel flashes, it prompts you to replace the filter

Please select a filter that matches the model of the machine for replacement. Please purchase from your local authorized dealer.

For more details on the installation of the filter, please see the "installation" section.

Press the UV button for 3 seconds, the filter resets and restarts the time

• It is recommended to clean the filter twice a week and replace the filter half a year (adjust the cleaning and replacement cycle according to the use environment);
• Can not wash the filter;
• Smaller soft brushes or household vacuum cleaners are recommended for filter cleaning.
• When using the brush to clean, it should be brushed horizontally along the filter to avoid vertical brush, so as not to damage the filter;
• When cleaning with a vacuum cleaner, keep the suction outlet 5-10mm away from the surface of the filter so as not to damage the filter.
• When used under the strong odor produced by cigarettes, barbecues, etc., the filter may have an odor in a matter of weeks or months. Please clean and dry filter (2-5 days). If you still cannot eliminate the odor, replace the filter.

TECHNICAL PARAMETERS

1. The performance parameters in the table are measured before delivery and are for reference only.
2. Due to product improvement, the following parameters may be changed and shall refer to the product nameplate parameters.
3. The applicable area is according to the theoretical value calculated by (0.07 0.12) × CADR particulate matter; with the use of different environments or outdoor pollution and other factors, the applicable area will also change.
4. Purifying principle: The air purifier blows air into the machine and filters the air through the built-in filter core. It can mainly play the role of filtering dust (such as PM2.5), formaldehyde, odor, sterilization and others.

Model	CAF-Z45FR (K)
High-grade CADR _parisodes	210
Rated voltage (V)	220-240~
Rated frequency (Hz)	50
Rated power (W)	53
Noise [dB]	32-52
Dimensions (mm)	256x175x675

FAULT SELF-DETECTION

Before you ask for maintenance, please check according to the table below.

Problems encountered	Reasons Solutions
Purifier cannot run	- It is possible that the power cord is not plugged or poor contact with power cord- May not turn on the power switch- It is possible that the filter is not installed in place and safety switch is not triggered	- Please connect power and make good contact- Please turn on the power switch- Please properly install the filter and buckle the back cover
The effect is bad to eliminate smoke and odor	- It is possible that the filter assembly is not installed well- It is possible that the filter assembly has reached the end of life- It is possible that the air inlet is blocked by foreign matter	- Please properly install the filter assembly- Please replace the new filter assembly- Please remove foreign matter from the air inlet
Filter cleaning light does not extinguish	- It may be that the "UV" button is not long pressed for 3 seconds after the filter assembly is replaced.	- After cleaning the filter assembly, long press the "UV" button for 3 seconds
It is hard to eliminate the odor and smoke	- It may be that the filter assembly is also wrapped in a packaging bag	- Please remove the packaging bag outside the filter assembly

Please send it to repair in case of the following:

1. If the operation is abnormal or the machine does not operate, and the above method is invalid;
2. Substances or water from the outside have entered and abnormal operation has occurred.

Warranty policy / service

We congratulate you to your new device and are convinced that you will be satisfied and have your joy with this modern appliance.

However, if you recognize a reason for a complaint, please contact us:

Midea Europe GmbH Phone: [phone] - 0 In case of service:

Ludwig-Erhard-Str. 14 Fax: [phone] Phone: [phone]

65760 Eschborn Email: [e-mail] Fax : [phone]

Homepage: www.midea.com/de

Email:[e-mail]

In case of a technical fault, enter your exact address, telephone number, sales contract number and

Device type (from the type plate of the device).

A precise fault description saves you time and money. For special questions, please contact the customer service center.

Before calling for service:

Please check whether there is an operating error or a cause that has nothing to do with the function of your device.

Please observe the note in the user manual and check whether:

• The power plug is connected
• The power plug may be damaged
• Electricity is available

Warranty terms

This device has been manufactured and tested according to the most modern methods. The seller warrants for faultless material and proper manufacture for a period of 24 months from the date of sale to the end user. The unit is not suitable for commercial use.

When claims are submitted, the manufacturer reserves the right to make improvements to defective parts or to replace or exchange the device.

Only if it is not possible to achieve the intended use of the device by repairing or replacing the device, the buyer can demand a reduction of the purchase price or the cancellation of the purchase contract within 6 months from the date of purchase.

Claims for damages, including consequential damages, are excluded unless they are based on intent or gross negligence.

The guarantee claim exists only with submission of the product and the purchase receipt. This warranty is valid within Germany.

Importer by:

Midea Europe GmbH

*Product colour and image may vary from the actual product.

TOSHIBA

MANUEL DU PROPRIETAIRE

Black TOSHIBA air purifier device with ventilation grilles and control panel (no visible text or symbols on body)

LIRE ET CONSERVER CES INSTRUCTIONS

Déclaration

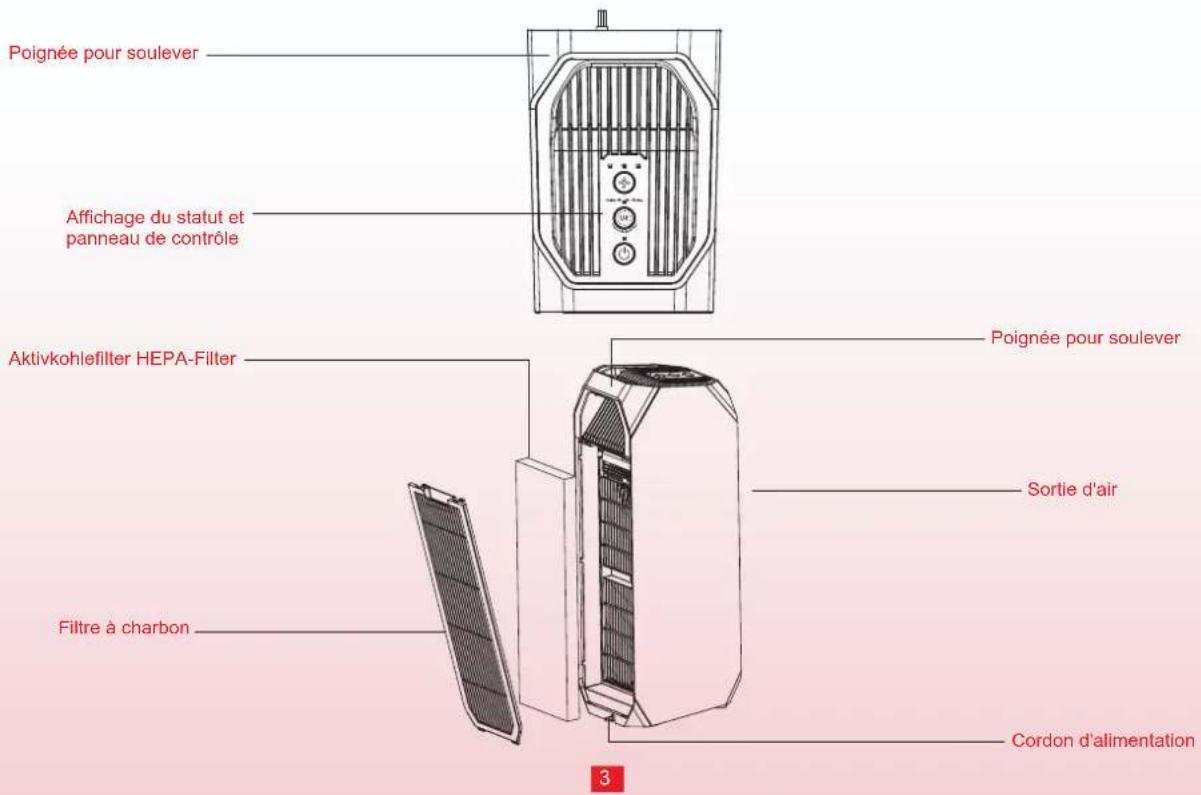

PRESENTATION DU PRODUIT
