EAF5B - Deep fryer ELECTROLUX - Free user manual and instructions

Product type	Air fryer
Brand	Electrolux
Model	EAF5B
Voltage	220-240 V
Power	1500 W
Frequency	50-60 Hz
Capacity	5 L
Main functions	Air frying, Oven, Reheating
Preset programs	Fries / Frozen snacks, Vegetables, Chicken, Steak, Fish
Timer	0-99 minutes
Temperature	Adjustable (range not specified)
Display	Digital screen
Control type	Buttons and screen
Heating indicator	Yes
Shake reminder	Yes, with beep
Included accessories	Basket, drip tray, MultiCoaster (cork board)
Cleaning of basket and drip tray	Dishwasher safe or washable in warm water
Coating	Non-stick
Safety	Automatic shut-off at end of cooking, hot surfaces indicated
Basket release	Button with transparent cover
Power supply	Mains, power cord

Frequently Asked Questions - EAF5B ELECTROLUX

How to preheat the Electrolux EAF5B air fryer?

Select the Bake function to activate preheating. The timer only starts once the temperature is reached. You can skip preheating by pressing the Start/Pause button.

What to do if white smoke comes out of the appliance?

Check that the food is not too greasy and that the drip tray and basket are clean. First use may also produce slight smoke due to manufacturing residues.

How to clean the basket and drip tray?

Unplug the appliance and allow it to cool. Wash the basket and drip tray in warm water with dish soap or place them in the dishwasher. Avoid abrasive products to protect the non-stick coating.

What is the MultiCoaster used for?

The MultiCoaster is a cork board placed on top of the appliance. It serves as a rest for the hot basket, a space to place utensils, or as a serving tray at the table. It is removable.

How to use the shake reminder?

When the Shake reminder icon flashes and the appliance emits three beeps, shake or turn the food for even cooking. This reminder is optional and cooking continues normally.

Can I use metal utensils in the basket?

No, use heat-resistant but non-metal utensils to avoid damaging the non-stick coating. Also avoid sharp objects.

What do error codes E1 and E2 on the screen mean?

E1 indicates a thermostat problem (break or disconnection) and E2 a thermostat short circuit. The appliance must be repaired by an authorized after-sales service.

What is the maximum capacity of the basket?

Do not exceed the MAX line indicated in the basket. The total capacity of the appliance is 5 liters, but recommended quantities vary by food (see cooking guide).

The appliance does not turn on, what to check?

Make sure the cord is plugged in, the basket and drip tray are correctly inserted until they click, and the timer is set. Otherwise, the appliance will not turn on.

Can I wash the outer casing with water?

No, never immerse the appliance, cord, or plug in water. Clean the exterior with a soft, damp cloth. Only the basket and drip tray can be washed in water or the dishwasher.

USER MANUAL EAF5B ELECTROLUX

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Air Fryer

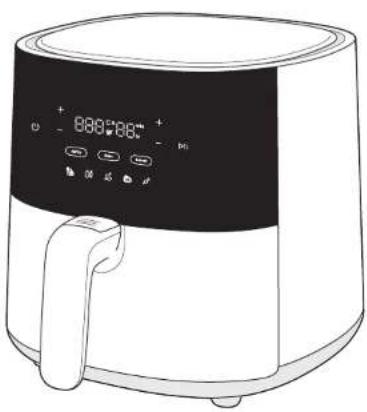

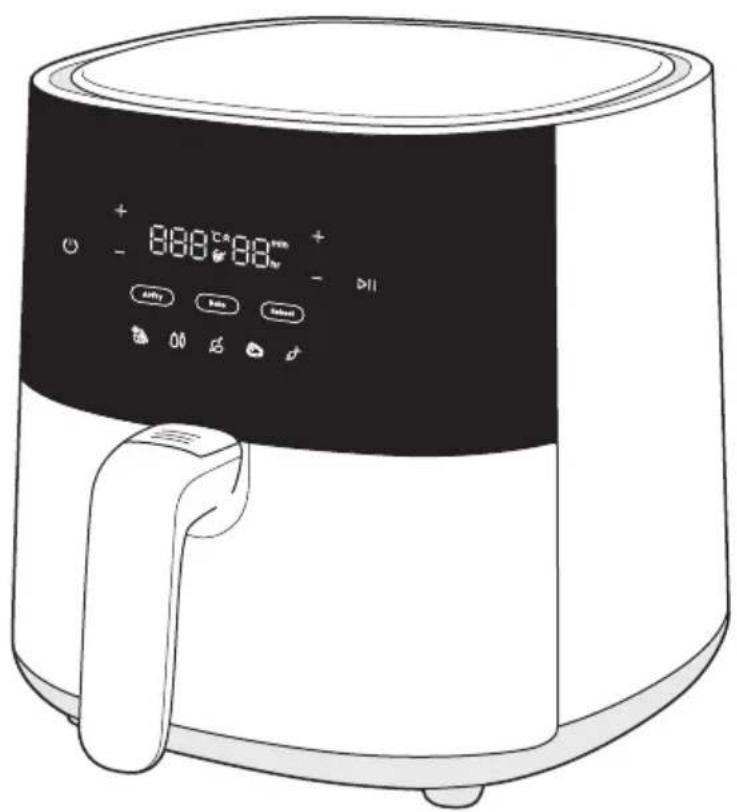

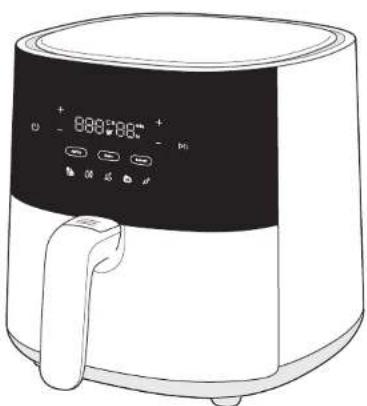

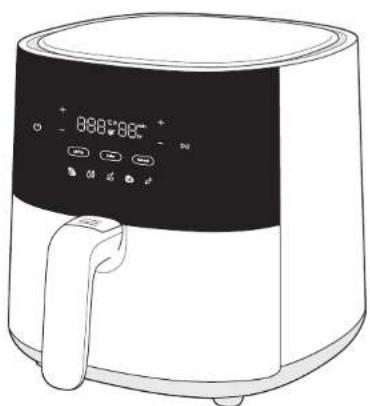

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols on the device itself)

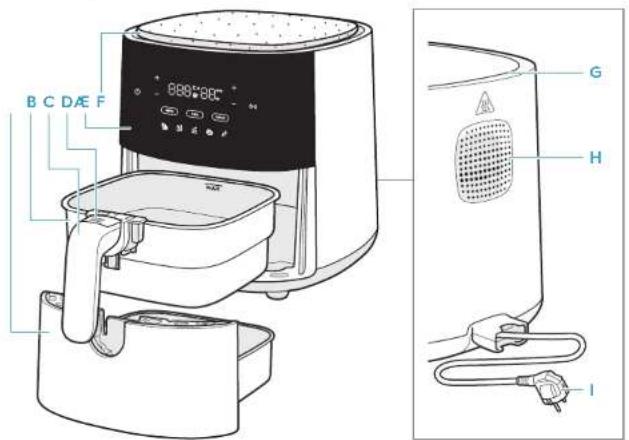

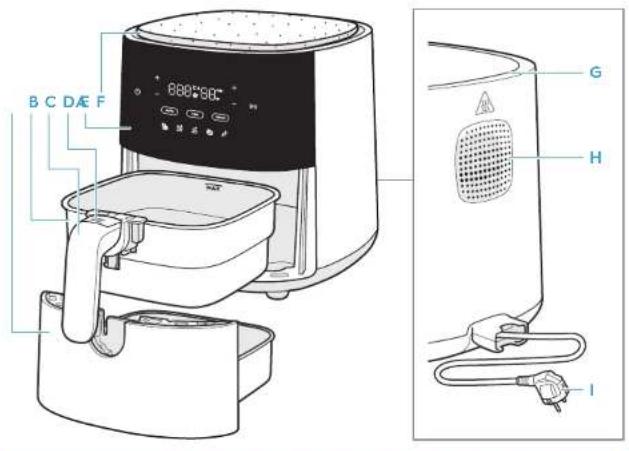

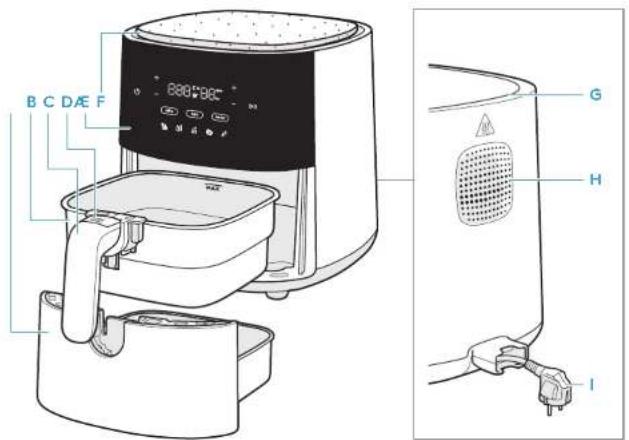

General Overview

A Pan
D Basket release
F MultiCoaster
H Air outlet
B Basket
button
G Air inlet
1 Main cord

Accessories may very from model to model

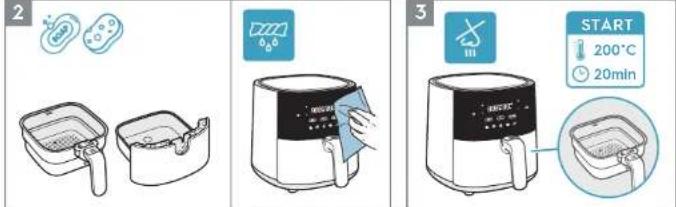

Before first use

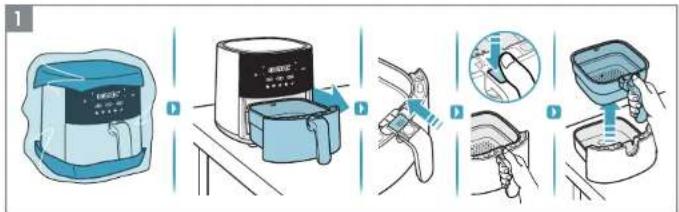

1. Remove all the packaging and protective material.

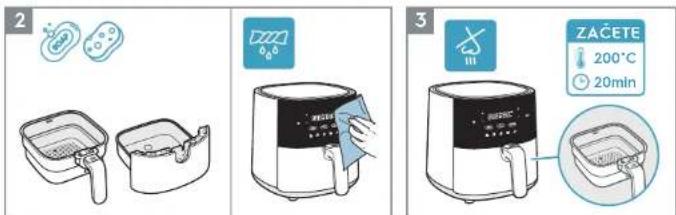

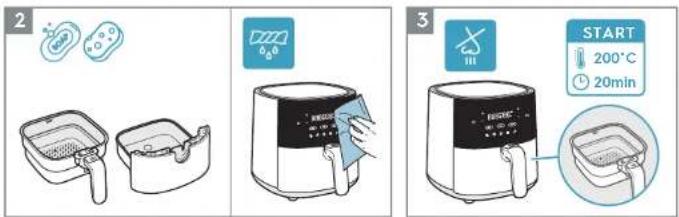

1. Clean the basket and pan with warm water and dish soap. Wipe inside and outside of the appliance with a soft cloth.
2. It is normal for a new unit to emit odors the first few times it is operated. Run the empty air fryer at 200°C for 20 minutes minutes before first use to avoid that.

How to use

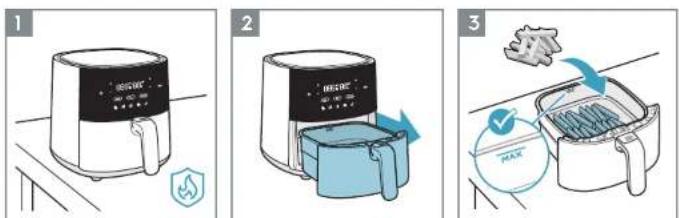

1. Place the appliance on a flat, stable and "heat-resistant" surface.
2. Pull out the pan and place it on a stable surface.
3. Put the food in the basket, observing the "MAX." capacity indication.

4

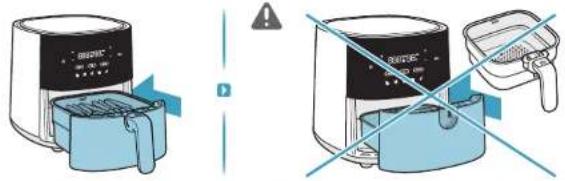

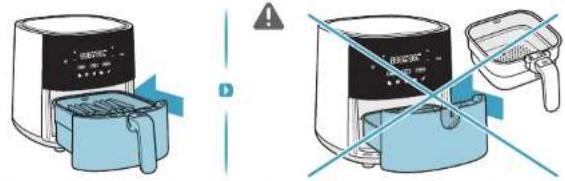

1. Push the pan with food completely back into the appliance.
   CAUTION: Do not use the appliance without the basket.

6

7

8

9

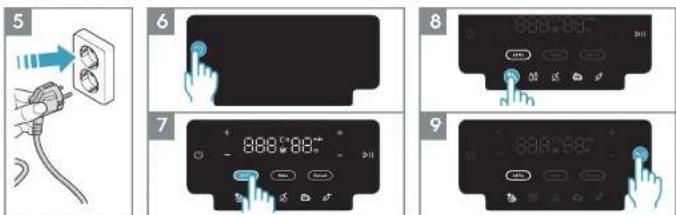

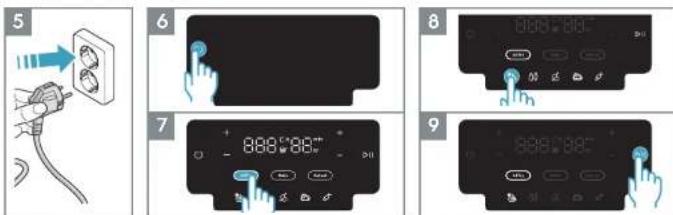

5. Plug in the appliance.
6. Press the On/Off button.
7. Select the desired cooking method. For example, Air Fry function
8. Adjust the time and temperature to your taste or select one of the pre-set recipes. For example, French Fries.
9. Press the Play/Pause button

10

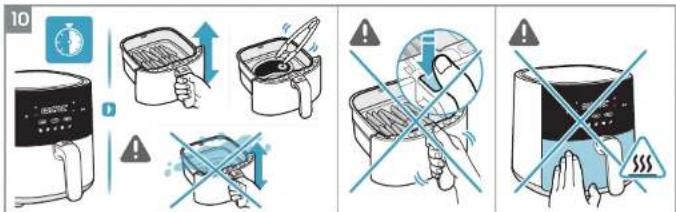

10. Depending on the type of ingredient, flip the food mid-cooking or every 7 minutes by using a heat-resistant tool or by just carefully shaking the food inside the basket. (see Cooking Guide).
CAUTION: Be careful not to press the "Basket Release Button" when shaking the food.
CAUTION: Be careful with hot surfaces when the appliance is in use.

11. At the end of the cooking time, the appliance will issue a beep signal.
12. Carefully remove the pan and place it on a heat-resistant surface.
13. To remove the basket from the pan, follow these instructions:

- Slide the transparent button cover

- Press the "Basket Release Button"

- Lift the basket from the pan

CAUTION: Hot steam can come out of the basket when it is opened mid or at the end of cooking. Make sure your face, arms and hands are away from the steam when opening it.

14

15

14. Unplug the appliance after using it.
15. The versatile MultiCoaster fits on top of the air fryer as a space-saving hotplate for the cooking basket or resting place for tools and spices when cooking. It's also removable to use at the table when serving food from the hot basket.*
*Accessories may vary from mode to model.
NOTE: Be careful with oil to avoid stains on the cork material.

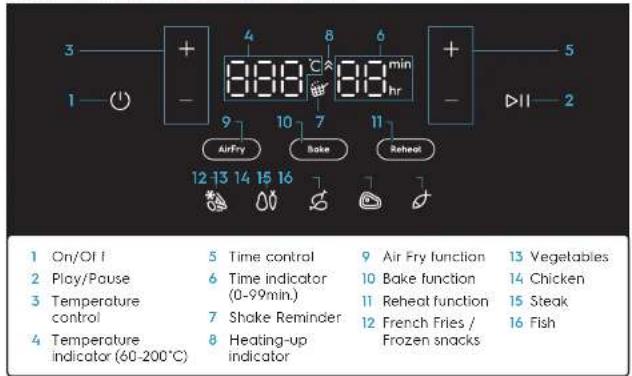

Heating-up indicator

Shake Reminder

Heating-up indicator.
The "Heating-up indicator" is activated when the "Bake function" is selected, and it works as a pre-heat function so that the air fryer has the ideal temperature before cooking your favorite baked recipes. The timer only starts to count down once the pre-heating has finished.
If wished, you can skip the pre-heating step by tapping the "Play/Pause" button. The display will then show the target temperature, while the "Heating up indicator" icon will turn off and the timer will start to count down.
Shake Reminder
The "Shake Reminder" is activated during the pre-sets of some recipes, such as French Fries/Frozen Snacks, Vegetables and Chicken.
When it is time to shake or flip your food, the "Shake Reminder" icon will light up and blink for one minute, while a beep sound will repeat for three times.
The "Shake Reminder" is not mandatory, hence the cooking will continue as usual even if the food is not flipped or shaken.

Cooking Guide

				[ST56]		[X340]
	3	15-3 °C
	300 000g	20 000min	100 ~
[5T6S]	11	10-2 °C	[KX70]
[CKWC]	10	10mi
	11	10mi		[3ZZK]
	11	10~3 °C
	11	1 180°C
[BT8C]	81 [NCWC]	9 45- 0°C		[H80X]
	11	10-1: °C
	11	10mi [7CVS]
-ZHCD]		70°C

Cleaning

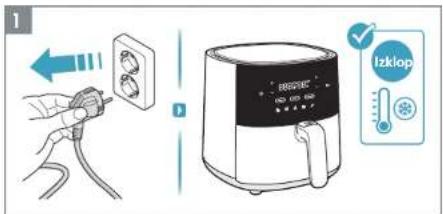

1. Always unplug the appliance and wait until it cools down before cleaning it.
2. Wipe the outside of the appliance with a soft cloth.

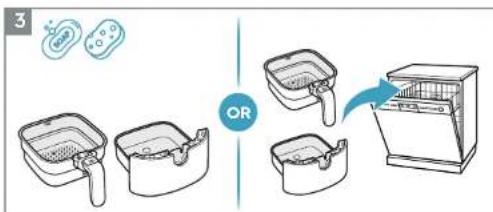

1. Clean the basket and pan with warm water and dish soap, or place them in the dishwasher NOTE: Avoid using abrasive cleaning products or metal tools in order to protect the non-stick coating.
   CAUTION: Never submerge the product, its cord or plug in water or any other liquid.

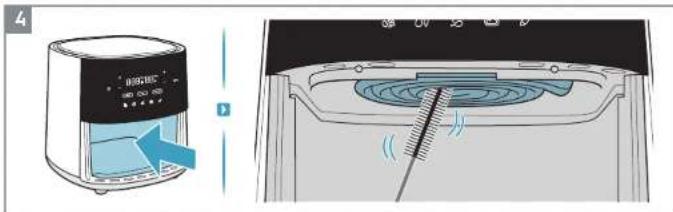

1. Clean the heating element with a cleaning brush
   NOTE: Ensure the appliance is completely cooled down before cleaning the heating element.

What to do if...

Problem	Check if...
You cannot activate or operate the appliance.	The appliance is correctly connected to an electrical supply.The basket and pan are in the correct position.Ensure they are completely pushed into the appliance to enable the electrical supply.The cooking time is set.
You cannot slide the pan into the appliance.	The basket is filled over its maximum capacity.The basket is placed correctly. It has to click when you place it in the pan.There's an object under the pan that is an obstacle to close it properly.
White smoke comes out of the appliance.	The food you prepare is too greasy.The pan and the basket are clean.
The display shows E1	The temperature sensor is cutting out or disconnecting.
The display shows E2	The temperature sensor has short-circuited.

* In case the display shows E1 or E2 error, the appliance must be repaired by a Service Center.

Technical Data

Product	Air Fryer
Model	EAF3B, EAF3CG	EAF5B, EAF5CG	EAF7B, EAF7CG
Voltage (V-)	220 V - 240 V	220 V - 240 V	220 V - 240 V
Power (W)	1350 W	1500 W	1800 W
Frequency (Hz)	50 - 60 Hz	50 - 60 Hz	50 - 60 Hz
Capacity	3.3 L	5 L	6.8 L

Electrolux

Safety advice

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Air Fryer

EN USER MANUAL

HR ZA KORISNIKE

CZ NÁVOD K POUŽITÍ

DK BRUGSANVISNING

EE KASUTUSIJHEND

FI KÄYTTÖOHJE

FR NOTICE D'UTILISATION

GE

HU HASZNÁLATI ÚTMUTATÓ

IT LIBRETTO DI ISTRUZIONI

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have received instruction concerning how to safely use the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.

Please keep the air fryer and the power cord out of the reach of children less than 5 years.

This appliance is intended for normal household use only.

If the power cord is damaged or broken, it must be replaced by a service agent or similarly qualified persons to avoid safety hazards.

The accessible surfaces may become hot during use.

Do not cover the air inlet and the air outlet openings while the appliance is operating.

Always return the appliance to an authorized service center for examination or repair. Do not attempt to repair the appliance yourself.

Do not place the appliance on or near a hot gas stove, any kind of electric stove, electric cooking plates or in a heated oven.

Always make sure that the plug is inserted into the socket properly.

Keep the mains cord away from hot surfaces or sharp objects to avoid damage.

Never put anything flammable, explosive or corrosive in the basket.

Do not excessively pinch, bend, twist or place heavy objects on the power cord to prevent from exposing or breaking its core.

Do not use the appliance if the plug, the main cord or the appliance itself is damaged.

Never start cooking without the basket being in place.

Do not fill up the basket above the "MAX" line in order to prevent food contact with the heating element.

Do not touch the basket directly with your hands during or right after use to avoid getting scalded.

Do not use any plastic utensils or normal paper wrapping materials to wrap food for cooking.

Do not insert pins, wires or other objects into any of the openings of the air fryer to avoid an electrical shock or injury.

Please be sure to unplug the air fryer before cleaning or repairing it.

Do not move or shake the air fryer during use.

Do not insert any foreign objects into the safety switch to avoid any danger.

CAUTION: Hot surfaces.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol 📋. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances.

Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Electrolux reserves the right to change products, information and specifications without notice.

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy accessories and consumables for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

When contacting the service center, ensure that you have following data available. The information can be found on the rating plate.

① For Switzerland:

Where should you take your old equipment?

Anywhere that sells new equipment or hand it in to official SENS collection points or official SENS recycling firms.

The list of official SENS collection points can be found at www.erecycling.chseconds

Electrolux

Upute za upotrebu

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols)

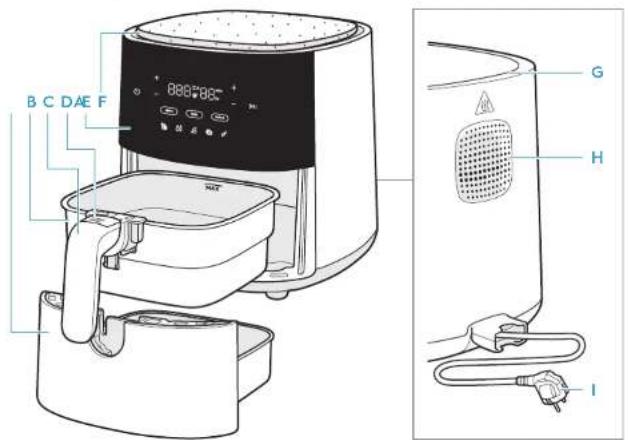

Opći pregled

A Tava

B Košarica

C Ručka košarice

D Gumb za

otpustanje kosorice

Upravljačka ploča

F MultiCoaster

G Ulaz zraka

H Odvod zraka

Glavni kabel

za napajanje

Dodatna oprema može se razlikovati od modela do modela

1. Uklonite ambalažu i zaštitni materijal.

2

1. Očistite košaricu i posudu toplom vodom i sredstvom za pranje posuđa. Mekom krpom obrišite unutrašnjost i vanjski dio uređaja.
2. Normalno je da novi uređaj ispušta mirise prvih nekolika puta kada se koristiupotrebljava. Kako biste to izbjegli, prije prve upotrebe ostavite praznu fritezu da radi 20 minuta na 200 °C.

Način upotrebe

1. Uredaj postavite na ravnu, stabilnu i površinu otpornu na toplinu.
2. Izvucite posudu i postavite je na stabilnu površinu.
3. Stavite hranu u košaricu pazeći na pokazatelj kapaciteta „MAX”.

4

1. Posudu gurnite u uređaj tako da sva hrana bude u njemu.
   ▲ OPREZ: Ne upotrebljavajte uređaj bez košarice.

Three-panel illustration showing a portable stove with a side panel, a side-mounted rack unit, and a second empty storage unit (no text or symbols)

1. Nakon upotrebe isključite utikač iz utičnice.

2. Svestrani MultiCoaster može se stavili iznad frileze kao grijaclo ploča koja štedi prostor za košaricu za pećenje ili kao podložak za ostali pribor i začine u tijeku pećenja. Može se upotrebljavati i za stolom kada se poslužuju namimice iz vruće košarice.*

1. Grijac očistite četkom.
   NAPOMENA: Prije čišćenja grijaceg elementa provjerite je li se uređaj potpuno ohladio.

Što učiniti kad...

Problem	Provjerite...
Ne možete uključiti uređaj ili rukovati njime.	• ...je li uređaj pravilno spojen na električno napajanje.• ...jesu li košarica i posuda u ispravnom položaju. Uvjerite se da su potpuno gurnute u uređaj kako bi se omogućilo napajanje.• ...je li pastavljeno vrijeme pečenja.
Posudu ne možete umetnuti u uređaj.	• ...je li košarica napunjena preko maksimalnoga kapaciteta.• ...je li košarica pravilno postavljena. Mora kliknuti kad je stavite u posudu.• ...je li ispod posude predmet koji prepreka sprečava pravilno zatvaranje.
Iz uređaja izlazi bijeli dim. • ...je li hrana koju pripremate previše masna.• ...jesu li posuda i košarica čiste.
Na zaslonu se prikazuje E1 • Senzor temperature se iskijučuje ili odspaja.
Na zaslonu se prikazuje E2	• Temperaturni senzor u kratkom je spoju.

EAF3B, EAF3CG, EAF5B, EAF5CG, EAF7B, EAF7CG

EAF3B, EAF3CG, EAF5B, EAF5CG, EAF7B, EAF7CG

Fritéza

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols)

Obecný přehled

Accessories may very from model to model

1. Odstrante všechny obaly a ochranný material.

Three-step illustration of a portable water heater with a side panel, showing the exterior and front views (no text or symbols)

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Fritéza

EN USER MANUAL

HR ZA KORISNIKE

CZ NÁVOD K POUŽITÍ

DK BRUGSANVISNING

EE KASUTUSJUHEND

FI KÄYTTÖOHJE

FR NOTICE D'UTILISATION

GE

HU HASZNÁLATI ÚTMUTATÓ

IT LIBRETTO DI ISTRUZIONI

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

AirFryer

Line drawing of a modern air fryer with control panel and digital display (no text or symbols)

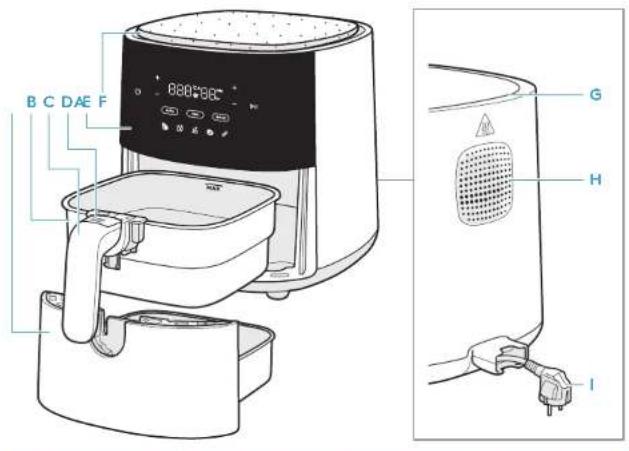

A Skuffe

B Kury

C Händtag

D Udløserknap til

kurv

E Betjeningspanel

F MultiCoaster

G Luftindtag

H Luftudtag

1 Strømledning

Three-step illustration of a portable stove with a side panel, showing different storage conditions (no text or symbols)

EAF3B, EAF3CG, EAF5B, EAF5CG, EAF7B, EAF7CG

Airfryer

EN USER MANUAL

HR ZA KORISNIKE

CZ NÁVOD K POUŽITÍ

DK BRUGSANVISNING

EE KASUTUSJUHEND

FI KÄYTTÖOHJE

FR NOTICE D'UTILISATION

GE

HU HASZNÁLATI ÚTMUTATÓ

IT LIBRETTO DI ISTRUZIONI

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Kuumaõhufritüür

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols)

Üldine ülevaade

A Pann

D Korvi

F Pöörlev alus

H Ôhu väljalaskeava

B Kory

vubustanopp

Ohu sisselaskeava

Põhikaabel

C Korvi käepide

E Juhtpaneel

Three-step illustration of industrial equipment with containers and a tank, no visible text or symbols

1. Puhastage kütteelement puhastusharjaga.

EAFxEAF3B, EAF3CG, EAF5B, EAF5CG, EAF7B, EAF7CG

Air Fryer

EN USER MANUAL

HR ZA KORISNIKE

CZ NÁVOD K POUŽITÍ

DK BRUGSANVISNING

EE KASUTUSIJHEND

FI KÄYTTÖOHJE

FR NOTICE D'UTILISATION

GE

HU HASZNÁLATI ÚTMUTATÓ

IT LIBRETTO DI ISTRUZIONI

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Air Fryer

Line drawing of a white air fryer with digital display and control buttons (no text or symbols)

Yleiskatsaus

A Keittoastia

B Kori

C Korin kahva

D Korin

vapautuspainike

E Ohjauspaneeli

F Korin alusta

G limantulo

H Ilmanpoistoaukko

1 Virtajohto

Line drawing of a white air fryer with control panel and side arm, placed on a surface (no text or symbols)

2

Illustration of a white air fryer with a blue bag, showing its side profile and control panel (no text or symbols)

3

Three-step illustration of a portable stove with a side table, showing front, side, and top views (no text or symbols)

Illustration of a hand cleaning a white air fryer with a cloth (no text or symbols)

EAF3B, EAF3CG, EAF5B, EAF5CG, EAF7B, EAF7CG

Airfryer

EN USER MANUAL

HR ZA KORISNIKE

CZ NÁVOD K POUŽITÍ

DK BRUGSANVISNING

EE KASUTUSJUHEND

FI KÄYTTÖOHJE

FR NOTICE D'UTILISATION

GE

HU HASZNÁLATI ÚTMUTATÓ

IT LIBRETTO DI ISTRUZIONI

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols)

A Bac

C Poignée du panier

m = 311

Three-step illustration of a portable stove with a side-mounted top, showing front, side, and side views (no text or symbols)

Illustration of a hand cleaning a square air fryer with a cloth (no text or symbols)

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

EAF3B, EAF3CG, EAF5B, EAF5CG, EAF7B, EAF7CG

###

Line drawing of a white air fryer with digital display and control buttons (no text or symbols)

θmασφον δοδμβομης

A

B 300000

C

D 3075001 256798580800000000

E dafoangou 3a6gmo

F MultiCoaster

G 30000000000000

H 350601 85333333333

1. མཞུབསྟན་པའད་ལྟོ། སྲེ་རྒྱིག་པའད་ལྟོ། སྲེ་རྒྱིག་པའད་ལྟོ། སྲེ་རྒྱིག་པའད་ལྟོ། སྲེ་རྒྱིག་པའད་ལོང་ལྟོ།
2. 5m ^1 d 2 n 1 r 1 g 1 n 2 , fin ^1 d, ab 2 n 1 o d 2 h 1 ynd 2 or 1 m ^1 o s ^1 dʒg 2 ðu l 2 n 2 l 2 o 3n ^1 g 2 n 1 o s ^1 dʒg 2 b 2 dʒg 2 d 2 n ^1 dʒs 2 d 2 al 2 . s ^1 dʒd 2 s 2 g 2 s 1 o s ^1 dʒn ^1 g 2 n 1 o 200 °C-6g 20 f 2 n 1 o u s ^1 dʒs 2 r 1 m ^1 o d 2 o 3n ^1 g 2 n 1 o s ^1 dʒn ^1 g 2 b 2 dʒg 2 , fin ^1 n o s ^1 dʒp 2 s 2 o s ^1 dʒn ^1 m o s ^1 dʒb ^1 s 2 n 1 .

மாமஞ ஶமவுமே

Illustration of a black and white air fryer with control panel, placed on a surface (no text or symbols visible)

Illustration of a white air fryer with a blue bag, showing a black control panel and a blue arrow indicating motion (no text or symbols)

Illustration of a pair of electric air fryer units with blue and black coloring, crossed by diagonal lines (no text or symbols)

Three-step illustration of a portable stove with a water dispenser, showing front, side, and top views (no text or symbols)

1. 368900000000000000000000000000000000000000000

2. Venbghgghgghgghgghgghgghgghggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggg

.

The following table represents the results of the results of the result of the result.

B B B B B B B B B B B B B C

Illustration of a hand cleaning a white air fryer with a cloth (no text or symbols)

1. ΥΜΣΩΝΟΣΟΥ ΘΑθΜΣΥΓΙΟΥΣΟ ΘΔΗΥΜΔΟΥΜΔΟΥ, ΠΟΥΡΕΜΟΥΣΟΥ ΘΟΥ ΘΑθΜΣΥΓΙΟΥΣΟ ΠΟΥ ΘΑθΜΣΥΓΙΟΥΣΟ,

2. Assidiosos admymodomnabu gubjans dshocma hdoamia fucimana.

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

సంగ్యారి

EN USER MANUAL

HR ZA KORISNIKE

CZ NÁVOD K POUŽITÍ

DK BRUGSÁNVISNING

EE KASUTUSJUHEND

FI KÄYTTÖOHJE

FR NOTICE D'UTILISATION

GE

HU HASZNÁLATI ÚTMUTATÓ

IT LIBRETTO DI ISTRUZIONI

The following table is a table with the following columns:

www.electrolux.com/productregistration

m b s g y z g y z s s m l s b y z s

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Air Fryer

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols)

A Tava

B Kosár

C Serpenyő fogantyú

D Losárkioldó

gomb

E Kezelöpanel

F MultiCoaster

G levegöbemenet

H Levegökimenet

Hölözati

vezeték

Three-step illustration of a portable water heater with a side panel, showing top-down and front-up views (no text or symbols)

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Levegős sütő

EN USER MANUAL

HR ZAKORISNIKE

CZ NÁVOD K POUŽITI

DK BRUGSANVI5NING

EE: KASUTUSIUHEND

FI KAYTTOOHJE

FR. NOTICE D'UTILISATION

GE

HU HASZNÁLATI ÚTMUTATÓ

IT LIBRETTO DI ISTRUZIONI

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Friggitrice ad aria

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols)

Panoramica generale

A Cassetto

B Cestello

C Maniglia cestello

D Tasto di rilascio

del cestello

Three-step illustration of a portable water heater with a side panel, showing internal components and casing (no text or symbols)

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Friggitrice ad aria

EN USER MANUAL

HR ZA KORISNIKE

CZ NÁVOD K POUŽITÍ

DK BRUGSANVISNING

EE KASUTUSJUHEND

FI KÄYTTÖOHJE

FR NOTICE D'UTILISATION

GE

HU HASZNÁLATI ÚTMUTATÓ

IT LIBRETTO DI ISTRUZIONI

EAF3B, EAF3CG, EAF5B, EAF5CG, EAF7B, EAF7CG

Аэрогриль

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols)

Жалпы шолу

Three-step illustration of industrial equipment with blue containers and a side table, no visible text or symbols

EAF3B, EAF3CG, EAF5B, EAF5CG, EAF7B, EAF7CG

Аэрогриль

EN USER MANUAL

HR ZA KORISNIKE

CZ NÁVOD K POUŽITÍ

DK BRUGSANVISNING

EE KASUTUSJUHEND

FI KÄYTTÖOHJE

FR NOTICE D'UTILISATION

GE

HU HASZNÁLATI ÚTMUTATÓ

IT LIBRETTO DI ISTRUZIONI

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Line drawing of a white air fryer with digital display and control buttons (no text or symbols)

Vispārīgs pārskats

A Panna

B Grozs

C Groza rokturis

Line drawing of a white air fryer with control panel and digital display (no text or symbols)

Illustration of a white air fryer with a blue bag being placed, no text or symbols present

Three-panel illustration showing a water heater, its internal structure, and its side view (no text or symbols)

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols)

Bendroji apžvalga

A Prikaistuvis

B Krepselis

C Poignée du panier

D Krepšelio atleidimo

rankena

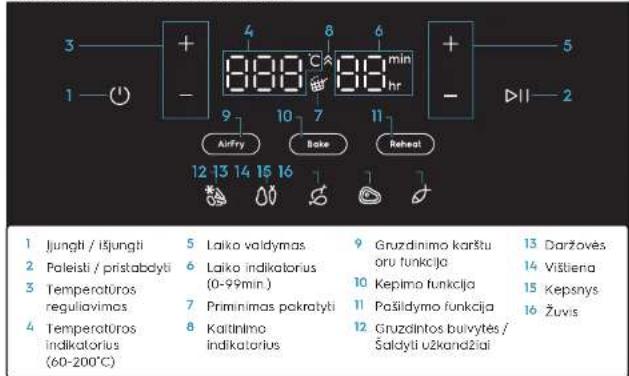

E Valdymo skydelis

F MultiCoaster

G Oro jleidimo anga

H Oro išleidimo

anga

1 Pagrindinis laidas

Skirtingy modeliy priedai gali skirtis

Illustration of a black and white air fryer on a surface, with a shield icon nearby (no text or symbols)

Illustration of a fire extinguisher with a blue lid and black control panel (no text or symbols)

1. Islumkite prikaistuvj su maistu atgal j prielaisq (iki pal galo).
   ▲ PERSPÉJIMAS. Nenaudokite prietaiso be krepšelio.

Three-step illustration of a portable water heater with a side panel, showing front, side, and side views (no text or symbols)

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

EAF3B, EAF3CG, EAF5B, EAF5CG, EAF7B, EAF7CG

Airfryer

Line drawing of a white air fryer with digital display and control buttons (no text or symbols)

Generell oversikt

A Panne
B Kury
C Kurvhändtak
D Kurvens
ulløserknapp
E Kontrollpanel
F MultiCoaster
G Luftinntak
H Luftuttak
1 Hovedledning

1. Skyv pannen med malen hell tilbake i produktet.
   ▲ FORSIKTIG: Ikke bruk produktet uten kurven.

Three-step illustration showing a container being handled, with no visible text or symbols.

Indikator for oppvarming

EAF3B, EAF3CG, EAF5B, EAF5CG, EAF7B, EAF7CG

Airfryer

EN USER MÁNUAL

HR ZA KORISNIKE

CZ NÁVOD K POUŽITÍ

DK BRUGSANVISNING

EE KASUTUSJUHEND

FI KÄYTTÖOHJE

FR NOTICE D'UTILISATION

GE

HU HASZNÁLATI ÚTMUTATÓ

IT LIBRETTO DI ISTRUZIONI

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols)

Informacje ogólne

A Blacha do

C Uchwyt koszo

E Panel sterowania

H Wylot powietrza

pieczenia

EAF3B, EAF3CG, EAF5B, EAF5CG, EAF7B, EAF7CG

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols)

Prezentare generală

A Cratiță

B Cos

C Mâner cos

D Buton de eliberare

a coşului

E Panou de comandã

F MultiCoaster

G Orificiu de

admisie a aerului

H Orificiu de

leşire a aerului

ICablu principal

Line drawing of a black-and-white air fryer with control panel and digital display (no text or symbols)

Illustration of a white air fryer with a blue bag, showing a blue arrow indicating rotation (no text or symbols)

Three-step illustration of a portable stove with a side panel, showing front, side, and side views (no text or symbols)

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

EAF3B, EAF3CG, EAF5B, EAF5CG, EAF7B, EAF7CG

Мультипечь

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols)

Общий обзор

A Поддон

В Корзина

С Ручка корзины

Three-step diagram showing a container with a side panel, a side dish, and a side dish with a container (no text or symbols)

EAF3B, EAF3CG, EAF5B, EAF5CG, EAF7B, EAF7CG

Мультипечь

EN USER MANUAL

HR ZAKORISNIKE

CZ NÁVOD K POUŽITI

DK BRUGSANVISNING

EE: KASUTUSIUHEND

FI KÄYTTÖOHJE

FR. NOTICE D'UTILISATION

GE

HU HASZNÁLATI ÚTMUTATÓ

IT LIBRETTO DI ISTRUZIONI

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Line drawing of a modern air fryer with control panel and display screen (no text or symbols)

Општи преглед

Three-step illustration showing a device with a lid, two stacked containers, and a tray with a container (no text or symbols)

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

EAF3B, EAF3CG, EAF5B, EAF5CG, EAF7B, EAF7CG

Fritéza

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols)

Všeobecný prehlíad

A Panvica

D Tlačidlo na

F MultiCoaster

H Vývod vzduchu

B Košik

uvoľnenie koša

G Privod vzduchu

Napájaci kábel

C Rukoväť koša

E Ovládací panel

Line drawing of a white air fryer with a handle, placed on a surface (no text or symbols)

Illustration of a white air fryer with a blue bag, showing a control panel and a blue arrow indicating rotation (no text or symbols)

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Fritéza

EN USER MANUAL

HR ZAKORISNIKE

CZ NÁVOD K POUŽITI

DK BRUGSANVI5NING

EE: KASUTUSIUHEND

FI KAYTTOOHJE

FR. NOTICE D'UTILISATION

GE

HU HASZNÁLATI ÚTMUTATÓ

IT LIBRETTO DI ISTRUZIONI

WE'RE THINKING OF YOU

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Zračni cvrtnik

Line drawing of a white air fryer with digital display and control buttons (no text or symbols)

Splošen pregled

A Posoda

B Košara

C Ročka košare

D Sprostilni gumb

kosare

1. Odstranite vso embalazo in zaščitni material.

1. Posodo s hrano potisnite povsem nazaj v napravo. ▲ POZOR: Naprave ne uporabljajte brez košare.

1. Napravo priključite na napajanje.

2. Pritisnite tipko za vklop/izklop.

3. Izberite želeni postopek kuhanja. Na primer, funkcijo Zračno cvrtje

4. Prilagodite čas in temperaturo po svojem okusu ali izberite enega od prednastavljenih receptov. Na primer, Ocvrt krompirček.

5. Pritisnite tipko Predvajanje/Začasna prekinitev (Play/Pause).


Three-step illustration of industrial equipment: a blue tank with a side panel, a multi-tiered tower with a lid, and a cylindrical container on a base (no text or symbols)

			(DW)	(LDWD)	(LDWD)	(LDWD)
	3	15-	YC	[40YB]	[X6WD]
	3	2		1. (GND)	(EWD)	(EWD)
	1 (GND)	10-2	(EWD) YC	(EWD)	(EWD)	(EWD)
	1 (GND)	10mi	[W8WC]	[20WW]	(EWD)	(EWD)
	1 (GND)	10m	(EWD)	(EWD)	(EWD)
	1 (S363)	10-2	(4TK2) YC	[4KWS]	(WZZ4)
	1 (GND)	1	(EWD) 180°C	(EWD)	(EWD)
	8 (GND)	45-	(EWD) 180°	(EWD)	(EWD)
	1 (XZAC)	1	(AZWX)	1. (GBV2)	(CZWK)	(EZTA)
	1 (GND)	10m	(EWD) 180°C	(EWD)	(EWD)
	(GND)	(GND)	(EWD)	(GWD)

Čiščenje

Illustration of a washing machine with a blue vent and control panel, showing internal components (no text or symbols)

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Zračni cvrtnik

EN USER MANUAL

HR ZA KORISNIKE

CZ NÁVOD K POUŽITÍ

DK BRUGSÁNVISNING

EE KASUTUSIJHEND

FI KÄYTTÖOHJE

FR NOTICE D'UTILISATION

GE

HU HASZNÁLATI ÚTMUTATÓ

IT LIBRETTO DI ISTRUZIONI

EAF3B, EAF3CG, EAF5B, EAF5CG, EAF7B, EAF7CG

AirFryer

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols)

Allmän översikt

Three-step illustration of a portable air conditioner with a side panel showing internal components (no text or symbols)

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Luftfritös

EN USER MANUAL

HR ZA KORISNIKE

CZ NÁVOD K POUŽITÍ

DK BRUGSANVISNING

EE KASUTUSJUHEND

FI KÄYTTÖOHJE

FR NOTICE D'UTILISATION

GE

HU HASZNÁLATI ÚTMUTATÓ

IT LIBRETTO DI ISTRUZIONI

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Air Fryer

Line drawing of a white air fryer with digital display and control buttons (no text or symbols)

Genel Bakış

A Alt tava

B Sepet

C Sepeti tutamağı

D Sepet serbest

birakina düğmesi

E Kontrol paneli

F Çok Amaçlı Altlık

G Hava girişi

H Hava çıkışı

1 Ana kablo

Three-step illustration of a portable stove with a blue lid, showing front, side, and side views (no text or symbols)

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Air Fryer

EN USER MANUAL

HR ZA KORISNIKE

CZ NÁVOD K POUŽITÍ

DK BRUGSANVISNING

EE KASUTUSJUHEND

FI KÄYTTÖOHJE

FR NOTICE D'UTILISATION

GE

HU HASZNÁLATI ÚTMUTATÓ

IT LIBRETTO DI ISTRUZIONI

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Мультипіч

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols)

Загальна інформація

A Чаша

Line drawing of a white air fryer with control panel and digital display (no text or symbols)

Illustration of an air fryer with a blue bag and control panel, no text or symbols present

Three-step illustration of a portable appliance with a lid, showing front, side, and side views (no text or symbols)

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Мультипіч

EN USER MANUAL

HR ZA KORISNIKE

CZ NÁVOD K POUŽITÍ

DK BRUGSANVISNING

EE KASUTUSJUHEND

FI KÄYTTÖOHJE

FR NOTICE D'UTILISATION

GE

HU HASZNÁLATI ÚTMUTATÓ

IT LIBRETTO DI ISTRUZIONI

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Line drawing of a white air fryer with digital display and control buttons (no text or symbols)

Општ краток преглед

A Tava
В Корпа
C Рачка на корпа

Three-panel illustration showing a small container with liquid, two stacked containers with handles, and a tray holding a cylindrical container (no text or symbols)

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Мультипечь

EN USER MANUAL

HR ZA KORISNIKE

CZ NÁVOD K POUŽITÍ

DK BRUGSÁNVISNING

EE KASUTUSIUHEND

FI KÄYTTÖOHJE

FR NOTICE D'UTILISATION

GE

HU HASZNÁLATI ÚTMUTATÓ

IT LIBRETTO DI ISTRUZIONI

EAF3B, EAF3CG, EAF5B, EAF5CG, EAF7B, EAF7CG

Fritezë me ajër

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols)

A Tigan
B Shporta
C Doreza e shportës
D Butoni i çlirimit
te shportes
E Paneli i kontrollit
F MultiCoaster
G Hyrja e ajrit
H Dalja e ajrit
1 Kabloja
kryesore

1. Pastrojeni elementin e nxehjes me një furçë pastrimi.
   VINI RE: Sigurohuni se qē pajisja ēshtė ftohur plotėsisht pērpara sesa tė pastroni elementin e nxehjes.

EAF3B, EAF3CG, EAF5B,

EAF5CG, EAF7B, EAF7CG

Fritezë me ajër

EN USER MANUAL

HR ZAKORISNIKE

CZ NÁVOD K POUŽITI

DK BRUGSANVISNING

EE: KASUTUSJUHEND

FI KÄYTTÖOHJE

FR. NOTICE D'UTILISATION

GE

HU HASZNÁLATI ÚTMUTATÓ

IT LIBRETTO DI ISTRUZIONI
