Miter Saw Stand with Folding Legs DW723

This stand is designed for use with most miter saws. If you have any problem with alignment or mounting, call 1-800-4-DeWALT (1-800-433-9258).

WARNING: For your own safety, read the miter saw instruction manual before using any accessory. Failure to heed these warnings may result in personal injury and serious damage to the miter saw and the accessory. When servicing this tool, use only identical replacement parts.

Tools Required

1. Socket or wrench set
2. Drill with 3/8'' (9.5 mm) drill bit (Not required for DEWALT Miter Saws)
3. Phillips #2 screwdriver

General Safety Instructions for Miter Saw Accessories

WARNING: To reduce the risk of personal injury:

• ALWAYS use eye protection. All users and bystanders must wear eye protection that conforms to ANSI Z87.1.
• DO NOT exceed the weight this stand can hold. The main center beam of the miter saw stand is designed to support 500 lbs. (227 kg.) safely in a work environment. It is unsafe to climb, sit or stand on the stand.
• Follow the mounting instructions carefully. Fasten the tool to the saw mounting brackets securely as instructed.
  DO NOT modify or use stand for operations for which it is unintended.
  DO NOT use the stand on uneven surfaces. The stand is designed to be used on a flat, stable surface.

PREPARATION

Lay the miter saw stand on the floor with the folded legs on top. Push the locking pin and pull each leg up until the locking pin (A) clicks into its detent. Lift the stand by the center beam and place it in an upright position. The stand should be stable and should not rock. Check the legs to be sure that the locking pins have engaged and the legs are firmly held in place.

English

ASSEMBLY

Work Stop/Support

a. The workstop/support has a clamp (B) to capture the beam and keep it from being knocked off the beam by your material. The knob may be locked by turning clockwise and the work stop/support is free to be repositioned when the knob is turned counterclockwise. Do not overtighten, firm pressure on the knob will hold the stop in place.

b. Adjust the height of the work stop/support by loosening the knobs on both sides (C) and raise or lower the top surface to align with a straight edge or level to the saw table. Tighten the bolts.

c. The work stop/support (D) can also be installed in the end cap (E) at the end of the extension arms.

d. The length stop (F) may be rotated up to serve as a length stop or hold the end of long work pieces.

Adjustable Length Extension Arm

To lengthen the support surface, turn the beam lock knob counter clockwise to release the extendable support arm. Pull the extendable extension arm out to the desired length. Turn the knob clockwise to lock.

Miter Saw Mounting

WARNING: To reduce the risk of injury, turn unit off, disconnect machine from power source before assembling the miter saw to the miter saw stand. An accidental start-up can cause injury.

WARNING: Stability Hazard. You must use the plywood mounting method detailed in step 13 when mounting a miter saw not manufactured by DeWALT to this miter saw stand.

WARNING: To reduce the risk of personal injury, be sure the miter saw is fully anchored on the stand.

WARNING: For your own safety, read and understand the miter saw instruction manual before using. Failure to heed these warnings may result in personal injury and serious damage to the miter saw and the accessory.

1. Place saw in operational position with blade facing you. Align with label on the mounting bracket showing front.
2. Place a spacer, such as a 2 × 4 , under one side of the miter saw to hold the saw's mounting feet above the work surface.
3. Hold a mounting bracket under the saw and feed a carriage bolt (hardware bag) up through the bracket and the foot of the saw.

NOTE: See DW723 Mounting Procedure Chart for the correct mounting hardware procedures for DeWALT miter saws. Follow all instructions properly, otherwise the miter saw's table rotation will be obstructed.

DW723 MOUNTING PROCEDURE CHART
Left Side Right Side
DW703 1 1
DW705 1 1
DW706 1 1
DW708 1 2
DW712 1 2
DW713 1 1
DW715 1 1
DW716 1 1
DW717 2 1
DW718 3 2
	1 = Long screw, Head on bottom
	2 = Short screw, Head on bottom
	3 = Long screw, Head on top

1. Once the carriage bolt (hardware bag) is installed per Mounting Procedure Chart, assemble a flat washer; lock washer and nut onto the bolt. Tighten the bolts finger tight.

2. Repeat procedure on the other end of the bracket.

3. Move the 2 × 4 to the other side of the saw to hold the other end of the saw up in order to access the saw base.
4. Feed carriage bolts through the other bracket and the base of the saw as before. Ensure both brackets are parallel to each other.
5. To place the saw onto the stand, grasp and lift saw by mounting bracket assembly by the release levers. These levers do not lock the saw laterally in place but merely serve as a means of mounting the saw to the beam.

1. Approach the beam with saw/bracket assembly tilting toward your body slightly. Engage the concave front lip of the mounting bracket with rounded edge of beam. One of the brackets must engage the locator clip (G) to prohibit lateral movement of the saw during use.

1. When front edge of the beam and locking locator clip are engaged, a slight downward pivot will allow secure engagement of the rear levers to back of beam. Rock the saw gently on the brackets to verify locking in position.
2. Adjust the saw position as necessary to have the blade perpendicular to the beam when in the 0 degree miter position.
3. Tighten the four nuts holding the saw to the brackets securely.

English

WARNING: For your own safety, read and understand the miter saw instruction manual before using. Failure to heed these warnings may result in personal injury and serious damage to the miter saw and the accessory.

1. The miter saw MUST be positioned so all four corners can be bolted squarely to the mounting brackets. If this is not possible, please call DEWALT Customer Support at 1-800-4-DEWALT (1-800-433-9258) for technical assistance.

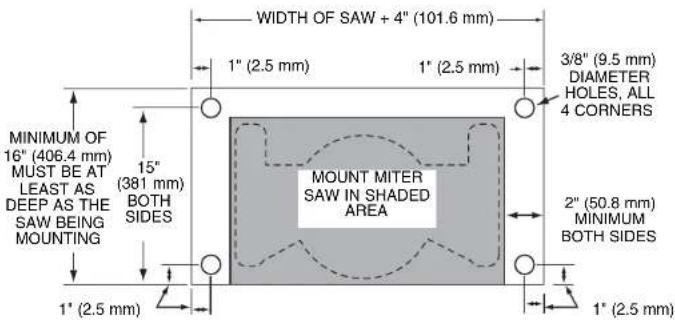

NOTE: If the saw mounting holes do not line up with the slots in the mounting brackets, mount the saw to a piece of 3/4'' (19 mm) plywood. The plywood must be a minimum of 4'' (101.6 mm) wider than the miter saw base being mounted and a minimum depth of

16" (406.4 mm). Plywood must be at least as deep as the saw base being mounted. Place the mounting brackets on the stand and mount the plywood board to the mounting brackets exactly as shown in figure. Drill 3/8'' (9.4 mm) holes 1" (2.5 mm) from each end to secure plywood to mounting brackets. Other hardware (not supplied) may be necessary under these circumstances. NOTE: All purchased hardware must be a minimum of Grade 2. Hardware should be 1-1/4'' (31.8 mm) longer than the saw base you are assembling. NOTE: If the saw mounting holes do not line up with the slots in the mounting brackets and the method of utilizing plywood does not accommodate your saw, please call 1-800-4-DEWALT (1-800-433-9258) for additional hardware to install your miter saw.

Locking Locator Clip

The locking locator clip (G) keeps the saw from sliding left or right during cutting operations. To move the clip, remove saw/bracket assembly, loosen the screw in the center of the clip, slide it to the desired position and tighten the screw. You can then remount the saw/bracket in the new location.

Removing the Saw

Once the miter saw is fastened to the brackets, it can be removed by grasping the release levers, pulling up slightly to clear the beam and can be set down on the rubber feet for transportation or cleaning.

Carry Handle

A handle has been supplied to safely transport the Miter Saw Stand to and from the work site.

WARNING: To reduce the risk of personal injury, DO NOT attempt to store the stand with or without the saw attached - in a vertical position. Loss of control may result.

Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, do not create unstable conditions and use only with DEWALT miter saws.

Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact DeWALT Industrial Tool Co., 701 East Joppa Road, Baltimore, MD 21286, call 1-800-4-DeWALT (1-800-433-9258) or visit our website www. dewalt.com.

Repairs

To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustments should be performed by a DEWALT factory service center, a DEWALT authorized service center or other qualified service personnel. Always use identical replacement parts.

Three Year Limited Warranty

DeWALT will repair, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.dewalt.com or call 1-800-4-DeWALT (1-800-433-9258). This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

In addition to the warranty, DEWALT tools are covered by our:

1 YEAR FREE SERVICE

DeWALT will maintain the tool and replace worn parts caused by normal use, for free, any time during the first year after purchase.

English

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your DEWALT Power Tool, Laser, or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund - no questions asked.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained either in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-4-DEWALT (1-800-433-9258) for a free replacement.

DW723 MITER SAW STAND

WARNING READ INSTRUCTIONS BEFORE USE, FOR USE WITH MITER SANS. FASTEN TOOL TO MONIGHTING BRACKETS AND TO STAND PER INSTRUCTION LITERATURE BEFORE USE. ALWAYS MOUNT SUN AS FAVER FURTO AS OPENABLE. START ON SUN 10 AM. USE BY THE CLOTHING OR THE CLOTHING OR THE CLIMB. SET OR STAND ON SUN END. DO NOT USE STAND ON WEEN / UNSTABLE TABLE.

U.S. FAL: 07,69343, 6909253, 6418411, 5988243, 5946277, 5470142, 5479671, 5471272, 5461693
FOR THE PERIODIC BOARD: 07,69343, 6909253, 6418411, 5988243, 5946277, 5470142, 5479671, 5471272, 5461693

WARNING

MITER SAW STAND DW723

READ INSTRUCTIONS BEFORE USE. END USING WHITE-CRAFT GAIN

OPEN STAND FULLY BEFORE USE

FOR USE WITH MITK SAWS: FASTEN TOOL TO NOISING BRACKETS

+MAXIMUM LOAD-500CBS.[2279]

PASTEN TOOL TO ACCOUNTING BUDGET AND TO STAND PER INSTRUCTION

DO NOT CLIM, SIT OR STAND ON

LITERATUREBEFOREUSE

DO NOT USE STAND ON UNEVEN

ALWAYS MOUNT SAW AS FAR FORWARD AS POSIBLE

OR UNSTABLE SURFACE

REEMPLACEMENT Gratisuit DES ETIQUETTES

Local D, Col. Obrera (55) 5588 9377

MERIDA,YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. Centro (818) 375 23 13

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorlo (442) 217 63 14

SAN LUIS POTOSI, SLP

BNTNNTTALTOCC.PALNTNRC.N256GAA

WARNING

MITER SAW STAND DW723

READINSTRUCTIONSBEFOREUSE OPENSTANDFULLYBEFOREUSE
FOR USE WITH MITER SAWS MAXIMUM LOAD-500 LBS. (227K)
+ FASTEN TOOL TO MOUNTING BRACKETS +DO NOT CLIMB, SIT OR STAND ON
AND TO STAND PER INSTRUCTION SAW STAND LITERATURE REDEBE USE
L

WARNING

MOUNTING BRACKET DW7231

ALWAYS MOUNT SAW AS FAR FORWARD AS POSSIBLE, READ INSTRUCTIONS BEFORE

USE. FOR USE WITH DW723 MTER SAW STAND. FASTEN SECURELY PER INSTRUCTION

LITERATURE TO MITER SAW BEAM, FASTEN TOOL TO MOUNTING BRACKETS AND TOSTAND PER INSTRUCTION LITERATURE OPEN LEGS OF STAND EUILY BEFORE USE

MAXIMUM LOAD-500LBS.277KG.DGNOTCLIMB.SITOR SANSANDONSAWSTAND

DO NOT USE STAND ON UNEVEN OR UNSTABLE SURFACE.

SOLAMENTE PARA PROPOSITO DE MEXICO:

IMPORTADO POR:DWALT S.A.DEC.V.

BOSQUES DE CIDROS, ACCESO RADIATAS NO.42

3A. SELECTION DE BOSQUES DE LAS LOMAS

DEWALT Industrial Tool Co., 701 East Joppa Road, Baltimore, MD 21286 (MAY10) Part No. N081238 DW723

Copyright © 2001, 2004, 2005, 2008, 2010 DEWALT
