USER MANUAL SCD-331+ LENCO

Black Lenovo portable radio with digital display and speaker grille (no visible text or symbols on device body)

User manual – Portable Radio, CD/MP3 player with USB and Bluetooth Gebruikshandleiding – Draagbare radio, MP3-/cd-speler met USB en Bluetooth Bedienungsanleitung – Tragbares Radio mit CD/MP3-Player, USB und Bluetooth Manuel d'utilisation – Radio portable, lecteur CD/MP3 avec USB et Bluetooth Manual de usuario – Radio portátil, reproductor de CD/MP3 con USB y Bluetooth Brugervejledning – Bærbar radio, CD/MP3-afspiller med USB og Bluetooth Bruksanvisning – Bärbar radio och CD/MP3-spelare med USB och Bluetooth Käyttöopas – Kannettava radio, CD-/MP3-soitin USB- ja Bluetooth-tuella

Index

English 3

Nederlands 14

Deutsch....26

Français....38

Español 50

Dansk/Norsk....62

Svenska....73

Suomi....84

Version: 6.0

English

CAUTION:

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2") free space around the whole device.
2. Install in accordance with the supplied user manual.
3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame. The device can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0^ and 35^ C.
4. Avoid using the device near strong magnetic fields.
5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.
6. Warning! Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.
7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
8. The device shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.
9. Do not use this device when condensation may occur. When the unit is used in a warm wet room with damp, water droplets or condensation may occur inside the unit and the unit may not function properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.
10. Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.
11. This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
12. Keep away from animals. Some animals enjoy biting on power cords.
13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.
14. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.
15. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost.
16. If the unit has USB playback function, the USB memory stick should be plugged into the unit directly. Don't use an USB extension cable because it can cause interference resulting in failing of data.
17. The rating label has been marked on the bottom or back panel of the device.
18. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.
19. This product is intended for non professional use only and not for commercial or industrial use.
20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.

21. Never remove the casing of this device.

22. Never place this device on other electrical equipment.

23. Do not allow children access to plastic bags.
24. Only use attachments/accessories specified by the manufacturer.
25. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the device, when the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
26. Long exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.

27. If the product is delivered with power cable or AC power adaptor:

28. If any trouble occur, disconnect the AC power cord and refer servicing to qualified personnel.

29. Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children's reach! When playing with the power cable, they can seriously injure themselves.
    • Unplug this device during lightning storms or when unused for a long period.
30. The socket outlet must be installed near the equipment and must be easily accessible.
31. Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.
    • Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.
    • Devices with class 2 construction do not require a earthed connection.
    • Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.

32. Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

33. If the product contains or is delivered with a remote control containing coin/cell batteries: Warning:

34. “Do not ingest battery, Chemical Burn Hazard” or equivalent working.

35. [The remote control supplied with] This product contains a coin/button cell battery. If the battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
36. Keep new and used batteries away from children.

37. If the battery compartment does not close securely, stop using the product and keep it away from children.
    • If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

38. Caution about the use of Batteries:

39. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

40. Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.
41. Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas.
42. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
    • Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas.
43. A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
    • Attention should be drawn to the environmental aspects of battery disposal.

INSTALLATION

• Unpack all parts and remove protective material.
• Do not connect the unit to the mains before checking the mains voltage and before all other

connections have been made.

TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

WARNING: SHOCK HAZARD - DO NOT OPEN.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightning with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of magnitude to constitute a risk of electric shock to persons.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

CLASS 1 LASER PRODUCT LABEL

This label is attached to the place as illustrated to inform that the apparatus contains a laser component

CLASS 1 LASER PRODUCT

KLASS 1 LASER APPARAT

LUOKEN 1 LAISERLAITE KLASSE

1 LASER PRODUKT

WARNING

Class 1 Laser Product

CLASS 1 LASER PRODUCT APPAREIL À LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

This product contains a low power laser device.

CAUTION

INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM

Warning : Do not touch the lens.

ACCESSORIES

Power cord x 1

Line drawing of a cable with two terminal plugs (no text or symbols)

Instruction manual x 1

Simple line drawing of an open book with no text or symbols visible

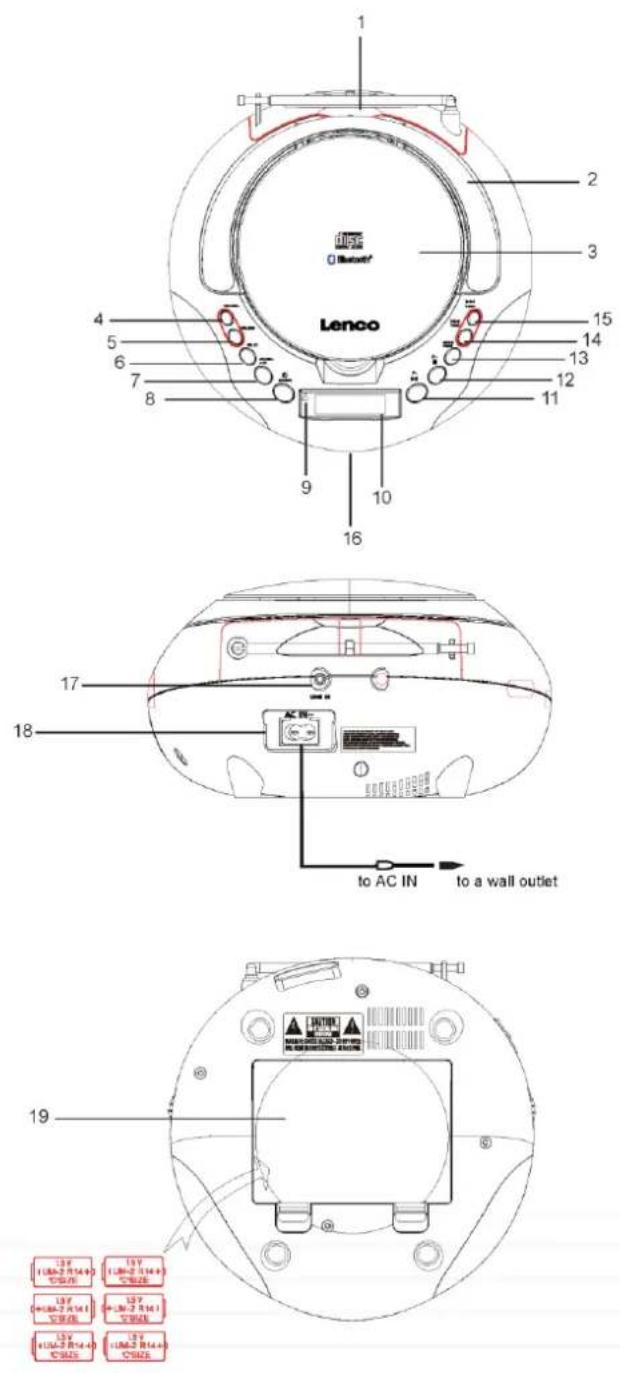

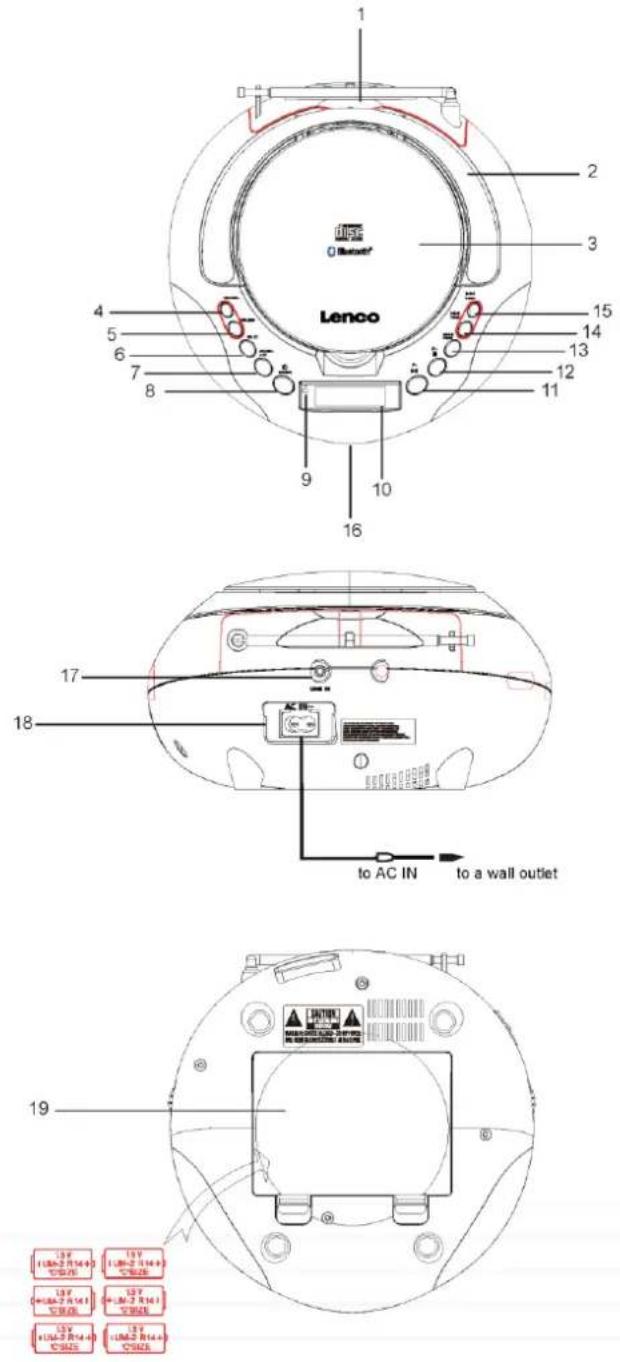

LOCATION OF CONTROLS

1. Antenna
2. Handle
3. CD Door
4. Volume +
5. Volume -
6. FM ST.
7. Folder+/10+
8. Source/Power On/Off
9. Standby Indicator
10. LCD Display
11. Play/Pause/P-
12. Stop/Bluetooth Pair/P+
13. Mode/Prog
14. Skip-/Tune-
15. Skip+/Tune+
16. USB Port
17. Line in (AUX) 3.5mm jack

18. Battery Door

19. AC Jack for connecting the included power cable.

POWER SUPPLY

1. To power the device, plug the AC power cord into the AC power input on the rear of the unit and a standard power outlet
2. For battery power, this unit requires 6 x C size batteries (Not included).
3. To the standby mode(*LED indicator On) once collecting power

SELECTING A SOURCE

Press the "POWER" button to turn the device

Press the "SOURCE" button to choose different mode

• CD
- USB
- Bluetooth
• FM
- AUX

VOLUME

Press the "VOLUME +/-" button to adjust the volume level.

ANTENNA

Use Antenna to improve the radio signal reception.

1. Fully extract the antenna
2. Adjust the position of the antenna for the best reception

CD OR MP3/CD

1. Select the CD mode.
2. Put CD or MP3/CD into the CD door insides
3. Auto CD or MP3/CD reading & playing from first track
4. Press the "PLAY/PAUSE" button to do playback or pause playback temporarily
5. Press the "SKIP+/-" button to skip the next or previous tracks
6. Press and Hold the "SKIP+/-" button search the point of sound quickly
7. Press the "STOP" button to stop the playback

CD Notes:

a. Dirty or scratched CD'S may cause a skipping problem. Clean or replace the CD.
b. If an error display or malfunction occurs, disconnect the AC cord and remove all the batteries. Then turn the power back on.

USB PLAYBACK

1. Select the USB mode.
2. Connect USB drive into the USB port
3. Auto USB reading & playing from first track/folder
4. Press the "PLAY/PAUSE" button to do playback or pause playback temporarily
5. Press the "SKIP+/-" button to skip the next or previous tracks
6. Press and Hold the "SKIP+/-" button search the point of sound quickly
7. Press the "STOP" button to stop the playback

MODE

Multi press "MODE" Button to choose the different function in CD or USB mode as follows:

1. Repeat One
2. Repeat Folder (MP3)
3. Repeat All
4. Random
5. Normal Playback

FOLDER

Press the "FOLDER" Button to change the different folder.

Press the "10+" Button to change the tracks.

PROGRAMMED (CD OR MP3 MODE) PLAY

CD = max 20 tracks

MP3 = max 99 tracks

1. Press "PROG" button (Sure to press "STOP" button before)
2. P01 will appear blinking in the display, press "P+/-" to select the track Press "PROG" button again to save the selected track
3. Press "PLAY/PAUSE" button to play the programmed track list "PROG" indicator on
4. Press "STOP" button twice to cancel the programmed track list

*Repeat One and Repeat All is available for programmed track list

BLUETOOTH

1. Select the Bluetooth mode.
2. Turn on the Bluetooth function of your Bluetooth device and enable the search "Lenco SCD-331" from the pairing list (*Bluetooth flashing on display)
3. Pair the unit with your device. If you are asked for a password, enter "0000".
4. When connected successfully, a short melody will sound and the flashing 'bt' on the display will stay on.
5. Press the "PLAY/PAUSE" button to do playback or pause playback temporarily
6. Press the "SKIP+/-" button to skip the next or previous tracks
7. Press and Hold "STOP" button to cancel the collection

FM RADIO

1. Select the FM Radio mode.
2. Press the "TUNE +/-" button to select the desired station.
   *FM Stereo indicator on = Stereo broadcast program is received

If the stereo reception of your favorite station is not ok you can press the FM ST (6) button to manually switch between Stereo (ST) or Mono (NO) music play. In Mono mode the reception can be improved for that channel.

AUTO PRESET

1. Press and Hold the "PLAY/PAUSE" button to do full "Auto Scan". Channels with good reception will be stored as preset.
2. Press the "PRESET" or "SKIP+/-" button to choose the preset station

MANUAL PRESET

1. Press the "TUNE +/-" button to select the desired station.
2. Press the "PROG" button to be manual preset mode
3. Press the "P +/-" button to select the desired station
4. Press the "PROG" button to confirm
5. Press the "P +/- " button to choose the preset station

AUX

1. Select the Aux mode.
2. Use a 3.5mm Jack cable(not included) to connect an external audio player to the Line in port on the back of the SCD-331
3. Change the volume level on this device and External Music Device separately

ENERGY SAVING

To comply with the energy saving requirement this device will automatically switch to standby mode when no music has been playing for 10 minutes.

TECHINCAL SPECIFICATIONS

Power supply:

AC 230 \~ 50Hz

DC 9V 6 x 1.5V "C" TYPE BATTERIES

Frequency range:

FM 88-108 MHz

Power consumption: 13W

Audio power output: 2 x 1W

Dimensions (W x D x H): 217 x 220 x 118mm

Weight: 1 kg

Guarantee

Commaxx B.V. offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer.

Important note: It is not possible to send products that need repairs to Commaxx B.V. directly.

Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

Disclaimer

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.

Disposal of the Old Device

Symbol of a trash bin crossed with no visible text or labels

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

DECLARATION OF CONFORMITY

Hereby, Commaxx declares that the radio equipment type [Lenco SCD-331] is in compliance with directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

https://commaxx-certificates.com/doc/scd-331_doc.pdf

Type RF	Frequency range (MHz)	Power (dBm)
Bluetooth	2402-2480	<6
FM	87.5-108	-

Service

For more information and helpdesk support, please visit www.lenco.com

Commaxx B.V. Wiebachstraat 37, 6466 NG Kerkrade, The Netherlands.

Nederlands

LET OP:

LABEL KLASSE 1 LASERPRODUCT

CLASS 1 LASER PRODUCT

KLASS 1 LASER APPARAT

LUOKEN 1 LAISERLAITE

KLASSE 1 LASER PRODUKT

WAARSCHUWING

Warning symbol with black triangular triangle containing a central explosion or virus graphic (no text)

Line drawing of a cable with two terminal plugs, no text or symbols present

Simple line drawing of an open book with no text or symbols visible

PLAATS VAN DE BEDIENINGSORGANEN

Cd = max. 20 tracks MP3

= max. 99 tracks

CLASS 1 LASER PRODUCT

KLASS 1 LASER APPARAT

LUOKEN 1 LAISERLAITE

KLASSE 1 LASER PRODUKT

WARNUNG

Warning sign with black triangular triangle containing a central explosion or virus symbol

Line drawing of a cable with two terminal plugs (no text or symbols)

Simple line drawing of an open book with no text or symbols visible

BEDIENELEMENTE

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

CLASS 1 LASER PRODUCT

KLASS 1 LASER APPARAT

LUOKEN 1 LAISERLAITE

KLASSE 1 LASER PRODUKT

AVERTISSEMENT

Warning symbol with black triangular triangle and central sunburst pattern (no text)

Line drawing of a cable with two terminal plugs, no text or symbols present

Mode d'emploi x 1

Simple line drawing of an open book with no text or symbols visible

EMPLACEMENT DES COMMANDES

CLASS 1 LASER PRODUCT

KLASS 1 LASER APPARAT

LUOKEN 1 LAISERLAITE

KLASSE 1 LASER PRODU

ADVERTENCIA

Warning sign with black triangular triangle and radiating lines symbolizing radiation or explosion

Line drawing of a cable with two terminal plugs, no text or symbols present

Simple line drawing of an open book with no text or symbols visible

Symbol of a trash bin crossed with diagonal lines, no text or labels present

CLASS 1 LASER PRODUCT

KLASS 1 LASER APPARAT

LUOKEN 1 LAISERLAITE

KLASSE 1 LASER PRODUKT

ADVARSEL

Laserprodukt i klasse 1

CLASS 1 LASER PRODUCT APPAREIL À LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

This product contains a low power laser device.

CAUTION INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM

EN	DK
CLASS 1 LASER PRODUCT	LASERPRODUKT I KLASSE 1
CAUTION	FORSIGTIG
INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED.	USYNLIG LASERSTRÅLING HVIS ENHEDEN ÅBNES, OG SIKKERHEDSLÅSE BRYDES OP.
AVOID EXPOSURE TO BEAM	UNDGÅ EKSPONERING FOR STRÅLE
This product contains a low power laser device.	Produktet indeholder en laserenhed med lav effekt.

Line drawing of a cable with two terminal plugs (no text or symbols)

Simple line drawing of an open book with no text or symbols visible

MP3 = maks. 99 tracks

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

ETIKETT FÖR LASERPRODUKT KLASS 1

CLASS 1 LASER PRODUCT

KLASS 1 LASER APPARAT

LUOKEN 1 LAISERLAITE

KLASSE 1 LASER PRODUKT

WARNING

This product contains a low power laser device.

CAUTION INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM

EN	SE
CLASS 1 LASER PRODUCT	KLASS 1 LASERPRODUKT
CAUTION	VAR FÖRSIKTIG
INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED.	OSYNLIG LASERSTRÅLNING I ÖPPET LÄGE OCH MED ÅSIDOSATTA FÖRREGLINGAR.
AVOID EXPOSURE TO BEAM	UNDVIK EXPONERING FÖR STRÅLE
This product contains a low power laser device.	Den här produkten innehåller en laserenhet med låg effekt.

Line drawing of a cable with two terminal plugs (no text or symbols)

Bruksanvisning x 1

Simple line drawing of an open book with no text or symbols visible

REGLAGENS PLACERING

EN	SE
to AC IN	till AC IN
to a wall outlet	till ett eluttag

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

KLASS 1 LASER APPARAT

LUOKEN 1 LAISERLAITE

KLASSE 1 LASER PRODUKT

VAROITUS

Luokan 1 lasertuote

CLASS 1 LASER PRODUCT APPAREIL Á LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

CAUTION INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM

This product contains a low power laser device.

EN	FI
CLASS 1 LASER PRODUCT	LUOKAN 1 LASERTUOTE
CAUTION	HUOMIO
INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED.	NÄKYMÄTÖNTÄ LASERSÄTEILYÄ KUN AUKI JA LUKITUKSET ON OHITETTU.
AVOID EXPOSURE TO BEAM	VÄLTÄ ALTISTUMISTA SÄTEELLE
This product contains a low power laser device.	Tämä tuote sisältää matalatehoisen laserlaitteen.

Line drawing of a cable with two terminal connectors (no text or symbols)

Käyttöohje x 1

Simple line drawing of an open book with no text or symbols visible

SÄÄTIMIEN SIJAINNIT

MANUAALINEN ESIASETUS

Symbol of a trash bin crossed out by two crossed lines, with a blank rectangular base below (no text or labels)
