English

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy using your Braun body groomer.

Read these instructions completely, they contain safety information. Keep them for future reference.

The Braun body groomer is a rechargeable trimmer and wet shaver in one. You can easily shorten or remove hair from all body areas below the neckline – wet or dry.

Warning

- This appliance is suitable for use in a bathtub or shower.

Periodically check the cord for damage. In case of a damaged cord, contact a Braun Service Centre for replacement. A damaged or non-functioning unit should no longer be used.

In case the appliance has dropped onto the shaving system, replace the shaving system for safety reasons.

Before plugging the charger into an electrical outlet, check whether the voltage printed on the charger corresponds to your local mains voltage supply.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

For hygienic reasons, do not share your appliance with other people.

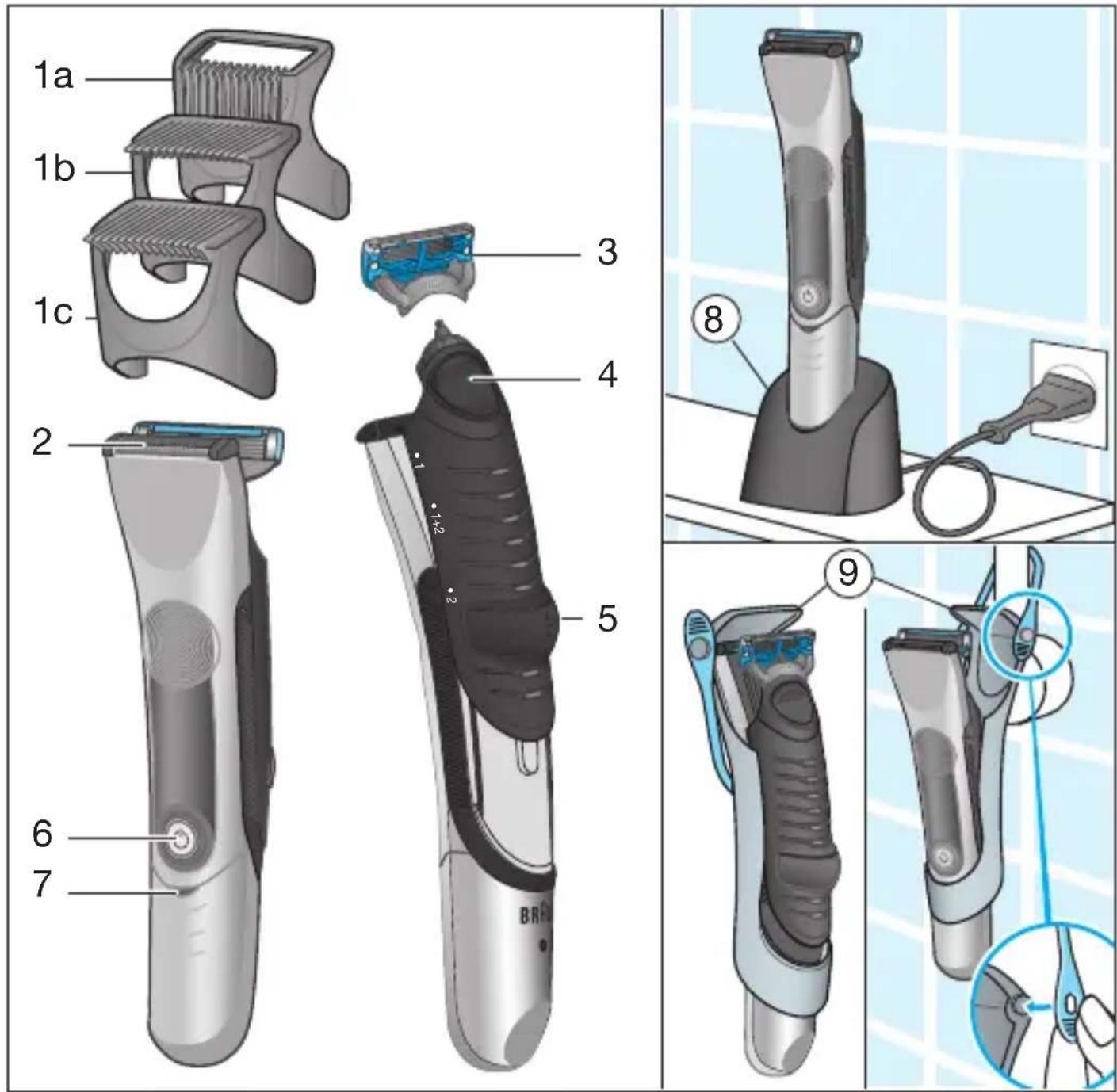

Description

3 Shaving system (Gillette Fusion)

4 Shaving system holder with release button

5 Slider with « ↗» button

6 On/off switch

7 Charging light

8 Charger

9 Protection cover / holder for the shower

Connecting and charging

The body groomer is electrically safe and can be used in the bathroom, bath, and shower.

Plug the charger (8) into an electrical outlet. Place the body groomer onto the charger. The charging light (7) shows that the appliance is being charged. When the battery is fully charged, the charging light turns off.

Intermittent blinking after a while indicates that the battery maintains its full capacity.

Charging time is approximately 14 hours. Cordless operation time is up to 50 minutes.

Battery maintenance

In order to maintain the capacity of the rechargeable batteries, we recommend that you unplug the charger and discharge the body groomer by regular use at least every 6 months.

How to use the appliance

Make sure that you always keep your skin stretched when shaving or trimming. The body groomer is not intended for removing facial hair or scalp hair.

- Trimming («1»):

Trimming on the skin / contour trimming

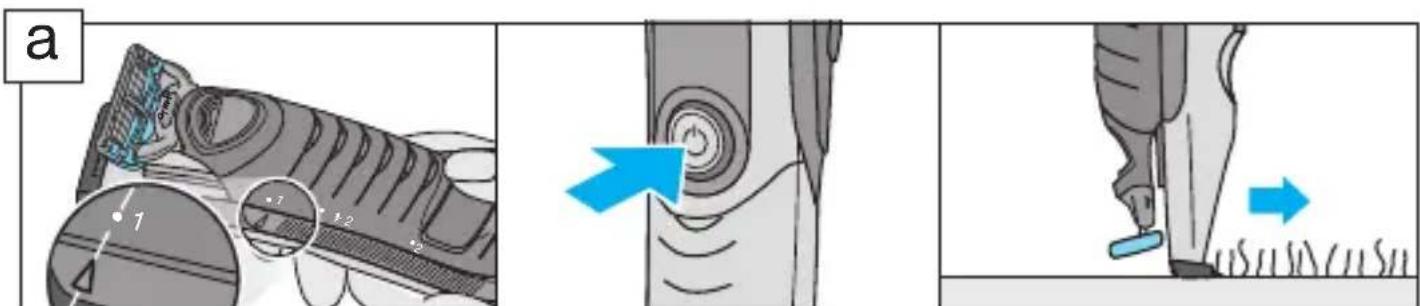

For trimming precise lines and contours, just use the trimmer (2) (picture a).

Press the on/off switch (6) to turn on the body groomer.

Stretching your skin, carefully move the trimmer against the direction of hair growth. For this function, you can use Gillette shaving foam or gel.

Using the trimming combs (1a) - (1c)

For best results use the trimming combs on dry hair only. Do not use shaving foam or gel for this application. Whenever hairs build up in front of the comb, remove them.

Trimming on the skin in sensitive areas (e.g. genital area) with the «sensitive» attachment (1a)

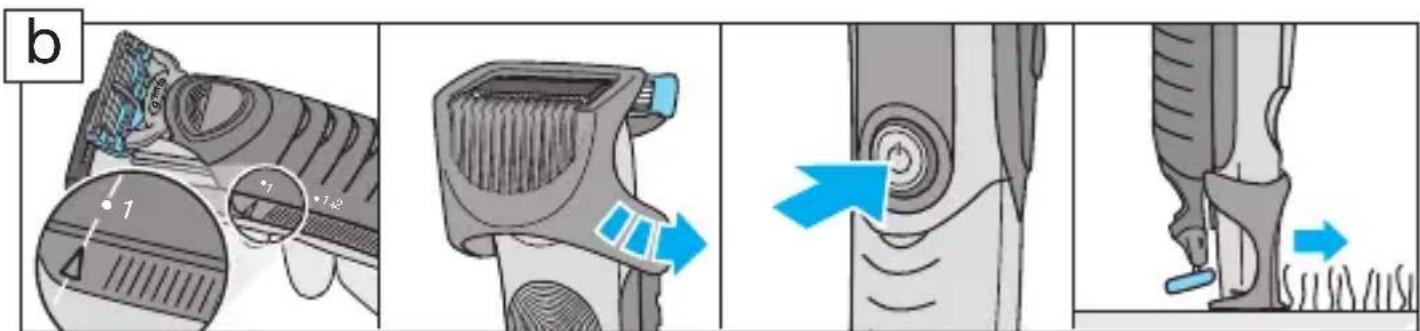

For trimming in sensitive areas and improved skin care, you should use the «sensitive» attachment (1a) (picture b). Snap it onto the trimmer (2) as shown until it clicks into place. Press the on/off switch (6) to turn on. Gently move the body groomer against the direction of hair growth with the comb tips pointing forward. In sensitive areas take special care that the skin is always stretched to avoid injuries.

Trimming the hair length with trimming combs «medium» and «long»

The trimming combs (1b) / (1c) allow you to cut the hair to 2 different lengths («medium» = 3 mm or «long» = 8 mm).

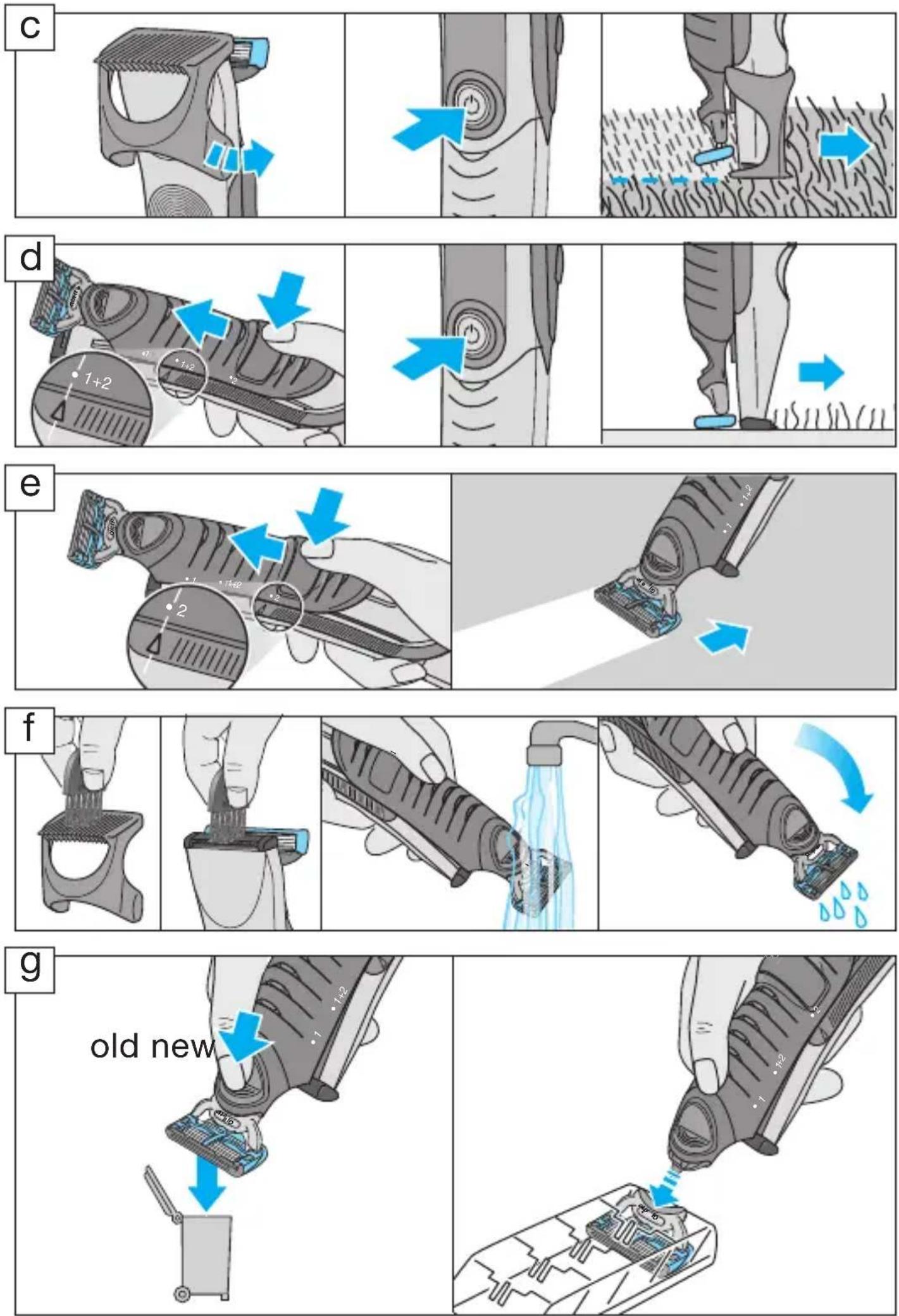

Start with the «long» trimming comb (1c) to acquire practice. Gently move the body groomer against the direction of hair growth with the comb tips pointing forward (picture c).

• Combishave («1+2»):

Trimming and shaving in one stroke for a close shave of long haired sections with the trimmer (2) and shaving system (3)

The combishave is suitable for large areas like chest and back.

Press the « ⬆» button and extend the slider to the «1+2» setting (picture d).

Press the on/off switch (6) to turn on the body groomer. The trimmer first raises all long hairs and cuts them off. The shaving system (3) follows to smooth away any stubble.

For best results, always make sure that both, the trimmer and the shaving system are in contact with the skin. When using this function, we recommend using Gillette shaving foam or gel.

For sensitive areas, we recommend starting with the «sensitive» attachment (1a) and then finish with the shaving system (3).

- Shave («2»):

For a close shave of stubbled areas with the shaving system (3)

Pressing the « » button, extend the slider (5) as far as it will go to setting «2» (picture e).

Place the shaving system (3) on the stretched skin and gently move it against the direction of hair growth.

Do not apply too much pressure and always keep your skin stretched.

Make sure the shaving system is in full contact with the skin.

When using the shaving system, we recommend using Gillette shaving foam or gel.

Protection sleeve / holder for the shower

The body groomer comes with a protective cover that can also be used as a shower holder.

When used as a protective cover, insert the body groomer with the trimmer facing inwards.

When using it as holder, insert the body groomer with the trimmer facing outwards (see picture 9).

Cleaning and maintenance

After each use, clean the body groomer.

Remove the trimming comb and brush it out.

You may also use the brush to clean the trimmer if it has been used for dry applications only.

If you have used the body groomer with shaving gel or foam, rinse it under hot, running water as shown (in picture f) until all residues have been removed. Shake well to remove excess water and leave to dry.

Apply a drop of light machine oil onto the trimmer on a weekly basis.

Replacing the shaving system

The shaving system (3) has to be replaced when the green stripe becomes discoloured. Use Gillette Fusion cartridges only.

Extend the slider, press the release button (4) to eject the used shaving system.

Insert the appliance into the refill organizer to collect a new one (picture g).

Environmental notice

Product contains batteries and/or recyclable electric waste.

For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice

For electric specifications, see printing on the charger.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

ELMIN, Đurđevac 48 350,

R. Boškovića 20, Tel. [phone],

[e-mail]

BKS d.o.o., Slavonski Brod 35 000,

J. J. Strossmayera 29, Tel. [phone],

[e-mail]

FRUK d.o.o., Virovitica 33 000,

J. J. Strossmayera 23, Tel. [phone],

[e-mail]

MARKOVIĆ OBRT ZA EL.USLUGE, Varaždin 42 000,

Krešimira Filića 9, Tel. [phone],

[e-mail]

RADAN ELEKTRONIK CENTAR d.o.o., Dubrovnik 20 000,

Ob. Pape I.Pavlall.17, Tel. [phone],

[e-mail]

Tehno -Jelčić d.o.o., Šibenik 22 000,

VIII Dalmatinske Udarne Brigade 71, Tel. [phone]

SINGULI D.O.O., 21000 SPLIT-KAMEN

UL. 4. Gardijske brigade 43, Tel. [phone]

(u sklopu poslovnog prostora ROBOT COMMERCE d.o.o. (TTTS))

[e-mail]

ili nazovite Call centar singuli: 072 700 707

Slovenski

Symbolic emblem featuring a star inside a circular frame, labeled '001' below (no readable text or symbols beyond the number)

Country of origin: China

Year of manufacture

To determine the year of manufacture, refer to the 3-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of manufacture. Example: “201” – The product was manufactured in week 01 of 2012.
