Product Type	Fast Ethernet PoE Switch
Model	561686
Brand	Intellinet
Number of RJ45 Ports	6 ports (4 PoE, 2 uplink)
Total PoE Power Budget	65 W
Max PoE Power per Port	Port 1: 60 W (high power); Ports 2-4: 30 W
Switching Capacity (Backplane)	1.2 Gbps
Power Supply	100-240 V AC, 50/60 Hz
Installation	Plug and Play, no configuration required
Extend Mode	Yes (reduces speed to 10 Mbps, extends PoE up to 250 m)
Special Network Features	VLAN MTU in Extend mode
LED Indicators	Link (yellow), PoE (green), Speed (green), Power (green)
Grounding	Grounding terminal for surge protection
Maintenance and Cleaning	Clean with a dry, soft cloth
Safety	Place on a flat surface with 25 mm clearance for ventilation; avoid electrical interference
Compliance	CE (Directives 2014/30/EU and 2014/35/EU)
Spare Parts and Repairability	No detachable parts; device not user-serviceable
General Information	Product registration: register.intellinet-network.com/r/561686

Frequently Asked Questions - 561686 Intellinet

How to install the Intellinet 561686 switch?

Installation is plug and play: connect Ethernet cables, plug in power, and the device operates automatically. No software configuration is required.

What is the total PoE budget and how is it distributed?

The total PoE budget is 65 watts. Port 1 delivers up to 60 W (high power), ports 2, 3, and 4 up to 30 W each (IEEE 802.3at/af).

How to activate Extend mode and what is it used for?

Use the slide switch on the panel to set EXTEND mode. This mode reduces the speed to 10 Mbps and extends PoE distance up to 250 meters, while enabling VLAN MTU.

What do the LED indicators mean?

The LEDs indicate: Link (yellow): active connection; PoE (green): PoE power being delivered; SPD (green): speed 100 Mbps (solid) or 10 Mbps (blinking); PWR (green): device powered on.

Can I power non-PoE devices?

No, PoE ports only provide power to PoE-compatible devices (IEEE 802.3af/at). For non-PoE devices, use a PoE injector or connect them to the uplink ports (non-PoE).

What type of Ethernet cable should I use?

Use Cat5e minimum cable for optimal performance and correct PoE distance.

How to ground the switch?

Connect the grounding terminal on the rear panel to a grounding object (e.g., earth ground) to protect the device from voltage surges.

Does the switch support VLANs?

In EXTEND mode, the switch enables VLAN MTU (Multi-Tenant Unit) which isolates traffic between PoE ports and uplink ports. In STANDARD mode, no VLAN is configured.

What to do if a PoE device does not power on?

Check that the PoE LED is lit on the corresponding port. Make sure the connected device is PoE-compatible and the total consumption does not exceed 65 W. Test with a different cable.

Can I use the switch with an external power supply?

The switch operates with a mains power supply 100-240 V AC, 50/60 Hz via the included power cord. It is not designed for external power supply other than the specified one.

USER MANUAL 561686 Intellinet

6-Port Fast Ethernet Switch

with 4 PoE Ports

(1 x High-Power PoE)

Model 561686 (IPS-06F02-65W)

Instructions

Important: Read before use. • Importante: Leer antes de usar.

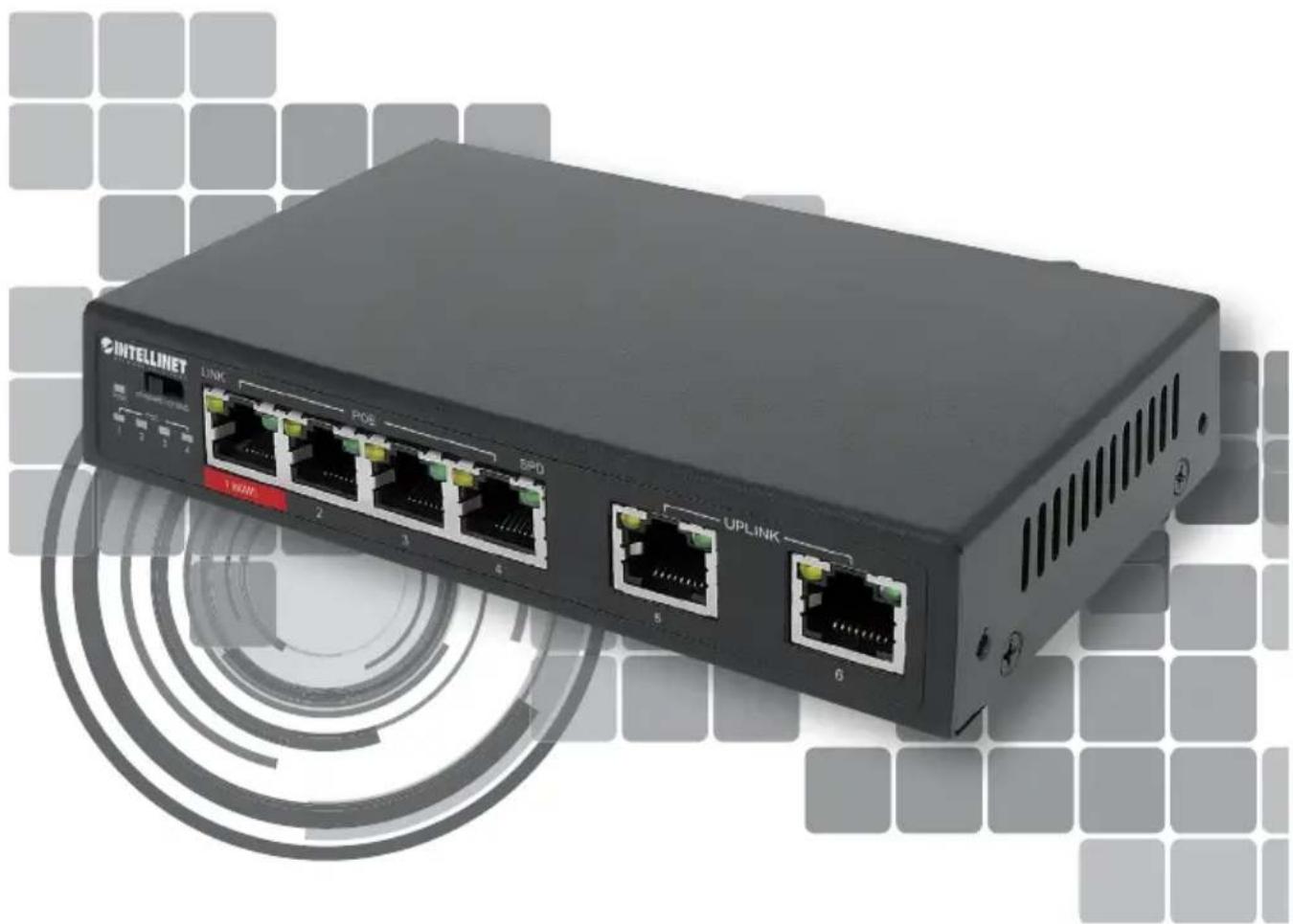

Exterior view of a black InTELLINET network switch with ports and I/O ports, shown against a grid background (no text or symbols on the device itself)

For additional benefits:

Scan to register your product warranty

or go to: register.intellinet-network.com/r/561686

The Intellinet 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE) offers an array of time-saving, cost-effective features while providing superior network throughput. No configuration is required and installation is plug and play.

For specifications, visit intellinetnetwork.com. Register your product at register.intellinet-network.com/r/561686 or scan the QR code on the cover.

Features

• Provides up to four PoE network devices with power and data
• Manual PoE extend mode (reduces network speed and extends PoE support to 250 m)
  • One high-power PSE PoE Port with power up to 60 W (port 1), three IEEE 802.3at/af PSE PoE Ports with up to 30 W each
  • PoE power budget of 65 watts
• Two RJ45 Fast Ethernet uplink ports
• Backplane speed of 1.2 Gbps

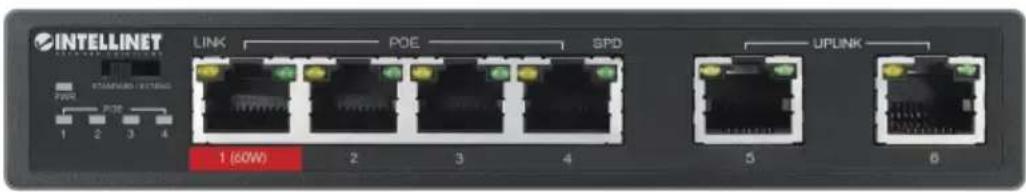

Front Panel

LED Color Status Operation
Link Yellow		On Valid port connection
		Blinking Sending or receiving data
		Off No link established.
PoE Green		On The connected device is receiving power.
		Off No PSE/PoE device is linked.
SPD Green		On 100 Mbps speed
		Blinking 10 Mbps speed
PWR Green		On Power on
		Off Power off

Slide Switch

STANDARD: default mode; allows normal communication between ports.

EXTEND: open MTU VLAN, set PoE ports to full 10 Mbps and extend Ethernet up to 250 meters (820 ft.)

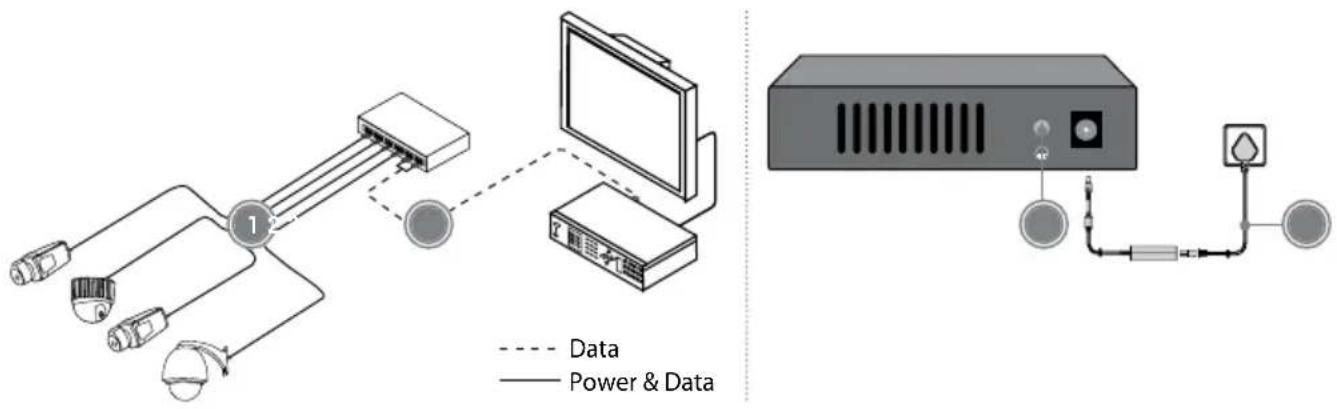

Connections

Connections

1 Use Ethernet cable (Cat5e min.) to connect powered device(s) to PoE port(s).
2 Use Ethernet cable (Cat5e min.) to connect switch to uplink port(s).
3 Wire the grounding terminal to an earth-grounding object to prevent power spikes.
4 Use the included power cord to connect the device (on the rear panel) to an AC outlet. The device supports AC 100 – 240 V, 50/60 Hz.

Placement

Desktop Installation

Prior to use, place/position the switch:

• on a level surface with at least 25 mm (approx. 1") of clearance for ventilation
• away from sources of electrical noise: radios, transmitters, broadband amplifiers within 100 m (approx. 328') of network devices it's to be connected to.

(Applicable In The European Union And Other European Countries With Separate Collection Systems)

ENGLISH: This symbol on the product or its

packaging means that this product must not be treated as unsorted household waste. In accordance with EU Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user's local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna; increase the separation between the equipment and the receiver; connect the equipment to an outlet on a circuit different from the receiver; or consult the dealer or an experienced radio/TV technician for help.

CE

ENGLISH : This device complies with the requirements of CE 2014/30/EU and / or 2014/35/EU. The Declaration of Conformity for is available at:

support.intellinet-network.com/barcode/561686
