USER MANUAL Comfort Temp KH390715CM-6A DELONGHI

Instructions for use. Keep these instructions

Visit www.delonghi.com for a list of service centers near you.

ELECTRIC CHARACTERISTICS

120 V\~60 Hz 1500 W

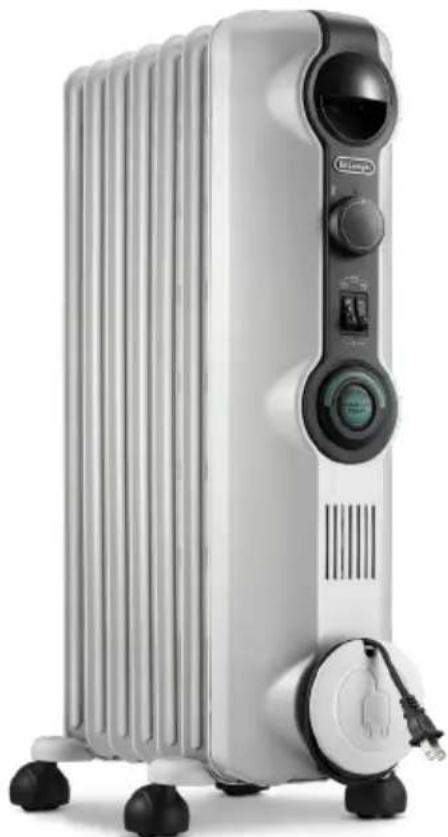

Exterior view of a silver oil resistance heater with control panel and power cord (no visible text or symbols)

page 4 pág. 8

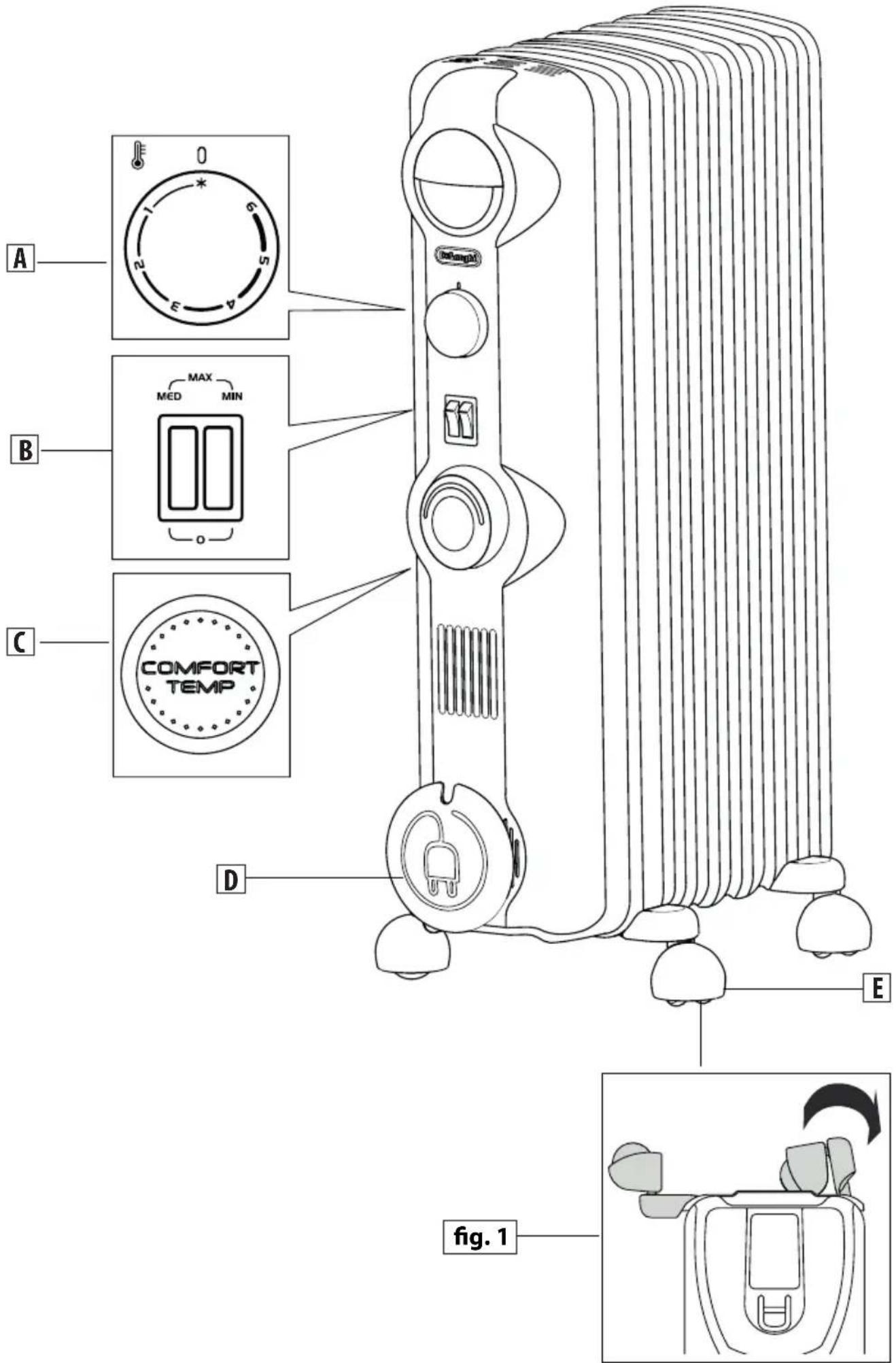

A B C D E Fig. 1

MISES EN GARDE IMPORTANTES

When using any electrical appliance, some basic safety precautions should always be observed to reduce the risk of fire, electric shock, and/or injury to persons. Read all instructions carefully before using the appliance. Specifically:

Danger!

Failure to observe the warning may result in life threatening injury by electric shock.

• The appliance must not be placed immediately under a fixed power socket.
• Do not use the appliance outdoors.
• This heater is not intended for use in bathrooms, laundry areas, or similar indoor locations. Never position the appliance where it may fall into a bathtub or come in contact with water.
• If the power cable is damaged, stop using the product. Power cable must be replaced by the manufacturer, an authorised service centre or a qualified electrician in order to eliminate all risk.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock, fire, or damage the heater.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

- The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children

should be supervised to ensure that they do not play with the appliance.

- CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- The internal parts of the appliance can become very hot or produce sparks during operation. Do not use the appliance in areas where gasoline, paints, or other flammable liquids are used or stored.

- This heater is filled with a precise quantity of special oil. Repairs requiring opening of the oil container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leak; when scrapping the heater, follow the regulations concerning the disposal of oil.

- ATTENTION: To avoid the safety system resetting accidentally, this appliance must not be powered through an external on/off device such as a timer, or connected to a circuit which is turned off and on regularly by the energy supplier.

- Do not use the appliance in small rooms when they are occupied by persons that are not capable of leaving the room, unless constant supervision is provided.

- Always disconnect the plug from the power outlet when the appliance is not in use.

- Do not wrap the cord around the appliance immediately after use.

- When the appliance is in use unwrap the cord from the cord holder.

- The appliance must not be located immediately below a fixed socket-outlet.

Danger of burns!!

Failure to observe the warning could result in burns or scalds.

• WARNING: To avoid overheating, never under any circumstances cover the appliance during operation as this would lead to a dangerous rise in temperature, and risk of fire. Do not use the appliance on soft surfaces, such as beds, where the openings may become blocked.
• Do not run the power cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Keep the cord away from any passageways where it could be tripped over.

Please note:

This symbol indicates recommendations and important information for the user.

• Always use the appliance in an upright position.
• Do not use this appliance with an extension cord or outlet strip. Connect the appliance directly to a suitable outlet.
• Make sure that the plug is fully inserted into the outlet. Wall outlets may deteriorate with time, so check the plug periodically for signs of overheating or deformation. If the outlet has deteriorated, stop using it and have it repaired.
• To prevent burns, do not touch hot surfaces with bare skin. Use the handle when moving the appliance. Keep all flammable materials, such as furniture, pillows, bedding, paper, clothing, and curtains at least 90 cm (3 feet) from the front and top of the appliance

also avoid contact with the sides and back.

• Do not use the appliance in rooms with a floor area of less than 4m^2 .
• Before putting the appliance away, make sure it is completely off and unplugged from the mains socket. Wrap the cable around the base. Do not store in dusty atmospheres.
• Do not rest anything on the appliance.
• Do not use the appliance to dry laundry. Do not obstruct the air intake and outlet grilles (danger of overheating).
• Do not use the appliance near walls, furniture, curtains, etc.
• Do not place the heater near a bed because objects such as pillows or blankets can fall off the bed and be ignited by the heater.
• Never place the power cable on top of the heater while it is hot.
• We recommend that you not place the heater in a draught, because strong draughts of air may adversely affect the equipment's operational efficiency.
• The first time you use the appliance, operate it of at least 2 hours with the thermostat at maximum to eliminate the "new" smell. A little smoke due to the protective substances applied to the heating element before transport may be given off.
• Position the appliance so that the plug and the outlet can be easily reached even after installation.
• This appliance is not intended for use at altitudes exceeding 2000 m (6561 feet).
• The appliance is fitted with a safety device which will switch off it in case

of accidental overheating. To reset, please contact Customer Experience, see enclosed guarantee.

SAVE THESE INSTRUCTIONS

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY

DESCRIPTION

(see figure on pag. 3)

A Thermostat
B Switches
C Comfortemp button
D Cord holder
E Wheel

USE

Electrical connection

Before plugging the radiator into the outlet, check that the voltage of your outlet electricity supply corresponds to the value V indicated on the appliance and that the socket and power line are appropriately dimensioned.

"Easy wheel" sytem

Turn the radiator upside-down on a rug or a soft surface in order to prevent damaging the paint finish. Fully unfold the castors by turning them outwards (Fig.1). Turn the radiator back to its upright position.

Important!

When in use, the radiator should always be kept vertical (wheels at the bottom, controls at the top). Any other position could be dangerous!

INSTRUCTIONS FOR USE

Switching on - off

Turn the thermostat dial clockwise to maximum.

Turn on both switches. The lights on the switches remain on irrespective of the cycle set by the thermostat.

When the room reaches the required temperature, turn the dial counter clockwise slowly until you hear a click.

The appliance will come on and go off automatically to maintain the required temperature.

To turn the appliance off completely, turn the thermostat to minimum * and unplug from the outlet

Economiser

For economy of use, the switches can be used singly:

• button in position «MIN» only = minimum power (light on)
• button in position «MED» only = medium power (light on)
• buttons in both positions «MIN» and «MED» = maximum power (lights on)

Using the thermostat

The thermostat operates on the basis of room temperature and not radiator temperature. To reduce the temperature, turn the thermostat dial anti-clockwise; to increase the temperature, turn it clockwise.

Frost protection function

With the thermostat in position and the switches pressed, the appliance maintains the room at a temperature of about 5^ C ( 41^ F), preventing freezing with minimum energy consumption.

COMFORTEMP BUTTON

With the "COMFORTEMP" button and both switches pressed, the appliance is automatically set to reach and maintain what is considered to be the comfort temperature.

A green light comes on to indicate activation of "COMFOR-TEMP". In this mode the temperature is automatically set only by the "COMFORTEMP". To deactivate this mode and return to thermostat operation, press the COMFORTEMP button again.

MAINTENANCE

Before carrying out any operation on the radiator, unplug from the electric outlet and wait for it to cool.

The oil-filled electric radiator requires no particular maintenance. It is sufficient to remove the dust with a soft, dry cloth. Never use abrasive powders or solvents. If necessary remove concentrations of dirt using a vacuum cleaner.

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION
The appliance doesn't work Be	sure it is plugged in and that the elec-trical outlet is working.	Plug into the power outlet.
	Check for any obstruction.	Remove the obstruction and let the appliance cool down. If the appliance doesn't work please contact the De longhi toll free number.
	The temperature may be set too low.	Set the temperature to a higher position.
