OIL FILLED RADIATOR

Instructions for use. Keep these instructions

Visit www.delonghi.com for a list of service centers near you.

ELECTRIC CHARACTERISTICS

120 V\~60 Hz 1500 W

page 4 page 8

A B C D E F

MISES EN GARDE IMPORTANTES

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

When using any electrical appliance, some basic safety precautions should always be observed to reduce the risk of fire, electric shock, and/or injury to persons. Read all instructions carefully before using the appliance. Specifically:

Danger!

Failure to observe the warning may result in life threatening injury by electric shock.

• The appliance must not be placed immediately under a fixed power socket.
• Do not use the appliance outdoors.
• This heater is not intended for use in bathrooms, laundry areas, or similar indoor locations. Never position the appliance where it may fall into a bathtub or come in contact with water.
• If the power cable is damaged, stop using the product. Power cable must be replaced by the manufacturer, an authorised service centre or a qualified electrician in order to eliminate all risk.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock, fire, or damage the heater.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

- The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by

a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- The internal parts of the appliance can become very hot or produce sparks during operation. Do not use the appliance in areas where gasoline, paints, or other flammable liquids are used or stored.

- This heater is filled with a precise quantity of special oil. Repairs requiring opening of the oil container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leak; when scrapping the heater, follow the regulations concerning the disposal of oil.

- ATTENTION: To avoid the safety system resetting accidentally, this appliance must not be powered through an external on/off device such as a timer, or connected to a circuit which is turned off and on regularly by the energy supplier.

- Do not use the appliance in small rooms when they are occupied by persons that are not capable of leaving the room, unless constant supervision is provided.

- Always disconnect the plug from the power outlet when the appliance is not in use.

- Do not wrap the cord around the appliance immediately after use.

• When the appliance is in use unwrap the cord from the cord holder.
• The appliance must not be located immediately below a fixed socket-outlet.

Danger of burns!!

Failure to observe the warning could result in burns or scalds.

- WARNING: To avoid overheating, never under any circumstances cover the appliance during operation as this would lead to a dangerous rise in temperature, and risk of fire.

Do not use the appliance on soft surfaces, such as beds, where the openings may become blocked.

- Do not run the power cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Keep the cord away from any passageways where it could be tripped over.

Please note:

This symbol indicates recommendations and important information for the user.

• Always use the appliance in an upright position.
• Do not use this appliance with an extension cord or outlet strip. Connect the appliance directly to a suitable outlet.
• Make sure that the plug is fully inserted into the outlet. Wall outlets may deteriorate with time, so check the plug periodically for signs of overheating or deformation. If the outlet has deteriorated, stop using it and have it repaired.
• To prevent burns, do not touch hot surfaces with bare skin. Use the handle when moving the appliance. Keep all flammable materials, such

as furniture, pillows, bedding, paper, clothing, and curtains at least 90 cm (3 feet) from the front and top of the appliance also avoid contact with the sides and back.

- Do not use the appliance in rooms with a floor area of less than 4m^2 (43 square feet).

- Before putting the appliance away, make sure it is completely off and unplugged from the mains socket. Wrap the cable around the base.

Do not store in dusty atmospheres.

- Do not rest anything on the appliance.

- Do not use the appliance to dry laundry. Do not obstruct the air intake and outlet grilles (danger of overheating).

- Do not use the appliance near walls, furniture, curtains, etc.

- Do not place the heater near a bed because objects such as pillows or blankets can fall off the bed and be ignited by the heater.

- Never place the power cable on top of the heater while it is hot.

- We recommend that you not place the heater in a draught, because strong draughts of air may adversely affect the equipment's operational efficiency.

- The first time you use the appliance, operate it of at least 2 hours with the thermostat at maximum to eliminate the "new" smell.

A little smoke due to the protective substances applied to the heating element before transport may be given off.

- Position the appliance so that the plug and the outlet can be easily reached even after installation.

• This appliance is not intended for use at altitudes exceeding 2000 m (6561 feet).
• The appliance is fitted with a safety device which will switch off it in case of accidental overheating. To reset, please contact Customer Experience, see enclosed guarantee.

SAVE THESE INSTRUCTIONS

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY

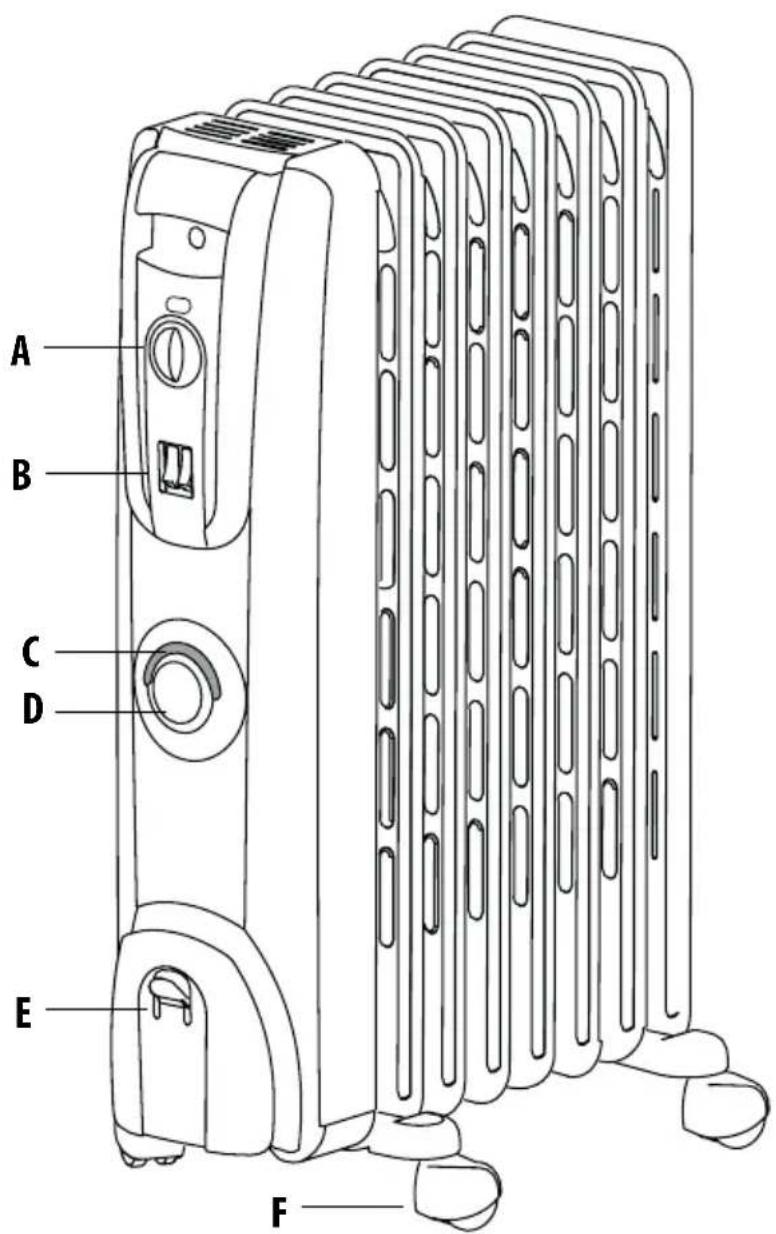

DESCRIPTION

A thermostat
B switches
C green pilot light
D COMFORTEMP button
E cord holder
F wheel

USE

"Easy wheel" system

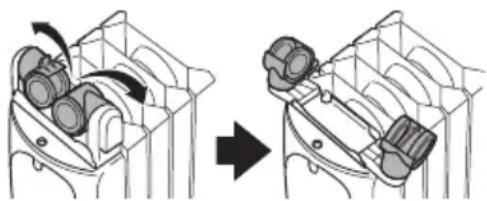

Turn the radiator upside-down on a rug or a soft surface in order to prevent damaging the paint finish. Fully unfold the castors by turning them outwards (see figure).

Turn the radiator back to its upright position.

Diagram showing a device being processed from a front view, with no visible text or symbols

Important! Always operate the heater in upright position only (wheels on the bottom, controls on top). Any other position could create hazardous situation.

WATTS ECONOMIZER

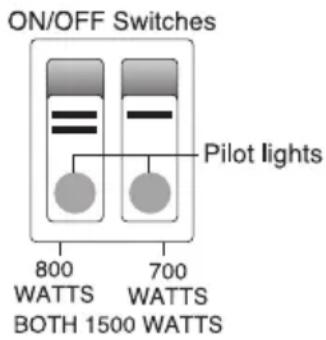

For more economical use, the two switches may be used individually, after unit has reached the operating temperature.

ON/OFF Switches Pilot lights 800 WATTS 700 WATTS BOTH 1500 WATTS

With pilot lights ON, the heater is ON.

LOCATION

Place the heater on the floor beneath the coldest window in the room, or any other location. Your heater will reduce the effect of cold drafts. The heater should not be placed immediately below a power outlet. Do not use this radiator in rooms with a floor area of less than 43 square feet (4 sq. m.).

CONNECTION

The radiator should be connected to a properly polarized household outlet in perfect working condition. Keep loose clothing or bedding, furniture and flammable material away from the heater's wall outlet.

Your product is equipped with a polarized alternating current line plug (a plug having one prong wider than the others). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not attempt to modify the plug to bypass this safety feature.

TURNING ON TWO-SWITCH MODELS

Turn the thermostat clockwise to its maximum position. Push down both switches. The switch lights stay on independently of the thermostat cycling. When room reaches the desired temperature, turn the thermostat knob counter-clockwise very slowly and carefully until you hear a click. This should set your heater to maintain the desired temperature by cycling on and off as required.

USE OF THERMOSTAT

The thermostat operates according to room air temperature, rather than radiator temperature. Turning it counterclockwise to smaller numbers would decrease the temperature; clockwise to greater numbers would increase the temperature.

ANTI-FREEZE FUNCTION

Turn the thermostat dial to the ✗ position and push both switches on. The appliance will maintain a minimum room temperature of approximately 5°C (41°F), thus preventing freezing while conserving energy.

COMFORTEMP Function

With both switches on and the COMFORTEMP button depressed the appliance is automatically set to reach and maintain the suggested and preset ideal energy-saving temperature. When operating in COMFORTEMP mode, the half-circle green pilot light is on. To quit the COMFORTEMP function and return to manual operation, depress the COMFORTEMP button once.

Important! To completely shut the heater off, ON/

OFF both switches must be set in the OFF position.

A safety device

A safety device switches the heater off in the event of overheating. To restart the heater, call the nearest service center.

MAINTENANCE AND SERVICE

Always unplug the heater from the power outlet and allow the radiator to cool. Wipe radiator with a soft damp cloth; do not use detergents and abrasives. Should the radiator not be in use over a certain length of time, roll the cable around the holder and store it in a dry place.

This appliance has been built to last for many years of trouble-free service. In case of malfunction or doubt, do not try to repair the heater by yourself: this might increase the risk of fire and electric shock. Contact the De longhi toll free number.

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION
The appliance doesn't work Be sure it is plugged in and that the electrical outlet is working.Check for any obstruction.The temperature may be set too low.	Plug into the power outlet.Remove the obstruction and let the appliance cool down. If the appliance doesn't work please contact the De longhi toll free number.Set the temperature to a higher position.
