NUN 10K-22

en Original operating instructions .... 1

Original operating instructions

1 Information about the operating instructions

1.1 About these operating instructions

• Warning! Read and understand all accompanying documentation, including but not limited to instructions, safety warnings, illustrations, and specifications provided with this product. Familiarize yourself with all the instructions, safety warnings, illustrations, specifications, components, and functions of the product before use. Failure to do so may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference.
• HILTI products are designed for professional users and only trained, authorized personnel are permitted to operate, service and maintain the products. This personnel must be specifically informed about the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.
• The accompanying documentation corresponds to the current state of the art at the time of printing. Please always check for the latest version on the product's page on Hilti's website. To do this, follow link or scan the QR code in this documentation, marked with the symbol .
• Ensure that these operating instructions are with the product when it is given to other persons.

1.2 Explanation of symbols

1.2.1 Warnings

Warnings alert persons to hazards that occur when handling or using the product. The following signal words are used:

DANGER

DANGER!

- Draws attention to imminent danger that will lead to serious personal injury or fatality.

WARNING

WARNING!

- Draws attention to a potential threat of danger that can lead to serious injury or fatality.

CAUTION

CAUTION!

- Draws attention to a potentially dangerous situation that could lead to personal injury or damage to the equipment or other property.

1.2.2 Symbols in the operating instructions

The following symbols are used in these operating instructions:

Comply with the operating instructions

Instructions for use and other useful information

Dealing with recyclable materials

Do not dispose of electric equipment and batteries as household waste

Hilti Li-ion battery

Hilti charger

1.2.3 Symbols in illustrations

The following symbols are used in illustrations:

These numbers refer to the illustrations at the beginning of these operating instructions.

3	The numbering reflects the sequence of operations shown in the illustrations and may deviate from the steps described in the text.
11	Item reference numbers are used in theoverview illustrationand refer to the numbers used in the key in theproduct overviewsection.
!	These characters are intended to specifically draw your attention to certain points when handling the product.

1.3 Product-dependent symbols

1.3.1 Symbols on the product

The following symbols can be used on the product:

	The product supports near-field communication (NFC) technology compatible with iOS and Android platforms.
Li-Ion	Li-ion battery
	Never strike the battery with an object and never use the battery as a striking tool.
	Do not drop the battery. Never use a battery that has suffered an impact or is damaged in any other way.
	The Bluetooth® wordmark and the logo are registered trademarks and the property of Blue-tooth SIG, Inc. and Hilti has been granted a license to use these trademarks.
	Hilti Li-ion battery type series used. Observe the information given in the section headed Intended use.
	If applied on the product, the product has been certified by this certification body for the US and Canadian markets according to the applicable standards.

	The product supports near-field communication (NFC) technology compatible with iOS and Android platforms.
Li-Ion	Li-ion battery
	Never strike the battery with an object and never use the battery as a striking tool.
	Do not drop the battery. Never use a battery that has suffered an impact or is damaged in any other way.
	The Bluetooth® wordmark and the logo are registered trademarks and the property of Blue-tooth SIG, Inc. and Hilti has been granted a license to use these trademarks.
	Hilti Li-ion battery type series used. Observe the information given in the section headed Intended use.
	If applied on the product, the product has been certified by this certification body for the US and Canadian markets according to the applicable standards.

	The product supports near-field communication (NFC) technology compatible with iOS and Android platforms.
Li-Ion	Li-ion battery
	Never strike the battery with an object and never use the battery as a striking tool.
	Do not drop the battery. Never use a battery that has suffered an impact or is damaged in any other way.
	The Bluetooth® wordmark and the logo are registered trademarks and the property of Blue-tooth SIG, Inc. and Hilti has been granted a license to use these trademarks.
	Hilti Li-ion battery type series used. Observe the information given in the section headed Intended use.
	If applied on the product, the product has been certified by this certification body for the US and Canadian markets according to the applicable standards.

	The product supports near-field communication (NFC) technology compatible with iOS and Android platforms.
Li-Ion	Li-ion battery
	Never strike the battery with an object and never use the battery as a striking tool.
	Do not drop the battery. Never use a battery that has suffered an impact or is damaged in any other way.
	The Bluetooth® wordmark and the logo are registered trademarks and the property of Blue-tooth SIG, Inc. and Hilti has been granted a license to use these trademarks.
	Hilti Li-ion battery type series used. Observe the information given in the section headed Intended use.
	If applied on the product, the product has been certified by this certification body for the US and Canadian markets according to the applicable standards.

1.4 Product information

HILTI products are designed for professional users and only trained, authorized personnel are permitted to operate, service and maintain the products. This personnel must be specifically informed about the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.

The type designation and serial number are printed on the rating plate.

Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product.

Product information

Cordless hydraulic pump NUN 10K-22
Generation 01
Serial no.

2 Safety

2.1 General power tool safety warnings

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
- Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
- Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
- Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
- Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C (265°F) may cause explosion.
▶ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
▶ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

2.2 Additional safety instructions

Personal safety

Invariably, before work commences a risk assessment has to be carried out and the necessary protective measures have to be implemented,.

All personnel involved in work in the vicinity of electrical installations must have received instruction concerning the applicable safety requirements, safety regulations and company operating procedures.

Working procedures are divided into three different procedures: dead working, live working, working in the vicinity of live parts. All these procedures are based on the use of protective measures against electric shock and/or the effects of short-circuits and arcing. For further details refer to EN 50110 and any national requirements and practices. It shall be verified that all methods and tools chosen are suitable for the installation to be worked on.

▶ Use the product and accessories only when they are in perfect working order.
▶ Never tamper with or modify the product or accessories in any way.
▶ Never use the hydraulic hose to lift the product and/or connected tool heads.
If you notice oil escaping, cease working with the tool and consult Hilti Service. Immediately remove the leaked oil.
Risk of injury by falling tools and/or accessories. Before starting work, check that the battery and installed accessories are secure.
Risk of injury if accessory falls. Before starting work, check that the remote control unit is secure in the recess provided for the purpose in the pump. For working at height, make sure that the remote control unit is secured separately.
▶ Use only crimping / pressing, cutting and punching heads designed for operation with the cordless hydraulic pump.

Power tool use and care

Before starting work, check the oil level at the oil filler neck. If the oil level is too low, consult Hilti Service.
The hydraulic oil has to be changed after one year at the latest or, in frequent use, after 10,000 cycles or 8000 work operations. Contact Hilti Service for this.

2.3 Careful handling and use of batteries

• Comply with the following safety instructions for the safe handling and use of Li-ion batteries.
  Failure to comply can lead to skin irritation, severe corrosive injury, chemical burns, fire and/or explosion.
  ▶ Use only batteries that are in perfect working order.
  ▶ Treat batteries with care in order to avoid damage and prevent leakage of fluids that are extremely harmful to health!

- Do not under any circumstances modify or tamper with batteries!

- Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80 °C (176 °F).

▶ Never use or charge a battery that has suffered an impact or been damaged in any other way. Check your batteries regularly for signs of damage.

▶ Never use recycled or repaired batteries.

▶ Never use the battery or a battery-operated power tool as a striking tool.

▶ Never expose batteries to the direct rays of the sun, elevated temperature, sparking, or open flame. This can lead to explosions.

Do not touch the battery poles with your fingers, tools, jewelry, or other electrically conductive objects. This can damage the battery and also cause material damage and personal injury.

- Keep batteries away from rain, moisture and liquids. Penetrating moisture can cause short circuits, electric shock, burns, fire and explosions.

- Use only chargers and power tools approved for the specific battery type. Read and follow the relevant operating instructions.

- Do not use or store the battery in explosive environments.

If the battery is too hot to touch, it may be defective. Put the battery in a place where it is clearly visible and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery cool down. If it is still too hot to touch after an hour, the battery is faulty. Consult Hilti Service or read the document entitled "Instructions on safety and use for Hilti Li-ion batteries".

Observe the special guidelines applicable to the transport, storage and use of lithium-ion batteries → page 12

Read the instructions on safety and use of Hilti Li-ion batteries that you can access by scanning the QR code at the end of these operating instructions.

3 Description

3.1 Product overview

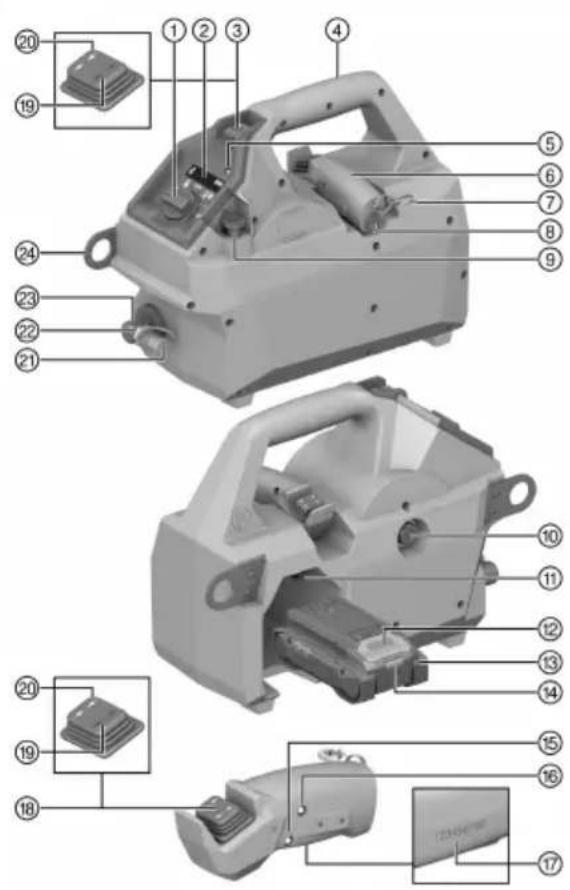

Exploded view diagram of a mechanical device with numbered parts for identification

① Rotary selector switch

② Display

③ Non-latching rocker switch on pump

④ Carrying handle

⑤ Red LED

⑥ Remote control unit

⑦ Carabiner

⑧ Battery-compartment cover

⑨ Emergency return button

⑩ Oil filler neck

⑪ Battery mount

⑫ Battery release button

⑬ Battery

⑭ Battery state of health indicator

⑮ Blue LED

⑯ Green LED

⑰ Serial number (engraved)

⑱ Non-latching rocker switch on remote control unit

⑲ "Open" position of non-latching rocker switch

⑳ "Close" position of non-latching rocker switch

②1 Cover, coupling plug

②2 Coupling sleeve

②3 Coupling plug

⑳ Attachment eye

3.2 Intended use

The product described is a cordless hydraulic pump. It is designed for use with hydraulic cutting, pressing, crimping and knockout punching tools.

• For this product, use only Hilti Nuron lithium-ion batteries of the B 22 series. For optimum performance, Hilti recommends the batteries stated in the table at the end of these operating instructions for this product.
• For these batteries, use only Hilti chargers of the type series stated in the table at the end of these operating instructions.

3.3 Items supplied

Cordless hydraulic pump, operating instructions

3.4 Overview of programs

Program Use Description
	For use with a crimping adapter.Can be used in hand-held mode or remote-control mode.	For crimping.
"Crimp" program
	For use with a cutting adapter.Can be used in hand-held mode or remote-control mode.	For cutting.
"Cut" program
	For use with a punching adapter.Can be used in hand-held mode or remote-control mode.	For punching.
"Punch" program
	For switching off the cordless hydraulic pump.	For switching off with countdown.
"Off" program
	For use with a crimping adapter.Can be used in hand-held mode or remote-control mode.	For crimping without pressure relief.
"Crimp and maintain pressure" program
	—	—
"Empty" program
	Pairs and unpairs the Bluetooth connection between the cordless hydraulic pump and remote control unit.	Pairs and unpairs the Bluetooth connect between the cordless hydraulic pump and a remote control unit.
"Blue-tooth" program

3.5 Status indicators of the Li-ion battery

Hilti Nuron Li-ion batteries can indicate state of charge, fault messages and the battery's state of health.

3.5.1 Indicators for state of charge and fault messages

WARNING

Risk of injury by a falling battery!

If the release button is pressed with a battery inserted in the product, subsequently check that the battery is correctly re-engaged and secure.

Short-press the release button of the battery to get whichever of the following status indications is applicable at the time.

State of charge and, if applicable, faults are indicated constantly as long as the connected product is switched on.

Status Meaning
Four (4) LEDs show constantly green State of	charge: 100 % to 71 %
Three (3) LEDs show constantly green State of	charge: 70 % to 51 %
Two (2) LEDs show constantly green State of	charge: 50 % to 26 %
One (1) LED shows constantly green State of	charge: 25 % to 10 %
One (1) LED slow-flashes green	State of charge: < 10 %
One (1) LED quick-flashes green	The Li-ion battery is completely discharged. Recharge the battery.If the LED again starts quick-flashing after the battery has been charged, consultHilti Service.
One (1) LED quick-flashes yellow	The Li-ion battery or the product in which is inserted is overloaded, too hot or too cold, or experiencing some other fault.Bring the product and the battery to the recommended working temperature and do not overload the product when it is in use.If the message persists, consultHilti Service.
One (1) LED shows yellow	The Li-ion battery and the product in which it is inserted are not compatible. ConsultHilti Service.
One (1) LED quick-flashes red	The Li-ion battery is locked and cannot be used.ConsultHilti Service.

3.5.2 Indicators showing the battery's state of health

To check the battery's state of health, press the release button and hold it down for longer than three seconds. The system does not detect a potential malfunction of the battery due to misuse, for example battery dropped or pierced, external heat damage, etc.

Status Meaning
All LEDs show in sequence, followed by one LED showing constantly green.	(1)The battery can remain in use.
All LEDs show in sequence, followed by one LED quick-flashing yellow.	(1)The check to ascertain the battery's state of h did not complete. Repeat the procedure, or co Hilti Service.
All LEDs show in sequence, followed by one LED showing constantly red.	(1)If a connected product can still be used, the remaining battery capacity is below 50%.If a connected product can no longer be used, the battery has reached the end of its useful life and has to be replaced. Consult Hilti Service.

4 Technical data

Rated voltage	21.6 V
Max. operating pressure	700 bar(10,153 psi)
Capacity (oil)	760 ml(25.70 fl. oz)
Weight in accordance with EPTA procedure 01, without battery	6.0 kg(13.23 lb)
Ambient temperature for operation	-17 °C ... 60 °C(1.4 °F ... 140.0 °F)
Storage temperature	-20 °C ... 70 °C(-4.0 °F ... 158.0 °F)

4.1 Battery

Battery operating voltage	21.6 V
Weight, battery	See the end of these operating instructions
Ambient temperature for operation	-17 °C ... 60 °C(1.4 °F ... 140.0 °F)
Storage temperature	-20 °C ... 40 °C(-4.0 °F ... 104.0 °F)
Battery charging starting temperature	-10 °C ... 45 °C(14.0 °F ... 113.0 °F)

5 Preparations at the workplace

WARNING

Risk of injury by inadvertent starting!

Before inserting the battery, make sure that the product is switched off.
Remove the battery before making any adjustments to the power tool or before changing accessories.

Observe the safety instructions and warnings in this documentation and on the product.

5.1 Charging the battery

1. Before charging the battery, read the operating instructions for the charger.
2. Make sure that the contacts on the battery and the contacts on the charger are clean and dry.
3. Use an approved charger to charge the battery. → page 6

5.2 Inserting the battery

WARNING

Risk of injury by short circuit or falling battery!

Before inserting the battery, make sure that the contacts on the battery and the contacts on the product are free of foreign matter.
▶ Make sure that the battery always engages correctly.

1. Charge the battery fully before using it for the first time.
2. Push the battery into the product until it engages with an audible click.
3. Check that the battery is seated securely.

5.3 Removing the battery

1. Press the battery release button.
2. Remove the battery from the product.

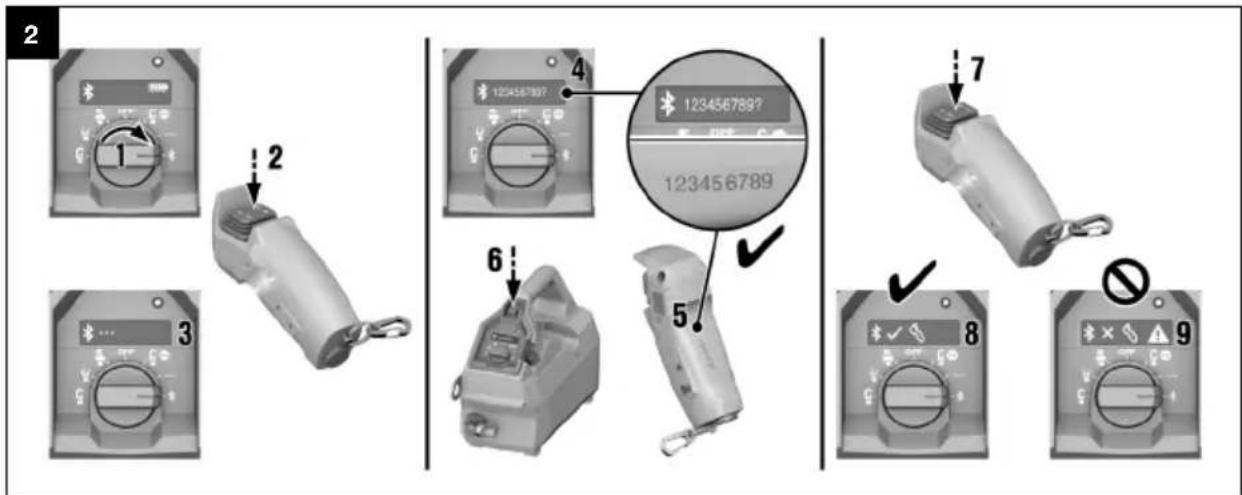

5.4 Bluetooth pairing 2

Hilti products ship ex-works with Bluetooth deactivated. Bluetooth switches itself on automatically during initial operation.

If pairing is interrupted, the procedure is canceled after ten seconds. If this happens, pairing has to recommenced from the beginning.

1. Turn the rotary selector switch to "Bluetooth".
   ▶ Display shows Bluetooth symbol.

1. Press the non-latching rocker switch on the remote control unit.
   The green and blue LEDs on the remote control unit show steadily.

2. Wait until the pump has found the remote control unit.

▶ Display shows Bluetooth symbol with running dots.

1. Wait until the serial number of the remote control is shown on the display.

1. Compare the serial number on the display with the serial number on the remote control unit.

2. If the serial number is correct, press the non-lated rocker switch on the pump to confirm the connection

- Display shows Bluetooth symbol and remote control unit symbol.

1. Press the non-latching rocker switch on the remote control unit to confirm the connection.

2. If the Bluetooth connection was successfully established, the following appears on the display:

1. If the Bluetooth connection was not successfully established, the following appears on the display:

5.4.1 Rejecting serial number

If several remote control units are used and the wrong serial number is displayed.

1. Follow the instructions until the serial number is displayed. → page 9

2. Press the non-latching rocker switch on the pump to reject the serial number. ▶ The rejected serial number is ignored for ten seconds.

3. The next possible serial number is shown on the display.

4. Repeat the procedure until the correct serial number is displayed.

5. Exit the pairing procedure. → page 9

5.5 Unpairing Bluetooth connection

The Bluetooth connection is automatically unpaired after 15 minutes' inactivity.

▶ Turn the rotary selector switch to "Bluetooth".
▶ The connection to the remote control unit is disconnected.

5.6 Checking oil level

1. Set the pump on a level surface.

2. At the oil filler neck, check whether there is enough oil in the pump.

The viewing window at the filler neck must be completely full of oil.

1. If the oil level is too low, contact Hilti Service.

5.7 Fall arrest

WARNING

Risk of injury by falling tool and/or accessory!

▶ Use only the Hilti tool tether recommended for your product.
Prior to each use, always check the attachment point of the tool tether for possible damage.

Comply with the national regulations for working at heights.

As drop arrester for this product, use only a combination of the Hilti tool tether #2261971 and the Hilti tool tether #2261970.

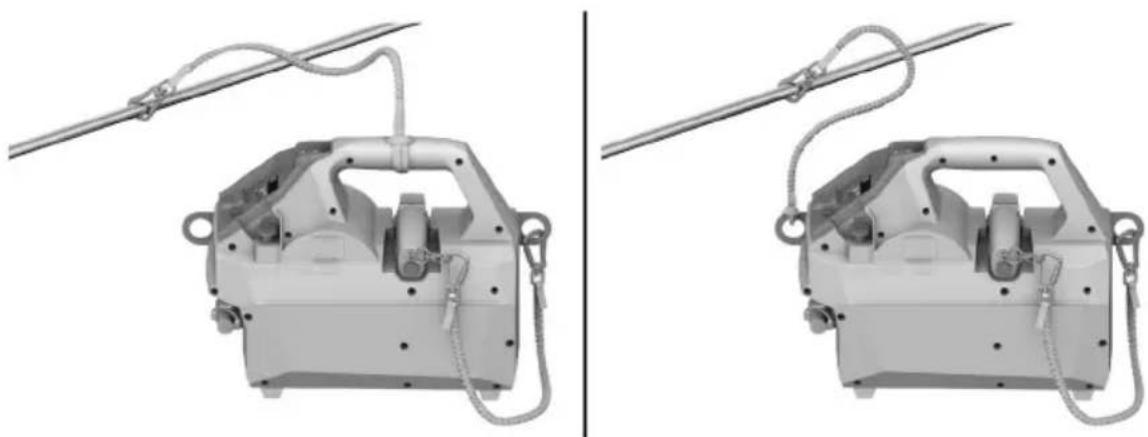

Two identical mechanical device diagrams showing internal components connected by wires, no text or symbols present.

• Use the loop to secure tool tether #2261971to the product as shown in the illustration. Check that it holds securely.
• Secure the carabiner to a load-bearing structure. Check that the carabiner holds securely.

Comply with the operating instructions of Hilti tool tether #2261971.

▶ Attach one end of tool tether #2261970 to the carabiner of the remote control unit and the other end to an attachment eye of the pump. Check that it holds securely.

6 Operation

Observe the safety instructions and warnings in this documentation and on the product.

6.1 Selecting program

1. Select the required program → page 6 on the basis of your application.
2. Turn the rotary selector switch to the position corresponding to the selected program.

6.2 Operating the pump

Residual pressure can lead, among other things, to loss of oil and difficulty with connecting the hose or the crimping, cutting or punching head. Before connecting an accessory, press the emergency return button to relieve possible residual pressure.

DANGER

Electricity presents a risk of fatal accident! Contact with electrically live lines can lead to severe physical injury and/or death.

▶ The product is not insulated!
▶ Do not use on electrically live lines!

WARNING

Risk of injury due to oil escaping under high pressure! Oil escaping under high pressure can injure the skin and the eyes.

• Do not use the pump if damage is visible.
  ▶ Do not use the pump if oil escapes.
  ▶ Make sure that the piston retracts after every work operation.
  If the piston does not retract after the work operation, press the reset button for manual retraction.

WARNING

Risk of injury! Unintentional starting.

Remove the battery before inserting, changing or removing the crimping, pressing or punching head.

1. Check the oil level. → page 10
2. Close the hydraulic hose.
3. Connect the required crimping, cutting or punching head.
4. Bring the crimping, cutting or punching head to the working position.
5. Press and hold down the non-latching rocker switch on the pump.
6. Hold the non-latching rocker switch on the pump down until the crimping, cutting or punching operation has completed.

7 Care and maintenance

WARNING

Risk of injury with battery inserted!

▶ Always remove the battery before carrying out care and maintenance tasks!

Care of the product

• Carefully remove stubborn dirt.
• Carefully clean the air vents, if present, with a dry, soft brush.
• Use only a slightly damp cloth to clean the housing. Do not use cleaning agents containing silicone as these can attack the plastic parts.
• Use a dry, clean cloth to clean the contacts of the product.

Care of the Li-ion batteries

• Never use a battery with clogged air vents. Clean the air vents carefully using a dry, soft brush.
• Avoid unnecessary exposure of the battery to dust and dirt. Never expose the battery to high levels of moisture (e.g. by being dipped in water or left in the rain).
  If a battery has been soaked by moisture, treat it as a damaged battery. Isolate it in a non-flammable container and consult Hilti Service.
• Keep the battery free of extraneous oil and grease. Do not permit dust or dirt to accumulate unnecessary on the battery. Clean the battery with a dry, soft brush or a clean, dry cloth. Do not use cleaning a containing silicone as these can attack the plastic parts.
  Do not touch the contacts of the battery and do not remove the factory-applied grease from the con
• Use only a slightly damp cloth to clean the housing. Do not use cleaning agents containing silicone as these can attack the plastic parts.

Maintenance

• Check all visible parts and controls for signs of damage at regular intervals and make sure that they function correctly.
• Do not use the product if signs of damage are found or if parts malfunction. Immediately have the pre-repaired by Hilti Service.
• After cleaning and maintenance, install all guards and protective devices and check that they are in full working order.

To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with your product can be found at your Hilti Store or online at: www.hilti.group

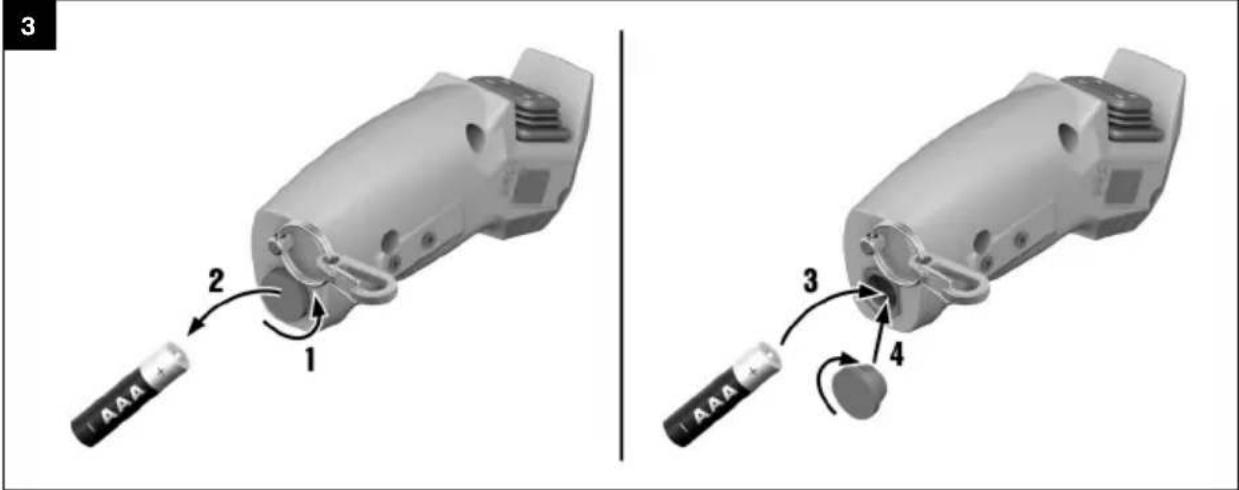

7.1 Changing battery of remote control unit

1. Twist the battery-compartment cover out of the remote control unit.
2. Remove the old battery from the remote control unit.
3. Insert a new battery into the remote control unit.
4. Twist the battery-compartment cover on to the remote control unit.

8 Transport and storage of cordless tools and batteries

Transport

CAUTION

Accidental starting during transport!

▶ Always transport your products with the batteries removed!

▶ Remove the battery/batteries.
▶ Never transport batteries loose and unprotected. During transport, batteries should be protected from excessive shock and vibration and isolated from any conductive materials or other batteries that may come in contact with the terminals and cause a short circuit. Comply with the locally applicable regulations for transporting batteries.
- Do not send batteries through the mail. Consult your shipper for instructions on how to ship undamaged batteries.
▶ Prior to each use and before and after prolonged transport, check the product and the batteries for damage.

Storage

WARNING

Accidental damage caused by defective or leaking batteries!

▶ Always store your products with the batteries removed!
- Store the product and the batteries in a cool and dry place. Comply with the temperature limits stated in the technical data.
- Do not store batteries on the charger. Always remove the battery from the charger when the charging operation has completed.
▶ Never leave batteries in direct sunlight, on sources of heat, or behind glass.
- Store the product and batteries where they cannot be accessed by children or unauthorized persons.
▶ Prior to each use and before and after prolonged storage, check the product and the batteries for damage.

9 Troubleshooting

If a problem occurs, always observe the status indicator of the battery. See the section headed Status indicators of the Li-ion battery.

If the trouble you are experiencing is not listed in this table or you are unable to rectify the problem by yourself, contact Hilti Service.

9.1 Malfunctions

Trouble or fault Possible cause Action to be taken
The battery runs down more quickly than usual.	Very low ambient temperature. ▶ Allow the battery to warm up slowly to room temperature.
The battery does not engage with an audible "click".	The retaining lugs on the battery are dirty. ▶ Clean the retaining lugs and refit the battery.
Red LED => flashes at short intervals and a warning tone is emitted.	The state of charge of the battery is too low to allow a complete erating cycle. ▶ Change the battery and charge op- the empty battery.

9.2 Fault codes

Fault code	Signal/indication Cause Action to be taken
ER10 LED shows for 4 seconds. Temperature too low Wait until the product has warmed up.
ER11 LED shows for 4 seconds. Temperature too high Wait until the product has cooled down.
ER20 LED flashes 4 times.Acoustic signal sounds 4 times	Battery state of charge too lowCharge the battery or change the battery.
ER21 LED flashes 4 times.Acoustic signal sounds 4 times	Communication fault, battery	Consult Hilti Service.
ER22 LED shows for 2 seconds.Acoustic signal sounds 2 times	Communication fault, battery	Consult Hilti Service.
ER27 LED shows for 4 seconds. Battery state of charge too low	Charge the battery or change the battery.
ER28 LED flashes 4 times.Acoustic signal sounds 4 times	battery discharged Charge	the battery or change the battery.
ER30 LED flashes 3 times.Acoustic signal sounds 3 times	Burst pressure reached Cease operation immediately and restart the pump.Consult Hilti Service.
ER40 LED shows for 7 seconds.Acoustic signal sounds 7 times	Overcurrent protection activated	Wait 4 seconds for the product to reset.
ER50 LED shows for 20 seconds. Maximum number of pressing operations reached	Consult Hilti Service.
ER60 LED shows for 2 seconds.Acoustic signal sounds 2 times	Communication fault Consult Hilti Service.

10 Disposal

WARNING

Risk of injury due to incorrect disposal! Health hazards due to escaping gases or liquids.

▶ DO NOT send batteries through the mail!
▶ Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting.
- Dispose of your battery out of the reach of children.
- Dispose of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions.

Most of the materials from which Hilti products are manufactured can be recycled. The materials must be rectly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti sales representative for further information.

- Do not dispose of power tools, electronic equipment or batteries as household waste!

11 Manufacturer's warranty

▶ Please contact your local Hilti representative if you have questions about the warranty conditions.

This device has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits are intended to ensure adequate protection against electromagnetic interference when the device is operated in areas used for commercial purposes. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause interference to radio communications. The user must bear costs incurred due to interference that operation of this device in residential areas can cause.

This device is in compliance with paragraph 15 of the FCC rules and the RSS-210 specifications of ISED. Operation is subject to the following two conditions:

• This device shall cause no harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by Hilti may restrict the user's authorization to operate the equipment.

13 Further information

For more information on operation, technology, environment and recycling, follow this link: qr.hilti.com/manual/?id=2353622

This link is also to be found at the end of the operating instructions, in the form of a QR code.

Exploded view diagram of a mechanical device with numbered parts for identification

① Sélecteur rotatif

② Écran

Two views of a mechanical device with coiled wires and connectors, shown from front and side (no text or symbols visible)

Exploded view diagram of a mechanical device with numbered parts for identification

Two identical mechanical device diagrams showing a suspended cable and connecting wires, no text or symbols present.

Exploded view diagram of a mechanical device with numbered parts for identification

Two identical mechanical device diagrams showing a suspended cable and connecting wires, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

HILTI

Hilti Corporation

LI-9494 Schaan

Tel.:[phone]

Fax:[phone]

www.hilti.group

Diagram showing a QR code, smartphone with wireless signal, and three electronic devices with icons
