USER MANUAL Bloom 304300 Arendo

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Important safety guidelines for this appliance

- This appliance is meant exclusively for personal use and for the intended purpose. This appliance is not intended for commercial use.

- Please do not immerse it in water.

- Do not use the appliance outdoors and keep it away from sources of heat (e.g., electric stove) and direct sunlight. Please do not keep the appliance in immediate proximity to water sources (e.g., washbasin).

- Do not use this appliance with wet hands.

- Keep it on an suitable surface so that it does not tip over.

- Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.

- Operate the product only with the voltage indicated on the appliance label.

- This appliance is not intended to be used, cleaned or maintained by people (including children) with reduced physical, sensory or mental abilities or lack of experience and/or knowledge. Unless they are supervised by a person who is responsible for their safety or have received instructions from this person about how the appliance is to be used.

• Children should be supervised to ensure that they do not play with the appliance.

- In the interest of child safety, do not leave any packaging material (plastic bags, cardboard, polystyrene, etc.) lying around.

- Fill the water tank only with cold water and do not boil the remaining water a second time.

- Do not move the appliance when it is being operated.

- Do not open the lid during operation, it could cause burns!

- Steam escapes from the top of the appliance during operation, maintain distance from the escaping steam.

- The heating element remains hot for some time even after the

appliance is switched off. Ensure that nobody touches the inside of the container. There is a risk of burns!

- Use the appliance only with the supplied shut-off device.

- Provide clearance to other objects and walls so that the air can circulate freely. Do not cover the appliance.

- Do not boil any liquids other than water.

- The housing of the kettle becomes hot during operation. Hold the kettle only using the handle provided for this purpose.

- If the power cable is damaged, then it should be replaced by the manufacturer, his specialist dealer or an equally qualified person,

so as to prevent any risk.

• Children should use or clean the appliance only under supervision or guidance.
• Do not overfill the kettle, as water may spurt out.
• This appliance is intended for use at home and similar places. For applications as in
• staff kitchen areas in shops, offices and other workplaces;
• farmhouses;
• hotels, motels and other types of residential surroundings by customers

Thank you for choosing an Arendo product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Kettle
• Baseplate with connection cable

• User manual

• Technical data

Power supply 220-240 V AC, 50-60	Hz
Power consumption 1850 -2200 W
Water filling capacity max. 1.7 l
Temperature settings 40/70/80/90	/100°C can be selected
Ambient temperature	+ 0-3°C until 35-40°C
Features • Automatic shutdown	• audible beep• 3-min heating function• LEDs in the glass body for displaying the selected temperature (40°C green, 70°C blue, 80°C yellow, 90°C purple, 100°C red)• The set and current temperatures can be alternately seen on the display• Keep-warm function• Automatic Display switch off• Standby lamp switches off after 5 min

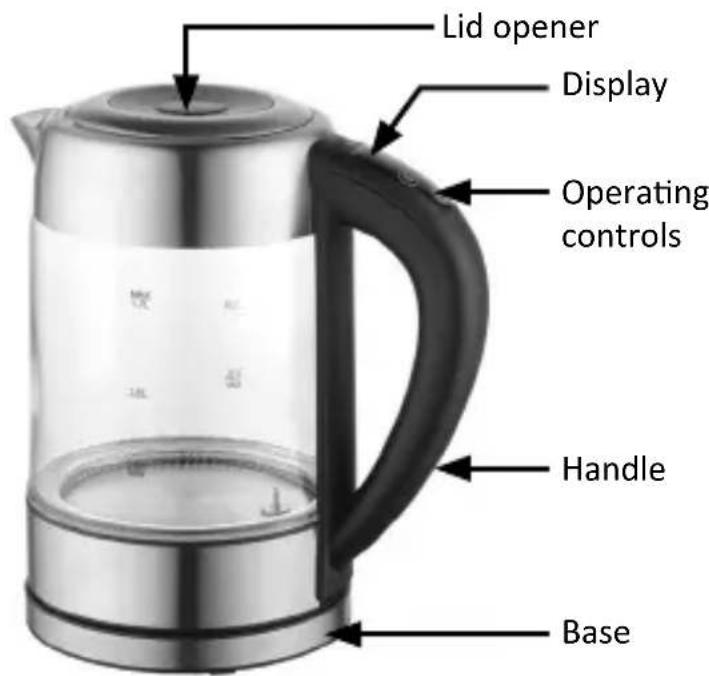

3. Product details

Lid opener Display Operating controls Handle Base

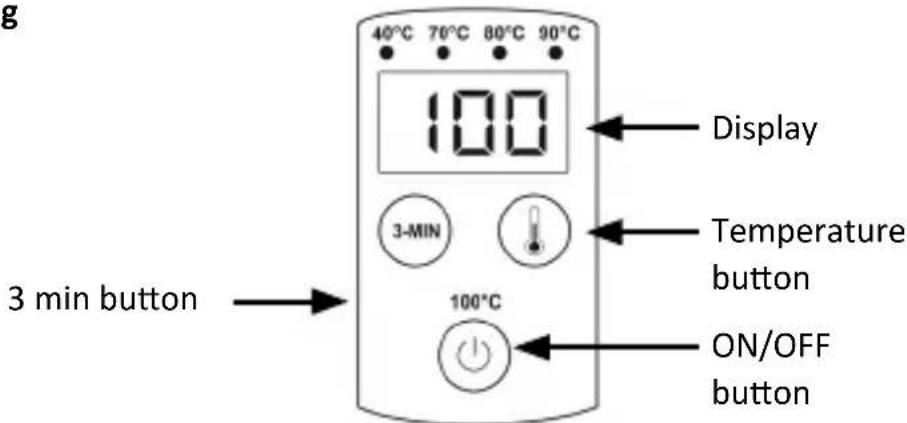

Operating controls

g 40°C 76°C 80°C 90°C 100 Display 3-MIN Temperature button ON/OFF button 3 min button 100°C

4. Initial use

Remove the kettle and the base plate out of the packaging and connect the base plate to a properly installed earthed socket. Wipe the surface of the kettle using a slightly dampened cloth. To remove any manufacturing residues, fill the water container once with cold water up to the maximum mark before using it for the first time.

Boil the water by pressing the "ON/OFF" button. You will hear a beep and the kettle starts boiling the water. Then discard the water.

5. Usage

Press on the lid opener to open the tiltable lid. Fill the kettle with cold water and press the lid down until it locks into place.

Note: A scale is provided on the glass body. Do not fill the container above the maximum mark. The boiling water may spurt out if the kettle is overfilled.

Place the kettle on the base plate. The ACTUAL temperature of the water in the kettle is shown on the LED display. The display switches off automatically after 45 seconds of inactivity.

5.1 Heating the warm

There is an operating panel at the top of the handle. Press the "Temperature" button and select your desired temperature (40°C / 70°C / 80°C / 90°C) by pressing repeatedly. The boiling process is started by briefly pressing the "ON/OFF" button, you hear a beep and the kettle heats to the selected temperature.

Alternatively, you can start the appliance by briefly pressing the "ON/OFF" button and heat it to 100^ . Once the water reaches the target temperature, you hear the beep 3 times. The heating element switches off automatically and the boiling process is stopped. The appliance can now be lifted and the water can be used. If you want to stop the boiling process early on, you can press the "ON/OFF" button at any time.

Please wait until the boiling process is completed. You will hear a beep at the end.

5.2. LED colours and temperatures

Tempera-ture	Colour Usage example
40°C green Baby food
70°C blue Ideal for white teas
80°C yellow Ideal for green teas
90°C violet		Ideal for black teas and coffee
100°C	red	Boiling water

5.3. "3 min" button

This function boils water continuously for 3 minutes to disinfect the appliance and / or the water and kill any germs.

First, press the "ON/OFF " button and then the" 3-min" button. Or alternatively, the "three-minute" button first and then the "ON/OFF " button to start the three-minute boiling function. After 3 minutes of boiling, the heating is automatically stopped. You will hear two beeps and the process is completed.

5.4. Keep-warm function

Then, press and hold the "ON/OFF button" on the appliance panel for about 2 seconds. You hear a beep and the LED in the "Temperature" button starts glowing in red. Without any further operation, the water is kept heated at 100^ . For other temperatures, select a desired temperature ( 40^ / 70^ / 80^ / 90^ ) by pressing repeatedly.

The kettle heats to the set temperature and keeps it warm for about 2 hours.

Caution! When the kettle measures a temperature drop of about 10^ C, it switches on again and heats up to the set target temperature.

6. Descaling and cleaning

• We recommend to descale the kettle at regular intervals depending upon the intensity of use.
• Before cleaning, pull out the power plug and wait until the appliance cools down completely.
• Please use only commercially available descaling agents based on citric acid to descale the water container.
• For the appropriate dosage, please refer to the specifications on the package or insert of the descaling agent.
• The heating plate should not be specifically cleaned. Do not use any hard objects on the heating plate.
• Use only a damp cloth for cleaning the kettle externally.
• Do not use any abrasive items like wire brush or steel sponge.
• Never use any cleaning agents which may corrode the surface or present a health risk if consumed!
• Never immerse the appliance, the power cable or the plug in water or in any other liquid to prevent risk of electric shock.

- For appliances with anti-scale filter in front of the pouring opening, proceed as follows: Open the lid and press the plastic tab of the anti-scale filter down to remove the filter. Rinse the filter thoroughly using warm water and then replace it back into its position. When replacing, ensure that the anti-scale filter sits properly in the guide rail.

PLEASE NOTE!

7. Safety instructions and disclaimer

Please do not try to open the appliance to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The appliance does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the appliance is not being used or during thunderstorms. The appliance is not approved for outdoor use. Please use it only in dry surroundings. Protect it from high humidity, water and snow.

Never expose the appliance to high outdoor temperatures. Do not expose the appliance to sudden changes in temperature or heavy vibrations, as this could damage the electronic components. Check the appliance for any damages before using it. The appliance should not be used if it has been subject to impact or has been damaged in some other way. Please follow the national regulations and restrictions. Do not use the appliance for purposes other than those described in this manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Use the appliance only with the supplied base plate. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims.

The appliance should be used only by persons who have read and understood this user manual. The specifications of the appliance may be changed without prior intimation. The appliance should be used only by persons who have read and understood this user manual.

8. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to

the Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 304300 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

DANGER ! PRUDENCE !
