USER MANUAL Vintage 306104 Arendo

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Warning symbol with exclamation mark inside triangle

Simple line drawing of a pencil inside a square frame (no text or symbols)

Diagram of a kettle with numbered parts labeled 1 to 6 pointing to different parts.

Line drawing of a kettle with a faucet and water drop symbol (no text or labels)

Hinweis:

Simple line icon of a pencil inside a square frame (no text or symbols)

Important safety guidelines for this appliance

- Use the appliance for private and intended purpose only. The appliance is not intended for commercial use.

- Do not use the appliance outdoors and keep it away from sources of heat (e.g., electric stove) and direct sunlight. Please do not keep the appliance in immediate proximity to water sources (e.g., washbasin).

- Do not use this appliance with wet hands.

- Keep it on an suitable surface so that it does not tip over.

- Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.

- Operate the appliance only with the voltage specified on the label.

- This appliance is not intended to be used, cleaned or maintained by people (including children up to the age of 8 years) with reduced physical, sensory or mental abilities or lack of experience and/or knowledge. Unless they are supervised by a person who is responsible for their safety or have received instructions from this person about how to use the appliance and have understood the risks involved.

- Children should be supervised to ensure that they do not play with the appliance.

arendio

- In the interest of child safety, please do not leave any packaging material (plastic bags, cardboard, polystyrene, etc.) lying around

- Fill the water tank only with cold water and do not boil the remaining water a second time.

- Do not move the appliance when it is being operated.

- Do not open the lid during operation. This may cause burns!

- Steam escapes from the top of the appliance during the operation. Stay away from the escaping steam.

- The heating element remains hot for some time even after the appliance is switched off. Ensure that nobody touches the inside of the container. There is a risk of burns!

- Use the appliance only with the supplied shut-off device.

- Please ensure clearance to other objects and walls so that the air can circulate freely. Do not cover the appliance.

- Do not boil any liquids other than water.

- Do not operate the appliance without the anti-scale filter, otherwise boiling water may spurt out.

- The housing of the kettle becomes hot during operation. Therefore hold the kettle only using the handle provided for this purpose.

- If the power cord is damaged, it should be replaced by the manufacturer, his specialist dealer, or an equally qualified person, so as to prevent any risk.

arendo

• Do not overfill the kettle, otherwise water may spurt out.
• Children should use or clean the appliance only under supervision or guidance.
• Cleaning and user maintenance should not be carried out by children, unless they are 8 years of age or older and are supervised. Keep the appliance and its connection cable out of reach of children less than 8 years.

- These appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised or have been instructed concerning the safe use of the appliance and understand the hazards involved.

- This appliance is intended for domestic use and other similar applications such as: in the staff kitchen in shops, offices and other business areas, in agricultural properties, by customers in hotels, motels and other residential facilities, as well as in B&Bs.

Thank you for choosing a Arendo product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of delivery

• Kettle
• Baseplate with connection cable
• User manual

2. Technical data

Power supply 220-240 V AC, 50-60 Hz
Power consumption 1850-2200 W
Water filling capacity max. 1.7 l
Temperature settings Can be adjusted from 40°C - 100°C in 5°C steps
Features	Automatic shutdownreplaceable scale filter (easy to clean)"Keep Warm" function
Ambient temperature + 0-3°C to 35-40°C

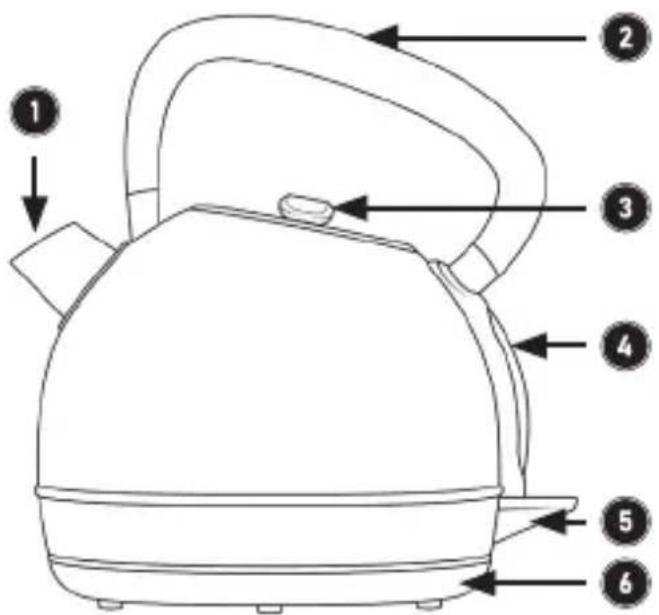

3. Product details

Diagram of a kettle with numbered parts labeled 1 to 6 pointing to different parts.

Number Description
1 Spout
2 Carrying handle
3 Lid
4 Level indicator
5 Control unit + display
6 Base with connection cable

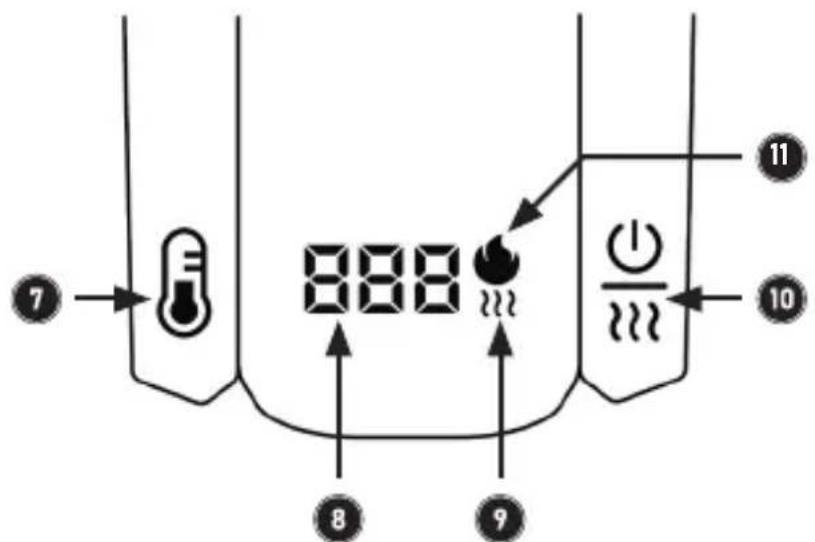

Control unit + display

Number Description
7 "Temperature" button
8 Display
9 "Keep warm" symbol
10 "Start/Stop/Keep Warm" button
11 "Heating" symbol

4. Initial use

Check if the product and the components are intact and if the appliance is working properly when using it for the first time. Remove the kettle and the base plate out of the packaging and connect the base plate to a properly installed earthed socket.

Wipe the surface of the kettle using a slightly dampened cloth. To remove any manufacturing residues, fill the water container once with cold water up to the maximum mark before using it for the first time. Boil the water by pressing the "Start/Stop/Keep warm" button and then discard it.

This appliance is intended for domestic use and other similar applications such as: in the staff kitchen in shops, offices and other business areas, in agricultural properties, by customers in hotels, motels and other residential facilities, as well as in B&Bs. Do not operate the appliance unattended and check it for damage before using it each time.

5. Usage

First open the kettle. To do this, pull the lid upwards using the plastic handle. Fill the kettle with cold water. A scale is provided on the outside. Do not fill the container above the maximum mark. Place the lid back on the kettle.

Note:

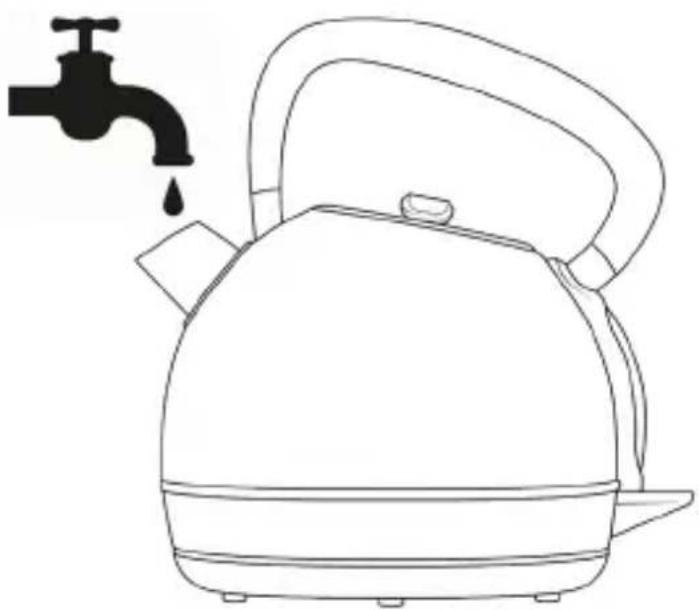

Those who are already familiar with using the kettle can fill the kettle via the spout without opening the lid. This saves time and is especially useful when the kettle is still hot.

Note:

Line drawing of a kettle with a faucet and water drop symbol (no text or labels)

Please operate the kettle only with the lid on. In addition, water may escape if operated without the lid. There is a risk of scalding!

1. Place the kettle on the base.
2. Select the desired temperature using the "Temperature" button. This is shown in the display.
3. After selecting the temperature, briefly press the "Start/Stop/Keep warm" button. The kettle starts the heating process. The "heating" symbol is shown in the display.

The kettle stops the heating process to carry out an intermediate measurement before reaching the target temperature. Please wait until the boiling process is completed. You will hear a beep at the end.

5.1 Keep-warm function

This function is intended to keep the boiled water warm for a long period of time. Set the desired temperature using the "Temperature button. If you set 100°C, the kettle will keep the water between 90°C and 100°C to prevent too much water from evaporating. To start the keep warm function afterwards, press and hold the "Start/Stop/Keep Warm" button. As long as the "Keep warm(9)" symbol is shown in the display, the function is activated.

6. Descaling and cleaning

We recommend to descale the kettle at regular intervals depending upon the intensity of use. Before cleaning, pull out the power plug and wait until the appliance cools down completely.

The anti-scale filter is located in front of the spout opening. To remove the scale filter, press the spout from outside to push the scale filter inwards until it is detached. Rinse the filter thoroughly using warm water and then replace it back into position. When inserting, make sure that it is properly seated.

Please use only commercially available descaling agents based on citric acid to descale the water container. For the appropriate dosage, please refer to the specifications on the package or insert of the descaling agent. The heating plate should not be specifically cleaned. Do not use any hard objects on the heating plate.

Use only a damp cloth for cleaning the kettle externally. Do not use any abrasive items like wire brush or steel sponge for cleaning. Never use any cleaning agents which may corrode the surface or present a health risk if consumed!

7. Safety instructions and disclaimer

Please do not try to open the appliance to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The appliance does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the appliance is not being used or during thunderstorms.

The appliance is not approved for outdoor use. Therefore, please use it only in dry surroundings. Protect it from high humidity, water and snow.

Never expose the appliance to high outside temperatures.

Do not expose the product to sudden changes in temperature or strong vibrations, as this could damage the electronic components.

Check the appliance for any damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in some other way.

Please follow the national regulations and restrictions. Do not use the appliance for purposes other than those described in this manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons.

Any repair or modification to the product, which is not carried out by the original supplier, will void any warranty and guarantee claims.

The product should only be used by those who have read and understood this user manual. The specifications of the product may be changed without any special prior notification.

8. Disposal instructions

In line with the European WEEE directive, electrical and electronic products should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic appliances to the manufacturer, the point of sale or the public collection points set up for this purpose at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used products, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

WD Plus GmbH hereby certifies that the appliance 306104/306105/306106/306107/306131 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
