Product Type	Stick vacuum / floor washer
Brand	Tineco
Model	Floor One S3 Breeze
Power Source	Lithium-ion battery 21.6 V, 4,000 mAh
Power Output	190 W
Run Time	≥ 35 minutes
Charge Time	About 5 hours
Water Flow Rate	30 to 100 ml/min
Fresh Water Tank Capacity	0.6 L
Dirty Water Tank Capacity	0.5 L
Water Resistance Rating	IPX4
Connectivity	Wi-Fi 2.4 GHz, Tineco app
Cleaning Modes	Auto (with iLoop sensor) and Max
Smart Sensor	iLoop™ detects dirt level and adjusts automatically
Self-Cleaning	Yes, automatic cycle for the brush roll
Dry Filter	Washable under running water
Brush Roll	Removable, replacement recommended every 6 months
Cleaning Solution	Tineco solution recommended, manual alternative possible
Warranty	2 years (limited)
Recommended Floor Types	Hard floors: vinyl, tile, hardwood
Usage	Household use only

Frequently Asked Questions - Floor One S3 Breeze TINECO

How do I charge the device?

Plug the supplied adapter into the device and a wall outlet. Full charge takes about 5 hours. Place the device on the parking tray while charging to avoid any tripping hazard.

What is the difference between AUTO mode and MAX mode?

AUTO mode uses the iLoop sensor to automatically adjust suction power and water amount based on dirt level. MAX mode provides maximum suction for deep cleaning.

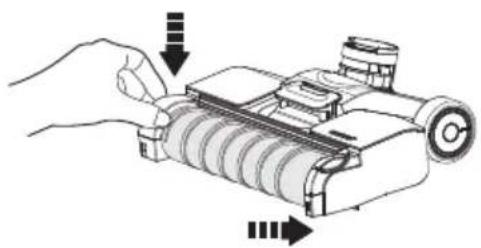

How do I clean the brush roll?

Press the unlock button on the brush roll cover, remove the roll, remove hair and debris, then rinse it with water. Let it dry completely before reinstalling. You can also use the self-cleaning cycle.

What does the red LED ring mean?

The red LED ring indicates that the dirt sensor detects a lot of dust. Clean the sensor with a damp cloth or the provided cleaning tool.

Can I use hot water?

No, use only cold or room temperature water (below 60°C). Hot water may damage the device.

How do I connect the device to Wi-Fi?

Download the Tineco app from the App Store or Google Play. Follow the instructions in the app to connect the device to your 2.4 GHz Wi-Fi network. The Wi-Fi indicator lights up when the connection is established.

What should I do if suction is weak?

Check that the dry filter is clean and properly installed. Clean the brush roll and remove any blockage from the suction inlet.

How do I fill the fresh water tank?

Press the unlock button on the fresh water tank to remove it. Open the cap, fill with tap water up to the Max line. If needed, add one capful of cleaning solution. Close tightly and replace the tank until it clicks.

The device makes a high-pitched sound, what should I do?

This means the dirty water tank is full. Empty and clean the tank. Also clean the floater and filter if necessary.

What floors can I clean with this vacuum?

This device is designed for hard floors indoors such as vinyl, tile, and hardwood. Do not use on carpet or rough surfaces.

USER MANUAL Floor One S3 Breeze TINECO

Smart Cordless Vacuum & Washer

Instruction Manual

Manual De Uso

Mode D'emploi

Black Tineco vacuum cleaner with extended arm and control panel (no visible text or symbols on body)

*Actual product may differ from illustration.

CONTENTS

Important Safety Instructions....2

Specifications 6

Overview....7

Assembly 9

Operation 10

Maintenance 16

Troubleshooting....20

Warranty 21

Important Safety Instructions

SAVE THESE INSTRUCTIONS

Household use only.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING – To reduce the risk of fire, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.

2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

3. Use only indoors, on non-carpeted floor surfaces such as vinyl, tile, sealed wood, etc. Be careful not to run over loose objects or edges of area rugs. Stalling the brush may result in premature belt failure.

4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.

5. Use only as described in this manual. Use only manufacturer's recommended attachments.

6. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.

7. Do not handle charger, including charger plug, and charger terminals with wet hands.

8. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

9. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.

10. Use extra care when cleaning on stairs.

11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

13. Do not use without filter.

14. Prevent unintentional activation. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

15. Always switch off the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

16. Recharge only with the charger specified by Tineco. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

17. Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire.
18. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.
19. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
20. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266^ F ( 130^ C) may cause an explosion.
21. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
22. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
23. This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
24. Always turn off this appliance before connecting or disconnecting the motorized nozzle.
25. Do not charge or store the appliance outdoors or inside the car. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2^ F ( 4^ C) but lower than 104^ F ( 40^ C). The charger is for indoor use only.
26. Do not use to pick up ultrafine particles, such as lime, cement, sawdust, gypsum powder, or ashes.
27. Do not use to pick up sharp objects, such as metallic nails, pieces of glass, metal paper clips, or pins.
28. Do not use to pick up hazardous material and chemicals, such as solvent, drain cleaner, strong acids, or strong alkali.
29. Stop using immediately if the appliance is overheating, making unusual noises, producing unusual odors, performing low suction, or leaks electricity.
30. Turn cleaner OFF and disconnect from electrical outlet for long-term storage.
31. Always clean the Dirty Water Tank after each use to avoid potential blockage, which may lead to low suction power, motor overheating, or reduce the service life of the appliance.
32. Store appropriately indoors in a dry place after use.
33. Do not place or submerge appliance in standing water or try to clean flooded areas.
34. All data and technical instructions of this manual are based on results from lab tests of Tineco or designated third parties. The company reserves all rights for final explanations.
35. The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
36. A hazard may occur if the appliance runs over the supply cord.

37. Do not use the appliance when the water depth is more than 5mm above the surface.

38. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

39. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

Range of Usage

1. The cordless hard floor cleaner is to be used on indoor hard floors, such as vinyl, tile, sealed wood, etc. Use on a rough surface may not get the best performance.
2. Keep your appliance away from heat sources, such as fireplace or heater, to avoid casing deformation.
3. Do not use to pick up flammable or combustible liquids, ultrafine particles, sharp objects, hazardous material, chemicals or anything that is burning or smoking, as described above.

About Cleaning Solution

1. A large amount of cleaning solution entering into the motor may cause damage to the appliance.
2. Add solution as instructed in the Product Operation section. We recommend using the provided cleaning solution. Do not use the product with acidic, alkaline solution, or any substances harmful to the environment.
3. Keep out of the reach of children. Avoid contact with eyes and skin, otherwise, rinse thoroughly with water. If irritation persist, seek medical advice. If product is swallowed seek medical advice.
4. Dirty water and solution disposal should comply with local environmental regulations.

About the Appliance

1. Do not modify or attempt to repair the appliance except as indicated in the instructions for operating and cleaning.
2. Charge the appliance with the Tineco adaptor. Input Voltage: AC 100-240V. Both high and low voltages can damage the adaptor, appliance, or even cause danger to the user.
3. Use extra care when cleaning on stairs.
4. Ensure that the Power Switch is in the OFF-position before picking up or carrying the appliance. Do not lay flat or lean the appliance so as to prevent dirty water from entering into the motor.
5. To avoid being tripped accidentally, please put away the appliance on the storage tray.
6. Always install the Dirty Water Tank and Clean Water Tank properly before use.
7. Do not allow the appliance or charger to get wet to avoid risk of fire or injury caused by a short circuit.

FCC Supplier's Declaration of Conformity

TINECO / FLOOR ONE S3 SERIES

This appliance complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This appliance may not cause harmful interference, and (2) this appliance must accept

any interference received, including interference that may cause undesired operation. TINECO INTELLIGENT, INC.

1700 WESTLAKE AVENUE N., SUITE 200, SEATTLE, WA, 98109, USA

WWW.TINECO.COM

1-855-292-8864

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital appliance, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

(1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver.
(3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
(4) Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.

Note

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment, such modifications could void the user's authority to operate this equipment.

IC Note

This appliance contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s).

Operation is subject to the following two conditions:

(1) this appliance may not cause interference.
(2) this appliance must accept any interference, including interference that may cause undesired operation of the appliance.
-This Class B digital apparatus complies with Canadian ICES-003.
-This equipment complies with ISED RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.

Specifications

Product FLOOR ONE S3 SERIES
AC Input 100-240V~
Voltage 21.6V 4000mAh Lion	==
Rated Power 190 W
Running Time	≥35 mins
Charging Time ~5 hrs
Water Flow Rate 30~100ml per min
CWT Capacity 0.6L
DWT Capacity 0.5L
Waterproof IPX4
WiFi Frequency Bands 2.4G
WiFi Maximum Output Power 19dBm

Only use the Tineco provided adaptor: KL-WA260080-A3 or YLS0241A-T260080.

Disposal

• The battery contains materials that are harmful to the environment and must be removed from the appliance before it is discarded.
• When removing the battery, the appliance must be powered off.
• Batteries, chargers, accessories and packaging should be sorted for environmental friendly recycling. Do not put them into fire, water or soil. Do not dispose of batteries and chargers into household waste!
• If battery leakage contacts skin or clothing, immediately flush with water to avoid irritation and seek medical help.

Overview

Note:

Accessories may vary between markets. If you require more accessories, please go to www.tineco.com or store.tineco.com.

A B C J D E K L F M G N H O P I

Q R S T U

A. Self-cleaning Button

B. AUTO/MAX

C. Power On/Off

D. Digital Display

E. Clean Water Tank Release

F. Clean Water Tank Handle

G. Dirty Water Tank Release

H. Dirty Water Tank Handle

I. Brush Roller Cover Release

J. Tube

K. WiFi/Mute Button

L. Clean Water Tank (CWT)

M. Dirty Water Tank (DWT)

N. Floater

O. Brush Roller Cover

P. Brush Roller

Q. Deodorizing & Cleaning Solution

R. Cleaning Tool

S. Dry Filter

T. Adaptor

U. Storage Tray

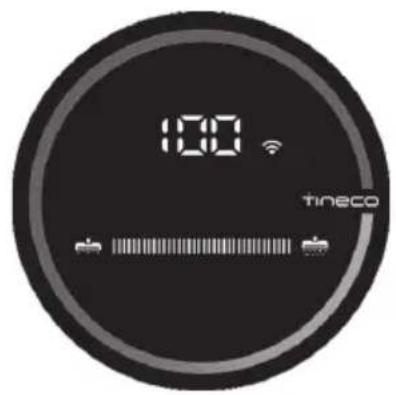

Digital Display

99 tineco AUTO ABCDEFGIH

A. Self-cleaning Icon
B. Brush Roller Tangled Indicator
C. Dirt Monitoring Loop
(Blue to red according to the dirt amount)
D. AUTO Mode

E. CWT Empty
F. Power Indicator
G. Tineco Logo
H. WiFi Indicator
I. Battery Level Indicator

Assembly

How to Assemble/Disassemble

Note:

For water tank and brush assembly, please refer to "Operation" and "Maintenance".

click

To assemble the handle, insert it into the appliance until you hear a "Click".

Line drawing of a vacuum cleaner with a screwdriver and lever mechanism (no text or symbols)

In the event that the handle need to be disassembled, press the spring to release the handle with a tool (like a screwdriver) and lift the released handle from the appliance.

Operation

Preparing for Use

Before first use, please charge the appliance for 5 hours (refer to "Charging Instructions" for details). * Based on results from Tineco lab tests. Lab temperature 39.2^ (4^) 104^ (40^)

AUTO MAX

Press the Ⓑ button and the appliance will start in AUTO mode by default. Press it again to turn off the appliance. Switch between AUTO and MAX mode by pressing the AUTOMAX button.

Line drawings of a vacuum cleaner with a 142-degree angle annotation (no text or symbols on the device itself)

Stop Working Start Again

The appliance will stop working when put uprightly and start running again when you recline.

* Do not recline more than 142° to protect against water leakage.

Tips:

• Solution mode/ Water Only mode: Appliance starts with Solution mode by default. Power on while the appliance is upright, long-press AUTOIMAX for 3s to switch between the two modes.
• Switch to Water Only mode: LED Loop: Red → Blue (use water only)
• Switch to Solution mode: LED Loop: Blue → Red (use cleaning solution)

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

Place the appliance on the storage tray vertically after use.

Note:

• Do not vacuum foamed liquid.
  • To vacuum water left on the surface, the appliance will switch off in 3 seconds after power off.

Filling Clean Water Tank

Illustration of hands holding a jar with a handle, showing a step with an arrow (no text or symbols)

Press the Clean Water Tank release button to remove it from the appliance.

① ② click

Place the tank back into the appliance. You should hear a "Click" if done correctly.

MAX

Open the tank cap, and fill with tap water to the Max line. When deep cleaning is necessary, add one bottle cap of solution to the CWT and tightly close the cap.

Note:

Only use water under 140°F/60°C.

DO NOT USE HOT WATER.

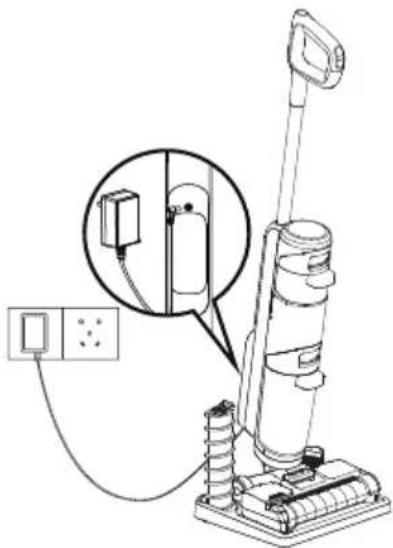

Charging Instructions

Diagram of a vacuum cleaner with labeled components and wiring, including an inset showing electrical connections.

Please charge the appliance when the indicator is blinking.

1. To charge the appliance, connect the external charging cord to the appliance and plug it into the wall outlet.

2. To avoid tripping hazards, please place the appliance on the storage tray near a wall during charging.

Warning:

• Only charge the appliance with the adaptor supplied by Tineco.
• During long periods of not being used, the appliance must be charged once every 3 months for optimal performance.
• Store indoors in a dry place. Do not expose the appliance to sunlight or freezing temperatures. Recommended temperature range: 39.2°F (4°C) \~ 104°F (40°C).

Cleaning Mode Selection

AUTO Mode

• In AUTO mode, the iLoop™ sensor automatically detects how dirty the floor is and applies the appropriate amount of detergent and suction power.
• A red dirt monitoring loop indicates more dirt is detected, and a blue loop indicates less dirt is detected. This mode automatically provides the best cleaning solution.

100 tineco AUTO

AUTO

Clean: on Min Power Vary depending on dirt amount Heavy dirt: on Max Power

MAX Mode

AUTO/MAX

100 tineco

• In AUTO mode, press the AUTO/MAX button to enter MAX mode. The AUTO indicator on the display will turn off.
• In Max mode, the appliance will apply max suction power and will spray water/solution for deeper cleaning.

Note:

Keep sharp objects away from the digital display screen to avoid scratches and scrapes.

Charging Time

• A full charge takes approximately 5 hours.
- Estimated data was obtained by a Tineco Laboratory using ambient temperatures between 39.2^ (4^) to 104^ (40^) .

Indicator

When in Use

Battery level ≥ 10%: battery indicator will be illuminated.

Battery level < 10%: battery indicator will be blinking.

Off: no power detected or possible battery malfunction.

Solid red light: dirt sensor malfunction or blocked.

Indicator blinking: CWT is empty.

Indicator blinking: brush roller is not installed or has a blockage.

Illuminated: WiFi has successfully connected.

Blinking: WiFi is connecting.

EN

Off: WiFi is not connected, please connect to the network.

Indicator blinking: appliance is in need of self-cleaning.

During Charging

Tineco indicator: blinking.

Fully Charged

In 5 minutes: Tineco indicator illuminated.

After 5 minutes: all indicator lights turn off.

App

All the functions can be performed using the Tineco app. Download the Tineco app from the App Store, Google Play and Tineco Official Site.

Note:

The default setting for voice prompt is English, you can set other languages via App.

Voice Prompt (Contents may vary, please in kind prevail.)

Status Reminder
Battery level: 10~20% Low battery
Battery level: 0~10% Low battery, please charge
WiFi network connected Network connected
Clean Water Tank is empty	Clean Water Tank empty, please refill water and cleaning solution
Dirty sensor Please begin self-cleaning cycle
Dirty dry filter Please clean the filter in Dirty Water	Tank
Brush roller is tangled Please clean the brush roller
Brush roller not installed Please install the brush roller correctly
Too much wear of brush roller Please replace the brush roller
Shutting down (takes 3s to shut down) Shutting down
Power is off Power off
Start charging	Charging has commenced. Auto-detecting whether to run self-cleaning cycle
Need self cleaning Please begin self-cleaning cycle
Press self-cleaning button while appliance not charging	Place the appliance on the storage tray and connect to the charger to start self-cleaning
Battery insufficient for self-cleaning Low battery, start charging
Sufficient battery to start self cleaning Start self cleaning
Cleaning brush roller	Cleaning brush roller
Cleaning debris channel	Cleaning debris channel
Auto detecting	Auto detecting
Deep cleaning	Deep cleaning
Self-cleaning completed	Self-cleaning cycle complete. Please clean Dirty Water Tank
Self-cleaning stopped	Self-cleaning cycle stopped. Please clean Dirty Water Tank
Clean with cleaning solution by default	Clean with cleaning solution
Clean with water only	Clean with water only
Auto mode by default	Auto Mode
Switch to Max mode	Max Mode
Voice prompts on	Voice prompts on
Voice prompts disabled	Voice prompts disabled

Maintenance

Z

Note:

• For optimal performance and to prevent odors, always clean and dry DWT, floater, filters, brush roller, brush roller cover completely after each use.
• Please make sure each part is installed correctly or the appliance may not work properly.
• After maintenance, place the appliance on the storage tray vertically. Do not expose the appliance to direct sunlight, and store it indoors in a dry place.

Main Body

AUTO MAX

To reduce the risk of injury, switch off before performing maintenance.

Line drawing of a hand cleaning a cylindrical object with a cloth (no text or symbols)

Use a cloth to clean the surface with a neutral detergent. The cloth should be dry to prevent water from entering the appliance.

Technical line drawing of a vacuum cleaner with internal components and a close-up inset showing the base view (no text or symbols)

When LED loop illuminates red, remove Dirty Water Tank, clean the dirt sensor with a damp cloth or cleaning tool.

Dirty Water Tank

Illustration showing four different steps of a device operation: opening, using a tool, pouring liquid, and adding a spray bottle with a 'click' button.

- When dirty water reaches the Max line, the floater will block off the DWT and create a high pitched sound indicating it's time to switch off the appliance.

- Pull up the tank lid to empty the DWT. Rinse the inside of the DWT and place back into the appliance.

Filter & Floater

Illustration of four different cleaning or cleaning techniques: tool, lid, fan, and tool handle (no text or symbols present)

If the filter and the floater have been blocked, rinse with water.

Remove the filter from the tank lid, remove the floater, and rinse both parts with water.

Dry Filter

Line drawing of a hand holding a device with a magnified view showing a screen (no text or symbols)

Illustration of a faucet spraying water onto a device, with sun symbolizing sunlight (no text or symbols)

Grasp recessed area on each side of the filter and pull upward. Rinse under running water and must be completely dry before recombining with the lid of the DWT.

Self-cleaning

Line drawing of a vacuum cleaner with attached circuit board and water droplet symbol (no text or labels)

1. Place the appliance on the storage tray and plug in. Press the self-cleaning button and begin the process.
2. Once complete, the appliance will begin charging. Clean the Dirty Water Tank after cleaning completed.

Note:

• Ensure the appliance is plugged in and the battery level is >10% .
• Before self-cleaning cycle, please clean the DWT and ensure the water level in the CWT exceeds 40%.

Brush Roller Cover

Diagram of a mechanical device with internal components and an upward arrow, no readable text or symbols present.

Grab the front handle while pressing the button and pull upward to remove.

click ② ①

When replacing, always latch the brush cover into place to avoid leakage.

Illustration of a hand pouring liquid into a water tank with a faucet (no text or symbols)

Rinse with water.

Brush Roller

Illustration of a hand operating a mechanical device with a scroll wheel and adjustment knob (no text or symbols)

Remove the brush roller by grabbing the brush roller tab and pulling upward.

Line drawing of a hand pressing down on a mechanical device (no text or symbols)

Remove hair and debris from the brush roller chamber and the opening with a tissue or a damp cloth.

Illustration showing a hand holding a water tap and a device with a sun symbol (no text or labels)

Remove the hair and debris wrapped around the roller and rinse with water (brush roller tab can be removed). Replace the brush roller back onto the storage tray, and allow it to dry completely before reinstalling.

Illustration of a hand using a mechanical device to interact with a roller, showing motion arrows (no text or symbols)

Replace the brush roller by inserting the brush roller end into the right side of the holder, then lock the pull tab into place by pressing downward.

Note:

To maintain high performance, replace the brush roller every 6 months.

Troubleshooting

Problem Possible	cause Solution
The appliance does not turn on	Auto protection for overheating	Restart after cooling down
	The appliance has no power Charge the appliance
Weak suction	The dry filter is not installed, or the dry filter is dirty	Install the dry filter or clean and allow it to dry completely
	Suction mouth is blocked	Pull up the brush roller and remove blockages
Brush roller tangled indicator blinkingVoice prompt: 1. Please clean the brush roller2. Please install the brush roller correctly	1. The brush roller is blocked2. The brush roller is not installed	1. Remove blockages2. Install brush roller correctly
WiFi indicator is off WiFi is connected		Follow the in-app guide to connect to WiFi
CWT empty indicator blinkingVoice prompt: Clean Water Tank empty, please refill water and cleaning solution	CWT is empty Refill CWT
All lights off in operation	Battery overheat or malfunction	Cool the appliance down and restart
Battery level indicator blinkingVoice prompt: Low battery, please charge	Low battery Charge the appliance, or restart
LED loop illuminates redVoice prompt: Please begin self-cleaning cycle	Dirt sensor malfunction or blocked	Remove blockages, clean the debris channel, or restart
Self-cleaning icon blinking	Brush roller is dirty Start self-cleaning
Power indicator blinking	Motor malfunction Contact Customer Service

Note:

If the above troubleshooting guide fails to provide a solution, please visit our website

www.tineco.com for further support.

Warranty

2-YEAR LIMITED WARRANTY

• Only applies to purchases made from authorized retailers of Tineco.
• Is subject to the adherence of the requirements outlined in this instruction manual, and is subject to further conditions outlined below.
• This warranty is governed by and construed under the laws of the country in which the purchase took place. We provide 2-year warranty or a warranty period as stipulated by applicable local law, whichever is longer.

WHAT IS COVERED?

• Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual. Motorized accessories and battery bought separately come with a 1-year warranty.
• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.
• This warranty will only be valid if the appliance is used in the country in which it was sold.

WHAT IS NOT COVERED?

Tineco shall not be liable for costs, damages or repairs incurred as a result of:

• Appliances purchased from an unauthorized dealer.
• Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.
• Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.

- Use of parts not in accordance with the Tineco Instruction Manual.

- Use of parts and accessories other than those produced or recommended by Tineco.

- External factors unrelated to product quality and use, such as weather, modifications, accidents, electrical outages, power surges or acts of God.

• Repairs or alterations carried out by unauthorized parties or agents.

- Failing to clear blockage and other hazardous material from the appliance.

- Normal wear and tear, including normal wearing parts, such as clear bin, belt, filter, HEPA, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or floor damage due to use not in accordance with manufacturer's instructions or failure to turn the brush bar off when necessary.

- Reduction in battery discharge time due to battery age or use.

WARRANTY LIMITATIONS

• Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of fitness for a particular purpose, are limited to the duration of this warranty.
• Warranty coverage applies to the original owner and to the original battery only and is not transferable.
• This limited warranty gives you specific legal rights. You may also have other rights which vary by region.
• Manufacturer's warranties may not apply in all cases, depending on factors such as use of the product, where the product was purchased, or who you purchased the product from.
  Please review the warranty carefully, and contact the manufacturer if you have any questions.

WARRANTY SERVICE

Register: We highly recommend that upon purchase, you register your appliance on the Tineco official website (www.tineco.com) and enjoy exclusive benefits. To register, please enter the whole serial number (found on the back of the appliance).

Failure to register your product won't diminish your warranty rights.

E

How to Claim: Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it.

All work will be carried out by Tineco or its authorized agency.

Any replaced defective parts will become the property of Tineco.

Service under this warranty will not extend the period of this warranty.

Contact our Customer Service

Hotline: [phone]

or Visit Tineco website

www.tineco.com

for expert customer service.

CONTENIDO

A B C J D E K L F M G N H O P I

Q R S T U

Line drawing of a vacuum cleaner with a screwdriver and lever mechanism (no text or symbols)

Line drawing of a vacuum cleaner with a 142-degree angle annotation (no text or symbols on the device itself)

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

Illustration of hands holding a cylindrical container with a handle, showing a step with an arrow (no text or symbols)

Line drawing of a vacuum cleaner with attached electrical outlet and wiring, showing internal components (no text or symbols)

Nota:

Hand cleaning a cylindrical mechanical component with a cloth (no text or symbols visible)

Technical line drawing of a vacuum cleaner with internal components and a close-up inset showing the base component (no text or symbols present)

Illustration showing four different steps of a cleaning or cleaning procedure: opening a device, using a tool, pouring liquid into a container, and finally adjusting a spray bottle with a click icon.

Illustration of four different manual methods for cleaning or pouring contents, including a hand using a tool and a brush applying material (no text or symbols present)

Illustration showing three different methods of cleaning or cleaning: a handheld device, a water tap with spray, and a handheld tool, all without any text or symbols.

Line drawing of a vacuum cleaner with attached circuit board and power outlet (no text or symbols)

Technical diagram of a mechanical device with internal components and an upward arrow indicator (no text or symbols)

Illustration of a hand using a faucet to lift a water level from a metal frame (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand cleaning a mechanical component (no text or symbols)

Diagram illustrating water transfer and solar heating process with labeled components and directional arrows

Illustration of a hand operating a mechanical device with rollers and a knob (no text or symbols)

A B C J D E K L F M G N H O P I

Simple line drawing of a bottle and a tool (no text or symbols)

Q

R

S

T

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

U

Line drawing of a vacuum cleaner with a screwdriver and handle (no text or symbols)

Line drawings of a vacuum cleaner with a 142-degree angle annotation (no text or symbols on the device itself)

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

Illustration of hands holding a jar with a handle, showing a step and arrow (no text or symbols)

Diagram showing a mechanical device with labeled parts and directional arrows, including a click symbol and numbered annotations.

Line drawing of a vacuum cleaner with attached electrical outlet and wiring, showing internal components (no text or symbols)

Remarque :

Line drawing of a hand cleaning a cylindrical object with a handle (no text or symbols)

Technical diagram of a vacuum cleaner with labeled parts and an inset showing the internal components.

Illustration showing four different steps of a cleaning or cleaning procedure: opening a device, using a tool, pouring liquid into a container, and finally adjusting a spray bottle with a click icon.

Illustration of four different manual tools or devices, including a hand operating a tool and three others handling parts with water droplets (no text or symbols present)

Illustration showing two different methods of cleaning a device: one using a smartphone, the other using a tool and water spray (no text or symbols present)

Line drawing of a vacuum cleaner with attached circuit board and water droplet symbol (no text or labels)

Diagram of a mechanical device with a handle and internal components, showing no text or symbols.

Illustration of a hand using a faucet to lift a water-filled container (no text or symbols)

Rincez à l'eau.

Rouleau brosse

Illustration of a hand operating a mechanical device with a scroll wheel and adjustment knob (no text or symbols)

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Illustration showing a hand pouring water from a faucet to a rolled paper, and a sun rising above a cylindrical device (no text or symbols)

Illustration of a hand using a mechanical device to interact with a roller, showing motion arrows (no text or symbols)

tinecoglobal
