USER MANUAL W74P Yealink

Rechargeable Battery

Belt Clip

Charging Cradle

Quick Start Guide

Note: Yealink W74P DECT IP phone consists of one W70B base station and one W74H handset.

Assembling the DECT Phone

1. Connect the base station power and the network using method a or method b.

a. AC Power Option

Internet

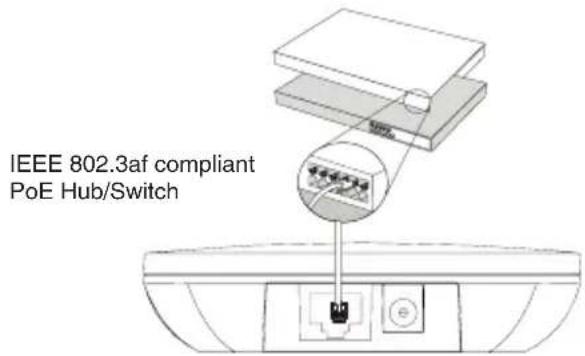

b. PoE (Power over Ethernet) Option

IEEE 802.3af compliant PoE Hub/Switch

Note:

• If you choose method a, use Yealink supplied power adapter (5V/0.6A). A third-party power adapter may damage the base station.
• If you choose method b, you do not need to connect the power adapter. Make sure the hub/switch is PoE-compliant.

2a. (Desktop Installation) Attach and remove the base stand.

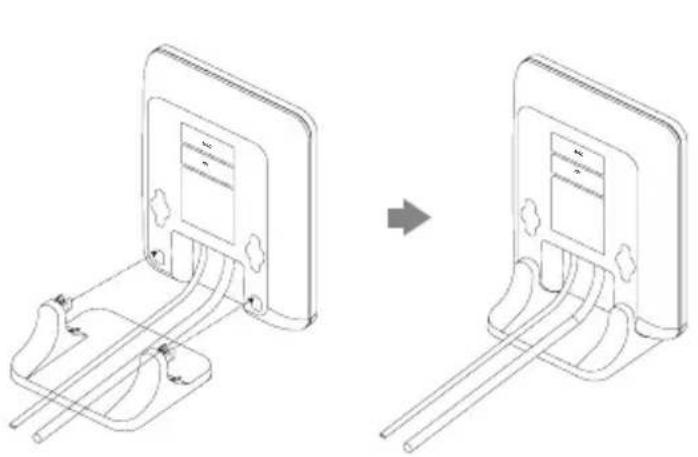

Attach the Base Stand Remove the Base Stand

Diagram showing a device being replaced by a cable, with no visible text or symbols

Align the snap-fits with the corresponding holes and push forward, snapping them into the holes.

Technical line drawing of a mechanical assembly with two curved components and directional arrows indicating movement (no text or symbols)

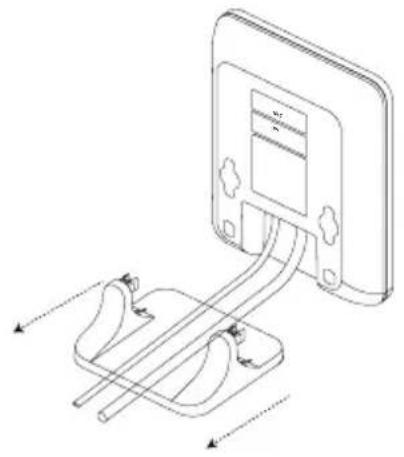

Remove the snap-fits from the holes horizontally.

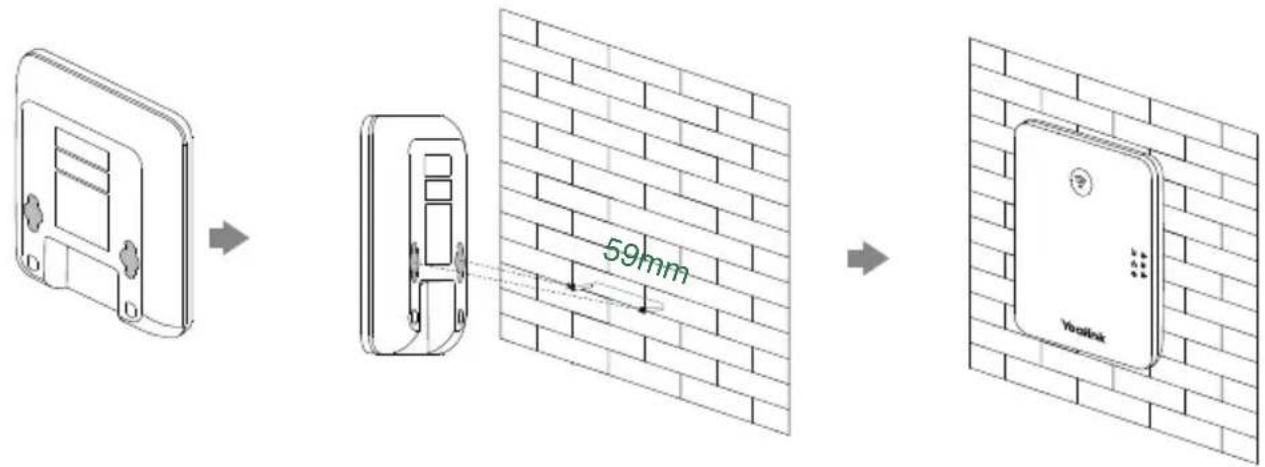

2b. (Wall-Mount Installation) Attach the base station.

59mm Yorlek

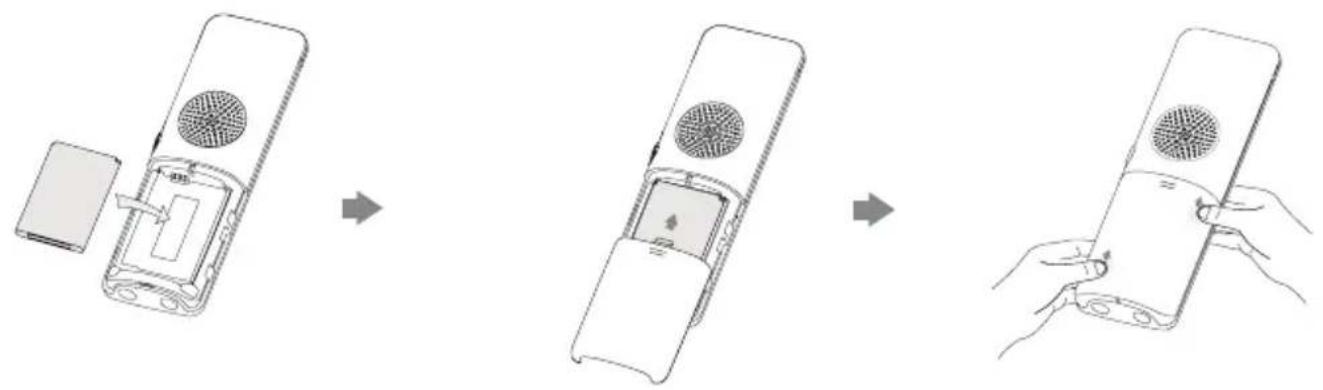

1. Insert the battery into the handset.

Three-step diagram showing device packaging and cleaning process, no text or symbols present

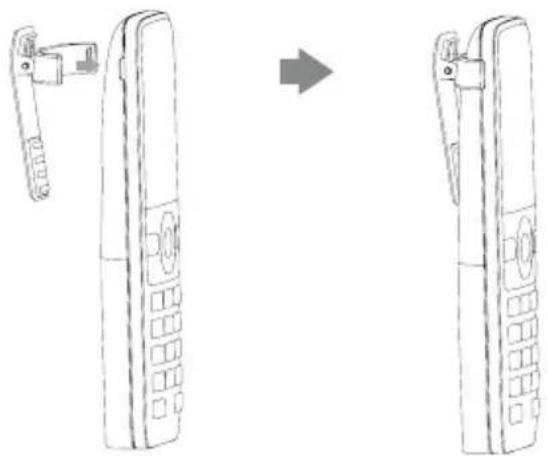

1. Attach the belt clip to the handset.

Line drawing of a mobile phone with an open door and a right-hand rule, showing the change from left to right (no text or symbols)

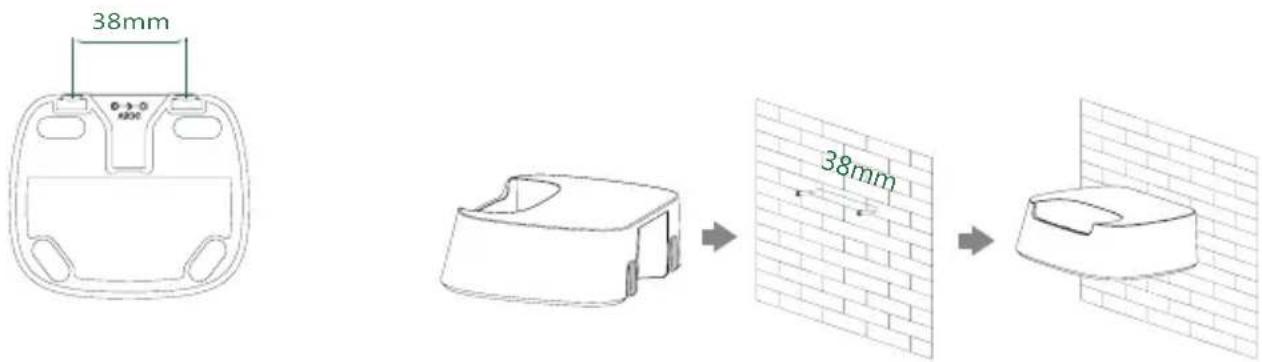

1. (Optional) Mount the charging cradle to the wall.

38mm 38mm

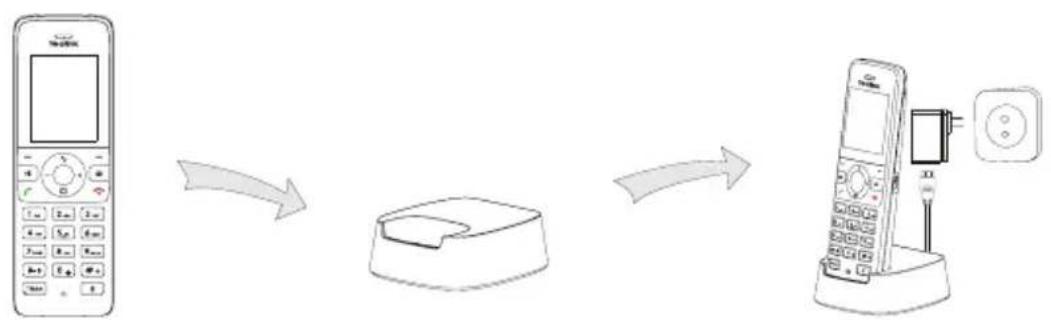

1. Connect the charging cradle and charge the handset.

Note:

• Use Yealink-supplied power adapter (5V/0.6A). A third-party power adapter may damage the handset.
• Check the charging status on the top-right corner of the LCD screen.

Hardware Component Instructions

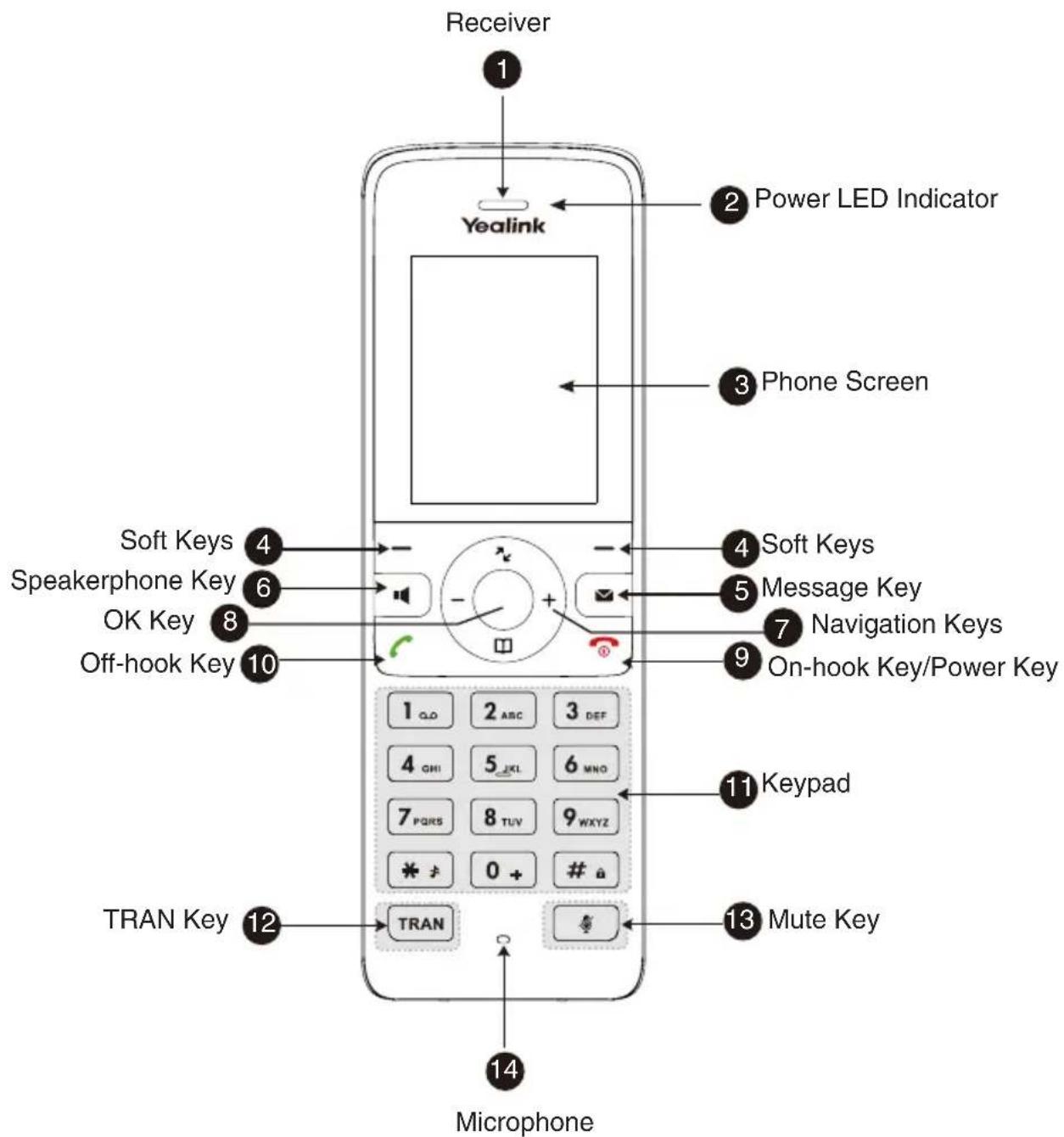

Receiver 1 Yealink 2 Power LED Indicator 3 Phone Screen 4 Soft Keys 5 Message Key 6 Navigation Keys 7 On-hook Key/Power Key 8 OK Key 9 Soft Keys Speakerphone Key Off-hook Key 10 11 Keypad TRAN Key 12 TRAN 13 Mute Key Microphone

Regulatory Notices

Operating Ambient Temperatures

• Operating temperature: +14 to 122^ (-10 to 50^ )
  • Relative humidity: 5% to 90%, noncondensing
  • Storage temperature: -22 to +160°F (-30 to +70°C)

Warranty

Our product warranty is limited only to the unit itself, when used normally in accordance with the operating instructions and the system environment. We are not liable for damage or loss resulting from the use of this product, or for any claim from a third party. We are not liable for problems with Yealink device arising from the use of this product; we are not liable for financial damages, lost profits, claims from third parties, etc., arising from the use of this product.

DC symbol

is the DC voltage symbol.

Restriction of Hazardous Substances Directive (RoHS)

This device complies with the requirements of the EU RoHS Directive. Statements of compliance can be obtained by contacting [e-mail].

Safety Instructions

Save these instructions. Read these safety instructions before use! The following basic safety precautions should always be followed to reduce risk of fire, electrical shock, and other personal injury.

General Requirements

• Before you install and use the device, read the safety instructions carefully and observe the situation during operation.
• During the process of storage, transportation, and operation, please always keep the device dry and clean.
• During the process of storage, transportation, and operation, please avoid collision and crash of the device.
• Please attempt not to dismantle the device by yourself. In case of any discrepancy, please contact the appointed maintenance center for repair.
• Without prior written consent, no organization or individual is permitted to make any change to the structure or the safety design of the device. Yealink is under no circumstance liable to consequences or legal issues caused by such changes.
• Please refer to the relevant laws and statutes while using the device. Legal rights of others should be respected as well.

Environmental Requirements

• Place the device at a well-ventilated place. Do not expose the device under direct sunlight.
• Keep the device dry and free of dusts.
• Place the device on a stable and level platform.
• Please place no heavy objects on the device in case of damage and deformation caused by the heavy load.
• Keep at least 10 cm between the device and the closest object for heat dissipation.
• Do not place the device on or near any inflammable or fire-vulnerable object, such as rubber-made materials.
• Keep the device away from any heat source or bare fire, such as a candle or an electric heater.
• Keep the device away from any household appliance with strong magnetic field or electromagnetic field, such as a microwave oven or a refrigerator.

Operating Requirements

• Do not let a child operate the device without guidance.
• Do not let a child play with the device or any accessory in case of accidental swallowing.
• Please use the accessories provided or authorized by the manufacturer only.
• The power supply of the device shall meet the requirements of the input voltage of the device. Please usethe provided surge protection power socket only.
• Before plugging or unplugging any cable, make sure that your hands are completely dry.

• Do not spill liquid of any kind on the product or use the equipment near water, for example, near a bathtub, washbowl, kitchen sink, wet basement or near a swimming pool.

• Do not tread on, pull, or over-bend any cable in case of malfunction of the device.

• During a thunderstorm, stop using the device and disconnect it from the power supply. Unplug the power plug and the Asymmetric Digital Subscriber Line (ADSL) twisted pair (the radio frequency cable) to avoid lightning strike.
• If the device is left unused for a rather long time, disconnect it from the power supply and unplug the power plug.
• When there is smoke emitted from the device, or some abnormal noise or smell, disconnect the device from the power supply, and unplug the power plug immediately. Contact the specified maintenance center for repair.
• Do not insert any object into equipment slots that is not part of the product or auxiliary product.
• Before connecting a cable, connect the grounding cable of the device first. Do not disconnect the grounding cable until you disconnect all other cables.

Cleaning Requirements

• Before cleaning the device, stop using it and disconnect it from the power supply.
• Use a piece of soft, dry and anti-static cloth to clean the device.
• Keep the power plug clean and dry. Using a dirty or wet power plug may lead to electric shock or other perils.

ENVIRONMENTAL RECYCLING

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Never dispose of the device with domestic waste

Ask your Town Council about how to dispose of it in an environmentally friendly way. The cardboard box, plastic packaging and player components may be recycled in accordance with prevailing recycling regulations in your country.

Always adhere to prevailing regulations

Those who fail to do so may be fined or prosecuted in accordance with the law. The crossed out garbage can that appears on the device means that when it has reached the end of its useful life, it should be taken to a special waste disposal centre and treated separately to general urban waste.

Troubleshooting

The unit cannot supply power to Yealink device.

There is a bad connection with the plug.

1. Clean the plug with a dry cloth.

2. Connect it to another wall outlet.

The usage environment is out of operating temperature range.

1. Use in the operating temperature range.

The cable between the unit and the Yealink device is connected incorrectly.

1. Connect the cable correctly.

You cannot connect the cable properly.

1. You may have connected a wrong Yealink device.

2. Use the correct power supply.

Some dust, etc., may be in the port.

1. Clean the port.

Contact your dealer or authorized service facility for any further questions.

Contact Information

YEALINK NETWORK TECHNOLOGY CO.,LTD.

309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R.C

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, The Netherlands

YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA Made in China
