USER MANUAL 305275 Brandson

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Safety guidelines for this device

- To prevent hazards and to comply with safety regulations, repairs to the device and the power cable should only be carried out by our customer service personnel. In case of repair please contact our customer service department by phone or e-mail.

- Please disconnect the mains plug and allow the device to cool down if necessary before cleaning it.

- The device should not be treated with liquids or immersed in liquids for electrical safety reasons.

- The product should not be exposed to rain, direct sunlight and impact.

• Potentially explosive materials, such as aerosol containers with flammable gas, should not be kept in this device.
• Food items should be packaged and kept in the cooler box.
• The device is intended for domestic use and other similar applications like: in the staff kitchen in shops, offices and other similar work areas, in agricultural properties, by customers in hotels, motels and other typical residential facilities as well as in B&Bs.

• The product is not intended for commercial use, including catering and similar large scale applications.

• The device is suitable for use in camping.

• It is not advisable to use the device daily over several months.
• The cyclopentane gas used in the insulation should be specifically mentioned during sale, delivery or handling over for recycling.
• The device can be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities and/or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the device, and have understood the resultant dangers.

• Children should not play with the device.

• Cleaning and user maintenance should not be performed by children without supervision.

• Caution! Keep children away from the packaging material. There is risk of suffocation.
• Never block the fans of the device.
• Never place any objects on the device to ensure adequate air circulation and to ensure that the ventilation slots are not covered.
• Operate the lid only along with the associated container!
• Do not allow any liquids to enter the fan openings or into the cooler box.
• Neither the device nor the power cables should be exposed to external heat.

- Two or more power cables should not be connected simultaneously.

- Please check the complete device including the power cable and any accessories before use for defects and damage that could affect the functionality of the device.

For example, if the device has fallen down or has been pulled using the power cable, there may be damages which are not visible from the outside. Do not use the device any more in such cases.

- Disconnect the mains plug each time after use, in case of malfunctions during use and/or before cleaning.

- Please do not disconnect the mains plug from the socket by pulling the power cable but always grip the mains plug.

- If the device is operated incorrectly or misused, we do not accept liability for any resulting damage.

- Coolers are classified into climate categories. Please refer to the product data sheet which is given at the end of this manual for the climate category of this device.

- The ambient temperature at which the device can be operated is specified in the product data sheet given at the end of this manual.

• The cooler box uses thermoelectric technology and can be used for cooling as well as for keeping items warm.
• Make sure that the power cable is always connected correctly and firmly. A loose connection can cause the cable and socket to heat up and result in damage or even a fire.
• Do not change the "Cooling/ Heating" modes abruptly. Allow the device to cool for at least 30 minutes before changing the mode.

Thank you for choosing a Brandon product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of delivery

• Cooler box
  • 12V DC power cable (vehicle port)
  • 220-240V AC power cable
• Carrying strap

2. Technical data

Power supply	220-240 V AC (via AC power cable)DC12V (via DC power cable; vehicle port)
Capacity about 10 L
Maximum cooling / heating capacity	Cooling: up to approximately 18-20 °C below the ambient temperatureHeating: up to 55-65 °C
Buttons 4
permissible ambient temperature	10-32 °C

Caution! The heating and cooling performance will depend on the strength of the power source. The recommended lead time for cooling is 1 hour, and for heating also 1 hour.

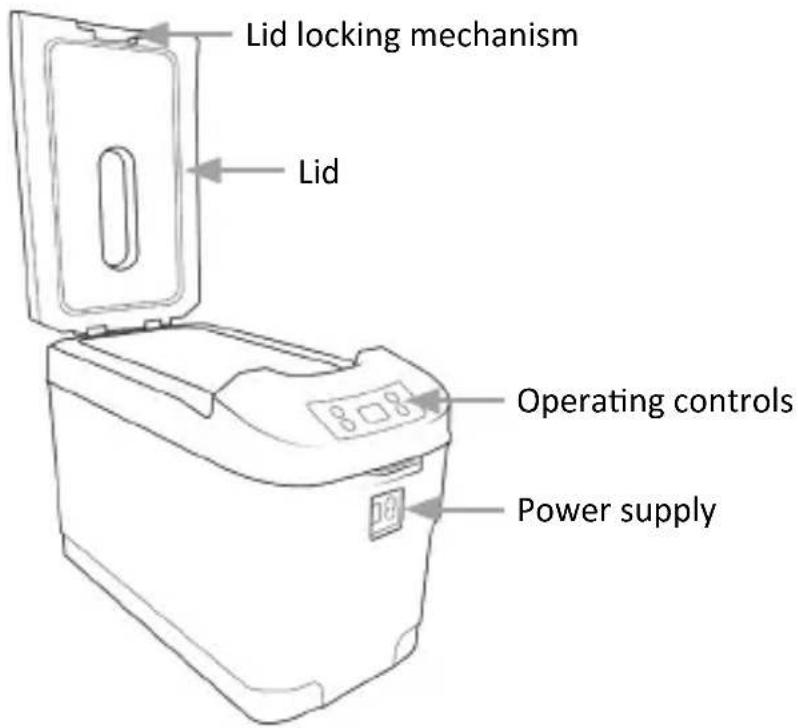

3. Product details

Lid locking mechanism Lid Operating controls Power supply

4. Before initial use

Take the device out of the package and remove all the packaging material. Clean the device as described in "Cleaning and care" before using it for the first time.

5. Initial use

First make sure that the device is switched off, and then insert the plug of the power cable into the appropriate power supply socket.

Make sure that you connect the cooler box either to 12V DC (using the cigarette lighter power cable provided) or to 100V-220V (using the conventional power cable). Do not use any voltage that does not match the specification on the typeplate.

Caution! Never connect both the cables simultaneously to the power supply!

Starting the device

To start the device, press the "ON/OFF" ( ) button on the control panel of the device.

The display now shows the temperature of the heating / cooling element measured currently. The device now starts the heat-up or cool-down phase depending on the target temperature. The last configured value is taken as the target temperature.

Setting the target temperature

Press the temperature selection button ( ) with the device switched on. The display now changes from the currently measured temperature (actual temperature) to the target temperature (set temperature), and is shown flashing. Now select your target temperature by increasing the value using the

"Up"( ) button or decreasing the value using the "Down"( ) button.

The selected value can be between -10^ and +65^ .

This can be done as long as the value flashes on the display. If a button is not pressed, the display stops flashing after 5 seconds, and the last configured value is taken. Alternatively, you can also press the temperature selection button ( ) to confirm the value immediately.

Status LEDs Red (heating mode) / Green (cooling mode)

The LEDs above the display show you whether the device is in heating mode (red LED glowing), in the cooling mode (green LED glowing), or when both LEDs are off, if the device is currently in the target temperature range.

6. Cleaning and Care

Disconnect the plug and allow the device to cool down completely before cleaning. The device should not be treated with liquids or even immersed in liquids for electrical safety reasons.

Never use harsh or abrasive cleaning agents.

Wipe the cover with a damp cloth and then dry it completely.

The container may be cleaned with a damp cloth and with some mild cleaning agent if necessary.

Allow the cooler box to dry completely before using it again.

7. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components.

Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should be used only by persons who have read and understood this user manual. The specifications of the device may be changed without any special prior notification.

8. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

For information on authorised collection points in your area, please contact your local city or municipal administration.

WEEE directive: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 305275 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover

MO-FR 9:30am - 18pm CET

QR code image containing encoded data, no visible human-readable text

brandson-equipment.de
