Product type	Thermoelectric cooler with cooling and heating functions
Brand	Brandson
Model	305274
Capacity	Approximately 24 litres
Power supply	100-240 V AC (via mains cable) or 12 V DC (via cigarette lighter cable)
Cooling power	Up to 10-18 °C below ambient temperature
Heating power	Up to approximately 50 ± 5 °C
Permissible ambient temperature range	10-32 °C
Controls	2 switches: COLD/OFF/HOT and ECO/OFF/MAX
LED indicators	Green for cooling, red for heating
Usage	Indoor, camping, vehicle (12 V)
Cleaning	Disconnect and let cool; damp cloth with mild detergent; do not immerse
Safety	Do not use outdoors, avoid moisture, do not open the device
Repairs	Contact customer service; do not repair yourself
Warranty	Warranty void if unauthorized modification
Disposal	Do not dispose of with household waste; comply with WEEE directive (number DE 67896761)
Weight	Approximately 5 kg (estimate for 24 L)
Dimensions (L x W x H)	Approximately 40 x 30 x 40 cm (estimate)
Package contents	Cooler, AC cable, DC cable for cigarette lighter

Frequently Asked Questions - 305274 Brandson

How to start the Brandson 305274 cooler?

Make sure both switches are set to OFF, connect the power cable, then toggle the COLD/OFF/HOT switch to COLD (cooling) or HOT (heating) and the ECO/OFF/MAX switch to ECO or MAX depending on the desired intensity.

What is the difference between ECO and MAX modes?

ECO mode provides less intense cooling or heating but is more energy-efficient. MAX mode delivers maximum power to reach the desired temperature more quickly.

Can I use the device simultaneously on 230 V mains and 12 V battery?

No, you must use only one type of power supply at a time. Never connect both cables simultaneously.

How long does it take to cool or heat food?

The recommended time is approximately 2 hours for cooling and 30 minutes for heating, depending on ambient temperature and volume.

How to clean the cooler?

Disconnect the device and let it cool down. Clean the lid with a slightly damp cloth. The container can be cleaned with a damp cloth and a few drops of mild detergent. Never immerse the device in water.

What is the capacity of the cooler?

The capacity is approximately 24 litres, sufficient for a few bottles and snacks.

Can I store unpackaged food in the cooler?

No, store only packaged food items to avoid direct contact with the walls and ensure hygiene.

What if the device does not cool or heat?

Check that the switches are correctly positioned and that the power is connected. If the problem persists, contact customer service; do not attempt to repair yourself.

Can the device be used outdoors?

The device is designed for indoor or camping use protected from rain and direct sunlight. Do not expose to moisture or inclement weather.

How to dispose of the cooler at the end of its life?

Do not dispose of the device with household waste. In accordance with the WEEE directive (2012/19/EU), take it to a public collection point or return it to the manufacturer. WEEE registration number: DE 67896761.

USER MANUAL 305274 Brandson

Line drawing of a rectangular electronic device with a lid and ventilation slots (no text or symbols)

OFF COLD HOT O EOO MAX OFF

Safety guidelines for this device

- To prevent hazards and to comply with safety regulations, repairs to the device and the power cable should only be carried out by our customer service personnel. In case of repair please contact our customer service department by phone or e-mail.

- Please disconnect the mains plug and allow the device to cool down if necessary before cleaning it.

- The device should not be treated with liquids or immersed in liquids for electrical safety reasons.

- The product should not be exposed to rain, direct sunlight and impact.

• Potentially explosive materials, such as aerosol containers with flammable gas, should not be kept in this device.
• Food items should be packaged and kept in the cooler box.
• The device is intended for domestic use and other similar applications like: in the staff kitchen in shops, offices and other similar work areas, in agricultural properties, by customers in hotels, motels and other typical residential facilities as well as in B&Bs.
• The product is not intended for commercial use, including catering and similar large scale applications.

• The device is suitable for use in camping.

• It is not advisable to use the device daily over several months.

• The cyclopentane gas used in the insulation should be specifically mentioned during sale, delivery or handling over for recycling.
• The device can be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities and/or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the device, and have understood the resultant dangers.

- Children should not play with the device.

• Cleaning and user maintenance should not be performed by children without supervision.
• Caution! Keep children away from the packaging material. There is risk of suffocation.
• Never block the fans of the device.
• Never place any objects on the device to ensure adequate air circulation and to ensure that the ventilation slots are not covered.
• Operate the lid only along with the associated container!
• Do not allow any liquids to enter the fan openings or into the cooler box.
• Neither the device nor the power cables should be exposed to external heat.

- Two or more power cables should not be connected simultaneously.

- Please check the complete device including the power cable and any accessories before use for defects and damage that could affect the functionality of the device.

For example, if the device has fallen down or has been pulled using the power cable, there may be damages which are not visible from the outside. Do not use the device any more in such cases.

- Disconnect the mains plug each time after use, in case of malfunctions during use and/or before cleaning.

• Please do not disconnect the mains plug from the socket by pulling the power cable but always grip the mains plug.
• If the device is operated incorrectly or misused, we do not accept liability for any resulting damage.
• Coolers are classified into climate categories. Please refer to the product data sheet which is given at the end of this manual for the climate category of this device.

• The ambient temperature at which the device can be operated is specified in the product data sheet given at the end of this manual.

• The cooler box uses thermoelectric technology and can be used for cooling as well as for keeping items warm.

• Make sure that the power cable is always connected correctly and firmly. A loose connection can cause the cable and socket to heat up and result in damage or even a fire.
• Do not change the "Cooling/ Heating" modes abruptly. Allow the device to cool for at least 30 minutes before changing the mode.

Thank you for choosing a Brandon product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of delivery

- Cooler box with fixed cables for the 12V vehicle on-board electrical system connection or for 220-240V mains voltage

2. Technical data

Power supply	100-240 V AC (via AC power cable)DC12V (via DC power cable; vehicle port)
Capacity about 24 L
Maximum cooling / heating capacity	Cooling: up to approximately 10-18 °C below the ambient temperatureHeating: up to approximately 50 ±5°C
Buttons	2 switches:Switch 1: COLD / OFF / HOTSwitch 2: ECO / OFF / MAX
Permissible ambient temperature	10-32 °C

Caution! The heating and cooling performance will depend on the strength of the power source and the ambient temperature.

3. Product details

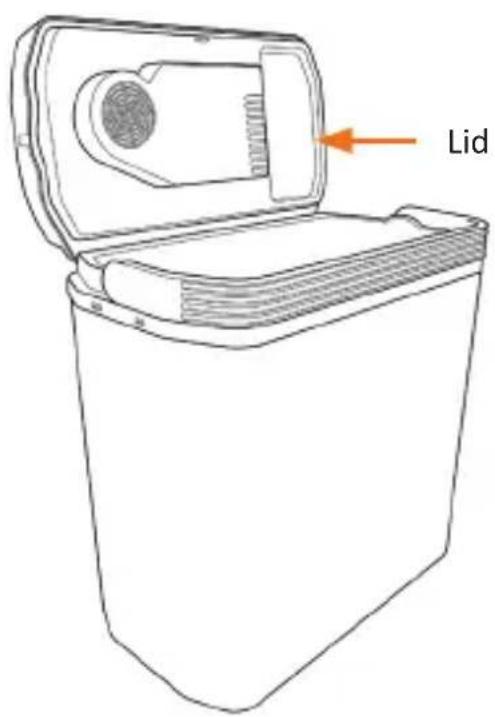

Lid

Operating controls

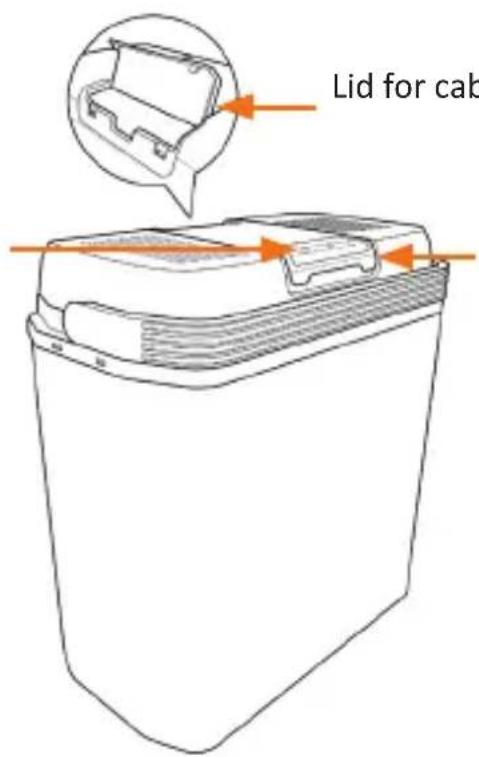

Lid for cab

Lid for cable storage
Lid locking mech- anism

4. Before initial use

Take the device out of the package and remove all the packaging material. Clean the device as described in "Cleaning and care" before using it for the first time.

5. Initial use

First make sure that the device is switched off (both switches in the middle (OFF) position), and then insert the plug of the power cable into the appropriate power supply socket.

Make sure that you connect the cooler box either to 12V DC (using the cigarette lighter power cable provided) or to 100V-220V (using the conventional power cable). Do not use any voltage that does not match the specification on the typeplate.

Caution! Ensure that you do not connect both the power cables simultaneously! Use the device only with a power supply!

5.1 Operation

To start the device, move the "COLD / OFF / HOT" and "ECO / OFF / MAX" switches to the desired position.

You can select the device mode using the "COLD / OFF / HOT" switch. Select

OFF COLD HOT O EOO MAX OFF

"COLD" (Green status LED) for cooling and "HOT" (Red status LED) for heating. You can switch off the device by moving the switch to the centre "OFF" position.

You can select the device power using the "ECO / OFF / MAX" switch. Select "ECO" if you want less intense, but more power efficient cooling / heating. Select "MAX" if you want maximum heating / cooling performance. You can switch off the device by moving the switch to the centre "OFF" position.

The recommended waiting time for cooling is 2 hours and for heating 30 minutes.

6. Cleaning and Care

Disconnect the plug and allow the device to cool down completely before cleaning. The device should not be treated with liquids or even immersed in liquids for electrical safety reasons.

Never use harsh or abrasive cleaning agents.

Wipe the cover with a damp cloth and then dry it completely.

The container may be cleaned with a damp cloth and with some mild cleaning agent if necessary.

Allow the cooler box to dry completely before using it again.

7. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components.

Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should be used only by persons who have read and understood this user manual. The specifications of the device may be changed without any special prior notification.

8. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE directive: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 305274/20201026NB167 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover

OFF COLD HOT O EOO MAX OFF

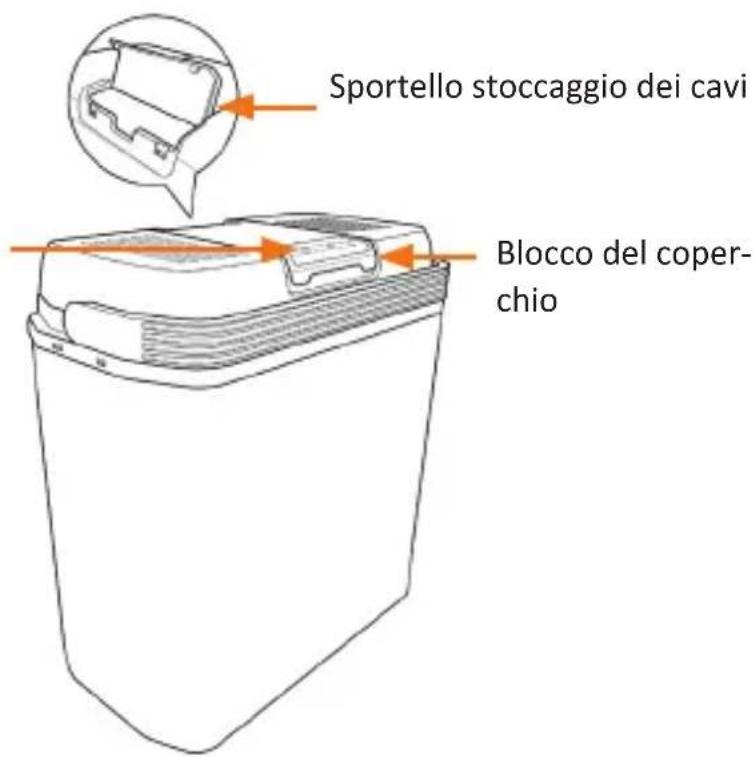

Coperchio

Elementi di comando

OFF COLD HOT O EOO MAX OFF
