Thank you for choosing a Brandon product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check if the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Mini cordless screwdriver
• Cutting attachment
• Edge attachment
• Angle attachment
• Torque attachment
• Charger
• Transport case
• User manual

2. Technical data

Battery 4V, 1500mAh, Li-on
No-load speed 200 min	-1
Sound level (Lpa) 66.2 dB(A) K = 3dB(A)
Sound power level (Lwa) 7	7.2 dB(A) K = 3dB(A)
Total vibration: 0.8 m/s2, K= 1.5m/s2
Torque 4 Nm
Cutter ø ø44mm
Tool holder 6.35mm (1/4 inch)
Power supply 100-240V AC 50/60Hz (power adapter)
Dimensions HxWxD	46mm x 110mm x 115mm
Features	·Quick-change attachments & bits·Battery level indication·Button for changing the direction·Working light

3. Product details

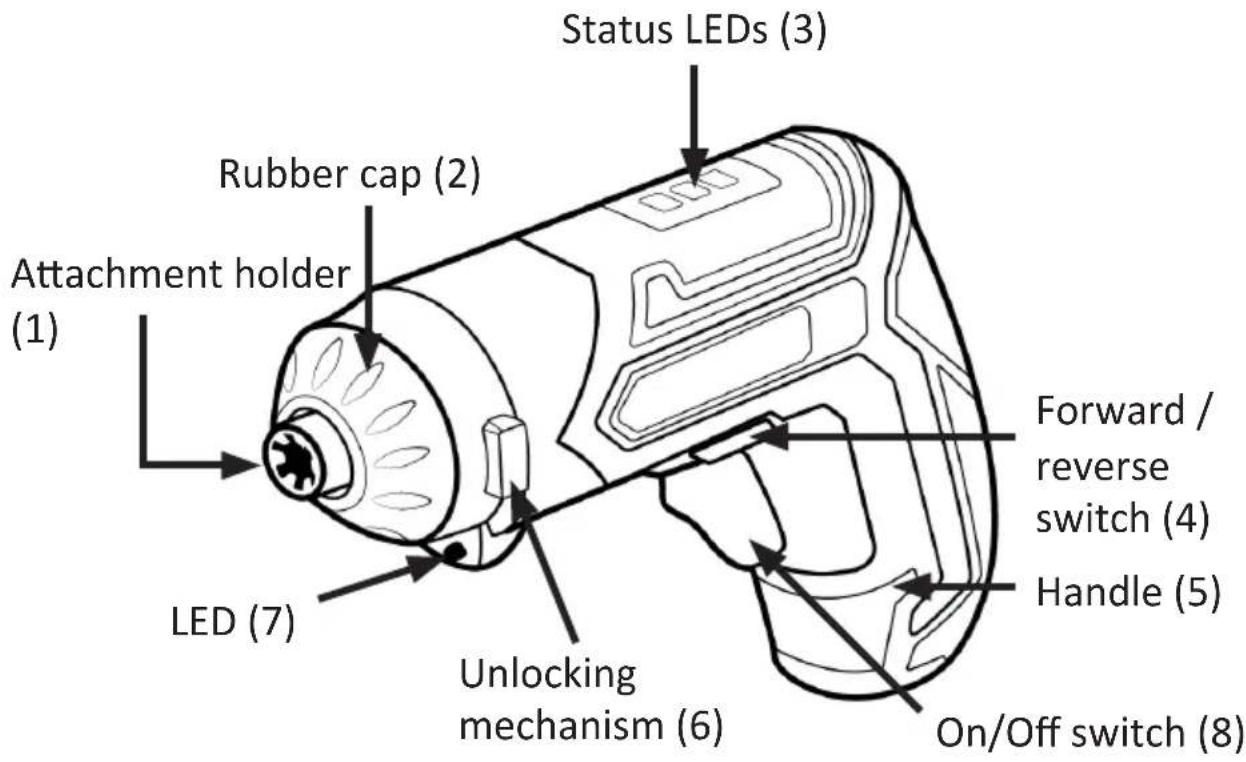

Status LEDs (3) Rubber cap (2) Attachment holder (1) LED (7) Unlocking mechanism (6) Forward / reverse switch (4) Handle (5) On/Off switch (8)

Torque attachment (9)

Line drawing of a handheld water dropper (no text or symbols)

Angle attachment (10)

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a cylindrical device with a protruding shaft (no text or symbols)

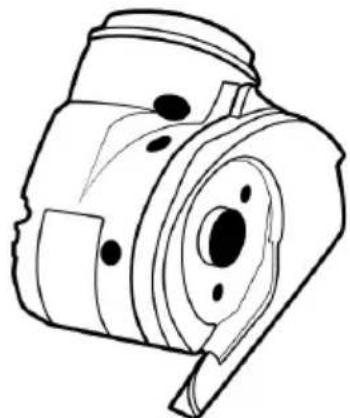

Edge attachment (11)

Line drawing of a mechanical pump or motor component (no text or symbols)

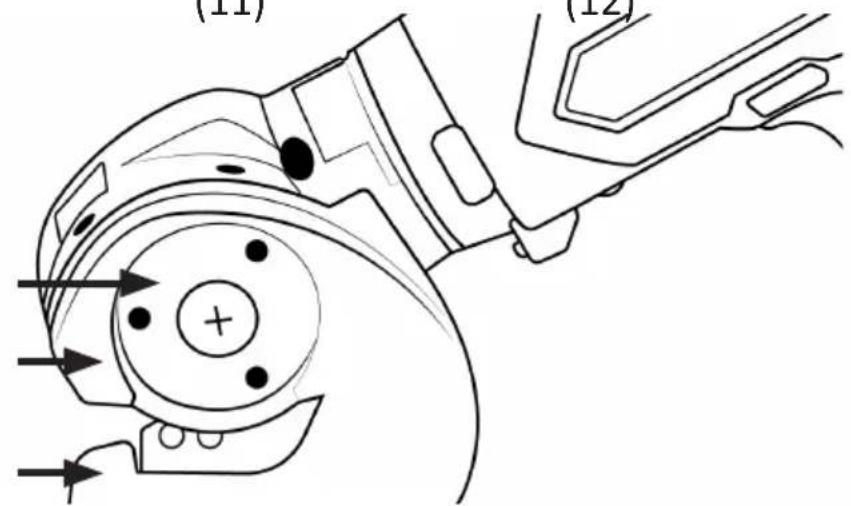

Cutting attachment (12)
Cutting disc (13) Protection cap (14) Guide rail (15)

(11) (12)

4. Commissioning

Take the device out of the package and remove all the packaging material. Check the scope of delivery for completeness. Charge the battery fully using the charger provided. Do not operate the device unattended and check it for damage and proper assembly before using it each time.

Note: If the speed reduces too much, then reduce the load or stop using the tool to avoid damage.

5. Operation

5.1 Attachments

Caution! Before starting any work with the tool, ensure that the forward / reverse switch is in centre position.

• The "angle attachment" (10) can be used to carry out screwing at right angles.
• The "cutting attachment" (12) can be used to cut soft materials such as carpets, fabrics, etc. up to a thickness of 6mm. Do not cut metal or hard materials.
• The "torque attachment" (9) can be used to screw till a defined torque is achieved. Once this torque is achieved, the screwing is automatically stopped.
• The "edge attachment" (11) allows you to screw in places that are difficult to access with a normal screwdriver.

Mounting the attachments

1. Remove the "rubber cap" (2) by pressing the "unlocking" button (6) on the outside of the cordless screwdriver and pulling the attachment from the front.
2. Mount the required attachment to the tool until it clicks into place.

Note: You can mount the supplied attachments in different positions (45°) on the tool.

Removing the attachments

1. Press the "unlock" buttons (6) on the outside of the cordless screw-driver and pull the attachment from the front.
2. After removing the attachment, replace the "rubber cap" on the cordless screwdriver.

Torque attachment

To screw with a corresponding torque, you have to mount the "torque attachment" (9) first.

You can then adjust the resistance individually by turning the adjustment ring of the "torque attachment".

Cutting attachment / cutting

Caution! Before each use, check and make sure that the cutting attachment (12) is in proper condition and there are no visible defects. Check if the "Cutting disc" (13) is tightened properly, and if the protective cap (14) is not damaged!

Put the "Forward / reverse switch" (4) in the left position so that the metal disc rotates correctly. The "guide rail" (15) of the cutting attachment should not tilt when cutting in any case and should always be aligned parallel to the cutting surface.

Do not press too hard while cutting because the materials can get stuck.

5.2 Forward / reverse switch

The forward / reverse switch gives you the option to select the direction of rotation between "clockwise" and "counter-clockwise" by putting the switch in the left or right position.

Putting the forward/ reverse switch in the centre position blocks the On / Off switch (8).

Make sure that you do not operate the forward / reverse switch during operation.

5.3 Turning the tool on and off

You can turn on the tool by pressing the On / Off and turn it off again by releasing the switch.

Ensure that the On / Off switch is never blocked.

5.4 Screwing

Use the desired screwing attachment (angle attachment (10), torque attachment (9) or edge attachment (11)) and mount it on the cordless screwdriver as described in chapter 5.1 "Mount the attachments".

1. Insert the desired bit into the "Attachment holder" (1).
2. Hold the tool firmly and in line with the desired screw. Screw it on firmly. Make sure that the forward / reverse switch is in the proper position.

Always use the appropriate bit attachment because the screw head can be damaged if the wrong attachment is used!

CAUTION!

• Never use excessive pressure when cutting. This may damage the cutting attachment!
  • Always hold the cordless screwdriver firmly!
  • Always use a vice for clamping small workpieces!
• If the device becomes too hot after using it continuously for a long time, allow it to cool for about 15 minutes!

10. Charging the battery

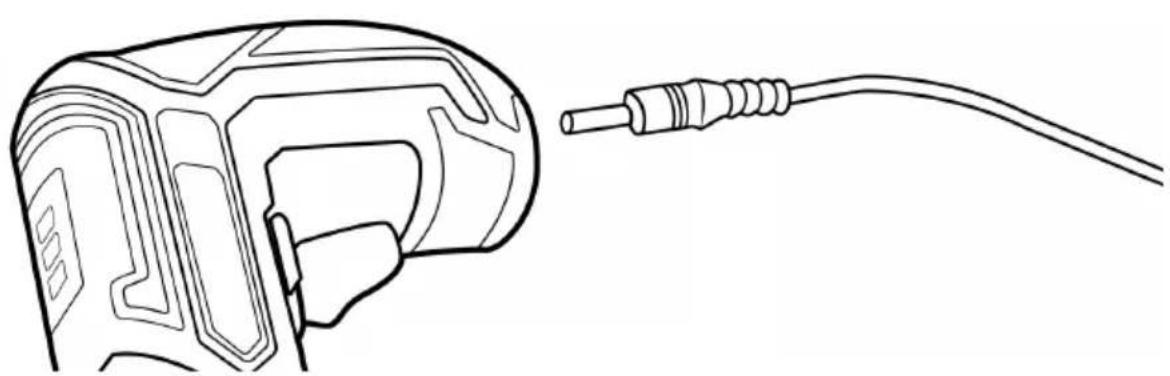

Charge the battery using the charger provided. Plug the charger into a properly installed socket and the coaxial connector output into the coaxial socket of the cordless screwdriver.

Line drawing of a handheld device connected to a cable (no text or symbols)

The charging status is indicated by the "Status LEDs" (3). Here, the colour red = low battery level and the colour green = high battery level.

11. Cleaning and Care

Before cleaning and servicing, ensure that the device has been switched off. Do not use alcohol, thinners or other chemical and aggressive cleaning agents for cleaning purposes. Use only a dry and soft cloth to wipe the device. Do not immerse the device in water and ensure that liquids do not get into the device!

12. Troubleshooting

Error Troubleshooting / cause
The screwdriver does not start	Charge the batteryBattery is faulty
Tool runs intermittently	Internal wiring of the tool is faultySwitch is not workingBattery level is too low / charge the battery
Excessive noise / vibrations	Device is defective

If you notice any defects, please do not hesitate to get in touch with our customer service department.

CAUTION!

13. Safety instructions and disclaimer

Please do not try to open the device to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof. Please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should be used only by persons who have read and understood this user manual. The specifications of the device may be changed without special prior notice.

14. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

15. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries mean the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery must not be disposed of in household waste.

WEEE Guideline: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303446/20181009SH001 complies with the fundamental requirements and all other relevant stipulations of the guideline 2006/42/EC. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, https://www.ganzeinfach.de

Only for European countries

EC Declaration of compliance

WD-Plus GmbH declares that the following device:

Description of the device: Cordless screwdriver

Model number / Type: 303446

of the European directive corresponds to: 2006/42/EC

To ensure compliance, the applicable versions of the following standards /

specifications were used at the time of issue: EN60745

The technical documentation in accordance with 2006/42/EC is available

at:

WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, Germany

Hanover, 06.12.2018

Line drawing of a handheld water dispenser (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a cylindrical device with a protruding shaft (no text or symbols)

Line drawing of a mechanical pump or motor component (no text or symbols)

Line drawing of a handheld electric shaver with a cable, no text or symbols present

Line drawing of a handheld water dropper (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a handheld device with a cylindrical port and rectangular body (no text or symbols)

Line drawing of a mechanical pump or motor component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a battery plug with a wire, no text or symbols present

Line drawing of a handheld water dispenser (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a cylindrical device with a protruding shaft (no text or symbols)

Line drawing of a mechanical pump or motor component (no text or symbols)

Line drawing of a handheld electric shaver with a cable, no text or symbols present

We hope you enjoy your new product in every way!

If there is still something you're concerned about please feel free to let us know.

You're welcome to contact our service team at any time.
