USER MANUAL FRAMEO 37.1001.08 TFA

Abstract red logo design with stylized human figures and flowing lines (no text or symbols)

frameo

Bedienungsanleitung

2023

Inhaltsverzeichnis

Abstract graphic of three white hands forming a stylized 'H' shape on a red background (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Für Android:

Close-up of a bowl of watermelon with a spoon, next to a cut of a whole watermelon (no text or symbols visible)

Two halves of a watermelon with a spoon, placed on a colorful cloth with a striped pattern (no text or symbols visible)

Foto einstellen

Four yellow emoji icons: a heart with a red circle, a happy face with a smiling expression, an open mouth with an angry expression, and a sad face with an open mouth (no text or symbols)

Abstract red logo design with stylized human figures and flowing lines (no text or symbols)

frameo

User Manual

2023

Contents

Contents1

Gettingstarted4

Frameo app 4

Video tutorials 4

Framequicksetup5

StartusingFrameo6

Connecting a new friend 6

NavigatingyourFrameo7

Add friend 7

Settings 7

Power menu 7

React 7

Hide photo 7

Gallery 7

Fit to frame/Fill frame 7

Adjust photo 8

Interacting with videos 8

Power menu 9

React menu 9

External storage menu 9

Clock and Weather widgets 10

Weather menu 10

Settings 11

My frame 11

Frame name 11

Frame location 11

Set language 11

Weather location 11

Temperature unit 11

Date 11

Time 11

Time zone 11

Set first day of week 12

Enable/Disable 24-hour format 12

Manage photos 12

Show/hide photos 12

Delete photos 12

Import photos 12

Transfer from computer 12

Export photos 13

Play from external storage 13

My Friends 13

Change options for a friend 13

Add person 13

Display 13

Brightness level 13

Sleep mode 13

Slideshow 14

Timer 14

Fill frame 14

Frame background 14

Photo display order 14

Reverse photo display order 14

Show caption 14

Show clock 14

Show weather 15

Autoplay 15

Video playback 15

Auto mute 15

Video volume 15

Wi-Fi 15

Wi-Fi details 15

Reset Wi-Fi 15

Notifications 16

Show notifications 16

Notification volume 16

Storage space 16

Backup 16

Network connection 16

New photos 16

New friends 16

Software update 16

Feature news 16

Date and time 16

Backup and Restore 17

Backup frame to external storage (e.g. microSD card) 17

Automatic backup 17

Restore from backup 17

Reset frame 17

Help 17

Guide 17

Support 18

About 18

Peer ID 18

Frameo version 18

Check for update 18

Beta program 18

Third party attributions 18

Share anonymous analytics data 18

Privacy19

Support19

Warranty, Compliance, Support and Safety information

19

Gettingstarted

Congratulations on your brand new Frameo photo frame!

If you are new to using Frameo then start by following the Frameo quick setup or follow the on-screen guide when powering it on for the first time.

Once you have set up your Frameo frame, you can start connecting it to your friends and family.

Frameoapp

To send photos to your frame, use the Frameo app for iOS or Android.

Frameo App Instantly Share Photos & Videos GET IT ON Google Play Download on the App Store

QR code image containing encoded data, no visible human-readable text

Scan code to find the app

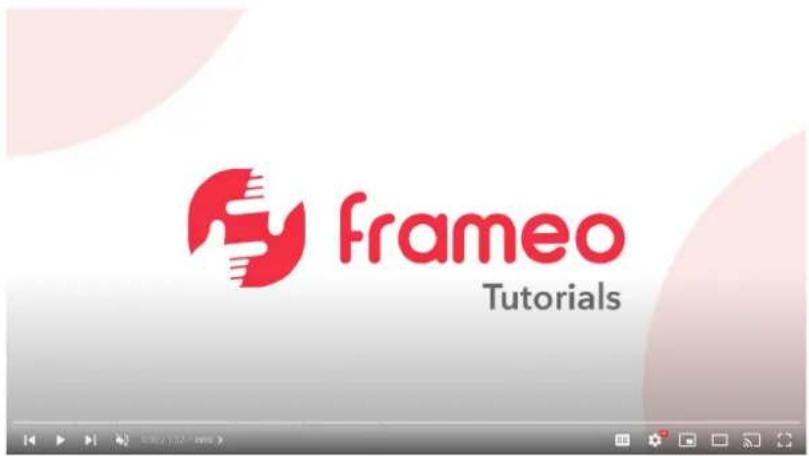

Videotutorials

Check out our "Frameo Tutorials" playlist on YouTube with informative videos where we guide you on how to get started using Frameo. Scan the code to the right or use the link to find the play

frameo Tutorials

QR code image containing encoded data, no visible human-readable text

bit.ly/3zKtxWX

Frameoquicksetup

When starting your frame for the first time, you will need to set up the frame.

- Select a language. This will be the language used on the Frameo.

- Connect your frame to the internet by connecting it to Wi-Fi.

- Verify or correct the date and time.

- Frameo may ask you to update to the latest version. It is recommended to update your framebeforecontinuingifaskedto.

- Enter your name, and the location where you have placed your frame e.g. "John Doe" and "Living room", "Kitchen" or "Office". Finally set the timezone if not already correct.

StartusingFrameo

Next step is to connect Frameo with your friends and family by providing them with a code from your frame.

If you want to be able to send photos to the frame yourself, start by downloading the app for iOS or Android on App Store or Google Play. Then use the code to connect your frame and app as described below.

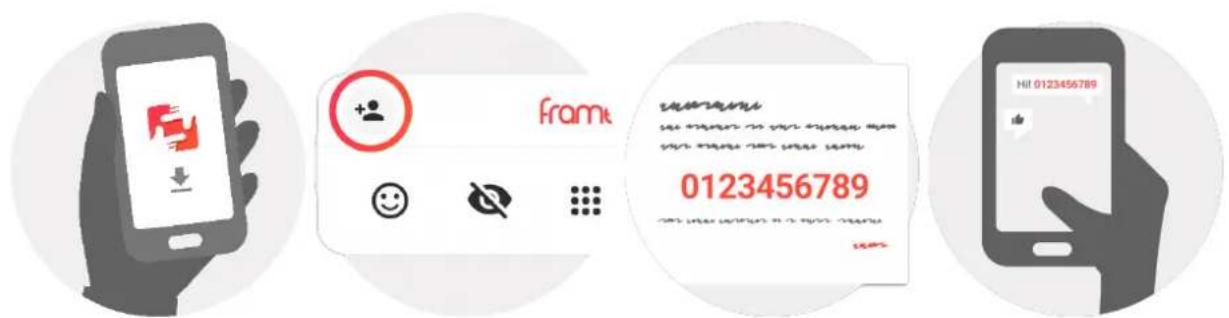

Connecting a new friend

Make sure that your friend has downloaded and installed the Frameo app.

Click the add friend icon on your frame. A dialog will appear showing a connection code, which is valid for 12 hours.

Now share this code in whatever fashion you prefer e.g. SMS, E-Mail, IM, phone call, to your friend.

Once your friends have added the code in their Frameo app, they will automatically appear on your frame and be able to send you photos.

Read chapter Change options for a friend to allow connected friends, to retrieve and share the connection code via the smartphone app.

Mobile app interface screenshot showing a hand holding a smartphone with a red 'Red' icon, a face verification dialog, and a score display for a score.

NavigatingyourFrameo

Swipe left or right to go through your photos.

To access the menu, simply tap once on the screen.

frameo

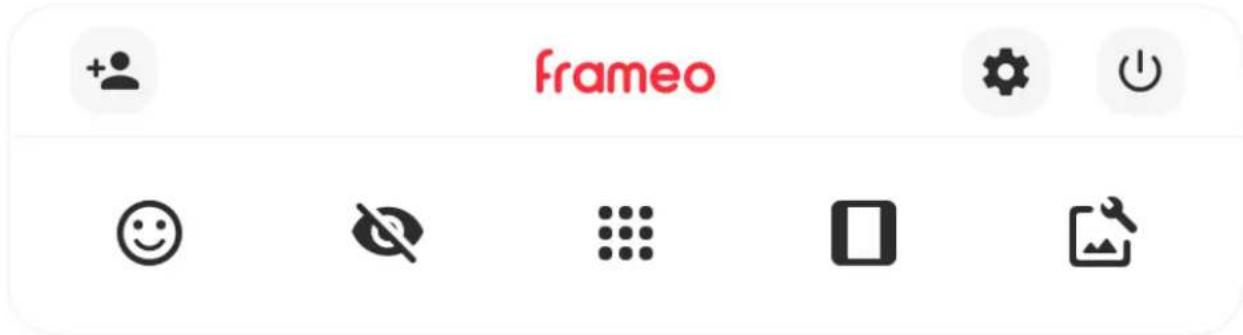

In the menu you will find the most used features.

Addfriend

This will generate a code that you can share with your friends and family so they can connect and send photos to your frame.

Settings

Opens the Settings.

Powermenu

Opens the Power menu.

React

Opens the React menu.

NB.TheReactmenucanalsobeaccessedbydouble-tappingonthescreen.

Hidephoto

Hides the current photo. This means that the photo will no longer be shown in the slideshow. If needed the photo can be shown again through the settings menu.

Gallery

Opens a gallery which allows for easy and fast navigation through your photos.

Fittoframe/Fillframe

This toggles how the photo is shown.

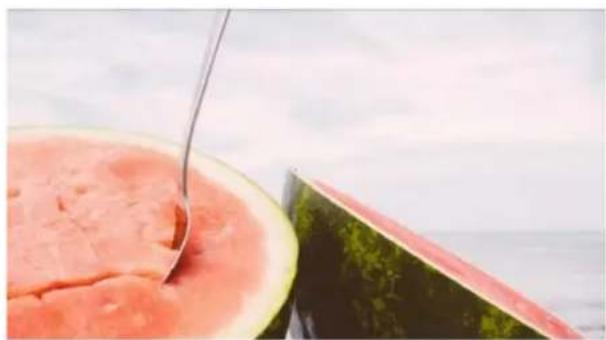

The Fill frame option is the default. The photo is scaled so that it fills the whole screen. It will be centered around what is selected as the most important part. See the first picture below.

Fit to frame will make sure that the entire photo is shown on the screen. See the second picture below.

Close-up of a bowl of red fruit being filled with a spoon, next to a cut of watermelon (no text or symbols visible)

Close-up of a halved watermelon cut into a slice, with a blurred sky background (no text or symbols visible)

Adjustphoto

Allows you to adjust the position of the photo in the frame for an even better fit. Here you can also use to rotate your photo, and you can use to edit the caption on imported photos. For received photos, please ask the sender to edit the caption in the Frameo app.

Interactingwithvideos

When a video is shown two additional controls are shown. One for play/pause of the video and one to control the volume level for video sounds.

Press to start the video playback. Pressing will pause the video playback.

Press to open the volume slider. Use the slider to adjust the volume level for video sounds.

Pressing will mute the video while pressing will unmute the video.

Powermenu

Tap the power icon to access the power menu. Here you can power off using , restart your frame using or enter sleep mode using .

NB.Makesuretoalwaysusethepoweroffbuttononthedeviceorinthepowermenutoturn Frameoff.NeverdisconnectpowerwhenFrameoisrunning.

Reactmenu

Tap one of the reactions to let the sender know how it made you feel.

Externalstoragemenu

When inserting an external storage (e.g. a microSD card) a menu will automatically appear with three options: Press to play photos directly from the external storage, press to import photos to the internal memory of your frame or press to make a backup of your frame.

ClockandWeatherwidgets

The current time and weather will appear in the upper-right corner of the frame when the frame has received at least one photo. Tapping either of these will open the weather menu.

Weathermenu

The weather menu contains more detailed weather forecasts and has shortcuts to weather-related settings.

Shows the weather location of your frame. Tap to access the weather location settings.

1DAY

1-day forecast which includes weather conditions for time periods of the day.

4DAY

4-day forecast. Tap to see the weather forecast for the next four days.

Displays the frame's current time. Tap to access the time settings.

Settings

Through the settings, you can personalise your frame to your needs.

My frame

Framename

Changes the name of your frame. This is also the name that connected friends and family will see in their list of connected frames in the smartphone app.

Framelocation

Changes the location of your frame. This is the location displayed on your friends' and family's list of connected frames which can help to distinguish frames from each other.

Setlanguage

Sets the language used on the frame.

Weatherlocation

Sets the location for the frame's weather feature, ensuring that your frame displays the appropriate weather forecast for you.

Temperatureunit

Toggles between the Fahrenheit and Celsius temperature scales.

Date

Sets the date used on the frame.

Time

Sets the time used on the frame.

Frameo will automatically try to set the correct date and time when connected to the internet.

Timezone

Sets the time zone used on the frame.

Setfirstdayofweek

Sets which day of the week is considered the first.

Enable/Disable24-hourformat

Enables, and disables, 24-hour time format.

Manage photos

In the manage photos menu you can see how many photos are on your frame and the storage they use. You can also see the amount of storage left available on your device for storing new photos.

Show/hidephotos

Select which photos to hide by tapping them. Hidden photos will NOT be deleted from your frame and you can always select them to be shown again.

Use to hide or show all photos.

Deletephotos

Select photos that you want to permanently delete from your frame by tapping the photo.

Use to select or deselect all and to permanently delete the selected photos.

Importphotos

Allows you to import photos from an external storage (e.g. microSD card).

Before you try to import photos, make sure you have an external storage (e.g. microSD card) inserted into your frame with the photos you wish to import.

Start by selecting the photos that you want to import onto your frame. Once selected tap the import button to start the import process.

Use to select or deselect all photos on the external storage (e.g. microSD card).

Use to set the sort order of photos before import and to order by ascending/descending.

Transferfromcomputer

Allows you to transfer photos from a computer using a USB cable. Enable the feature and then follow the on-screen guide for step-by-step instructions on how to transfer photos to your frame.

For more information, please visit our help center: https://frameo.net/usb_faq

Exportphotos

Allows you to export photos from the frame to external storage (e.g. microSD card).

Theexportfunctionwillexportallphotosontheframeaswellasprofilepictures.

Playfromexternalstorage

Enables / disables playback of photos and videos directly from an external storage (e.g. microSD card) without taking up space on the frame.

My Friends

This list contains all the connected friends that are allowed to send photos to your frame.

Changeoptionsforafriend

Click the options icon to open the friend options menu. From here you can allow / disallow if a friend may share the code to the frame. If this is enabled the friend can retrieve and share the code to the frame from his/her app.

From the options menu you can also delete a friend, by pressing the DELETE FRIEND button. This will remove the friend from the list and thereby remove their permission to send photos to the frame. You will then be asked to confirm the removal and if you would like to remove all photos previously received from this friend.

Addperson

To allow a new person to send you photos, simply tap the add friend button and share the presented code in whatever way you prefer.

Display

Brightnesslevel

Adjust the brightness level of the screen.

Sleepmode

Frameo offers a sleep mode which turns off the screen to reduce power consumption. The default setting is to turn off the screen at 23:00 and turn on the screen again at 07:00 every day. This can be altered by changing your sleep schedule(s). It is possible to have multiple schedules

active at once to e.g. have different settings for weekdays and the weekend or a separate schedule to turn off the frame while at work.

Yourframeisnotpowereddownorinstandby,soyouwillstillbeabletoreceivephotosduring sleepmode.

Slideshow

Timer

Set the duration that a photo should be displayed before showing the next photo.

Fillframe

Set the default frame photo setting. Check to set default to fill which makes the photos fit the device screen according to the most important part of the photo. Uncheck to make the photo fit inside the screen of the device, adding background bars on the sides or top/bottom.

Framebackground

Choose between several different frame background options to be shown as bars if the photo does not fill the screen.

Photodisplayorder

Sets the order in which your photos are displayed on the frame.

• By date taken: Photos are shown in order of when it was taken.
• By date received: Photos are shown in order of when it was received.
• Shuffle: Photos are shuffled and shown in a random order.

Reversephotodisplayorder

Sets if photos are displayed newest to oldest or oldest to newest.

Showcaption

Set whether or not to display the captions that your friends have sent with the photo. Check to display captions. Uncheck to hide captions.

Showclock

Set whether or not to display the clock widget in the upper-right corner of the slideshow.

Showweather

Set whether or not to display the weather widget in the upper-right corner of the slideshow.

Autoplay

Enables/disables autoplay of videos in the slideshow. Videos can always be manually started regardless of this setting.

Videoplayback

Determines how videos should be played when autoplay is enabled.

• Loop videos: The video will loop until the slideshow timer is up.
• Play once: The video will play once and show its thumbnail until the timer is up.
• Play once and continue: The video will play once and continue to the next photo, or video, once it completes.

Automute

Enable to automatically mute the video volume after a short period of time of not interacting with the frame.

Videovolume

Adjust the volume level for video sounds on the frames.

Wi-Fi

Set which Wi-Fi the frame connects to. If you are connecting to a network with a captive portal Connection status will say that Wi-Fi login is required and show . Tap this to open a login screen where you can enter credentials to access the network.

Wi-Fidetails

Use to show details about the current connected Wi-Fi.

ResetWi-Fi

Use to delete all Wi-Fi information and restart your frame.

Notifications

Shown notifications

Enables/disables whether notifications are shown in the slideshow (e.g. when a new photo is received).

Notificationvolume

Adjust the volume level for notification sounds.

Storagespace

Enables/disables notifications shown when frame storage is low.

Backup

Enables/disables notifications shown if automatic backup has failed.

Networkconnection

Enables/disables notifications showing network connection status.

Newphotos

Enables/disables notifications shown when receiving new photos.

Newfriends

Enables/disables notifications shown when new friends are added.

Softwareupdate

Enables/disables notifications shown when a software update has been installed.

Featurenews

Enables/disables notifications shown when new exciting features are added.

Dateandtime

Enables/disables notifications shown if time or date is not set correctly.

Backup and Restore

Backupframetoexternalstorage(e.g.microSDcard)

Tap to make a backup of your photos, friends and settings. The time of the latest successful backup is also displayed here.

Anyexistingbackupontheexternalstoragewillbeoverridden!

Automaticbackup

If checked, your frame will automatically take a backup within 30 hours of receiving new photos or making changes to your frame.

Restorefrombackup

Beforeyouattempttorestoreyourframe,startbyconfirmingthatyourbackupisup-to-date.This isdonebyconfirmingthedateunder"Backupframetoexternalstorage(e.g.microSDcard)".If e.g.thelastbackupistoooldorifnobackupismade,thenpressthe"Backupframetoexternal storage(e.g.microSDcard)"buttontomakeanewbackup.

NB: Tokeepboththeoldandthenewframeoperationalatthesametimeafterrestoringfrom backup, pleasemakesurethatbothframesareupdatedtothelatestversionbeforehand.

If you wish to restore a backup on a frame that has already been setup, then you must first reset the frame. This is done by pressing the "Reset frame" button. This will delete all data on the Frameo and reset the Frameo to its setup screen.

On the setup screen you can select the "Restore from backup" button which will restore your frame according to the backup.

If the “Restore from backup” button isn’t visible, then confirm that the external storage (e.g. microSD card) is correctly mounted.

Resetframe

Removes all data from your frame.

Thiswillpermanentlyremoveallyourphotos,friends/connectionsandsettings.

Help

Guide

Shows the quick start guide, which was shown when you first started the frame.

Support

Find contact information for Frameo's support team, and find technical device information.

The menu features a special QR code that is there for our support staff to scan. It contains additional device details and information, enabling our support team to efficiently address your specific concerns and provide accurate assistance. Simply take a photo of the QR code and share it with our support staff.

About

PeerID

This is a unique ID for your photo frame. When contacting our support, please provide this ID with your message.

Frameoversion

Shows what version of the Frameo software is currently installed on your frame.

Checkforupdate

Check if an update is available for your frame.

Betaprogram

If checked the device will join the Beta program where it will receive updates more frequently and before normal release devices.

Thirdpartyattributions

Opensourcelibraries

Opens a list of open source libraries used in the app and their licenses

Shareanonymousanalyticsdata

Sharing anonymous analytics data helps us tremendously to improve the Frameo software. We understand if you do not wish to share this data with us. Keep it checked if you wish to help us improve Frameo. Set unchecked to deny the sharing of anonymous analytics data.

Privacy

For more information regarding privacy, please visit http://privacy.frameo.net

Support

Please visit https://support.frameo.net/hc for FAQ, support and to provide feedback.

Warranty, Compliance, Support and Safety information

For more information regarding warranty, hardware compliances, support and safety please refer to the material included in the package.

Abstract red logo design with stylized human figures and flowing lines (no text or symbols)

frameo

Mode d'emploi

2023

Sommaire

Sommaire 1

Pour commencer 4

Application Frameo 4

Configuration rapide de Frameo 5

Librairies open source 17

Abstract icon of three white hands forming a stylized 'H' shape on a red background (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Pour Android :

Close-up of a bowl of watermelon with a spoon, next to a cut of a whole watermelon (no text or symbols visible)

Two halves of a watermelon with a spoon, placed on a colorful cloth with a striped pattern (no text or symbols visible)

Ajuster la photo

Librairies open source

Abstract red logo design with stylized human figures and flowing lines (no text or symbols)

frameo

Manuale d'uso

2023

Indice

Indice 1

Per iniziare 4

App Frameo 4

Abstract graphic of two white thumbs-up icons on a red background (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Android:

cerca "Frameo" su Google Play.

iOS:

Mobile app interface screenshot showing a hand holding a smartphone with a red download icon, a group of icons for satisfaction and editing, and a smartphone displaying a red card with phone number.

Close-up of a bowl of watermelon with a spoon, next to a cut of a whole watermelon (no text or symbols visible)

Two halves of a watermelon with a spoon, placed on a patterned cloth under a cloudy sky (no text or symbols visible)

Regola foto

Abstract red logo design with stylized human figures and flowing lines (no text or symbols)

frameo

Abstract logo with red background and white hand-like shapes (no text or symbols)

QR code image containing encoded data, no visible human-readable text

VoorAndroid:

Close-up of a halved watermelon slice with a spoon, alongside two close-up photos of the same fruit (no text or symbols visible)

Fotoaanpassen

Hiermeekuntudepositievandefotoinhetframewijzigenvooreenbeterepasvorm.Hierkunt

Abstract red logo design with stylized human figures and flowing lines (no text or symbols)

frameo

Manual de usuario

2023

Contenido

Contenido 1

Introducción 4

Aplicación Frameo 4

Abstract graphic of two white hands forming a stylized 'H' shape on a red background (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Para Android:

Close-up of a bowl of watermelon with a spoon, next to a cut of a whole watermelon slice (no text or symbols visible)

Close-up of a whole watermelon cut with a knife, placed on a patterned cloth against a cloudy sky (no text or symbols visible)

Ajustar la foto

Four yellow emoji icons: a heart with a red circle, a happy face with a smiling expression, an exclamation mark with an angry expression, and a sad face with an angry expression (no text or symbols)
