USER MANUAL StarColor72B BeamZ

SAFETY INSTRUCTIONS 3

UNPACKING INSTRUCTION ....4

POWERSUPPLY 4

DMX512 CONTROL 4

APP INSTRUCTION....5

REMOTE CONTROLLER....5

CLEANING 6

PROTECTION CLASS IP65....6

Maintenance....6

TROUBLE SHOOTING....7

NEDERLANDS

VEILIGHEIDSINSTRUCTIES 8

UITPAKKEN 9

AANSLUITSPANNING 9

DMX BEDIENING 9

APP INSTRUCTIE 10

AFSTANDSBEDIENING 10

REINIGEN....11

BESCHERMINGSKLASSE IP65 11

ONDERHOUD....11

PROBLEMEN OPLOSSEN 12

DEUTSCH

SCHUTZKLASSE IP65....16

PFLEGE 16

FEHLERSUCHE 17

ESPAÑOL

INSTRUCTIONS POUR L'APPLICATION....25

TELECOMMANDE....25

NETTOYAGE 26

CLASSE DE PROTECTION IP65....26

ENTRETIEN....26

RESOLUTION DE PROBLEMES....27

POLSKI

INSTRUKCJA BEZPIECZENSTWA 28

ROZPAKOWYWANIE INSTRUKCJI....29

ZASILACZ 29

KONTROLA DMX512 29

INSTRUKCJA OBSŁUGI APLIKACJI 30

PILOT ZDALNEGO STEROWANIA....30

CZYSZCZENIE 31

KLASA OCHRONY IP65....31

KONSERWACJA....31

ROZWIAZYWANIE PROBLEMÓW 32

TECHNICAL DETAILS

CONTROL MENU....33

DMX CHANNELS....34

5 Channels....34

7 Channels....34

9 Channels....34

TECHNICAL SPECIFICATIONS....35

SAFETY INSTRUCTIONS

WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference. It contains important information about the installation, usage and maintenance of the unit.

• Unpack and check carefully that there is no transportation damage before using the unit
- Please read these instructions carefully and follow the instructions.
- Observe all safety warnings. Never remove safety warnings or other information from the equipment.
- Be sure that no ventilation slots are blocked; otherwise the unit will overheated.

WARNING! Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

• After connecting the unit, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
• Make sure that the power cord is never crimped or damaged. Check the unit and the power cord from time to time.
- Always disconnect power from the mains, when unit is not used or before cleaning! Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
- Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

- Do not switch the unit on and off in short intervals.

- Do not connect the unit to a dimmerpack.

• Install the unit in a well ventilated place.

- Never place any material over the lens.

- Never let the sunlight lights directly to the front lens, even when the unit is not working.

• Always allow free air space of at least 50 cm around the unit for ventilation.

• Make sure that the area below the installation place is blocked when rigging, derigging or servicing the unit.

- For mounting height >100 cm, always fix the unit with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!

- Never look directly at the light beam. Please note that fast changes in lighting, e.g. flashing light, may trigger epileptic seizures in photosensitive persons or persons with epilepsy.

- This unit is not designed for permanent operation. Consistent operation breaks will ensure that the unit will serve you for a long time without defects.

WARNING! If the power cord of the unit is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

• Make sure that the unit is not exposed to extreme heat or dust.
- Clean the unit using a dry cloth.
- Do not touch the unit bare-handed during its operation (housing becomes very hot). Allow the unit to cool for at least 5 minutes before handling.
- This unit is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of fluid (does not apply to special outdoor equipment – in this case, observe the special instructions noted below). Do not expose this unit to flammable materials, fluids or gases.
- If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

- Never attempt to bypass the thermostatic switch or fuses.

- Do not dismantle or modify the unit.

- For replacement use fuses/bulb of same type and rating only.

• Repairs, servicing and electric connection must be carried out by a qualified technician.

- The ambient temperature must always be between -5^ and +45^ .

- If this unit is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.

- Plastic bags must be kept out of reach of children.

- Unit must be installed out of the reach of children. Never leave the unit running unattended.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear

damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

POWERSUPPLY

The label on the backside of the unit indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

The unit has a powerconnector output on board. Depending on the local conditions several units can be linked by powerconnector in- and output. Connect a maximum of four (when using 230V/16A) units in a row. Use an approved three-core cable with a cross-section of at least 1.5mm^2 . The installation instructions of the manufacturer and the colour coding of the cable must be observed. Do not turn off the unit by turning the powerconnector but use the power on/off switch or schuko!

WARNING!Always connect the unit to a protected circuit (circuit breaker or fuse). Make sure the unit has an appropriate electrical ground to avoid the risk of electrocution or fire.

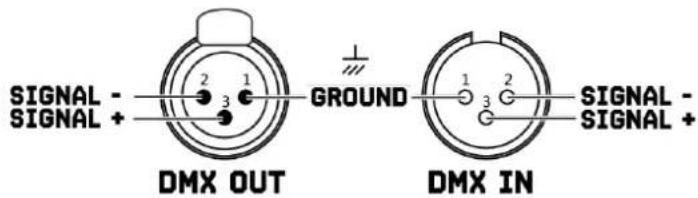

DMX512 CONTROL

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected.

CAUTION! At the last unit, you must close the DMX line with a terminating resistor. Take an XLR connector and solder a 120 Ohm resistor between signal (-) and signal (+) and connect it to the DMX output of the last unit in the line.

SIGNAL - SIGNAL + DMX OUT GROUND DMX IN SIGNAL - SIGNAL + 1 2 3

1 2 3 120 OHM TERMINATOR

APP INSTRUCTION

STEP 1:

Find [Wenti] and press to tu[6N7B8]Fl.

STEP 2:

"Led_XXX" displayed on the screen is the WIFI address of the light fixture.

STEP 3:

Scan the above QR code to install [LAPPLAM] on mobile phone.

STEP 4:

On the phone, find WIFI and search WIFI address, and the words beginning with LED appear.

For example, "LED-XXX", click the link.

STEP 5:

Turn on the [APP] linked on the phone and show the link is successful then you can control it.

QR code with central logo containing 'LED' text and rainbow-colored circular design

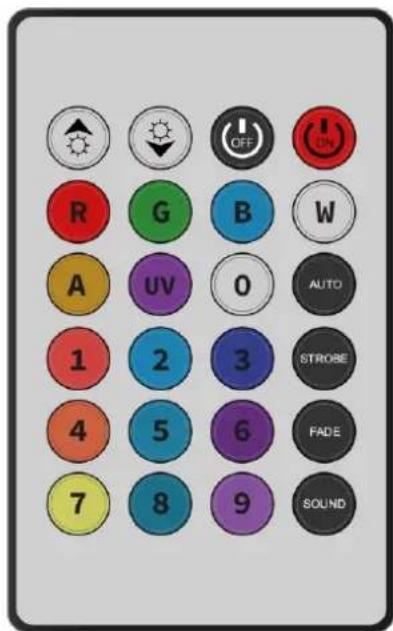

REMOTE CONTROLLER

POWER

Press <OFEExisting modes. Press for power on.

AUTO MODE

Automatic mode will enable you to run the automatic programs on the product.

To turn on Automatic mode:

1. Press remote controller.

2. Press (AUTO) off auto mode.

STROBE MODE

To adjust the strobe speed of the automatic program and the sound active program.

1. Press <STMODE remote controller.

2. Press stop this function.

FADE/UNIT MODE

To adjust the FADE speed of the automatic program, the sound active program and the manual mode.

1. Press <for the remote controller.

2. Press to stop this function.

SOUND MODE

This button has no function

MANUAL MODE

1. Press one of the colours on the remote controller.

2. Press again to close your colour.

3. Press UP to either increase or decrease the percentage of each colour.

CAUTION! The remote control is supplied with a battery inserted. An insulating foil between the battery and the battery contacts prevents the battery from being discharged during storage. Prior to the first operation remove the foil from the battery support on the rear side of the remote control. Otherwise operation of the remote control is not possible.

If the range of the remote control decreases, replace the battery. For this purpose, on the rear side of the remote control press the small bar with the groove to the right (1) and at the same time remove the battery support (2). For operation, one 3 V button cell type CR 2025 is required. When inserting, pay attention that the positive pole of the button cell shows upwards in the support.

R G B W A UV 0 AUTO 1 2 3 STROBE 4 5 6 FADE 7 8 9 SOUND

1 2

CLEANING

The buildup of dust, dirt and other airborne particles will reduce the unit's light output. It will also prevent the unit from cooling correctly, and this will reduce the unit's lifetime. The rate of dirt buildup will vary depending on environmental factors such as airborne dust, use of smoke machines, airflow from ventilation systems, etc. The unit's cooling fans will accelerate buildup, and any smoke particles that are present in the atmosphere will increase the tendency for dirt to clog.

To get the best performance and lifetime from the unit, inspect it regularly and clean it as soon as you see signs of dirt buildup.

Assess the operating environment each time you begin to use the unit. In dusty or smoky conditions, inspect the unit after a few hours and check it frequently the unit may attract dirt faster than you expect. Draw up a cleaning schedule that will make sure that dirt is removed before it can build up.

Use the following guidelines:

• Disconnect the unit from power and allow it to cool completely before cleaning.
• Do not use solvents, abrasives or any other aggressive product to clean the unit.
  • Vacuum or use low-pressure compressed air to remove dust and loose particles from surfaces and air vents. Prevent the blades of cooling fans from turning before you aim a vacuum or air jet at the fan, or you may spin the fan too fast and damage it.
• Clean glass components by wiping gently with a soft, clean, lint-free cloth moistened with a weak detergent solution. Put the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
• Dry the unit with a soft, clean, lint-free cloth or low-pressure compressed air before reapplying power.

PROTECTION CLASS IP65

Units with protection class IP65 are dust-tight and completely protected against contact (first code number). They are also protected against splash water from any angle (second code digit). That is why this unit can also be used out- doors. Events units are generally only designed for temporary use however (event lighting) and not for permanent use outdoors. The specified protection class does not make a statement about the weather resistance of the units (resistance to changing ambient conditions as well as against the effects of sunlight and UV rays). The seals and screw connections of the units must be checked regularly to ensure a fault-free operation.

MAINTENANCE

This unit is virtually maintenance-free, but you should check the unit regularly for mechanical and electrical aspects.

Assess the operating environment and establish an inspection and cleaning schedule that follows the guidelines below:

• Disconnect the unit from the power supply and allow it to cool completely before inspecting and cleaning.
• Check that the screws and bolts used to install the unit are securely tightened and free from corrosion.
• Check the housing, fixing points and installation points, they must not show any signs of deformation, wear or fatigue.
  • Check the mechanically moving parts, these must not show any signs of wear or fatigue.
  • Check the electrical power and signal cables, they must not show any damage or fatigue.
  • Do not use solvents, abrasives or other aggressive products to clean the unit.
• Wipe the unit and clean the glass plate with a soft, clean, lint-free cloth moistened with a weak cleaning solution. Place the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
  • Dry the unit, connectors and contacts with a soft, clean, lint-free cloth or low-pressure compressed air before re-powering the unit.

TROUBLE SHOOTING

The checklist below may help you troubleshoot in the unlikely event that a problem occurs while using the product:

SYMPTOM	POSSIBLE CAUSE	SUGGESTED ACTION
No response from unit.	No power to unit.Fuse blown or internal fault.	Check that power is turned on.Check cables and connections.Replace mean fuse or contact Beamz support or Beamz authorized service partner. Do not remove base or yoke covers. Do not attempt to replace a fuse or carry out any repairs or service that are not described in this User Manual unless you have both authorization from Beamz support or Beamz authorized service partner.
Unit resets correctly but does not respond (or does not respond correctly) to the controller.	The controller is not connected.Bad DMX-line.DMX-line has no end resistance.Incorrect unit addressing.A unit is defective and is disturbing data transmission on the DMX-line.Pin 2 and 3 are reversed in XLR connection.	Connect controller.Inspect connections and cables. Correct poor connections. Repair or replace damaged cables.Insert DMX terminator plug in DMX output socket of last unit on DMX-line.Check unit address and DMX mode settings.Unplug DMX IN and OUT connectors and connect them directly together to bypass one unit at a time until normal operation is regained. Have defective unit serviced by an authorized technician.Inspect connections and cables. Install a phase-reversing cable between the units or swap pin 2 and 3 in the unit, that behaves erratically.
Error after unit reset.	Effect requires mechanical adjustment.	Check unit's software version and error messages for more information. Contact Beamz support or Beamz authorized service partner.
Light output cuts out intermittently.	Unit too hot.LEDs damaged.The power supply settings do not match local AC voltage and frequency.	Allow unit to cool. Reduce ambient temperature. Ensure free airflow around unit.Clean unit if necessary.Disconnect unit and contact Beamz support or Beamz authorized service partner.Disconnect unit. Check settings and correct if necessary.

VEILIGHEIDSINSTRUCTIES

QR code with central logo containing 'LED' text and rainbow-colored circular design

AFSTANDSBEDIENING

POWER

BESCHERMINGSKLASSE IP65

QR code with central logo containing 'LED' text and rainbow-colored circular design

FERNBEDIENUING

POWER

QR code with a colorful circular logo in the center, likely linking to a digital resource or website.

MANDO A DISTANCIA

POWER

Pulse <para encender.

MODO AUTO

QR code with a central logo containing LED and rainbow-colored modules

TELECOMMANDE

POWER

QR code with central logo containing 'LED' text and rainbow-colored arc design

PILOT ZDALNEGO STEROWANIA

ZASİLANİE

MENU			DESCRIPTION
DMX ADDR	A001-A512		DMX mode, press up or down to adjust address
MACRO	Auto Color		Press Enter --UP/DOWN to adjust speed from 01-16
	Auto Fade
	Auto Sudden
	Auto Strobe
WIFI	Press Enter shows		Controlled by mobile phone APP
MANUAL	Custom Color	Red 0-255	Dimming static color
		Green 0-255
		Blue 0-255
		White 0-255
		Amber 0-255
		Strobe 0-255
	Static	Color: 01	27 kinds static color
		......
		Color: 27
SETTING	DMX Channel	5CH	5 DMX channels mode
		7CH	7 DMX channels mode
		9CH	9 DMX channels mode
	DMX Signal State	Black	Give up signal if DMX signal disconnect
		Hold	Hold signal if DMX signal disconnect
	2.4g Wireless	Wireless	ON/OFF
		Mode	Transmit/Receive
		Reset	No/YES
		Connect	No/YES
	Infrared	ON/OFF	Enable or disable infrared remote
	Display Backlight	0-100%	LCD background
	LCD Display	1. Always ON	LCD wake up
		2. 10s	10/30/45/60 seconds without operation, LCD enters sleep mode
		3. 30s
		4. 45s
		5. 60s
	Restore Factory	Load default data	Password: 8888
	Limit Light	Adjust working current	Password: xxxx, operated only by manufacturer
	Battery	ON/OFF	Show battery capacity on display
	Background Color	00-08	Different LCD back ground color
	Menu Lock	ON/OFF	Press up/down together for 4 second to release loc
HELP	Name: Starcolor72B
	Version:V2.x		Software version
	DMX Channel: Xch		DMX channel mode
	Run Time: x:xx		Work time
	User Time		Work time
	QR code for download mobile phone app		Press UP or DOWN to show this code

DMX CHANNELS

5 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1		000-255	Dimming Red
2		000-255	Dimming Green
3		000-255	Dimming Blue
4		000-255	Dimming White
5		000-255	Dimming Amber

7 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1		000-255	Master dimmer
2		000-255	Strobe from slow to fast
3		000-255	Dimming Red
4		000-255	Dimming Green
5		000-255	Dimming Blue
6		000-255	Dimming White
7		000-255	Dimming Amber

9 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1		000-255	Master dimmer
2		000-255	Dimming Red
3		000-255	Dimming Green
4		000-255	Dimming Blue
5		000-255	Dimming White
6		000-255	Dimming Amber
7		000-010	No function
		011-255	Strobe from slow to fast
8		000-008	No function
		009-060	Static color
		061-120	Jump mode
		121-180	Puls mode
		181-255	Fade mode
9		001-255	Speed for channel 8
			Static color when channel 8=9-50

TECHNICAL SPECIFICATIONS

Product colour Black

Light source 5-in-1 LED

LED colours Red, Green, Blue, Amber, White

Quantity of LEDs 9

Beam angle 29°

Field angle 51°

Illuminance 5.735 lx @ 1m

Flash rate per second 1 - 20Hz

DMX channels 5,7,9

DMX connection 3-pin XLR, Wireless DMX

Wireless DMX protocol W-DMX™

Modes Automatic programs, DMX, Master/Slave

IP rating IP65

Cooling Convection

Display LCD

Power plug Power-connector TR

Power consumption 0.732 - 0.360A

Battery 11.1V - 9Ah

Power supply 100-240VAC 50/60Hz

Dimensions (L x W x H) 200 x 189 x 260mm

Weight 5,50

Included accessories Remote control (IR), Power cable

Design and product specifications are subject to change without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

BEAMZ

offers a wide range of high performance lighting equipment and related accessories for the rental, entertainment and architectural lighting markets. BeamZ Pro stands for performance, innovation and value pricing!
