USER MANUAL Guzzler 29.0 Lithium TAURUS

Stick vacuum cleaner

Aspirateur balai

Bodenstaubsauger

Scopa elettrica

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

Fig.2 F

Fig.2 Fig.3

1.3

Line drawing of a mechanical device with an arrow indicating rotation, labeled 'Fig.4 F' (no text or symbols on the diagram itself)

Fig.4 Fig.5

1.5

Line drawing of a mechanical component with a cylindrical top and rectangular base, labeled Fig.6 (no text or symbols on the diagram itself)

Diagram of a mechanical component with two curved arrows indicating motion or force direction (no text or symbols)

Technical line drawing showing hands operating a device with a tool, no text or symbols present

Español

Aspirador escoba

Unlimited 29.0 Lithium

Inedit 29.6 Lithium

Guzzler 29.0 Lithium

Stick vacuum cleaner

Unlimited 29.0 Lithium

Inedit 29.6 Lithium

Guzzler 29.0 Lithium

Dear customer,

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

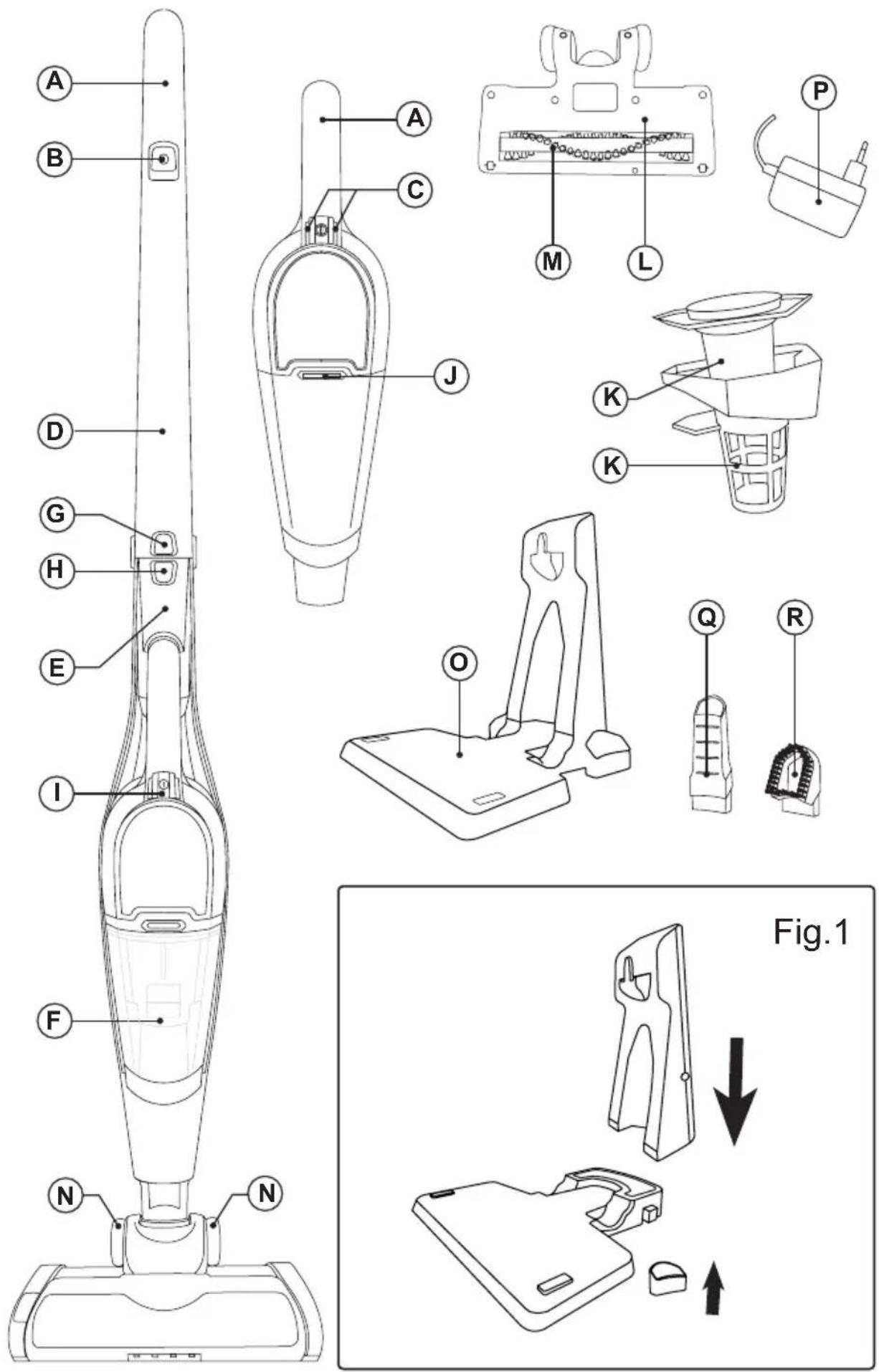

DESCRIPTION

A Ergonomic handgrip

B Brush vacuum ON/OFF button (2 speed ECO/TURBO)

C Power and charge indicator light

D Handle

E Main body

F Hand-held vacuum cleaner

G Folding handle button

H Hand vacuum extraction button

I Hand vacuum ON/OFF button (2 speed ECO/TURBO)

J Extraction button for deposit

K Motor filter

L Turbobrush fitting

M Rotating brush

N Wheels

O Charging station

P The Charger

Q Lance

R Upholstery brush

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WAR- NINGS

- This appliance can be used by

children aged 8 and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or given instructions concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance must not be done by children unless they are supervised

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- Disconnect the battery charger from the mains when not in use and before undertaking any cleaning task.

- Only use the appliance with the specific electric base / connector, supplied with the appliance.

- If the mains connection is damaged, it must be replaced. Take the appliance to an authorised Technical Assistance Service In order to prevent any danger, do not attempt to dismantle or repair it yourself.

- Before disposing of the appliance, remove the battery.

- Disconnect the appliance from the mains supply before removing the battery.

- The battery must be disposed of safely.

• Ensure that the voltage indicated on the charger rating label matches the mains voltage before plugging in the charger
• The plug on the battery charger must fit into the power outlet socket properly. Do not modify the plug. Do not use plug adaptors.
• Do not force the power cord. Do not force the power cord. Never use the power cord to lift up, carry or unplug the battery charger.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Avoid all contact with the liquid that could be released from the battery. In case of contact with eyes, wash them thoroughly and seek medical advice. The liquid spilled from the battery may accuse irritation or burns

USE AND CARE:

• Do not use the appliance if its filter(s) are not correctly in place.
• Do not use the appliance to vacuum up water or any other type of liquid.
• Respect the MAX level indicator
• This appliance is for household use only, not professional or industrial use.
• This appliance should be stored out of reach of children and/or those with reduced physical, sensorial or mental abilities or who are unfamiliar with its use.
• Use the appliance, its accessories and tools in accordance with these instructions. Take working conditions and job to be carried out into consideration. Using the appliance for anything other than its intended use can create hazards.
• Do not operate on areas which contain metal objects such as nails and/or screws.
• Never vacuum hot or sharp objects (cigarette butts, ash, nails, etc.).
• Do not open the battery/ies under any circumstances whatsoever.
• Do not use the appliance with pets or animals
• Recharge the battery/ies only with the charger supplied by the manufacturer. A charger that is suitable for one typ of battery may cause explosion or fire hazard when used with other battery

- Use the device only with the battery/ies for which has been specifically designed. The use of any other battery/ies can cause an explosion or fire hazard.

SERVICE:

• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories
• Any misuse or failure to follow the instructions for use may be dangerous, rendering the guarantee and the manufacturer's liability null and void.

INSTALLATION

- Be sure to remove all packaging material from inside the appliance.

Assembling the charger station:

• The appliance has a charger station (O) which should be fix to a wall.
• Connect the two parts for the bottom of the charger station. (Fig.1)
• Fit the appliance into its charger station. (O)

CHARGING THE BATTERY

Caution: The new battery does not come completely charged and must be charged up to the maximum before using the appliance for the first time.
- Charge the battery at room temperature between 4 and 40°C.
- Plug the charger (P) into the mains.
- Approximately 4-6 hours are needed for a complete charge of the battery Never attempt to over-charge the batteries
- While the battery is charging, the pilot light will flash, indicating that the charger is charging the battery. (C)
- The pilot lamp will remain permanently on when the charge is complete. Disconnect the charger from the mains supply.

INSTRUCTIONS FOR USE

USE:

• Remove the appliance from its charger station.
• Turn the appliance on, by using the on/off switch. (B)
• The ON indicator lamp will light up. (C)
• Select the desired power.

• Press once for ECO speed / press twice for TURBO speed.

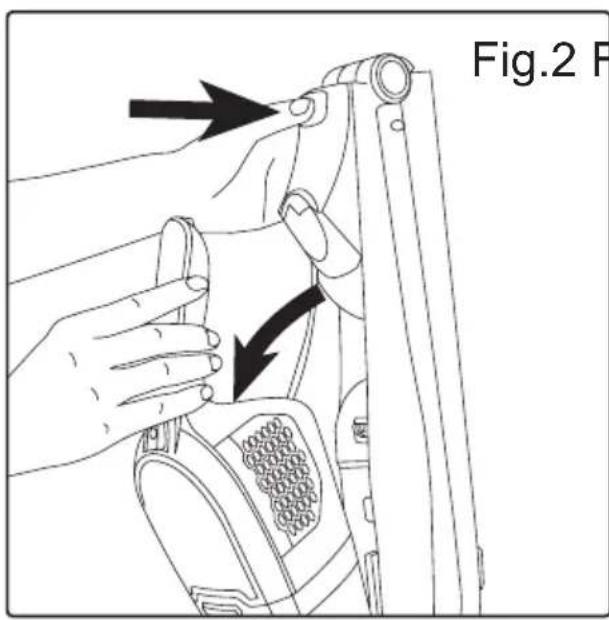

• To use the hand vacuum:

• Press the hand vacuum extraction button (H) on the brush vacuum's main body (E). (Fig. 2)
• Turn the appliance on, by using the on/off switch. (I)

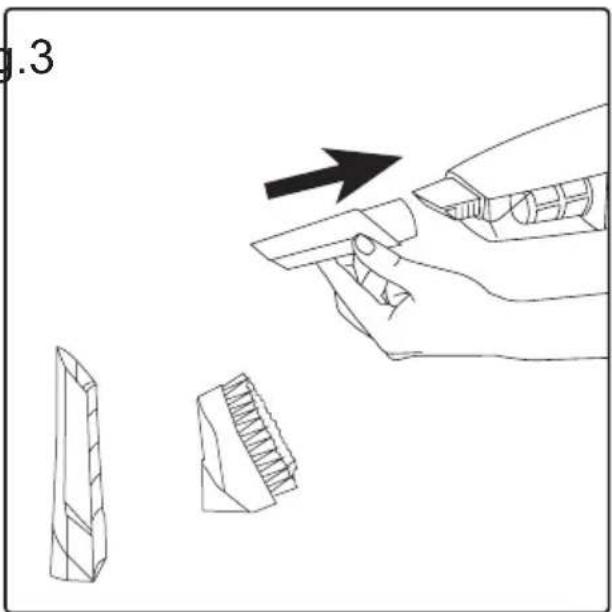

FITTING AN ACCESSORY TO THE HAND VACUUM:

• Press the hand vacuum extraction button (H) on the brush vacuum's main body (E). (Fig. 2)
• The hand vacuum is designed in such a way that it allows the following accessories to be fitted: (use the combination that best meets your requirements). (Fig.3)
• Furniture brush: Equipped with a brush at the end, which brushes the surface as it is used.
• Crevice nozzle: Specially designed for getting into cracks and difficult corners.

PARKING POSITION:

- This appliance has one parking position for comfortable and straightforward storage.

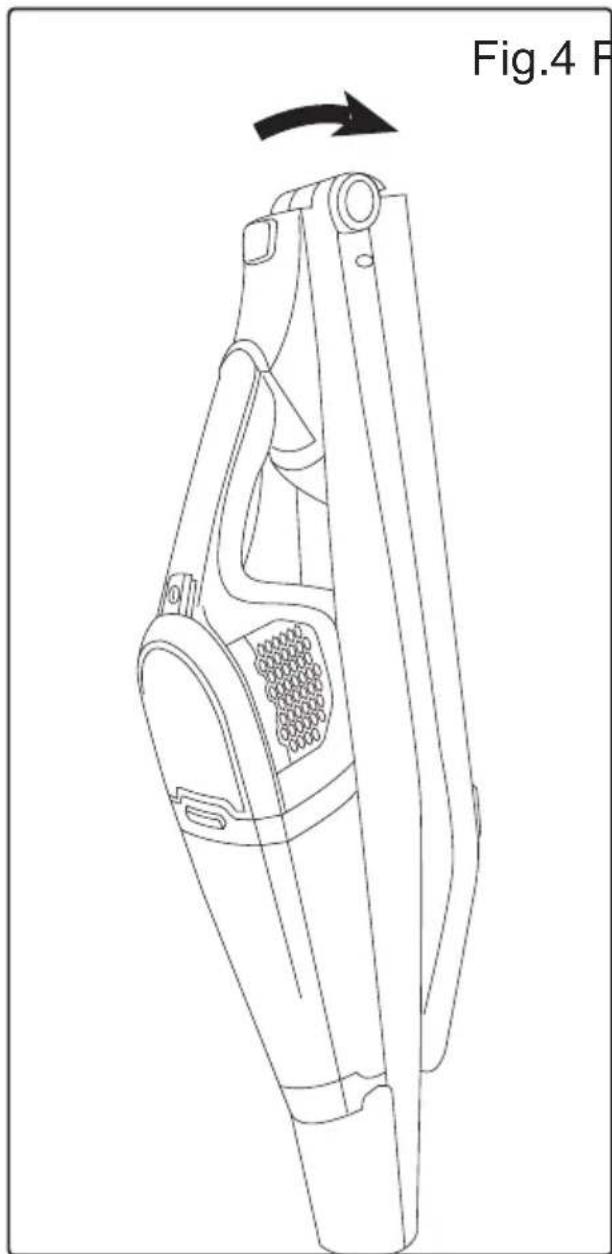

FOLDING HANDLE:

- This appliance has a folded handle position for easy storage. (Fig.4)

CLEANING

• Disconnect the charger from the mains and let it cool before undertaking any cleaning task.
• Clean the appliance using a damp cloth with a few drops of detergent and then dry it.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.

• Empty the vacuum deposit when dust is visible though the transparent walls, when it is full, or when the vacuum cleaner does not work to its full potential.
• Press the hand vacuum extraction button (H) on the brush vacuum's main body (E). (Fig. 2)

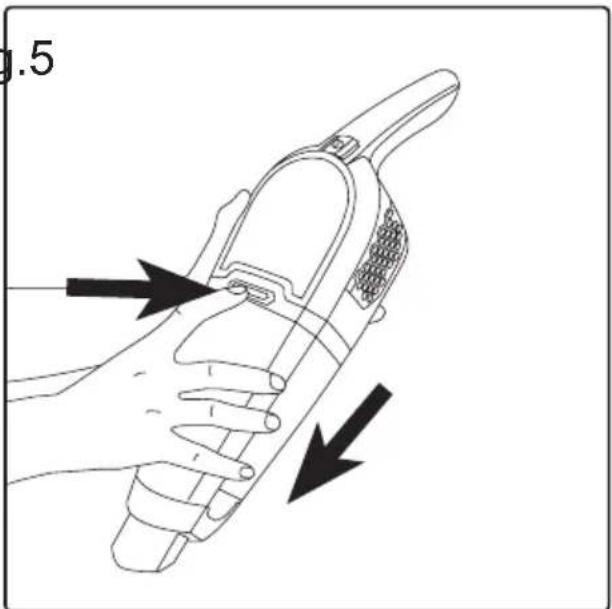

  Disconnect the dust box from the appliance. (Fig. 5)

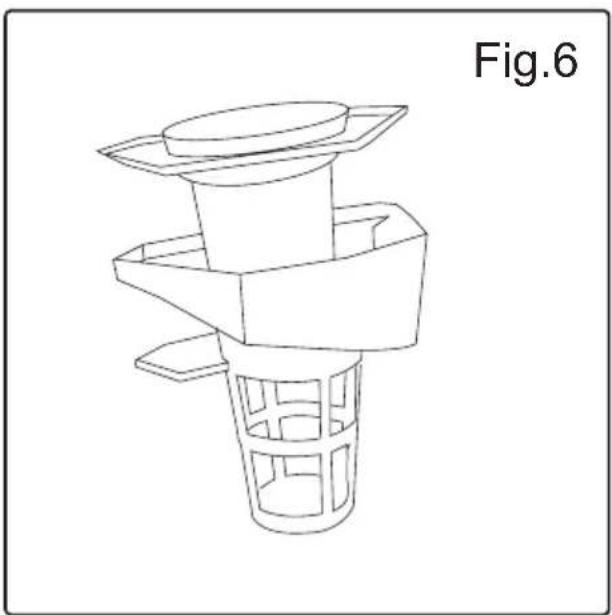

• Remove the cloth filter and its protector. (Fig. 6)
• Empty the contents into a suitable rubbish container.
• Clean the dust box filter.
• Attach the dust box to the appliance.
  To reassemble, follow the above instructions but

in reverse.

CHANGING THE FILTERS:

• To remove filters:
• Press the hand vacuum extraction button (H) on the brush vacuum's main body (E). (Fig. 2)
• Disconnect the dust box from the appliance. (Fig 5)
• Remove the cloth filter and its protector. (Fig. 6)
• To reassemble the filter, proceed with the above instructions, in reverse order.

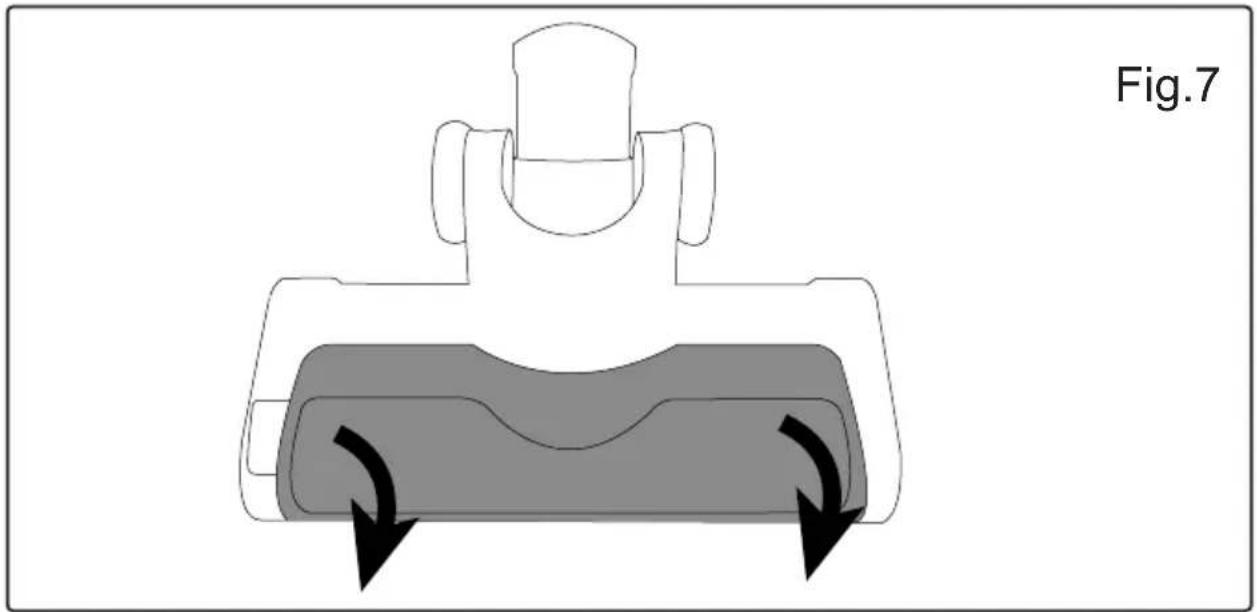

CLEANING THE ROTARY BRUSH:

• Remove the transparent cover from the top of the motorized brush. (Fig. 7)
• Lift the brush by the piece at the end of the brush.
• To mount, insert the brush into the anchor, align the cover with the tabs on the front and press until you hear the click.

SUPPLIES

• Supplies can be acquired from distributors and authorised establishments (such as filters, etc.) for your appliance model.
• Always use original supplies, designed specifically for your appliance model.

ANOMALIES AND REPAIR

Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN THE CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

This symbol means that the product may include a battery or batteries; the user must remove them before disposing of the product. Remember that batteries must be disposed of in duly authorised containers. Do not dispose of them in fire.

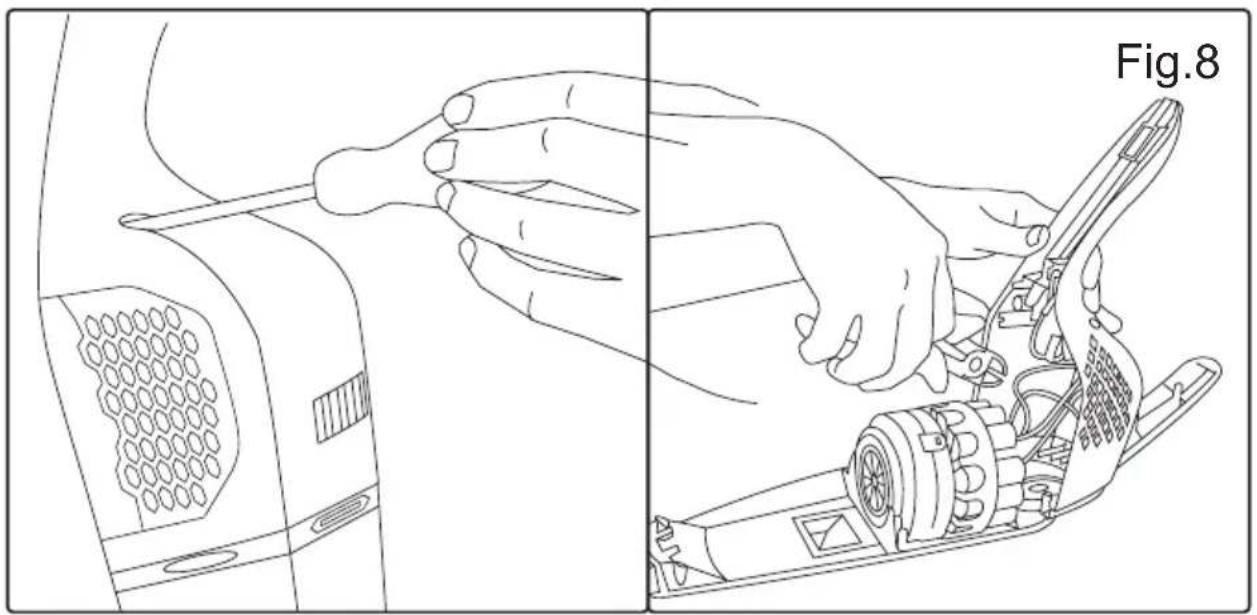

HOW TO REMOVE THE BATTERIES FROM THE INTERIOR OF THE DEVICE:

Caution: It is important that the batteries are fully discharged prior to its withdrawal from the apparatus.

Caution: the appliance must be disconnected from the mains when removing the batteries.

TO REMOVE THE BATTERIES, ONCE THE LIFE OF THE APPLIANCE, PROCEED AS FOLLOWS:

• Open the top shell of the apparatus, removing previously with the help of a screwdriver fixing screws (Fig 8)
• Identify the battery wires and cut their. To prevent the risk of short-circuiting from possible

residual power in the battery, after cutting each cable use insulation tape to protect the tip. (Fig 8)

- Safely remove the battery from its housing.

This appliance complies with Directive 2014/35/EU on Low Voltage, with Directive 2014/30/EU on Electromagnetic Compatibility, with Directive 2011/65/EU on restrictions on the use of certain dangerous substances in electrical and electronic appliances and with Directive 2009/125/EC on the ecological design requirements applicable to products related to energy.

- The following information is regarding to energy labelling and ecodesign:

Trademark and address	Electrodomésticos Taurus, S.L. Avda. Barcelona, s/n, 25790 Oliana, Lleida, Spain
Model	UNLIMITED 29.0 LITHIUM INEDIT 29.6 LITHIUM
Input Voltage 100-240 V
Input AC frequency 50/60 HZ
Output voltage 36,0 V
Output current	0,5 A
Output power	18 W
Average Active Efficiency	85,78 %
Efficiency at low load (10%)	73,47 %
No-load power consumption	0,059 W

To establish compliance with the ecodesign requirements and for calculation of energy labelling parameters the appliance the European standard EN 50563 is used as reference.

Français

Aspirateur balai

Unlimited 29.0 Lithium

Inedit 29.6 Lithium

Guzzler 29.0 Lithium

Cher Client,

L Tamburo Turbobrush

M Spazzola rotante

N Rotelle

O Base di ricarica

P Caricatore

Q Lancia

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/
