Nano Racer Jetski Yacht - Remote control toy Carson - Free user manual and instructions

Product type	Radio-controlled toy (boat)
Brand	Carson
Model	Nano Racer Jetski Yacht
Category	Radio-controlled toy
Dimensions (L x W x H)	Approx. 20 x 8 x 5 cm
Weight	Approx. 200 g
Power supply (boat)	2 AA batteries (not included) or rechargeable batteries
Power supply (remote control)	2 AA batteries (not included)
Operating frequency	2.4 GHz

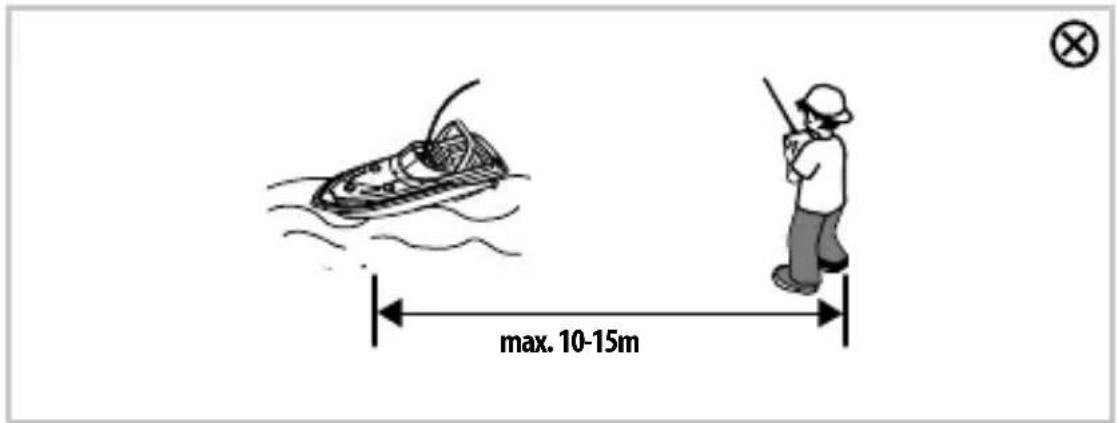

Maximum range	Approx. 30 m
Estimated operating time	15 to 20 minutes
Main functions	Forward, backward, turn left/right
Main material	Plastic
Recommended age	Ages 3 and up (adult supervision required)
Usage precautions	Do not use in salt water, strong wind, waves or current
Maintenance after use	Empty completely and dry thoroughly
Cleaning	With a dry, soft cloth
Recommended battery type	Alkaline or rechargeable batteries
Propeller warning	Do not put fingers in the propeller while running
Battery safety	Do not mix types or charge levels; respect polarity
Recycling and disposal	Used device and batteries: take to collection point
Compliance	Directive 2014/53/EU
Warranty	Legal warranty for manufacturing defects; not for normal wear

Frequently Asked Questions - Nano Racer Jetski Yacht Carson

How to install batteries in the boat?

Open the battery compartment, insert two AA batteries respecting the indicated polarity (+/-), then carefully close the cover to ensure watertightness.

What batteries to use for the boat and remote control?

Use alkaline batteries or AA rechargeable batteries. Do not mix new and old batteries, nor batteries of different types (alkaline, zinc-carbon, rechargeable).

Can I use the boat in salt water?

No, the boat is not designed for salt water. Use it only in fresh water.

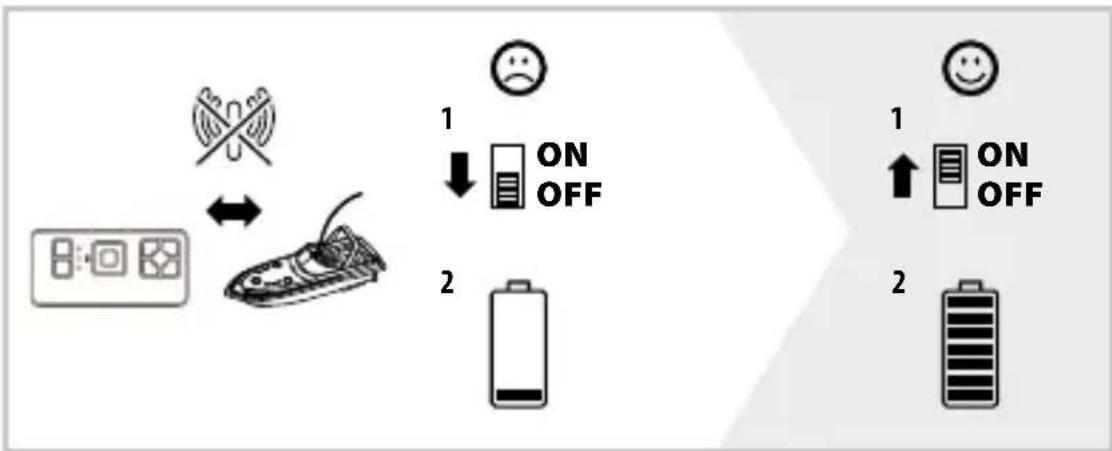

What to do if the boat no longer responds to commands?

First check the battery condition in the boat and remote control. Make sure they are correctly inserted and sufficiently charged. If the problem persists, consult the complete instructions.

How to maintain the boat after use in water?

After each use, completely empty the water from the boat, dry it thoroughly with a soft cloth, and let it air dry before storing.

Is the boat waterproof?

Yes, it is designed to float and operate in fresh water. However, it must not be fully submerged. After use, it is essential to dry it to prevent damage.

How to charge lithium batteries?

Use only a charger suitable for lithium batteries with a balancing plug. Never leave the battery unattended during charging and place it on a non-flammable surface. Respect the maximum charge current of 1C.

What to do if the propeller is blocked?

Immediately cut off the boat's power. Carefully remove any debris (algae, threads) from the propeller with a non-metallic tool, being careful not to injure yourself.

Can I use rechargeable batteries in the boat?

Yes, you can use AA rechargeable batteries. Make sure to recharge them under adult supervision and follow the manufacturer's charging instructions.

How to store the boat after use?

Make sure the boat is perfectly dry. Remove the batteries if you are not using it for an extended period. Store it in a dry place, away from dust and extreme temperatures.

USER MANUAL Nano Racer Jetski Yacht Carson

playback of the functions

saving the functions

Demonstration Modus

demonstration mode

Hupe

horn

C

D

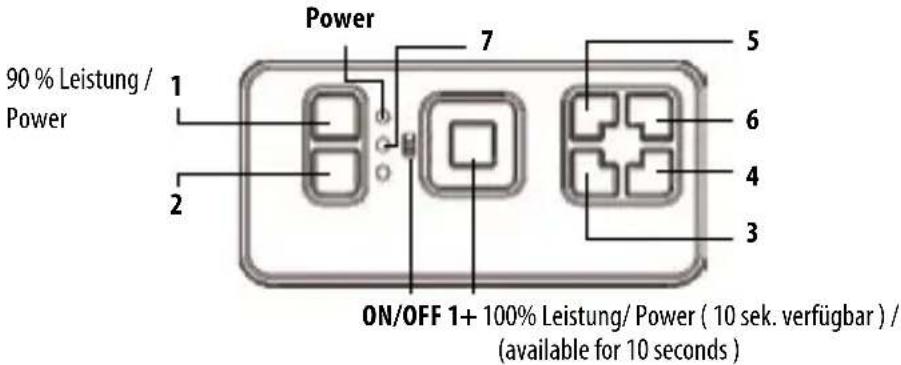

„7“ = blaue / blue LED 2x blinken/flash 90 %
blaue / blue LED 3x blinken/flash 100 %

Cartoon illustration of a boy standing on a path next to a duck and a shoe, with musical notes and a crossed-out symbol (no text or symbols present)

Cartoon illustration of a person in a speedboat on water, with a small boat nearby and a warning symbol (no text or symbols present)

Attention: Before using your product for the first time or ordering any spare parts, check that your manual is fully up-to-date. This manual contains the technical appendices, important instructions for correct start-up and use and product information, all fully up-to-date before going to press. The contents of this manual and the technical data of the product can change without prior notice. For the latest version of your manual, see: www.carson-modelsport.com

Declaration of conformity: TAMIYA-CARSON Modellbau GmbH & Co. KG hereby declares that the radio equipment type 500108056 / 500108057 conforms to Directive 2014/53/EU. The complete text for the EU declaration of conformity is available at the following Internet address. www.carson-modelsport.com/de/produkte.htm

Warranty declaration: www.carson-modelsport.com/de/service/gewaehrleistung/

Maximum transmission power: 10 mW

The meaning of the symbol on the product, packaging or instructions. Electrical appliances are valuable products and should not be thrown in the dust bin when they reach the end of their serviceable life! Help us to protect the environment and conserve resources and bring this device to a corresponding disposal point/dealer free of charge. For disposal-related queries, contact the organisation responsible for waste disposal or your specialist retailer. The end user is responsible for deleting personal data on old devices.

Safety precautions (please keep!) CAUTION! Not suitable for children under 3

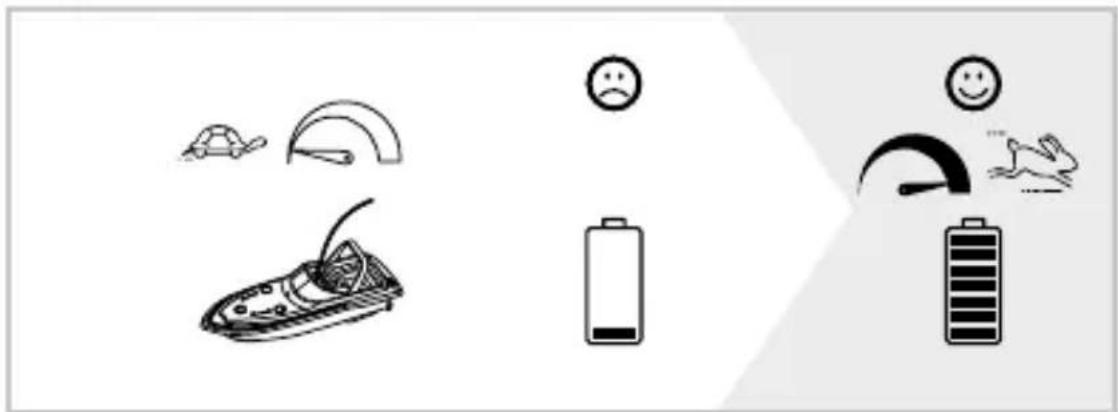

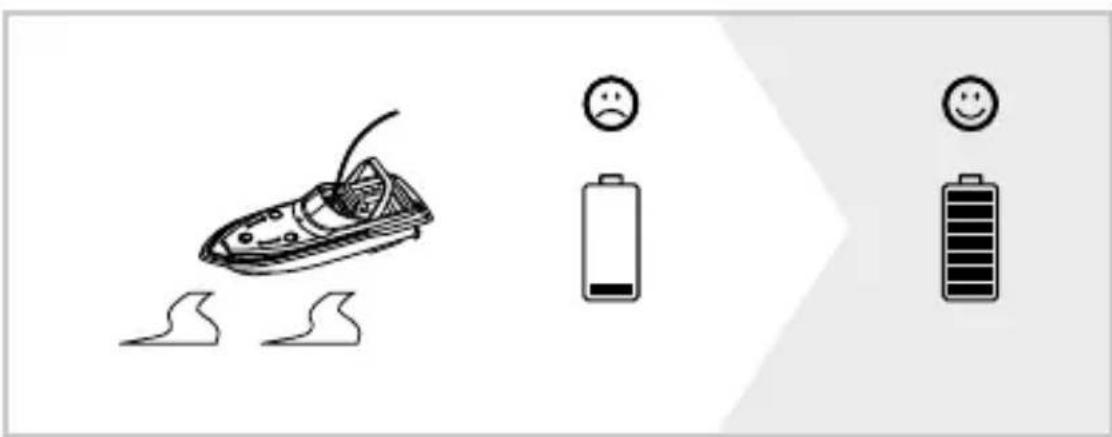

years. A danger of choking exists due to small parts that might be swallowed! Due to the cable, there is a danger of strangulation. CAUTION: Do not touch the running propeller! Please keep these instructions for possible correspondence. We reserve the right to change colours or make technical changes. Help from adults is required to remove the transport protection. Please do not operate the boat in strong winds, in waves or with strong currents. Please note that a boat with run-down batteries can only be controlled to a limited extent. This toy may only be operated in a fully assembled state and in water, according to the instructions. For hygienic reasons, we recommend that you completely drain and dry the toy after use. Use only the specified batteries!

Insert the batteries so that the positive and negative poles are in the correct position! Do not throw used batteries in the household rubbish — take them to a collection point or dispose of them at a hazardous waste depot. Flat batteries must be removed from the toy. Do not attempt to charge non-rechargeable batteries. If the design allows, rechargeable

batteries must be removed from the toy before charging. Rechargeable batteries must only be recharged under adult supervision. Do not use different types of battery, and do not insert new and used batteries at the same time. Do not short-circuit the connecting webs. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) and rechargeable batteries. To ensure optimum operation, we recommend that only rechargeable or alkaline batteries should be used for the vehicle. Please do not insert any cables into plug-in socket connections. Not suitable for operation in salt water!

Safety Precautions Lithium batteries:

1. General: Lithium batteries (accumulators) are energy storage devices with a high energy density and can present risks. For this reason, particular care is needed when charging, discharging, storing and handling. Read these instructions very carefully before first using the battery. Do not fail to take note of the warning notices and instructions for use. Misuse can lead to risks such as explosion, overheating or fire. Failure to observe the instructions for use leads to early failure and other defects. The instructions should therefore be kept in a safe place and it is essential that they are handed over to the second user if the batteries are passed on.

2. Warning notices:

- Avoid short-circuits. A short-circuit may well destroy the product. Cables and connections must be well insulated.

- It is essential when connecting the battery to ensure that the polarity is correct.

- Original plug connectors and cables may not be cut off or changed – if need be, use an adapter cable.

- Do not expose the battery to excessive heat or cold or to direct sunlight. Do not throw in the fire. Do not place the battery in contact with water or other liquids.

- Charge the battery only with charging units intended for the purpose and always use the balancer connection. It is only by using the balancer connection that optimum charging can be ensured. If this connection is not used, charging is subject to the risks mentioned above. Before charging, always first allow the battery to cool to ambient temperature. Never charge while hot.

- When charging, place the battery on a non-flammable, heat-resistant support. There should be no flammable or readily ignited objects in the vicinity of the battery.

- During charging or operation, never leave the battery unsupervised.

- Do not fail to keep to the recommended charge/discharge current.

- The battery casing must not be damaged. It is essential to avoid damage by sharp objects such as knives or the like, from dropping, impact, bending etc. Damaged batteries may no longer be used.

- Batteries are not toys. They should be kept away from children.

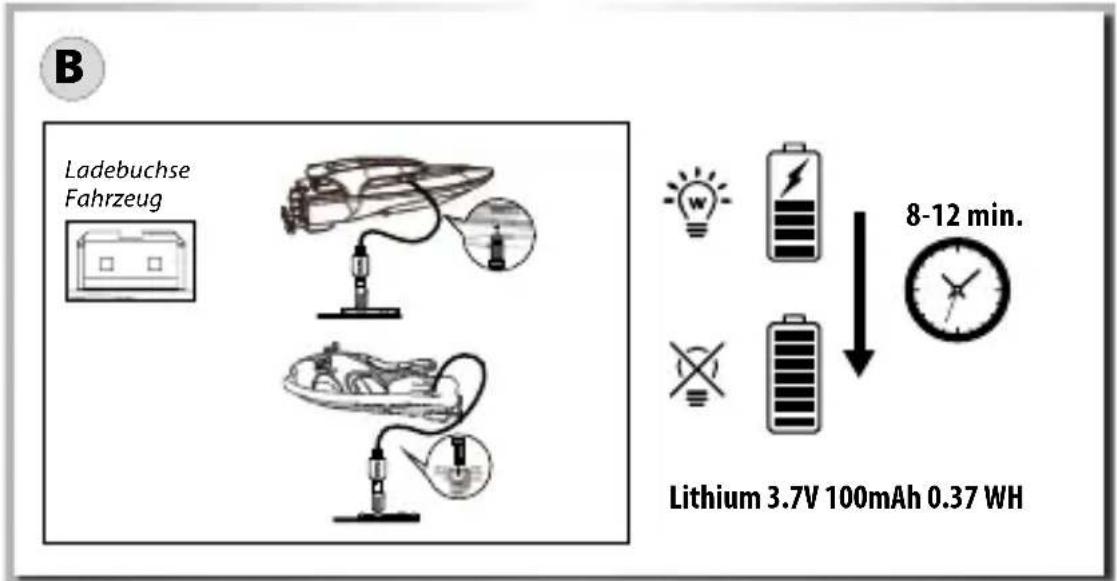

1. Charging instructions: Lithium batteries are charged according to the CC-CV procedure. CC stands for "constant current", which is applied during the first phase of charging. Once the battery reaches the maximum voltage configured in the charger, it switches to CV (constant voltage) for the second phase of charging. The battery voltage no longer increases. The charging current now falls continuously until the battery is fully charged. The maximum charging current for the battery is 1C (C=nominal capacity of the battery, e.g. for a battery with a nominal capacity of 2700 mA, the maximum charging current for the battery is 2700 mA (2.7 A)). Never charge several batteries together from a single charger. Differing states of charge and capacities can lead to overcharging and destruction.

2. Storage instructions: Lithium batteries should be stored charged to 20-50% of their capacity and at a temperature of 15-18 °C. If the cell voltage falls below 3 V, they should be recharged. Deep discharge and storage when discharged (call voltage <3 V) will render the battery unusable.

3. General terms of guarantee: There is a legal guarantee for production and material faults as applicable at the time of dispatch. No liability is accepted for normal wear and tear. This guarantee does not apply for defects attributable to improper use, inadequate maintenance, third-party interference or mechanical damage. This applies, in particular, to used batteries and batteries clearly showing signs of use. Damage and loss of performance due to improper handling and/or overload are not product faults. Batteries are consumables and subject to a certain ageing.

This is influenced by factors such as the charge/discharge currents, the charging procedure, the operating and storage temperatures and the state of charge during storage. The ageing shows itself in, among other things, an irreversible loss of capacity. In the model field, where batteries are frequently used to supply motors, very high currents can flow from time to time.

1. Exclusion of liability: Since we are unable to have any control over charge/discharge, handling, compliance with assembly and operating instructions, battery replacement and its care and maintenance, Tamiya / Carson can accept no liability for loss, damage or costs incurred. Any claim for damages that may result from operation, failure or faulty operation or that is in any way related thereto will therefore be refused. We accept no liability for personal injury or material damage and their consequences that arise from our delivery.
2. Disposal instructions: Batteries are hazardous waste. Damaged or unusable cells must be disposed of in the correct manner.

No liability for printing errors, we reserve the right to make changes!
