WX027.9 - Lighting WORX - Free user manual and instructions

USER MANUAL WX027.9 WORX

Labeled diagram of a device with numbered parts for identification

A ① ② ③

Technical line drawing of a handheld device with a cylindrical base and a separate device with a labeled component (no text or symbols present)

C 中非 W

Line drawing of a flashlight with an upward arrow indicating motion (no text or symbols)

D2 10x10

E1 T60 ↑

E2 72° 1041 XX-9010

E3 72° 10.51

E4 72° T0-1

E5 10° 45° 45° WAVOYEX

F SOS ....-...

G

SAFETY POINTS FOR YOUR FLASHLIGHT/ WORKLIGHT SAFETY RULES FOR CORDLESS PORTABLE HAND-HELD LIGHT CHARGE BATTERY BEFORE FIRST USE

CAUTION: Read, understand and

follow all Safety Rules and Operating

Instructions in this Manual before using this product.

SAVE THESE INSTRUCTIONS! READ ALL INSTRUCTIONS! SAFETY INSTRUCTIONS

WARNING: Be sure to read and understand all instructions in this manual re using this portable hand-held light.

Failure to follow all instructions may result in electric shock, fire and/or serious personal injury.

1. Know your cordless portable hand-held light. Read operator's manual carefully.

Learn its applications and limitations, as well as the specific potential hazards related to this light.

2. Use only recommended battery pack and charging stand / transformer.

Any attempt to use another battery pack will cause damage to the portable hand-held light and it could possibly explode, cause a fire, or personal injury.

Model Battery Pack	Charging Stand/Transformer
WX027 2.0Ah WA3551.1	0.4Ah ChargerWA3760

3. Remove battery pack from portable handheld light before performing any routine maintenance or cleaning.

1. Do not disassemble the portable hand-held light.
2. Do not place portable hand-held light or battery pack near fire or heat. They may explode. Also, do not dispose of a worn out battery pack by incineration, even if it is severely damaged or completely worn out. The battery may explode in fire.
3. Do not operate portable hand-held light or charging stand/transformer near flammable liquids or in gaseous or explosive atmospheres. Internal sparks may ignite fumes.
4. To reduce the risk of electric shock, do not put portable hand-held light in water

or other liquid. Do not place or store portable hand-held light where it can fall or be pulled into a tub or sink.

1. Do not permit children to use portable hand-held light unsupervised. It is not a toy. The temperature of the bulb will become hot after being on only a short period of time. This hot temperature can cause burn injury if touched.
2. DO NOT USE OR PERMIT USE OF PORTABLE HAND-HELD LIGHT IN BED OR SLEEPING BAGS. This portable hand-held light lens can melt fabric and a burn injury could result.
3. Keep light dry, clean, and free from oil and grease. Always use a clean cloth when cleaning. Never use brake fluid, gasoline, petroleum-base products or any strong solvent to clean the portable hand-held light.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Battery pack gives its best performance when it is operated at normal room temperature (20 °C ± 5 °C).
m) When disposing of battery packs, keep

battery packs of different electrochemical systems separate from each other.

n) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual
	Warning
	Do not expose to rain or water
	Do not burn
	Class III
	Do not stare at the operating light source
	Replace any cracked protective shield
Li-Ion	Do not dispose of batteries. Return exhausted batteries to your local collection or recycling point.
	Waste electrical products must not be disposed of with household waste.Please recycle where facilities exist.Check with your local authorities or retailer for recycling advice.

1. LENS

2. LAMP HEAD

3. LIGHT STICK

4. PIVOT JOINT

5. FUNCTION SWITCH BUTTON

6. HANDLE

7. BATTERY PACK RELEASE BUTTON\*

8. BATTERY PACK\*

9. LANYARD

* Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

			WX027	WX027.9
Rated voltage 20V Max**			---
Rated Wattage 18W
Charger voltage 100-240V ~ 50/60Hz
Brightness	Flashlight 120LM
	Lantern 510LM
	Desk Lamp	Desk Lamp Hi	480LM
		Desk Lamp Lo	220LM
	SOS 0/510LM
Burntime (2.0Ah)	Flashlight 16h /
	Lantern 8h		/
	Desk Lamp	Desk Lamp Hi	7h	/
		Desk Lamp Lo	18h /
	SOS		12h /
Pivoting head			-72°~+72°
Light stick rotation			-45°~+45°
Positions			3
Machine weight			800g	400g

**Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

The LED bulbs in this light are designed to last 50,000 hours. They cannot be replaced.

ACCESSORIES

	WX027	WX027.9
Battery Pack (WA3551.1)	1	/
Charger (WA3760)	1	/

We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

ACTION			FIGURE
BEFORE OPERATION

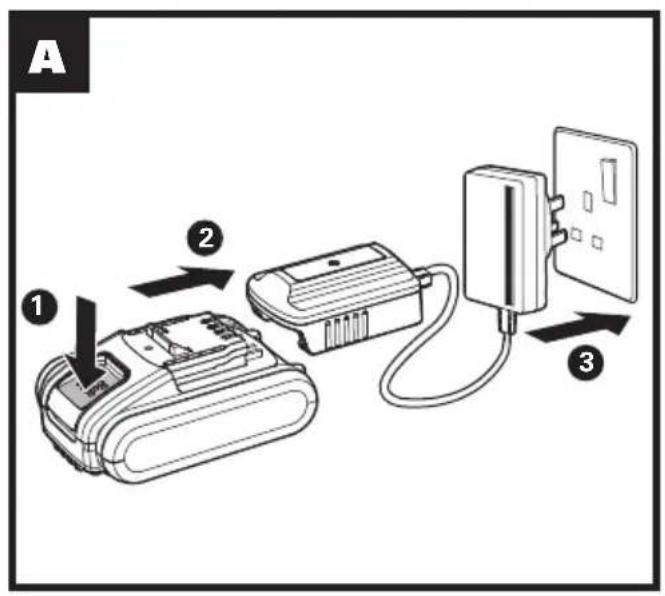

Charging the battery pack			See Fig. A

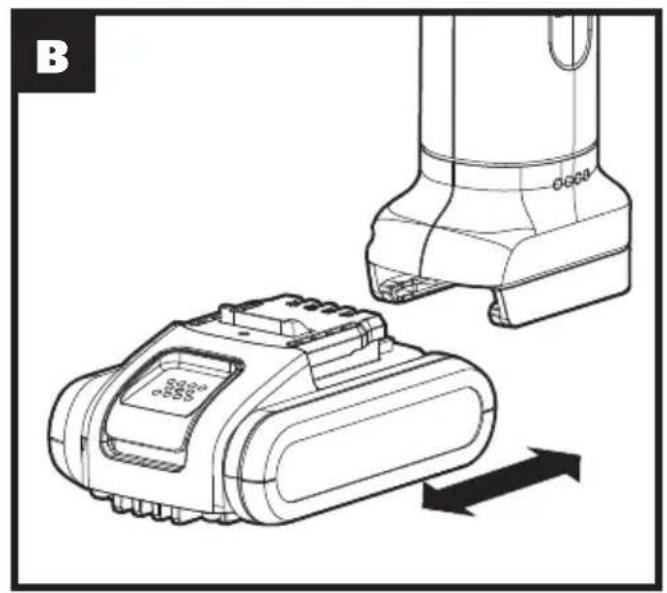

Installing/Removing the battery pack			See Fig. B
OPERATION
Switch Button Functions
1st	Flashlight	Press the function switch button(5) for 3 seconds, the light is off.
2nd Lantern
3rd	Desk Lamp Hi
4th	Desk Lamp Lo
5th	SOS
6th (Press & Hold)	OFF
FOUR FUNCTION MODE

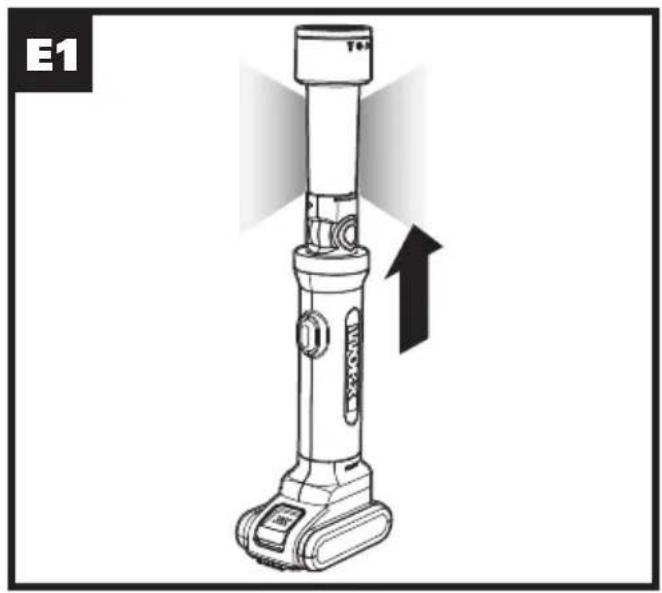

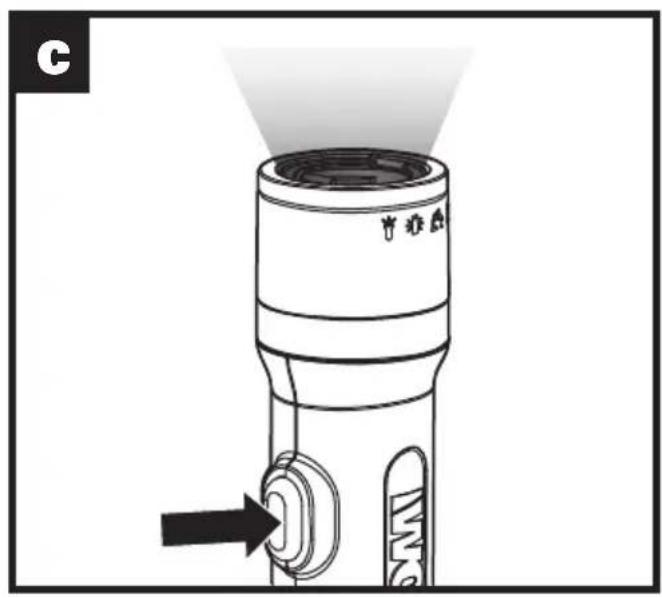

1. FLASHLIGHT- Press function switch button(5) the first time, the LED light is on. This tool is in down position.WARNING! Do not direct the light beam into eyes.			See Fig. C

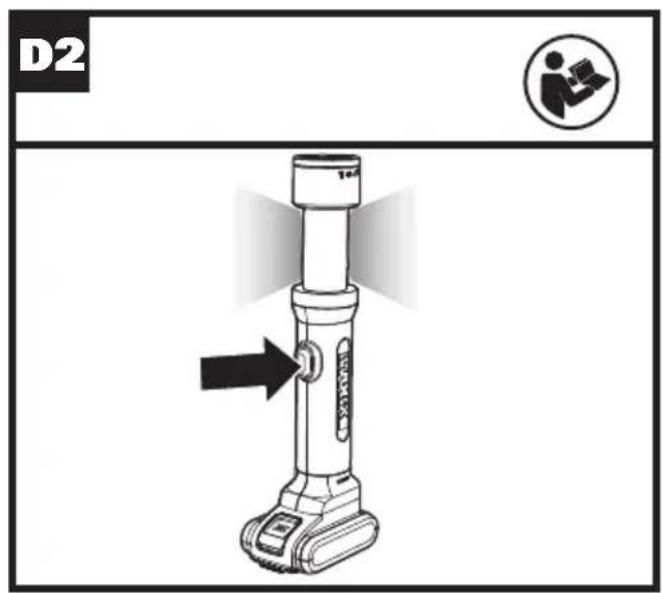

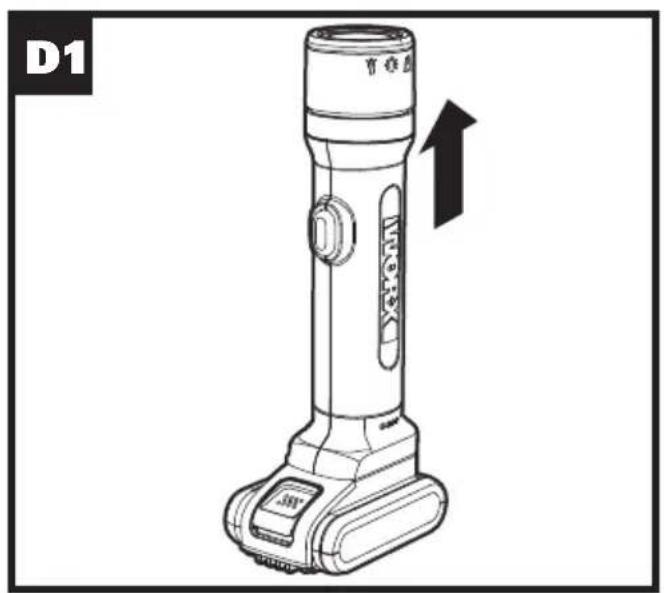

2. LANTERN-Pull light stick(3) partly out of the handle. This tool is in middle position.- Press function switch button(5) the second time, the light stick is on.NOTE: If the light of lantern is too bright, push part of the light stick back into the handle.WARNING! Return light stick into handle with caution so as not to pinch hand or fingers.			See Fig.D1,D2

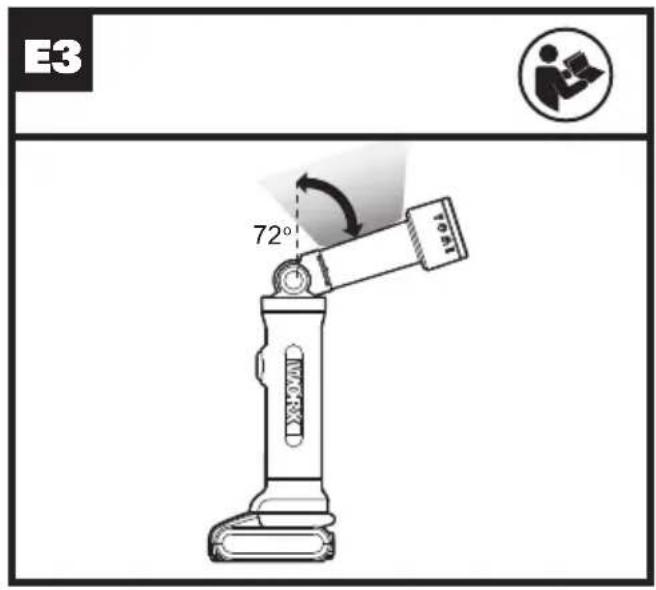

3.1 DESK LAMP HI-Pull light stick (3) until the pivot joint(4) out of the handle. This tool is in top position.- Rotate the pivot joint to desired position.- Press function switch button(5) the third time, half side of light stick is on with high light.NOTE: Adjust the pivoting head to desired position according to the working need. The max angle of the pivoting head is±72°.			See Fig. E1,E2, E3
3.2 DESK LAMP LO- Press function switch button(5) the fourth time, half side of light stick is on with low light. This tool is still in top position.NOTE: Adjust the pivoting head to desired position according to the working need. The max angle of the pivoting head is±72°.			See Fig. E4

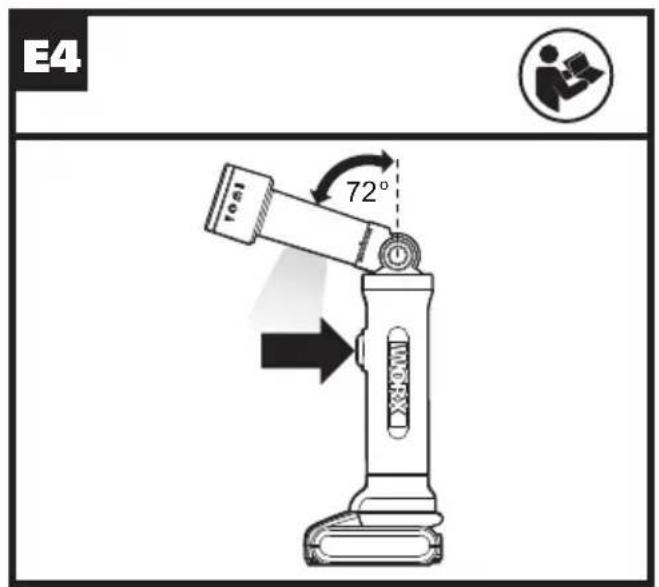

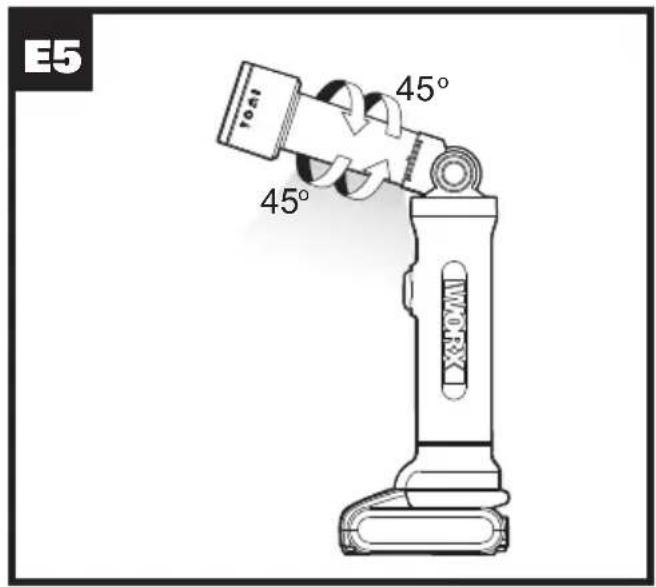

NOTE: After adjusted pivoting head to the desired angle, the light stick itself can still rotate. The fine-tuning angle of the light stick (3) is±45°.			See Fig. E5
WARNING! Adjust the pivoting head carefully so as not to pinch hand or fingers.

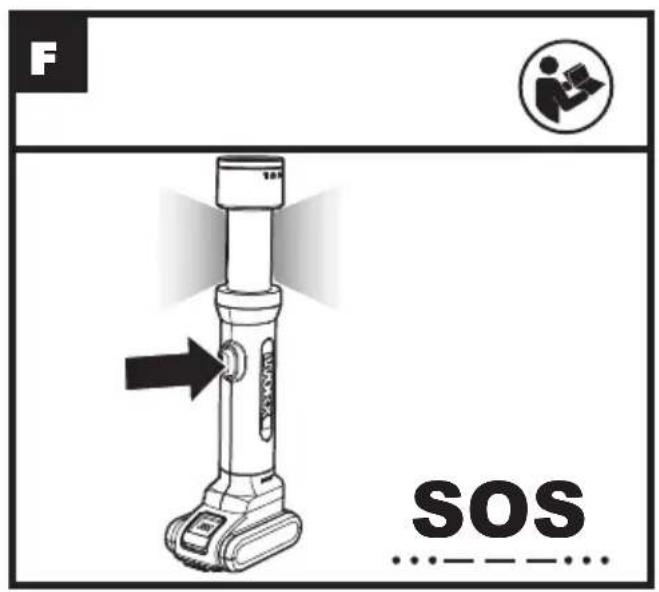

4. SOS- Back the pivot joint(4) into the handle, keep the light stick (3) on the outside. This tool is in middle position.- Press function switch button(5) the fifth time, the light stick is in SOS mode.WARNING! Return light stick into handle with caution so as not to pinch hand or fingers.			See Fig. F

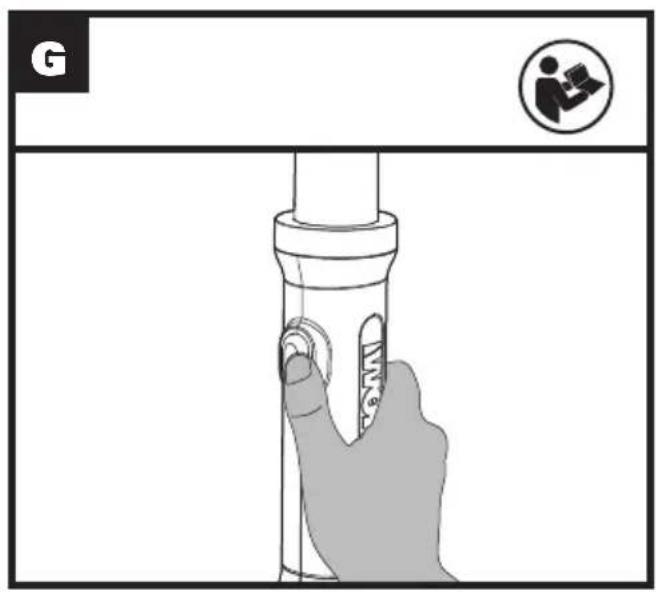

TURN OFF THE LIGHT

Press the function switch button (5) for 3 seconds, the light is off. WARNING! Remember to turn off the light when the light stick is in the handle.	See Fig. G

MAINTENANCE

Your tool requires no additional lubrication or maintenance. There are no user serviceable parts in your tool. Never use water or chemical cleaners to clean your tool. Wipe clean with a dry cloth. Always store your tool in a dry place.

DECLARATION OF CONFORMITY

We, Positec Germany GmbH Grüner Weg 10, 50825 Cologne, Germany

Declare that the product Description Battery-operated light Type WX027 WX027.9 Function Lighting

Complies with the following Directives: 2011/65/EU&(EU)2015/863 2014/30/EU, EU No 1194/2012 amended by EU No 2015/1428

Standards conform to EN 55015, EN 61547, EN 60598-1, EN 60598-2-4, EN 62493

A# C E

2018/01/30 Allen Ding Deputy Chief Engineer, Testing & Certification Positec Technology (China) Co., Ltd. 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China
