USER MANUAL WX339.3 WORX
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5. SERVICE
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
HAMMER SAFETY WARNINGS
- Wear ear protectors. Exposure to noise can cause hearing loss.
- Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
- Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
- Always wear a dust mask.
SYMBOLS
| To reduce the risk of injury, user must read instruction manual | |
| Double insulation | |
| Warning | |
| Wear ear protection | |
| Wear eye protection |
| Wear dust mask | |
| Wear protective gloves | |
| Before any work on the machine itself, pull the mains plug from the socket outlet. | |
| Plastic | |
| Concrete | |
| Masonry | |
| Wood | |
| Metal | |
| High speed | |
| Low speed | |
| Tool holder | |
| Hammer Drilling | |
 | Chiseling |
| [SHYW] | Drilling |
 | Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. |
COMPONENT LIST
1. ON/OFF SWITCH
2. SWITCH LOCK-ON BUTTON
3. FORWARD AND REVERSE ROTATION CONTROL
4. FUNCTION MODE SELECTION SWITCH
5. DEPTH GAUGE
6. DUST PROTECTION CAP
7. SDS-PLUS "QUIK-CHANGE" CHUCK
8. ADJUSTABLE DEPTH STOP
9. AUXILIARY HANDLE
Not all the accessories illustrated or described are included in standard delivery.
TECHNICAL DATA
Type WX337 WX339 WX339.2 WX339.3(330\~359--designation of machinery, representative of Hammer)
| WX337 | WX339 | WX339.2 | WX33 | |
| Voltage 230-240V~50/60Hz | ||||
| Power input 750W 800W | ||||
| No load speed | 0-1050/min | |||
| Impact rate 0-5300bpm | ||||
| Impact energy | 2.0J 2.5J | |
| Protection class | ☐/II | |
| Drilling capacity max | ||
| Masonry | 24mm | 26mm |
| Steel | 13mm | |
| Wood | 30mm | |
| Machine weight | 3.3 kg | |
NOISE INFORMATION
| A weighted sound pressure | L_pA = 98,8 dB(A) |
| A weighted sound power | L_wA = 109,8 dB(A) |
| K_wA \& K_pA = 3.0 dB(A) | |
Wear ear protection.
VIBRATION INFORMATION
Vibration total values (triax cover sum) determined according to EN 60745
| Hammer drilling into concrete | Vibration emission value a_h,HD = 14,558 m/s^2 |
| Uncertainty K=1.5m/s ^2 | |
| Chiseling | Vibration emission value a_h,Cheq = 12,475 m/s^2 |
| Uncertainty K=1.5m/s ^2 |
The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.
WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the
ways in which the tool is used dependant on the following examples and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained. The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Helping to minimize your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).
If the tool is to be used regularly then invest in anti vibration accessories.
Plan your work schedule to spread any high vibration tool use across a number of days.
ACCESSORIES
| WX337 | WX339 | WX339.2 | WX339.3 | |
| Auxiliary handle | 1 | 1 | 1 | |
| Depth gauge | 1 | 1 | 1 | |
| 1#Injection box | 1 | 1 | 1 | |
| SDS drill bits: 8 mm | / | 1 | 1 | |
| SDS drill bits: 10 mm | / | 1 | 1 | |
| SDS drill bits: 12 mm | / | 1 | 1 | |
| SDS flat chisel 20x250mm | / | 1 | 1 | |
| 3 in 1 digi-tal detector (WA1132) | / | / | 1 |
| Keyed chuck with key and adaptor | / | / | / |
We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction book carefully.
INTENDED USE
The machine is intended for hammer drilling in concrete, brick and stone as well as for light chiseling work. It is also suitable for drilling without impact in wood, metal, ceramic and plastic.
WARNING: Before any work on the machine itself, pull the mains plug.
OPERATION
| Action | Figure |

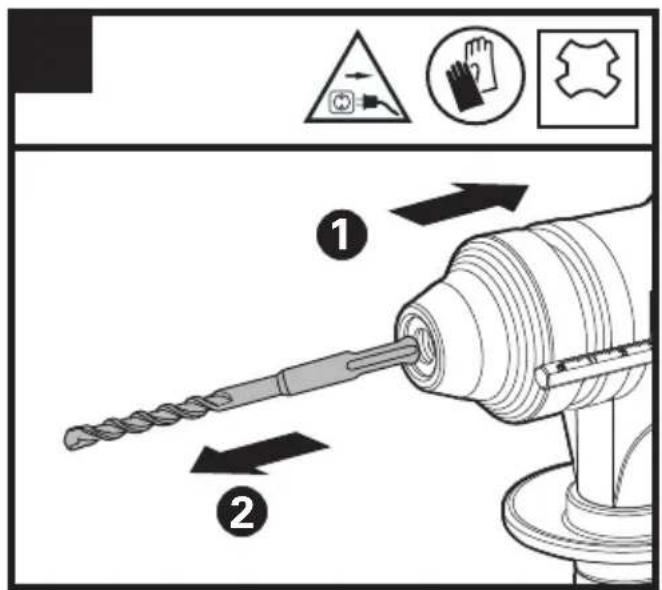

| INSERTING AND REMOVING DRILL BIT IN SDS | See Fig. A1&A2 |

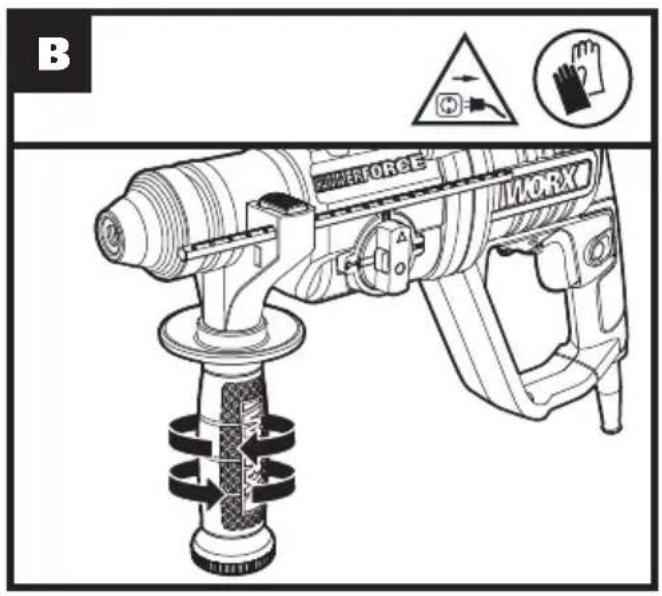

| Adjusting the Auxiliary Handle1 | See Fig. B |

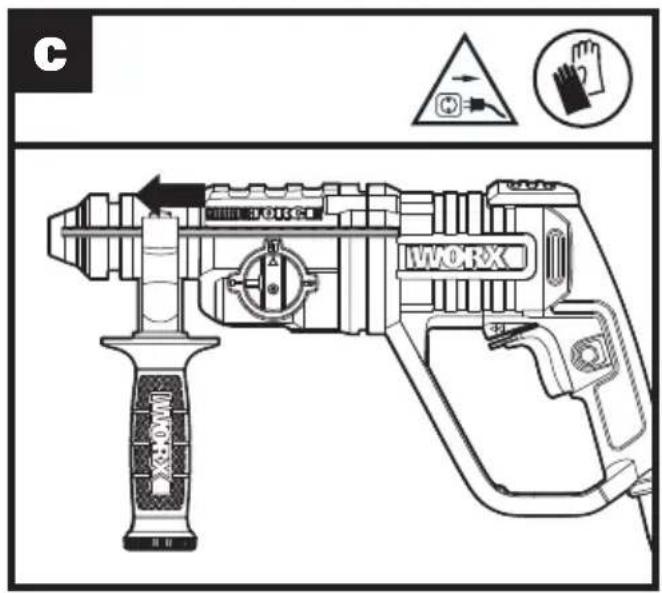

| Using the Depth Gauge | See Fig. C |

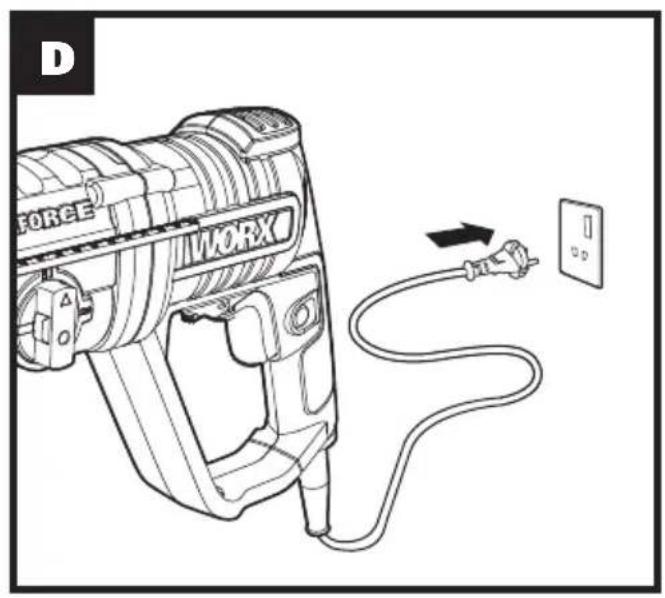

| Plugging in the power See Fig. D | |

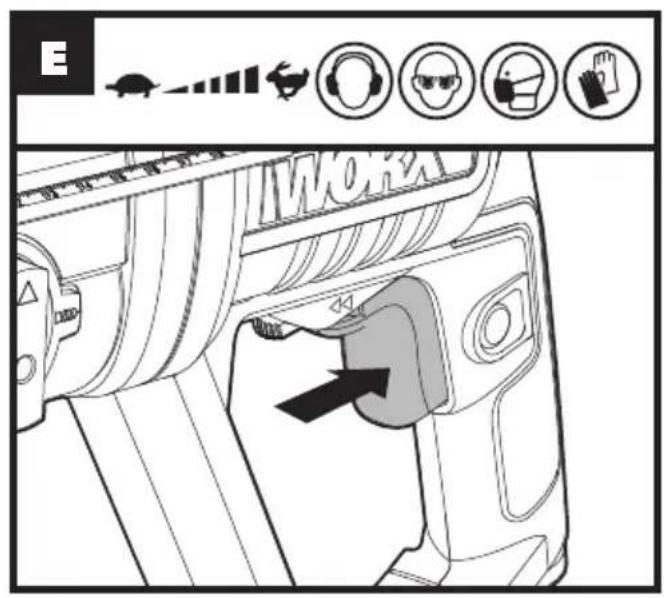

| On/Off Switch With Variable Speed Control1 | See Fig. E |

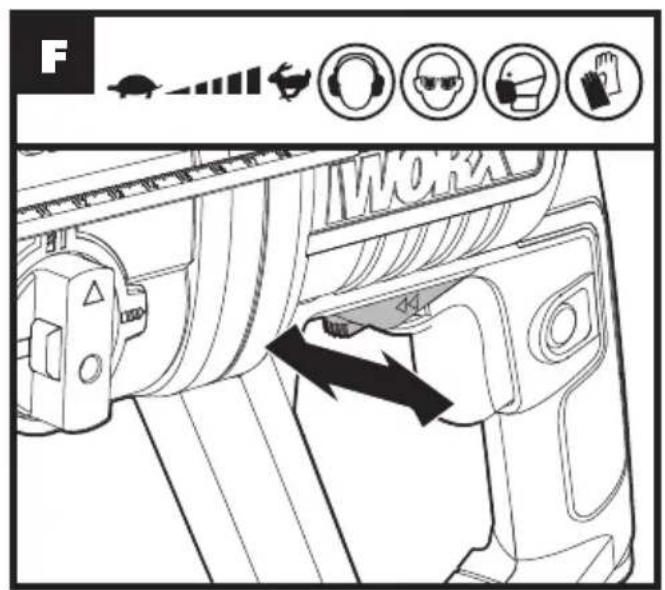

FORWARD / REVERSE ROTATION CONTROL WARNING: Never change the direction of rotation while the tool is rotating, wait until it has stopped. | See Fig. F |
1
1
/
Selecting The Operating Mode
For simultaneous drilling and impacting of concrete or masonry, choose the
Hammer drilling position.
For screw driving, drilling into steel, wood and plastics choose the Rotary drilling position.
For impacting only - for light chipping, chiseling and demolition applications choose the Hammer position.
WARNING: The operating
actuated only at a standstill.
WARNING: Prolonged use will cause the aluminum
housing to become hot, do not touch.

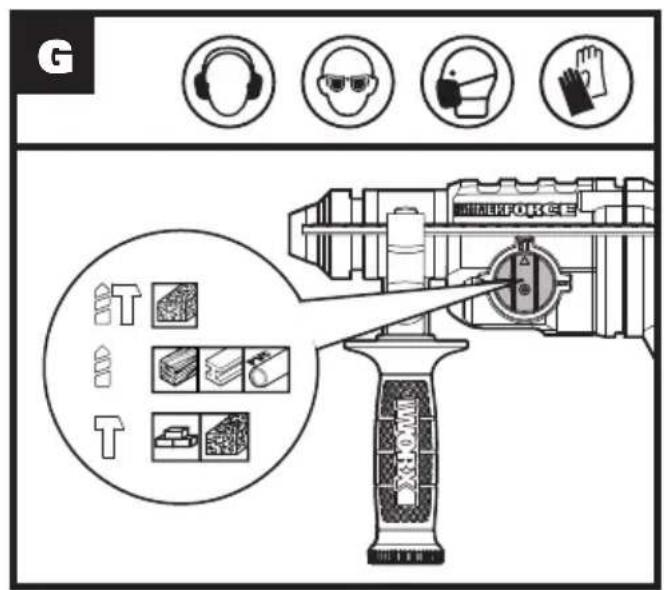

See Fig. G
WORKING HINTS FOR YOUR DRILL(HAMMER)
If your power tool becomes over heated, set the speed to maximum and run no load for 2-3 minutes to cool the motor. SDS-plus tungsten carbide drill bits should always be used for concrete and masonry.
When drilling in metal, only use HSS drill bits in good condition. Always use a magnetic bit holder when using short screwdriver bits. Where possible use a pilot hole before drilling a large diameter hole.
MAINTENANCE
Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.
Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your ocal authorities or retailer for recycling advice.
DECLARATION OF CONFORMITY
We,
Positec Germany GmbH
Grüner Weg 10, 50825 Cologne, Germany
Declare that the product,
Description Electric hammer
Type WX337 WX339 WX339.2
WX339.3(330\~359--designation of machinery, representative of Hammer)
Function Hammering various materials
Complies with the following Directives,
2006/42/EC
2011/65/EU&(EU)2015/863
2014/30/EU
Standards conform to
EN 60745-1
EN 60745-2-6
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
The person authorized to compile the technical file,
Name Marcel Filz
Address Positec Germany GmbH
Grüner Weg 10, 50825 Cologne, Germany
Allen Ding
Deputy Chief Engineer, Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Typ WX337 WX339 WX339.2 WX339.3
18, Dongwang Road, Suzhou Industrial
