USER MANUAL A3 HTW

OWNER'S AND INSTALLATION MANUAL

FR

MANUEL DE L'UTILISATEUR ET D'INSTALLATION

PT

White portable air conditioner unit with 'HTW' logo on front panel (no other text or symbols visible)

DESHUMIFICADOR | DEHUMIDIFIER DÉSHUMIFICATEUR | DESUMIDIFCADOR | DEUMIDIFICATORE

A3

HTWD016A3

Por favor lea atentamente este manual antes de usar este producto.

Please, read carefully this manual before using the product.

Technical diagram of a device with numbered parts labeled for identification

4 3 2 1 TEN CORNIT COLE POWER ROLL D C B A

Fig. 1

20cm 20cm

Fig. 2

Technical diagram of a portable air conditioner unit with red arrows indicating airflow direction (no text or symbols)

Fig. 3

Technical line drawings of two industrial air purifiers with cooling fans and ventilation ducts (no text or symbols)

Fig. 4

Two diagrams showing a person pouring liquid onto a grid of blue tiles, with no text or symbols present.

Fig. 5

ATENCIÓN

Caution, risk of fire

ATENCIÓN

Technical diagram of a device with numbered parts labeled for identification

4 3 2 1 TEN DOUT DOF MATH FILL PEN C B A

3D diagram of a cylindrical object with directional arrows indicating vertical and horizontal axes (no text or symbols)

Technical illustration of a portable electronic device with red arrows indicating airflow or movement, showing internal components and a close-up view of the battery casing (no text or symbols present)

Technical line drawings of two industrial air purifiers with cooling fans and ventilation ducts (no text or symbols)

Diagram showing four stages of a household air conditioner unit with airflow arrows and component placement

Two diagrams showing a person cleaning a grid of blue tiles with a water droplet above them (no text or symbols)

WARNING

PLEASE USE THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE

SAFETY ADVICE

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

Appliance shall be installed with national wiring regulations. Minimum permissible distance for top and back part of the appliance to adjacent structures is 20cm.

Appliance uses T type fuse rated at 250V voltage and 2 current.

Caution, risk of fire

WARNING

Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).

Do not pierce or burn.

Be aware that refrigerants may not contain an odor. Appliance shall be installed, operated and stored in a room with a floor area larger than 4m2.

Maximum refrigerant R290 charge amount: 45g.

Dispose of refrigerant based on local regulations, properly process.

Servicing shall be performed only as recommended by the manufacturer.

WARNING: Keep ventilation openings clear of obstruction.

WARNING: Appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.

WARNING: Appliance shall be stored in a room without continuously operating open flames (for example an operating gas appliance) and ignition sources (for example an operating electric heater). The appliance shall be stored so as to prevent

mechanical damage from occurring.

Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry, recognized assessment specification.

Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.

WARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply

mains with the hands and / or feet wet. Do not pull on the connection cord in order to unplug it or use it as a handle.

Never attempt to turn off the dehumidifier by disconnecting the plug.

To avoid risk of fire or explosion, do not spray to the dehumidifier.

Do not put any inflammables or chemicals near the unit.

To prevent plastic parts from melting or catching on fire, do not place the dehumidifier near heating appliances.

Remove water that has been collected in the tank (accidentally drinking of the water or using it for other purpose may cause illness and /or unforeseen accidents).

Moving and hot parts: Do not operate unit

with back cover removed. The

dehumidifier must be used on a level and

stable surface.

Do not use the humidifier and the drain hose at ambient below 0^ C to prevent the water from freezing. Do not use outdoors.

Be careful that a heating appliance is not exposed

to the wind from the humidifier. Do not cover the

unit with washed clothes or similar.

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

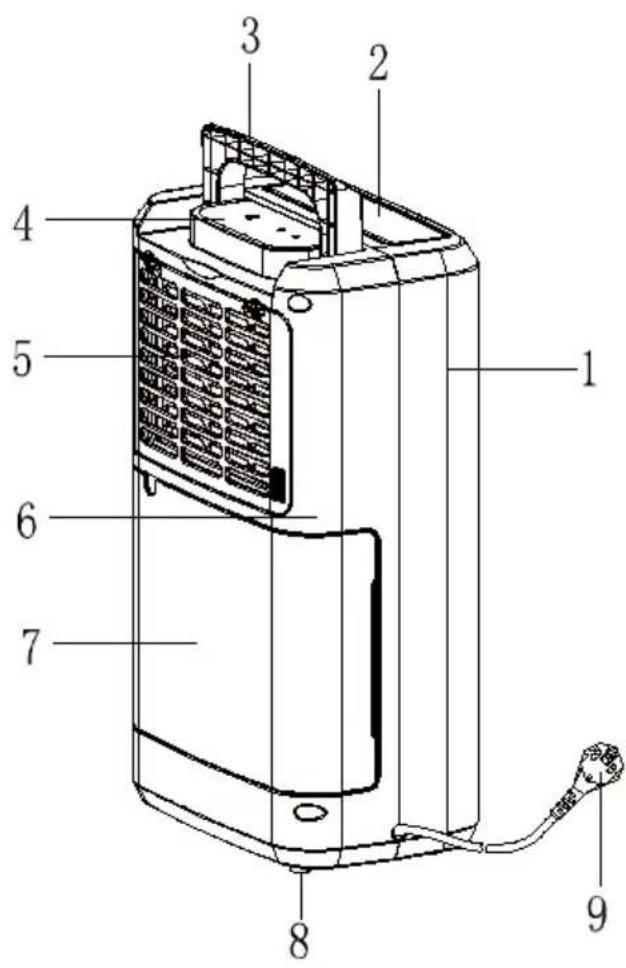

DESCRIPTION

1. Front housing
2. Air outlet
3. Handle
4. Control panel
5. Filter
6. Back housing
7. Water tank
8. Rubber feet
9. Power cord

Control panel:

1. Water tank full indicator
2. Comp indicator
3. Defrost indicator
4. Timer indicator
   a. On/off button
   b. Down button
   c. Up button
   d. Timer button

INSTALLATION

Always empty the water tank before turn on the unit.

Place the appliance on a stable surface and allow at least 20 cm of space around the appliance. Fig.1

During the operation, keep unit closed to the door and windows closed to save energy. Make sure no block at air inlet and outlet.

OPERATING INSTRUCTIONS:

On/Off: Press the key to turn on/turn off the dehumidifier.

Set the humidity level (up, down): Press the button up to increase or down to decrease the humidity level. You can set humidity from 90% to 30% in 5% increments. Default mode is the "CO".

Continuous cycle.

Note: Press UP and DOWN at the same time to convert display of temperature or humidity, the indicator “°C” being for temperature and “%” for humidity

Timer: The appliance has a 24 hours timer. Each time you press the button, it will increase 1 hour. To cancel the timing press the key again. The programmed time remains unchanged if the machine stops to work due to water full or during defrosting

INSTRUCTIONS FOR USE:

Unroll the cable completely before plugging it in.

Make sure that the water tank is set properly.

Note: If the water tank is full, the water indicator light will be on and the rest are not displayed.

Plug the appliance to the mains

Connect the appliance to the mains.

Press the on/off button to turn on/off the unit.

The power indicator will light on.

The current humidity will be displayed with the defaults of continuous mode "CO", and the compressor will then start immediately for dehumidification

Press this button to turn on/off the unit.

Do not unplug the power cord directly to force the machine stop working directly.

Humidity setting

Press the up or down button (b or c) to set the desired humidity level in the room.

You can set the humidity from 30% to 90% at 5% intervals or "CO".

If the indoor humidity is higher than or equal to 3% or more of the set humidity, the compressor and fan will run. The indicator light of the compressor will be on.

After the humidity in the room is dehumidified, when the humidity drops below 2% of the set humidity, the compressor is turned off and the dehumidification is stopped. The indicator lamp (OK lamp) that reaches the humidity is on.

If the dehumidifier stops dehumidifying and the humidity in the room rises above or equal to 3% or more of the set humidity, if the compressor has passed the three-minute protection status, the compressor will start dehumidifying.

According to the above cycle operation, the indoor humidity can be maintained at the set humidity.

The humidity indicator features 3 functions:

• when you set the humidity, it will indicate the humidity that you have selected.
• when you program the time for the unit to turn on and off, it will show the hours.
• When the environment humidity is lower than 35%, it will show "LO".
• When the environment humidity is higher than 95%, it will show "HI".

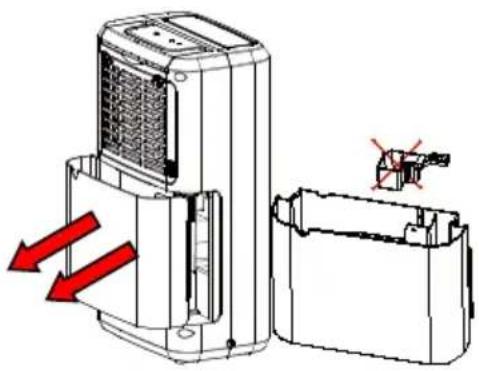

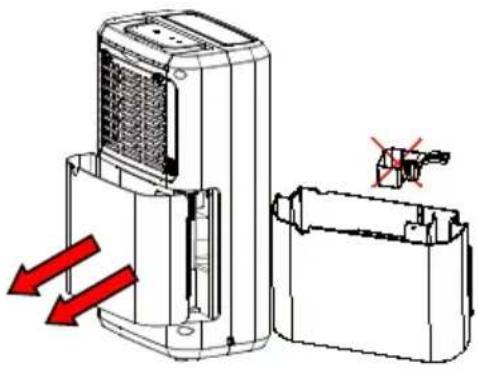

Water tank full:

If the water tank is full, its indicator will light on and the buzzer sounds around 15 times. Press any key and the beep will stop.

At this time, the unit has stop running.

Press any key and the alarm will stop immediately.

Put the water tank back in the unit and the dehumidifier will start working automatically and the original machine's operating status is restored.

Caution: Do not remove the floater in the water tank, otherwise, the water sensor will not be able to sense the water level so that it cannot operate normally. Fig.2

Anti-defrost function

This function will be activated when the ambient temperature falls below 16^ C.

The display will show „ DEF “.

If the room temperature < 5^ , the controller stops.

It will be activated for a period of 10 minutes every 30 minutes between 5-12°C.

It will also be activated for a period of 10 minutes every 45 minutes between 12-16°C.

When the room temperature is higher than 16^ C, the temperature of the coil is detected and the operation is performed according to the temperature of the coil, as follows:

• The compressor is running for 30 minutes, the coil temperature is detected.
• If the coil temperature is ≤ 1^ , the defrosting is stopped for 10 minutes.

Compressor delay protection :

Every time the boot compressor is allowed to start immediately; After the compressor is shut down, start it again, with at least a 3-minute interval.

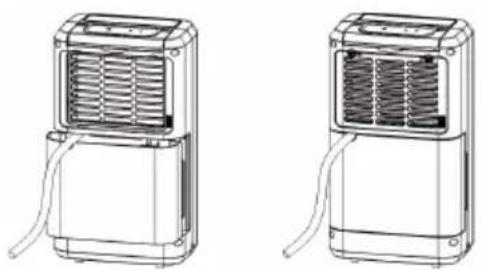

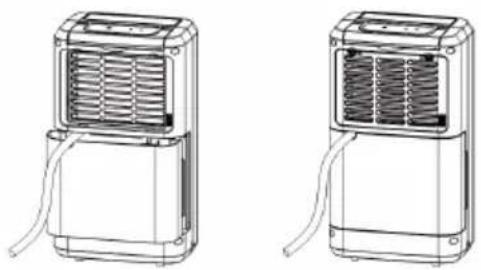

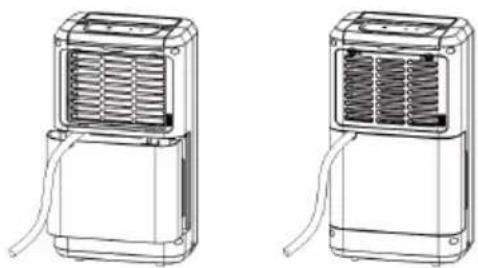

CONTINUOUS DRAINAGE

Connect a plastic hose (with an inner diameter of 10 mm) to the continuous drainage port via the small hole.

Water can be drained continuously.

Please check if the pipe is stably connected with the drainage mouth, or water will flow out. Fig.3

Note: Water pipe cannot be too long (usually 0.6m), the height cannot surpass the height of drainage mouth, or there will be water leakage.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

Stop the appliance by releasing the pressure on the on/off button. Unplug the appliance from the mains.

Remove the water from the water tank.

For storing, stand the unit upright and place it in a cool and dry place avoiding direct sunlight exposure.

MAINTENANCE:

Turn off the appliance and disconnect the power plug before starting any cleaning task.

Cleaning the body:

Wipe the dehumidifier with a dry and damp cloth.

To remove heavy dirt, wipe it with a cloth wrung tightly.

Never use a wet cloth for cleaning the control panel.

DO NOT IMMERSE IN WATER OR ANY OTHER LIQUID.

Filter cleaning:

It is recommended you to clean the filter every 2 weeks.

When the air cleaning filter is blocked, the dehumidification capacity will be reduced.

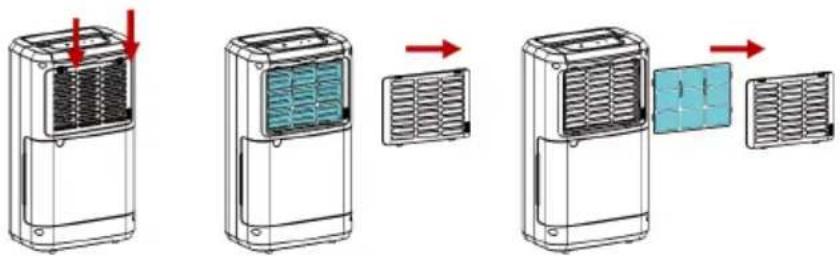

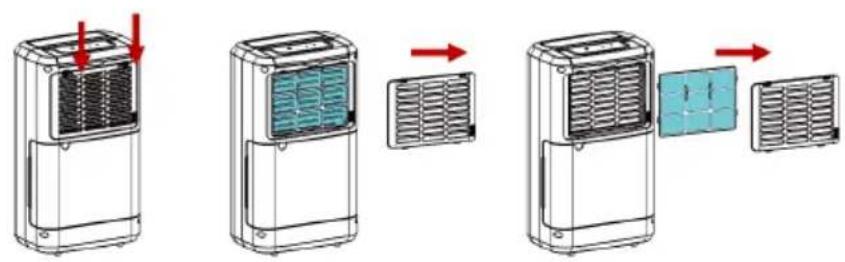

Open the inlet grill and remove the air filter. Fig.4

Run a vacuum cleaner lightly over the surface of air filter to remove dirt.

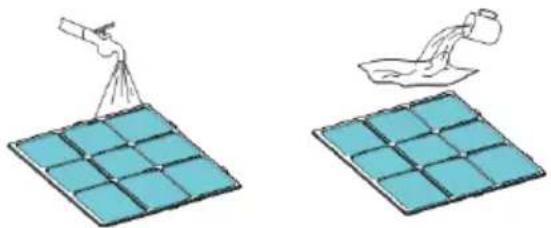

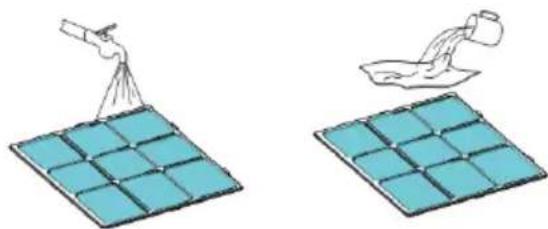

If the air filter is too dirty, wash it with warm water and mild cleanser and dry thoroughly.

Insert the filter into the unit smoothly. Fig.5

TROUBLE-SHOOTING

Take the appliance to an authorized technical support service if product is damaged or other problems arise.

Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

If any anomaly is detected, check the following table

Problem	Cause	Solution
The appliance does not work	- Is the power plug connected?- Water tank is full or not well assembled?- Operation temperature is too low or too high.	- Connect the appliance to the mains.- Pour away the water from water tank and place it back into the unit.- Working temperature: 5-35°C.
The dehumidifying function does not work	- Is the filter blocked- Is the air inlet or outlet blocked?	- Clean the filter according to the cleaning instruction.- Remove the obstruction from the air inlet or outlet.
No air outlet	- Is the filter plugged?	- Clean the filter screen according to the cleaning instruction.
Operation is noisy	- Is the machine tilted or unstable?- Is the air filter clogged	- Place the unit on an even, solid surface (to avoid vibrations).- Clean the air filter as per as instructions.
E1 Code	- Coil sensor short circuit or open circuit	- Check whether the line is loose or replace the coil sensor.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection center closest to your home.

INFORMATION ON SERVICING

Check to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

Work procedure

Work shall be undertaken under a controlled procedure as to minimize the risk of a flammable gas or vapor being present while the work is being performed.

General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection

equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.

Presence of fire extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or C02 fire extinguisher adjacent to the charging area.

No ignition sources

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. "No Smoking" signs shall be displayed.

Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance.

The following checks shall be applied to installations using flammable refrigerants:

• The charge size is in accordance with the room size within which the refrigerant containing parts are installed;
• The ventilation machinery and outlets are operating adequately and are not obstructed;
• If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant;
• Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;
• Refrigeration pipe or components are installed in a position Where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include:

• That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;
• That no live electrical components and wiring are exposed while charging, recovering or purging the system;
  • That there is continuity of earth bonding.

Repairs to sealed components

During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.

Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc.

Ensure that apparatus is mounted securely.

Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications.

NOTE: the use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

Repair to intrinsically safe components

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use.

Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating.

Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

Cabling

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of ageing or continual vibration from sources such as compressors or fans.

Detection of flammable refrigerants

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

Leak detection methods

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants.

Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need recalibration. (Detection equipment shall be calibrated in a refrigerant free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the lower flammability limit (LFL) of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is confirmed.

Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work.

If a leak is suspected, all naked flames shall be removed/extinguished.

If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

Removal and evacuation

When breaking into the refrigerant circuit to make repairs-or for any other purpose-conventional procedure shall be used. However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to:

• Remove refrigerant;
  • Purge the circuit with inert gas;
• evacuate;
  • Purge again with inert gas;
• Open the circuit by cutting or brazing.

The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be “flushed” with

octafluoronaphthalene (OFN) to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task.

Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum.

This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place.

Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

Charging procedures

In addition to conventional charging procedures, the following requirements shall be followed.

• Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimized the amount of refrigerant contained in them.
• Cylinders shall be kept upright.
• Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
• Label the system when charging is complete (if not already).
• Extreme care shall be taken not to overfill the refrigeration system.

Prior to recharging the system, it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

Decommissioning

Before carrying out this procedure, it is essential that the technician is completely familiar with the

equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely.

Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that:

- Mechanical handling equipment is available, if required, for handling refrigerant cylinders;

- All personal protective equipment is available and being used correctly;

- The recovery process is supervised at all times by a competent person;

- Recovery equipment and cylinders conform to the appropriate standards.

d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's instructions.
h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

Labelling

Equipment shall be labelled stating that it has been decommissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

Recovery

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely.

When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.

The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt.

The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders.

If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the

compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

If a leak is suspected, all naked flames shall be removed/extinguished.

If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

FRANÇAIS

MANUEL DE L'UTILISATEUR ET D'INSTALLATION

DÉSHUMIFICATEUR

A3

HTWD016A3

Technical diagram of a device with numbered parts labeled for identification

4 3 2 1 TEN TENT DOWN DOWN POWER D C B A

Fig. 1

20cm 20cm

Fig. 2

Technical diagram of a portable air conditioner unit with red arrows indicating airflow direction (no text or symbols)

Fig. 3

Line drawings of two identical industrial air purifiers with heat sinks and ventilation ducts (no text or symbols)

Fig. 4

Two diagrams showing a person pouring liquid onto a grid of blue tiles, with no text or symbols present.

Fig. 5

ATTENTION

VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL

D'UTILISATION AVANT D'UTILISER LE PRODUIT.

CONSERVEZ CE MANUEL D'UTILISATION DANS UN

ENDROIT SÛR EN VUE DE CONSULTATION FUTURE.

CONSIGNES DE SÉCURITÉ

Caution, risk of fire

ATTENTION

ÉLIMINATION DU PRODUIT

Technical diagram of a device with numbered parts labeled for identification

4 3 2 1 TEN CORNIT COLE POWER ROLL D C B A

Fig. 1

20cm 20cm

Fig. 2

Technical diagram of a portable air conditioner unit with red arrows indicating airflow direction (no text or symbols)

Fig. 3

Line drawings of two identical industrial air purifiers with heat sinks and ventilation ducts (no text or symbols)

Fig. 4

Two diagrams showing a person pouring liquid onto a grid of blue tiles, with no text or symbols present.

Fig. 5

AVISO

LER AS INSTRUÇÕES DE UTILIZAÇÃO CUIDADOSAMENTE ANTES DE UTILIZAR O PRODUTO. GUARDAR ESTAS INSTRUÇÕES NUM LOCAL SEGURO PARA REFERÊNCIA FUTURA.

INSTRUÇÕES DE SEGURANÇA

Caution, risk of fire

AVISO

• The compressor is running for 30 minutes, the coil temperature is detected.
• If the coil temperature is ≤ 1^ , the defrosting is stopped for 10 minutes.

Technical diagram of a device with numbered parts labeled for identification

4 3 2 1 TEN CORNIT COLE POWER ROLL D C B A

Technical illustration of a device with internal components and red directional arrows indicating motion (no text or symbols)

Technical line drawings of two identical industrial air purifiers with heat sinks and ventilation ducts (no text or symbols)

Diagram showing four stages of a refrigerant air conditioner system with airflow arrows and component placement

Two diagrams showing a person pouring liquid onto a grid of blue tiles, with no text or symbols present.

AVVERTIMENTO

SI PREGA DI UTILIZZARE ATTENTAMENTE LE ISTRUZIONI PER L'USO PRIMA DI UTILIZZARE IL PRODOTTO. CONSERVARE QUESTI IN UN POSTO SICURO PER RIFERIMENTI FUTURI CONSIGLI DI SICUREZZA

Caution, risk of fire

AVVERTIMENTO

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority deifferentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-outwheeled dustbin.

AVERTISSEMENTS POUR L'ÉLIMINATION CORRECTE DU PRODUIT AUX TERMES DE LA DIRECTIVE 2002/96 / CE.
