Product type	Floor fan
Brand	Bimar
Model	VB50 (mod. PD01-Z20)
Fan diameter	50 cm
Power supply	220-240 V ~ 50/60 Hz
Power consumption	100 W
Fan speeds	3 (low, medium, high)
Direction adjustment	Manual (tilt up or down)
Electrical class	II (double insulation)
Noise level	68 dB(A)
Maximum air flow	68.75 m³/min
Maximum air speed	2.7 m/s
Service value	0.89 (m³/min)/W
Standby consumption	0 W (none)
Warranty	24 months
Use	Indoor only, max ambient temperature 40°C
Safety	Protective grille, unplug before maintenance
Maintenance	Soft damp cloth; do not immerse
Assembly	Right (RIGHT) and left (LEFT) feet to snap on
Standards	CE, Directive 2011/65/EU (WEEE)
Manufacturer	Bimar, Via G. Amendola 16/18, 25019 Sirmione (BS), Italy
Spare parts	Use original parts; repair by authorized technicians

Frequently Asked Questions - VB50 Bimar

How to assemble the feet of the Bimar VB50 fan?

To assemble the feet, locate the right foot marked RIGHT and the left foot marked LEFT. Insert the buttonholes into the hooks of the base following the direction indicated by the arrow ↓ and the inscription FRONT (which must be on the front). Push down until you hear a click. Make sure both feet are securely fastened.

How to adjust the fan speed?

Use the speed selector located on the unit. The available positions are: low, medium, and high. To turn off, set the selector to 0 and then unplug the cord.

Can I use the fan with a timer or remote control?

No, it is strictly not recommended to use the fan with an external timer, programmer, or any remote control system. This could cause a fire if the appliance is covered or improperly positioned.

How to clean the VB50 fan?

Before cleaning, unplug the cord from the socket. Use a slightly damp soft cloth. Do not use abrasive or corrosive products. Never immerse the fan in water or any other liquid.

What is the power consumption of the fan?

The power consumption is 100 W (according to the rating plate) and the measured input power is 77.48 W. Standby consumption is 0 W.

Can the fan be used outdoors?

No, the fan is intended only for indoor use. Do not expose it to weather conditions (sun, rain, etc.) and do not use it at an ambient temperature above 40°C.

What to do if the fan does not work properly?

First check that the plug is properly inserted and the socket is powered. If the unit does not start or makes an abnormal noise, turn it off immediately and unplug it. Contact a specialized technician or Bimar assistance service. Do not attempt to repair it yourself.

How to adjust the tilt of the fan?

The air flow direction is adjusted manually by tilting the ventilation grille up or down. Gently tilt the grille to the desired position.

What is the warranty period and what does it cover?

The warranty is 24 months from the date of purchase (upon presentation of proof). It covers material or manufacturing defects. Not covered: damages due to misuse, transport, normal wear, nor repairs by unauthorized technicians.

Where can I find spare parts for the VB50?

To ensure safety, use only original Bimar spare parts. Contact the authorized technical assistance service or visit www.bimaritaly.it. The use of non-original parts voids the warranty.

USER MANUAL VB50 Bimar

Line drawing of a standard open fan with visible blades and mounting base (no text or symbols)

Line drawing of a square fan with internal blades and two base fans labeled A and B (no text or symbols on the fan itself)

Line drawing of a square fan with visible blades and mounting base (no text or symbols)

Please read these instructions carefully before using the appliance, and instruct other persons using it, too, if necessary. Keep the manual handy for future use. If when reading these instructions manual certain parts should be difficult to understand, or if there is any confusion, contact the company indicated on the last page before using the product.

This symbol indicates that the appliance is a class II appliance. This means the plug on the power cord is not earthed.

This symbol highlights instructions and precautions for safe use. Warnings and appliance installation, use, cleaning and maintenance procedures may be updated slightly from those described in this manual; for further details, please consult the updated on-line manual at www.bimaritaly.it.

GENERAL NOTICES

- This device is intended for home use only, to ventilate rooms, and in the manner described in this manual: do not use it for any other purpose. Any other use is to be considered inappropriate and therefore dangerous. The manufacturer cannot be held responsible for eventual damage caused by inappropriate, improper or irresponsible use and/or for repairs made to the product by unauthorized personnel.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen in shops, offices and other working environments;
• farm houses
• by clients in hotels, motels and other residential type environments
• bed and breakfast type environments

- Do not touch the appliance with wet hands or feet.

- Do not insert any tool, or your fingers, into the grille protecting the blades.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• This appliance can be used by children aged 8 and older and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are properly supervised or if they have received instructions regarding the safe use of the appliance and have understood the related dangers. Children should not play with the appliance. Cleaning and maintenance should not be performed by children unless they are older than 8 years of age and are supervised.
• The appliance must be kept out of children's reach.
• Attention: when using electric appliances, the basic safety precautions must always be observed to avoid risks of fire, electric shocks and physical injury.
• Do not use the appliance if it is not operating correctly or seems damaged; if in doubt, contact professionally qualified personnel.
• Make sure that the appliance is working correctly: if not, turn the appliance off and have it checked by professionally qualified personnel.
• Always unplug the appliance before you assemble, disassemble or make adjustments to the appliance.
• Do not move the appliance when it is operating.
• Unplug the appliance when not in use.
• Do not use the device at room temperatures above 40 °C.
• Do not move the appliance when it is in function.
• Do not leave the device exposed to the weather (sun, rain, etc.).
• Do not pull on the cord to disconnect the plug from the socket.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

INSTALLATION

- After removing the packing materials, check the integrity of the heater; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene foam, nails, etc.) must be kept out the reach of children because they are potential sources of danger.

All packaging elements must be disposed of according to their raw material (see the symbol stamped on each one) and according to the provisions of their municipality. The secondary elements of the packaging with low weight (es: packing tape) are unmarked as are its small size packing materials, the protective film of surfaces: therefore you have to follow the procedures for the disposal in force in your municipality.

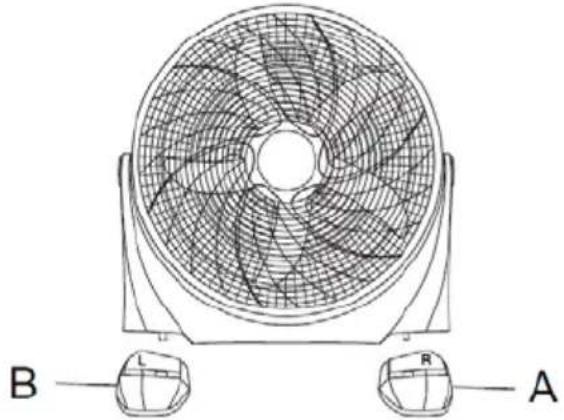

Warning: the fan should be used only with the feet attached to the base (see pictures).

Secure the right foot "A" (marked RIGHT), in the correct direction shown by the arrow "↓" and the word "front" (= front, that must appear on the front), by inserting the slots into the respective hooks of the base all the way through (you will hear click when inserted correctly).

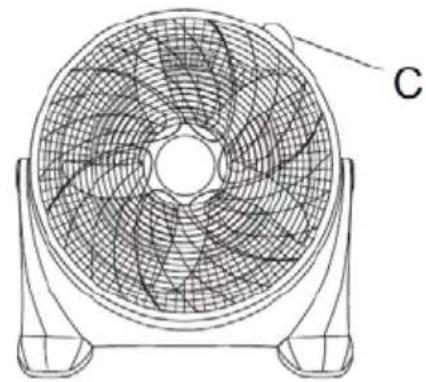

Secure the left foot "A" (marked LEFT), in the correct direction shown by the arrow "↓" and the word "front" (= front, that must appear on the front), by inserting the slots into the respective hooks of the base all the way through (you will hear click when inserted correctly). Once completed, ensure that the feet and the body are firmly matched up.

Line drawing of a multi-panel electric fan with labeled terminals A and B (no text or symbols on the fan itself)

Line drawing of a square fan with visible blades and mesh pattern (no text or symbols)

• Before connecting the appliance, check that the voltage values shown on the data plate correspond to those of the electricity supply network. In the event of incompatibility between the electric outlet and the plug of the heater, have the outlet replaced with another more suitable type by professionally qualified personnel, who will make sure that the section of the wires of the outlet is appropriate for the absorbed power of the heater. In general, the use of adapters or extension cords is not recommended; if their use is indispensable, they must conform to existing safety standards and their current capacity (amperes) must not be less than the maximum of the appliance.
• The power socket must be easy to reach so the plug can be removed quickly in case of emergency.
• To not place the appliance near sinks or other container of liquids (minimum distance of 2 meters) to avoid the risk of it falling in.
• Keep the fan far away from fabrics (curtains, etc.) or unstable materials that could obstruct the air intake grille; make sure that the front is free of unstable materials (dust, etc.).
• Make sure that the electric cord is not touching rough, hot or moving surfaces and not twisted or wrapped around the appliance.
• Do not use the appliance with a timer or a programmer or with a system that can switch on the appliance automatically, to avoid risk of fire, since a fire risk exists if the heater is covered or positioned incorrectly.
• Stand the appliance on a horizontal, flat surface or table; do not stand on a inclined plane (the appliance could upset).
• In the event of a breakdown or poor operation, turn the fan heater off and ask for professionally qualified help.
• Place the unit on a flat and stable surface, make sure that the area in front is clean and dust-free.

USE

Before each use, verify that the unit is in good condition, the electric cord is not damaged, if the power cord is damaged, it must be replaced by the manufacturer or a competent qualified electrician or a person with similar qualifications, in order to avoid any risk.

• The fan can be manually adjusted up and down by the air grating and according to his inclination.

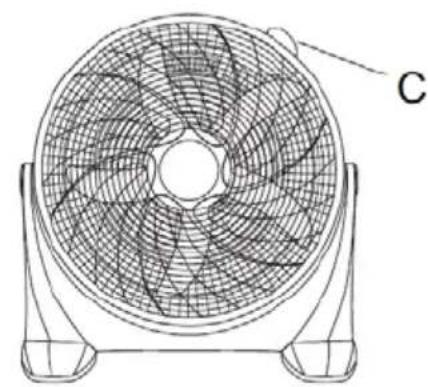

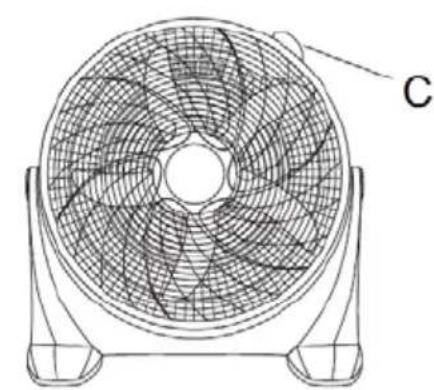

• Verify that the switch (C) is in pos.0, then insert the plug of the fan in the power supply.
• Select the desired speed with the selector.

- Minimum speed

- Medium speed

- Maximum speed

To turn the fan off, press the "0" key and then remove the plug from the socket.

When not in use for long periods, the plug must always be removed from the socket.

CLEANING AND MAINTENANCE

Attention: before normal cleaning, remove the plug from the socket.

• Clean the body with soft, slightly damp, cloth; do not use abrasive or corrosive products.
• Do not immerse any part of the fan in water or other liquid: if this should happen, do not put your hand in the liquid, but first remove the plug from the socket. Carefully dry the appliance and make sure that all the electrical parts are dry: in the case of doubt, ask for professionally qualified help.
• It is essential that the motor's air holes be kept from dust and lint.
• If the fan will not be used for long periods, it must be protected from dust and humidity; we recommend storing it in its original packaging.
• Should you decide not to use the appliance any more, we recommend making it inoperative by cutting the power cord (after making sure you have disconnected the plug from the socket) and make dangerous parts harmless if children are allowed to play with them (such as the blade).

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2011/65/EC.

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Line drawing of a circular fan with radial blades and two base fans labeled A and B (no text or symbols on the fan itself)

Line drawing of a multi-free fan with visible blades and mounting base (no text or symbols)

Line drawing of a multi-free fan with labeled parts A and B, showing internal blades and mounting base (no text or symbols on the fan itself)

Line drawing of a multi-factor electric fan with visible blades and mounting base (no text or symbols)

it is advised to register the appliance on the website https://www.bimaritaly.it/it/garanzia

or to scan the QR code on the side to properly register the warranty (fill out the form to activate the warranty on the product you purchased).

GB General guarantee terms

Guarantee coverage starts from the moment of purchase of the appliance as indicated by a fiscally mandatory delivery document (bill or tax receipt or shipping document). Guarantee coverage lasts 24 months and terminates after the prescribed term. Guarantee coverage covers all replacements or repairs that become necessary due to defects in material or manufacture.

Guarantee coverage does not cover all those parts which become defective due to failure to comply with installation, operating or maintenance instructions, shipping damage, operating neglect or negligence, improper use or any circumstances which are not due to manufacturing defects of the appliance. Guarantee coverage is also excluded for replacement or repair of all parts subject to fair wear and tear or to expiry, as well as removable parts, light bulbs, glass components, ceramic parts, external tubes, batteries and disposable (throw-away) accessories.

Replacements or repairs that come under guarantee coverage are performed free of charge for goods delivered free the Manufacturer's factory or to one of our Technical Service Centres. The Customer must only pay for shipping costs.

Guarantee coverage is not granted if repairs are performed by personnel not belonging to authorized Technical Service Centres or when non-genuine spare parts are used.

This warranty is governed by and construed in accordance with applicable laws in force in the country where the product is purchased. For details, contact the Customer Support in your country or the Bimar website. (www.bimaritaly.it). The Manufacturer declines all responsibility for any direct or indirect harm to persons, pets or property consequent to failure to comply with all the provisions specified in the appliance instruction booklet and especially those regarding appliance maintenance, operation, installation or warnings.
