Important Safety Instructions IMPORTANT SAFETY INSTRUCTIONS

When using an electrical Appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE SAVE THESE INSTRUCTIONS

1. This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.
3. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
5. Please make sure your power supply source voltage matches the power voltage marked on the Docking station.

6. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.

7. Use only the original rechargeable battery and Docking Station (Auto-Empty Station) provided with the Appliance from the manufacturer. Non-rechargeable batteries are prohibited.

8. Do not use without dust bin and/or filters in place.
9. Do not operate the Appliance in an area where there are lit candles or fragile objects.
10. Do not use in extremely hot or cold environments (below -5^/23^ or above 40^/104^ ).
11. Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.
12. Do not operate the Appliance in a room where an infant or child is sleeping.
13. Do not use Appliance on wet surfaces or surfaces with standing water.
14. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.
15. Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.
16. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.
17. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce air flow.
18. Take care not to damage the power cord. Do not pull on or carry the Appliance or Docking station by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces.

19. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.

20. Do not use the Docking station if it is damaged. The power supply is not to be repaired and not to be used any longer if it is damaged or defective.

21. Do not use with a damaged power cord or receptacle. Do not use the Appliance or Docking station if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.
22. Turn OFF the power switch before cleaning or maintaining the Appliance.
23. The plug must be removed from the receptacle before cleaning or maintaining the Docking station.
24. Remove the Appliance from the Docking station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.
25. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
26. Please dispose of used batteries according to local laws and regulations.
27. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.
28. When not using the Docking station for a long period of time, please unplug it.
29. The Appliance must be used in accordance with the directions in this Instruction Manual. Ecovacs Robotics Co., Ltd. cannot be held liable or responsible for any damages or injuries caused by improper use.
30. The Robot contains batteries that are only replaceable by skilled persons. To replace the Robot's battery, please contact Customer Service.
31. If the Robot will not be used for a long time, power OFF the Robot for storage and unplug the Docking station.
32. WARNING: For the purposes of recharging the battery, only use the detachable supply unit CH2319 provided with the Appliance.

The lithium battery type suitable for CH2319 is Max. 8 cells, max. nominal voltage DC14.4V, rated capacity 4,800mAh. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.

To satisfy RF exposure requirements, a separation distance of 20 cm or more should be maintained between this device and persons during device operation.

To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

Device Update

Typically, some devices are updated bi-monthly, but not always so specific.

Some devices, especially those that went on sale more than three years ago, will only be updated if a critical vulnerability is found and fixed.

	Short-circuit-proof safety isolating transformer.
	Switch mode power supply.
	For indoor use only.
[56XX]	Direct current.
	Alternating current.
[042T]	This product conforms to the applicable EC Directives.
[68ST]	Before charging, read the instructions.
	This product conforms to the applicable UK legislation.
	Polarity of the charging port.
	Time-lag miniature fuse-link.
	Class II equipment.

For EU Countries

For EU Declaration of Conformity information, visit https://www.ecovacs.com/global/compliance.

For UK

For UK Declaration of Conformity information, visit https://www.ecovacs.com/global/compliance.

Correct Disposal of this Product

This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To recycle your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can safely recycle this product. The remote surveillance is for the absolute private use of non-public, private owned places for the pure self-protection and single control intended only. Please be aware of the local data protection based legal obligations in case of use. No surveillance of public places, especially with clandestine intent and/or on the part of the employer without justified reasons. Such not justified use is in the risk and responsibility of the user only.

European Union Compliance Statement

Information on Disposal for Users of Waste Electrical & Electronic Equipment

This symbol on the product or on its packaging indicates that used electrical and electronic products should not be mixed with unsorted municipal waste. For proper treatment, it is your responsibility to dispose of your waste equipment by arranging to return it to designated collection points.

Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.

To return your used device, please use the return and collection systems or contact the retailer where the product was purchased, which is free of charge, please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation.

Information on Disposal for Users of used Batteries

This symbol means that batteries and accumulators, at their end-of-life, should not be mixed with unsorted municipal waste. Your participation is an important part of the effort to minimize the impact of batteries and accumulators on the environment and on human health.

For proper recycling you can return this product or the batteries or accumulators it contains to your supplier or to a designated collection point, which is free of charge.

Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.

Penalties may be applicable for incorrect disposal of this waste, in accordance you're your national .legislation. there are separate collection systems for used batteries and accumulators.

Please, dispose of batteries and accumulators correctly at your local community waste collection/recycling center.

Restriction of the use of certain hazardous substances (RoHS) Directive

Ecovacs Robotics Co., Ltd. Hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment ("RoHS recast" or "RoHS 2.0").

Radio Equipment Directive

Ecovacs Robotics Co., Ltd. Hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU.

Europe Authorised Representative:

Ecovacs Robotics Co., Ltd. Hereby declares that the product comply with the essential requirements and other relevant provisions of the RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863, the Radio Equipment Directive 2014/53/EU. The declaration of conformity can be viewed at the following address: https://www.ecovacs.com/global/compliance.

1. Package Contents

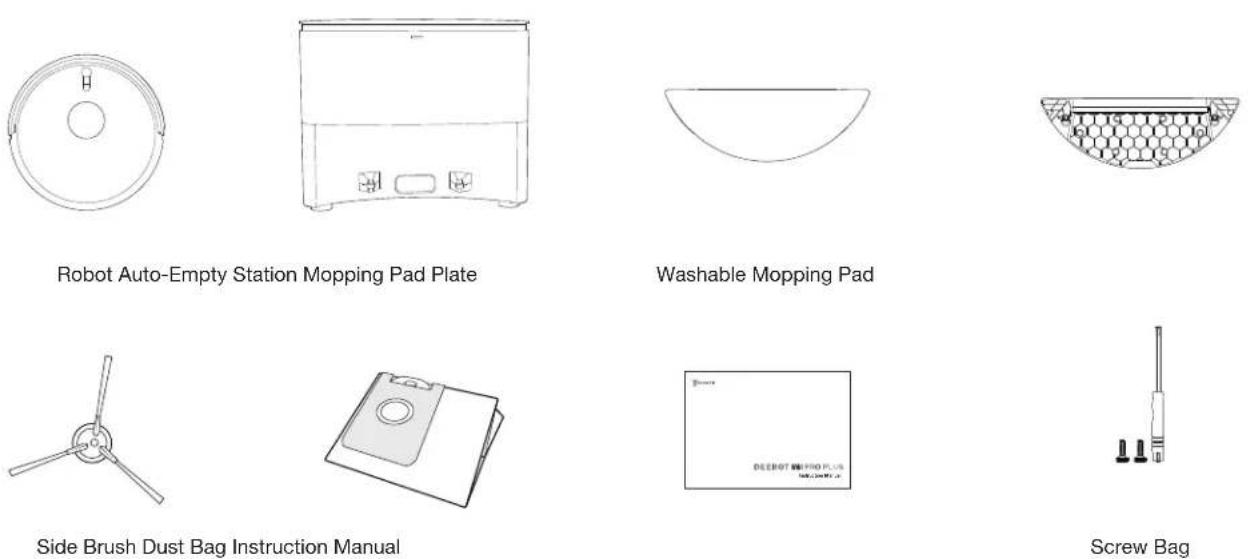

1.1 Package Content

Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.

1.2 Product Diagram

Robot

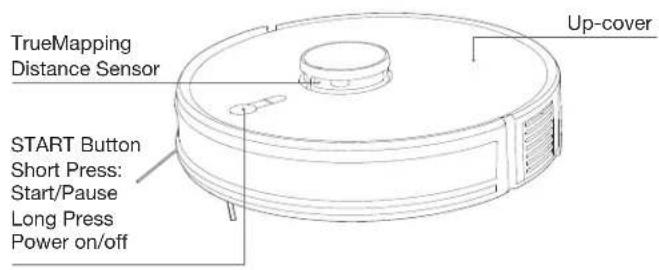

TrueMapping Distance Sensor Up-cover START Button Short Press: Start/Pause Long Press Power on/off

Charging Button:
Short Press: Go To Charge
Long Press: Reset

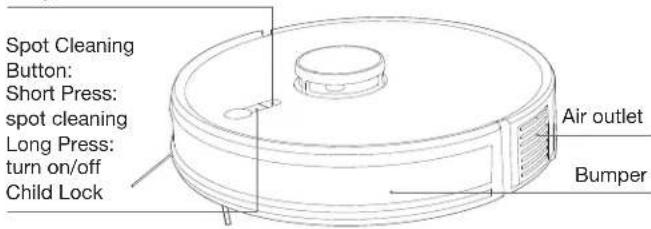

Spot Cleaning Button: Short Press: spot cleaning Long Press: turn on/off Child Lock Air outlet Bumper

- In Child Lock mode, buttons and smart speakers are disabled, preventing potential dangers from accidental operations by children.

- Restore to factory settings: Long press the charging Button for 10-15s.

2 in 1 Module

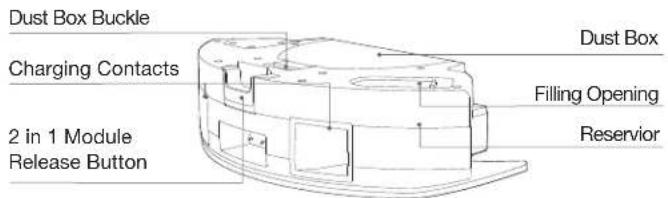

Dust Box Buckle Charging Contacts 2 in 1 Module Release Button Dust Box Filling Opening Reservoir

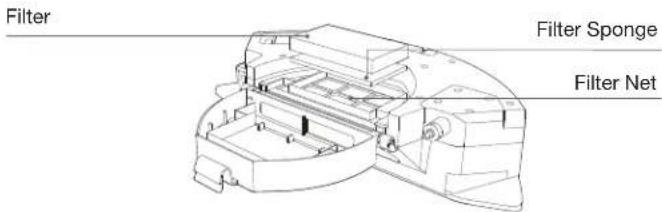

Filter Filter Sponge Filter Net

Mopping Pad Module

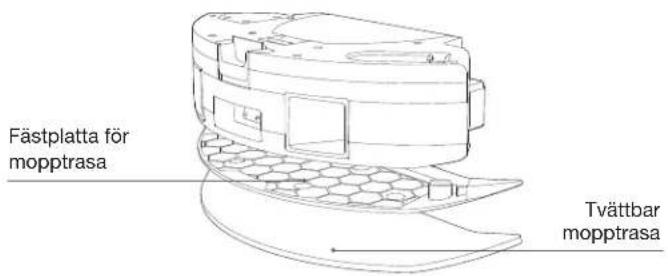

Mopping Pad Plate Washable Mopping Pad

Bottom View Auto-Empty Station (AES)

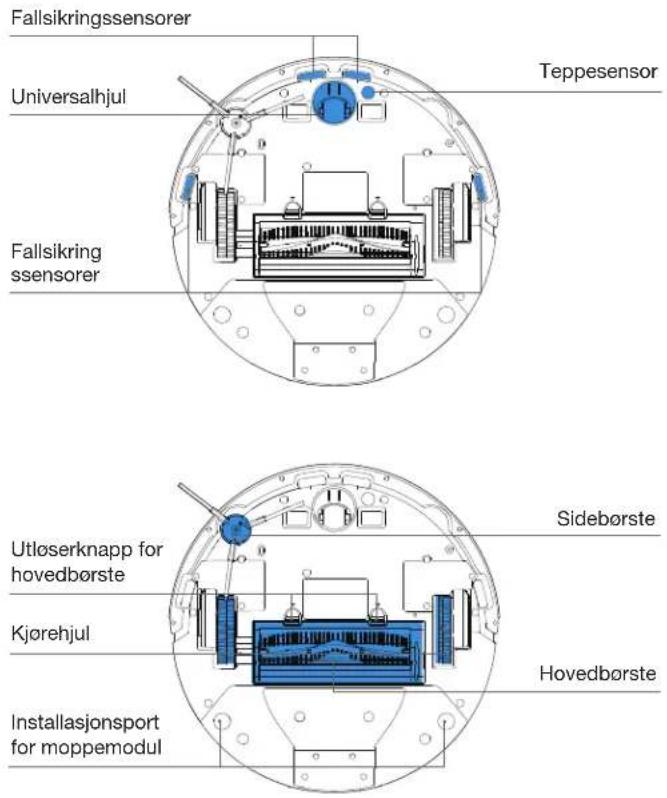

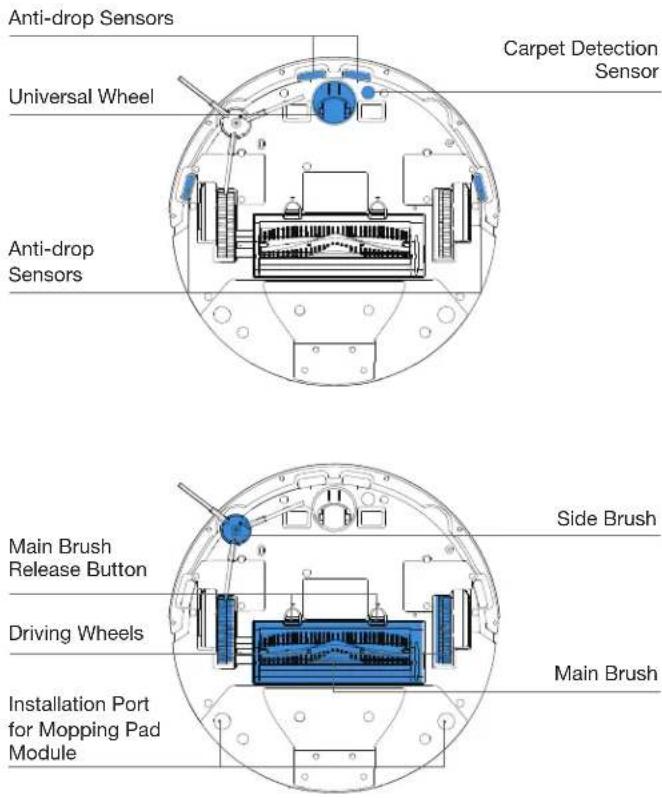

Anti-drop Sensors Universal Wheel Anti-drop Sensors Carpet Detection Sensor Main Brush Release Button Driving Wheels Installation Port for Mopping Pad Module Side Brush Main Brush

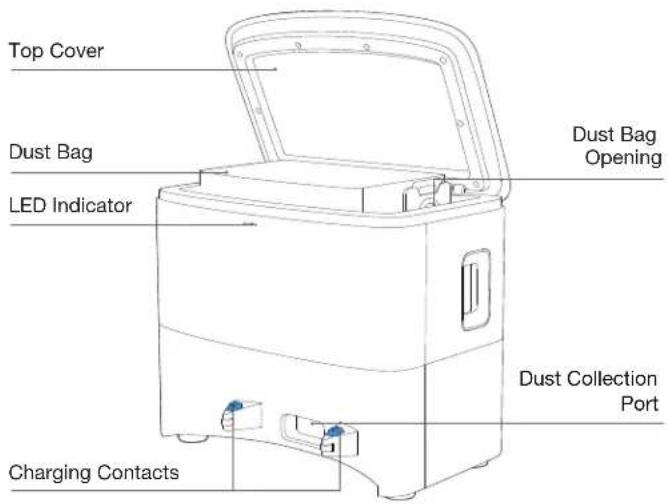

Top Cover Dust Bag LED Indicator Charging Contacts Dust Bag Opening Dust Collection Port

1.3 TrueMapping Distance Sensor

Name Functional Description
TrueMapping Distance Sensor	With Laser Ranging-measuring the distance between Robot and surroundings through the time difference of reflection, it can map according to the objects around while Robotis moving. Detection of 8m.
Anti-drop Sensor	With Infrared Ranging detecting the distance between the bottom of Robot and ground by Infrared Sensor at the bottom, Robot will not move formard when there are stairs in front (For example: White ground height greater than 30mm.) or the identified distance exceeds the preset one, realizing the Anti-drop.
Carpet Detection Sensor	The ultrasound probe can emit ultrasonic waves with a frequency of 300KHZ. The energy of the ultrasonic waves is absorbed by the carpet. If the reflected energy is below the threshold, the Robot recognizes the presence of the carpet.
Anti-collision Sensor	When the transmitted signal is blocked by an obstacle, the signal receiver will not be able to receive the signal. With this principle, the device will avoid obstacles when colliding with them.

2. Operations

2.1 Notes Before Cleaning

Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.

Line drawing of a dining table with a fan, seatbelt, and checkmark (no text or symbols)

It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.

Architectural diagram of a balcony with railing and circular base (no text or symbols)

EN | 12

During the first use, make sure each room door is open to help Robot fully explore your house.

Floor plan outline with a blue curved line indicating a path or route (no text or labels)

Put away objects including cables, cloths and slippers, etc. on the floor to improve the cleaning efficiency.

Before using the product on a rug with tasseled edges, please fold the rug edges under.

Please do not stand in narrow spaces, such as hallways, and make sure not to block the camera.

2.2 Quick Start

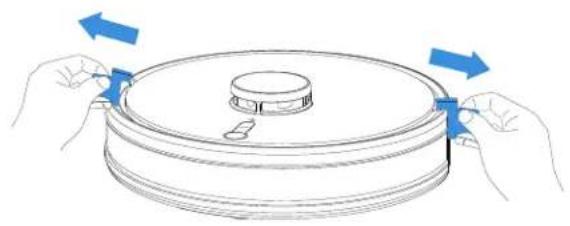

* Before using the product, please remove all protective materials.

Diagram of hands holding a circular device with blue arrows indicating rotation or movement (no text or symbols)

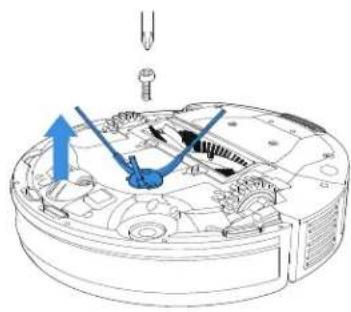

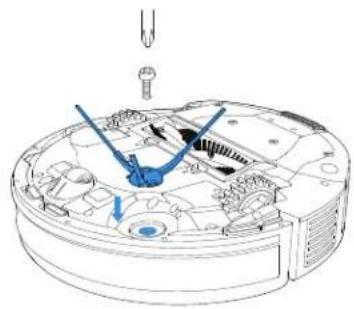

* Before using the product, please take the screwdriver and screws out of the screw pack for installation.

Technical line drawing of a mechanical assembly with no visible text or symbols

2.3 Download and Connect ECOVACS HOME App

To enjoy all available features, it is recommended to control your Robot via the ECOVACS HOME App.

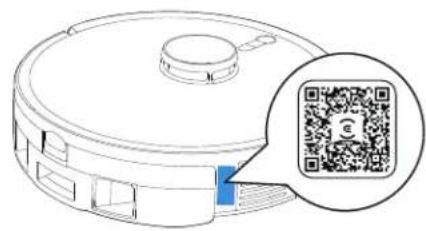

Method 1: Scan the QR code on the Robot or Instruction Manual to download the App.

Line drawing of a robotic vacuum cleaner with a QR code overlay (no text or symbols on the device itself)

Method 2: Search the ECOVACS HOME to download the App.

Download on the App Store Get it on Google Play ECOVACS HOME

Connect Robot with App via Wi-Fi.

Note:

1. Robot should be fully charged and turned on.
2. Wi-Fi indicator is on.
3. Turn off the mobile network.

Wi-Fi Network Requirements:

• You are using a 2.4GHz or 2.4/5 GHz mixed network.
• Your router supports 802.11b/g/n and IPv4 protocol.
• Do not use a VPN (Virtual Private Network) or Proxy Server.
• Do not use a hidden network.
• WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.
• WEP EAP (Enterprise Authentication Protocol) is not supported.
• Use Wi-Fi channels 1-11 in North America and channels 1-13 outside North America (refer to local regulatory agency).
• If you are using a network extender/repeater, the network name (SSID) and password are the same as your primary network.
• Please enable the WPA2 on your router.

Please be aware that the realization of intelligent functions such as remote startup, voice interaction, 2D/3D map display and control settings, and personalized cleaning (depending on different products) requires users to download and use ECOVACS HOME App, which is constantly updated. You need to agree to our Privacy Policy and User Agreement before we can process some of your basic and necessary information and enable you to operate the product. If you do not agree with our Privacy Policy and User Agreement, some of the aforementioned intelligent functions cannot be realized through ECOVACS HOME App, but you can still use the basic functions of this product for manual operation.

2.4 Charging Robot

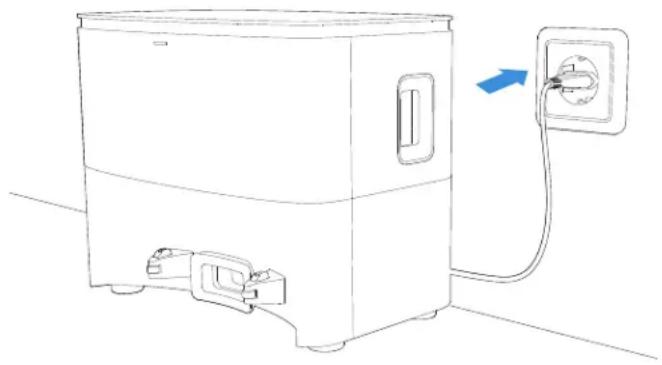

1 Connect the Power Cord.

Line drawing of a washing machine with a power outlet and blue arrow indicating direction (no text or symbols)

2 Place the Auto-Empty Station

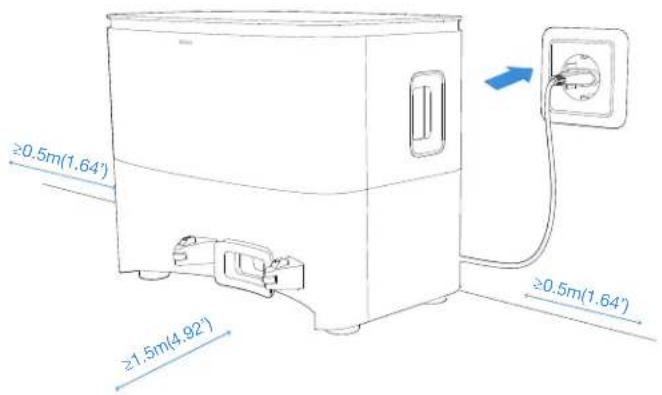

The Auto-Empty Station should be placed against a wall on a flat ground, and no items should be placed with in a range of (0.5m to left and right sides) and (1.5m to the front).

≥0.5m(1.64') ≥1.5m(4.92') ≥0.5m(1.64')

3 Power ON

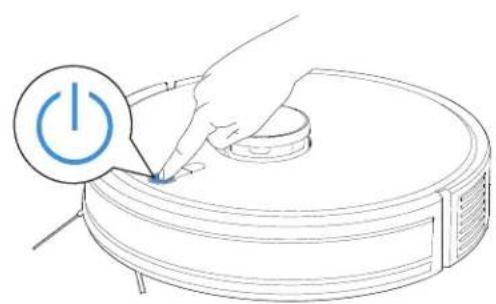

Long press the START Button for 3 seconds to turn on the Robot.

Line drawing of a hand pressing a button on a circular device with a power symbol (no text or labels)

* It is recommended to place the Station on the hard floor to experience complete functions of the Robot.

4 Charging

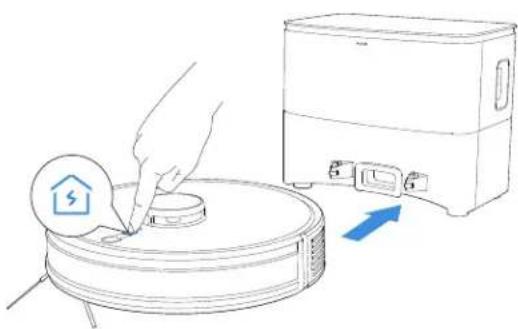

Short press the Charging button to make Robot return for charging.

Diagram showing a hand inserting a device into a vacuum cleaner with a house icon and directional arrow indicating action.

* It is recommended that Robot start cleaning from the Station. Do not move the Station while cleaning.

EN | 16

2.5 Start Cleaning

1 Create a map

When creating a map for the first time, please follow Robot to help eliminate some minor issues. For example, the Robot may get stuck under low furniture. Take following solutions for reference. Solve the issue as below.

① Lift up the furniture if possible.
② Cover the bottom of the furniture, to prevent Robot from entering.
③ Set up Virtual Boundary via the App to prevent the Robot from entering.

2 Start Cleaning

Before first vacuuming, please make sure the Robot is in the Auto-Empty Station and fully charged. Short press ⏻ to start cleaning and create a map at the same time.

Illustration of a hand pressing a button on a vacuum cleaner's lid (no text or symbols)

3 Pause

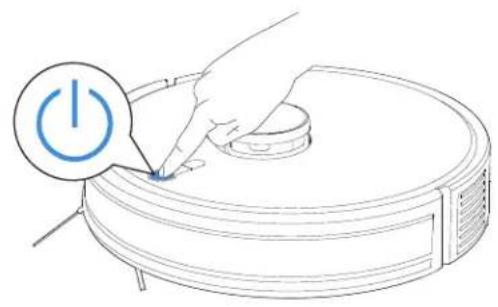

When Robot is working, shot press ⏻ to pause.

Illustration of a hand pressing a button on a vacuum cleaner's rack (no text or symbols)

4 Wake up

The indicator light will go out after the Robot is paused for a few minutes. Short press ⏻ to wake it up.

Line drawing of a robotic vacuum cleaner with a power button icon (no text or symbols)

5 Spot Cleaning

Short press ⚙ key, it will clean the area 1.5*1.5m with its position as center.

Illustration of a hand using a circular device to clean a vacuum cleaner (no text or symbols present)

6 Dust collection

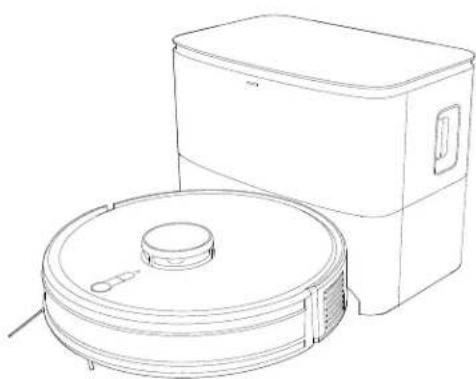

The Robot will automatically return to the Auto-Empty Station to collect dust.

Line drawing of a vacuum cleaner and a rectangular appliance (no text or symbols)

2.6 Start moping

1 Add Water

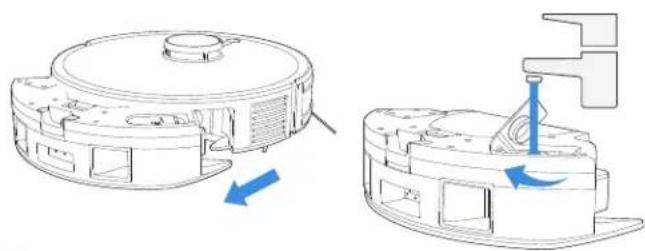

Take out the 2 in 1 Module, open the Filling Opening and add water.

Technical line drawing of a mechanical component with two views showing internal structure and directional arrows (no text or symbols)

2 Install Mopping Pad and Mopping Pad Module

Stick the white side of the Mopping Pad onto the velcro of the Mopping Pad Plate. Insert the protruded part of the Mopping Pad Plate into the installation port. The sound of Click indicates proper installation.

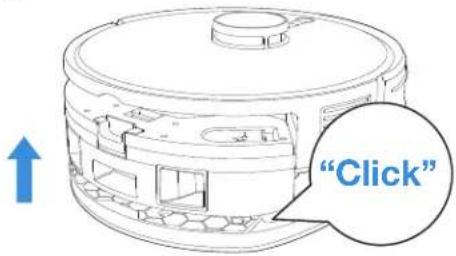

"Click"

EN | 18

3 Start mopping

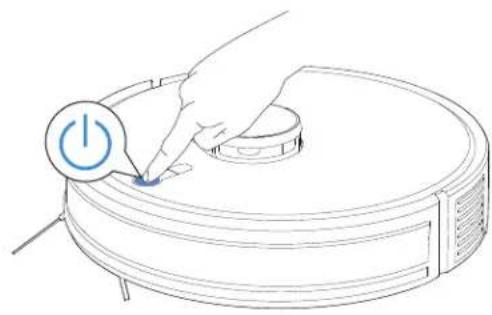

Short press ⏻ to start mopping.

Illustration of a hand pressing a button on a vacuum cleaner's rack (no text or symbols)

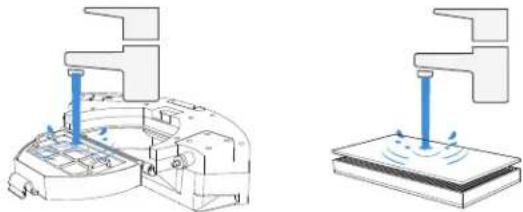

Notes: Do not frequently remove Washable Mopping Pad. Do not use a rag or any other object to scratch the Moping Pad Plate. Please empty the reservoir after Robot finishes mopping.

3. Maintenance

3.1 Maintenance frequency

To keep Robot running at peak performance, perform maintenance tasks and replace parts with the following frequencies:

Part Maintenance frequency	frequency Replacement frequency
Washable Mopping Pad	every cleaning	every 1-2 months
Dust Bag	/	follow APP remind
Side Brush	every 2 weeks	every 3-6 months
Main Brush	every week	every 6-12 months
Filter	every week	every 3-6 months
TrueMapping Distance SensorUniversal WheelAnti-drop SensorBumperRobot's Charging ContactsAuto-Empty StationCharging Contacts	every week	/
Auto-Empty Station	every week	/

Warm note: If you want to buy accessories, please visit ECOVACS HOME App store or: https://www.ecovacs.com/global

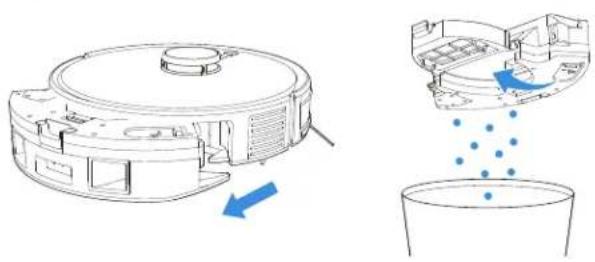

3.2 Maintain Dust Box

1

Diagram showing a robotic vacuum cleaner with blue arrows indicating motion and particle flow, alongside a close-up of the component (no text or symbols)

2

Technical line drawing of a mechanical component with an upward arrow indicator (no text or symbols present)

3

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

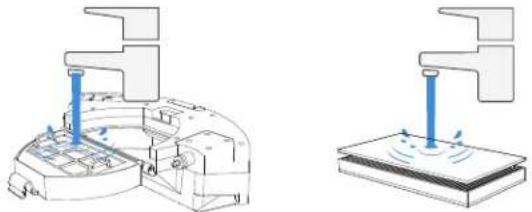

4

Two technical diagrams showing mechanical assembly and mounting base with blue tool tips (no text or symbols)

Note:

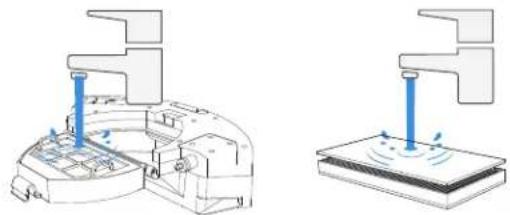

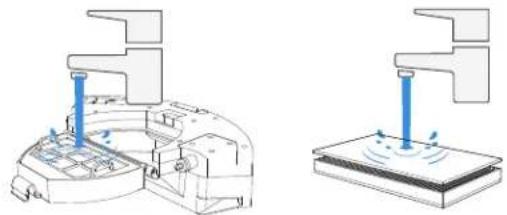

Do not use finger or brush to clean the filter.

5

Line drawing of a mechanical device with a blue sun symbol above it (no text or labels)

Note: Completely dry the filter before use.
Explore more accessories at ECOVACS HOME App or at
https://www.ecovacs.com/global

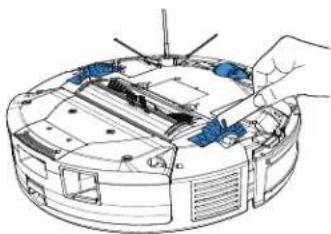

3.3 Maintain Main Brush and Side Brush Main Brush

1

Diagram of a mechanical assembly with a blue component and a magnified inset showing internal components (no text or symbols)

2

3D mechanical assembly diagram showing a blue component inserted into a housing with an arrow indicating direction (no text or symbols present)

3

Illustration of a hand using a tool to cut or spread a piece of bread (no text or symbols present)

Side Brush
1

Technical line drawing of a mechanical assembly with no visible text or symbols

2

Line drawing of a hand holding a pen or tool over a curved surface (no text or symbols)

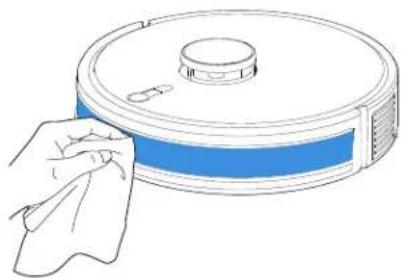

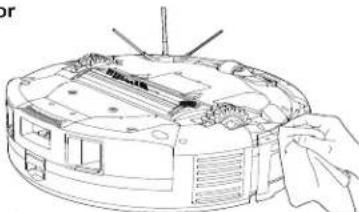

3.4 Maintain Other Parts

Bumper

Line drawing of a hand cleaning a vacuum cleaner's lid (no text or symbols)

TrueMapping Distance Sensor

Line drawing of a hand cleaning a circular vacuum cleaner with a cloth (no text or symbols)

Note: Wipe the components with a clean, dry cloth. Avoid using cleaning sprays or detergents.

Anti-drop Sensor

Technical line drawing of a mechanical device with internal components and a handle (no text or symbols)

Charging Contacts

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Wheels

Technical line drawing of a mechanical device with hands operating it (no text or symbols visible)

Note: Do not clean Charging Contacts with wet cloths.

3.5 Maintain Dust Bag

1

Line drawing of a portable kitchen appliance with open lid and blue internal compartments (no text or symbols)

Line drawing of a portable kitchen appliance with open lid and blue internal components (no text or symbols)

Simple line drawing of a container with a lid and a small object on top, no text or symbols present.

* Hold the Handle to lift out the Dust Bag, which can effectively prevent dust leakage.

2

Line drawing of a portable kitchen appliance with open lid and side buttons (no text or symbols)

Line drawing of a portable water heater with open lid and blue internal components (no text or symbols)

3

Line drawing of a portable electronic device with an open lid and blue arrow indicating left-side motion (no text or symbols)

3.6 Storage

Long press ⏻ for 5 seconds to power off the Robot. Please fully charge and switch OFF the Robot before storage. Please recharge it every 1.5 months to prevent the battery from over-discharge.

Line drawing of a robotic vacuum cleaner with a hand inserting a power button (no text or symbols)

Robot can't be charged when the power is turned off.

* If the battery is over-discharged or not used for a long time, the Robot may not be charged. Please contact ECOVACS for help. Do not disassemble by yourself.

EN | 24

1. Troubleshooting

NO.	Issues Possible Causes Solutions
1	Robot can't connect to APP.	The router user name and password are incorrect.	Configure the router network and make sure that the "user name" and "password" of the router are correct.
		The Robot is not within the network signal coverage of the router.	Ensure the Robot is within the network signal coverage of the router.
		Robot is not in the configuration state.	Make sure Robot is connected to the power supply and turned on. Press Charging Button and Spot Cleaning Button at the same time for 3 seconds. Robot will enter the configuration state when you hear a voice prompt.
		Not use 2.4GHz or 2.4/5GHz network.	The Robot doesn't support 5G network at present. Please choose 2.4GHz or 2.4/5GHz.
		Download the wrong APP.	Please scan the code or download the ECOVACS HOME App in store.
2	Map lost.	It is possible to lose the map if move the Robot manually.	Try to recover by moving the Robot into Auto-Empty Station. Find the stored map in APP map storage, and press "use map" to recover. If this problem persists after trying the above solutions, please restart mapping.
3	Can't creat maps in APP.	The Robot doesn't start working from Auto-Empty Station.	The Robot must start cleaning from Auto-Empty Station.
		Move the Robot when it is working.	Don't move the Robot when it is working.
		Cleaning is not finished.	Allow the Robot return to Auto-Empty Station when it finishes the cleaning.
4	Unable to return to Auto-Empty Station.	The position of Auto-Empty Station is incorrect.Auto-Empty Station is powered off or moved by people.	Please place the Auto-Empty Station correctly according to the chapter "Charging Robot" in user manual.Please ensure the Auto-Empty Station is powered on, and don't move Auto-Empty Station.
		The Robot doesn't start working from the the Auto-Empty Station.	It is recommended that Robot start cleaning from the Auto-Empty Station.
		The charging route is blocked. For example, the door of the room with the Auto-Empty Station is closed.	Keep the charging route clear.
5	Robot returns to the Auto-Empty Station before it has finished cleaning.	The room is so large that Robot needs to return to recharge.	Please enable Continuous Cleaning. For more details, please follow the App instruction.
		Robot is unable to reach certain areas blocked by furniture or barriers.	Tidy up the area to be cleaned by putting furniture and small objects in their proper place.
6	Robot is unable to charge.	Auto-Empty Station is not connected to power supply.	Ensure Auto-Empty Station is connected to power and the indicator is on.
		Robot's Charging Contacts are not connected to the Auto-Empty Station Charging Contacts.	Make sure that the Robot's Charging Contacts have connected to the Auto-Empty Station Charging Contacts and "START Button" flashes. Check whether Robot's Charging Contacts and Auto-Empty Station Charging Contacts are dirty. Please cleanthese parts according to the instructions in the charpt "Maintenance".
		Battery temperature is too high or too low.	Please charge and operate the Robot in the temperature between 0-40 degree.
		Extended periods of non-use may lead to over-discharge of the battery.	We recommend using the product regularly. If extended periods of non-use result in charging issues, please contact customer service for assistance.
7	Abnormal noise during cleaning.	Side brush and Main Brush are entangled. Dust Box and filter are blocked.	It is recommended to clean the side brush, main box, dust box, filter, etc. regularly.
		The Robot is in max mode. Change to standard mode.
8	Robot gets stuck while working and stops.	Robot is tangled with something on the floor (electrical wires, curtains, carpet fringing, etc.).	Robot will try various ways to free itself. If it is unsuccessful, manually remove the obstacles and restart.
		Robot might be stuck under furniture with an entrance of similar height.	Please set a physical barrier, or set a Virtual Boundary in the ECOVACS HOME App.
9	The following problems appear when Robot is working: disordered cleaning route, deviation from the cleaning route,repeated cleaning, or missing of small areas to be cleaned. (If there is a large area that has not been cleaned temporarily, Robot will automatically clean the missing area.)	The wires, slippers and other objects placed on the ground affect the normal work of the Robot.	Please tidy up the scattered objects on the ground such as wires, slippers before cleaning. If there is any area missing, Robot will clean the missing area by itself, please do not interfere (such as moving Robot or blocking the route).
		When the Robot climbs the steps, threshold and door strip, the driving wheel slipped with the ground, which will affect Robot's judgment on the environment of the whole house.	It is recommended to close the door of the area and clean the area separately. After cleaning, it will return to the starting point. Please rest assured to use it.
		Work on freshly waxed and polished floors or smooth tiles, resulting in less friction between the Driving Wheels and the floor.	It is recommended that you wait for the floor wax to dry before using.
		Due to the different house environment, the Robot can not enter some areas.	It is suggested to tidy up the home environment to ensure that the Robot can enter for cleaning.
		The TrueMapping Distance Sensor is dirty or covered.	Clean the TrueMapping Distance Sensor or uncover the objects on it.
10	The Auto-Empty Station can't collect dust when Robot returns.	Auto-Empty Station cover is open.	Close the Auto-Empty Station cover.
		Dust Bag is uninstalled.	Install dust bag and close the Auto-Empty Station cover.
		Robot is manually moved to Auto-Empty Station and Auto-Empty is not triggered.	Let the Robot returns to Auto-Empty Station automatically, don't move it manually.
		If "Do Not Disturb" mode is activated in ECOVACS HOME App, Auto-Empty Station does not collect dust automatically when the Robot returns.	Cancel the "Do Not Disturb" mode in ECOVACS HOME App, or start the dust collection manually.
		Auto-Empty Station detects that the dust collection efficiency is low.	Replace the dust bag according to "Maintenance" in user manual, and close the Auto-Empty Station cover. If App reminds that the dust bag is not full, reinstall it.
		If the above possible reasons have been ruled out, there may be an abnormality in the components of the Auto-Empty Station.	Please contact after-sales service.
11	Dust Collection failed.	Auto-Empty Station detects that the dust collection efficiency is low.	Replace the dust bag according to "Maintenance" in user manual, and close Auto-Empty Station cover. If App remind that the dust bag not full, reinstall it.
		The outlet of dust box is blocked.	Take out the 2 in 1 Module, and clean the dust box outlet.
12	The inner side of Auto-Empty Station is dirty.	Fine particles penetrates the dust bag and sticks on the inner side of the Auto-Empty Station.	Clean the inner side of the Auto-Empty Station.
		The dust bag is broken.	Replace the dust bag.
	Dust leakage occurs during working.	The outlet of Dust Box is blocked.	Take out the 2 in 1 Module, and clean the Dust Box outlet. 13
14	Robot reservoir drops out of place during use.	The reservoir is not correctly installed. Make sure	Use Robot reservoir clicks into place when installing.
15	Driving wheels are blocked.	Driving wheels are blocked by foreign objects.	Please rotate and press the driving wheels to check whether there is any foreign object wrapped or stuck. If there is any foreign object, please clean it in time. If this problem persists, please contact Customer Care for help.
16	Robot does not perform Continuous Cleaning.	The Robot is in Do Not Disturb mode.	In Do Not Disturb mode, Robot does not perform Continuous Cleaning.
		The Robot did not automatically return to the Auto-Empty Station last time.	Continuous Cleaning is not performed when you manually recharge Robot or move it to Auto-Empty Station.
17	Robot does not clean automatically at the scheduled time.	Time Scheduling function is cancelled.	Reset appointment.
		The Robot is out of power.	Charge the Robot.
		The Robot is in Do Not Disturb mode.	In Do Not Disturb mode, Robot does not perform scheduled cleaning.

If you cannot solve the issues by following the above instructions, please contact after-sales service.

5. TECHNICAL SPECIFICATIONS

Model	DLX32
Rated input	20V === 1.2A
Charging time	4-5 hours
Docking Station	CH2319
Rated input	220-240V ~ 50-60Hz, 0.6A Max
Rated output	20V === 1.2A
Power Dust Collection	850W
Laser Lidar	5V === 200 mA 940 nm

Output power of the Wi-Fi module is less than 100mW.

Note: Technical and design specifications may be changed for continuous product improvement.

Explore more accessories at https://www.ecovacs.com/global.

Line drawing of a dining table with a fan, seatbelt, and checkmark (no text or symbols)

Architectural diagram of a balcony with railing and circular base, no text or symbols present

DE | 40

Floor plan outline with a blue curved line indicating a path or route (no text or labels)

Line drawing of hands holding a circular object with blue arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a robotic vacuum cleaner with a QR code overlay (no text or symbols on the device itself)

Line drawing of a washing machine with a power outlet and blue arrow indicating direction (no text or symbols)

≥0.5m(1.64') ≥1.5m(4.92')

Line drawing of a robotic vacuum cleaner with a hand pressing a button (no text or symbols)

Diagram showing a hand inserting a device into a vacuum cleaner with a house icon and directional arrow indicating action.

Illustration of a hand pressing a button on a circular device with a power symbol (no text or labels)

3 Pausieren

Line drawing of a hand pressing a button on a vacuum cleaner's lid (no text or symbols)

Illustration of a hand pressing a button on a vacuum cleaner's lid (no text or symbols)

5 Punktreinigung

Line drawing of a robotic vacuum cleaner with a hand holding a circular component (no text or symbols)

6 Staubaufnahme

Line drawing of a vacuum cleaner and a rectangular appliance (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows internal structure, bottom shows assembly with directional arrows (no text or symbols)

Illustration of a hand pressing a button on a vacuum cleaner's lid (no text or symbols)

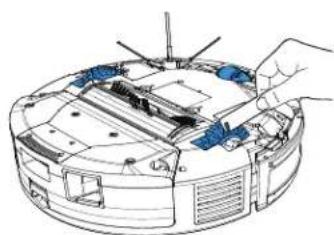

Hinweise:

Diagram showing a robotic vacuum cleaner inside a room with an arrow indicating motion and blue dots falling into a container (no text or symbols present)

2

Technical line drawing of a mechanical component with an upward arrow indicator (no text or symbols present)

3

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

4

Two technical diagrams showing mechanical components with blue arrows indicating motion or force, no text or symbols present.

Line drawing of a mechanical device with a blue sun symbol above it (no text or labels)

Diagram of a robotic device with highlighted internal components and an inset showing a mechanical assembly (no text or symbols present)

2

Technical diagram of a mechanical assembly with blue components and an arrow indicating direction (no text or labels)

3

Illustration of a hand using a tool to cut or spread a cylindrical object, no text or symbols present

Seitenbürste
1

Technical line drawing of a mechanical assembly with no visible text or symbols

2

Line drawing of a hand holding a pen or tool with a curved line below (no text or symbols)

Line drawing of a hand cleaning a vacuum cleaner's lid (no text or symbols)

Line drawing of a hand cleaning a circular vacuum cleaner with a cloth (no text or symbols)

Line drawing of a robotic device with handle and internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components and a hand holding a tool (no text or symbols)

Räder

Technical line drawing of a mechanical device with hands operating it (no text or symbols visible)

Line drawing of a portable kitchen appliance with open lid and blue internal compartments (no text or symbols)

Line drawing of a portable kitchen appliance with open lid and blue internal components (no text or symbols)

Simple line drawing of a container with a lid and a small object on top, no text or symbols present.

Line drawing of a portable kitchen appliance with open lid and side buttons (no text or symbols)

Line drawing of a portable water heater with open lid and blue internal components (no text or symbols)

3

Line drawing of a portable electronic device with an open lid and blue arrow indicating left-side motion (no text or symbols)

3.6 Lagerung

Line drawing of a robotic vacuum cleaner with a hand inserting a power button (no text or symbols)

Line drawing of a simple kitchen appliance with a lid and side outlets (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a dining table with a fan, seatbelt, and checkmark (no text or symbols)

Architectural diagram of a balcony with railing and circular base (no text or symbols)

FR | 68

Floor plan outline with a blue curved line indicating a path or route (no text or labels)

Diagram of hands holding a circular device with blue arrows indicating rotation or movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a robotic vacuum cleaner with a QR code overlay (no text or symbols on the device itself)

Line drawing of a portable water heater with an outlet and power plug, no text or symbols present

≥0.5m(1.64') ≥1.5m(4.92')

Line drawing of a robotic vacuum cleaner with a power button icon (no text or symbols)

Diagram showing a hand inserting a device into a vacuum cleaner with a warning symbol and directional arrow indicating action.

Line drawing of a hand pressing a button on a vacuum cleaner's lid (no text or symbols)

3 Pause

Diagram showing a hand pressing a button on a vacuum cleaner's rack, with a power button icon labeled 'e'.

4 Réactiver

Illustration of a hand pressing a button on a vacuum cleaner's lid (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand holding a circular component, no text or symbols present

Line drawing of a vacuum cleaner and a rectangular appliance (no text or symbols)

Technical line drawing of a mechanical component with two views showing internal structure and directional arrows (no text or symbols)

Line drawing of a robotic vacuum cleaner with a power button icon (no text or symbols)

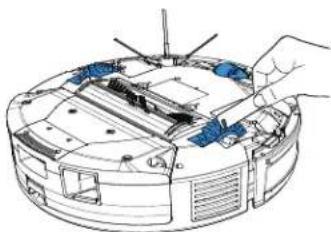

Remarques :

Diagram showing a robotic vacuum cleaner with blue arrows indicating motion and particle flow, alongside a close-up of the component (no text or symbols)

2

Technical line drawing of a mechanical assembly with an upward arrow indicator (no text or symbols present)

3

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

4

Two technical diagrams showing mechanical assembly and mounting base with blue indicator lights (no text or symbols)

Line drawing of a mechanical assembly with a blue sun symbol above it (no text or labels)

Diagram of a robotic device with highlighted internal components and an inset showing a mechanical assembly (no text or symbols present)

1

Technical line drawing of a mechanical assembly with no visible text or symbols

2

3D mechanical assembly diagram showing a blue component inserted into a circular housing (no text or symbols visible)

2

Line drawing of a hand holding a pen or tool with wires (no text or symbols)

3

Illustration of a hand holding a tool over a rolled-up rope or cable (no text or symbols visible)

Line drawing of a hand cleaning a vacuum cleaner's lid (no text or symbols)

Line drawing of a hand cleaning a circular object with a blue lid (no text or symbols)

Technical line drawing of a mechanical device with internal components and a hand holding a clip (no text or symbols)

Contacts de charge

Technical line drawing of a robotic vacuum cleaner with visible internal components and a hand holding the cleanener (no text or symbols)

Roues

Technical line drawing of a mechanical device with hands operating it (no text or symbols visible)

Line drawing of a portable kitchen appliance with open lid and blue vent, no text or symbols present

Line drawing of a portable kitchen appliance with open lid and blue internal components (no text or symbols)

Simple line drawing of a container with a lid and a small object on top, no text or symbols present.

Line drawing of a portable kitchen appliance with open lid and side buttons (no text or symbols)

Line drawing of a portable water heater with open lid and blue internal components (no text or symbols)

3

Line drawing of a portable electronic device with an open lid and blue arrow indicating left-side motion (no text or symbols)

3.6 Rangement

Line drawing of a robotic vacuum cleaner with a hand inserting a power button (no text or symbols)

Line drawing of a simple electrical enclosure or appliance with two ports and a lid (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a dining table with a fan, seatbelt, and checkmark (no text or symbols)

Architectural diagram of a balcony with railing and circular base, no text or symbols present

Floor plan outline with a blue curved line indicating a path or route (no text or labels)

Diagram of hands holding a circular device with blue arrows indicating rotation or movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a robotic vacuum cleaner with a QR code overlay (no text or symbols on the device itself)

Line drawing of a washing machine with a power outlet and blue arrow indicating direction (no text or symbols)

≥0.5m(1.64') ≥1.5m(4.92') ≥0.5m(1.64')

Line drawing of a robotic vacuum cleaner with a hand pressing a button (no text or symbols)

Diagram showing a hand inserting a device into a vacuum cleaner with a house icon and directional arrow indicating action.

Illustration of a hand pressing a button on a vacuum cleaner's rack (no text or symbols)

3 Pausa

Illustration of a hand pressing a button on a vacuum cleaner's rack (no text or symbols)

4 Riattivazione

Illustration of a hand pressing a button on a vacuum cleaner's rack (no text or symbols)

5 Pulizia mirata

Line drawing of a robotic vacuum cleaner with a hand holding a circular component (no text or symbols)

Line drawing of a vacuum cleaner and a rectangular appliance (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows internal structure, bottom shows assembly with directional arrows (no text or symbols)

Illustration of a hand pressing a button on a vacuum cleaner's rack (no text or symbols)

Note:

Diagram showing a robotic vacuum cleaner with blue arrows indicating motion and particle flow, alongside a close-up of the component (no text or symbols)

2

Technical line drawing of a mechanical component with an upward arrow indicator (no text or symbols present)

3

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

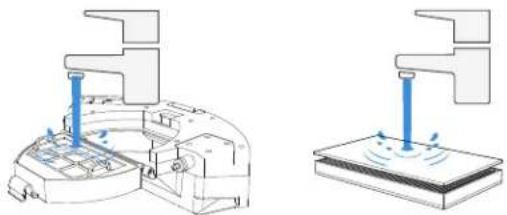

4

Two technical diagrams showing a device with forceps and a base platform, no text or symbols present.

Line drawing of a mechanical device with a blue sun symbol above it (no text or labels)

Diagram of a robotic device with highlighted internal components and an inset showing a mechanical assembly (no text or symbols present)

1

Technical line drawing of a mechanical assembly with no visible text or symbols

2

Technical diagram of a mechanical assembly with blue components and an upward arrow indicating motion (no text or symbols present)

2

Line drawing of a hand holding a pen or tool with a curved line below (no text or symbols)

3

Illustration of a hand holding a tool over a rolled-up corn kernel (no text or symbols)

Line drawing of a hand cleaning a vacuum cleaner's lid (no text or symbols)

Line drawing of a hand cleaning a circular vacuum cleaner with a cloth (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with visible internal components and handle (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with visible internal components and a hand holding the cleanener (no text or symbols)

Ruote

Technical line drawing of a mechanical device with hands operating it (no text or symbols visible)

Line drawing of a portable kitchen appliance with open lid and blue vent, no text or symbols present

Line drawing of a portable kitchen appliance with open lid and blue internal components (no text or symbols)

Simple line drawing of a container with a lid and a small object on top, no text or symbols present.

2

Line drawing of a portable kitchen appliance with open lid and side buttons (no text or symbols)

Line drawing of a portable water heater with open lid and blue internal components (no text or symbols)

Line drawing of a portable electronic device with an open lid and blue arrow indicating left-side motion (no text or symbols)

3.6 Conservazione

Line drawing of a robotic vacuum cleaner with a hand inserting a power button (no text or symbols)

Line drawing of a simple refrigerator with front panel and side buttons (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Filtersvamp
Filternät

Moppningsmodul

Line drawing of a dining table with a fan, seatbelt, and checkmark (no text or symbols)

Architectural diagram of a balcony with railing and circular base, no text or symbols present

Floor plan outline with a blue curved line indicating a path or route (no text or labels)

Diagram of hands holding a circular device with blue arrows indicating rotation or movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a robotic vacuum cleaner with a QR code overlay (no text or symbols on the device itself)

Line drawing of a water heater with an outlet and power plug, no text or symbols present

2 Placera Auto-tömningsstationen Ström PÅ

≥0.5m(1.64') ≥1.5m(4.92')

3

Line drawing of a robotic vacuum cleaner with a hand pressing a button (no text or symbols)

Diagram showing a hand inserting a device into a vacuum cleaner with a house icon and directional arrow indicating action.

Line drawing of a hand pressing a button on a vacuum cleaner's lid (no text or symbols)

3 Pausa

Line drawing of a hand pressing a button on a vacuum cleaner's rack (no text or symbols)

4 Väcka

Line drawing of a robotic vacuum cleaner with a power button icon (no text or symbols)

5 Fläckrengöring

Line drawing of a robotic vacuum cleaner with a hand adjusting the component (no text or symbols)

6 Dammuppsamling

Line drawing of a vacuum cleaner with a lid and rectangular housing (no text or symbols)

2.6 Börja moppa

Technical line drawing of a mechanical component with two views: top shows internal structure, bottom shows assembly with blue arrows indicating direction (no text or symbols)

Line drawing of a robotic vacuum cleaner with a power button icon (no text or symbols)

Anmärkningar:

Diagram showing a robotic vacuum cleaner and its internal structure with blue arrows indicating motion (no text or symbols present)

2

Technical line drawing of a mechanical component with an upward arrow indicator (no text or symbols present)

3

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

4

Two technical diagrams showing a device with a base and a clamp, both without any text or symbols.

Obs!

Line drawing of a mechanical device under a blue sun (no text or symbols)

Diagram of a mechanical assembly with a blue component and a magnified inset showing internal components (no text or symbols)

1

Technical line drawing of a mechanical assembly with no visible text or symbols

2

3D mechanical assembly diagram showing a blue component inserted into a circular housing (no text or symbols visible)

2

Line drawing of a hand holding a pen or tool with a curved line below (no text or symbols)

3

Illustration of a hand holding a tool over a rolled-up corn kernel (no text or symbols)

Line drawing of a hand cleaning a vacuum cleaner's lid (no text or symbols)

TrueMapping-avständssensorn

Line drawing of a hand cleaning a circular vacuum cleaner with a cloth (no text or symbols)

Technical line drawing of a mechanical device with internal components and a hand holding a cloth (no text or symbols)

Laddkontakter

Technical line drawing of a robotic vacuum cleaner with visible internal components and a hand holding the cleanener (no text or symbols)

Hjul

Technical line drawing of a mechanical device with hands operating it (no text or symbols visible)

Line drawing of a portable kitchen appliance with open lid and blue vent, no text or symbols present

Line drawing of a portable kitchen appliance with open lid and blue internal components (no text or symbols)

Simple line drawing of a container with a lid and a small object inside, no text or symbols present.

Line drawing of a portable kitchen appliance with open lid and side buttons (no text or symbols)

Line drawing of a portable water heater with open lid and blue internal components (no text or symbols)

3

Line drawing of a portable electronic device with an open lid and blue arrow indicating left-side motion (no text or symbols)

3.6 Förvaring

Line drawing of a robotic vacuum cleaner with a hand inserting a power button (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with hexagonal base and internal components (no text or symbols)

Vaskbar moppepute

Sett nedenfra Automatisk tömmestasjon

Line drawing of a dining table with a fan, seatbelt, and checkmark (no text or symbols)

Architectural diagram of a balcony with railing and circular base (no text or symbols)

NO | 152

Floor plan outline with a blue curved line indicating a path or route (no text or labels)

Diagram of hands holding a circular device with blue arrows indicating rotation or movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a robotic vacuum cleaner with a QR code overlay (no text or symbols on the device itself)

Line drawing of a kitchen appliance with a blue arrow indicating direction (no text or symbols)

≥0.5m(1.64') ≥1.5m(4.92') ≥0.5m(1.64')

Line drawing of a robotic vacuum cleaner with a hand pressing a button (no text or symbols)

4 Lading

Diagram showing a hand inserting a device into a vacuum cleaner with a house icon and directional arrow indicating action.

Line drawing of a hand pressing a button on a vacuum cleaner's lid (no text or symbols)

3 Pause

Illustration of a hand pressing a button on a vacuum cleaner's lid (no text or symbols)

4 Vekke

Line drawing of a robotic vacuum cleaner with a power button icon (no text or symbols)

Illustration of a hand using a circular tool to mark a component, with a magnified inset showing the target area (no text or symbols present)

6 Støvoppsamling

Line drawing of a vacuum cleaner and a rectangular appliance (no text or symbols)

2.6 Begynne å moppe

1 Legg til mopping

Technical line drawing of a mechanical component with two views: top shows internal structure, bottom shows fluid or flow path (no text or symbols)

Line drawing of a robotic vacuum cleaner with a power button icon (no text or symbols)

Merknader:

Diagram showing a robotic vacuum cleaner with airflow direction and particle distribution (no text or symbols)

2

Technical line drawing of a mechanical component with an upward arrow indicator (no text or symbols present)

3

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

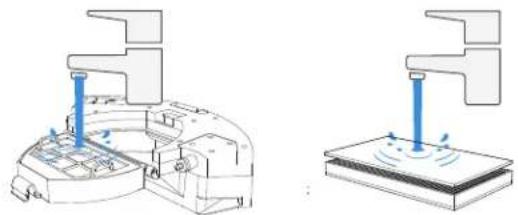

4

Two technical diagrams showing a device with a base and a sensor or probe setup, no visible text or symbols.

Merk:

Line drawing of a mechanical device under a blue sun (no text or symbols)

Diagram of a robotic device with highlighted internal components and an inset showing a mechanical assembly (no text or symbols present)

2

3D mechanical assembly diagram showing a blue component inserted into a circular housing (no text or symbols visible)

3

Illustration of a hand holding a tool over a rolled-up corn kernel (no text or symbols)

1

Technical diagram of a mechanical assembly with blue arrows indicating parts of a component (no text or labels present)

2

Line drawing of a hand holding a pen or tool with a curved line below (no text or symbols)

3.4 Vedlikeholde andre deler

Beskyttelsespanel

Line drawing of a hand cleaning a blue and white vacuum cleaner (no text or symbols)

Line drawing of a hand cleaning a circular object with a blue lid (no text or symbols)

Line drawing of a robotic vacuum cleaner with handle and internal components (no text or symbols)

Ladekontakter

Technical line drawing of a robotic vacuum cleaner with visible internal components and a hand holding the cleanener (no text or symbols)

Hjul

Technical line drawing of a mechanical device with hands operating it (no text or symbols visible)

Line drawing of a portable kitchen appliance with open lid and blue internal compartments (no text or symbols)

Line drawing of a portable kitchen appliance with open lid and blue internal components (no text or symbols)

Simple line drawing of a container with a lid and a small object inside, no text or symbols present.

Line drawing of a portable kitchen appliance with open lid and side buttons (no text or symbols)

Line drawing of a portable water heater with open lid and blue internal components (no text or symbols)

3

Line drawing of a portable electronic device with an open lid and blue arrow indicating left-side motion (no text or symbols)

3.6 Oppbevaring

Line drawing of a robotic vacuum cleaner with a hand inserting a power button (no text or symbols)

Line drawing of a dining table with a fan, seatbelt, and checkmark (no text or symbols)

Architectural diagram of a balcony with railing and circular base (no text or symbols)

DK | 180

Floor plan outline with a blue curved line indicating a path or route (no text or labels)

Line drawing of two hands holding a circular object with blue arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with blue components and a suspended hook (no text or symbols)

Line drawing of a robotic vacuum cleaner with a QR code overlay (no text or symbols on the device itself)

Metode 2: Søg i ECOVACS HOME for at downloade appen.

Line drawing of a washing machine with a power outlet and blue arrow indicating direction (no text or symbols)

≥0.5m(1.64') ≥1.5m(4.92') ≥0.5m(1.64')

3 Tænd

Line drawing of a robotic vacuum cleaner with a hand inserting a power button (no text or symbols)

Diagram showing a hand inserting a device into a vacuum cleaner with a house icon and directional arrow indicating action.

Illustration of a hand pressing a button on a vacuum cleaner's lid (no text or symbols)

3 Pause

Illustration of a hand pressing a button on a vacuum cleaner's lid (no text or symbols)

4 Opvågning

Illustration of a hand pressing a button on a vacuum cleaner's rack (no text or symbols)

5 Pletrengøring

Ved kort tryk på 🌐 tasten, vil den rense området 1,5*1,5 m med sin position som centrum.

Line drawing of a robotic vacuum cleaner with a hand holding a circular component (no text or symbols)

6 Støvopsamling

Line drawing of a vacuum cleaner and a rectangular appliance (no text or symbols)

2.6 Start gulvmopning

1 Tilføj gulvmopning

Technical line drawing of a vacuum cleaner component with blue arrows indicating assembly or movement (no text or symbols)

Line drawing of a robotic vacuum cleaner with a power button icon (no text or symbols)

Noter:

Diagram showing a robotic vacuum cleaner with airflow direction and particle distribution (no text or symbols)

2

Technical line drawing of a mechanical component with an upward arrow indicator (no text or symbols present)

3

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

4

Two technical diagrams showing mechanical assembly and fluid flow (no text or symbols)

Line drawing of a mechanical device under a blue sun (no text or symbols)

Diagram of a mechanical assembly with a blue component and a magnified inset showing internal components (no text or symbols)

1

Technical line drawing of a mechanical assembly with no visible text or symbols

2

Technical illustration of a mechanical assembly with a blue component and an upward arrow indicating motion (no text or symbols present)

2

Line drawing of a hand holding a pen or tool with a curved line below (no text or symbols)

3

Line drawing of a hand holding a tool over a piece of bread or cereal (no text or symbols)

3.4 Vedligeholdelse af andre dele

Stødliste

Line drawing of a hand cleaning a vacuum cleaner's lid (no text or symbols)

TrueMapping-afstandssensoren

Line drawing of a hand cleaning a circular vacuum cleaner with a cloth (no text or symbols)

Technical line drawing of a mechanical device with internal components and a hand holding a tool (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with visible internal components and a hand holding the blade (no text or symbols)

Hjul

Technical line drawing of a mechanical device with hands operating it (no text or symbols visible)

Line drawing of a portable kitchen appliance with open lid and blue vent, no text or symbols present

Line drawing of a portable kitchen appliance with open lid and blue internal components (no text or symbols)

Simple line drawing of a container with a lid and a small object inside, no text or symbols present.

Line drawing of a portable kitchen appliance with open lid and side buttons (no text or symbols)

Line drawing of a portable water heater with open lid and blue internal components (no text or symbols)

3

Line drawing of a portable electronic device with an open lid and blue arrow indicating left-side motion (no text or symbols)

3.6 Opbevaring

Line drawing of a robotic vacuum cleaner with a hand inserting a power button (no text or symbols)

Line drawing of a dining table with a fan, seatbelt, and checkmark (no text or symbols)

Architectural diagram of a balcony with railing and circular base, no text or symbols present

F11208

Floor plan outline with a blue curved line indicating a path or route (no text or labels)

Diagram of hands holding a circular device with blue arrows indicating rotation or movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a robotic vacuum cleaner with a QR code overlay (no text or symbols on the device itself)

Line drawing of a washing machine with a power outlet and blue arrow indicating direction (no text or symbols)

≥0.5m(1.64') ≥1.5m(4.92') ≥0.5m(1.64')

3 Käynnistäminen

Line drawing of a hand using a power button to press a small object on a circular device (no text or symbols)

Diagram showing a hand inserting a device into a vacuum cleaner, with a blue lightning bolt icon and directional arrow indicating action.

Illustration of a hand pressing a button on a vacuum cleaner's lid (no text or symbols)

3 Tauko

Line drawing of a hand pressing a button on a vacuum cleaner's lid (no text or symbols)

4 Herätys

Line drawing of a hand pressing a button on a vacuum cleaner's rack (no text or symbols)

Line drawing of a vacuum cleaner with a hand pointing to the lid (no text or symbols)

Line drawing of a vacuum cleaner and a rectangular appliance (no text or symbols)

Technical line drawing of a mechanical component with two views showing internal structure and a valve mechanism (no text or symbols)

Illustration of a hand pressing a button on a circular device with a power symbol (no text or labels)

Huomautuksia:

Diagram showing a robotic vacuum cleaner with airflow direction and particle distribution (no text or symbols)

2

Technical line drawing of a mechanical component with an upward arrow indicator (no text or symbols present)

3

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

4

Two technical diagrams showing a device with blue arrows indicating motion or force, and a base with blue spikes (no text or symbols)

Line drawing of a mechanical device with a blue sun symbol above it (no text or labels)

Diagram of a robotic device with highlighted internal components and an inset showing a mechanical assembly (no text or symbols present)

1

Technical diagram of a mechanical assembly with blue arrows indicating parts of a component (no text or labels)

2

Technical illustration of a mechanical assembly with a blue component and an arrow indicating direction (no text or symbols present)

2

Line drawing of a hand holding a pen or tool with a curved line below (no text or symbols)

3

Illustration of a hand holding a tool over a rolled-up corn kernel (no text or symbols)

Line drawing of a hand cleaning a vacuum cleaner's lid (no text or symbols)

Line drawing of a hand cleaning a circular vacuum cleaner with a cloth (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with visible internal components and no text or symbols

Latausliitännät

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Pyörät

Technical line drawing of a mechanical device with hands operating it (no text or symbols visible)

Line drawing of a portable kitchen appliance with open lid and blue internal panel (no text or symbols)

Line drawing of a portable kitchen appliance with a handle and blue tray, no text or symbols present

Simple line drawing of a container with a lid and a funnel-like top, containing a white object (no text or symbols)

Line drawing of a portable kitchen appliance with open lid and side buttons (no text or symbols)

Line drawing of a portable water heater with open lid and blue internal components (no text or symbols)

3

Line drawing of a portable kitchen appliance with open lid and blue internal panel (no text or symbols)

3.6 Varastointi

Line drawing of a robotic vacuum cleaner with a power button icon (no text or symbols)

Line drawing of a dining table with a fan, seatbelt, and checkmark (no text or symbols)

Architectural diagram of a balcony with railing and circular base, no text or symbols present

TR | 236

Floor plan outline with a blue curved line indicating a path or route (no text or labels)

Diagram of two hands holding a circular device with blue arrows indicating rotation or movement (no text or symbols)

Technical line drawing of a mechanical assembly with blue components and a tool, no visible text or symbols

Line drawing of a robotic vacuum cleaner with a QR code overlay (no text or symbols on the device itself)

Line drawing of a washing machine with a power outlet and blue arrow indicating direction (no text or symbols)

≥0.5m(1.64') ≥1.5m(4.92')

Line drawing of a robotic vacuum cleaner with a hand pressing a button (no text or symbols)

4 Şarj Etme

Diagram showing a hand inserting a device into a vacuum cleaner with a house icon and directional arrow indicating action.

Illustration of a hand pressing a button on a vacuum cleaner's lid (no text or symbols)

Duraklatma

Illustration of a hand pressing a button on a vacuum cleaner's rack (no text or symbols)

Uyanma

Line drawing of a robotic vacuum cleaner with a power button icon (no text or symbols)

Leke Temizleme

Line drawing of a robotic vacuum cleaner with a hand holding a circular component (no text or symbols)

Toz boşaltma

Line drawing of a vacuum cleaner and a rectangular appliance (no text or symbols)

Technical line drawing of a mechanical component with two views showing internal structure and rotation (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand pressing a button (no text or symbols)

Notlar:

Diagram showing a robotic vacuum cleaner with airflow direction and particle distribution (no text or symbols)

2

Technical line drawing of a mechanical component with an upward arrow indicator (no text or symbols present)

3

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

4

Two technical diagrams showing a device with blue arrows indicating motion or force application, and a base with blue spikes (no text or symbols present)

Diagram of a mechanical assembly with a blue sun symbol above it, no text or labels present

Diagram of a robotic device with highlighted internal components and an inset showing a mechanical assembly (no text or symbols present)

2

3D mechanical assembly diagram showing a blue component inserted into a housing (no text or symbols visible)

3

Illustration of a hand holding a tool over a bundle of bread or cereal (no text or symbols present)

Yan Fırça Ana Fırça

1

Technical line drawing of a mechanical assembly with no visible text or symbols

2

Line drawing of a hand holding a pen or tool over a curved surface (no text or symbols)

Line drawing of a hand cleaning a vacuum cleaner's lid (no text or symbols)

TrueMapping Mesafe Sensörü

Line drawing of a hand cleaning a circular vacuum cleaner with a cloth (no text or symbols)

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Tekerlekler

Technical line drawing of a mechanical device with hands operating it (no text or symbols visible)

Line drawing of a portable kitchen appliance with open lid and blue internal compartments (no text or symbols)

Line drawing of a portable kitchen appliance with open lid and blue internal components (no text or symbols)

Simple line drawing of a container with a lid and a small object inside, no text or symbols present.

Line drawing of a portable kitchen appliance with open lid and side buttons (no text or symbols)

Line drawing of a portable water heater with open lid and blue internal components (no text or symbols)

3

Line drawing of a portable electronic device with an open lid and blue arrow indicating left-side motion (no text or symbols)

3.6 Depolama

Line drawing of a robotic vacuum cleaner with a hand inserting a power button (no text or symbols)

No.518 Songwei Road, Wusongjiang Industry Park, Guoxiang Street, Wuzhong District, Suzhou, Jiangsu, China.
