USER MANUAL Sicuro Smart STS602 Saiet

For more information

Visit the website www.saiet.it.

Operational elements

1 SIM and Micro SD holder
2 Multifunction key
3 Front camera
4 Volume keys
5 ON/OFF key
6 USB Type-C connector
7 Flash LED
8 Rear camera
9 NFC sensor

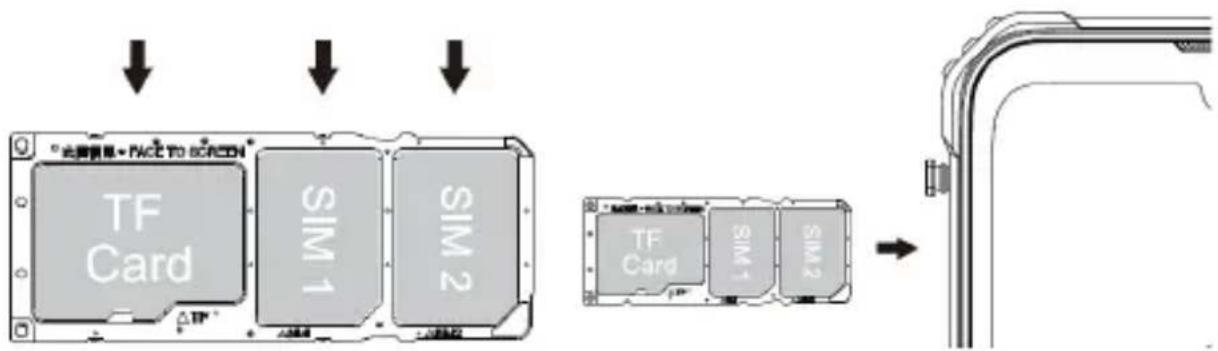

SIM and Micro SD

Turn off the device. Open the “TF/SIM-CARD” cap and insert the supplied ejection tool into the hole of the SIM holder to take it out. Insert 2 nano SIM or 1 nano SIM or 1 Micro SD.

Turn on turn off the device

Press and hold the ON/OFF key.

Turn the screen on and off

Press the ON/OFF key.

Screen unlock

Touch the screen and swipe up.

Forced restart

If the device freezes and does not respond, press and hold the ON/OFF key for more than 5 seconds to restart it.

Battery

The phone has a built-in battery, do not try to open it and replace the battery but contact specialized technical assistance personnel.

Multifunction button

The phone has an additional key. Select phone settings to configure it.

Notifications and Quick Settings panel

To open notifications and quick settings swipe downwards on the top of the screen.

Safety information

Read the following warnings, failure to comply with them may be dangerous or illegal.

- Switch off the phone when its use is prohibited or when it may cause interference and danger.

- Switch off the phone in hospitals and near medical equipment.

- Turn off the phone on the airplane. Mobile phones can cause interference with on-board instrumentation.

- Do not use the mobile phone while driving. In any case, comply with the road rules in force.

- Switch off the phone when refueling, near combustibles, explosive materials.

- Maintain a minimum distance of 15 cm between the mobile phone and the pacemaker to avoid possible interference with the pacemaker. Do not carry your cell phone in a breast pocket.

• The phone does not contain serviceable parts, do not open it. The phone is equipped with a built-in battery, do not try to replace it but contact specialized technical assistance personnel.
• Use only original batteries, chargers and accessories. The use of unauthorized accessories may cause damage to the phone and be dangerous.
• Never use damaged batteries and chargers.
• Do not short-circuit the battery.
• Do not use the phone to make calls while it is charging.

Health information

SAR

This smartphone is a radio transceiver and has been designed do not to exceed the limits for exposure to radio waves, as required by Directive 2014/53/EU.

Relevant regulations use the unit of measurement SAR Specific Absorption Rate. The SAR limit for mobile devices is 2.0 W/Kg. During testing, the highest value measured for this device was 0.824 W/Kg for the head and 0.932 W/Kg for the body.

Protect your hearing

Caution: To avoid possible hearing damage, do not listen to audio at high volume levels for extended periods of time. Also, be careful when holding the phone to your ear while using the loudspeaker.

Specifications

Standard FDD LTE	B1/B3/B7/B8/B20/B28, P max nom. 23dBmTDD LTE B40 P max nom. 23dBmWCDMA B1/B8, P max nom. 23dBmGSM 900/1800 MHz, P max nom. 33dBmBT 2.4GHz P max nom. 10dBmWiFi 2.4/5.2/5.8GHz P max nom. 20dBm
Charger Input 230	Vac 50Hz, Output 5.0Vdc, 2.0A, 10.0W
Battery Li polymer	3.85V, 6580 mAh
Connector charge / data / earphone	USB Type-C
Protection IP68 and drop 1.2m
Size, Weight 161.5x77.6x15.0mm, 280g

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, SAIET Telecomunicazioni Srl declares that the radio equipment type, LTE smartphone model STS602 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.saiet.it/uedocs

CE marking information

The CE marking is affixed to the product to express compliance with the relevant European harmonization legislation.

Restrictions or Requirements

Operation in the 5GHz band, in the frequency range 5150-5350 MHz is only allowed indoors, in the following countries:

	AT BE BG CH CY
CZ DE DK EE EL ES
FI FR HR HU IE IS
IT LI LT LU LV MT
NL NO PL PT RO SE
SI SK TR UK(NI)

Information on product disposal

With reference to Directive 2006/66/EC, concerning batteries, accumulators and related waste and to Directive 2012/19/EU, concerning the disposal of waste electrical and electronic equipment.

The crossed-out wheeled bin symbol on the device, battery and accumulator or on its packaging indicates that both the device and the batteries/accumulators contained therein must be collected separately from other waste at the end of their useful life. The user must, therefore, deliver the aforementioned products that have reached the end of their life to the appropriate differentiated collection centres, or return them to the retailer.

Adequate differentiated collection for the subsequent sending of the device and batteries/accumulators decommissioned for environmentally compatible recycling, treatment and disposal helps to avoid possible negative effects on the environment and health and favors the re-use and/or recycling of materials of which it is made. To remove the batteries/accumulators, refer to the relative paragraph in the manual. Illegal disposal of equipment, batteries and accumulators by the user involves the application of the sanctions referred to in current legislation.
