Product type	LTE Smartphone
Brand	Saiet
Model	Sicuro Smart STS601
Dimensions	159.2 x 76.3 x 13.4 mm
Weight	227 g
Protection rating	IP68
Drop resistance	1.5 m
Battery	Li-Polymer, 3.85 V, 5100 mAh (non-removable)
Included charger	5 V, 2 A, 10 W (mains 230 V, 50 Hz)
Charging/headphone connector	USB Type-C
Mobile networks	FDD-LTE (B1/3/5/7/8/20), WCDMA (B1/B8), GSM (900/1800)
Wi-Fi	2.4 GHz / 5 GHz
Bluetooth	Yes (specifications not specified)
SAR (head)	0.316 W/kg
SAR (body)	1.529 W/kg
Fingerprint sensor	Yes, on the back
SIM cards	2 nano-SIM or 1 nano-SIM + 1 microSD
Expandable storage	Up to ? via microSD (not specified)
Front camera	Yes (specifications not specified)
Rear camera	Yes with LED flash (specifications not specified)

Frequently Asked Questions - Sicuro Smart STS601 Saiet

How to insert the SIM card and microSD card?

Turn off the device, open the SIM & TF-CARD cap using the provided tool, remove the SIM tray and insert 2 nano-SIM or 1 nano-SIM and 1 microSD.

How to turn the phone on or off?

To turn on or off, press and hold the power button on the side.

What to do if the screen freezes and becomes unresponsive?

Press and hold the power button for more than 5 seconds to perform a forced restart.

Can I replace the battery myself?

No, the battery is built-in. Do not attempt to open it. Contact a specialized technical service for any replacement.

How to configure the multifunction button?

Go to the phone settings, then Side Key Function to assign various actions to this button.

Is the phone waterproof?

Yes, it has IP68 protection and withstands drops from 1.5 m.

What is the SAR value of this phone?

The maximum measured SAR is 0.316 W/kg for the head and 1.529 W/kg for the body.

How to open the notification panel and quick settings?

Swipe down from the top left of the screen for notifications, and from the top right for quick settings.

Can I use the phone while charging?

It is not recommended to use the phone for calls while it is charging.

Where to find the EU declaration of conformity?

The full text is available at: www.saiet.it/uedocs

USER MANUAL Sicuro Smart STS601 Saiet

For more information

Visit the website www.saiet.it.

Operational elements

1 SIM and Micro SD holder
2 Multifunction key
3 Front camera
4 Volume keys
5 ON/OFF key
6 USB Type-C connector
7 Rear camera
8 Flash LED
9 Fingerprint sensor

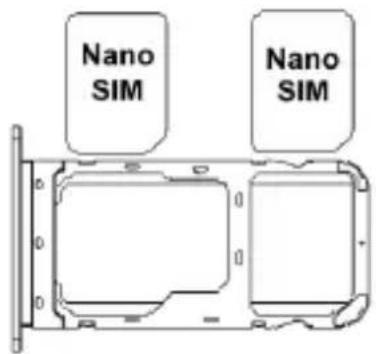

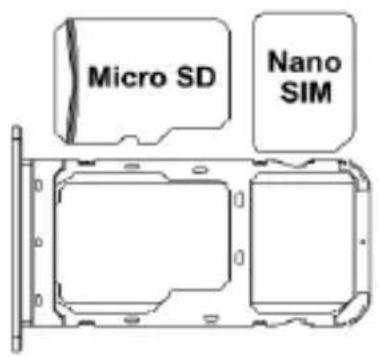

SIM and Micro SD

Turn off the device. Open the “SIM & TF-CARD” cap and extract the SIM holder using the supplied tool. Insert 2 nano SIM or 1 nano SIM and 1 Micro SD.

Turn on turn off the device

Press and hold the ON/OFF key.

Turn the screen on and off

Press the ON/OFF key.

Screen unlock

Touch the screen and swipe up or touch the ON/OFF key if fingerprint recognition is activated.

Forced restart

If the device freezes and does not respond, press and hold the ON/OFF key for more than 5 seconds to restart it.

Battery

The phone has a built-in battery, do not try to open it and replace the battery but contact specialized technical assistance personnel.

Multifunction button

The phone has an additional key. Select phone settings and “Side Key Function” to configure it.

Notifications and Quick Settings panel

To open notifications swipe downwards on the top left of the screen, for quick settings swipe downwards on the top right of the screen.

Safety information

Read the following warnings, failure to comply with them may be dangerous or illegal.

- Switch off the phone when its use is prohibited or when it may cause interference and danger.

- Switch off the phone in hospitals and near medical equipment.

- Turn off the phone on the airplane. Mobile phones can cause interference with on-board instrumentation.

- Do not use the mobile phone while driving. In any case, comply with the road rules in force.

- Switch off the phone when refueling, near combustibles, explosive materials.

- Maintain a minimum distance of 15 cm between the mobile phone and the pacemaker to avoid possible interference with the pacemaker. Do not carry your cell phone in a breast pocket.

• The phone does not contain serviceable parts, do not open it. The phone is equipped with a built-in battery, do not try to replace it but contact specialized technical assistance personnel.
• Use only original batteries, chargers and accessories. The use of unauthorized accessories may cause damage to the phone and be dangerous.
• Never use damaged batteries and chargers.
• Do not short-circuit the battery.
• Do not use the phone to make calls while it is charging.

Health information

SAR

This smartphone is a radio transceiver and has been designed do not to exceed the limits for exposure to radio waves, as required by Directive 2014/53/EU.

Relevant regulations use the unit of measurement SAR Specific Absorption Rate. The SAR limit for mobile devices is 2.0 W/Kg. During testing, the highest value measured for this device was 0.316 W/Kg for the head and 1.529 W/Kg for the body.

Protect your hearing

Caution: To avoid possible hearing damage, do not listen to audio at high volume levels for extended periods of time. Also, be careful when holding the phone to your ear while using the loudspeaker.

Specifications

Standard FDD LTE	B1/B3/B5/B7/B8/B20, P max nom.23dBmWCDMA B1/B8, P max nom. 23dBmGSM 900/1800 MHz, P max nom. 33dBmBT P max nom. 10dBmWiFi 2.4GHz/5GHz P max nom. 20dBm
Charger Input 230	Vac 50Hz,Output 5.0Vdc, 2.0A, 10.0W
Battery Li polymer	3.85V, 5100 mAh
Connectorcharge / data /earphone	USB Type-C
Protection IP68 and drop 1.5m
Size, Weight 159.	2x76.3x13.4mm, 227g

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, SAIET Telecomunicazioni Srl declares that the radio equipment type, LTE smartphone model STS601 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.saiet.it/uedocs

CE marking information

The CE marking is affixed to the product to express compliance with the relevant European harmonization legislation.

Restrictions or Requirements

Operation in the 5GHz band, in the frequency range 5150-5350 MHz is only allowed indoors, in the following countries:

	AT BE BG CH CY
CZ DE DK EE EL ES
FI FR HR HU IE IS
IT LI LT LU LV MT
NL NO PL PT RO SE
SI SK TR UK(NI)

Information on product disposal

With reference to Directive 2006/66/EC, concerning batteries, accumulators and related waste and to Directive 2012/19/EU, concerning the disposal of waste electrical and electronic equipment.

The crossed-out wheeled bin symbol on the device, battery and accumulator or on its packaging indicates that both the device and the batteries/accumulators contained therein must be collected separately from other waste at the end of their useful life. The user must, therefore, deliver the aforementioned products that have reached the end of their life to the appropriate differentiated collection centres, or return them to the retailer.

Adequate differentiated collection for the subsequent sending of the device and batteries/accumulators decommissioned for environmentally compatible recycling, treatment and disposal helps to avoid possible negative effects on the environment and health and favors the re-use and/or recycling of materials of which it is made. To remove the batteries/accumulators, refer to the relative paragraph in the manual. Illegal disposal of equipment, batteries and accumulators by the user involves the application of the sanctions referred to in current legislation.
