USER MANUAL WAVE Mobile TLK 150 MOTOROLA

Legal and Support....5

Intellectual Property and Regulatory Notices....5

Legal and Compliance Statements....6

Supplier's Declaration of Conformity....6

Important Safety Information....7

Industry Canada WLAN Statement....7

Notice to Users (FCC and Industry Canada)....8

Warranty and Service Support....8

Limited Warranty....8

MOTOROLA SOLUTIONS COMMUNICATION PRODUCTS....8

I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG: 8

II. GENERAL PROVISIONS....8

III. STATE LAW RIGHTS: 9

IV. HOW TO GET WARRANTY SERVICE....9

V. WHAT THIS WARRANTY DOES NOT COVER....9

VI. PATENT AND SOFTWARE PROVISIONS.... 10

VII. GOVERNING LAW.... 10

Chapter 1: Read Me First....11

1.1 Software Version.... 12

1.2 Radio Care....12

Chapter 2: Radio Overview.... 13

2.1 Programmable Buttons....13

2.1.1 Assignable Radio Functions.... 14

Chapter 3: Getting Started....15

3.1 Turning the Radio On or Off.... 15

Turning the Radio On....15

Turning the Radio Off....15

3.2 Adjusting the Volume 15

3.3 Activating the Preconfigured Wi-Fi Access Point (PWAP)....15

Chapter 4: Status Indicators.... 17

4.1 Display Icons.... 17

4.2 LED Indications ....18

Chapter 5: Selecting Talkgroup .... 19

Chapter 6: Fast Scroll Talkgroup List.... 20

Chapter 7: Radio Calls ......21

7.1 Making Calls on the Radio....21
7.2 Receiving and Responding to Calls on the Radio.... 21

Chapter 8: Supervisory Override....23

Chapter 9: Checking Radio Information....24

Chapter 10: Bluetooth....25

10.1 Turning the Bluetooth On or Off....25
Turning the Bluetooth On....25
Turning the Bluetooth Off....25
10.2 Viewing Bluetooth Connectivity Status.... 25
10.3 Clearing Bluetooth Pairing....26

Chapter 11: Contact List....27

11.1 Accessing Contact List.... 27

Chapter 12: Menu....28

12.1 Turning the All Alert Tones On or Off.... 28
Turning the All Alert Tones On....28
Turning the All Alert Tones Off....28
12.2 Adjusting Display Brightness.... 29
12.3 Turning the Voice Announcements On or Off....29
Turning the Voice Announcements On....29
Turning the Voice Announcements Off....29
12.4 Turning the DND On or Off....29
Turning the DND On....29
Turning the DND Off....29
12.5 Turning the Scan On or Off....30
Turning the Scan On....30
Turning the Scan Off....30
12.6 Turning the Location On or Off....30
Turning the Location On.... 30
Turning the Location Off.... 30
12.7 Turning the Wi-Fi On or Off.... 30
Turning the Wi-Fi On....30
Turning the Wi-Fi Off....31
12.8 Turning the Cellular On or Off....31
Turning the Cellular On....31
Turning the Cellular Off....31
12.9 Switching between Speaker Mode.... 31

Chapter 13: Instant Personal Alert.... 32

13.1 Sending IPA....32

MN006371A01-AF Contents

13.2 Receiving IPAs 32
13.3 Viewing IPA List....32
13.4 Clearing IPA Status List....32

Chapter 14: Emergency Operation.... 34

14.1 Declaring Emergency.... 34
14.2 Cancelling Emergency....34
14.3 Receiving Emergency Alerts....35
14.4 Responding to Emergency Alert....35
14.5 Receiving Emergency Calls....35
14.6 Clearing Emergency Alert List....35

Chapter 15: Area Talkgroup.... 37

Chapter 16: Radio Stun....38
Chapter 17: User Disabled or Suspended.... 39
Chapter 18: Ambient Listening.... 40
Chapter 19: Authorized Accessories List.... 41

Legal and Support

Intellectual Property and Regulatory Notices

Copyrights

The Motorola Solutions products described in this document may include copyrighted Motorola Solutions computer programs. Laws in the United States and other countries preserve for Motorola Solutions certain exclusive rights for copyrighted computer programs. Accordingly, any copyrighted Motorola Solutions computer programs contained in the Motorola Solutions products described in this document may not be copied or reproduced in any manner without the express written permission of Motorola Solutions.

No part of this document may be reproduced, transmitted, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without the prior written permission of Motorola Solutions, Inc.

Trademarks

MOTOROLA, MOTO, MOTOROLA SOLUTIONS, and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.

License Rights

The purchase of Motorola Solutions products shall not be deemed to grant either directly or by implication, estoppel or otherwise, any license under the copyrights, patents or patent applications of Motorola Solutions, except for the normal non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.

Open Source Content

This product may contain Open Source software used under license. Refer to the product installation media for full Open Source Legal Notices and Attribution content.

European Union (EU) and United Kingdom (UK) Waste of Electrical and Electronic Equipment (WEEE) Directive

The European Union's WEEE directive and the UK's WEEE regulation require that products sold into EU countries and the UK must have the crossed-out wheelie bin label on the product (or the package in some cases). As defined by the WEEE directive, this crossed-out wheelie bin label means that customers and end-users in EU and UK countries should not dispose of electronic and electrical equipment or accessories in household waste.

Customers or end-users in EU and UK countries should contact their local equipment supplier representative or service centre for information about the waste collection system in their country.

Disclaimer

Please note that certain features, facilities, and capabilities described in this document may not be applicable to or licensed for use on a specific system, or may be dependent upon the characteristics of a specific mobile subscriber unit or configuration of certain parameters. Please refer to your Motorola Solutions contact for further information.

© 2022 Motorola Solutions, Inc. All Rights Reserved

Legal and Compliance Statements

Supplier's Declaration of Conformity

Supplier's Declaration of Conformity

Per FCC CFR 47 Part 2 Section 2.1077(a)

Responsible Party

Name: Motorola Solutions, Inc.

Address: 2000 Progress Pkwy, Schaumburg, IL. 60196

Phone Number: 1-800-927-2744

Hereby declares that the product:

Model Name: TLK 150

conforms to the following regulations:

FCC Part 15, subpart B, section 15.107(a), 15.107(d), and section 15.109(a)

Class B Digital Device

As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1 This device may not cause harmful interference, and

2 This device must accept any interference received, including interference that may cause undesired operation.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio or TV technician for help.

For country code selection usage (WLAN devices)

NOTE: The country code selection is for non-US model only and is not available to all US models. Per FCC regulation, all Wi-Fi products marketed in the US must be fixed to US operation channels only.

Wireless Device Country Approvals Regulatory markings, subject to certification, are applied to the device signifying that the radio(s) is/are approved for use in the US. Operation of the device without regulatory approval is illegal.

Important Safety Information

ATTENTION!

This device is designed to meet General Population usage. Before using the device, read the RF Energy Exposure and Product Safety Guide that comes with the device. This guide contains operating instructions for safe usage, RF energy awareness, and control for Compliance with applicable standards and Regulations.

Any modification to this device, not expressly authorized by Motorola Solutions, may void the user's authority to operate this device.

For Japan, the device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range, except for transmission with 5.2 GHz High Power Data Communication System base Station or Relay Station.

Under Industry Canada regulations, this device transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential device interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

This device transmitter has been approved by Industry Canada to operate with Motorola Solutions-approved antenna with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

Industry Canada WLAN Statement

CAUTION:

1 The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.
2 The maximum antenna gain permitted for devices in the bands 5250–5350 MHz and 5470–5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit.
3 The maximum antenna gain permitted for devices in the band 5752–5850 MHz shall be such that the equipment still complies with e.i.r.p. limits specified for point-to-point and non-point-to-point operation as appropriate.
4 The worst case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in Section 6.2.2 (3) shall be clearly indicated.
5 User should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250–5350 MHz and 5650–5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

Notice to Users (FCC and Industry Canada)

This device complies with Part 15 of the FCC rules and Industry Canada's license-exempt RSS's per the following conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.
• Changes or modifications made to this device, not expressly approved by Motorola Solutions, could void the authority of the user to operate this equipment.

Warranty and Service Support

Limited Warranty

MOTOROLA SOLUTIONS COMMUNICATION PRODUCTS

I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG:

Motorola Solutions, Inc. ("Motorola Solutions") warrants the Motorola Solutions manufactured Communication Products listed below ("Product") against defects in material and workmanship under normal use and service for a period of time from the date of purchase as scheduled below:

Mobile Radio 1 Year

Product Accessories 1 Year

Motorola Solutions, at its option, will at no charge either repair the Product (with new or reconditioned parts), replace it (with a new or reconditioned Product), or refund the purchase price of the Product during the warranty period provided it is returned in accordance with the terms of this warranty. Replaced parts or boards are warranted for the balance of the original applicable warranty period. All replaced parts of Product shall become the property of Motorola Solutions.

This express limited warranty is extended by Motorola Solutions to the original end user purchaser only and is not assignable or transferable to any other party. This is the complete warranty for the Product manufactured by Motorola Solutions. Motorola Solutions assumes no obligations or liability for additions or modifications to this warranty unless made in writing and signed by an officer of Motorola Solutions.

Unless made in a separate agreement between Motorola Solutions and the original end user purchaser, Motorola Solutions does not warrant the installation, maintenance or service of the Product.

Motorola Solutions cannot be responsible in any way for any ancillary equipment not furnished by Motorola Solutions which is attached to or used in connection with the Product, or for operation of the Product with any ancillary equipment, and all such equipment is expressly excluded from this warranty. Because each system which may use the Product is unique, Motorola Solutions disclaims liability for range, coverage, or operation of the system as a whole under this warranty.

II. GENERAL PROVISIONS

This warranty sets forth the full extent of Motorola Solutions responsibilities regarding the Product. Repair, replacement or refund of the purchase price, at Motorola Solutions option, is the exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER EXPRESS WARRANTIES. IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE

DURATION OF THIS LIMITED WARRANTY. IN NO EVENT SHALL MOTOROLA SOLUTIONS BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR SAVINGS OR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE SUCH PRODUCT, TO THE FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW.

III. STATE LAW RIGHTS:

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION OR EXCLUSIONS MAY NOT APPLY.

This warranty gives specific legal rights, and there may be other rights which may vary from state to state.

IV. HOW TO GET WARRANTY SERVICE

You must provide proof of purchase (bearing the date of purchase and Product item serial number) in order to receive warranty service and, also, deliver or send the Product item, transportation and insurance prepaid, to an authorized warranty service location. Warranty service will be provided by Motorola Solutions through one of its authorized warranty service locations. If you first contact the company which sold you the Product (for example, dealer or communication service provider), it can facilitate your obtaining warranty service. You can also call Motorola Solutions at 1-800-927-2744.

V. WHAT THIS WARRANTY DOES NOT COVER

1 Defects or damage resulting from use of the Product in other than its normal and customary manner.
2 Defects or damage from misuse, accident, water, or neglect.
3 Defects or damage from improper testing, operation, maintenance, installation, alteration, modification, or adjustment.
4 Breakage or damage to antennas unless caused directly by defects in material workmanship.
5 A Product subjected to unauthorized Product modifications, disassembles or repairs (including, without limitation, the addition to the Product of non-Motorola Solutions supplied equipment) which adversely affect performance of the Product or interfere with Motorola Solutions normal warranty inspection and testing of the Product to verify any warranty claim.
6 Product which has had the serial number removed or made illegible.
7 Rechargeable batteries if:

- any of the seals on the battery enclosure of cells are broken or show evidence of tampering.

- the damage or defect is caused by charging or using the battery in equipment or service other than the Product for which it is specified.

8 Freight costs to the repair depot.

9 A Product which, due to illegal or unauthorized alteration of the software/firmware in the Product, does not function in accordance with Motorola Solutions published specifications or the FCC certification labeling in effect for the Product at the time the Product was initially distributed from Motorola Solutions.

10 Scratches or other cosmetic damage to Product surfaces that does not affect the operation of the Product.

11 Normal and customary wear and tear.

VI. PATENT AND SOFTWARE PROVISIONS

Motorola Solutions will defend, at its own expense, any suit brought against the end user purchaser to the extent that it is based on a claim that the Product or parts infringe a United States patent, and Motorola Solutions will pay those costs and damages finally awarded against the end user purchaser in any such suit which are attributable to any such claim, but such defense and payments are conditioned on the following:

1 Motorola Solutions will be notified promptly in writing by such purchaser of any notice of such claim,
2 Motorola Solutions will have sole control of the defense of such suit and all negotiations for its settlement or compromise, and
3 Should the Product or parts become, or in Motorola Solutions opinion be likely to become, the subject of a claim of infringement of a United States patent, that such purchaser will permit Motorola Solutions, at its option and expense, either to procure for such purchaser the right to continue using the Product or parts or to replace or modify the same so that it becomes non-infringing or to grant such purchaser a credit for the Product or parts as depreciated and accept its return. The depreciation will be an equal amount per year over the lifetime of the Product or parts as established by Motorola Solutions.

Motorola Solutions will have no liability with respect to any claim of patent infringement which is based upon the combination of the Product or parts furnished hereunder with software, apparatus or devices not furnished by Motorola Solutions, nor will Motorola Solutions have any liability for the use of ancillary equipment or software not furnished by Motorola Solutions which is attached to or used in connection with the Product. The foregoing states the entire liability of Motorola Solutions with respect to infringement of patents by the Product or any parts thereof.

Laws in the United States and other countries preserve for Motorola Solutions certain exclusive rights for copyrighted Motorola Solutions software such as the exclusive rights to reproduce in copies and distribute copies of such Motorola Solutions software. Motorola Solutions software may be used in only the Product in which the software was originally embodied and such software in such Product may not be replaced, copied, distributed, modified in any way, or used to produce any derivative thereof. No other use including, without limitation, alteration, modification, reproduction, distribution, or reverse engineering of such Motorola Solutions software or exercise of rights in such Motorola Solutions software is permitted. No license is granted by implication, estoppel or otherwise under Motorola Solutions patent rights or copyrights.

VII. GOVERNING LAW

This Warranty is governed by the laws of the State of Illinois, U.S.A.

Chapter 1

Read Me First

This user guide covers the basic operations of the radio models offered in your region.

Notations Used in This Manual

Throughout the text in this publication, you notice the use of Warning, Caution, and Notice. These notations are used to emphasize that safety hazards exist, and the care that must be taken or observed.

WARNING: An operational procedure, practice, or condition, and so on, which may result in injury or death if not carefully observed.

CAUTION: An operational procedure, practice, or condition, and so on, which may result in damage to the equipment if not carefully observed.

NOTE: An operational procedure, practice, or condition, and so on, which is essential to emphasize.

Special Notations

The following special notations are used throughout the text to highlight certain information or items:

Table 1: Special Notations

Example Description
Menu key or PTT button Bold words indicate a name of a key, button, or soft menu item.
Your radio shows Bluetooth On. Typewriter words indicate the MMI strings or messages displayed on your radio.
	The courier, bold, italic, and angle brackets indicate user input.
Setup→Tone→All Tones	Bold words with the arrow in between indicate the navigation structure in the menu items.

Feature and Service Availability

Your dealer or administrator may have customized your radio for your specific needs.

NOTE: Not all features in the manual are available in your radio. Contact your dealer or administrator for more information.

You can consult your dealer or system administrator about the following:

• What are the functions of each button?
- Which optional accessories may suit your needs?
- What are the best radio usage practices for effective communication?
- What maintenance procedures promote longer radio life?

1.1

Software Version

All the features described in the following sections are supported by the software version R03.01.01 or later.

Contact your dealer or administrator for more information.

1.2

Radio Care

This section describes the basic handling precaution of the radio.

Table 2: IP Specification

IP Specification Description

IP54 Allows your radio to withstand adverse field conditions such as being exposed to water splashed from all directions or dust protected for 2–8 hours.

CAUTION: Do not disassemble your radio. This could damage radio seals and result in leak paths into the radio. Radio maintenance should only be done in service depot that is equipped to test and replace the seal on the radio.

• Keep your radio clean and exposure to water should be avoided to help ensure proper functionality and performance.
• To clean the exterior surfaces of the radio, use a diluted solution of mild dishwashing detergent and fresh water (for example, one teaspoon of detergent to one gallon of water).
• These surfaces should be cleaned whenever a periodic visual inspection reveals the presence of smudges, grease, and/or grime.

CAUTION: The effects of certain chemicals and their vapors can have harmful results on certain plastics. Avoid using aerosol sprays, tuner cleaners, and other chemicals.

- When cleaning your radio, do not use a high-pressure jet spray on radio as this may cause water to leak into your radio.

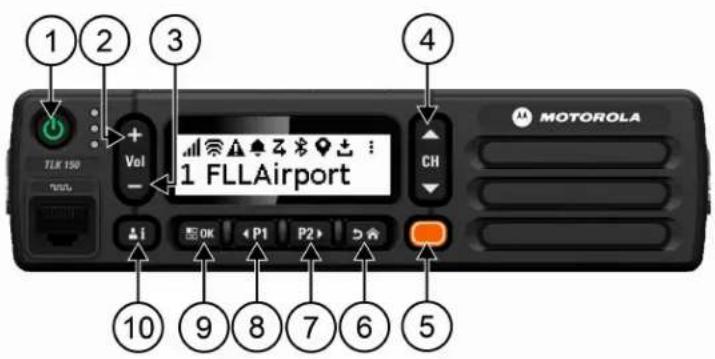

Chapter 2

Radio Overview

This chapter explains the overview of your radio.

1 2 3 4 1 FLLA Airport CHK MOTOROLA 10 9 8 7 6 5

Table 3: Radio Overview

No. Buttons Descriptions
1 Power button Turn the radio on and off.
2 Volume Up button Increase the volume level.
3 Volume Down button Decrease the volume level.
4 Channel button Navigate up or down to the next channel or talkgroup in the list.
5 Emergency button Trigger emergency.
6 Back/Home button Press: Go back to previous page.
	Press and hold: Return to home screen.
7 P2 button Trigger Programmed feature.
	In the menu, it is the right navigation button.
8 P1 button Trigger Programmed feature.
	In the menu, it is the left navigation button.
9 Menu/OK button To access the Menu mode.
	In the menu, it is the select button.
10 Contacts/Info button Press: Access the Contact List.
	Press and hold: Access the Info menu.

2.1

Programmable Buttons

You can program the programmable buttons as shortcuts to specific radio functions through WAVE portal.

MN006371A01-AF

Chapter 2: Radio Overview

Depending on the duration of a button press, the programmable buttons function differently.

2.1.1

Assignable Radio Functions

The following radio functions can be assigned to the programmable buttons by your dealer. Press the Menu/OK button to launch the following features.

NOTE: Not all programmable buttons are listed in the following list, refer to the portal for more information.

Alert Tones

Allows you to toggle the Alert Tones on and off.

Bluetooth

Allows you to toggle the Bluetooth on and off.

Do Not Disturb (DND)

Allows you to toggle between on and off.

Location

Allows you to toggle the Location on and off.

Scan

Allows you to toggle the Scan on and off.

Voice Announcements

Allows you to toggle Voice Announcements on and off.

Chapter 3

Getting Started

This chapter provides instructions on how to prepare your radio for use.

3.1

Turning the Radio On or Off

NOTE: Ignition switch is configurable by your dealer, contact your dealer for more information.

Turning the Radio On

Procedure:

To turn on your radio, press and hold the Power button or activate the ignition switch.

If your radio is turned on successfully, your radio shows the following indications:

• The green LED illuminates.
- The display shows power-on animation.

Turning the Radio Off

Procedure:

To turn off your radio, press and hold the Power button or deactivate the ignition switch.

If your radio is turned off successfully, your radio shows the following indications:

• A tone sounds.
• The display is off.

3.2

Adjusting the Volume

Procedure:

Perform one of the following actions:

• To increase the volume of the radio, press the Volume Up button.
• To decrease the volume of the radio, press the Volume Down button.
  • To mute the radio, press and hold the Volume Down bottom until the display shows x.

3.3

Activating the Preconfigured Wi-Fi Access Point (PWAP)

This feature provides a temporary Wi-Fi connection for the radio to download the configurations from the portal. Instead of the manual configuration through the Maintenance Mode Web Server, you can use the preconfigured Wi-Fi access point for initial Wi-Fi connection.

Prerequisites:

Ensure your radio is in the User Mode and has no internet connection.

NOTE: The following are the preconfigured Wi-Fi Access Point settings supported by the radio.

SSID Password

WaveRadio RadioManagement

Procedure:

To connect to the PWAP, press the Menu/ OK button and Channel Up button simultaneously.

If the radio successfully connects to the PWAP, your radio shows the following indications:

• A positive tone sounds.
- The display shows PWAP for 2 seconds.

Radio downloads the provisioned Wi-Fi Settings from the server and overwrites the preconfigured Wi-Fi setting.

NOTE: The preconfigured Wi-Fi setting is cleared when the radio is rebooted or when the Wi-Fi is disabled.

Chapter 4

Status Indicators

Status Indicators explain the Icons and LED indicators used in your radio.

4.1

Display Icons

The following icons appear on the status bar at the top of the radio display. The icons are arranged left most in order of appearance or usage, and are channel-specific.

Table 4: Display Icons

Icon Description
	Cellular Signal Level
	Cellular Connection Failure
	Cellular Not Connected
	Wi-Fi Signal Level
	Wi-Fi Connection Failure
	Wi-Fi Not Connected
	Bluetooth
	Bluetooth Connected
	Location
	Scan
	Software Available
	Downloading Software
	Logs Available
	Uploading Logs
	Emergency
	Instant Personal Alert

Icon Description

Do Not Disturb

Area Talk Group

More

4.2

LED Indications

The LED Indicator shows the operational status of your radio.

Table 5: LED Indications

Indication Operational Mode
Solid green	• Radio is powering on
	• Radio is transmitting
	• Ambient Listening
Blinking green	• Incoming call
	• During call hang-time
Blinking green slowly	Radio enters Area Talkgroup
Solid amber Emergency is declared
Fast blinking amber	Emergency Alert is received
Blinking amber Instant Personal Alert is received
Blinking amber slowly	Priority Scan is activated
Blinking red Radio out of range
Blinking green and amber	In Do Not Disturb (DND) mode
No indication	• Radio powered off
	• Radio is idle

Chapter 5

Selecting Talkgroup

Procedure:

Press the Channel button.

If navigating up or down the channel is successfully, your radio shows a new channel index and name of the talkgroup.

If navigating up or down the channel is unsuccessful, your radio plays a negative indicator tone sound and remains on the talkgroup channel.

Chapter 6

Fast Scroll Talkgroup List

A talkgroup list has a maximum of 96 channels.

The order of the channels are in numerical order. You can press and hold on the Channel button to perform the fast scroll. After the second channel, you can fast scroll the channels with an increment of 10.

Example: For example, if your radio has 93 channels, the increment channel change is CH 80→CH 90→CH 93→CH 1→CH 10→Ch 20.

Chapter 7

Radio Calls

This chapter explains the operations to receive, respond to, make, and stop calls. Calls supported are Group, Private, and Broadcast calls.

Group Call

A call to a group of user. Your radio must be configured as a member of the group for you to communicate with each other.

Private Call

A call from an individual radio to another individual radio.

Broadcast Call

A call from an individual radio to every radio or user of the broadcast talkgroup.

Used to make important announcements, that require your full attention.

You cannot respond to Broadcast Calls.

7.1

Making Calls on the Radio

Procedure:

1 Perform one of the following actions:

• To make a group call or broadcast call, select Channel→.
• To make a private call, select Contacts/Info→.

2 To call, press and hold the PTT button.

For broadcast call, the display shows a countdown from 3, 2, and 1.

If the PTT button is release before the countdown completes, the call is not initiated.

3 Wait for the Talk Permit Tone to end, and speak into the microphone.

4 To listen, release the PTT button.

NOTE: This step is not applicable for broadcast call.

If your radio does not detect voice activity for a predetermined period, the call ends.

7.2

Receiving and Responding to Calls on the Radio

When you receive calls, your radio shows the following indications:

• The green LED blinks.
• Your radio unmutes and the incoming call sounds through the speaker.

MN006371A01-AF

Chapter 7: Radio Calls

- The display shows the talkgroup name and initiators name.

NOTE: For Broadcast Call, you are not allowed to Talkback. If you attempt to talkback, the Talkback Prohibit tone sounds when the PTT button is pressed.

Procedure:

1 To respond, press and hold the PTT button.
2 Wait for the Talk Permit Tone to end, and speak into the microphone.
3 To listen, release the PTT button.

Chapter 8

Supervisory Override

Supervisory Override allows a supervisor to interrupt during an ongoing call except for Private Call and immediately start a supervisory call.

If the user is receiving or transmitting a call and the current ongoing call is interrupted by a supervisory call, your radio unmutes to the supervisory call and display the alias of the supervisor.

NOTE: Contact your dealer or administrator for more information on the configuration.

Chapter 9

Checking Radio Information

Prerequisites: Turn on your radio.

Procedure:

1 To check the radio information, press and hold the Contacts/Info button.
2 Perform one of the following actions:

• To view the Emergency Alerts received, select Alerts.
• To view the IPA received, select IPA.
• To view the Cellular Status, select Cellular Status.
• To view the Wi-Fi status, select WiFi Status.
• To view the Bluetooth status, select Bluetooth.
  • To clear Bluetooth pairing, select Bluetooth→Unpair?→OK.
• To view the log status, select Logs.
• To view the Firmware Over The Air and Language pack download status, select Software.
• To view the name of the radio, select Radio ID.
• To view the radio serial number, select Serial Number.

Chapter 10

Bluetooth

This feature allows your radio to connect to Bluetooth (BT)-enabled Headsets and Remote Speaker Microphones through BT connection.

BT operates within a range of 10 m (32 ft) line of sight. The BT function of your radio has a maximum power of 2.5 mW (4 dBm) at the 10 m range. This is an unobstructed path between your radio and your BT-enabled device.

If the voice and tone quality gets distorted or unclear, position your radio and the BT-enabled device close to each other to re-establish clear audio reception.

10.1

Turning the Bluetooth On or Off

Turning the Bluetooth On

Procedure:

From the menu, select Bluetooth→√

If the BT is enabled, your radio shows the following indications:

• The display shows BT icon on the home screen.
  • The Voice Announcement sounds.

Turning the Bluetooth Off

Procedure:

From the menu, select Bluetooth→x.

If the BT is disabled, your radio shows the following indications:

• The BT icon disappear on the home screen.
  • The Voice Announcement sounds.

10.2

Viewing Bluetooth Connectivity Status

Procedure:

Press and hold the Contacts/Info button and select Bluetooth.

If your radio is searching for the last connected Bluetooth (BT) device, your radio shows Searching... and sounds the voice announcement.

If your radio is connected to the BT device, your radio shows Connected and sounds the voice announcement.

If your BT device is disconnected from your radio, your radio sounds a tone and attempts to reconnect to the same BT device within a reconnect Time Out.

MN006371A01-AF

Chapter 10 : Bluetooth

10.3

Clearing Bluetooth Pairing

Procedure:

1 Press and hold the Contacts/Info button.
2 Select Bluetooth Pairing→→Menu/OK.

If clearing a paired Bluetooth device successfully, a positive tone sounds.

If clearing an unpaired Bluetooth device, a negative tone sounds.

Chapter 11

Contact List

The contact list always show the first contact on the list based on the last called contact. The second contact and onwards on the list is based on alphabetical order.

The contact list supports user that is available and set to Do Not Disturb (DND). If the contact is offline, it will be hidden from the list.

11.1

Accessing Contact List

Procedure:

Perform one of the following actions:

• To enter Contact List, press the Contacts/Info button.
• To scroll through the Contact List, press the P1 or P2 button.
• To fast scroll the Contact List, press and hold the P1 or P2 button.
• To exit Contact List and return to home screen, press and hold the Back/Home button or wait for the time out timer to expire.

When the time out timer expires, you exit the Contact List automatically.

Chapter 12

Menu

You are able to access the menu through the Menu/OK button.

The following are the available features in the Menu.

Table 6: List of Features

Feature Description

All Alert Tones Allows you to enable and disable All Alert Tones.

Display Brightness Allows you to adjust the display brightness on your radio.

Voice Announcements Allows you to enable and disable the Voice Announcements.

Do Not Disturb (DND) Allows you to change the mode of your radio from available to "do not disturb".NOTE: When DND is enabled, you will not be able to receive any group call, quick group call, or private call.

Scan Allows you to enable and disable the Scan feature.

Location Allows you to enable and disable the location reporting.

Wi-Fi Allows you to enable and disable the Wi-Fi modems.

Cellular Allows you to enable and disable the Cellular modems.

Bluetooth Allows you to enable and disable the Bluetooth.

Speaker Allows you to select between internal speaker or external speaker.

12.1

Turning the All Alert Tones On or Off

Turning the All Alert Tones On

Procedure:

From the menu, select All Alert Tones→√.

All Alert Tones are on and the Voice Announcement sounds.

Turning the All Alert Tones Off

Procedure:

From the menu, select All Alert Tones→x.

All Alert Tones are off and the Voice Announcement sounds.

12.2

Adjusting Display Brightness

Procedure:

1 From the menu, select Brightness.
2 Select your preferred brightness level ranging from 0 to 8.

12.3

Turning the Voice Announcements On or Off

Turning the Voice Announcements On

Procedure:

From the menu, select Voice Announcements→√

The Voice Announcements are on.

Turning the Voice Announcements Off

Procedure:

From the menu, select Voice Announcements→x.

The Voice Announcements are off.

12.4

Turning the DND On or Off

Turning the DND On

Procedure:

From the menu, select DND→√

If DND is on, your radio shows the following indications:

• The Voice Announcement sounds.
- The LED displays a blinking green light and amber light periodically.

Turning the DND Off

Procedure:

From the menu, select DND→x.

If DND is off, the Voice Announcement sounds.

MN006371A01-AF

Chapter 12: Menu

12.5

Turning the Scan On or Off

Turning the Scan On

Procedure:

From the menu, select Scan→√.

Scan is on and the Voice Announcement sounds.

Turning the Scan Off

Procedure:

From the menu, select Scan→x.

Scan is off and the Voice Announcement sounds.

12.6

Turning the Location On or Off

Turning the Location On

Procedure:

From the menu, select Location→√

Location is on and the Voice Announcement sounds.

Turning the Location Off

Procedure:

From the menu, select Location→x.

Location is off and the Voice Announcement sounds.

12.7

Turning the Wi-Fi On or Off

Turning the Wi-Fi On

Procedure:

From the menu, select Wi-Fi→√.

Wi-Fi is on and the Voice Announcement sounds.

Turning the Wi-Fi Off

Procedure:

From the menu, select Wi-Fi→x.

Wi-Fi is off and the Voice Announcement sounds.

12.8

Turning the Cellular On or Off

Turning the Cellular On

Procedure:

From the menu, select Cellular→.

Cellular is on and the Voice Announcement sounds.

Turning the Cellular Off

Procedure:

From the menu, select Cellular→x.

Cellular is off and the Voice Announcement sounds.

12.9

Switching between Speaker Mode

Procedure:

1 From the menu, select Speaker.
2 Perform one of the following actions:

• To enable internal speaker, select Internal.
• To enable external speaker, select External.

The Voice announcement sounds.

Chapter 13

Instant Personal Alert

Instant Personal Alert (IPA) is a notification that you can send to a contact that is busy or unable to reply to a group or private call.

When you received an IPA, your radio sounds a tone and displays an icon and the sender alias.

The IPA received is stored in the IPA Status List and allows you to view and reply at any time. When multiple IPAs are received, the latest IPA will appear at the top of the list. The IPA Status List can store up to nine alerts.

If you have a private call with the sender of the IPA, then the IPA is automatically cleared.

13.1

Sending IPA

Procedure:

Select Contacts/Info→→Menu/OK button.

Your radio shows the following indications:

- A tone sounds.

• The display shows Alert Sent.

13.2

Receiving IPAs

When you receive an IPA during idle mode, your radio shows the following indications:

• The IPA is added to the IPA Status List.
- A tone sounds.
• The amber LED blinks until IPA is cleared.
- The display shows the IPA icon and alias.

13.3

Viewing IPA List

Procedure:

Press and hold the Contacts/Info button and select IPA.

The display shows the latest IPA received, followed up to eight remaining alerts.

13.4

Clearing IPA Status List

Procedure:

Perform one of the following actions:

- From the contact list or IPA list, select the contact that you want to clear and press and hold the PTT button to make a call.

• In the IPA Status List, select the IPA that you want to clear and press and hold the Menu/OK button.
• Power cycle your radio to clear all the IPAs.

Chapter 14

Emergency Operation

There are two ways in declaring or canceling an Emergency.

You can declare or cancel an Emergency locally by pressing the Emergency button.

You can also declare or cancel an Emergency remotely by an authorized user through WAVE APP or a dispatcher.

When Emergency is declared and radio enters into Emergency mode successfully, your radio shows that it is in emergency. When the display flashes the Emergency icon, you are only allowed to view the volume control, make an emergency call, and exit the emergency mode.

During the Emergency mode, any call launched is declared as Emergency Call and certain features like changing a talkgroup is restricted.

Depending on your configuration, there are two types of emergency call initiation. For manual type, when an Emergency call is initiated, the Emergency Alert is sent, you need to press and hold the PTT button to initiate emergency call. For automatic type, when an Emergency call is initiated, both alert is sent and an emergency call is initiated without the need to press and hold the PTT button. Your radio microphone is automatically activated for 10 s and stop transmitting when the duration expires.

14.1

Declaring Emergency

Procedure:

Press and hold the Emergency button.

The display shows a countdown from 3, 2, and 1 with increasing tone.

If the Emergency button is released before the countdown is over, the Emergency is not initiated.

If Emergency is declared successfully, your radio shows the following indications:

• The Emergency tone sounds.

• The amber LED illuminates.

• The display shows Emergency icon.

If Emergency is failed to declare, your radio returns to the previously selected channel.

14.2

Cancelling Emergency

Procedure:

Press and hold the Emergency button during the Emergency.

The display shows a countdown from 3, 2, and 1 with increasing tone.

If the Emergency button is released before the countdown is over, the Emergency is not cancelled and the radio remains in Emergency mode.

If Emergency is cancelled successfully, the display returns to previously selected channel.

14.3

Receiving Emergency Alerts

When you receive a Declared-Emergency Alert, your radio shows the following indications:

• The Emergency tone sounds.
- The Emergency Alert is added to the Emergency Alert List.
• The amber LED blinks.
- The display shows the Declared-Emergency Alert icon in the status bar and the initiator's alias.
- The alert has a higher priority compare to making or receiving call.

When you receive a Cancelled-Emergency Alert, your radio shows the following indications:

• The Emergency tone sounds.

- The Emergency Alert is removed from the Emergency Alert List.

- The display shows the Cancelled-Emergency Alert icon and the initiator's alias.

- The alert has a higher priority compare to making or receiving call.

14.4

Responding to Emergency Alert

Procedure:

1 Press and hold the Contacts/Info button.
2 Select Emergency Alert→.
If the Emergency Alert List is empty, the Emergency Alert is not displayed.
3 To call, press and hold the PTT button.

14.5

Receiving Emergency Calls

When you receive a Emergency Call, your radio shows the following indications:

• The Emergency tone sounds.
• The green LED blinks.
- For Group call, the display shows the Talkgroup channel alias, then scroll the Emergency icon before the initiator's Alias.
- For Private Call, the display shows the Emergency Call icon an the the initiator's alias.

14.6

Clearing Emergency Alert List

Prerequisites: An Emergency Alert in the Emergency Alert List is cleared when a corresponding Cancelled-Emergency Alert is received. Else, manually clear the list with the following actions.

Procedure:

Perform one of the following actions:

- In the Emergency Alert List, select the Emergency Alert Alias and press and hold the Menu/OK button.

MN006371A01-AF

Chapter 14: Emergency Operation

- Power cycle your radio to clear all the Emergency Alerts.

When all Emergency Alerts are cleared, the Emergency Alert icon is removed from the Status bar, the Emergency Alert is not displayed from the Contacts/Info button option, and the amber LED extinguishes.

Chapter 15

Area Talkgroup

When you enter a geographic area, you are able to view and hear the notifications for the talkgroup area in that geofence.

The Area Talkgroup is added to the Area Talkgroup List in alphabetical order. Once you are added to the Area Talkgroup List, your radio receives calls from both Area Talkgroup and the Talkgroup Channel before you enter into the Area Talkgroup zone. You can use the Channel button to navigate through the Talkgroup Channel List and into the Area Talkgroup List. The Channel Number is not displayed when you are in Area Talkgroup.

When you are in the Area Talkgroup, your radio sounds the Voice Announcement, the green LED blinks, and the display shows the talkgroup alias when you press and hold the Menu/OK button to join the talkgroup. If you do not select the talkgroup during that time, the Area Talkgroup is placed at the end of the channel list, you may need to manually select the talkgroup when desired.

When calling without selecting the Area Talkgroup, the current talkgroup receives the call.

When you exit the Area Talkgroup, your radio sounds the Voice Announcement and the display shows the talkgroup alias as well. If you are in a call when you exit the Area Talkgroup, the call continues without dropping. When the call finally terminates, your radio then exit the Area Talkgroup.

If the Area Talkgroup is removed, you will go back to your previous channel.

Chapter 16

Radio Stun

Radio Stun indicates that the radio is disabled.

When your radio is in Radio Stun mode, all the buttons are disabled except for the Power, Contacts/Info (only Info is available), P1, P2, and Volume Up and Down buttons. All Alert Tones and Voice Announcements are enabled, but all voice activity, including Emergency are disabled.

In powered on state, press and hold on the Contacts/Info button displays the Radio Stun screen prior to showing the Status Info screen.

Chapter 17

User Disabled or Suspended

User Disabled or Suspended indicates that your account is disabled or suspended. When your account is disabled or suspended, you are not able to login to the PTT server.

Your radio sounds a tone, red LED blinks, and the User Disable screen.

The Contacts/Info, Menu/OK, and Volume Up and Down buttons still works normally.

Chapter 18

Ambient Listening

This feature allows the authorized user to listen to the ambient audio of a specific radio during idle mode.

When an authorized user starts ambient listening on a specific radio, the radio plays a tone, displays the ambient listening display and alias of the authorized user. Ambient listening stops when a different type of call is initiated or received or when the authorized user ends the ambient listening call.

NOTE: This feature works best with the omnidirectional visor microphone (GMMN4065_).

Chapter 19

Authorized Accessories List

Table 7: Audio

Part Number Description
AC000240A01 Wideband External Speaker 16 W
GMMN4065_ Visor Microphone (omni-direction)
PMMN4127 ^1	Bluetooth RSM
PMMN4129_ Wideband Compact Microphone

Table 8: Antenna

Part Number Description

AN000358A01 Dash mount LTE (main and diversity) antenna

AN000359A01 Active LNA dash or window mount GNSS antenna

Table 9: Cables

Part Number Description

CB000935A01 Giboshi Terminal Adapter (Japan model only)

HKN4137_Mobile Power Cable 10 ft, 14 AWG, 15 A

HKN9327_R Ignition Switch Cable

PMKN4147_Front Telco MMP USB Programming Cable

PMLN8153_Power Supply Adaptor and Cable

Table 10: Mounting Accessory

Part Number Description

FTN6083_DIN Mounting Accessory

RLN6466_Low Profile Trunnion Kit

RLN6467_High Profile Trunnion Kit

RLN6468_Key Lock Trunnion

Table 11: Other Accessories

Part Number Description

GMBN1021_Rear Accessory Connector Seal with Pins

HLN6325_Diode kit

HLN9457_16 Pin MAP Connector Kit

Part Number Description

PMLN5620_ Connector Extender (20 pieces)

PMPN4076_ Wedge Power Supply

RLN4836_R Emergency Footswitch

RLN4856_ Remote Mount Footswitch PTT

RLN4857_ Push Button with Remote PTT

Table des matières

Activer le mode NPD....30

Désactiver le mode NPD....30

12.5 Activer et désactiver le balayage....31

Activer le balayage....31

Désactiver le balayage....31

VI. DISPOSITIONS RELATIVES AUX BREVETS ET AUX LOGICIELS

WaveRadio Gestion radio

Procédure :

Nome: Motorola Solutions, Inc.

Endereço: 2000 Progress Pkwy, Schaumburg, IL. 60196

Telephone: [phone]

WaveRadio RadioManagement

Procedimento:

© 2022 Motorola Solutions, Inc. All Rights Reserved

法的および準拠に関する声明

供給元の適合宣言

供給元の適合宣言

Per FCC CFR 47 Part 2 Section 2.1077(a)

責任者

名前: Motorola Solutions, Inc.

住所: 2000 Progress Pkwy, Schaumburg, IL.60196

WaveRadio RadioManagement

手順:

Bab 8: Supervisory Override....24

Bab 9: Memeriksa Informasi Radio.... 25

Bab 10: Bluetooth....26

10.1 Mengaktifkan atau Menonaktifkan Bluetooth....26
Mengaktifkan Bluetooth....26
Menonaktifkan Bluetooth.... 26
10.2 Melihat Status Konektivitas Bluetooth.... 26
10.3 Menghapus Pemasangan Bluetooth....27

WaveRadio RadioManagement

Prosedur:

Tekan tombol Channel.

Supervisory Override
