AB-1000 - Fridge NewAir - Free user manual and instructions

Brand	NewAir
Model	AB-1000
Product Type	Beverage Refrigerator
Capacity	100 cans (2.4 ft³)
Rated Voltage	110-120 V
Frequency	60 Hz
Energy Consumption	60 W
Noise Level	42 dB
Temperature Range	37 °F to 64 °F (3 °C to 18 °C)
Refrigerant	R600a (flammable)
Door Type	Reversible Glass Door
Interior Lighting	LED (separate switch)
Temperature Adjustment	Rotary knob from level 1 (warmest) to 5 (coldest)
Number of Shelves	Adjustable shelves with retaining bar
Material	Stainless steel (exterior)
Installation	Freestanding, 10 cm clearance around
Cleaning	Warm water and baking soda for interior; mild detergent for exterior
Safety	Grounding required; do not use power strips; do not damage refrigeration circuit
Manufacturer Warranty	1 year (parts and labor)
Customer Service	[e-mail] / 1-855-963-9247

Frequently Asked Questions - AB-1000 NewAir

How to adjust the temperature of the AB-1000 refrigerator?

Use the temperature control knob inside. Levels range from 1 (warmest) to 5 (coldest). Set it according to your needs. To turn off the compressor, set it to 0.

Can I reverse the door opening direction?

Yes, the door is reversible. Unplug the appliance, remove the upper and lower hinges, then reinstall them on the opposite side. Use a Phillips and flathead screwdriver.

How to clean the interior of the cooler?

Unplug the appliance and remove all items. Clean the interior with a solution of warm water and baking soda (2 tablespoons per liter). Wipe the shelves with a mild detergent. Dry completely before plugging back in.

What to do if the refrigerator makes a loud or unusual noise?

Check that the appliance is level and on a stable surface. Move it away from walls or objects. Compressor humming and refrigerant cracking sounds are normal, especially at start-up or shut-off.

The interior light does not turn on, what should I do?

Ensure the appliance is plugged in and the LED switch (inside, right side) is on. If the bulb is burnt out, it can be replaced. Contact support if needed.

The refrigerator is not cooling enough, what are the possible causes?

Check that the door is properly closed, not opened too long, the temperature setting is sufficient (level 5 for coldest), and the appliance is not exposed to sunlight or near a heat source. Also ensure 10 cm clearance around for ventilation.

How much space should be left around the appliance for proper ventilation?

Leave at least 10 cm (4 inches) of free space above, at the back, and on the sides. This allows sufficient air circulation for the compressor and condenser.

How to prepare the appliance for long-term storage?

Unplug it, empty it, clean it, dry completely, then leave the door open to prevent mold. You can place a towel inside to absorb residual moisture.

What is the power consumption of the AB-1000 model?

The consumption is 60 W, which corresponds to about 0.06 kWh per hour of operation. As an indication, the annual cost depends on your electricity rate and usage.

What to do if the appliance is defective under warranty?

Contact NewAir customer service by phone [phone]) or email ([e-mail]). Have your proof of purchase ready. The 1-year warranty covers parts and labor, but not shipping costs.

USER MANUAL AB-1000 NewAir

100 Can Beverage Fridge

A Name You Can Trust

Trust should be earned and we will earn yours. Customer happiness is the focus of our business.

From the factory to the warehouse, from the sales floor to your home, the whole Newair family promises to provide you with innovative products, exceptional service, and support when you need it the most.

Count on Newair

As a proud Newair owner, welcome to our family. There are no robots here, real people shipped your product and real people are here to help you.

Contact Us

Please reach out to our customer service team before making a return to your store of purchase. We are happy to help with any questions or concerns!

Mon-Fri from 8-4 PST at:

Call: 1-855-963-9247

Email: [e-mail]

Online: www.newair.com

A team member will respond to you within 24 hours.

Follow Us

Facebook.com/newairusa

Instagram.com/newairusa

YouTube.com/newairusa

Twitter.com/newairusa

READ AND SAVE THESE INSTRUCTIONS.

TABLE OF CONTENTS

Specifications. 5

Register Your Product Online. 6

Safety Information &Warnings. 7

Warning. 7

Parts List. 9

Wiring Diagram 9

Installation Instructions. 10

Reversing the Door Swing. 11

Operating Instructions 12

Cleaning & Maintenance 13

Preparing For Long-Term Storage 13

Cleaning The Fridge 13

Moving The Fridge 13

Troubleshooting 14

Limited Manufacturer's Warranty. 15

SPECIFICATIONS

MODEL NO.	AB-1000
VOLTAGE:	110V-120V
NOISE LEVEL:	42dB
FREQUENCY:	60Hz
POWER CONSUMPTION:	60W
CAN CAPACITY:	100 Cans
STORAGE CAPACITY:	2.4 cu. ft.
TEMPERATURE RANGE:	37°F - 64°F
REFRIGERANT:	R600a

REGISTER YOUR PRODUCT ONLINE

Register Your Newair Product Online Today!

Take advantage of all the benefits product registration has to offer:

Service and Support

Diagnose troubleshooting and service issues faster and more accurately

Recall Notifications

Stay up to date for safety, system updates and recall notifications

Special Promotions

Opt-in for Newair promotions and offers

Registering your product information online is safe & secure and takes less than 2 minutes to complete:

newair.com/register

Alternatively, we recommend you attach a copy of your sales receipt below and record the following information, located on the manufacturer's nameplate on the rear of the unit. You will need this information if it becomes necessary to contact the manufacturer for service inquiries.

Date of Purchase:

Serial Number:

Model Number:

SAFETY INFORMATION &WARNINGS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

Before using the appliance, please read this user manual to ensure that you gain the maximum benefit from it.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, unless under supervision by a person responsible for their safety.
• This appliance can be used by children 8 years and above under close adult supervision. Please ensure that children do not play with the appliance.
• Cleaning and user maintenance shall not be made by children.
• If the supply cord is damaged, it must be replaced by the manufacturer or a qualifies technician in order to avoid a hazard.
• To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.
• When positioning the appliance, ensure the supply cord is not tangled or damaged.
• Do not use multiple portable socket-outlets to the appliance.
• Keep ventilation openings clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, unless recommended in this manual.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the drink storage compartments of the appliance.
• Do not store explosive substances such as aerosol cans inside this appliance.
• This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working or similar residential environments.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances under adult supervision.

• To avoid spoilage of drinks, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
  Clean regularly surfaces that can come in contact with drinks and accessible drainage systems.
  If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mold developing inside the appliance.

Note: This appliance contains flammable refrigerant R600a and foaming agent cyclopentane. Please avoid contact fire when you transport and use it. Please ensure a professional technician does any repairs or servicing when needed. Please send it to your local appointed disposal station to discard.

Correct disposal of this product

This symbol on the product, or in its packaging, indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product. For more detailed information about the recycling of this product, please contact your local council, your household waste disposal service, or the shop where you purchased the product.

• SAVE THESE INSTRUCTIONS -

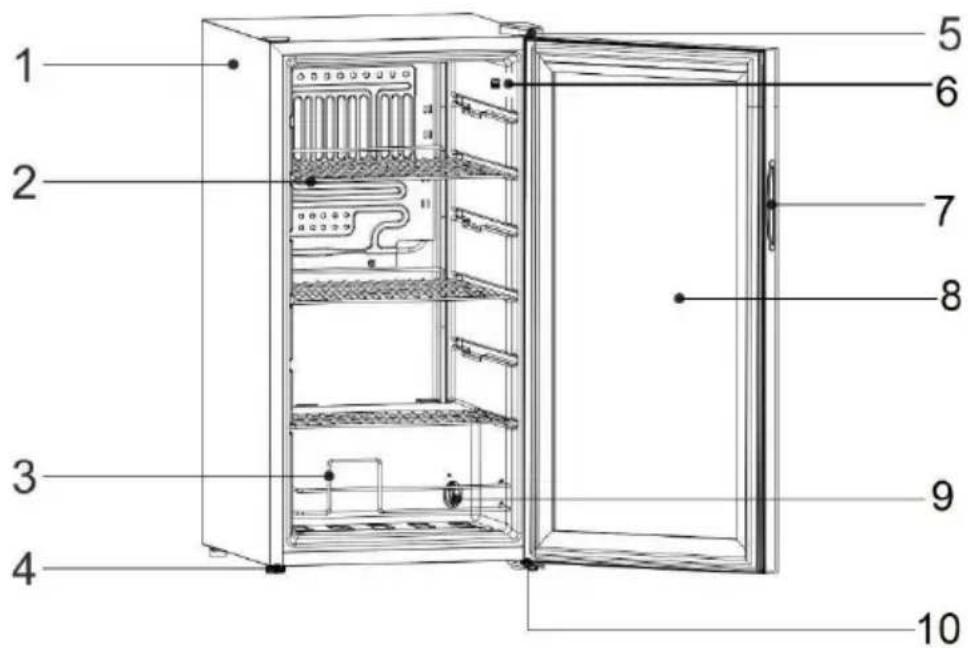

PARTS LIST

1. Cabinet

2. Light switch

3. Shelf

4. Door handle

5. Retainer bar

6. Glass door

7. Levelling foot

8. Temperature control

9. Upper door hinge

10. Bottom hinge

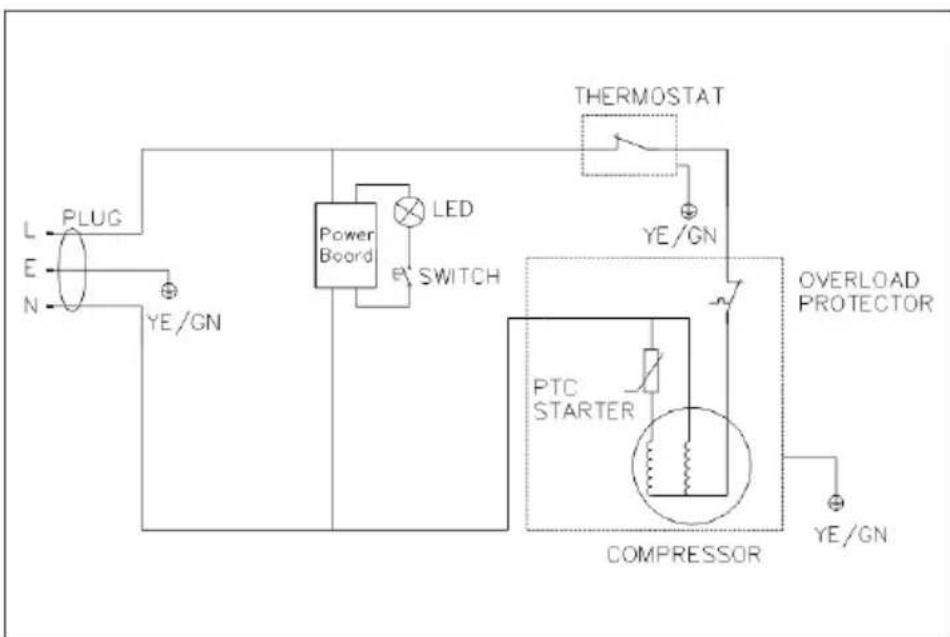

WIRING DIAGRAM

INSTALLATION INSTRUCTIONS

• This appliance is designed to be free standing only, and should not be recessed or built-in.
• Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded. To level your appliance, adjust the leveling feet at the bottom of the appliance.
• Allow at least 4 inches (10 cm) of space between the top, the back and sides of the appliance, which allows the proper air circulation to cool the compressor and condenser.
• Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
• Avoid locating the appliance in moist areas or where it could be in close contact with water.
• Plug the unit into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center.
• After plugging the appliance into a wall outlet, allow the appliance to cool down for 2-3 hours before placing any items in the compartment.
• To turn on internal LED lights, use the interior switch that is located inside appliance on the right side of the device.

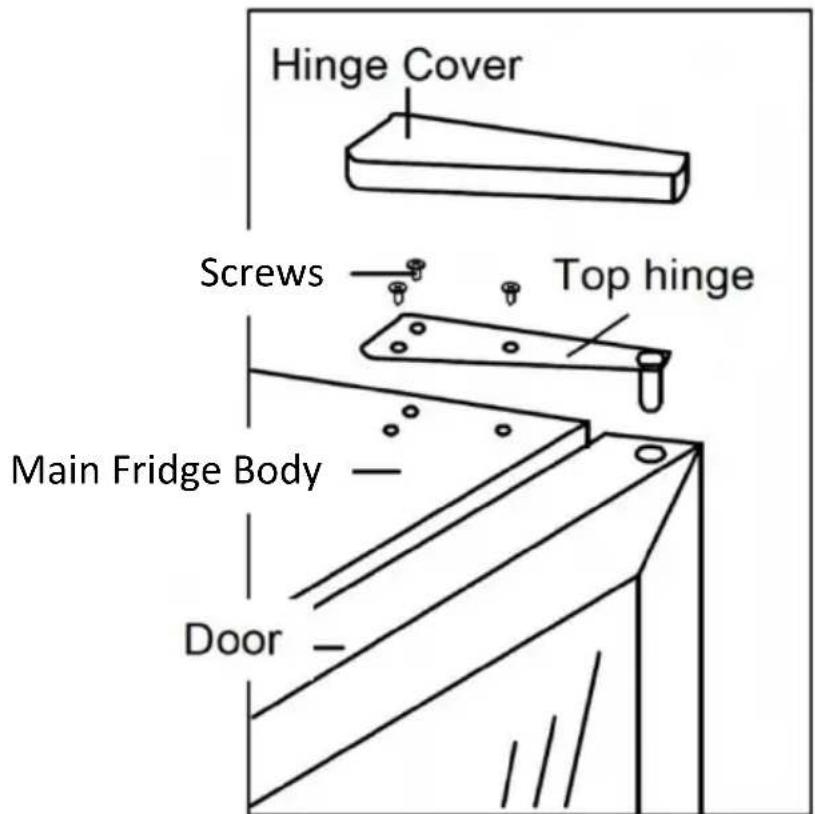

REVERSING THE DOOR SWING

Tools needed: flathead screwdriver, Phillips head screwdriver

CAUTION: Before you begin, unplug the fridge from power.

To remove the door:

1. Using a flathead screwdriver carefully pry the plastic hinge cover off.
2. Using a Phillips head screwdriver, remove the screws and take off the top hinge. Keep the parts together and set them aside.
3. Lift the door off the bottom hinge and set the door aside.
4. Remove the bottom hinge by removing the screws with a Phillips head screwdriver.

To reinstall the door:

1. Using a flathead screwdriver, remove the plugs and cover from the opposite corner of the top front of the fridge. Set aside.
2. Install the bottom hinge at the opposite corner and fasten the screws.
3. Position the door on the bottom hinge.
4. Align the door on the bottom hinge and install the top hinge.
5. Push the plugs and covers into the corresponding holes on the original hinge insert.

OPERATING INSTRUCTIONS

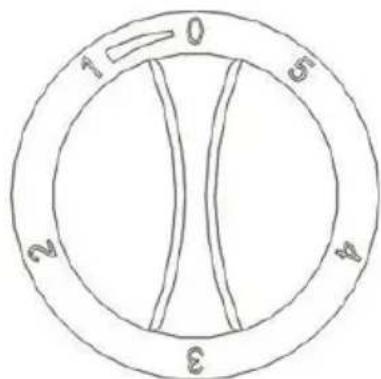

Setting the Temperature Control

1. The marks on the temperature control knob do not represent the specific temperature value, but the level of increased or decreased temperature. Level 5 means the lowest temperature and Level 1 means the highest. Users can adjust the temperature control knob according to their needs.
2. If the ambient temperature is high, and the temperature control knob is set to "5" the compressor will work continuously.
3. Before the refrigerator is powered off, please set the gear to "0".
4. If the power supply of the refrigerator is cut off, please wait at least 5 minutes to restart. If turned on before this time, the refrigerator may not work properly.
5. When the temperature control knob is set to "0", the compressor will stop working, but the power supply of the refrigerator will not be cut off.

CLEANING & MAINTENANCE

PREPARING FOR LONG-TERM STORAGE

If the fridge will not be used for a long time, it will be necessary to defrost the unit and completely dry the interior.

1. Disconnect the fridge from the power supply by removing the plug from the wall socket.

WARNING: Do not touch the plug when your hands are wet. Never unplug the unit by pulling the cord.

1. Leave the door open until the unit is completely dry inside. Place a towel at the bottom of the inside of the unit to prevent leakage onto the floor.

CAUTION: Store the unit out of the reach of children. If you have children, you may want to take additional precautions such as removing the door.

CLEANING THE FRIDGE

• Unplug from power and remove all items, including shelves.
• Wipe the interior with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to one quart of water.
• Wipe down the shelves with a mild detergent solution.
• Wipe down the outside of the fridges with warm water and mild liquid detergent.
• Do not use steel wool or a steel brush on the stainless steel. These will erode the stainless steel and cause it to rust.

CAUTION: Failure to unplug the appliance before cleaning could result in electric shock or personal injury.

MOVING THE FRIDGE

• Remove all items from inside the appliance.
• Leave the door open until the unit is completely dry inside. Place a towel at the bottom of the inside of the unit to prevent leakage onto the floor.
• Securely tape down shelves inside the unit, and tape the door shut.
• Turn the adjustable legs up into the base to avoid damaging them.
• Keep upright throughout all transportation.

TROUBLESHOOTING

You may try to solve the following simple problems by yourself. If you need further assistance, please contact customer service.

The refrigerator is not working	·Check whether the appliance is connected to power or whether the plug is in solid contact. ·Check whether the voltage is too low. ·Check whether there is a power failure or circuits have been tripped.
Light fails to turn on	·Check if the light switch was not pressed. ·Check to see if the power is on or connected.
Loud noises	·Check whether the floor is leveled and whether the refrigerator is on a stable surface. ·Check if the product is in contact with external objects or walls. ·Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal. ·Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.
The internal temperature is not cool enough	·The door may not be closed tightly, opened frequently, or for too long. ·The temperature setting may be inadequate, try adjusting the temperature setting. ·The appliance may be exposed to direct sunlight or too close to other heat sources. ·There might be poor heat dissipation, if there is not enough cooling space around the product.

LIMITED MANUFACTURER'S WARRANTY

This appliance is covered by a limited manufacturer's warranty. For one year from the original date of purchase, the manufacturer will repair or replace any parts of this appliance that prove to be defective in materials and workmanship, provided the appliance has been used under normal operating conditions as intended by the manufacturer.

Warranty Terms:

During the first year, any components of this appliance found to be defective due to materials or workmanship will be repaired or replaced, at the manufacturer's discretion, at no charge to the original purchaser. The purchaser will be responsible for any removal or transportation costs.

Warranty Exclusions:

The warranty will not apply if damage is caused by any of the following:

Power failure
- Damage in transit or when moving the appliance
- Improper power supply such as low voltage, defective household wiring or inadequate fuses
- Accident, alteration, misuse or abuse of the appliance such as using non-approved accessories, inadequate air circulation in the room or abnormal operating conditions (extreme temperatures)
- Use in commercial or industrial applications
- Fire, water damage, theft, war, riot, hostility or acts of God such as hurricanes, floods, etc.
- Use of force or damage caused by external influences
- Partially or completely dismantled appliances
- Excess wear and tear by the user

Obtaining Service:

When making a warranty claim, please have the original bill of purchase with the purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a Newair™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or units will be new, re-manufactured or refurbished and is subject to the manufacturer's discretion. For technical support and warranty service, please email [e-mail].
