Product Type	Compact Refrigerator
Brand	NewAir
Model	ABR-960
Dimensions (W x D x H)	17.5 x 18.5 x 19.5 inches
Weight	30 lbs
Power Supply	120V AC, 60Hz, 100W
Temperature Range	32°F to 50°F (0°C to 10°C)
Energy Consumption	Approx. 250 kWh/year
Capacity	2.6 cu ft
Number of Shelves	2 wire shelves
Door Type	Reversible, solid door
Adjustable Thermostat	Yes, rotary dial
Interior Light	Yes, LED
Defrost Method	Manual defrost
Refrigerant Type	R600a (isobutane)
Noise Level	Approx. 35 dB
Climate Class	N/ST (normal to subtropical)
Warranty	1 year limited
Cleaning	Clean interior with mild soap; vacuum condenser coils every 6 months
Safety Features	Leveling legs for stability; avoid extension cords
Spare Parts Available	Shelves, door gasket, thermostat
Repairability	User-replaceable parts; professional service recommended for compressor
Recommended Use	Indoor, household or office

Frequently Asked Questions - ABR-960 NewAir

How do I adjust the temperature on my NewAir ABR-960 refrigerator?

Turn the thermostat dial located inside the refrigerator. The dial typically has settings from 1 (warmest) to 7 (coldest). Start at 3 or 4 and adjust as needed. Allow 24 hours for temperature to stabilize.

Why is my refrigerator making unusual noises?

NewAir refrigerators may produce sounds such as gurgling, clicking, or humming. This is normal due to refrigerant flow and the compressor. If noises are loud or persistent, ensure the unit is level on a hard surface. Check that nothing is vibrating against the back panel.

Can I reverse the door on my ABR-960?

Yes, the door is reversible. Instructions are in the manual: remove the top hinge, lift the door, and install the hinge on the opposite side. You may need a screwdriver and a helper. Ensure the door closes tightly after reversal.

How do I defrost my refrigerator?

This model requires manual defrost. Unplug the unit, remove food and shelves, and leave the door open. Place towels to absorb melting water. Do not use sharp objects to remove ice. Clean and dry before restarting.

How often should I clean the condenser coils?

Clean the condenser coils every 6 months to maintain efficiency. Unplug the unit, locate the coils at the back or bottom, and use a vacuum with a brush attachment. Dust buildup can cause poor cooling and increased energy use.

What is the energy consumption of the ABR-960?

The estimated annual energy consumption is 250 kWh. Actual usage depends on ambient temperature, door openings, and thermostat setting. For optimal efficiency, keep the refrigerator away from heat sources and ensure proper ventilation.

Why is ice forming inside my fridge?

Ice buildup is usually due to frequent door openings, a worn door gasket, or setting the thermostat too cold. Check that the door seals properly. Defrost manually and adjust temperature to a warmer setting if necessary.

What should I do if my refrigerator is not cooling?

First, ensure the unit is plugged in and the outlet has power. Check that the thermostat is not set to '0' or 'off'. Clean the condenser coils. If still not cooling, the compressor or refrigerant may be faulty. Contact NewAir support.

Can I store beverages and food together in this fridge?

Yes, the ABR-960 is designed for general food and beverage storage. However, avoid overloading shelves to allow proper air circulation. Keep raw meat sealed and on lower shelves to prevent cross-contamination.

What are the installation clearance requirements?

Allow 5 inches (12.7 cm) of clearance on the back and sides for ventilation, and at least 1 inch (2.5 cm) above the unit. Place on a level, hard surface away from direct sunlight and heat sources like ovens or radiators.

USER MANUAL ABR-960 NewAir

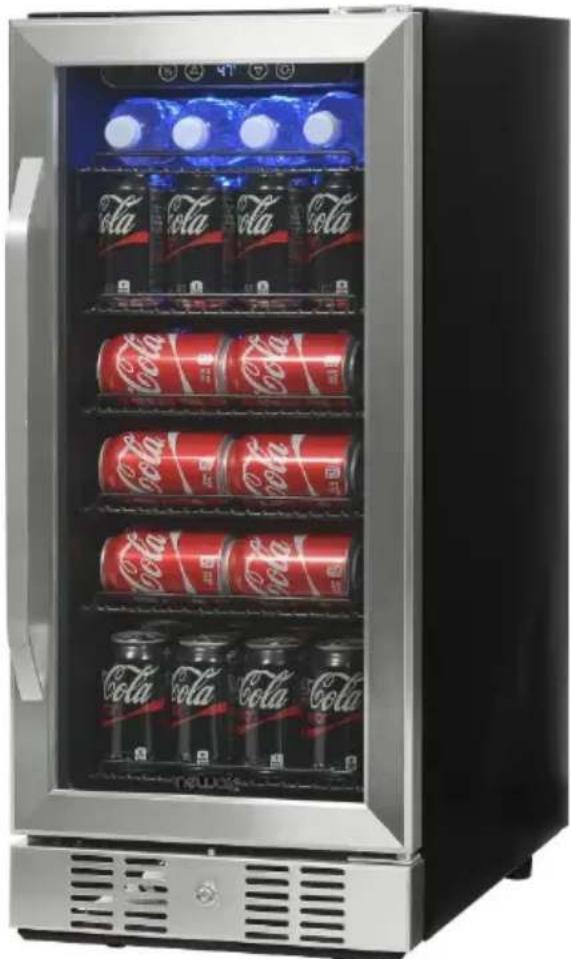

96-Can Beverage Cooler

Exterior view of a modern stainless steel beer refrigerator with multiple Coca-Cola cans on the glass (no visible text or labels)

OWNER'S MANUAL

Read and save these instructions.

A Name You Can Trust

Trust should be earned and we will earn yours. Customer happiness is the focus of our business.

From the factory to the warehouse, from the sales floor to your home, the whole NewAir family promises to provide you with innovative products, exceptional service, and support when you need it the most.

Count on NewAir.

As a proud NewAir owner, welcome to our family. There are no robots here, real people shipped your product and real people are here to help you.

Contact Us:

For questions regarding your product, please contact us at:

Call: 1-855-963-9247

Email: [e-mail]

Online: www.newair.com

Connect with Us:

facebook.com/newairusa

instagram.com/newairusa

youtube.com/newairusa

twitter.com/newairusa

READ AND SAVE THESE INSTRUCTIONS.

TABLE OF CONTENTS

Register Your Product Online....4

Safety Information & Warnings....5

Parts List 6

Installation....8

Operating Instructions....9

Cleaning & Maintenance .... 10

Troubleshooting....11

Limited Manufacturer's Warranty....13

SPECIFICATIONS

MODEL NO.	ABR-960
VOLTAGE:	110-120V
CURRENT:	1.2A
FREQUENCY:	60Hz
POWER CONSUMPTION:	90W
STORAGE CAPACITY:	3.2 cubic feet
TEMPERATURE RANGE:	36°F - 66°F
PROTECTION CLASS:	I
CLIMATE CLASS:	T/ST/N/SN
PRODUCT WEIGHT:	76 lbs
SHIPPING WEIGHT:	91 lbs
UNIT DIMENSIONS (W X D X H):	14.8” x 22.4” x 33.9”

REGISTER YOUR PRODUCT ONLINE

Register Your NewAir Product Online Today!

Take advantage of all the benefits product registration has to offer:

Service and Support

Diagnose troubleshooting and service issues faster and more accurately

Recall Notifications

Stay up to date for safety, system updates and recall notifications

Special Promotions

Opt-in for NewAir promotions and offers

Registering your product information online is safe & secure and takes less than 2 minutes to complete:

newair.com/register

Alternatively, we recommend you attach a copy of your sales receipt below and record the following information, located on the manufacturer's nameplate on the rear of the unit. You will need this information if it becomes necessary to contact the manufacturer for service inquiries.

Date of Purchase: ____

Serial Number: ____

Model Number: ____

SAFETY INFORMATION & WARNINGS

Warning symbol with exclamation mark inside a triangle (no text or numbers)

When using any electrical appliance, basic safety precautions must be followed in order to reduce the risk of fire, electrical shock and/or injury to persons or property. Be sure to read all instructions before using this appliance and observe the following safety tips:

Attention: To avoid the risk of child entrapment, do not allow children to operate, play with, or crawl inside the unit. If the unit will not be used for an extended period of time, remove the door and leave the shelves in place so that children cannot crawl inside. Also remove the door when disposing of the unit.

Shock Hazard – Electrical Grounding Required

• Never attempt to repair or perform maintenance on the unit until the electricity has been disconnected.
• Never remove the round grounding prong from the plug and never use a two-prong grounding adaptor.
• Altering or cutting of power cord, removal of power cord, removal of power plug, or direct wiring can cause serious injury, fire, and loss of property and/or life, and will void the warranty.
• Never use an extension cord to connect power to the unit.
• Avoid operating this cooler in excessively moist or humid environments.

Important Precautions:

• Do not lift unit by door handle.
• Never install or operate the unit behind closed doors.
• Be sure the kick-plate on the front bottom is free of obstruction. Obstructing airflow can caused the unit to malfunction and will void the warranty.
• Failure to clean the condenser every six months can cause the unit to malfunction.
• Allow unit temperature to stabilize for 24 hours before use.
• Do not block any internal fans.
• Keep the cooler away from hazardous materials or combustible/flammable substances.
• Use only genuine supplier's replacement parts. Imitation parts can damage the unit, affect its operation or performance, and may void the warranty.

PARTS LIST

1、Right upper Hinge
2、Light switch
3、Temperature setting
4、Temperature display
5、Temperature setting
6、Temperature switch
7、Light

8、Fan
9、Carbon filter
10、NTC point
11、Exhaust window
12、Shelf
13、Exhaust window
14、Foot

15、Door seal
16、Glass
17、Handle
18、Lower Hinge
19、Lock

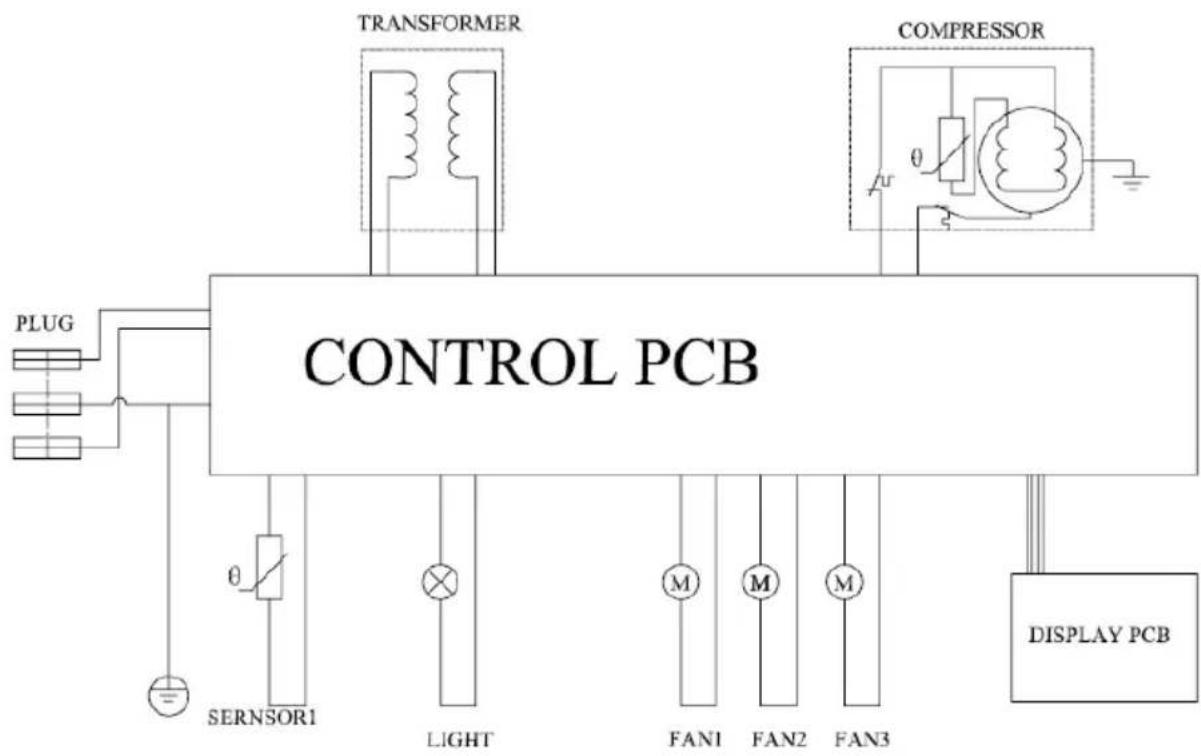

ELECTRICAL CIRCUIT DIAGRAM

INSTALLATION

Before connecting the appliance to a power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

Before operating your cooler for the first time, follow these steps:

• Remove the exterior and interior packing.
• Clean the interior surface of the unit with lukewarm water and a soft cloth.
• Place the cooler on a level surface that will be strong enough to support the unit when it is fully loaded. To level your cooler, adjust the front feet located at the bottom of the unit.

OPERATING INSTRUCTIONS

HOW TO USE THE BUTTONS ON THE DISPLAY PANEL

Raise the desired temperature. *

Lower the desired temperature. *

* To set the temperature, press the UP or DOWN button on the control panel. The interior temperature can be adjusted in increments of 1 degree between 36^ F and 66^ F (2° - 18°C).

The interior light can be turned on or off by pressing the "Light" button.

ADDITIONAL NOTES

• The appliance should not be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience.
• Children should not play with the appliance. Cleaning and user maintenance should be performed under adult supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a safety hazard.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or means other than those recommended by the manufacturer to accelerate the defrosting process.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances other than those recommended by the manufacturer inside the storage compartments of the appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in the appliance.
• This appliance is intended for use only in the household, office and similar environments.

CLEANING & MAINTENANCE

CLEANING YOUR COOLER

To clean your cooler:

• Unplug the cooler and remove anything inside.
- Wash the inside of the unit with a solution made of warm water and baking soda solution (2 tablespoons of baking soda to one quart of water).
- Unscrew the water reservoir at the bottom of the unit and rinse with water.
• To clean the outside of the unit, use a mild detergent and warm water.

MOVING YOUR COOLER

To move your cooler:

• Remove anything stored inside.
• Securely tape down all loose parts located inside the unit.
• Turn the leveling feet up to the base in order to avoid damage.
• Tape the door shut.
• Be sure the cooler stays in an upright position during transportation.

TROUBLESHOOTING

Problem	Possible Causes	Solution
Cooler does not operate.	The unit may be plugged in using a different voltage.	Check if using the wrong voltage.
	The circuit breaker may be tripped or there is a blown fuse.	Reset the circuit breaker or check for a broken fuse
Cooler is not cold enough.	The external environment may require a higher setting.	Lower the temperature of the cooler.
	The door may be opened too frequently.	Open the door less frequently.
	The door is not closed completely.	Make sure the door is closed securely.
	The door seal does not seal properly.	Replace the seal on the door. Replacements can be acquired from the manufacturer.
	The front grille is obstructed.	Make sure nothing is blocking the front grille.
The light does not work.	There may be a problem with the display board.	Contact the manufacturer.
The cooler vibrates while operating.	The unit is not sitting on a level floor, or the unit's feet are not correctly installed.	Make sure the unit's feet are in the proper position and tightened securely.
The cooler produces a lot of noise.	The unit is not leveled.	See above.
	The fan may be obstructed	Check the fan to make sure there is no debris or obstruction. If not, contact the manufacturer.
The door will not close properly.	The unit is not leveled.The door is not properly installed.	See above.Check the door hinges to make sure they are properly installed.
	The seal is weak.	Replace the seal on the door. Replacements can be acquired from the manufacturer.
	The shelves are out of position.	Make sure the shelves slide all the way into the unit.
The LED display does not work.	There may be a problem with the main control board.	Contact the manufacturer.
	There is a problem with the plug.	Contact the manufacturer.
There is an LED display error, or the LED displays “LO”.	The cooling kit is no longer working properly.	Contact the manufacturer.
	The PC Board is faulty.	Contact the manufacturer.
The buttons do not function.	The temperature control panel may be damaged.	Contact the manufacturer.

LIMITED MANUFACTURER'S WARRANTY

This appliance is covered by a limited manufacturer's warranty. For one year from the original date of purchase, the manufacturer will repair or replace any parts of this appliance that prove to be defective in materials and workmanship, provided the appliance has been used under normal operating conditions as intended by the manufacturer.

Warranty Terms:

During the first year, any components of this appliance found to be defective due to materials or workmanship will be repaired or replaced, at the manufacturer's discretion, at no charge to the original purchaser. The purchaser will be responsible for any removal or transportation costs, if needed.

Warranty Exclusions:

The warranty will not apply if damage is caused by any of the following:

• Power failure
  • Damage in transit or when moving the appliance
• Improper power supply such as low voltage, defective household wiring or inadequate fuses
• Accident, alteration, misuse or abuse of the appliance such as using non-approved accessories, inadequate air circulation in the room or abnormal operating conditions (extreme temperatures)
  • Use in commercial or industrial applications
• Fire, water damage, theft, war, riot, hostility or acts of God such as hurricanes, floods, etc.
  • Use of force or damage caused by external influences
  • Partially or completely dismantled appliances
• Excess wear and tear by the user

Replacement parts and/or units will be new, re-manufactured or refurbished and is subject to the manufacturer's discretion. For technical support and warranty service, please email [e-mail].
