Product Description

The LNB is intended for use with a satellite dish antenna equipped with a 40mm LNB holder for mounting.

The LNB allows receiving satellite signals in the Ku band.

Installation & Safety

Warning! The LNB and the satellite dish antenna shall be installed by a qualified satellite antenna installer, and in compliance with safety regulations.

• Do not install the LNB during a storm or other extreme weather conditions.
• Connect the coaxial cable to the LNB before connecting the set top box.
• Carry out your satellite dish and LNB installation with tools and accessories intended for this purpose only.

Installing the LNB on the dish antenna

1. Place the LNB in the LNB holder/clamp of the dish antenna. Close the LNB holder handle and lightly tighten the clamp screw so that the LNB can still rotate (Fig. 1).
2. Set the correct tilt angle of the LNB by rotating the LNB clockwise or counterclockwise: The tilt angle of the LNB (K) depends on the location of the satellite dish antenna installation and the satellite to be received. For example, for receiving Hotbird at 13°E in Warsaw, the tilt angle of the LNB should be 6° counterclockwise. Fine angle adjustment turning should be done using a satellite signal meter or a satellite receiver measurement indications (Fig. 2).
3. After determining the correct position of the LNB, tighten screws that secure the LNB clamp so that the LNB is fixed in its place (Fig. 3).
4. The above description of the LNB installation applies to the case when the satellite dish is correctly installed and aligned towards the desired satellite. In other cases, you must complete the installation and correct alignment of your satellite dish first.
5. We strongly recommend that the satellite dish antenna is installed by a qualified satellite antenna installer.

Note: Product images are for illustrative purposes only and may differ from the actual product.

Technical line drawing of a mechanical device with no visible text or symbols

Fig. 1

Technical illustration of a mechanical component and its circular cross-section with dimension lines (no text or symbols)

Fig. 2 Fig. 3

Connecting the antenna cable to the LNB

1. Attach the protective rubber boot to the antenna cable.

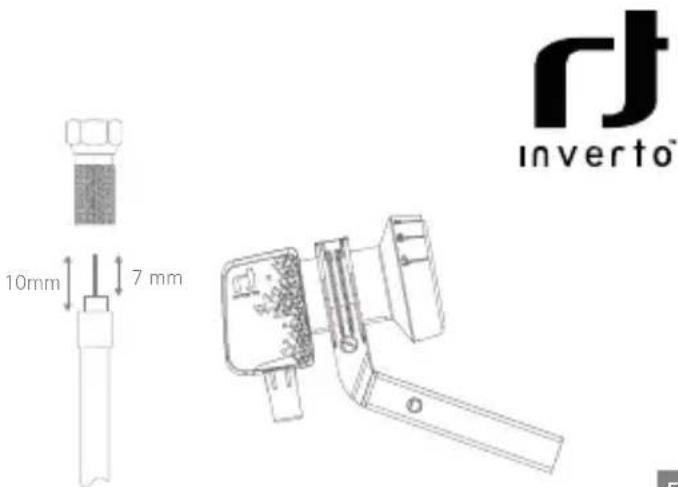

2. Strip the cable insulation and screw the F-plug* onto the end of the cable (Fig. 4).
3. Make sure the braided wires and the center conductor are not touching each other as this degrades signal quality.
4. Screw in the F-plug to connect the antenna cable to the LNB.
5. Slide the protective rubber boot into its collar tip at the LNB housing.
   * F plug is sold separately. It is not included with the LNB.

Technical data

Parameter Item# 5445/5446/5447/5448/5482

Input signal GHz 10.7 \~ 12.75

Output signal MHz 950 \~ 2150

Local Oscillator (L.O.) GHz 9.75 (low band), 10.6 (high band)

Cross polarization isolation dB 23dB typical

Output ports / impedance -/Ω 1/2/4/4/8 F-type ports / 75

Input DC voltage level VDC 11 \~ 20

DC current consumption mA 100/150/300/240/300 max.

Neck diameter (∅) mm 40

Weight g 83/98/126/126/276

10mm 7 mm inverto®

Fig. 4

Simplified EU Declaration of Conformity

FTA Communication Technologies S.á r.l hereby declares that the LNB converter type 5445 / 5446 / 5447 / 5448 / 5482 meets the essential requirements of the following directives:

- RED 2014/53 / EU

- RoHS 2011/65 / EU

A copy of the full text of the EU declaration of conformity can be found at: www.inverto.tv/support_dc

WEEE Notice

Environmental protection is an important objective of our company.

The crossed out waste container means that this product cannot be disposed of as waste after it has ended from the household, but must be disposed of in a special place. We hereby inform you that the main purpose of the regulation European and the Act of 11 September 2015 on waste electrical and electronic equipment is to limit the amount of waste arising from equipment, ensuring an appropriate level of collection, recovery and recycling of used equipment, and increasing public awareness of its harmfulness to the natural environment at every stage of its use. Pursuant to art. 36 above of the Act, the user of equipment intended for households is obliged to return used equipment to the collector waste equipment or the entity authorized

to collect waste equipment referred to in art. 45 item 1 point 1 of the Act of December 14 2012 on waste.

With all this in mind, it should be stated that in the above process, households have to meet very important role. However, it should be remembered that products belonging to the group of electrical or electronic equipment should be utilized in the right way and in the right places. Information on local collection points (storage site, collection point, etc.) can be provided by local authorities or the distributor.

At the same time, it should be emphasized that distributors are obliged to take back waste equipment from households free of charge at the point of sale, provided that the waste equipment is of the same type and performed the same functions as the equipment sold. In addition, the distributor, providing the buyer with equipment intended for households, is obliged to take back free used equipment from households at the place of delivery of that equipment, provided that the waste equipment is of the same type and has the same functions as the equipment supplied. In this way you can participate in the process of reusing raw materials and supporting the electrical and electronic waste management program, which may affect environment and public health. It should be remembered that the correct disposal of equipment allows saving valuable resources and avoiding negative effects on health and the environment, which may be threatened by inappropriate handling of waste and components dangerous.

Importer

FTA Communication Technologies S.à r.l

17 Route de Luxembourg, Gonderange L-6182

Luxembourg

www.inverto.tv

For further details contact: [e-mail] FTA Communication Technologies S.à r.l. Tel. [phone] Fax. [phone]
