USER MANUAL 302583 Brandson

Exterior view of a metal-framed office air conditioner with mesh fan and mounting base (no text or symbols visible)

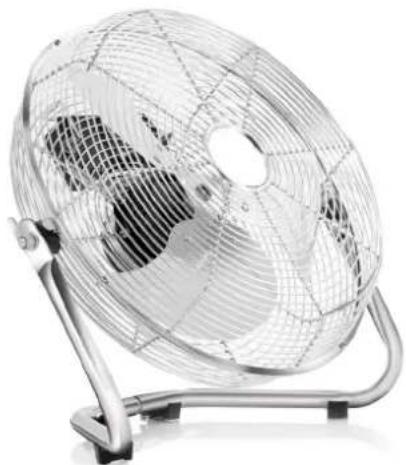

Wind machine, Copper design

Model no.: 302583

Exterior view of a modern office air conditioner fan with mesh grille and mounting base (no text or symbols visible)

Thank you for choosing this Brandon product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

DANGER!CAUTION!

1. Important safety guidelines for this device

• Use the device for the private and intended purpose only. This device is therefore not intended for commercial use. Do not use the device outdoors and keep it away from heat and direct sunlight.
• Please do not keep the device in the immediate vicinity of water sources such as bathtub, shower, washbasin or swimming pool.
• Do not use this device with wet hands.
• If the device becomes moist or wet, pull out the power plug immediately.

Pay attention to your own safety and do not touch any conductive material on the device.

• Protect the device from moisture (this device should not be immersed in liquids under any circumstances), sharp edges or large sources of dust.
• Do not keep the device in the immediate vicinity of heat sources (e.g. ovens or heating system).
• Keep it on an appropriate surface so that it does not tip over.
• Unplug the power plug when the device is not in use, during transport or during cleaning.
• Never leave the fan unattended and choose a location such that the device is out of reach of animals and children.
• Operate the device only with the voltage mentioned on the device label.
• This device can be used by children above the age of 8 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the device and understand the hazards involved.
  • Children should not play with the device
• Cleaning and maintenance should not be done by children.
• If the power cable is damaged, it should be replaced by the manu-

BRANDSON

- EQUIPMENT -

User manual

facturer or his service representative or a similarly qualified person.

- Remove the power plug before installing, moving, servicing and cleaning

- For the safety of your children, keep the packaging parts away from their reach (plastic bag, foils, carton or polystyrene).

- Do not allow small children to play with the foil or plastic bags! Danger of suffocation!

- While operating the device, ensure that the protective cage is closed.

- The fan, rotary knob and switches should not be blocked.

- It is not allowed to remove the grille for cleaning purposes once the fan is mounted.

- Never insert your body parts (e.g. fingers) or objects through the protective grille.

- Ensure that your hair is not within the range of the protective cage as it may get caught in the air current.

2. Scope of supply

• Brandson wind machine
• Pedestal bracket (2 parts)
  • Phillips head screw
• 2 nuts
• Plastic spanner

• User manual

• Technical data

Input voltage 220 - 240V AC
Power input 120 W
Noise emission	Workplace related emission value less than 70 dB(A)
Rotor blade dimension	approx. 45 cm
Dimensions (WxHxD in cm)	Approx. 53.5 x 52 x 22.5

4. Functions

The Brandon wind machine has a powerful motor and 45 cm rotor blade which ensures optimum ventilation even on hot days. The stable pedestal bracket and solid metal cage ensure safe operation.

With the three different speed levels and the continuously adjustable inclination angle, you can adjust the wind machine to suit your individual requirements.

BRANDSON - EQUIPMENT -

User manual

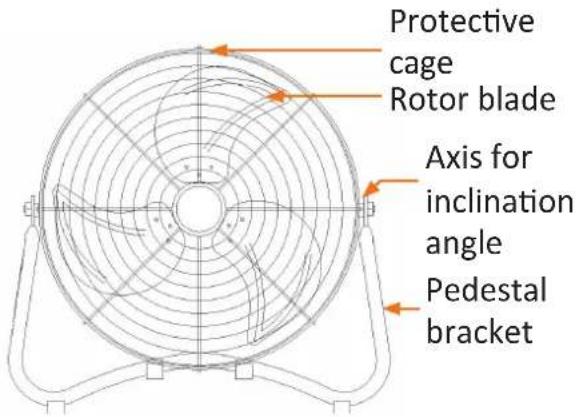

5. Product details

Protective cage Rotor blade Axis for inclination angle Pedestal bracket

6. Initial use

Take the device out of the package and check the device as well as the scope of delivery.

Please contact the vendor if any part is missing or has been damaged.

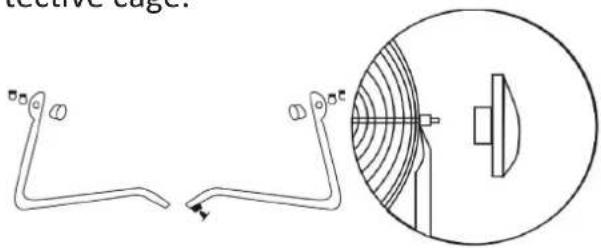

Insert the parts of the pedestal bracket into the threads on the sides of the protective cage.

tective cage

In doing so, connect the ends of the pipe together and secure them with the Phillips-head screw provided. Then mount the nuts using the spanner provided.

Keep the wind machine in an appropriate location and connect it to a properly installed 220-240V AC earthed socket.

By tipping the protective cage, you can change the angle of inclination according to your needs.

7. Usage

You can select between three different speed levels using the rotary switch on the rear of the device.

HIGH MEDIUM LOW OFF

Speed level
OFF Off
LOW Slow
MEDIUM Medium
HIGH Fast

8. Cleaning

Pull out the power plug from the socket before starting with the cleaning process!

Use a slightly moist cloth for cleaning (wetted with water).

For cleaning, never immerse the device into water! This could lead to electric shock or fire!

9 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry condi-

User Manual

tions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

10. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you

are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

BRANDSON

- EQUIPMENT -

Mode d'emploi

Exterior view of a metal-framed office air conditioner with mesh fan and mounting base (no text or symbols visible)

Exterior view of a metal-framed office air conditioner with mesh fan and mounting base (no text or symbols visible)

Technical line drawing of a mechanical clamp or bracket assembly with an inset showing internal components (no text or symbols)

Exterior view of a metal-framed office air conditioner with mesh fan and mounting base (no text or symbols visible)

Technical line drawing of a mechanical component with a circular inset showing internal components (no text or symbols)

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.
