USER MANUAL 303398 Brandson

Technical diagram of a fan assembly with numbered parts and labeled parts for identification.

Important safety guidelines for this device

• Use the device for the private and intended purpose only. This device is not intended for commercial use. Do not use the device outdoors and keep it away from heat and direct sunlight.
• Please do not keep the device in the immediate vicinity of water sources such as bathtub, shower, washbasin or swimming pool.
• Do not use this device with wet hands.
• If the device becomes moist or wet, pull out the power plug immediately. Maintain your own safety and do not touch any conductive material on the device.
• Protect the device from moisture (this

device should not be immersed in liquids under any circumstances), sharp edges or large sources of dust.

• Do not keep the device in the immediate vicinity of heat sources (e.g. ovens or heaters)
• Keep it on an appropriate surface so that it does not tip over
• Unplug the power plug when the device is not in use, during transport or during cleaning
• Never leave the fan unattended and choose a location such that the device is out of reach of animals and children
• Operate the device only with the voltage mentioned on the device label
• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory

or mental capabilities or lack of ex- perience and knowledge if they have been given supervision or instruction concerning the safe use of the device and understand the hazards involved.

• Children should not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• Keep the device and its connection cable out of reach of children under 8 years
• For the safety of your children, keep the packaging parts away from their reach (plastic bag, foils, carton or polystyrene).

• Do not allow small children to play with the foil or plastic bags as there is a risk of suffocation!

• While operating the device, ensure that the protective cage is closed

• The fan, rotational switch and switches should not be blocked!
• It is not allowed to remove the grille for cleaning purposes once the fan is mounted.
• Never insert your body parts (e.g. fingers) or objects through the protective cage
• Ensure that your hair is not within the range of the protective cage as it may get caught in the air current
• If the power cable of this device is damaged, it should be replaced by the manufacturer, his after-sales service or by an equally qualified person, so as to prevent any risk
• Allow the device to cool down before

cleaning it, or pull out the power plug from the socket

• Wipe the device housing with a dampened cloth and then wipe it with a clean dry cloth. Never immerse the housing in water for cleaning.
• Once the fan is assembled, the protective cage should not be removed

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy your purchased product for a long time.

1 Scope of supply

• Fan
• User manual

2 Technical data

Input voltage 220 - 240V	AC
Power input 35W
Noise emission Workplace	related emission value less than 70 dB(A)
Rotor diameter approx.	30.2 cm
Oscillation Approx. 80°	can be enabled / disabled
Angle of inclination Approx.	30°
Dimensions Width about	34cm, depth about 34cm, height about 75-100cm (adjustable), rotor blade diameter: 30.2cm

3 Functions

The Brandon pedestal fan has a powerful motor and 30.2cm rotor blades which ensure optimum ventilation even on hot days. Thanks to the three speed levels, adjustable angle of inclination and oscillation, you can adapt the fan to your individual requirements.

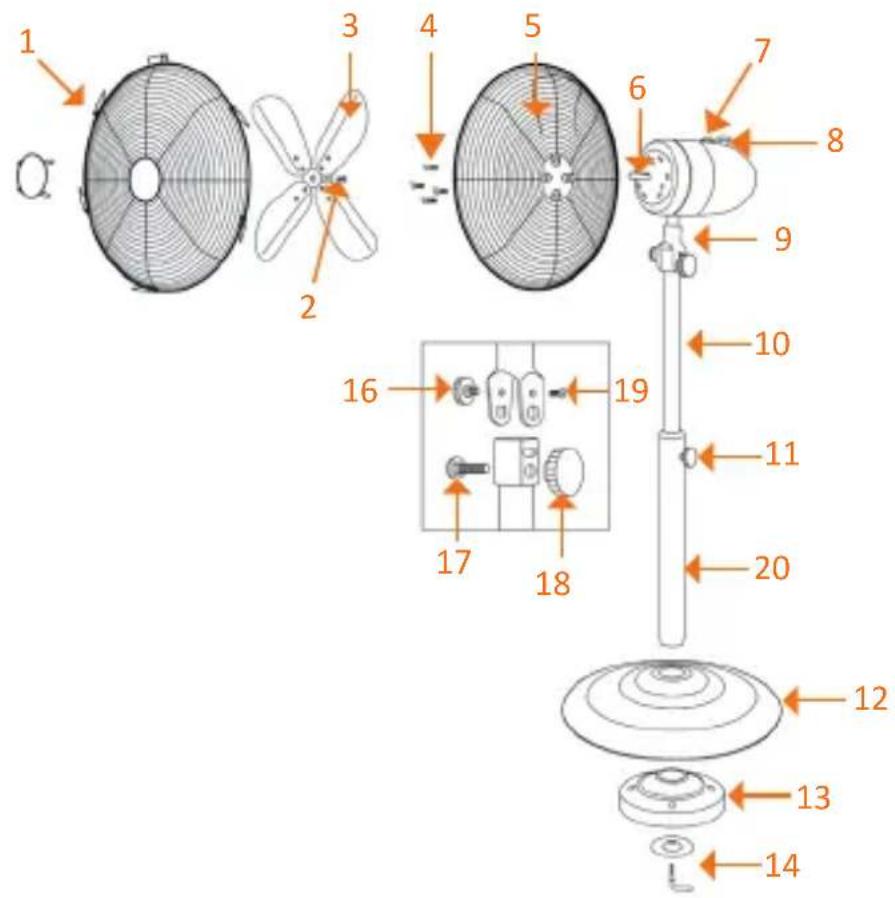

4 Product details

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

1 Protective	cage - front
2 Rotor blade	mounting nut
3 Rotor blade
4 Protective	cage - mounting screws
5 Protective	cage - rear
6 Rotor axis
7 Speed control knob
8 Oscillation knob
9 Tilting joint
10 Inner pipe for pedestal height adjustment

52 English

11 Height adjustment mechanism

12 Pedestal cover

13 Pedestal weight

14 Washer

15 Pedestal - locking screw

16 Tilt adjustment

17 Carriage bolt

18 Locking screw

19 Mounting screw

20 Outer pipe

5 Installation

Take the fan out of the package and check the device as well as the scope of delivery mentioned in the table above. Please contact the vendor if any part is missing or has been damaged. Now place the rear protective cage (5) on the fan unit. Make sure that the handle is facing up.

Tighten the rear protective cage firmly using the mounting screw (4).

Then insert the rotor blade (3) onto the rotor axis (6) and fasten it using the appropriate mounting screw (2). In doing so, ensure that the screw sits on the notch of the shaft of the motor axis in order to guarantee a firm grip!

Mount the front protective cage (1) onto the rear protective cage. A hole is provided for a locking screw at the bottom of the two protective cages.

Insert the locking screw through the hole of the front and rear guards and fasten it using the locking nut. Then connect the four mounting brackets to the side.

Please screw the mounting screw (19) to the outer pipe first to connect the outer pipe (20) with the motor unit. Then, you can mount the remaining screws (16, 17, 18).

Take the pedestal weight (13), place the guard (12) on it and connect the outer pipe (20) to the pedestal.

Fix the outer pipe (11) to the pedestal (13) from below using the fastening screw (14).

6 Usage

Keep the fan in an appropriate location and connect the device to a properly installed 220-240V AC socket.

By loosening the tilt setting (16) and then tipping the protective cage, you can change the angle of inclination according to your needs. Then tighten the tilt setting at the desired position.

Push the pin at the top to enable the oscillation. If you do not want to use the oscillation function, pull the pin out slightly.

You can select between three different speed levels using the rotary switch on the motor unit.

7 Cleaning

Speed level
0 Off
1 Slow
2 Medium
3 Fast

Pull out the power plug from the socket before starting with the cleaning process! Use a slightly moist cloth for cleaning (wetted with water). For cleaning, never immerse the device into water! This could lead to electric shock or fire!

8 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a

toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

9 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU

WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303030 conforms to the principle requirements and other relevant stipulations of Directive 2014/35/EU, 2014/30/EU and 2011/65/EU.. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
