USER MANUAL Hermes P2 RGB Gamdias

Optical Mechanical Gaming Keyboard

<日本語>

<韓国兒>

《English》

Thank you for purchasing the GAMDIAS™ HERMES P2 mechanical gaming keyboard. The new HERMES P2 keyboard is designed by combining user's fundamental requirements and features of the HERMES series mechanical keyboard as well as compact keypad. All these are aimed at enhanced mobility, comfort operation, and spatiality.

Your HERMES P2 comes with two programmable macro keys (FN+G1/G2), which enable playing preset macros while gaming. Its portable profile and macro saves can be shared with other gamers or automatically backed up to your computer.

System Requirements

WindowsXP/Vista/7/8/10
PC with USB ports
- Internet connection (used to install the HERA software)
GAMDIAS™ HERA software

Package Contents

GAMDIAS™ HERMES P2 Mechanical Keyboard
Keycap puller

Hardware and Software Installation

1. Insert the USB plug of the GAMDIAS™ HERMES P2 keyboard into an available USB port on the computer.
2. The "New Hardware Found" notification will be displayed. Follow the instructions on the screen to complete the hardware installation.
3. Connect to the GAMDIAS™ website (http://www.GAMDIAS.com) and download the latest version of HERA software.
4. Start installing the GAMDIAS™ HERA software and follow the instructions on the screen to complete.

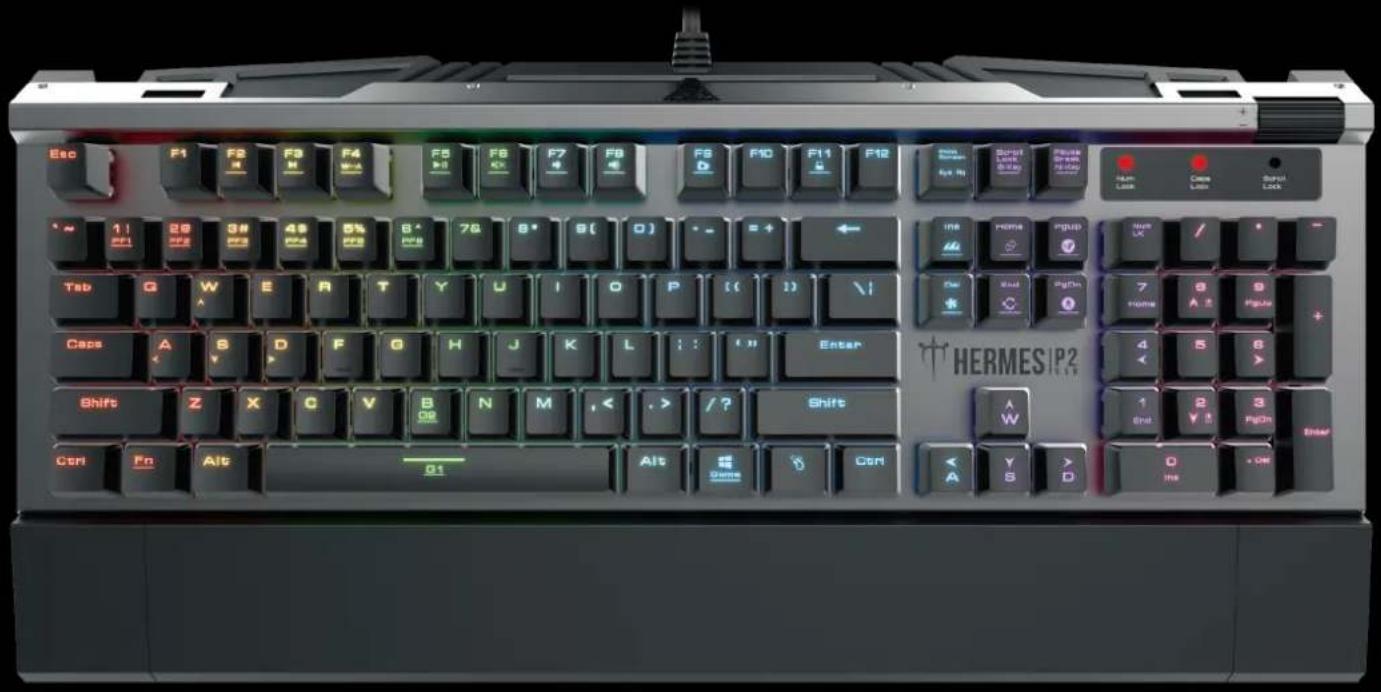

Introduction to HERMES P2 Keyboard Configuration

A. Six sets of customizable gaming profiles: PF1~PF6

B. Six multimedia shortcut keys: Previous track, next track, play/pause, mute, decrease volume, increase volume

C. Four shortcut keys for switching among four keyboard light effects.( Wave, Rotation, Slide in, Static/Light off)

• (1) Additional light effect options require HERA support
• (2) Selected light effects will be auto saved in current profile
• (3) Direction of the Wave and Rotation light effects will be changed by pressing the FN and arrow key the same time.
  D. Speed adjustment of shortcut key: There are 11 speed steps in existence (0~11 where 0 represents stop).

E. Keyboard backlight brightness level adjustment: [Fn + Num8] increases brightness, [Fn + Num2] decreases brightness. There are 4 phases for brightness level adjustment; OFF / 30% / 60% / 100%

F. Game mode: Press [Fn + Win] once to lock the Windows key so there will be no response when it is pressed. Press again to unlock the key

G. Lock keyboard keys: Press [Fn + F11] once to lock the keyboard keys so there will be no response when they are pressed. Press again to unlock the keys

H. Swap between WASD and arrow key modes: Press [Fn + F4] once to enable swap mode. Press again to disable

I. On-The-Fly macro recording (OTF):

*[OTF record indicator] = LED on the top-right corner of the keyboard (Game light) ^*[Fn + F9] = OTF Record on/off

(1) Start OTF recording: Press [Fn +F9] and all keys will start flashing simultaneously
(2) OTF recording: Enter the macro action (keyboard keys) to record
(3) End OTF recording: Press [Fn+F9] and all keys will start rapidly blinking
(4) Specify macro key: Press the key to execute the macro and all keys will return from rapidly blinking to their original indicator statuses

• To cancel OTF recording during the process, press [Fn + F9] after step (3) to cancel recording; at this time the all keys will return to their original statuses

• If no keys were pressed for 20 seconds during step (2) the macro recording process or step (4) specify macro key process, macro recording will end automatically and all keys will return to their original statuses

Register your GAMDIASTM HERMES P2 Mechanical Keyboard

Please visit www.GAMDIAS.com for online product registration

《ESPNOL》

F. Game mode: Press [Fn + Win] once to lock the Windows key so there will be no response when it is pressed. Press again to unlock the key

G. Lock keyboard keys: Press [Fn + F11] once to lock the keyboard keys so there will be no response when they are pressed. Press again to unlock the keys

H. Swap between WASD and arrow key modes: Press [Fn + F4] once to enable swap mode. Press again to disable

I. On-The-Fly macro recording (OTF):

*[OTF record indicator] = LED on the top-right corner of the keyboard (Game light)

*[Fn+F9] = OTF Record on/o

(1) Start OTF recording: Press [Fn +F9] and all keys will start ashing simultaneously
(2) OTF recording: Enter the macro acon (keyboard keys) to record
(3) End OTF recording: Press [Fn+F9] and all keys will start rapidly blinking
(4) Specify macro key: Press the key to execute the macro and all keys will return from rapidly blinking to their original indicator statuses

• To cancel OTF recording during the process, press [Fn + F9] aer step (3) to cancel recording; at this me the all keys will return to their original statuses
• If no keys were pressed for 20 seconds during step (2) the macro recording process or step (4) specify macro key process, macro recording will end automatically and all keys will return to their original statuses

Register your GAMDIAS™ HERMES P2 Mechanical Keyboard

Please visit www.GAMDIAS.com for online product registrao

《Italiano》

F. [Fn + Win] Windows

G. anu wuw: n [Fn + F11] uuaaowamauwuw

H. nauwunwn WASD uanu: nui [Fn + F4] wne waiiinnaa

Static/Light off, Slide in, Rotation, Wave)

HERA 1

（2）

F N 1500000000000000000000000000000000000000000000000000000000000

(0 11\~0) 11 yj:Jy

4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4

C 100000000000000000000000000000000000000000000

biinl iie y jyjai aal g jilu Jai [Fn + F11] 5i biinl:jiai al jai jia .G

jlll jie elly jsi jn baiol.

a.

Jbaxill

:OTF)On-The-Fly sJ.1

（）GLED

OTF 12

aJg jI [Fn+F9] 1:OTF 1

Jilll (jll) jilai) 01 Jd:OTF (2)

aCnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBn

jullll 10000000000000000000000000000000000000000000000000000000000

山

g 3) [Fn + F9] bai aai ot OTF jw w

y

4 20 1

y

GAMDIAS™ HERMES P2 45

Jy www.GAMDIAS.com jz

GAMDIAS

GAMING ART IN MOTION
