USER MANUAL Silk-épil 9 9-567 BRAUN

BRAUN Silk-épil 9 electric toothbrush with black and white design (no visible text or symbols on device body)

Type 5378

www.braun.com

9-521

9-527

9-538

9-541

9-549

9-558

9-561

9-567

9-579

Deutsch 6

English 11

Français 17

Español 22

Português 27

Italiano 32

Nederlands 36

Dansk 41

Norsk 45

Svenska 49

Suomi 53

Polski 57

Český 62

Slovenský 66

Magyar 70

Hrvatski 74

Slovenski 79

Türkçe 84

Română (RO/MD) 90

Ελληνικά 95

Български 100

Русский 105

Українська 111

Braun GmbH

(Sharecall charged at local rates)

1b 1a 2 3 4 4a 5 6 7 BRUN Silk épit 9

1 2 6 1 II II 电饭煲板胶带细度胶条 电饭煲板胶带细度胶条胶条

		9-5219-527	9-538	9-541	9-549	9-558	9-5619-567	9-579
8						√	√
9				√	√	√	√
1				√		√	√
				√			√
		√			√

A

1 II III I II III

2 90°

③ 90°

Diagram of a mechanical component with arrows indicating assembly or transformation (no text or symbols)

4

Illustration of hands performing a medical or rehabilitation procedure on a patient's abdomen (no text or symbols visible)

5 90°_

6a

Illustration of a hand holding a small object with teeth and a ruler, no text or symbols present

Illustration of a hand using a tool to brush through a multi-layered mechanical component (no text or symbols visible)

Illustration of a hand pressing down on a container with arrows indicating process flow (no text or symbols)

Illustration of a mechanical component with water droplets falling, no text or symbols present

Illustration of a hand using a brush to lift water droplets (no text or symbols)

B

I II III

Diagram illustrating a mechanical or robotic manipulation process with labeled parts and directional arrows indicating movement.

Illustration showing a hand applying a medical or therapeutic tool to a person's arm, with no visible text or symbols.

Diagram of a hairless device with a black arrow pointing to the base panel (no text or symbols)

Illustration of a hand using a tool to brush or mark on a textured surface, with no visible text or symbols.

Illustration of a hairbrush with airflow arrows indicating direction (no text or symbols)

Illustration of a shoe being inserted into a textured surface with a lock icon (no text or symbols)

Illustration of hands using a hairbrush to clean or adjust the tooth (no text or symbols visible)

Illustration of a hand using a handheld electric shaver on a surface with dotted pattern (no text or symbols)

Illustration of a hand using a tool to lift a textured object into a circular base (no text or symbols)

Cross-sectional diagram of a toothbrush with no text or symbols

Illustration of a hand holding a small object with a pointed tip, no text or symbols present

1.

Close-up of a hand using a hairdryer tool to trim a textured edge, labeled with number 2 (no text or symbols on the diagram itself)

3.

f

Close-up of a hand holding a small electronic device with a black arrow pointing to a component (no visible text or symbols)

Diagram of a hand using a brush to press or adjust a device, labeled with parts 1 and 2.

Diagram of a hand holding a textured object above a mechanical component, with an arrow indicating upward motion (no text or symbols present)

Diagram showing a mechanical device with numbered components, likely illustrating a machining or assembly process.

Deutsch

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy using your Braun Silk-épil 9.

Please read the use instructions carefully before using the appliance and keep them for future reference.

Braun Silk-épil 9 has been designed to make the removal of unwanted hair as efficient, gentle and easy as possible. The extra wide epilation head (2) removes the shortest hair (0.5 mm) from the root, leaving your skin smooth for weeks.

Important

• For hygienic reasons, do not share this appliance with other persons.
• This appliance is provided with a special cord set with an integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is risk of electric shock. For electric specifications, please see printing on the special cord set. The special cord set automatically adapts to any worldwide AC voltage.

- Only use the special cord set provided with the appliance.

- If the appliance is marked 492, you can use it with any Braun power supply coded 492-XXXX.

• This appliance is suitable for use in a bathtub or

shower. For safety reasons, it can only be operated cordless.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children should not play with the appliance.

Cleaning and user maintenance should not be made by children unless they are older than 8 years and supervised.

- When switched on, the appliance must never come in contact with the hair on your head, eyelashes, ribbons, etc. to prevent any danger of injury as well as to prevent blockage or damage to the appliance.

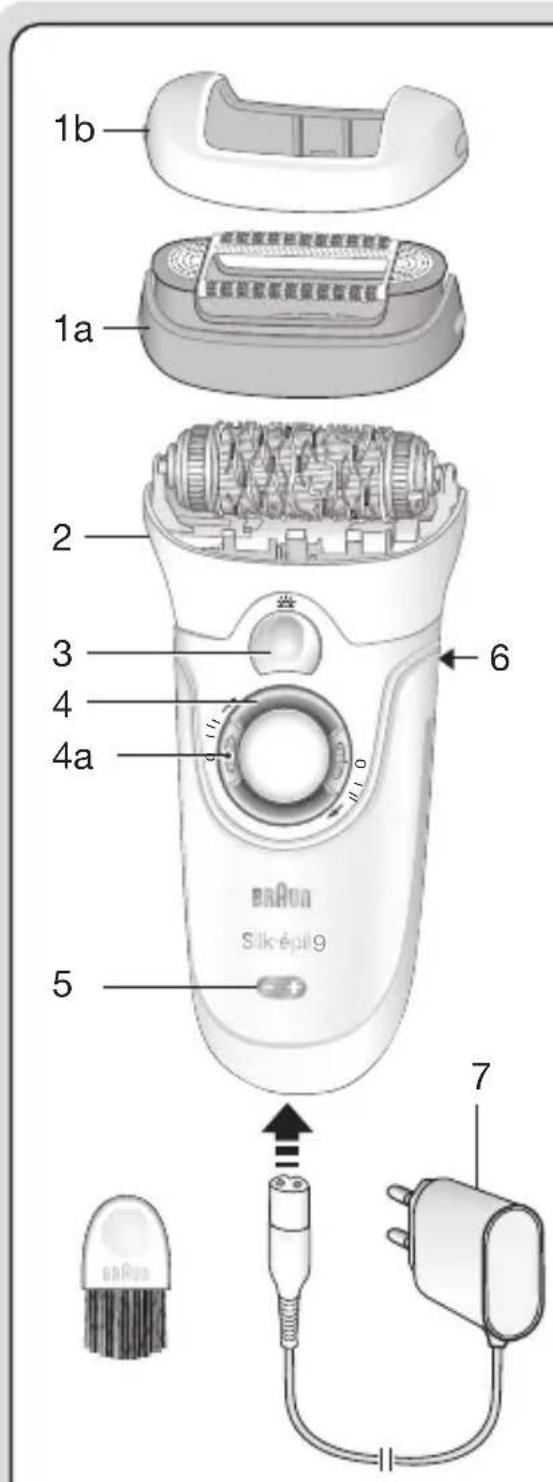

Description

1a High frequency massage cap
1b Skin contact cap
2 Extra wide epilation head
3 Smartlight
4 Switch with lock keys (4a)
5 Charging light
6 Release button
7 Special cord set (design can differ)
8 Facial cap
9 Shaver head with trimmer cap
10 Charging stand

Charging

Using the special cord set (7) connect the appliance to an electrical outlet and charge it for 1 hour.

Charging light (5)

Flashing green: charging

Green: fully charged

Yellow: 15 min charge left

Flashing yellow: 5 min charge left

• Once fully charged, use the appliance cordless. Operation time is 40 minutes. Recharge it when the yellow light comes on or when the motor has stopped completely. For best performance, always use a fully charged appliance.
• The best temperature range for charging, using and storing the appliance is between 15 °C and 35 °C. In case the temperature is far beyond this range, the charging time might be longer whereas the cordless operation time might be reduced.
• At the end of its lifetime, the rechargeable battery can be replaced at an authorized Braun Service Centre.

How to operate the appliance

Switch on the appliance by pressing a lock key (4a) and turning the switch (4) clockwise to position «I» or «II».

The Smartlight (3) shines as long as the appliance is switched on, thus providing good visibility of fine hairs.

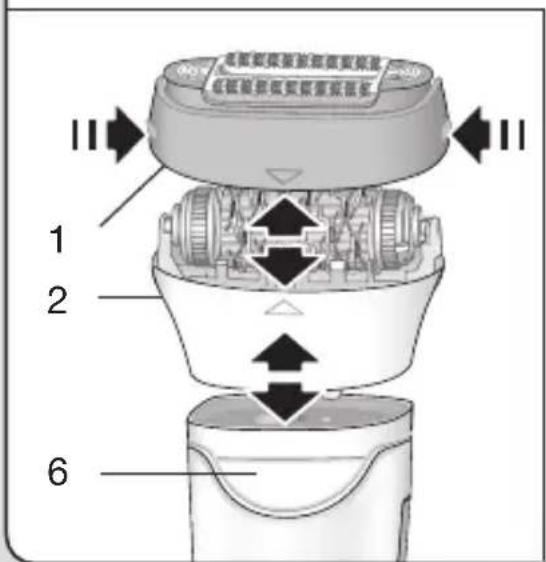

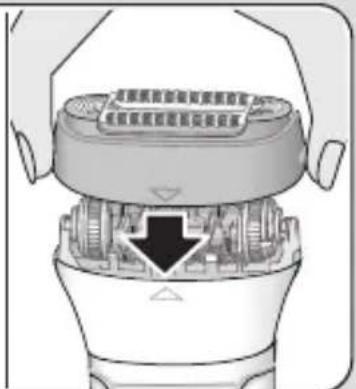

To remove the epilation head, press the release button (6). To change caps (1a), (1b) or (8), press their lateral ribs and pull off.

A Epilation

Epilation tips

If you have not used an epilator before, or if you have not epilated for a longer period of time, it may take a short time for your skin to adapt to epilation. The discomfort experienced in the beginning will decrease

considerably with repeated use as the skin adapts to the process.

When epilating for the first time, it is advisable to epilate in the evening, so that any possible reddening can disappear overnight. To relax the skin we recommend applying a moisture cream after epilation. Epilation is easier and more comfortable when the hair is at the optimum length of 2–5 mm. If hairs are longer, we recommend that you shave first and epilate the shorter, re-growing hairs after 1 or 2 weeks. Alternatively, you can trim the hairs to 5 mm length.

Fine, regrowing hairs might not grow up to the skin surface. The regular use of massage sponges (e.g. after showering) or exfoliation peelings helps to prevent in-grown hair as the gentle scrubbing action removes the upper skin layer and fine hair can get through to the skin surface.

Dry usage: Your skin must be dry and free from grease or cream.

Wet usage: The appliance can be used on wet skin, even under running water. Make sure that the skin is very moist in order to achieve optimum gliding conditions for the appliance. After each wet usage, clean the appliance under running water.

How to epilate

Before use, always make sure that the epilation head (2) is clean and provided with a cap (1a or 1b).

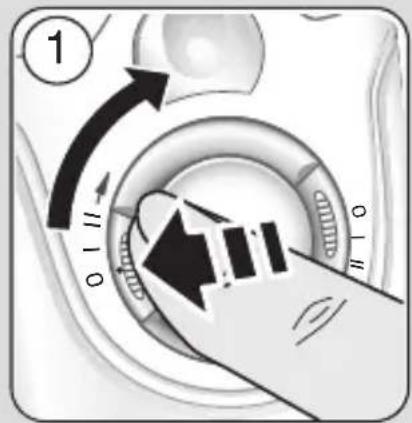

1 Select speed «I» for a gentle epilation and speed «II» for an efficient epilation.

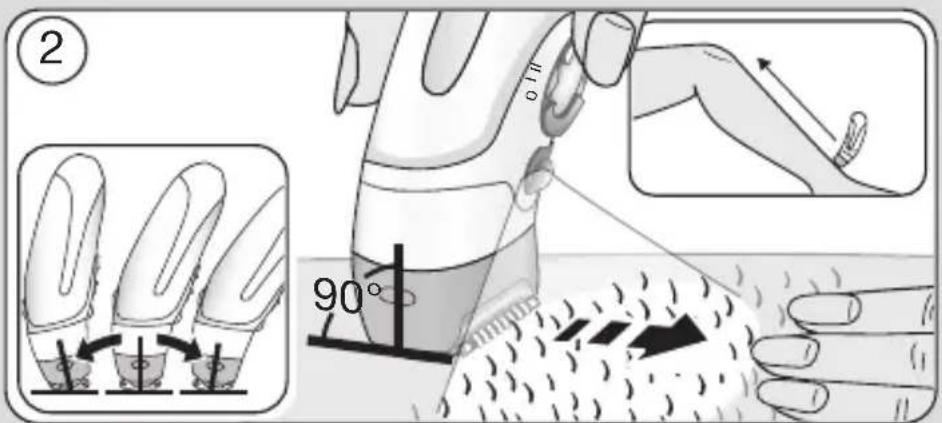

2 Always stretch your skin when epilating. Make sure that the epilation area is in contact with your skin.

Guide the appliance in a slow, continuous movement without pressure against the hair growth, in the direction of the switch. As hair can grow in different directions, it may also be helpful to guide the appliance

in different directions to achieve optimum results. The massage cap (1a) ensures best skin comfort during epilation. If you are used to the sensation of epilation, you may replace the massage cap with the skin contact cap (1b) which provides a closer contact to your skin and an improved adaptation to all body areas.

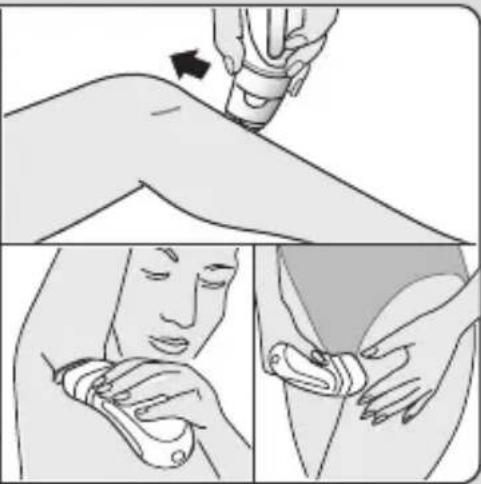

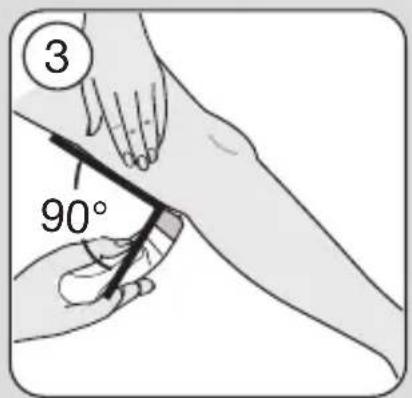

3 Leg epilation

Epilate your legs from the lower leg in an upward direction. When epilating behind the knee, keep the leg stretched out straight.

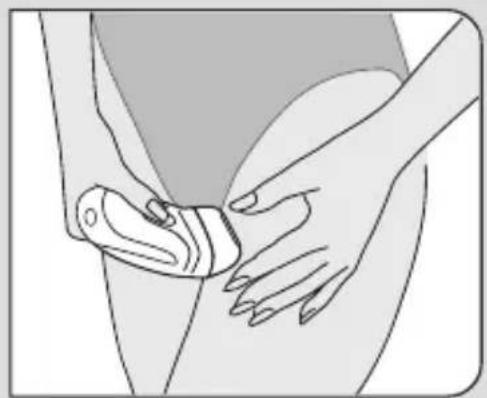

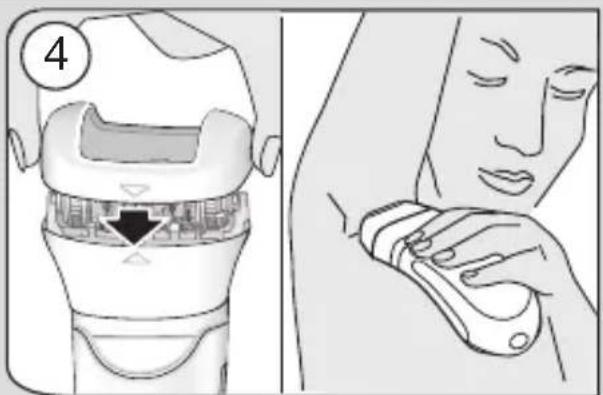

4 Underarm and bikini line epilation

In sensitive areas, we recommend using the skin contact cap (1b).

Please be aware that especially at the beginning, these areas are particularly pain-sensitive. Therefore, we recommend that you select speed setting «l» for the first few times. With repeated usage the pain sensation will diminish.

Before epilating, thoroughly clean the respective area to remove residues (like deodorant). When epilating the underarm, keep your arm raised up so that the skin is stretched and guide the appliance in different directions. As skin may be more sensitive directly after epilation, avoid using irritating substances such as deodorants with alcohol.

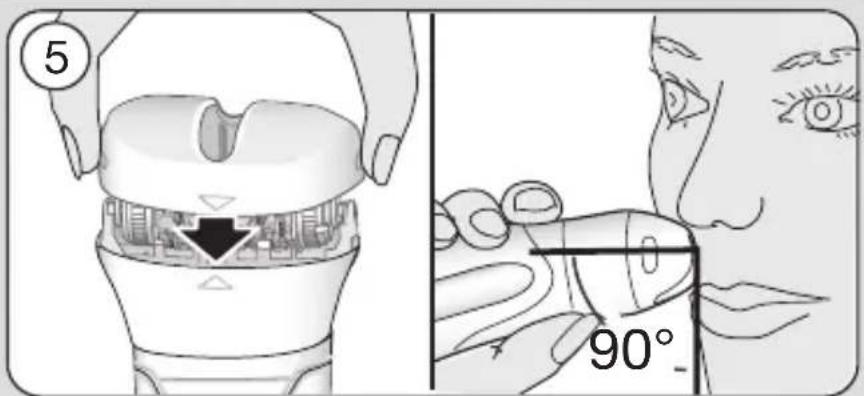

5 Facial epilation

For removing any unwanted hair from the face, use the facial cap (8) as an optional attachment to be placed on the epilation head (2).

For the first few usages, we recommend that you select speed setting «I» in order to get used to the epilation sensation in those sensitive areas.

Prior to epilation, we recommend cleaning the skin with alcohol to promote good hygiene. When epilating the face, stretch the skin with one hand and slowly guide the epilator with your other hand the direction of the switch.

6 Cleaning the epilation head

Regular cleaning ensures better performance.

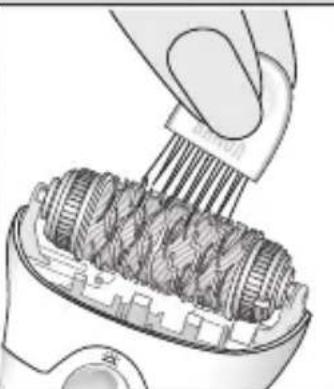

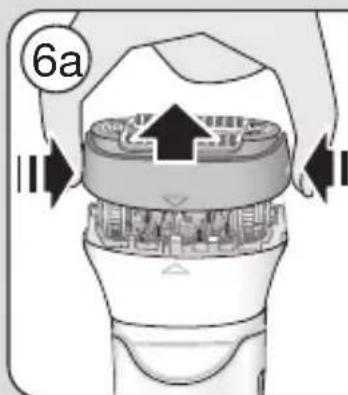

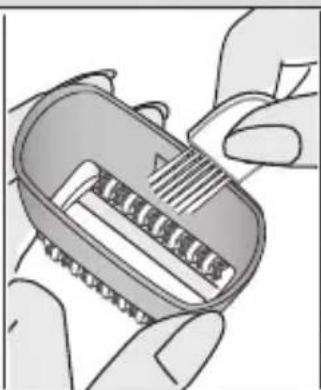

a Brush cleaning:

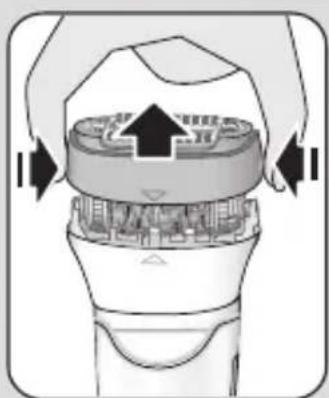

Remove the cap and brush it out.

Thoroughly clean the epilator head from the rear side with the brush dipped into alcohol. While doing so, turn the tweezer element manually. This cleaning method ensures best hygienic conditions for the epilation head.

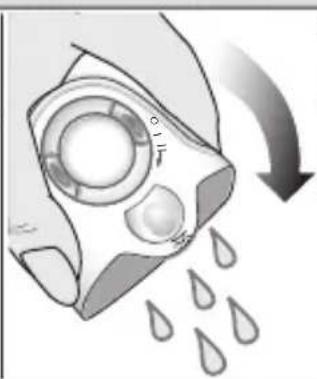

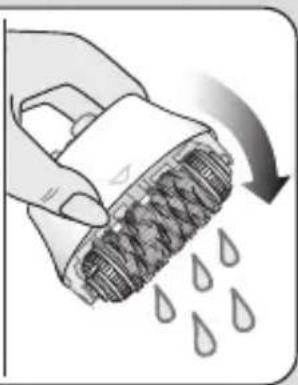

b Cleaning under running water:

After each wet usage, clean the appliance under running water. Remove the cap.

Hold the appliance with the epilation head under hot running water. Then press the release button (6) to remove the epilation head. Thoroughly shake both, the epilation head and the appliance to make sure that remaining water can drip out. Leave both parts to dry. Before reattaching, make sure that they are completely dry.

General information on epilation

All methods of hair removal from the root can lead to in-grown hair and irritation (e.g. itching, discomfort and reddening of the skin) depending on the condition of the skin and hair. This is a normal reaction and should quickly disappear, but may be stronger when you are removing hair from the root for the first few times or if you have sensitive skin.

If, after 36 hours, the skin still shows irritation, we recommend that you contact your physician.

In general, the skin reaction and the sensation of pain tend to diminish considerably with the repeated use of Silk-épil. In some cases, inflammation of the skin could occur when bacteria penetrate the skin (e.g. when sliding the appliance over the skin). Thorough cleaning of the epilation head before each use will minimize the risk of infection.

If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance should only be used after prior consulta-

tion with a physician: eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles) and, varicose veins, around moles, reduced immunity of the skin, e.g. diabetes mellitus, during pregnancy, Raynaud's disease, haemophilia, Candida or immune deficiency.

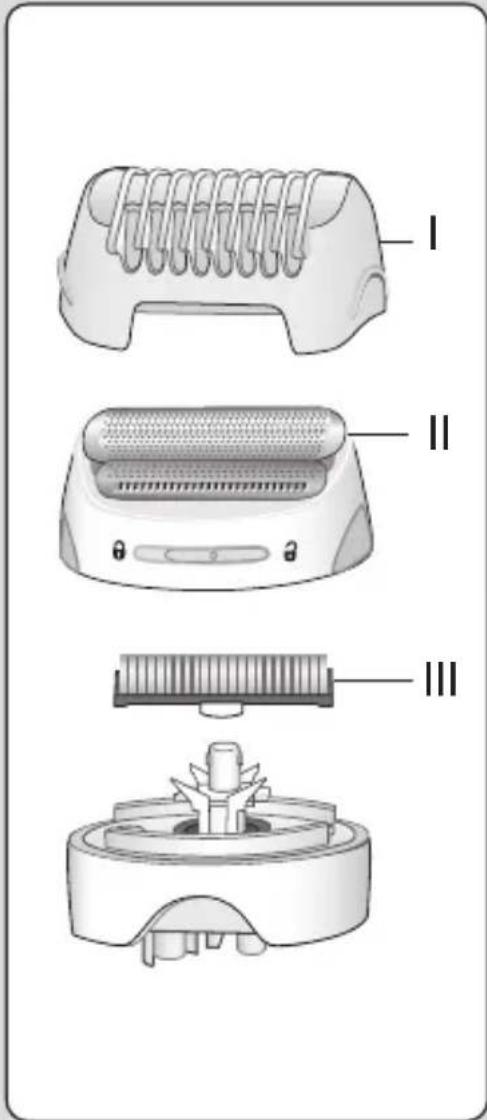

B How to use the shaver head

The shaver head (9) is designed for a fast and close shave of legs, underarms and bikini line, contour trimming and cutting hair to 5 mm length. With the shaver head attached, use the appliance only on dry skin and with speed setting «II».

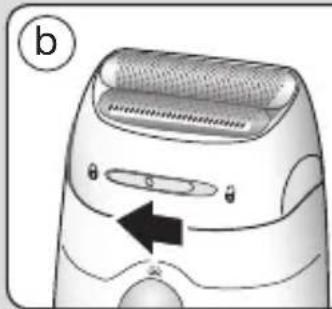

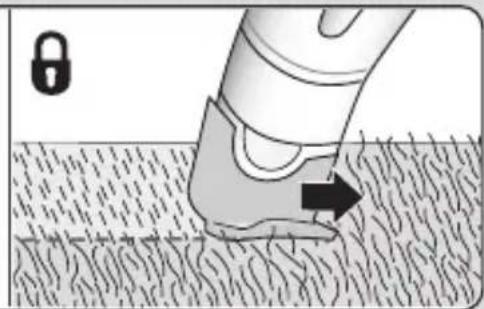

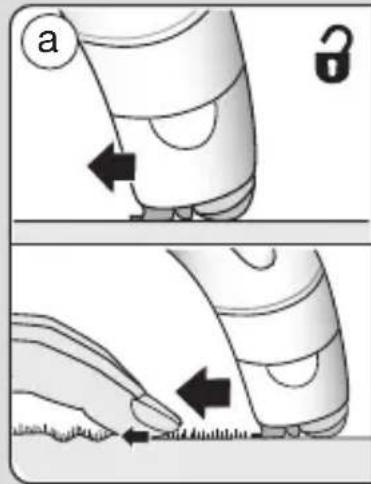

a Shaving: select « 3».

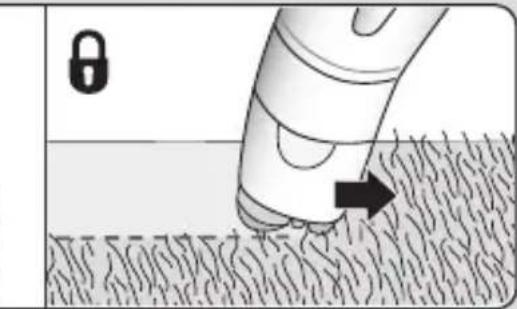

b Contour trimming: select «∅».

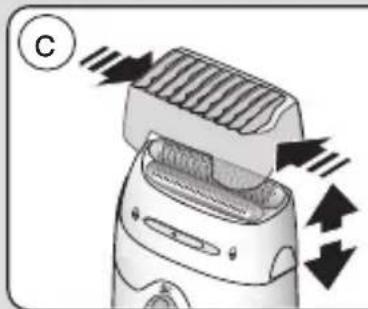

c Trimming hair to 5 mm length: select «θ» and put on the trimmer cap (I).

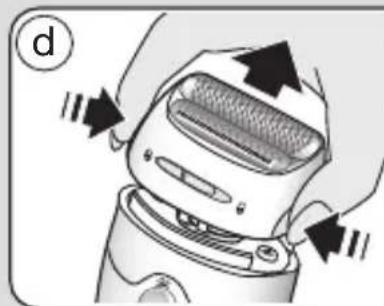

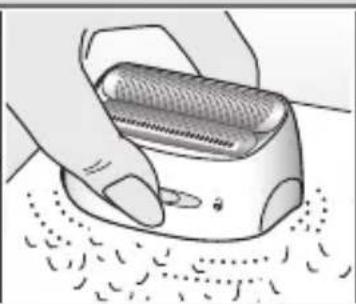

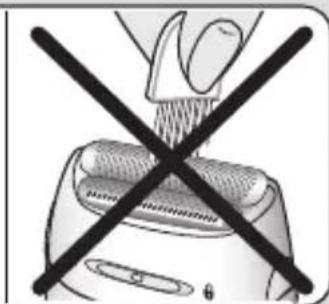

d Cleaning: Do not clean the shaver foil (II) with the brush as this may damage the foil.

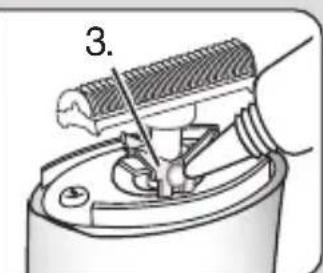

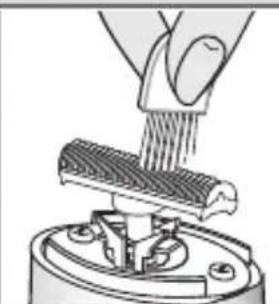

e The shaving parts need to be lubricated regularly every 3 months.

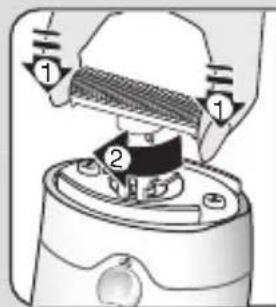

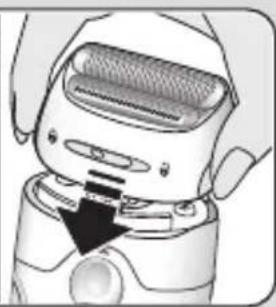

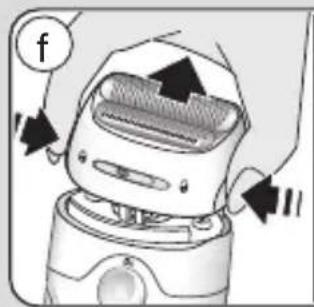

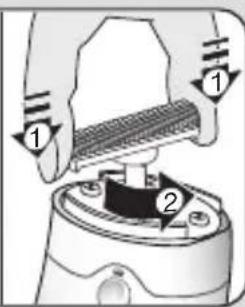

f Replace the foil frame (II) and cutter block (III) when you notice a reduced shaving performance. Replacements parts can be obtained from your retailer or Braun Customer Service Centres or via www.service.braun.com. Do not shave with a damaged foil.

Disposal

This product contains batteries and recyclable electronic waste. To protect the environment, do not dispose of it in the household waste, but take it to appropriate local collection points.

Subject to change without notice.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we

will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance.

The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

For Australia & New Zealand only: Warranty

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The benefits given by this warranty are in addition to other rights and remedies of the consumer law.

For warranty claims please contact:

Procter & Gamble Australia Pty Ltd Level 4, 1 Innovation Road Macquarie Park, NSW 2113

Telephone (AU): 1 800 641 820

Telephone (NZ): 0 800 108 909

Email (AU and NZ): Visit link

https://pgconsumersupport.secure.force.

com/ContactUs/emailus

Our Warranty

This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty).

Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations.

Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase.

Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance.

Our Warranty does not cover:

A. Damage arising from improper use or operation on incorrect voltages.
B. Breakages to shaver foils, glass jars, etc.

C. Normal wear due to moving parts.
D. Repairs undertaken by unauthorised service personnel or use of non genuine parts.
E. Appliances that are outside the warranty period or are not faulty.

This appliance is not intended for use by young children or infi rm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture.

To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute.

Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers).

If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us.

Repairs and service

If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense.

For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time – in that event please contact the Consumer Service free call number below for updated local service agent details.

Australian & New Zealand Service Agents

VICTORIA & TASMANIA

Statewide Services Pty Ltd trading as J A Appliances

17-19 Hossack Avenue

Coburg North, VIC 3058

Tel. [phone]

Fax. [phone]

Email: jaappliances@statewideservices.

com.au

QUEENSLAND

Walters Import trading as Brisbane

Appliance Service Centre

449 Beaudesert Road

Moorooka QLD 4105

Tel. [phone]

Fax. [phone]

Email: [e-mail]

WESTERN AUSTRALIA

Mark 1 Appliances

Unit 1, 46 Abernethy Road

Belmont, WA 6104

Tel. [phone]

Fax. [phone]

Email: [e-mail]

NEW SOUTH WALES & ACT

Faulder Appliance Services Pty Ltd

Shop 4,

9 Evans Road,

Rooty Hill, NSW 2766

Tel. [phone]

Fax. [phone]

Email: [e-mail]

SOUTH AUSTRALIA & NT

Adelaide Service Centre

Shop B2,

Parkholme Shopping Centre

319 Oaklands Road, Parkholme

Adelaide, SA 5043

Tel. [phone]

Fax. [phone]

Email: [e-mail]

NEW ZEALAND

Key Service Ltd

7D Echelon Place East Tamaki

Manukau City

Auckland

New Zealand

(PO Box 38569, Howick, Auckland, New

Zealand)

Tel. [phone]

Fax. [phone]

Email: [e-mail]

Français

ELMIN, Đurđevac 48350

R. Boškovića 20, Tel. [phone],

[e-mail]

BKS d.o.o., Slavonski brod 35 000

J. J. Strossmayera 29, Tel. [phone],

[e-mail]

FRUK d.o.o., Virovitica 33 000

J. J. Strossmayera 23, Tel. [phone],

[e-mail]

MARKOVIĆ OBRT ZA EL.USLUGE,

Varaždin 42 000

Krešimira Filića 9, Tel. [phone],

[e-mail]

RADAN ELEKTRINIK CENTAR d.o.o.,

Dubrovnik 20 000

Ob. Pape I. Pavlall. 17, Tel. [phone],

[e-mail]

Tehno -Jelčić d.o.o., Šibenik 22 000

VIII Dalmatinske Udarne Brigade 71,

Tel. [phone]

MERC&DUJMOVIĆ, Split 21 000

Alojzija Stepinca 6, Tel. [phone],

[e-mail]

SINGULI D.O.O., 21000 SPLIT-KAMEN

UL. 4. Gardijske brigade 43,

Tel. [phone]

Country of origin: Germany Year of manufacture

To determine the year of manufacture, refer to the 4-digit production code starting with "PC" located near the type plate. The first digit refers to the last digit of the year of manufacture. The next three digits refer to the day in the year of manufacture. Example: "PC7123": The product was manufactured on day 123 of 2017.
