Product type	Rear light for E-Bike
Model	TOPLIGHT Dart E Brex (340KSB)
Brand	Busch + Müller
Power supply	DC voltage 6-50 V DC (e-bike battery)
Functions	Steady rear light, brake light, emergency brake light (flashing)
On/Off	Via cycle computer or front headlight
Mounting dimensions (hole spacing)	50 mm or 80 mm
Recommended mounting height	40 to 120 cm
Weight	Approx. 60 g
Housing material	Not specified
Waterproofing	Not waterproof; protect from moisture (plastic bag)
Maintenance	Clean with damp cloth; avoid water jet
Safety	Do not mount upside down; align perpendicular to the ground and parallel to the track
Compatibility	Electric bikes (E-Bikes) not subject to registration (excluding speed pedelec)
Installation	Mount on luggage rack with provided screws (2 bolts)
Electrical connection	Stripped wires (5 mm) or spade connectors; observe polarity
Recycling instructions	Do not dispose with household waste; hazardous waste
Warranty	Void if device is opened or disassembled
Repairability	Not user-repairable; contact customer service
Customer service	Phone [phone] / [e-mail]
Manufacturer	Busch + Müller KG, 58540 Meinerzhagen, Germany
Manual available in	FR, DE, EN, ES, IT, NL and others (on request)

Frequently Asked Questions - DART Busch + Müller

How to mount the DART rear light on my luggage rack?

The rear light mounts on the luggage rack using the two bolts and supplied mounting hardware. It is designed for a hole spacing of 50 mm or 80 mm. Align it perpendicular to the ground and parallel to the track. Tighten the screws enough so it does not slide. Do not mount the light upside down.

What is the required supply voltage?

This rear light requires a DC voltage of 6-50 V DC. It must be connected to an e-bike battery. Do not use with an AC voltage source (e.g., dynamo).

How to connect the power cable?

Strip the wires about 5 mm. Open the cable clamp, insert the stripped wires, then fold them around the cable clamp to secure. Ensure correct polarity. Insert the cable clamp into the rear light so that the wires touch the plug-in contacts. For cables with spade connectors, attach the connectors directly to the contacts.

How does the brake light work?

When speed is significantly reduced, the brightness of the rear light increases considerably, signaling braking. In case of emergency braking, a highly visible flashing of the light warns other road users. Proper alignment of the light is essential for this function.

What to do if the rear light does not turn on?

First check that the power supply is properly connected and the bike battery is charged. Ensure polarity is correct and cables are making good contact. If the problem persists, contact customer service ([e-mail]). Do not open the housing, as this will void the warranty.

Can I use this light on a non-electric bike?

No, this rear light is designed exclusively for electric bikes (E-Bikes) equipped with a battery providing DC voltage of 6 to 50 V. It is not compatible with dynamos or standard batteries.

Is the rear light waterproof?

No, the rear light is not waterproof. It must be protected from moisture. When cleaning with a water jet, in rain, or during car transport, cover it with a plastic bag to prevent water ingress.

How to maintain the rear light?

Clean it with a damp cloth (not wet). Avoid using high-pressure cleaners. Protect it from excessive moisture. Once a year, check that the mounting screws are tight and the electrical contacts are not oxidized.

What to do in case of malfunction?

In case of a problem, do not open or disassemble the rear light. Contact Busch + Müller customer service by phone [phone]) or email ([e-mail]). The warranty is void if the device is opened.

Where can I find the complete manual?

The complete manual is available free of charge on notice-facile.com in PDF format. You can also request it in another language by sending your email via the product page. The manufacturer also provides manuals in several languages on its website www.bumm.de.

USER MANUAL DART Busch + Müller

1. Instruction Manual for Busch + Müller E-Bike Rear Light TOPLIGHT Dart E Brex (not allowed on vehicles required to carry licence plates (fast e-bikes))

TOPLIGHT Dart E Brex Type No. 340KSB

This Instruction Manual is intended for users with knowledge and experience in assembling and installing bicycle components. Special tools are required. If you do not know how to assemble or install bicycle components or do not have all the necessary tools for the job, please contact a bicycle specialist to have the installation done properly. Otherwise, the cyclist may fall off and suffer serious injuries as a result of improper assembly or installation of the light components. Read this Instruction Manual carefully, follow all the steps described and keep it in a safe place.

2. Safety information

This Instruction Manual uses the following signal words to alert you to potential hazards. The meaning of the signal words is listed below:

NOTICE Indicates information considered important, but not hazard-related (e.g. information related to property damage).

The symbol is used to provide other useful information about your new bicycle lights.

3. Intended use

Busch + Müller offer a wide range of different bicycle lights. Not every bicycle light can be used for any application and for cycling on any surface. There are limitations. If you are not sure which type of bicycle light you have, either call our service hotline at +49 2354/9157111, send an e-mail to [e-mail] or consult a local specialist bicycle retailer.

NOTICE Bicycle lights made by Busch + Müller are suitable for use on bicycles cycling on a firm surface. Avoid any extreme use, and never ride down stairs or perform jumps, stunts, tricks, bunny hops or vertical descents on rough terrain.

4. Legal Regulations

Before cycling on public roads, you must learn and observe at any time the applicable national laws and statutes as well as local regulations. For information, either consult the Road Traffic Regulations or - depending on your respective place of residence - other sources for information.

Never cover or conceal your bicycle lights. Always make sure the bicycle lights are correctly adjusted. In general, the prescribed mounting height ranges between about 40 and 120 cm . For details consult the Road Traffic Regulations or contact a local bicycle specialist retailer.

5. Package content

Rear light with assembly bolts | Fastening nuts | Instruction Manual

6. Assembly

Attach the rear light to the rack using the two fastening bolts on the rear and the enclosed fastening material. The rear light is designed for a 50 mm or 80 mm assembly dimension. Tighten the screws only to the extent preventing the rear light from slipping or falling off. BREX works without electrical connection to the brake lever.

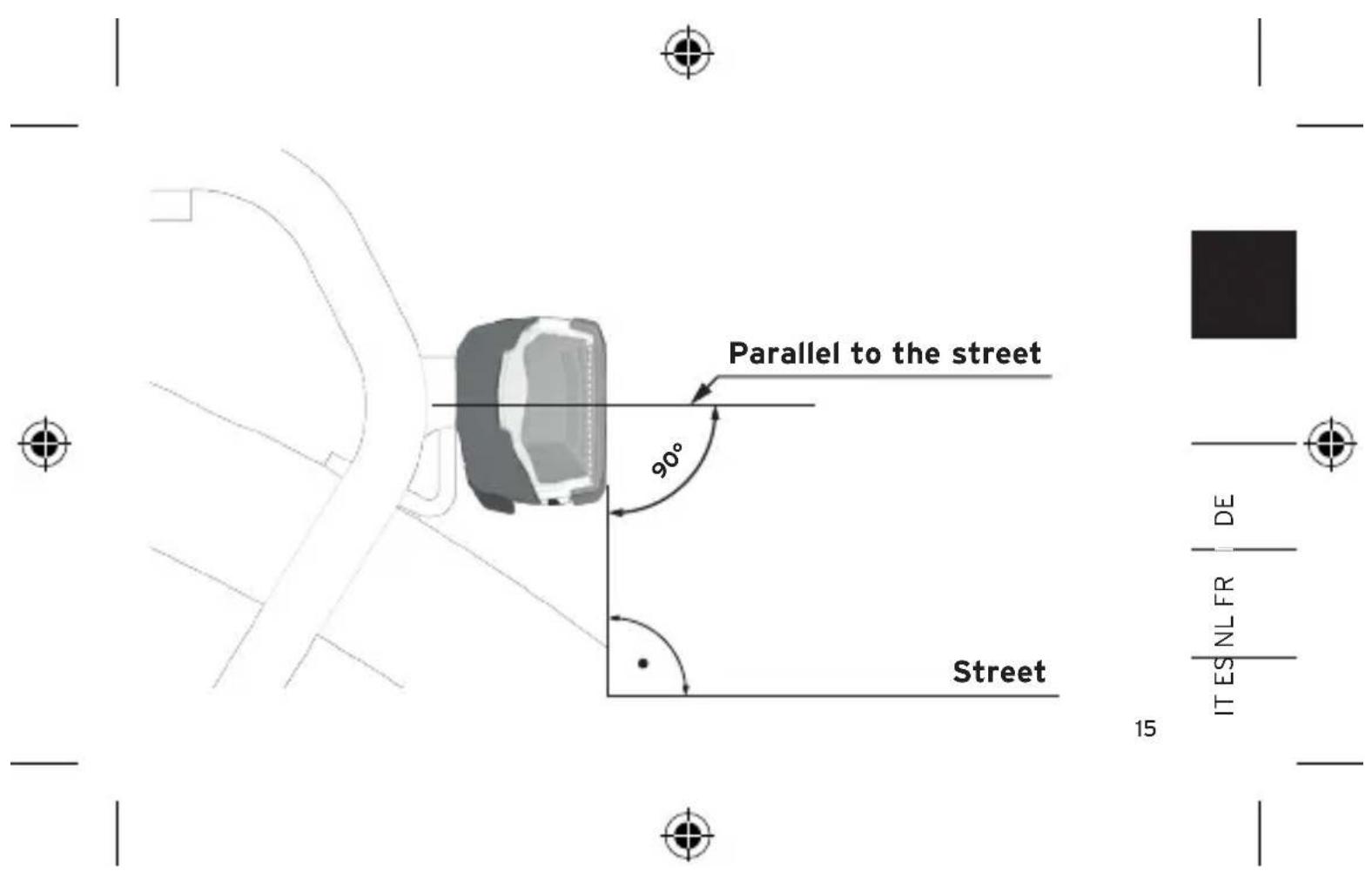

Align the rear light so that it is perpendicular to the ground and parallel to the colour track as shown in the sketch opposite. This is absolutely necessary for the correct function of the stoplight!

Important: Lighting equipment must not be concealed at any time.

7. Power supply

Rear light exclusively for connection to a DC voltage source of 6 to 50V (AC DC), e.g. e-bike battery. Connection to an AC voltage source (e.g. dynamo) is not permitted!

Cable with open strands:

1. Pull off the attached cable clamp!
2. Push the cable with the ends stripped by approx. 5mm through the insertion holes of the cable clamp. Bend the open strands downwards around the cable clamp so that they are fixed and do not touch each other. do not touch each other. Make sure the polarity is correct!
3. Insert the cable clamp with the cables into the tail light so that the open strands are guided to the plug contacts of the tail light. The plug contacts of the tail light and fix them there.

Cable with cable lugs:

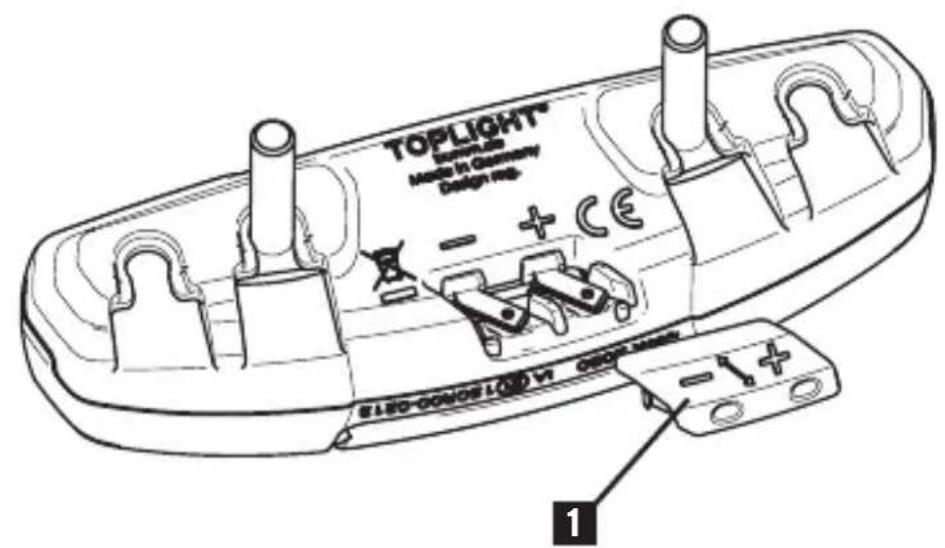

1. Pull off the attached cable clamp 1
2. Attach the cable to the plug contacts. Make sure the polarity is correct.
3. The cable clamp is no longer needed.

The connection of this rear light is only permitted on vehicles where it is ensured that after the battery has been switched off due to discharge, power is still available to supply the lighting system for at least 2 hours.

E

8. Operation

The rear light is switched on and off via the vehicle display or via the headlight. If the speed is reduced significantly, the rear light illuminates much brighter to signalise the following traffic to slow down (stoplight).

In the event of an extreme reduction in speed (emergency braking), a very noticeable flashing of the stoplight warns the traffic behind of an abrupt braking manoeuvre (emergency stoplight function). This increases protection against rear-end collisions and can prevent accidents when cycling in convoys and with children!

Correct alignment of the rear light is a prerequisite for the proper functioning of the brake and emergency stoplight function (see: 6. Assembly).

9. Further remarks

If the bike is splashed with water, parked upside down in the rain or transported on a car in the rain, seal the rear light (e. g. with plastic bags) to prevent moisture from entering the rear light.

Disposal: Rear lights with electronic components must not be handled as household waste but are to be disposed of as hazardous waste.

10. Liability

In addition to the above-mentioned exclusions of warranty, we do not assume liability for any and all other damage caused by improper handling (e.g. dropping the headlight, inadequate safety of mounting and its consequences, submersion in water or other liquids etc.). Neither do we assume any liability if the rear light is opened or dismantled.

Have fun and enjoy safe cycling with your new rear light.

Technical modifications reserved.

Busch + Müller KG • 58540 Meinerzhagen, Germany • Tel. [phone] • [e-mail] • www.bumm.de
