USER MANUAL 66341 PROCTOR SILEX

Line drawing of a simple electric kettle with lid and base (no text or symbols)

READ BEFORE USE

LIRE AVANT UTILISATION

LEA ANTES DE USAR

Visit proctorsilex.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online.

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. To protect against risk of electrical shock, do not put cord, plug, base, or motor in water or other liquid.
5. Turn the appliance off, then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
6. Avoid contact with moving parts. Do not attempt to defeat any safety interlock mechanisms.
7. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Customer Service for information on examination, repair, or adjustment as set forth in the Limited Warranty.
8. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or personal injury.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Do not use appliance for other than intended purpose.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

This appliance is only intended for the preparation and serving of foods. This appliance is not intended for use with any nonfood materials or products.

WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

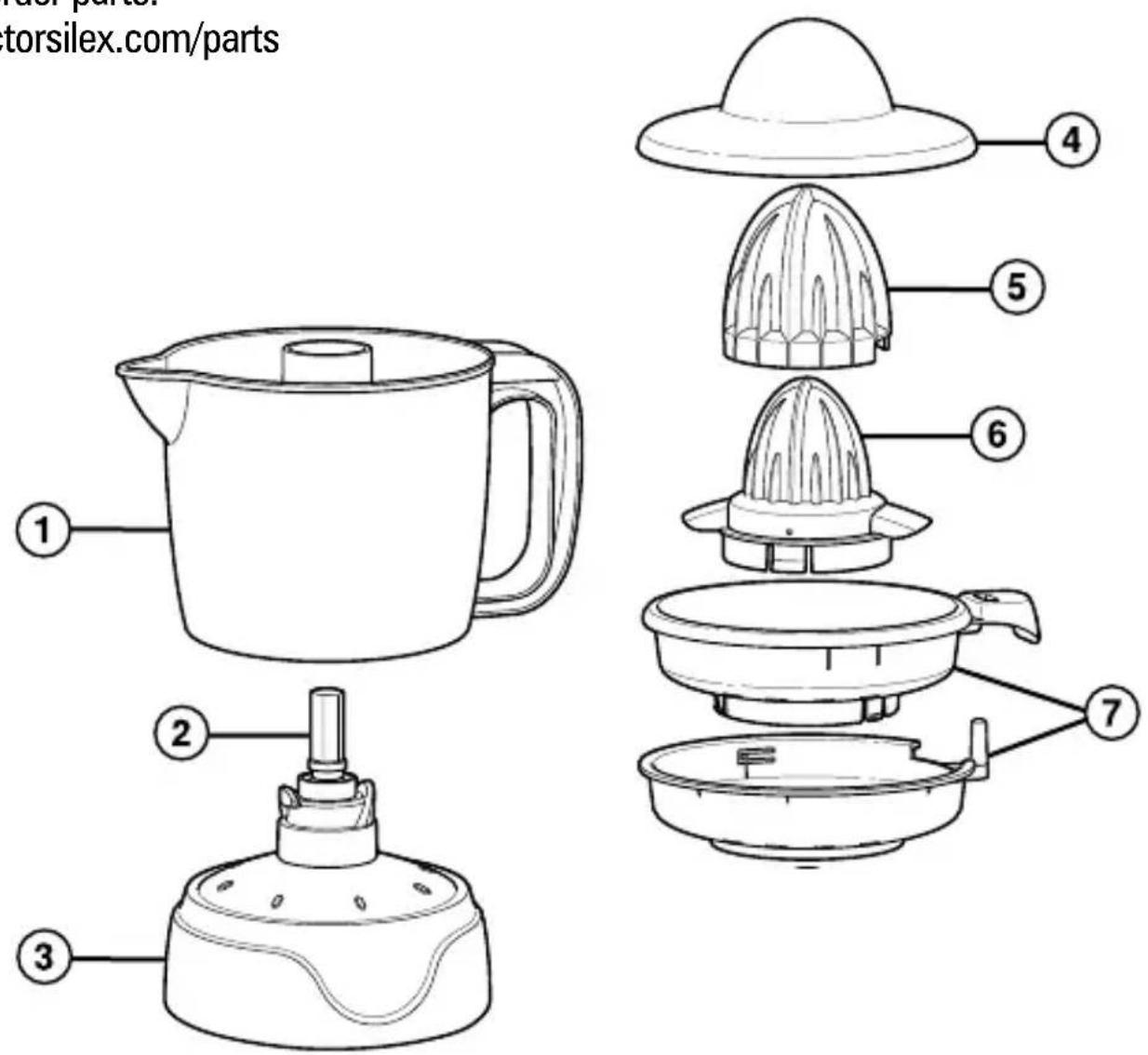

Parts and Features

To order parts: proctorsilex.com/parts

1. Pitcher with Juice Level Indicator
2. Center Shaft
3. Base with Cord Storage

4. Lid (for storage)

5. Large Reamer (oranges, grapefruit)

6. Small Reamer with Pulp Scraper (limes, lemons)
7. 2-Piece Pulp Control Basket with Pulp Control Dial

How to Use

1. Unplug.

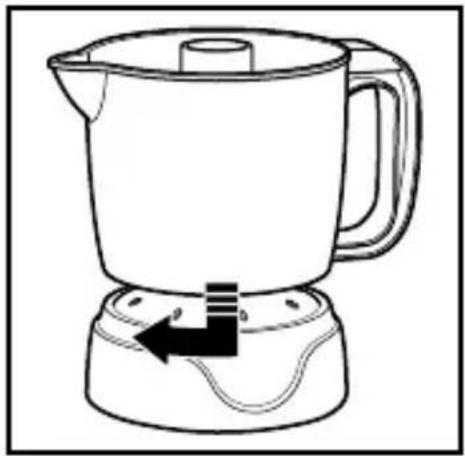

2. Place Pitcher onto Base. Hold Base and turn Pitcher clockwise to lock. Pitcher will stop when locked.

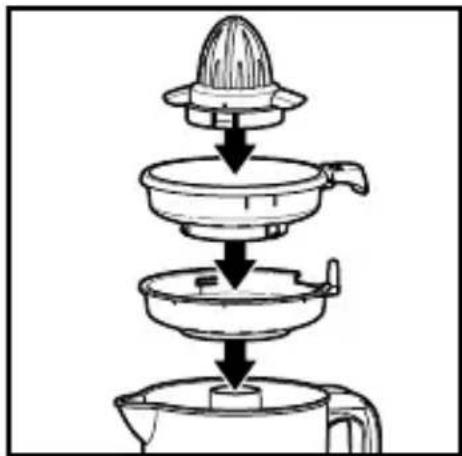

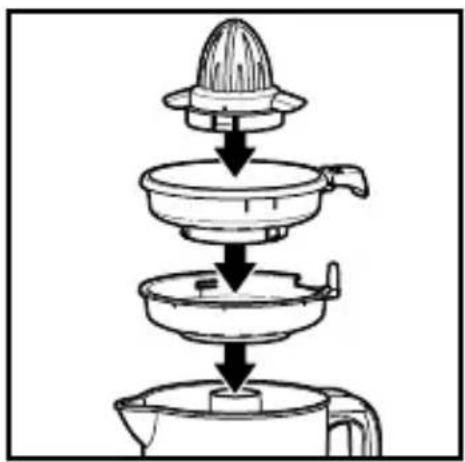

3. Fit two parts of Pulp Control Basket together. Place onto Center Shaft of Juicer, aligning handle of Pulp Control Basket with handle of Pitcher.

4. Snap Small Reamer onto Pulp Control Basket. If juicing large fruit (oranges, grapefruit), fit Large Reamer directly on top of Small Reamer.

NOTE: Always select size of Reamer based on size of fruit to be juiced.

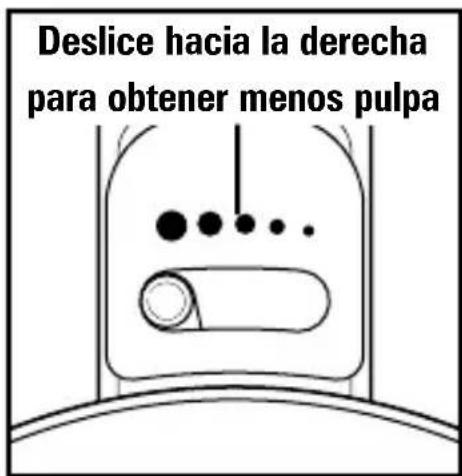

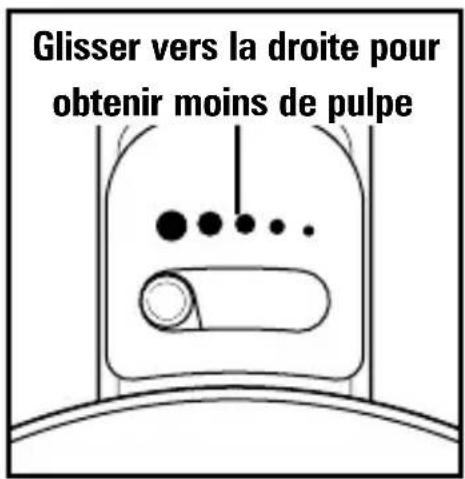

1. Slide Pulp Control Dial to select desired amount of pulp.

NOTE: If Reamer is used without Pulp Control Basket, juice will contain pulp and seeds.

1. Plug into outlet.

2. Push down on Reamer with halved fruit to start juicing action. Lift fruit up off Reamer and Juicer stops. This Juicer is designed with an auto-reverse. It automatically reverses direction from time to time to make juicing easier.

3. When finished juicing, unplug from outlet, then remove Reamer (and Pulp Control Basket, if used).

4. To unlock Pitcher, hold Base and turn Pitcher counterclockwise. Remove Pulp Control Basket and pour juice. Store unused juice in Pitcher in refrigerator with Pulp Control Basket and Lid.

Line drawing of a portable water heater with a black arrow indicating the cooling point (no text or symbols)

Diagram of a kitchen appliance with three steps: top view, mid-tier, and bottom view (no text or labels)

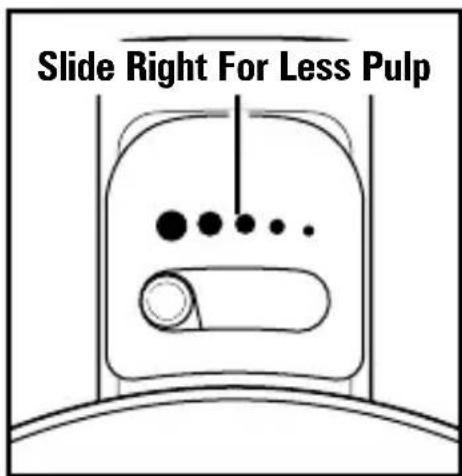

Slide Right For Less Pulp

Tips for Best Results

• This Juicer is designed to juice citrus fruit such as oranges, lemons, limes, and grapefruit.
• For maximum juice, fruit should be at room temperature.

- Before juicing, roll fruit between countertop and palm of your hand. Slice fruit in half, cutting across sections.

Care and Cleaning

⚠ WARNING Electrical Shock Hazard. Disconnect power before cleaning. Do not immerse cord, plug, or base in any liquid.

1. Unplug.
2. Lift Lid, Reamer and Pulp Control Basket.
3. To unlock Pitcher, hold Base and turn Pitcher counterclockwise.
4. Lift Pitcher to remove.
5. Press down on Pulp Control Dial and gently separate parts of Pulp Control Basket.
6. Lid, Reamers, Pulp Control Basket, and Pitcher may be washed in hot, soapy water or in TOP rack of a dishwasher.

7. Wipe Base with a damp cloth.

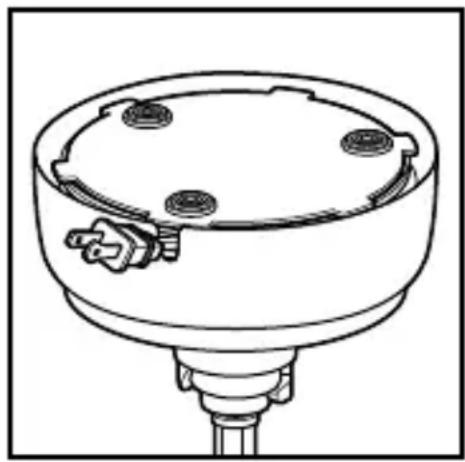

8. Wrap cord around Cord Storage. NOTE: All parts fit together for easy storage. See Parts and Features on page 4.

Technical line drawing of a mechanical component with no visible text or symbols

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of three (3) years from the date of original purchase. During this period, your exclusive remedy is replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with our returning a product or component under this warranty to you. If the product or component is unavailable, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120 V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price.

Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make warranty claim, do not return this appliance to the store. Please write Hamilton Beach Brands, Inc., Customer Service Department, 4421 Waterfront Dr., Glen Allen, VA 23060, or visit proctorsilex.com/customer-service in the U.S. or proctorsilex.ca/customer-service in Canada. For faster service, locate the model, type, and series numbers on your appliance.
