66900 - Juicer PROCTOR SILEX - Free user manual and instructions

Brand	Proctor Silex
Model	66900
Appliance Type	Juice extractor (electric citrus press)
Usage	Commercial
Power Supply	120 V, 60 Hz (grounded plug)
Switch	On/Off (I/O)
Included Accessories	Cone for orange, cone for grapefruit, cone for lemon/lime, strainer, bowl, splash guard, removable drip tray/cup rest
Bowl Material	Plastic (commercial dishwasher safe)
Cleaning	Removable parts can be washed in commercial dishwasher or by hand; base wiped with a damp cloth
Sanitizing	Bleach solution (15 ml per 3.8 L water) – immerse for 2 minutes
Safety	3-prong grounded plug; do not immerse base; do not use adapter or extension cord
Repair	Technical service: 866-285-1087 or [phone] (Mon-Fri 8am-5pm EST)

Frequently Asked Questions - 66900 PROCTOR SILEX

How to assemble the Proctor Silex 66900 juice extractor?

Place the bowl on the base over the motor shaft. Insert the strainer into the bowl. Choose the appropriate cone (orange, grapefruit, or lemon/lime) and insert it onto the shaft. Install the splash guard on the bowl. Plug the appliance into a grounded outlet and press (I) to start.

What types of citrus can I press with this appliance?

The appliance is designed to press oranges, grapefruits, lemons, and limes. Use the provided cone for each fruit type.

How to clean the juice extractor after use?

Unplug the appliance. Remove the cover, cone, strainer, and bowl. Remove pulp and seeds. Wash these parts in a commercial dishwasher or by hand with hot soapy water. Rinse and dry. Wipe the base and motor shaft with a damp cloth and dry. Never immerse the base in water.

Why isn't juice flowing through the spout?

Check that the strainer or spout is not blocked by seeds or pulp. Clean these parts thoroughly between each use.

What if the motor does not work?

Unplug the appliance and let the motor cool down for a few minutes. Make sure not to apply excessive pressure on the fruit. Check that the plug is properly inserted and the switch is on (I). If the problem persists, contact technical service.

The juice tastes bitter, how to fix it?

Avoid applying too much pressure on the fruit during extraction. Excessive pressure causes grinding of the peels, which gives a bitter taste.

Can I use an extension cord with this appliance?

No, using an extension cord is not recommended. If necessary, use an approved 3-wire grounded extension cord with electrical characteristics at least equivalent. Install it to avoid any tripping hazard.

How to sanitize the juice extractor?

Prepare a bleach solution (15 ml bleach per 3.8 L cold water). Immerse the cover, cones, strainer, and bowl for 2 minutes. Let air dry, then rinse with clean water before use. Wipe the outside of the base with a cloth soaked in the solution.

Where to find spare parts for model 66900?

Contact technical service at 866-285-1087 or [phone] (Monday to Friday, 8am-5pm EST). They can provide spare parts and assistance.

Is this appliance suitable for domestic use?

No, this juice extractor is intended for commercial use only. It is not recommended for domestic use due to its power and design.

USER MANUAL 66900 PROCTOR SILEX

Operation Manual – Page 2

PRESSE- AGRUMES ÉLECTRIQUE

Line drawing of a Proctor Silex commercial blender with lid and control panel (no text or symbols on device)

Model 66900 Type GJ36

840252300 11/14

For more Good Thinking® visit www.commercial.hamiltonbeach.com

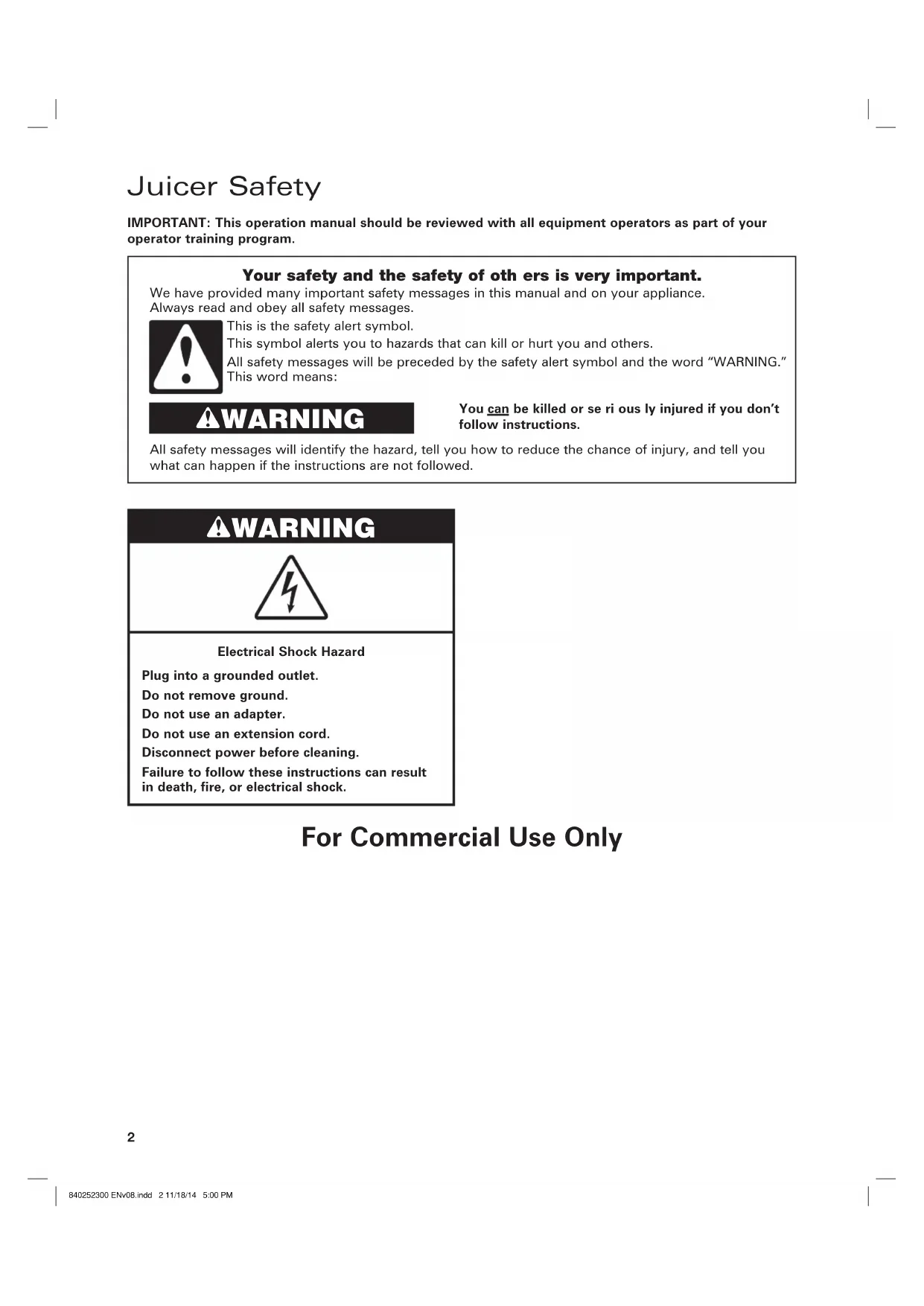

Juicer Safety

IMPORTANT: This operation manual should be reviewed with all equipment operators as part of your operator training program.

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the word "WARNING."

This word means:

WARNING

You can be killed or serious ly injured if you don't follow instructions.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING

Electrical Shock Hazard

Plug into a grounded outlet.

Do not remove ground.

Do not use an adapter.

Do not use an extension cord.

Disconnect power before cleaning.

Failure to follow these instructions can result in death, fire, or electrical shock.

For Commercial Use Only

Juicer Safety

IMPORTANT SAFETY INSTRUCTIONS

WARNING – When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. To reduce risk of personal injury, unplug cord from outlet when not in use, and before putting on or taking off parts or doing any other servicing of the juicer.
5. Plug into a grounded outlet.
6. Do not use an adapter.
7. Do not use an extension cord.
8. Do not let cord hang over edge of table or counter or touch hot surfaces.
9. Do not place on or near a hot gas or electric burner, or in a heated oven.

10. To protect against electric shock, do not immerse cords, plugs, or the juicer base in water or any other liquid.

11. Do not use appliance for other than intended use.

12. Avoid contacting moving parts.
13. Do not store any kitchen utensils in the bowl. The juicer would be damaged if inadvertently turned on.
14. Inspect reamer daily. Check for cracks, nicks, or broken ribs.
15. Do not use outdoors.
16. Do not place in or near water or liquids.
17. To reduce risk of personal injury and to prevent damage to the juicer, do no insert utensils into the reamer while operating the juicer.
18. The use of accessory attachments not recommended by Hamilton Beach may cause injuries.
19. To prevent damage, DO NOT move or shake the juicer while in operation. If juicer action stops during operation, turn juicer OFF/O and reset unit.
20. Do not spray the base with a high-pressure spray gun.
21. Disconnect power before cleaning or servicing.
22. Do not operate any appliance with a damaged cord or plug after the appliance malfunctions, or is dropped or damaged in any manner. Appliance must be serviced by the manufacturer, its service agent, or similar qualified persons in order to avoid a hazard.

- SAVE THESE IN STRUC TIONS -

OTHER CONSUMER SAFETY INFORMATION

WARNING Electrical Shock Hazard: This product is provided with a grounded (3-prong) plug to reduce the risk of electric shock. The plug fits only one way into a grounded outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit into the outlet, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. The extension cord must be a grounding-type, 3-wire cord. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

Sanitizing

Sanitize appliance daily after each use. The sanitizing solution should consist of 1 Tablespoon (15 ml) of bleach per 1 gallon (3.8 liters) of clean, cool water (60°F/16°C) mixed according to the instructions on the bleach container.

1. Immerse splash cover, reamers, strainer, and bowl in sanitizing solution for 2 minutes.

2. Allow to air dry. When ready to use, rinse with clean water.

3. Wipe exterior with soft cloth dampened with sanitizing solution.

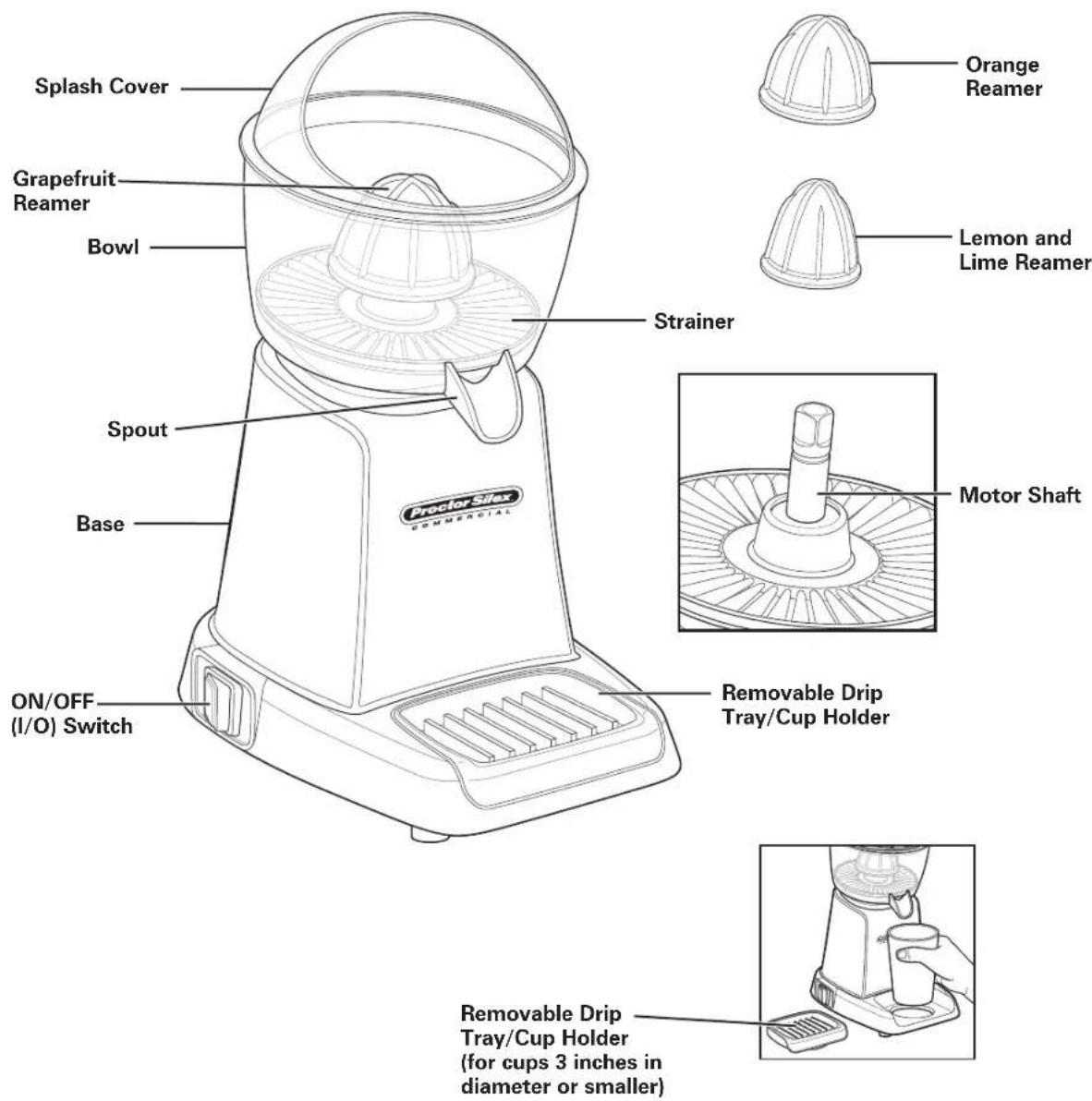

Parts and Features

Splash Cover Grapefruit Reamer Bowl Strainer Spout Base ON/OFF (I/O) Switch Orange Reamer Lemon and Lime Reamer Motor Shaft Removable Drip Tray/Cup Holder Removable Drip Tray/Cup Holder (for cups 3 inches in diameter or smaller)

Technical Services

For assistance or replacement parts, call our

Technical Services number:

866-285-1087 or [phone]

8 a.m. – 5 p.m. EST Monday – Friday

www.commercial.hamiltonbeach.com

Operating the Juicer

1. Place bowl on base over motor shaft.
2. Insert strainer into bowl.
3. Select reamer and push onto motor shaft.
4. Place splash cover on bowl.
5. Plug into grounded electrical outlet.
6. Press power switch to ON (I).

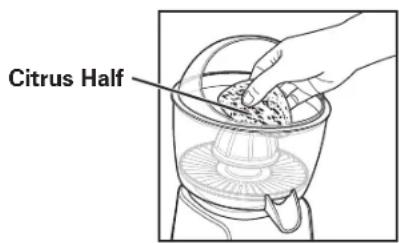

7. Place halved citrus fruit on reamer and hold citrus in place until all the juice is removed.

NOTES:

• When placing the fruit onto the reamer, make sure your hand touches only the fruit and does not come in contact with the reamer.

• For best juicing, citrus fruits should be at room temperature.

• When finished juicing, press power switch to OFF (O).

Citrus Half

Cleaning the Juicer

1. Unplug the juicer.
2. Remove the splash cover, reamer, strainer, and bowl.
3. Remove all pulp and seeds from all parts.
4. Wash all removed parts in a commercial dishwasher or hand wash using warm soapy water. Rinse and dry.
5. Wipe the base and motor shaft with a clean, damp, soft cloth and dry.

NOTES:

• Do not immerse the base in water.
• Do not allow juice to dry on juicer parts.
• Remove pulp and seeds from parts in between uses.

Troubleshooting Guide

Problem . . . Solution . . .
Juice will not flow through container spout.	· Check to see if the strainer or spout is plugged with seeds or pulp from the last use.
Juicer will not ream fruit.	· Make sure enough pressure is applied to the fruit during operation.· Make sure the reamer is pushed all the way down onto the motor shaft.
Motor will not run.	· Motor has stalled and/or motor cutout switch has opened. Unplug the juicer and allow the unit to cool.· Make sure excessive pressure is not applied to fruit during operation.· Make sure juicer is plugged into outlet and power switch is in the ON (I) position.
Juice has bitter taste.	· Make sure excessive pressure is not applied to fruit during operation.· Too much pressure will allow rind in juice, which is bitter.
