62507G - Electric mixer PROCTOR SILEX - Free user manual and instructions

Product Type	Electric Hand Mixer
Brand	Proctor Silex
Model	62507G
Power Supply	120 V ~ 60 Hz
Power	Maximum peak power (not specified)
Speeds	5 speeds + OFF
Main Functions	Mixing, beating, whipping, beater eject, Bowl Rest
Included Accessories	Pair of beaters
Dimensions (L x W x H)	Approximately 20 x 10 x 15 cm (estimate)
Weight	Approximately 0.8 kg (estimate)
Housing Material	Plastic
Color	Not specified (usually white or black)
Cord Length	Approximately 1 m (estimate)
Plug Type	Polarized (one wide prong)
Safety	Automatic shut-off, polarized plug, unplug before cleaning
Care and Cleaning	Dishwasher-safe (top rack) for beaters, wipe housing with damp cloth
Warranty	3-year limited (defects in materials and workmanship)
Customer Service (USA)	1.800.851.8900
Customer Service (Canada)	1.800.267.2826
Website (USA)	www.proctorsilex.com
Website (Canada)	www.proctorsilex.ca
Website (Mexico)	www.proctorsilex.com.mx

Frequently Asked Questions - 62507G PROCTOR SILEX

How to eject the beaters from the Proctor Silex 62507G mixer?

Make sure the speed control is set to OFF. Press directly on the speed control to eject the beaters. Always unplug the mixer before removing the beaters.

Can I wash the beaters in the dishwasher?

Yes, the beaters are dishwasher safe, but only on the top rack. Do not use the 'SANI' setting as it may damage the product.

How to use the Bowl Rest?

Set the mixer to OFF, then rest the mixer on the edge of the bowl. Never use the Bowl Rest while the mixer is running, nor on small or plastic bowls.

What is the warranty for the Proctor Silex 62507G mixer?

This mixer is warranted for 3 years from the date of purchase against defects in materials and workmanship. The warranty does not cover normal wear, accidental damage, or misuse. You must provide the original receipt.

What to do if the mixer does not work?

First check that it is plugged in and the outlet works. If the problem persists, do not return the appliance to the store. Contact Proctor Silex customer service at 1.800.851.8900 (USA) or 1.800.267.2826 (Canada).

Can I use an extension cord with this mixer?

Yes, if the cord is too short, you may use an approved extension cord with electrical ratings equal to or greater than those of the appliance (120 V ~ 60 Hz). Install it safely to prevent a child from pulling on it.

How to clean the mixer housing?

First unplug the mixer. Wipe the housing with a soft, damp cloth or sponge, then dry. If needed, use a mild non-abrasive cleaner. Never immerse the housing, cord, or plug in water.

What are the different speeds and their uses?

The mixer has 5 speeds: 1 (low) for mixing dry ingredients; 2 for butter and sugar; 3 (medium) for cake mixes; 4 for frosting and mashed potatoes; 5 (high) for whipping cream. Always start at 1 and increase.

Can I order replacement parts?

Yes, you can order parts such as beaters at www.proctorsilex.ca (Canada) or www.proctorsilex.com (USA). Call 1.800.267.2826 (Canada) for more information.

What safety precautions should I take?

Read all instructions. Do not let children use the appliance. Do not immerse the mixer in water. Unplug it before changing accessories or cleaning. Avoid contact with moving beaters. Use only on a stable surface.

USER MANUAL 62507G PROCTOR SILEX

Line drawing of a small kitchen mixer with handle and side arm (no text or symbols)

ENTER TO WIN \$100 TO SPEND ON WEBSITE.

Visit register.proctorsilex.com.

Open to US customers only.

PARTICIPEZ POUR COURIR LA CHANCE DE GAGNER UN MONTANT DE 100 \$ À DÉPENSER SUR NOTRE SITE WEB.

Visitez register.proctorsilex.com

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put cord, plug, base, or motor in water or other liquid.
6. Turn the appliance OFF(○), then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contacting moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from beaters during operation to reduce risk of injury to persons and/or damage to mixer.
8. Remove beaters from mixer before washing.
9. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove
10. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
11. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.

12. Do not use outdoors.

13. Do not place on or near a hot gas or electric burner, or in a heated oven.

14. Check that the appliance is OFF ( ) before plugging cord into wall outlet. To disconnect, turn the control to OFF ( ) then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
15. Do not use appliance for other than intended purpose.
16. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

⚠️ CAUTION Moving Parts Hazard. To reduce the risk of personal injury, always unplug mixer before inserting or removing beaters.

Wattage/Peak Power Information

The marked rating of the hand mixer is determined by Underwriters Laboratories as the maximum stabilized power consumption of the hand mixer at high speed under a loaded condition. Peak power is an average of the maximum wattage a hand mixer may consume during initial operation at high speed.

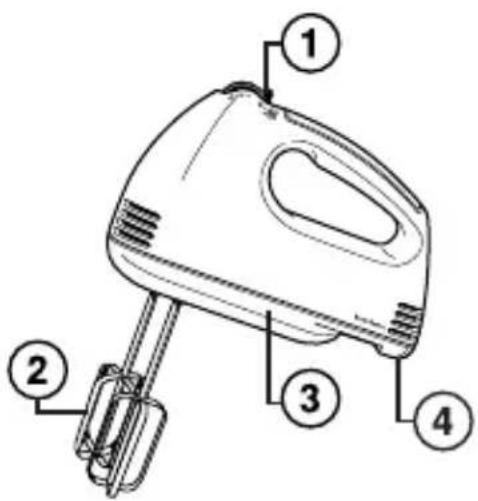

Parts and Features

Before first use: Wash the Beaters in hot, soapy water. Rinse and dry.

To order parts:

US: 1.800.851.8900

www.proctorsilex.com

Canada: 1.800.267.2826

Mexico: 800 71 16 100

1. Speed Control (ON/OFF) (I/∅ and Eject

2. Beaters

3. Mixer Body

4. Bowl Rest ^TM

How to Use Your Mixer

1. Make sure Mixer is unplugged and Speed Control is set to OFF ( )Insert Beaters into proper openings on bottom of Mixer. Push to click into place.
2. Plug into outlet. Lower Beaters into bowl with ingredients.

3. Move Speed Control to desired speed, starting at 1 and increasing speed if necessary.

4. When finished mixing, move Speed Control to OFF ( ) and unplug Mixer.

5. To eject Beaters, set Speed Control to OFF (①) and push straight down on the Speed Control.

NOTE: Always unplug Mixer before attempting to remove Attachments.

Mixing Guide

SPEED FUNCTION
○	OFF and/or Eject
1 LOW: folding/mixing dry ingredients, muffins, quick breads
2 To cream butter and sugar, and most cookie dough
3 MEDIUM: most packaged cake mixes
4 Frosting and mashed potatoes
5 HIGH: beating egg whites and whipping cream

Bowl Rest ^TM

Use the Bowl Rest while adding ingredients or checking a recipe. To use, turn Mixer OFF ( ) and then set the Mixer on the edge of the bowl.

NOTES:

• Never use Bowl Rest when Mixer is on.
• Do not use Bowl Rest on small or plastic mixing bowls.
• Do not lean Beaters against side of bowl.

Care and Cleaning

WARNING

Electrical Shock Hazard. Disconnect power before cleaning. Do not

immerse mixer, cord, or plug in any liquid.

1. Make sure Mixer is unplugged before cleaning.
2. Wash Beaters in hot, soapy water. Rinse and dry. Or, wash in dishwasher, top-rack only. DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures

could damage your product.

1. Wipe Mixer Body with a soft, damp cloth or sponge and dry. If necessary, use a nonabrasive cleanser.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of three (3) years from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit proctorsilex.com in the U.S. or proctorsilex.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.
