USER MANUAL 62511 PROCTOR SILEX

Line drawing of a hand mixer with whiskers (no text or symbols)

READ BEFORE USE

LIRE AVANT UTILISATION

LEA ANTES DE USAR

English 2

USA: 1-800-851-8900

www.proctorsilex.com

Français....8

Canada:1-800-267-2826

www.proctorsilex.ca

Español 15

México: 01 800 71 16 100

www.proctorsilex.com.mx

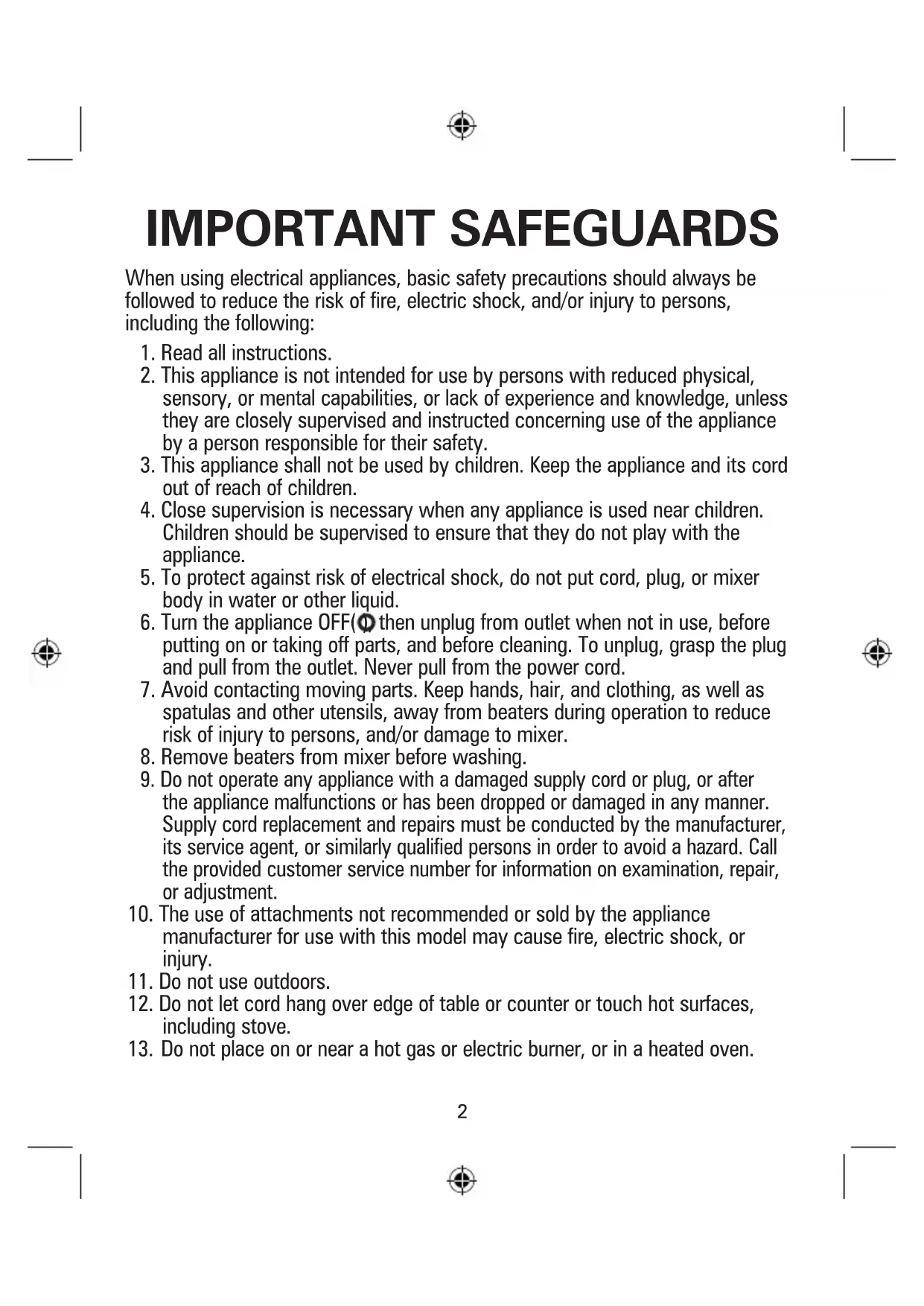

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put cord, plug, or mixer body in water or other liquid.
6. Turn the appliance OFF(①) then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contacting moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from beaters during operation to reduce risk of injury to persons, and/or damage to mixer.
8. Remove beaters from mixer before washing.
9. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
10. The use of attachments not recommended or sold by the appliance manufacturer for use with this model may cause fire, electric shock, or injury.
11. Do not use outdoors.
12. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.

13. Do not place on or near a hot gas or electric burner, or in a heated oven.

14. Check that the appliance is OFF (before plugging cord into wall outlet. To disconnect, turn the control to OFF (then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

15. Do not use appliance for other than intended purpose.
16. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

CAUTION Moving Parts Hazard.

To reduce the risk of personal injury, always unplug mixer before inserting or removing beaters.

Parts and Features

To order parts:

US: 1.800.851.8900

www.proctorsilex.com

Canada: 1.800.267.2826

Mexico: 01 800 71 16 100

BEFORE FIRST USE: Wash the beaters in hot, soapy water. Rinse and dry.

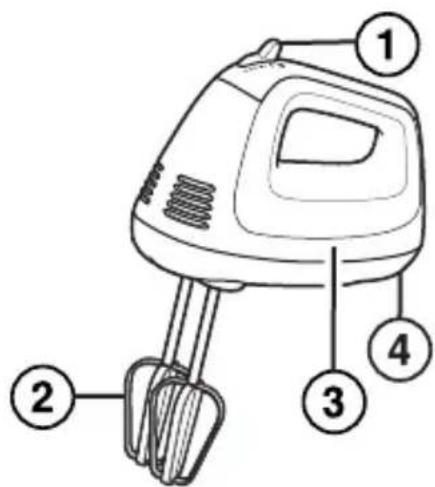

Diagram of a hand mixer with numbered parts labeled 1 to 4

1. Speed Control (ON/OFF) (I/∅ and Eject

2. Mixer Body

3. Beaters*

4. Bowl Rest™

Bowl Rest™ Never use Bowl Rest when mixer is on or with small (1 1/2 quart/1.4 L) mixing bowls or plastic mixing bowls. This feature can be used on most large mixing bowls. TURN MIXER □(OFF); then set mixer on edge of bowl while adding ingredients or checking recipe.

Mixing Guide

These are suggestions for selecting speeds. Begin on 1 and increase as needed.

SPEED FUNCTION
O OFF	( ) and/or Eject
1	LOW: folding/mixing dry ingredients, muffins, quick breads
2 To cream butter and sugar, and most cookie dough
3	MEDIUM: most packaged cake mixes
4 Frosting and mashed potatoes
5 HIGH: Beating egg whites and whipping cream

Using Your Mixer

1. Make sure mixer is unplugged and speed control is set to Ⓞ(OFF). Insert beaters. Then plug mixer into outlet. Place beaters into bowl.

2. Move the speed control to desired speed, starting at 1 and increasing to a higher speed if necessary.

3. When finished mixing, move the speed control to Ⓞ(OFF) and unplug.

4. To eject beaters, with speed control set at Ⓞ (OFF), push straight down on the speed control.

Speed Control

Mixing Tips

Cookie dough is one of the thickest doughs to mix. Make it easier by following these tips:

• Use a large mixing bowl to spread out ingredients for easier mixing.
• Have butter or margarine at room temperature.
• Add ingredients one at a

time, thoroughly mixing after each addition.

• Add flour one cup at a time.
• If adding chips or nuts to a very thick dough or batter, we recommend stirring them in by hand at the very end of the recipe.

Cleaning Your Mixer

1. Always unplug from outlet and eject beaters before cleaning.
2. Wash attachments in hot, soapy water; rinse and dry.
3. Wipe the mixer body and cord with a clean, damp cloth.

NOTE: Do not use abrasive cleaners or scouring pads. To reduce the risk of electrical shock, do not immerse the mixer body in water at any time.

LIMITED WARRANTY

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit proctorsilex.com in the U.S. or proctorsilex.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Diagram of a kitchen mixer with numbered parts labeled 1 to 4

Diagram of a hand mixer with numbered parts labeled 1 to 4
