USER MANUAL Maverick Storm 1 Wash Chauvet

CHAVET PROFESSIONAL

EDITION NOTES

The Maverick Storm 1 Wash User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the Maverick Storm 1 Wash. Chauvet published this version of the User Manual for Maverick Storm 1 Wash in 2021.

Trademarks

CHAUVET, the Chauvet logo, and Maverick Storm 1 Wash are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.

Copyright Notice

The works of authorship contained in this manual, including, but not limited to, all designs, texts, and images are owned by Chauvet.

Electronically published by Chauvet in the United States of America.

Manual Use

Chauvet authorizes its customers to download and print this manual for professional information purposes only. Chauvet expressly prohibits the usage, copy, storage, distribution, modification, or printing of this manual or its content for any other purpose without written consent from Chauvet.

Document Printing

For best results, print this document in color, on letter size paper (8.5 x 11 in), double-sided. If using A4 paper (210 x 297 mm), configure the printer to scale the content accordingly.

Intended Audience

Any person installing, operating, and/or maintaining this product should completely read through this manual and the guide that shipped with the product before installing, operating, or maintaining this product.

Disclaimer

Chauvet believes that the information contained in this manual is accurate in all respects. However, Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss, damage or disruption caused by any errors or omissions in this document, whether such errors or omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetprofessional.com.

RF Exposure Warning for North America and Australia

Warning! This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Document Revision

This Maverick Storm 1 Wash User Manual is the 3 ^rd edition of this document. Go to www.chauvetprofessional.com for the latest version.

NOTAS DE LA EDICIÓN

Unpacking Instructions.... 1

Claims 1

Text Conventions 1

Symbols 1

Expected LED Lifespan.... 1

Safety Notes 2

Personal Safety 2

Mounting and Rigging 2

Power and Wiring 2

Operation 2

2. Introduction.... 3

Description 3

Features 3

Product Overview 3

Product Dimensions 4

3. Setup.... 5

AC Power 5

AC Plug 5

Fuse Replacement 5

Power Linking.... 5

Remote Device Management.... 5

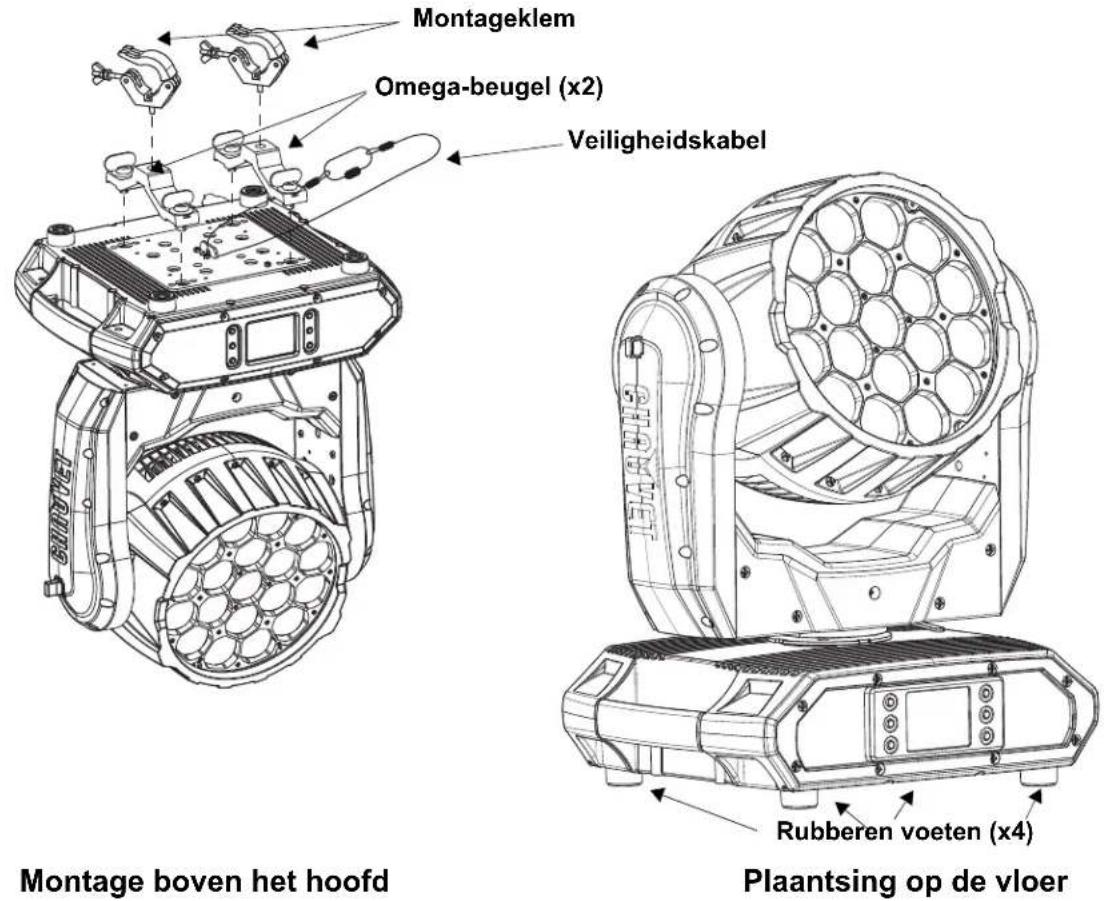

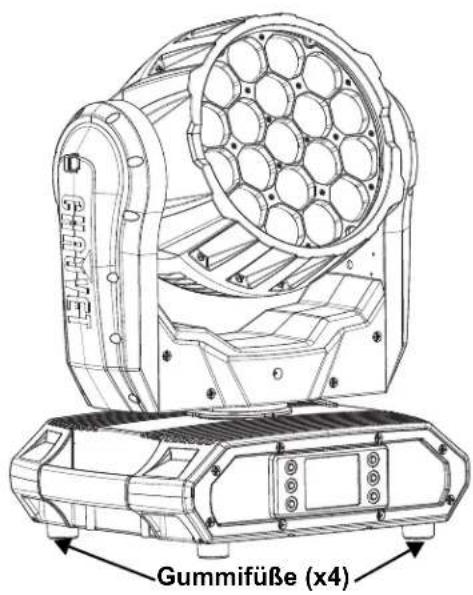

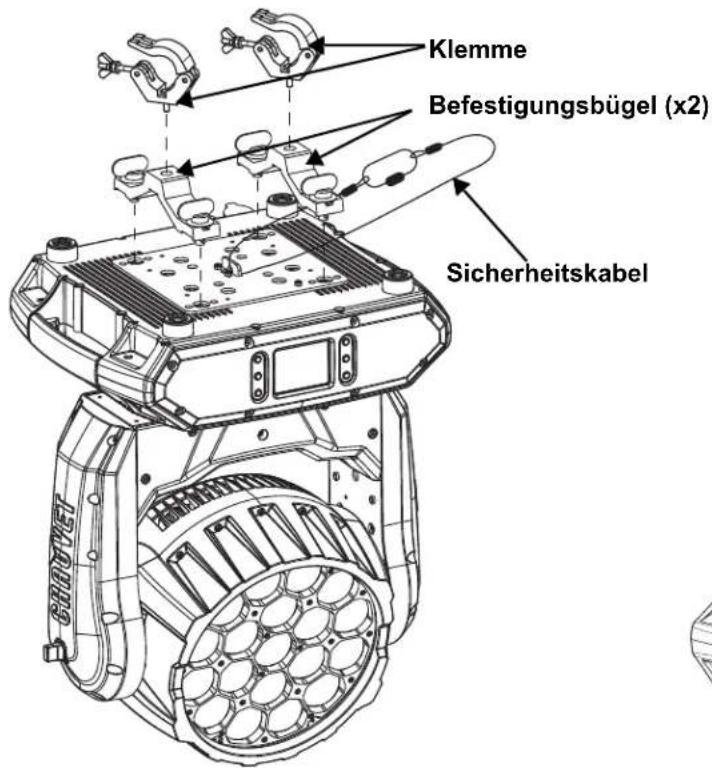

Mounting 6

Orientation.... 6

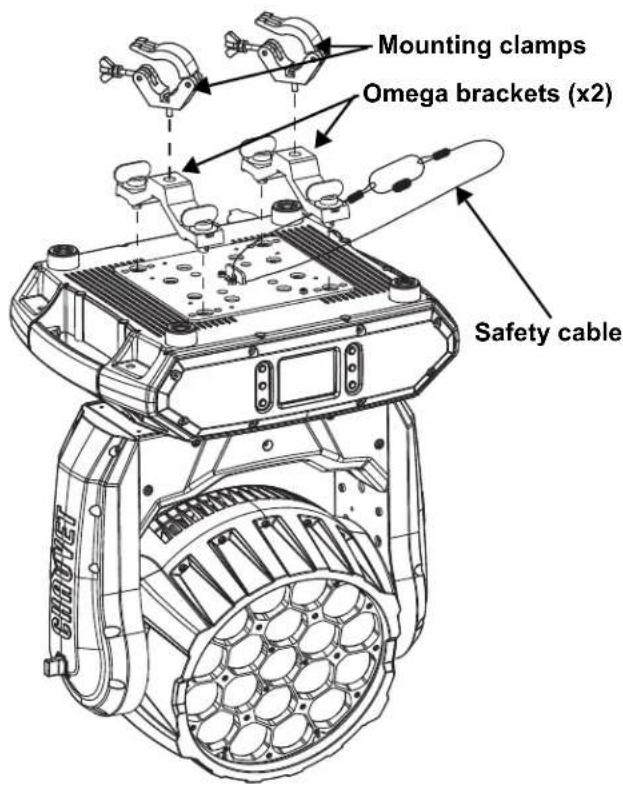

Rigging 6

Signal Connection 7

Art-Net™ Connection 7

sACN Connection.... 7

Kling-Net Connection 7

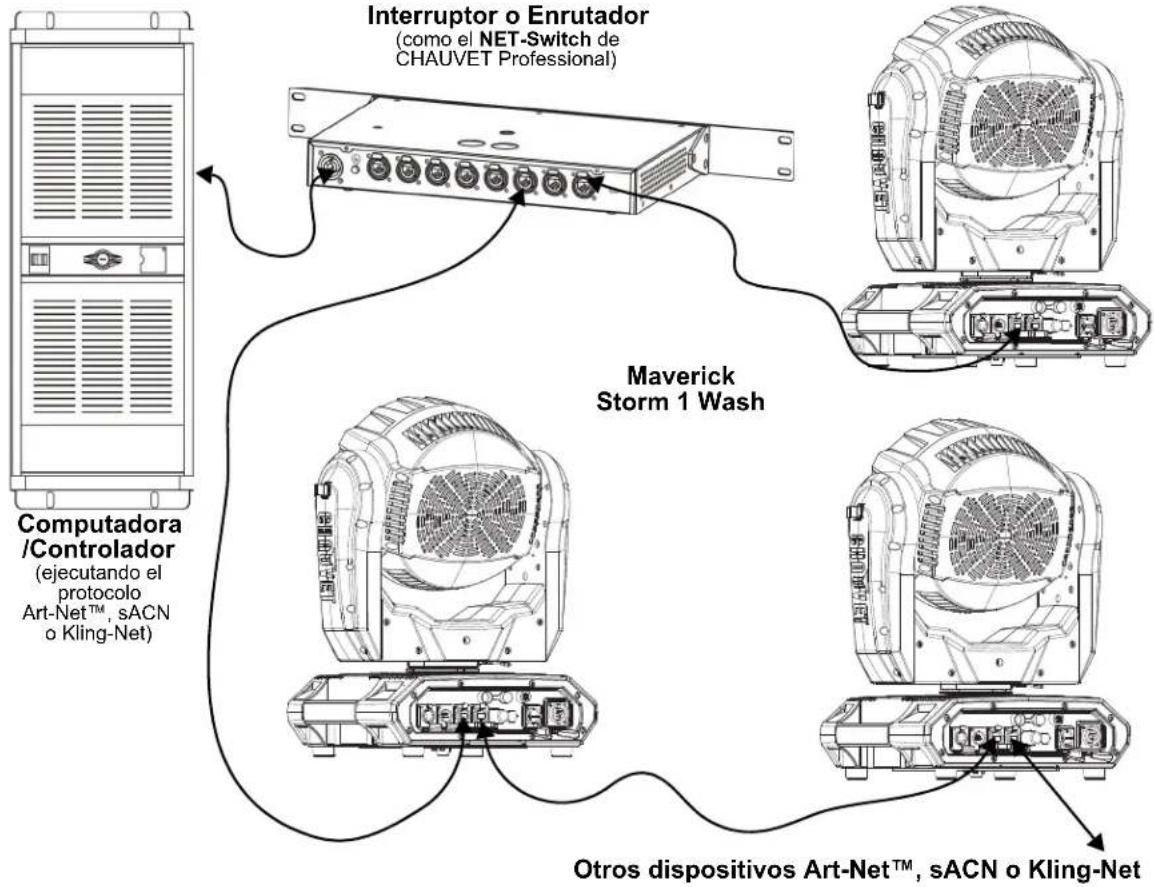

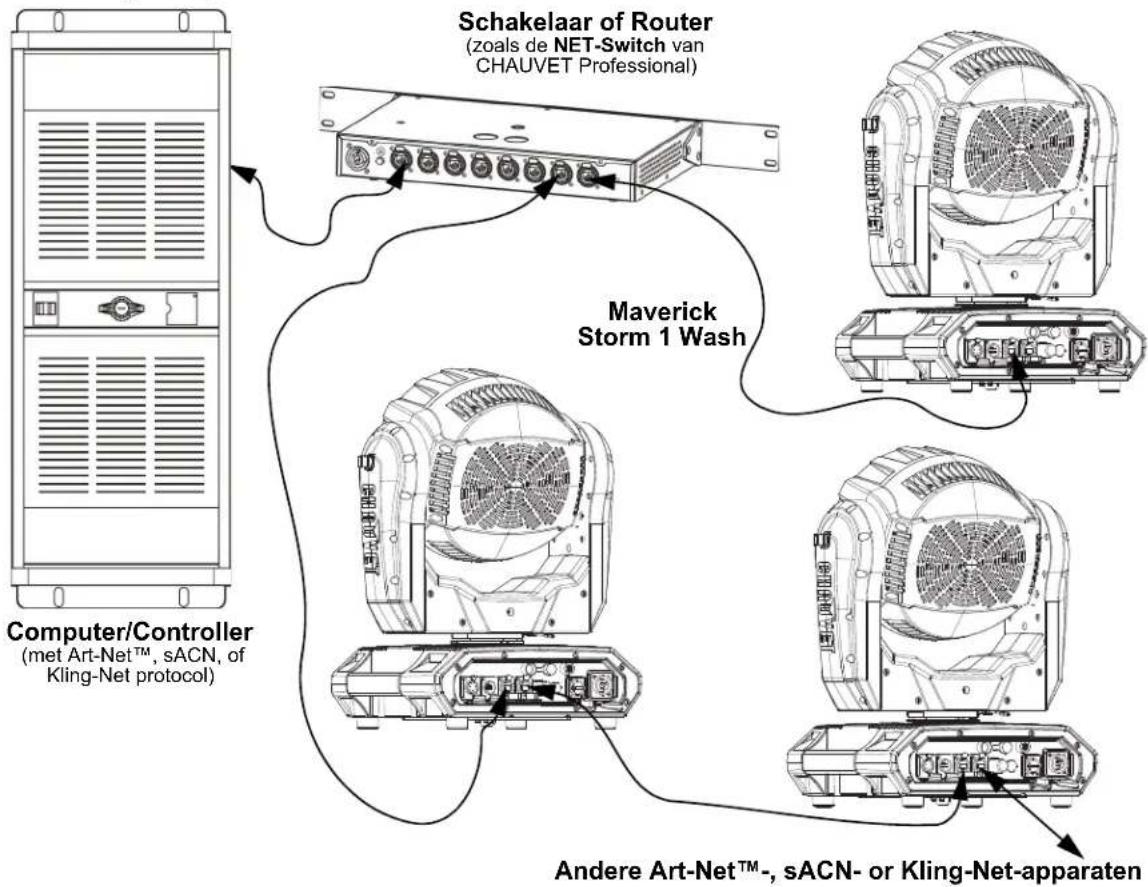

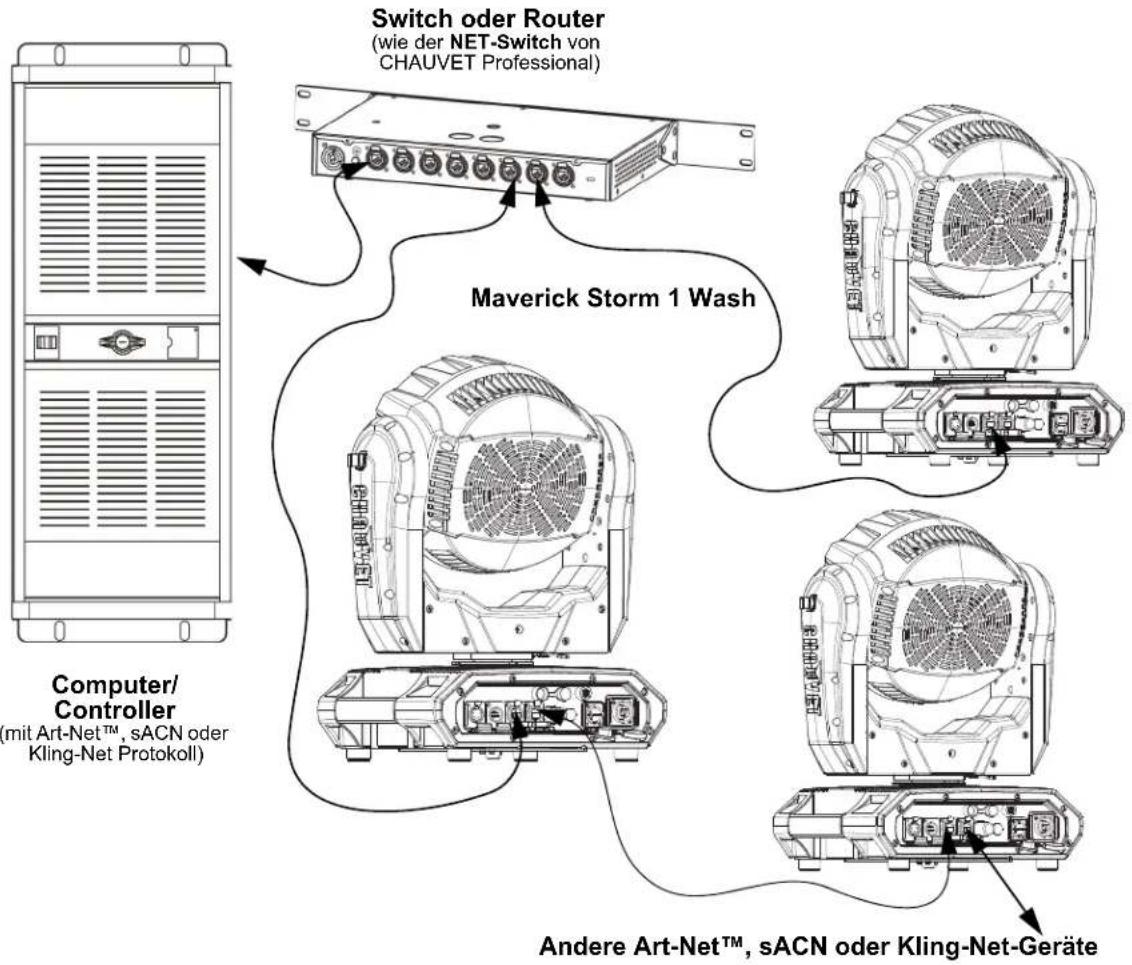

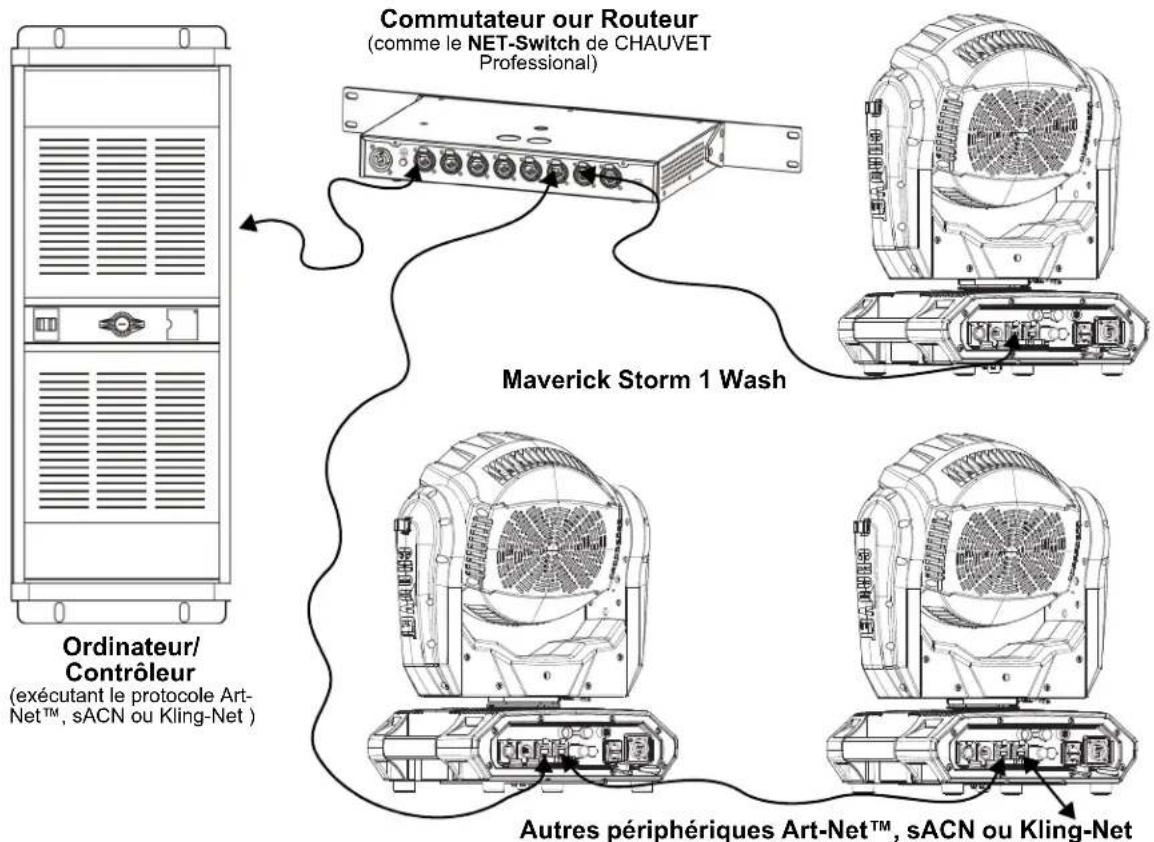

Connection Diagram 7

4. Operation.... 9

Control Panel Operation.... 9

Menu Map 9

Protocol Configuration.... 14

Control Personalities 14

Single Control.... 14

Single Control Protocol 14

Single Control Personality.... 14

Single Control Start Address.... 14

Single Control Universe 14

Dual Control 15

Dual Control Movement 15

Dual Control Movement Protocol 15

Dual Control Pixels 16

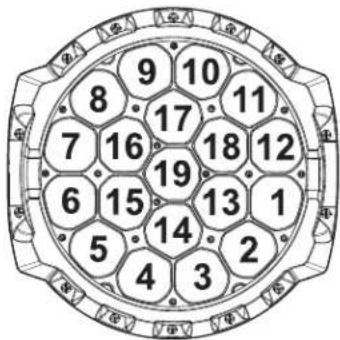

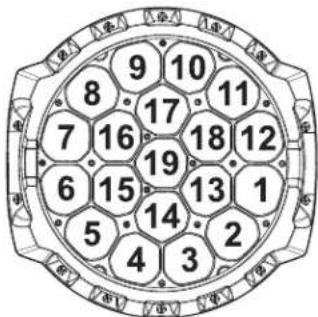

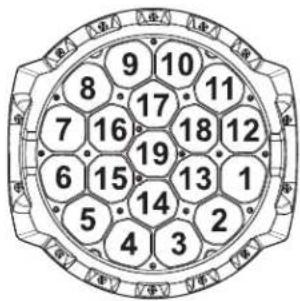

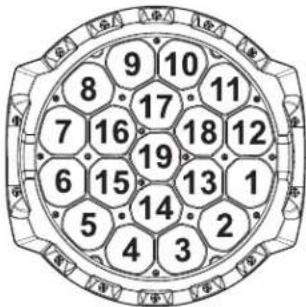

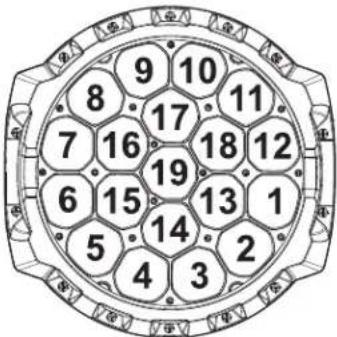

Zones for Pixel Control.... 17

Single Control Values.... 17

Single Control: Tour Mode (216 channels) 17

Single Control: Advanced Mode (178 channels).... 23

Single Control: Standard Mode (96 channels) 29

Single Control: Basic Mode (20 channels) 33

Dual Control Values 36

Dual Control Movement 36

Dual Control: Advanced Movement Mode (26 channels) 36

Dual Control: Basic Movement Mode (8 channels) 42

Dual Control Pixels 43

Dual Control: Advanced Pixels Mode (152 channels).... 43

Dual Control: Standard Pixels Mode (76 channels) 46

Dual Control: Basic Pixels Mode (57 channels) 47

Operating Settings Configuration 49

Home Screen 49

Test Mode 49

Auto Test.... 49

Manual Test 49

Setup 49

Network Settings 49

Pan/Tilt Orientation 50

Zoom Orientation 50

Display Orientation.... 50

Pan/Tilt Angle Range 51

Blackout on Pan/Tilt Movement 51

Lock Screen 51

Swap Pan and Tilt 51

WDMX Reset 51

Backlight Timer 52

Loss of Data 52

Fan Speed 52

Color Mixing Mode 52

Dimmer Curve 52

Dimmer Speed 52

Pulse Width Modulation 53

Color Balance 53

Preset Functions 53

Reset Functions 53

Factory Reset 53

System Information 54

Offset Mode 54

Web Server 55

Maintenance.... 56

Product Maintenance 56

Technical Specifications.... 57
Returns...... 58
Contact Us.... 59

ÍNDICE

Remote Device Management.... 64

Montaje 65

Orientación 65

Colocación 65

Remote Device Management.... 124

Installation....125

Orientation.... 125

Suspension 125

Signal Connections 126

Art-Net™ Connection 126

sACN Connection.... 126

Kling-Net Connection 126

Connection Diagram 126

Dual Control Movement 155

Dual Control: Mode "Advanced Movement" (26 canaux).... 155

Dual Control: Mode "Standard Movement" (20 canaux) 158

Dual Control: Mode "Basic Movement" (8 canaux).... 161

Dual Control Pixels.... 162

Dual Control: Mode "Advanced Pixels" (152 canaux).... 162

Dual Control: Mode "Standard Pixels" (76 canaux) 165

Dual Control: Mode "Basic Pixels" (57 canaux) 166

Remote Device Management.... 186

Montage 186

Montagerichtung 186

Signalanschlüsse 187

Signal Connections 250

Art-Net™ Connection 250

sACN Connection 250

Kling-Net Connection 250

Verbindingsdiagram 250

4. Werking 251

Dual Control Movement 278

Dual Control: Advanced Movement Modus (26-kanaal) 278

Dual Control: Standard Movement Modus (20-kanaal).... 281

Dual Control: "Basic Movement" Modus (8-kanaal) 284

Dual Control Pixels 285

Dual Control: "Advanced Pixels" Modus (152-kanaal) 285

Dual Control: "Standard Pixels" Modus (76-kanaal) 288

Dual Control: "Basic Pixels" Modus (57-kanaal) 289

Handmatige Test....291

Instellingen 291

Netwerkinstellingen 291

• 2 Omega brackets with mounting hardware

- Quick Reference Guide

Unpacking Instructions

Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition.

Claims

If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with Chauvet within 7 days of delivery.

Text Conventions

Convention Meaning

1–512 A range of values

50/60 A set of values of which only one can be chosen

Settings A menu option not to be modified

A key to be pressed on the product's control panel

ON A value to be entered or selected

Symbols

Symbol Meaning
	Critical installation, configuration, or operation information. Not following these instructions may make the product not work, cause damage to the product, or cause harm to the operator.
	Important installation or configuration information. The product may not function correctly if this information is not used.
	Useful information

Expected LED Lifespan

Over time, use and heat will gradually reduce LED brightness. Clustered LEDs produce more heat than single LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product and limit the overall intensity.

Safety Notes

Read all the following safety notes before working with this product. These notes contain important information about the installation, usage, and maintenance of this product.

Chauvet Maverick Storm 1 Wash - Safety Notes - 1

All applicable local codes and regulations apply to proper installation of this product.

Chauvet Maverick Storm 1 Wash - Safety Notes - 2

This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained, certified technicians. Do not open the housing or attempt any repairs.

Personal Safety

Avoid direct eye exposure to the light source while the product is on.
• Always disconnect the product from the power source before servicing.
Always connect the product to a grounded circuit to avoid the risk of electrocution.
Do not touch the product's housing when operating because it may be very hot.

Mounting and Rigging

Do not submerge this product (IP65). This product is for indoor use or for temporary use outdoors.
When using this product in an outdoor environment, use IP65 (or higher)-rated power and data cables. Secure unused power and data ports with attached IP65 covers.

- CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm, humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.

- Not for permanent outdoor installation in locations with extreme environmental conditions. This includes, but is not limited to:

Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).
Locations where the normal high or low temperatures exceed the temperature ranges in this manual.
Locations that are prone to flooding or being buried in snow.
Areas where the product will be subjected to extreme radiation or caustic substances.

- Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

Make sure there are no flammable materials close to the product when operating.
When hanging this product, always secure to a fastening device using a safety cable.
Never carry the product by the power cord or any moving part.

Power and Wiring

Make sure the power cord is not crimped or damaged.
Always make sure you are connecting the product to the proper voltage in accordance with the specifications in this manual or on the product's specification label.
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
Never connect this product to a dimmer pack or rheostat.
Never disconnect this product by pulling or tugging on the power cable.

Operation

Do not operate this product if there is damage on the housing, lenses, or cables. Have the damaged parts replaced by an authorized technician at once.
Do not cover the ventilation slots when operating to avoid internal overheating.
The maximum ambient temperature is 113^ (45 °C). Do not operate the product at higher temperatures.
• The minimum startup temperature is -4 ^ ( -20 ^ ). Do not start the product at lower temperatures.
The minimum ambient temperature is -22 °F (-30 °C). Do not operate the product at lower temperatures.
In the event of serious operation problem, stop using this product immediately!

Chauvet Maverick Storm 1 Wash - Operation - 1

If your Chauvet product requires service, contact Chauvet Technical Support.

2. Introduction

Description

The Maverick Storm 1 Wash is a powerful IP66-rated RGBW Osram LED moving head. It features a compact and rugged die-cast aluminum housing built with 316 stainless steel screws to withstand even the harshest elements. With an output of 6,000 lumens, its customized optics are well suited for audience and aerial washing, even at larger venues. Pixel-mapping effects and a massive zoom range further add to the unit's versatility, while a virtual gobo wheel with background colors creates an array of immersive atmospheric effects. The RDM-enabled unit features 16-bit dimming and can be controlled via DMX, W-DMX, sACN, Art-Net™, and Kling-Net.

Features

Fully featured IP65-rated RGBW LED yoke wash fixture with pixel mapping and zoom
16-bit dimming of master dimmer and individual colors for smooth control of fades
• Built-in colors for quick design possibilities
• Built-in virtual gobo wheel with background colors for impressive atmospheric effects
Fast movement of pan, tilt, and zoom
Quiet operation for a wide range of installation situations, both indoor and outdoor
DMX, W-DMX, sACN, Art-Net™, and Kling-Net control for full flexibility
• RDM-enabled for remote addressing and trouble shooting
6.7°–56.5° zoom range for variable beam sizes
• True 1 compatible power input
Battery backup display with auto rotate depending on fixture orientation
• 3 setup menu presets and preset sync for cross-loading to multiple like-fixtures for easy shop setup

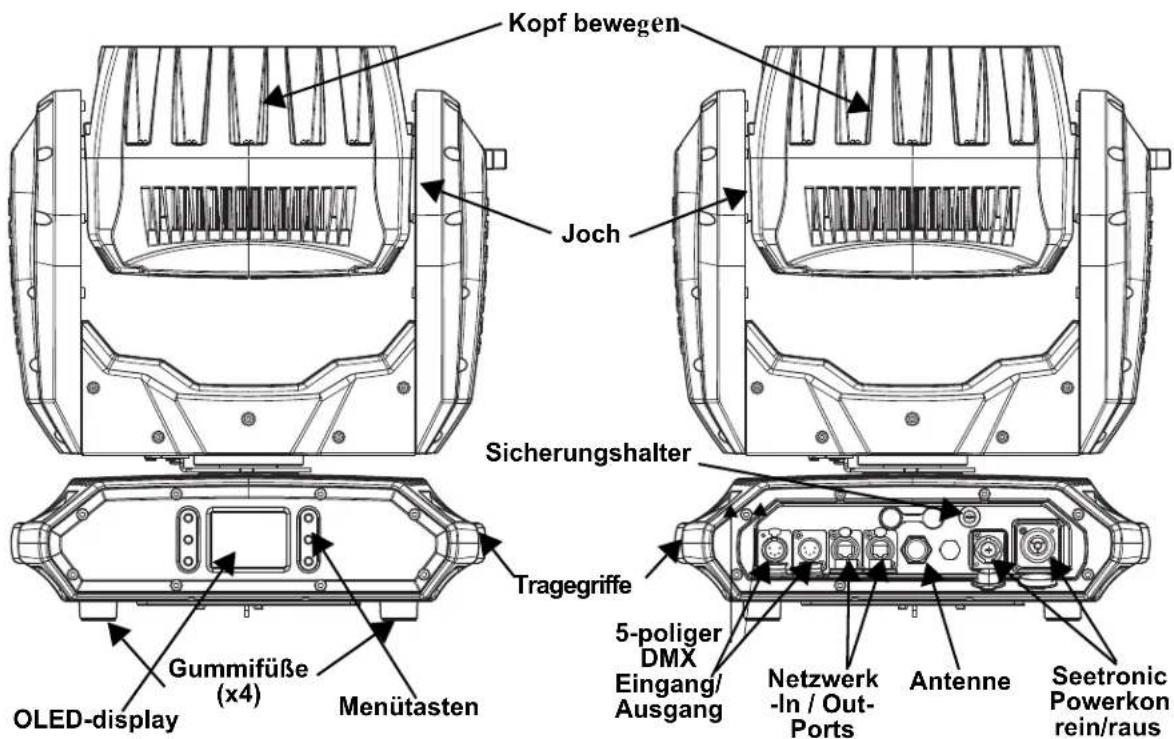

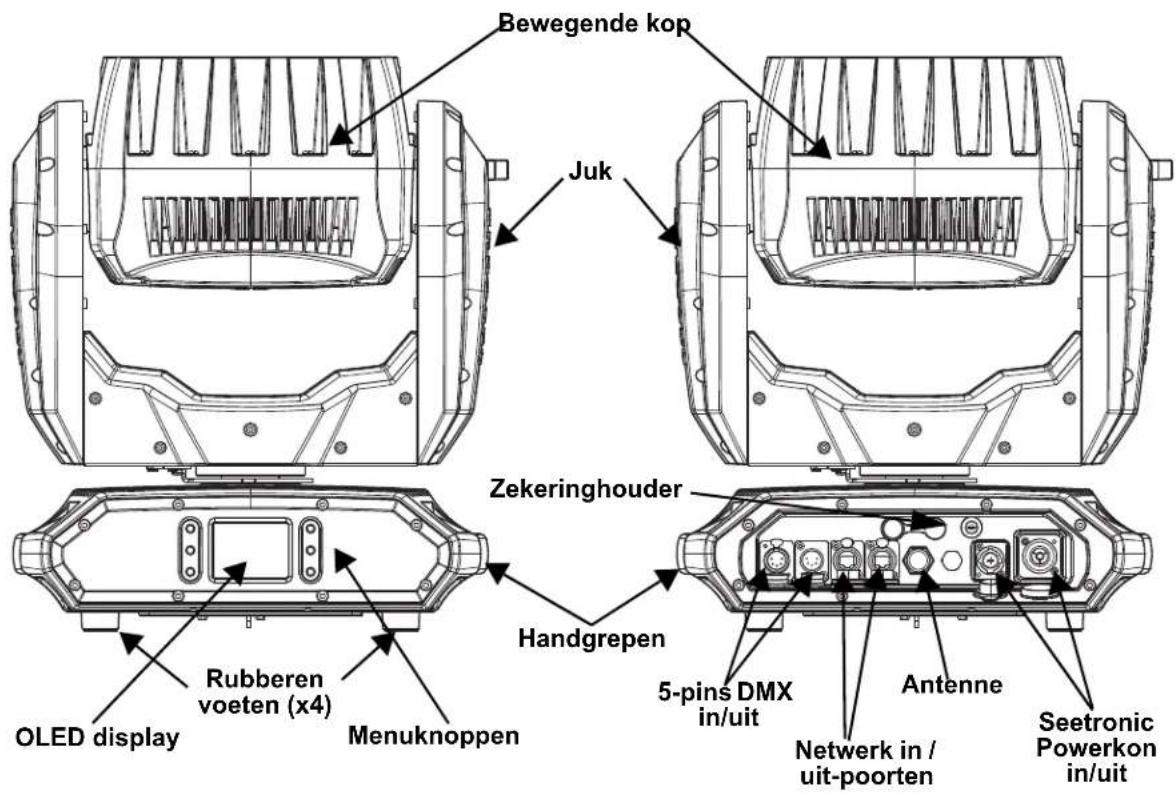

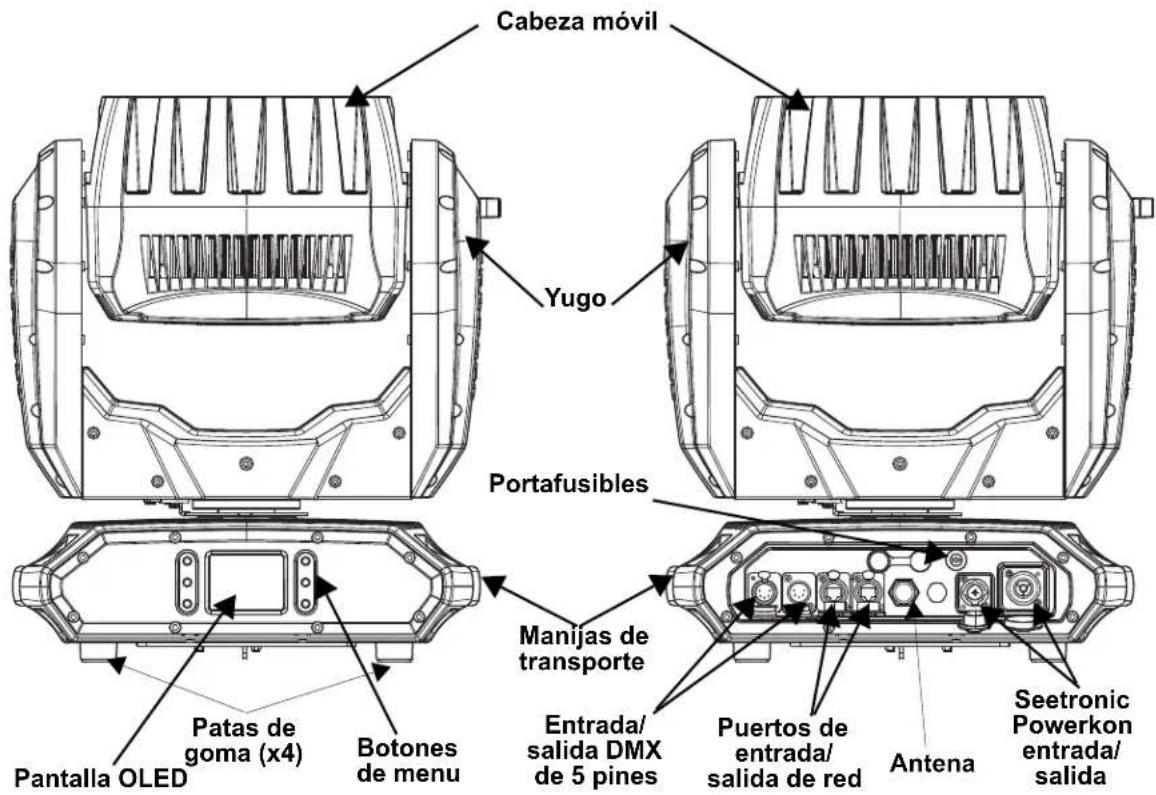

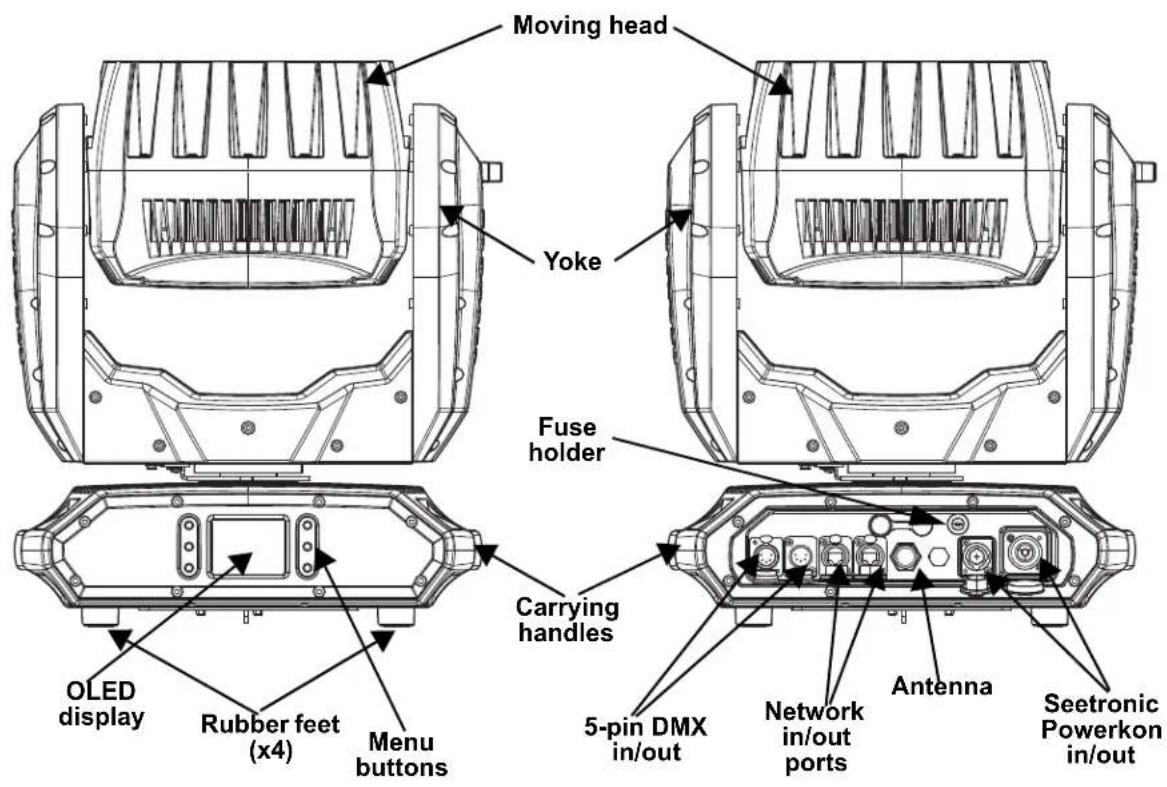

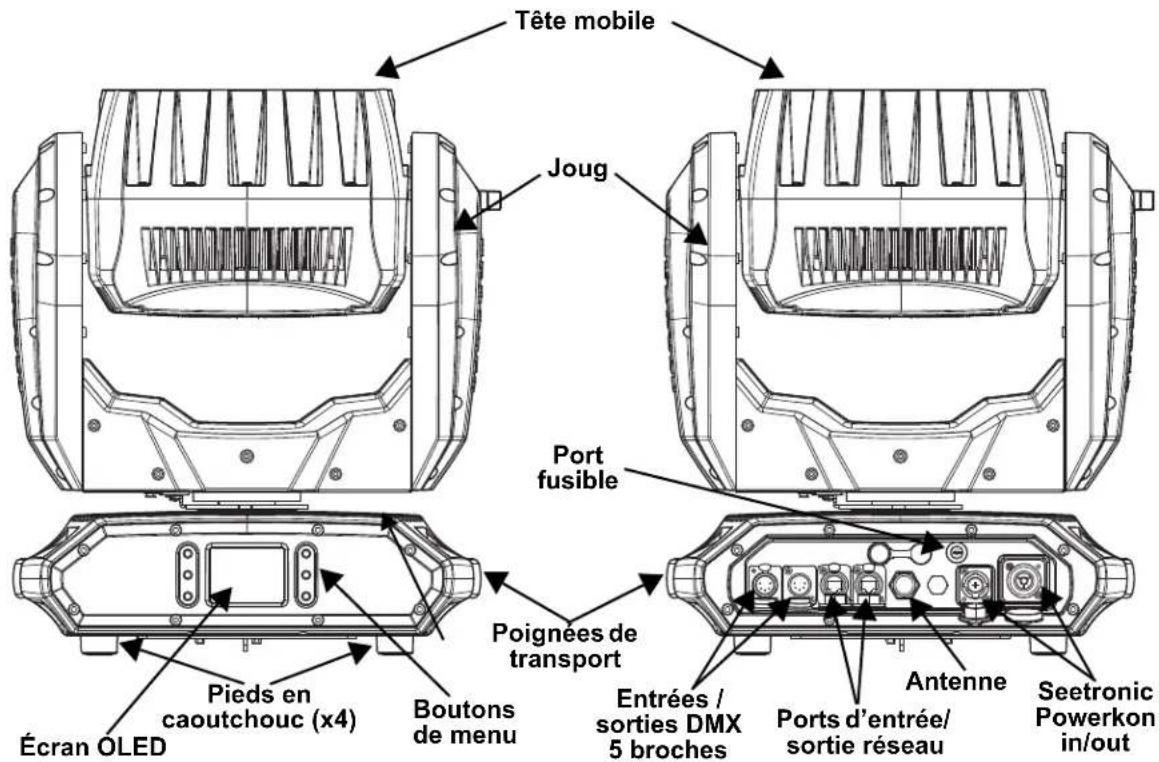

Product Overview
Chauvet Maverick Storm 1 Wash - Features - 1


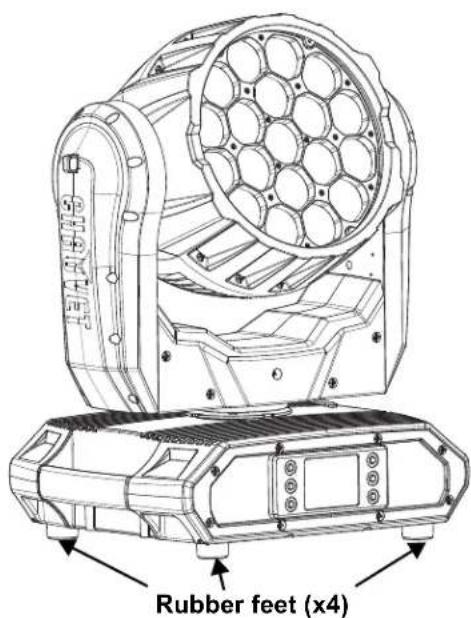

Moving head Yoke Fuse holder Carrying handles OLED display Rubber feet (x4) Menu buttons 5-pin DMX in/out Network in/out ports Antenna Seetronic Powerkon in/out

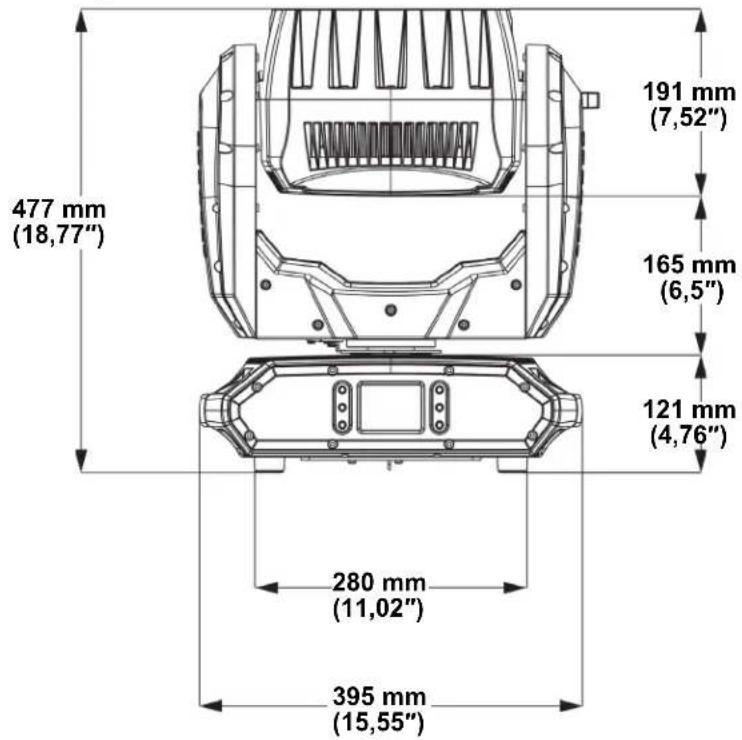

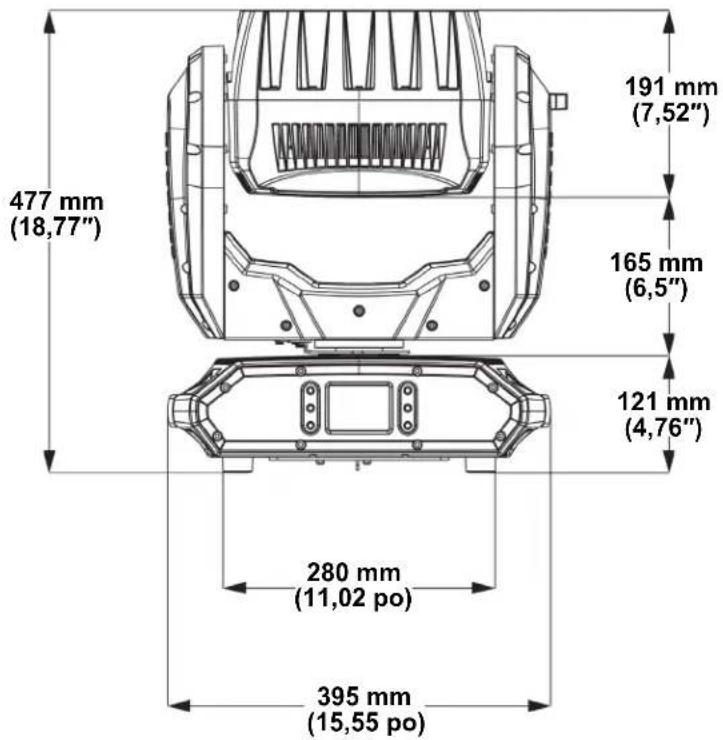

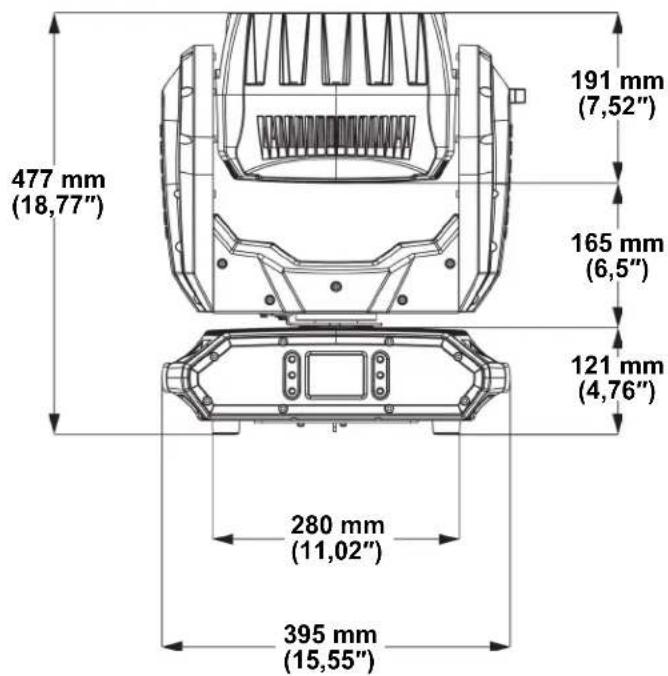

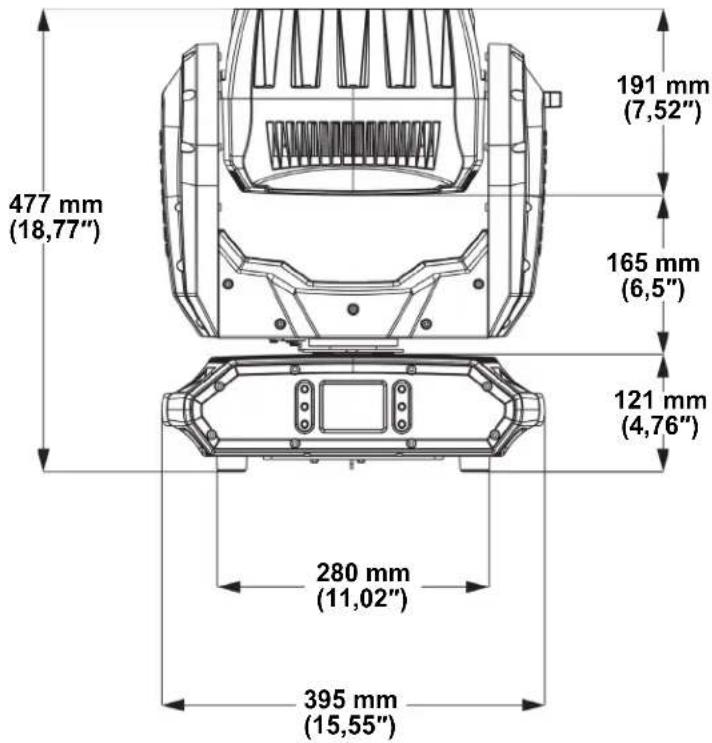

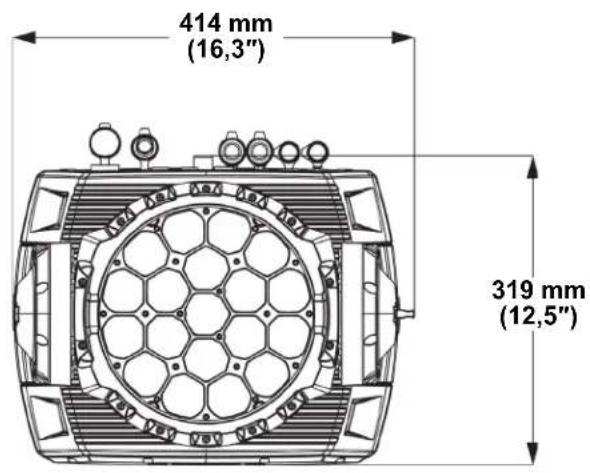

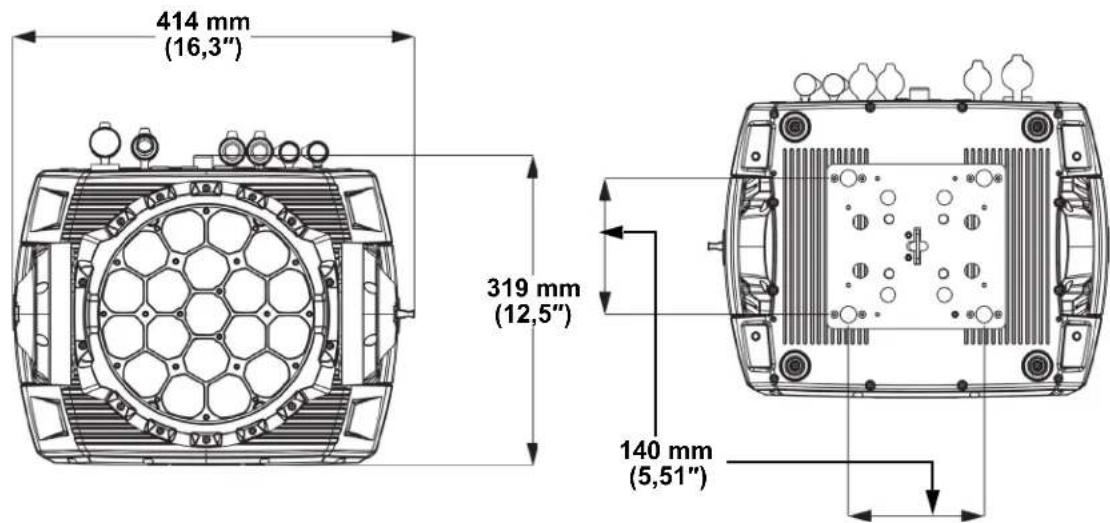

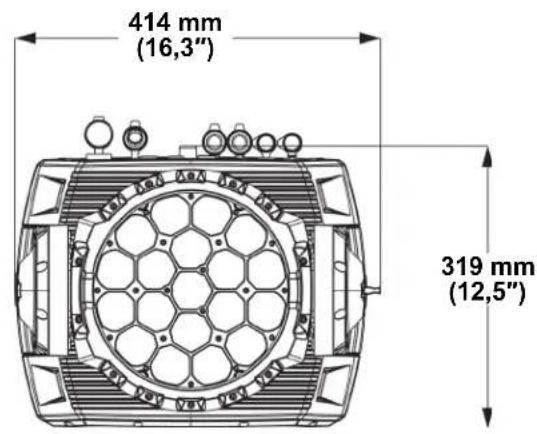

Product Dimensions
Chauvet Maverick Storm 1 Wash - Features - 2

Chauvet Maverick Storm 1 Wash - Features - 3


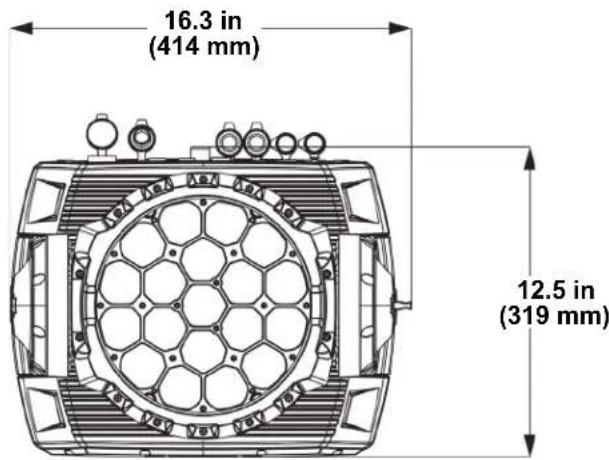

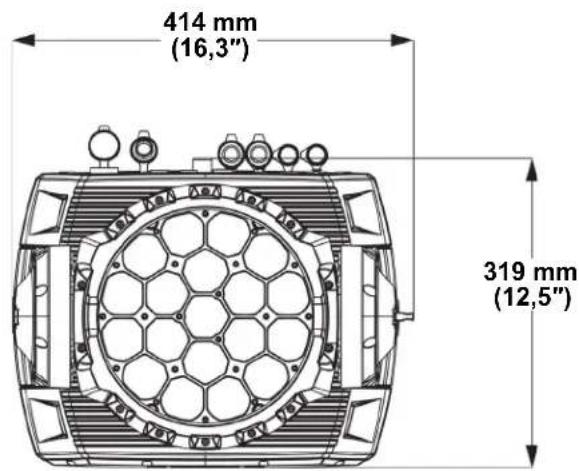

16.3 in (414 mm) 12.5 in (319 mm)

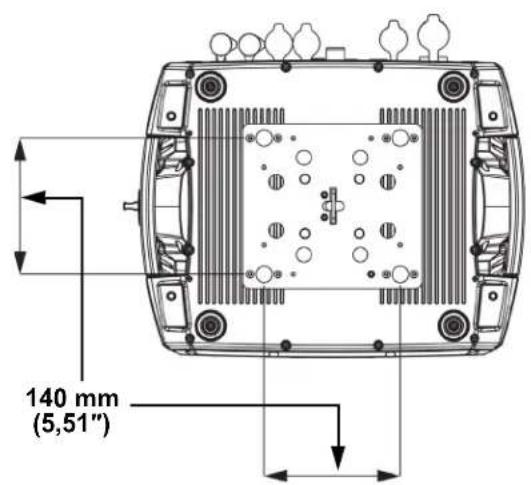

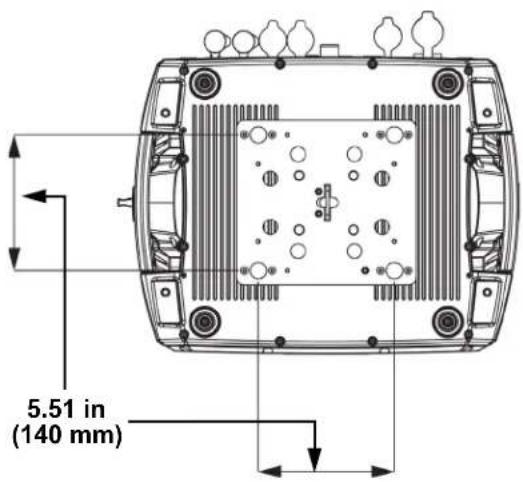

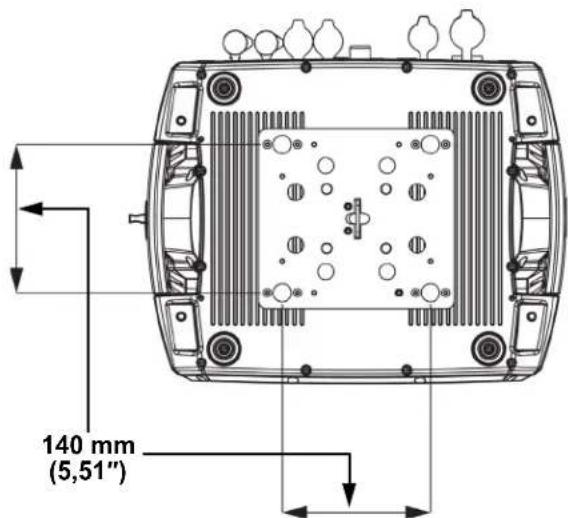

Chauvet Maverick Storm 1 Wash - Features - 4


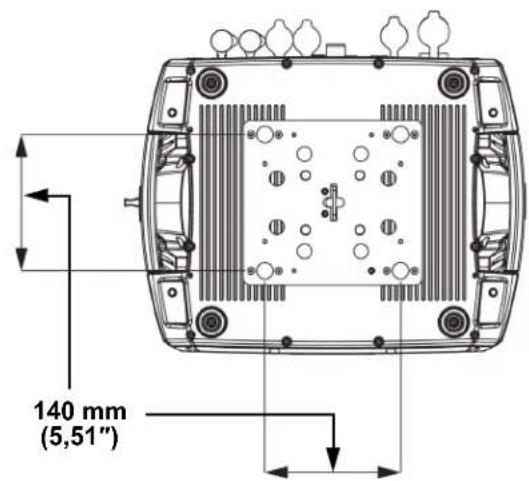

5.51 in (140 mm)

3. Setup

AC Power

The Maverick Storm 1 Wash has an auto-ranging power supply, and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product's power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product's back panel, or refer to the product's Technical Specifications. The listed current rating indicates the product's average current draw under normal conditions.

Chauvet Maverick Storm 1 Wash - AC Power - 1

Always connect the product to a protected circuit (a circuit breaker or fuse). Make sure the product has an appropriate electrical ground to avoid the risk of electrocution or fire.
To eliminate unnecessary wear and improve its lifespan, completely disconnect the product from power via breaker or by unplugging it during periods of non-use.

Chauvet Maverick Storm 1 Wash - AC Power - 2

Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel serves only as a 0 to 100% switch.

AC Plug

The Maverick Storm 1 Wash comes with a power input cord terminated with a Seetronic Powerkon connector on one end and an Edison plug on the other end (U.S. market). If the power input cord that came with your product has no plug, or if you need the change the plug, use the table below to wire the new plug.

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/brass
AC Neutral White Blue Silver
AC Ground	Green/yellow	Green/yellow	Green

Fuse Replacement

Disconnect the product from power.
Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
Remove the blown fuse from the holder and replace with another fuse of the same type and rating (F 20 A, 250 V).
Screw the fuse holder cap back in place and reconnect power.

Chauvet Maverick Storm 1 Wash - Fuse Replacement - 1

Chauvet Maverick Storm 1 Wash - Fuse Replacement - 2

Disconnect the product from the power outlet before replacing the fuse.

Always replace a blown fuse with one of the same type and rating.

Power Linking

The Maverick Storm 1 Wash supports power linking. You can power link up to 3 products at 120 V, up to 6 products at 208 V, or up to 7 products at 230 V.

This product comes with a power input cord. Power-linking cables are available from Chauvet for purchase.

Remote Device Management

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The Maverick Storm 1 Wash supports RDM protocol that allows feedback to make changes to menu map options.

Mounting

Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products/.

Orientation

Always mount this product in a safe position and ensure that there is adequate room for ventilation, configuration, and maintenance. The Maverick Storm 1 Wash can be suspended upright or upside down using the two Omega brackets included, or it can be placed on it rubber feet on a flat-level surface.

Rigging

Chauvet recommends using the following general guidelines when mounting this product.

When selecting an installation location, consider easy access to this product for operation, programming adjustments, and routine maintenance.
The product is not intended for permanent installation.
Make sure to mount this product away from any flammable material.
Never mount in places where rain, high humidity, extreme temperature changes, or restricted ventilation may affect the product.
If hanging this product, make sure that the mounting location can support the product's weight. See the Technical Specifications for the weight-bearing requirements of this product.
When hanging this product, always secure to a fastening device using a safety cable. For our CHAUVET Professional line of safety cables, go to http://trusst.com/products/.
When mounting the product on the floor, make sure that the product and cables are away from people and vehicles.
Place the Maverick Storm 1 Wash so that it can move freely without hitting anything or anybody.
Leave enough slack on the cables to prevent tension and pull on the plugs.

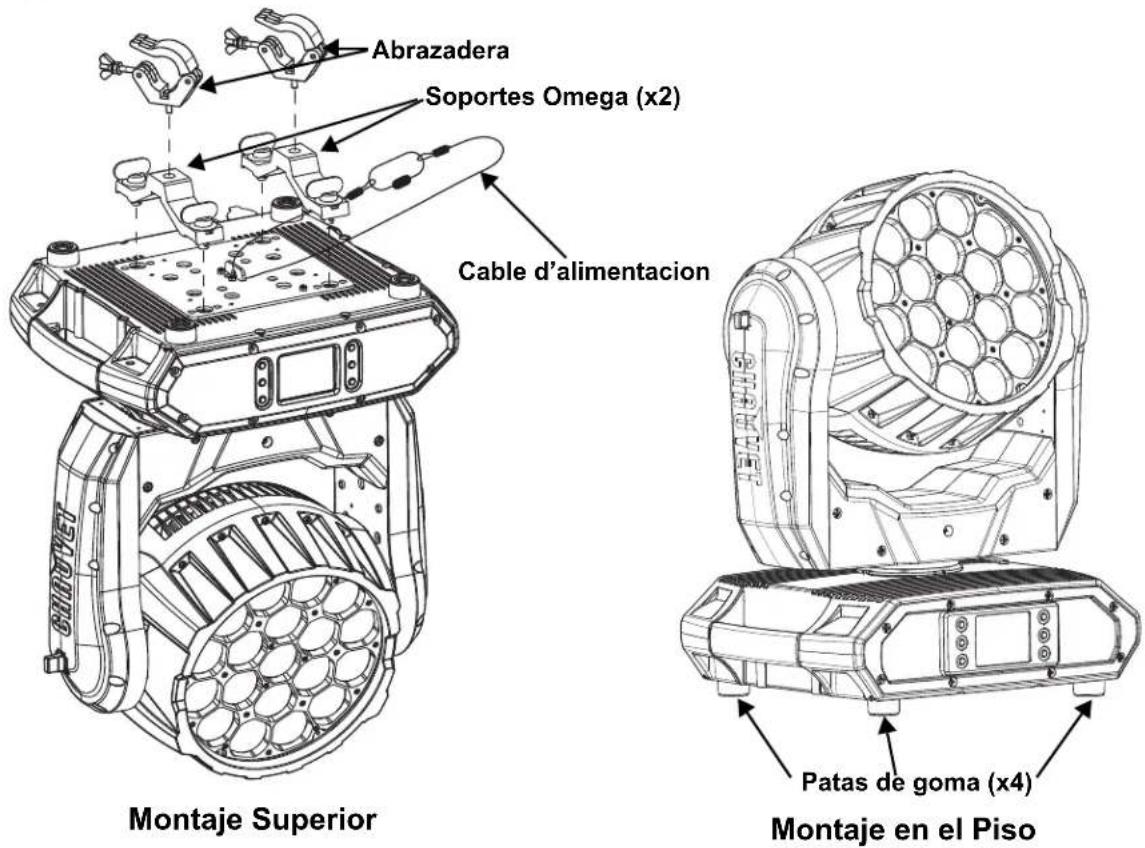

Mounting Diagram
Chauvet Maverick Storm 1 Wash - Rigging - 1

Overhead Mounting

Chauvet Maverick Storm 1 Wash - Rigging - 2

Floor Mounting

Signal Connection

The Maverick Storm 1 Wash can receive DMX, WDMX, Art-Net™, sACN, or Kling-Net signal. The Maverick Storm 1 Wash has two Ethernet ports, and 5-pin DMX in and out ports. For more information about DMX, read the DMX primer at: https://www.chauvetprofessional.com/wp-content/uploads/2016/06/DMX_Primer.pdf For instructions on pairing the Maverick Storm 1 Wash with a WDMX transmitter, see WDMX Reset.

Art-Net™ Connection

Art-Net™ is an Ethernet protocol that uses TCP/IP that transfers a large amount of DMX512 data using an Ethernet connection over a large network. An Art-Net™ protocol document is available from www.chauvetprofessional.com. Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.

sACN Connection

Streaming ACN, also known as ANSI E1.31, is an Ethernet protocol that uses the layering and formatting of Architecture for Control Networks to transport DMX512 data over IP or any other ACN-compatible network. ACN is maintained by the Professional Lighting and Sound Association (PLASA).

Kling-Net Connection

Kling-Net is a network protocol that allows auto configuration of display devices using an Ethernet connection. Refer to the ArKaos software manual for detailed instructions on programming this product.

Chauvet Maverick Storm 1 Wash - Kling-Net Connection - 1

ArKaos Kling-Net does not support the pan and tilt functions, and must be paired with another protocol for full functionality with the Maverick Storm 1 Wash.

Connection Diagram
Chauvet Maverick Storm 1 Wash - Kling-Net Connection - 2

4. Operation

Control Panel Operation

Button Function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Exits from the current menu or function
	Navigates downwards through the menu list or decreases the numeric value when in a function
	Navigates leftwards through the menu list
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates rightwards through the menu list

Menu Map

Programming Levels Description
Control Settings Main Level
Control Settings	Single Control	DMX	Personality	Basic	Sets the DMX personality (seeControl Personalities)
				Standard
				Advanced
				Tour
			Start Address	1-512 Sets the	DMX starting address
		ArtNet	Personality	Basic	Sets the Art-NetTMpersonality (seeControl Personalities)
				Standard
				Advanced
				Tour
			Start Address	1-512 Sets the	Art-NetTMstarting address
			Universe 0-	255 Sets the Art-NetTMuniverse
		sACN	Personality	Basic	Sets the sACN personality (seeControl Personalities)
				Standard
				Advanced
				Tour
			Start Address	1-512 Sets the	sACN starting address
			Universe 1-	256 Sets the s	ACN universe
		WDMX	Personality	Basic	Sets the WDMX personality (seeControl Personalities)
				Standard
				Advanced
				Tour
			Start Address	1-512 Sets the	WDMX starting address

Programming Levels Description
Control Settings Main Level
Control Settings	Dual Control	Movement	DMX	Personality	Basic	Sets the DMX personality (see Control Personalities)
					Standard
					Advanced
				Start Address	1-512	Sets the DMX starting address
			ArtNet	Personality	Basic	Sets the Art-NetTM personality (see Control Personalities)
					Standard
					Advanced
				Start Address	1-512	Sets the Art-NetTM starting address
				Universe 0-	255	Sets the Art-NetTM universe
			sACN	Personality	Basic	Sets the sACN personality (see Control Personalities)
					Standard
					Advanced
				Start Address	1-512	Sets the sACN starting address
				Universe 1-	256 Sets the sACN universe
		Pixels	DMX	Personality	Basic	Sets the DMX personality (see Control Personalities)
					Standard
					Advanced
				Start Address	1-512	Sets the DMX starting address
			ArtNet	Personality	Basic	Sets the Art-NetTM personality (see Control Personalities)
					Standard
					Advanced
				Start Address	1-512	Sets the Art-NetTM starting address
				Universe 0-	255	Sets the Art-NetTM universe
			sACN	Personality	Basic	Sets the sACN personality (see Control Personalities)
					Standard
		Kling-Net Personality			Advanced
				Start Address	1-512	Sets the sACN starting address
				Universe 1-	256 Sets the sACN universe
				Basic Sets the Kling-Net personality (see Control Personalities)

Chauvet Maverick Storm 1 Wash - Operation - 1

In Dual Control mode, the Movement Protocol and the Pixels Protocol cannot be the same.

Programming Levels Description
Test Mode Test Mode Main Level
Auto Test Auto test all functions
Manual Test	Pan	000-255	Manually control and test all settings through the control panel
	Tilt
	P/T Speed
	Red
	Green
	Blue
	White
	CTC
	Color
	Pattern
	LED Macro
	LED Ma. Speed
	LED Ma. Fade
	Background
	Background Dim.
	Dimmer
	Shutter
	Function
	Zoom
Setup Setup Main Level
Network Settings	IP Mode	Manual Manually set IP address
		DHCP Network sets IP address
		Static Product sets IP address
	IpAddress	Sets IP address in Manual mode
	SubMask	Sets Subnet Mask in Manual mode
Pan Reverse	NO Normal pan
	YES Reversed pan
Tilt Reverse	NO Normal tilt
	YES Reversed tilt
Zoom Reverse	NO Normal Zoom
	YES Reversed Zoom
Screen Reverse	NO Normal display
	YES Inverted display
	AUTO		Automatic display orientation
Pan Angle	540		540° pan range
	360		360° pan range
	180		180° pan range
Tilt Angle	270		270° tilt range
	180		180° tilt range
	90		90° tilt range
BL. O. P/T Move	NO Do not black out while pan/tilt
	YES Blackout while pan/tilt
Lock Screen	NO		Lock the buttons and touch screen
	YES		Passcode: 0920
Swap XY	NO Do not swap pan and tilt
	YES Pan controls tilt, tilt controls pan
WDMX Reset	NO Do not reset WDMX
	YES Reset WDMX
Backlight Timer	30S		Display turns off after 30 seconds
	1M		Display turns off after 1 minute
	5M		Display turns off after 5 minutes
	ON Display stays on
Programming Levels			Description
Setup (cont.)			Setup Main Level (cont.)
Setup (cont.)	Loss of Data	Hold Holds last signal received
		Close Blacks out fixture
	Fans	Auto	Fan speed according to product temperature
		Full Fan speed set on high
		ECO Quiet mode
	C Mixing Mode	RGBW RGBW mode (additive mode
		CMY CMY mode (subtractive mode)
	Dimmer Curve	Linear	Set the dimmer curve
		Square
		I Squa
		SCurve
	Dimmer Speed	Smooth	Set the dimmer speed
		Fast
	PWM Option	600Hz	Define Pulse Width Modulation setting
		1200Hz
		2000Hz
		4000Hz
		6000Hz
		15000Hz
	Color Balance	Red	Sets red LED maximum value
		Green Sets green LED maximum value
		Blue Sets blue LED maximum value
		White Sets white LED maximum value
	Preset Select	PRESET A	Recorded preset menu options PRESET B
		PRESET C
	Preset Sync	NO Allows recorded preset menu options to be transferred to other Maverick Storm 1 Wash products in the DMX daisy chain
		YES
	Reset Function	Pan/Tilt	NO
			YES
		Zoom	NO
			YES
		All	NO
			YES
	Factory Settings	NO	Reset to factory default settings
		YES
Programming Levels Description
Sys Info Sys Info Main Level
Sys Info	Fixture Information	Ver V._._._	Shows firmware version
		Running Mode _ _	Shows current running mode
		Address _ _ Shows current starting address
		Temperature _ _
		Fixture Hours _ _	Shows number of hours product has been powered on
		IP _ _ . _ Shows current IP address
		SubMask _ _ Shows current Subnet Mask
		MAC _ _ Shows current MAC address
	Fan Information	Head Fan1 Speed	Shows speed of head fans in rpm
		Head Fan2 Speed	Shows speed of head fans in rpm
	Error Information	No Error!*
Channel Information	Frequency		Shows any errors, or No Error!
	Pan
	Pan Fine
	Tilt
	Tilt Fine
	CTC
	Color
	Pattern
	LED Macro
	LED Ma. Speed
	LED Ma. Fine
	Background
	Background Dimmer
	Bg. Dim. Fine
	Dimmer
	Dimmer Fine
	Shutter
	Zoom
	Function
	Red (all, 1-19)
	Red Fine (all, 1-19)
	Green (all, 1-19)
	Green Fine (all, 1-19)
	Blue (all, 1-19)
	Blue Fine (all, 1-19)
	White (all, 1-19)
	White Fine (all, 1-19)
	Dimmer (-19)
	Dimmer Fine (all, 1-19)

Protocol Configuration

The Maverick Storm 1 Wash can be set to respond to DMX, WDMX, Art-Net ^™ , sACN, Kling-Net, or a combination of those protocols. The protocol configuration must be set for the product to respond correctly to the controller(s).

Control Personalities

The following control personalities are available on the Maverick Storm 1 Wash:

Single Control Dual Control Movement Dual Control Pixels
Basic (20-channel)	Basic (8-channel)	Basic (57-channel)
Standard (96-channel)	Standard (20-channel)	Standard (76-channel)
Advanced (178-channel)	Advanced (26-channel)	Advanced (152-channel)
Tour (216-channel)	Uses DMX, Art-NetTM, or sACN	Uses DMX, Art-NetTM, sACN, or Kling-Net
Uses DMX, Art-NetTM, sACN, or WDMX	Uses DMX, Art-NetTM, or sACN	Uses DMX, Art-NetTM, sACN, or Kling-Net

Single Control

In Single Control mode, the Maverick Storm 1 Wash is controlled by a single protocol input. Choose from DMX, Art-Net™, sACN, or WDMX. In this mode, the four personalities available are: Basic (20 channels), Standard (96 channels), Advanced (178 channels), and Tour (216 channels).

Single Control Protocol

To select the Single Control protocol, follow the instructions below:

Press repeatedly until the Home Screen shows on the display. Press .
Use , , , or to select Control Settings.
Press .
Use or to select Single Control.
Press
Use or to select from DMX, ArtNet, sACN, or WDMX.
Press .

Single Control Personality

To select the Single Control personality, set the Protocol, then do the following:

Use or to select Personality.
Press
Use , , , or to select from Basic (20-channel), Standard (96-channel), Advanced (178-channel), or Tour (216-channel).
Press .

Chauvet Maverick Storm 1 Wash - Single Control Personality - 1

For WDMX control, ensure the antenna is raised, and there are no obstructions between the controller and the product. See WDMX Reset for troubleshooting information.

Single Control Start Address

To set the starting address of the Single Control mode, set the Protocol, then follow the instructions below:

Use or to select Start Address.
Press .
Enter the starting address (1-512) with one of the following methods:

a. Use or to select the digit to be altered.
b. Use or to increase or decrease the number value of that digit.
c. Repeat until the address is set as desired.

Press .

Single Control Universe

To set the Universe address of the Single Control mode when using Art-Net™ or sACN, set the Protocol to ArtNet or sACN, then do the following:

Use or to select Universe.
Press .
Enter the universe address (0–255 for Art-Net™, 1–256 for sACN,) with one of the following methods:

a. Use or to select the digit to be altered.
b. Use or to increase or decrease the number value of that digit.
c. Repeat until the address is set as desired.

Press .

Dual Control

In Dual Control mode, the Maverick Storm 1 Wash is controlled by two protocol inputs. One controls the movement of the yoke and zoom, and the dimmers and shutter, whereas the other controls the individual LED output.

Dual Control Movement

The Movement protocol controls the movement of the yoke and zoom, and the dimmers and shutter. Choose from DMX, Art-Net ^™ , or sACN. In this mode, the three personalities available are: Basic (8 channels), Standard (20 channels), and Advanced (26 channels).

Dual Control Movement Protocol

To select the Dual Control Movement protocol, follow the instructions below:

Press repeatedly until the Home Screen shows on the display. Press .
Use , , , or to select Control Settings.
Press
Use or to select Dual Control.
Press .
Use or to select Movement.
Press .
Use , , , or to select from DMX, ArtNet, or sACN.
Press .

Dual Control Movement Personality

To select the Dual Control Movement personality, set the Protocol, then do the following:

Use or to select Personality.
Press
Use , , , or to select from Basic (8-channel), Standard (20-channel), or Advanced (26-channel).
Press .

Dual Control Movement Start Address

To set the starting address of the Dual Control Movement mode, set the Protocol, then follow the instructions below:

Use or to select Start Address.
Press .
Enter the starting address (1–512) with one of the following methods:
a. Use or to select the digit to be altered.
b. Use or to increase or decrease the number value of that digit.
c. Repeat until the address is set as desired.
Press .

Dual Control Movement Universe

To set the Universe address of the Dual Control Movement mode when using Art-Net ^™ or sACN, set the Protocol to ArtNet or sACN, then do the following:

Use or to select Universe.
Press .
Enter the universe address (0–255 for Art-Net™, 1–256 for sACN,) with one of the following methods:

a. Use or to select the digit to be altered.
b. Use or to increase or decrease the number value of that digit.
c. Repeat until the address is set as desired.

Press .

Dual Control Pixels

The Pixels protocol controls the individual output of the LEDs. Choose from DMX, Art-Net ^™ , sACN, or Kling-Net. In this mode, the three personalities available are: Basic (57 channels), Standard (76 channels), and Advanced (152 channels).

Dual Control Pixels Protocol

To select the Dual Control Pixels protocol, follow the instructions below:

Press repeatedly until the Home Screen shows on the display. Press .
Use , , , or to select Control Settings.
Press
Use or to select Dual Control.
Press .
Use or to select Pixels.
Press .
Use , , , or to select from DMX, ArtNet, sACN, or KlingNet.
Press .

Dual Control Pixels Personality

To select the Dual Control Pixels personality, set the Protocol, then do the following:

Use or to select Personality.
Press .
Use , , , or to select from Basic (57-channel), Standard (76-channel), or Advanced (152-channel).
Press .

Chauvet Maverick Storm 1 Wash - Dual Control Pixels Personality - 1

ArKaos Kling-Net can only be assigned the Basic and Standard Pixels personalities.

Dual Control Pixels Start Address

To set the starting address of the Dual Control Pixels mode, set the Protocol, then do the following:

Use or to select Start Address.
Press .
Enter the starting address (1–512) with one of the following methods:
a. Use or to select the digit to be altered.
b. Use or to increase or decrease the number value of that digit.
c. Repeat until the address is set as desired.
Press .

Dual Control Pixels Universe

To set the Universe address of the Dual Control Pixels mode when using Art-Net ^™ or sACN, set the Protocol to ArtNet or sACN, then do the following:

Use or to select Universe.
Press .
Enter the universe address (0–255 for Art-Net™, 0–255 for sACN,) with one of the following methods:

a. Use or to select the digit to be altered.
b. Use or to increase or decrease the number value of that digit.
c. Repeat until the address is set as desired.

Press .

Zones for Pixel Control

Chauvet Maverick Storm 1 Wash - Zones for Pixel Control - 1

Single Control Values

Single Control: Tour Mode (216 channels)

Channel	Function Value Percent/Setting
1	Pan	000 ⇔ 255	0–100%
2	Pan Fine	000 ⇔ 255	0–100%
3	Tilt	000 ⇔ 255	0–100%
4	Tilt Fine	000 ⇔ 255	0–100%
5	CTC	000 No function001 ⇔ 255 Color temperature, 2800–10000K
6	C o l o r	000 No function001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 156 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R = 0 G = 0 B = 255 W = 0012 ⇔ 048 + Green R = 0 G = 0–255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - Blue R = 0 G = 255 B = 255–0 W = 0087 Green R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + Red R = 0–255 G = 255 B = 0 W = 0125 Y elow R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - Green R = 255 G = 255–0 B = 0 W = 0163 Red R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + Blue R = 255 G = 0 B = 0–255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇔ 238 - Red R = 255–0 G = 0 B = 255 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Color fade, fast to slow248 ⇔ 255 Color snap, fast to slow
7	G o b o	000 All on001 ⇔ 254 Gobos, 1–254255 All on
8	LED Macro/Auto Program	000 ⇔ 015 No function016 ⇔ 116 LED macros 1–101117 ⇔ 135 LED macro 102136 ⇔ 237 Auto programs 1–101238 ⇔ 255 Auto program 102
9	LED Macro/Auto Program Speed	000 ⇔ 127 Speed, fast to slow128 Hold129 ⇔ 255 Reverse speed, slow to fast
Channel	Function	Value		Percent/Setting
10	LED Built-in Delay	000 ⇔ 255		Fast to slow
11 Background Color		000 No function
		001 ⇔ 002	2700K R = 156 G = 118 B = 0 W = 63
		003 ⇔ 004	3200K R = 156 G = 141 B = 5 W = 89
		005 ⇔ 006	4200K R = 156 G = 141 B = 14 W = 255
		007 ⇔ 008	5600K R = 156 G = 207 B = 54 W = 255
		009 ⇔ 010	8000K R = 130 G = 255 B = 96 W = 255
		011 Blue R = 0 G = 0 B = 255 W = 0
		012 ⇔ 048 + Green R = 0 G = 0–255 B = 255 W = 0
		049 Cyan R = 0 G = 255 B = 255 W = 0
		050 ⇔ 086 - Blue R = 0 G = 255 B = 255–0 W = 0
		087 Green R = 0 G = 255 B = 0 W = 0
		088 ⇔ 124 + Red R = 0–255 G = 255 B = 0 W = 0
		125 Yellow R = 255 G = 255 B = 0 W = 0
		126 ⇔ 162 - Green R = 255 G = 255–0 B = 0 W = 0
		163 Red R = 255 G = 0 B = 0 W = 0
		164 ⇔ 200 + Blue R = 255 G = 0 B = 0–255 W = 0
		201 Magenta R = 255 G = 0 B = 255 W = 0
		202 ⇔ 238 - Red R = 255–0 G = 0 B = 255 W = 0
		239 Blue R = 0 G = 0 B = 255 W = 0
		240 ⇔ 247 Color fade, fast to slow
		248 ⇔ 255 Color snap, fast to slow
12	Background Dimmer	000 ⇔ 255		0–100%
13	Background Fine Dimmer	000 ⇔ 255		0–100%
14	Main Dimmer	000 ⇔ 255		0–100%
15	Main Fine Dimmer	000 ⇔ 255		0–100%
16 Shutter		000 ⇔ 019 Off
		020 ⇔ 024 On
		025 ⇔ 064 Strobe, fast to slow
		065 ⇔ 069 On
		070 ⇔ 084 Strobe 100–0%, fast to slow
		085 ⇔ 089 On
		090 ⇔ 104 Strobe 0–100%, fast to slow
		105 ⇔ 109 On
		110 ⇔ 124 Random strobe, fast to slow
		125 ⇔ 129 On
		130 ⇔ 144 Random strobe 100–0%, fast to slow
		145 ⇔ 149 On
		150 ⇔ 164 Random strobe 0–100%, fast to slow
		165 ⇔ 169 On
		170 ⇔ 184 Pulse strobe, fast to slow
		185 ⇔ 189 On
		190 ⇔ 204 Random pulse strobe, fast to slow
		205 ⇔ 209 On
		210 ⇔ 224 Strobe 0–100–0%, fast to slow
		225 ⇔ 229 On
		230 ⇔ 244 Random pulse strobe, fast to slow
		245 ⇔ 255 On
17	Zoom	000 ⇔ 255 Wide to narrow
18 Control		000 ⇔ 009		No function
		010 ⇔ 014	Blackout on pan/tilt
		015 ⇔ 019	Reserved for future use
		020 ⇔ 024	RGBW color mixing mode
		025 ⇔ 029	CMY color mixing mode (R=C, G=M, B=Y)
		030 ⇔ 049	Reserved for future use
		050 ⇔ 054	Pan reset
		055 ⇔ 059	Tilt reset
		060 ⇔ 064	Zoom reset
		065 ⇔ 069	Reserved for future use
		070 ⇔ 074	Reset all
		075 ⇔ 119	Reserved for future use
		120 ⇔ 124	Eco fan mode
		125 ⇔ 129	Full fan mode
		130 ⇔ 134	Auto fan mode
		135 ⇔ 139	Fast dimmer mode
		140 ⇔ 144	Slow dimmer mode
		145 ⇔ 255	Reserved for future use
19	Main Red	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
20	Main Fine Red	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
21	Main Green	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
22	Main Fine Green	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
23	Main Blue	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
24 Main Fine Blue 000 ⇔		255	RGBW Mode: 0-100% / CMY Mode: 100-0%
25	Main White	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
26	Main Fine White	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
27	Dimmer 1	000 ⇔ 255		0-100%
28	Fine Dimmer 1	000 ⇔ 255		0-100%
29	Red 1	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
30	Fine Red 1	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
31	Green 1	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
32	Fine Green 1	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
33	Blue 1	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
34	Fine Blue 1	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
35	White 1	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
36	Fine White 1	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
37	Dimmer 2	000 ⇔ 255		0-100%
38	Fine Dimmer 2	000 ⇔ 255		0-100%
39	Red 2	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
40	Fine Red 2	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
41	Green 2	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
42	Fine Green 2	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
43	Blue 2	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
44	Fine Blue 2	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
45	White 2	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
46	Fine White 2	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
47	Dimmer 3	000 ⇔ 255		0-100%
48	Fine Dimmer 3	000 ⇔ 255		0-100%
49	Red 3	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
50	Fine Red 3	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
51	Green 3	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
52	Fine Green 3	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
53	Blue 3	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
54	Fine Blue 3	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
55	White 3	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
56	Fine White 3	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
57	Dimmer 4	000 ⇔ 255		0-100%
58	Fine Dimmer 4	000 ⇔ 255		0-100%
59	Red 4	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
60	Fine Red 4	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
61	Green 4	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
62	Fine Green 4	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
63	Blue 4	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
64	Fine Blue 4	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
65	White 4	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
66	Fine White 4	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
67	Dimmer 5	000 ⇔ 255		0-100%
68	Fine Dimmer 5	000 ⇔ 255		0-100%
69	Red 5	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
70	Fine Red 5	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
71	Green 5	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
72	Fine Green 5	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
73	Blue 5	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
74	Fine Blue 5	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
75	White 5	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
76	Fine White 5	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
77	Dimmer 6	000 ⇔ 255		0-100%
78	Fine Dimmer 6	000 ⇔ 255		0-100%
79	Red 6	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
80	Fine Red 6	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
81	Green 6	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
82	Fine Green 6	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
83	Blue 6	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
84	Fine Blue 6	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
85	White 6	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
86	Fine White 6	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
87	Dimmer 7	000 ⇔ 255		0-100%
88	Fine Dimmer 7	000 ⇔ 255		0-100%
89	Red 7	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
90	Fine Red 7	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
91	Green 7	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
92	Fine Green 7	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
93	Blue 7	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
94	Fine Blue 7 000	⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
95	White 7	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
96	Fine White 7	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
97	Dimmer 8	000 ⇔ 255		0-100%
98	Fine Dimmer 8	000 ⇔ 255		0-100%
99	Red 8	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
100	Fine Red 8	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
101	Green 8	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
102	Fine Green 8	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
103	Blue 8	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
104	Fine Blue 8	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
105	White 8	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
106	Fine White 8	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
107	Dimmer 9	000 ⇔ 255		0-100%
108	Fine Dimmer 9	000 ⇔ 255		0-100%
109	Red 9	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
110	Fine Red 9	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
111	Green 9	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
112	Fine Green 9	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
113	Blue 9	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
114	Fine Blue 9	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
115	White 9	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
116	Fine White 9	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
117	Dimmer 10	000 ⇔ 255		0-100%
118	Fine Dimmer 10	000 ⇔ 255		0-100%
119	Red 10	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
120	Fine Red 10	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
121	Green 10	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
122	Fine Green 10	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
123	Blue 10	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
124	Fine Blue 10	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
125	White 10	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
126	Fine White 10	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
127 Dimmer 11		000 ⇔ 255	0-100%
128	Fine Dimmer 11	000 ⇔ 255		0-100%
129	Red 11	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
130	Fine Red 11	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
131	Green 11	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
132	Fine Green 11	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
133	Blue 11	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
134	Fine Blue 11	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
135	White 11	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
136	Fine White 11	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
137	Dimmer 12	000 ⇔ 255		0-100%
138	Fine Dimmer 12	000 ⇔ 255		0-100%
139	Red 12	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
140	Fine Red 12	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
141	Green 12	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
142	Fine Green 12	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
143	Blue 12	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
144	Fine Blue 12	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
145	White 12	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
146	Fine White 12	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
147 Dimmer 13		000 ⇔ 255	0-100%
148	Fine Dimmer 13	000 ⇔ 255		0-100%
149	Red 13	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
150	Fine Red 13	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
151	Green 13	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
152	Fine Green 13	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
153	Blue 13	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
154	Fine Blue 13	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
155	White 13	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
156	Fine White 13	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
157	Dimmer 14	000 ⇔ 255		0-100%
158	Fine Dimmer 14	000 ⇔ 255		0-100%
159	Red 14	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
160	Fine Red 14	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
161	Green 14	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
162	Fine Green 14	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
163	Blue 14	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
164	Fine Blue 14	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
165	White 14	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
166	Fine White 14	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
167	Dimmer 15	000 ⇔ 255		0-100%
168	Fine Dimmer 15	000 ⇔ 255		0-100%
169	Red 15	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
170	Fine Red 15	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
171	Green 15	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
172	Fine Green 15	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
173	Blue 15	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
174	Fine Blue 15	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
175	White 15	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
176	Fine White 15	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
177	Dimmer 16	000 ⇔ 255		0-100%
178	Fine Dimmer 16	000 ⇔ 255		0-100%
179	Red 16	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
180	Fine Red 16	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
181	Green 16	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
182	Fine Green 16	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
183	Blue 16	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
184	Fine Blue 16	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
185	White 16	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
186	Fine White 16	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
187	Dimmer 17	000 ⇔ 255		0-100%
188	Fine Dimmer 17	000 ⇔ 255		0-100%
189	Red 17	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
190	Fine Red 17	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
191	Green 17	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
192	Fine Green 17	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
193	Blue 17	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
194	Fine Blue 17	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
195	White 17	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
196	Fine White 17	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
197	Dimmer 18	000 ⇔ 255		0-100%
198	Fine Dimmer 18	000 ⇔ 255		0-100%
199	Red 18	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
200	Fine Red 18 000	⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
201	Green 18	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
202	Fine Green 18	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
203	Blue 18	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
204	Fine Blue 18	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
205	White 18	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
206	Fine White 18	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
207	Dimmer 19	000 ⇔ 255		0-100%
208	Fine Dimmer 19	000 ⇔ 255		0-100%
209	Red 19	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
210	Fine Red 19	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
211	Green 19	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
212	Fine Green 19	000 ⇔ 255		RGBW Mode: 0-100% / CMY Mode: 100-0%
213	Blue 19	000 ⇔ 255		RGBW Mode: 0–100% / CMY Mode: 100–0%
214	Fine Blue 19	000 ⇔ 255		RGBW Mode: 0–100% / CMY Mode: 100–0%
215	White 19	000 ⇔ 255		RGBW Mode: 0–100% / CMY Mode: 100–0%
216	Fine White 19	000 ⇔ 255		RGBW Mode: 0–100% / CMY Mode: 100–0%

Single Control: Advanced Mode (178 channels)

Channel	Function Value Percent/Setting
1	Pan	000 ⇔ 255	0–100%
2	Fine Pan	000 ⇔ 255	0–100%
3	Tilt	000 ⇔ 255	0–100%
4	Fine Tilt	000 ⇔ 255	0–100%
5	CTC	000	No function
		001 ⇔ 255	Color temperature, 2800–10000 K
6	C o l o r	000	No function
		001 ⇔ 002	2700K	R = 156	G = 118	B = 0	W = 63
		003 ⇔ 004	3200K	R = 156	G = 141	B = 5	W = 89
		005 ⇔ 006	4200K	R = 156	G = 141	B = 14	W = 255
		007 ⇔ 008	5600K	R = 156	G = 207	B = 54	W = 255
		009 ⇔ 010	8000K	R = 130	G = 255	B = 96	W = 255
		011	Blue	R = 0	G = 0	B = 255	W = 0
		012 ⇔ 048	+ Green	R = 0	G = 0–255	B = 255	W = 0
		049	Cyan	R = 0	G = 255	B = 255	W = 0
		050 ⇔ 086	- Blue	R = 0	G = 255	B = 255–0	W = 0
		087	Green	R = 0	G = 255	B = 0	W = 0
		088 ⇔ 124	+ Red	R = 0–255	G = 255	B = 0	W = 0
		125	Yellow	R = 255	G = 255	B = 0	W = 0
		126 ⇔ 162	- Green	R = 255	G = 255–0	B = 0	W = 0
		163	Red	R = 255	G = 0	B = 0	W = 0
		164 ⇔ 200	+ Blue	R = 255	G = 0	B = 0–255	W = 0
		201	Magenta	R = 255	G = 0	B = 255	W = 0
		202 ⇔ 238	- Red	R = 255–0	G = 0	B = 255	W = 0
		239	Blue	R = 0	G = 0	B = 255	W = 0
		240 ⇔ 247	Color fade, fast to slow
		248 ⇔ 255	Color snap, fast to slow
7	G o b o	000	All on
		001 ⇔ 254	Gobos, 1–254
		255	All on
8	LED Macro/Auto Program	000 ⇔ 015	No Function
		016 ⇔ 116	LED macros 1–101
		117 ⇔ 135	LED macro 102
		136 ⇔ 237	Auto programs 1–101
		238 ⇔ 255	Auto program 102
9	LED Macro/Auto Program Speed	000 ⇔ 127	Speed, fast to slow
		128	Hold
		129 ⇔ 255	Reverse speed, slow to fast
10	LED Built-in Delay	000 ⇔ 255	Fast to slow
Channel	Function	Value	Percent/Setting
11 Background Color		000 No function
		001 ⇔ 002	2700K	R = 156	G = 118	B = 0	W = 63
		003 ⇔ 004	3200K	R = 156	G = 141	B = 5	W = 89
		005 ⇔ 006	4200K	R = 156	G = 141	B = 14	W = 255
		007 ⇔ 008	5600K	R = 156	G = 207	B = 54	W = 255
		009 ⇔ 010	8000K	R = 130	G = 255	B = 96	W = 255
		011 Blue R = 0 G = 0 B = 255 W = 0
		012 ⇔ 048 + Green R = 0 G = 0–255 B = 255 W = 0
		049 Cyan R = 0 G = 255 B = 255 W = 0
		050 ⇔ 086 - Blue R = 0 G = 255 B = 255–0 W = 0
		087 Green R = 0 G = 255 B = 0 W = 0
		088 ⇔ 124 + Red R = 0–255 G = 255 B = 0 W = 0
		125 Yellow R = 255 G = 255 B = 0 W = 0
		126 ⇔ 162 - Green R = 255 G = 255–0 B = 0 W = 0
		163 Red R = 255 G = 0 B = 0 W = 0
		164 ⇔ 200 + Blue R = 255 G = 0 B = 0–255 W = 0
		201 Magenta R = 255 G = 0 B = 255 W = 0
		202 ⇔ 238 - Red R = 255–0 G = 0 B = 255 W = 0
		239 Blue R = 0 G = 0 B = 255 W = 0
		240 ⇔ 247 Color fade, fast to slow
		248 ⇔ 255 Color snap, fast to slow
12	Background Dimmer	000 ⇔ 255	0–100%
13	Background Fine Dimmer	000 ⇔ 255	0–100%
14	Main Dimmer	000 ⇔ 255	0–100%
15	Main Fine Dimmer	000 ⇔ 255	0–100%
16	Shutter	000 ⇔ 019 Off
		020 ⇔ 024 On
		025 ⇔ 064 Strobe, fast to slow
		065 ⇔ 069 On
		070 ⇔ 084 Strobe 100–0%, fast to slow
		085 ⇔ 089 On
		090 ⇔ 104 Strobe 0–100%, fast to slow
		105 ⇔ 109 On
		110 ⇔ 124 Random strobe, fast to slow
		125 ⇔ 129 On
		130 ⇔ 144 Random strobe 100–0%, fast to slow
		145 ⇔ 149 On
		150 ⇔ 164 Random strobe 0–100%, fast to slow
		165 ⇔ 169 On
		170 ⇔ 184 Pulse strobe, fast to slow
		185 ⇔ 189 On
		190 ⇔ 204 Random pulse strobe, fast to slow
		205 ⇔ 209 On
		210 ⇔ 224 Strobe 0–100–0%, fast to slow
		225 ⇔ 229 On
		230 ⇔ 244 Random pulse strobe, fast to slow
		245 ⇔ 255 On
17	Zoom	000 ⇔ 255 Wide to narrow

Channel	Function	Value	Percent/Setting
18 Control		000 ⇔ 009	No function
		010 ⇔ 014	Blackout on pan/tilt
		015 ⇔ 019	Reserved for future use
		020 ⇔ 024	RGBW color mixing mode
		025 ⇔ 029	CMY color mixing mode (R=C, G=M, B=Y)
		030 ⇔ 049	Reserved for future use
		050 ⇔ 054	Pan reset
		055 ⇔ 059	Tilt reset
		060 ⇔ 064	Zoom reset
		065 ⇔ 069	Reserved for future use
		070 ⇔ 074	Reset all
		075 ⇔ 119	Reserved for future use
		120 ⇔ 124	Eco fan mode
		125 ⇔ 129	Full fan mode
		130 ⇔ 134	Auto fan mode
		135 ⇔ 139	Fast dimmer mode
		140 ⇔ 144	Slow dimmer mode
		145 ⇔ 255	Reserved for future use
19	Main Red	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
20	Main Fine Red	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
21	Main Green	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
22	Main Fine Green	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
23	Main Blue	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
24 Main Fine Blue 000 ⇔		255	RGBW Mode: 0-100% / CMY Mode: 100-0%
25	Main White	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
26	Maine Fine White	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
27	Red 1	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
28	Fine Red 1	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
29	Green 1	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
30	Fine Green 1	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
31	Blue 1	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
32	Fine Blue 1	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
33	White 1	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
34	Fine White 1	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
35	Red 2	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
36	Fine Red 2	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
37	Green 2	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
38	Fine Green 2	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
39	Blue 2	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
40	Fine Blue 2	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
41	White 2	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
42	Fine White 2	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
43	Red 3	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
44	Fine Red 3	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
45	Green 3	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
46	Fine Green 3	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
47	Blue 3	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
48	Fine Blue 3	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
49	White 3	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
50	Fine White 3	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
51	Red 4	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
52	Fine Red 4	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
53	Green 4	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
54	Fine Green 4	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
55	Blue 4	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
56	Fine Blue 4	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
57	White 4	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
58	Fine White 4	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
59	Red 5	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
60	Fine Red 5	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
61	Green 5	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
62	Fine Green 5	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
63	Blue 5	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
64	Fine Blue 5	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
65	White 5	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
66	Fine White 5	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
67	Red 6	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
68	Fine Red 6	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
69	Green 6	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
70	Fine Green 6	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
71	Blue 6	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
72	Fine Blue 6	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
73	White 6	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
74	Fine White 6	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
75	Red 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
76	Fine Red 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
77	Green 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
78	Fine Green 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
79	Blue 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
80	Fine Blue 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
81	White 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
82	Fine White 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
83	Red 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
84	Fine Red 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
85	Green 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
86	Fine Green 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
87	Blue 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
88	Fine Blue 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
89	White 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
90	Fine White 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
91	Red 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
92	Fine Red 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
93	Green 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
94	Fine Green 9 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
95	Blue 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
96	Fine Blue 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
97	White 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
98	Fine White 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
99	Red 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
100	Fine Red 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
101	Green 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
102	Fine Green 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
103	Blue 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
104	Fine Blue 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
105	White 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
106	Fine White 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
Channel	Function		Value Percent/Setting
107	Red 11		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
108	Fine Red 11		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
109	Green 11		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
110	Fine Green 11		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
111	Blue 11		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
112	Fine Blue 11		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
113	White 11		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
114	Fine White 11		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
115	Red 12		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
116	Fine Red 12		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
117	Green 12		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
118	Fine Green 12		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
119	Blue 12		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
120	Fine Blue 12		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
121	White 12		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
122	Fine White 12		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
123	Red 13		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
124	Fine Red 13		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
125	Green 13		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
126	Fine Green 13		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
127	Blue 13		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
128	Fine Blue 13		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
129	White 13		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
130	Fine White 13		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
131	Red 14		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
132	Fine Red 14		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
133	Green 14		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
134	Fine Green 14		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
135	Blue 14		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
136	Fine Blue 14		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
137	White 14		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
138	Fine White 14		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
139	Red 15		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
140	Fine Red 15		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
141	Green 15		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
142	Fine Green 15		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
143	Blue 15		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
144	Fine Blue 15		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
145	White 15		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
146	Fine White 15		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
147	Red 16		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
148	Fine Red 16		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
149	Green 16		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
150	Fine Green 16		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
151	Blue 16		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
152	Fine Blue 16		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
153	White 16		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
154	Fine White 16		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
155	Red 17		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
156	Fine Red 17		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
157	Green 17		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
158	Fine Green 17		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
159	Blue 17		000 ☐ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
Channel	Function Value Percent/Setting
160	Fine Blue 17	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
161	White 17	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
162	Fine White 17	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
163	Red 18	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
164	Fine Red 18	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
165	Green 18	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
166	Fine Green 18	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
167	Blue 18	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
168	Fine Blue 18	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
169	White 18	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
170	Fine White 18	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
171	Red 19	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
172	Fine Red 19	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
173	Green 19	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
174	Fine Green 19	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
175	Blue 19	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
176	Fine Blue 19	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
177	White 19	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
178	Fine White 19	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%

Single Control: Standard Mode (96 channels)

Channel

Function Value Percent/Setting

Pan

000 ⇔ 255

0–100%

Fine Pan

000 ⇔ 255

0–100%

Tilt

000 ⇔ 255

0–100%

Fine Tilt

000 ⇔ 255

0–100%

CTC

000 No function001 ⇔ 255 Color temperature, 2800–10000 K

C o l o r

000 No function001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 156 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R = 0 G = 0 B = 255 W = 0012 ⇔ 048 + Green R = 0 G = 0–255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - Blue R = 0 G = 255 B = 255–0 W = 0087 Green R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + Red R = 0–255 G = 255 B = 0 W = 0125 Yellow R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - Green R = 255 G = 255–0 B = 0 W = 0163 Red R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + Blue R = 255 G = 0 B = 0–255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇔ 238 - Red R = 255–0 G = 0 B = 255 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Color fade, fast to slow248 ⇔ 255 Color snap, fast to slow

G o b o

000 All on001 ⇔ 254 Gobos, 1–254255 All on

LED Macro/Auto Program

000 ⇔ 015 No Function016 ⇔ 116 LED macros 1–101117 ⇔ 135 LED macro 102136 ⇔ 237 Auto programs 1–101238 ⇔ 255 Auto program 102

LED Macro/Auto Program Speed

000 ⇔ 127 Speed, fast to slow128 Hold129 ⇔ 255 Reverse speed, slow to fast

LED Built-in Delay

000 ⇔ 255 Fast to slow

Channel

Function

Value

Percent/Setting

11 Background Color

000 No function

001 ⇔ 002

2700K

R = 156

G = 118

B = 0

W = 63

003 ⇔ 004

3200K

R = 156

G = 141

B = 5

W = 89

005 ⇔ 006

4200K

R = 156

G = 141

B = 14

W = 255

007 ⇔ 008

5600K

R = 156

G = 207

B = 54

W = 255

009 ⇔ 010

8000K

R = 130

G = 255

B = 96

W = 255

011 Blue

R = 0 G = 0

B = 255

W = 0

012 ⇔ 048

+ Green

R = 0

G = 0–255

B = 255

W = 0

049 Cyan

R = 0 G = 255

B = 255

W = 0

050 ⇔ 086

- Blue

R = 0

G = 255

B = 255–0

W = 0

087 Green

R = 0 G = 255

B = 0 W = 0

088 ⇔ 124

+ Red

R = 0–255

G = 255

B = 0

W = 0

125 Yellow

R = 255 G = 255

B = 0 W = 0

126 ⇔ 162

- Green

R = 255

G = 255–0

B = 0

W = 0

163 Red

R = 255 G = 0

B = 0 W = 0

164 ⇔ 200

+ Blue

R = 255

G = 0

B = 0–255

W = 0

201 Magenta

R = 255 G = 0

B = 255

W = 0

202 ⇔ 238

- Red

R = 255–0

G = 0

B = 255

W = 0

239 Blue

R = 0 G = 0

B = 255

W = 0

240 ⇔ 247

Color fade, fast to slow

248 ⇔ 255

Color snap, fast to slow

Background Dimmer

000 ⇔ 255

0–100%

Main Dimmer

000 ⇔ 255

0–100%

Shutter

000 ⇔ 019

Off

020 ⇔ 024

025 ⇔ 064

Strobe, fast to slow

065 ⇔ 069

070 ⇔ 084

Strobe 100–0%, fast to slow

085 ⇔ 089

090 ⇔ 104

Strobe 0–100%, fast to slow

105 ⇔ 109

110 ⇔ 124

Random strobe, fast to slow

125 ⇔ 129

130 ⇔ 144

Random strobe 100–0%, fast to slow

145 ⇔ 149

150 ⇔ 164

Random strobe 0–100%, fast to slow

165 ⇔ 169

170 ⇔ 184

Pulse strobe, fast to slow

185 ⇔ 189

190 ⇔ 204

Random pulse strobe, fast to slow

205 ⇔ 209

210 ⇔ 224

Strobe 0–100–0%, fast to slow

225 ⇔ 229

230 ⇔ 244

Random pulse strobe, fast to slow

245 ⇔ 255

Zoom

000 ⇔ 255

Wide to narrow

Channel

Function

Value

Percent/Setting

16 Control

000 ⇔ 009

No function

010 ⇔ 014

Blackout on pan/tilt

015 ⇔ 019

Reserved for future use

020 ⇔ 024

RGBW color mixing mode

025 ⇔ 029

CMY color mixing mode (R=C, G=M, B=Y)

030 ⇔ 049

Reserved for future use

050 ⇔ 054

Pan reset

055 ⇔ 059

Tilt reset

060 ⇔ 064

Zoom reset

065 ⇔ 069

Reserved for future use

070 ⇔ 074

Reset all

075 ⇔ 119

Reserved for future use

120 ⇔ 124

Eco fan mode

125 ⇔ 129

Full fan mode

130 ⇔ 134

Auto fan mode

135 ⇔ 139

Fast dimmer mode

140 ⇔ 144

Slow dimmer mode

145 ⇔ 255

Reserved for future use

Main Red

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Main Green

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Main Blue

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Main White

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Red 1

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Green 1 000 ⇔

RGBW Mode: 0-100% / CMY Mode: 100-0%

Blue 1

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

White 1

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Red 2

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Green 2

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Blue 2

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

White 2

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Red 3

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Green 3

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Blue 3

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

White 3

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Red 4

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Green 4

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Blue 4

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

White 4

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Red 5

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Green 5

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Blue 5

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

White 5

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Red 6

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Green 6 000 ⇔

RGBW Mode: 0-100% / CMY Mode: 100-0%

Blue 6

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

White 6

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Red 7

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Green 7

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Blue 7

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

White 7

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Red 8

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Green 8

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

Blue 8

000 ⇔ 255

RGBW Mode: 0-100% / CMY Mode: 100-0%

White 8

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Red 9

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Green 9

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Blue 9

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

White 9

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Red 10

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Green 10

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Blue 10

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

White 10

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Red 11

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Green 11

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Blue 11

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

White 11

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Red 12

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Green 12

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Blue 12

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

White 12

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Red 13

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Green 13

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Blue 13

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

72 White 13

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Red 14

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Green 14

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Blue 14

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

White 14

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Red 15

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Green 15

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Blue 15

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

White 15

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Red 16

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Green 16

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Blue 16

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

White 16

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Red 17

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Green 17

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Blue 17

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

White 17

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Red 18

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Green 18

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Blue 18

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

92 White 18 000

⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Red 19

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Green 19

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Blue 19

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

White 19

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Single Control: Basic Mode (20 channels)

Channel

Function Value Percent

Setting

Pan

000 ⇔ 255

0–100%

Pan Fine

000 ⇔ 255

0–100%

Tilt

000 ⇔ 255

0–100%

Tilt Fine

000 ⇔ 255

0–100%

CTC

000 No function001 ⇔ 255 Color temperature, 2800–10000 K

C o l o r

G o b o

000 All on001 ⇔ 254 Gobos, 1–254255 All on

LED Macro/Auto Program

000 ⇔ 015 No Function016 ⇔ 116 LED macros 1–101117 ⇔ 135 LED macro 102136 ⇔ 237 Auto programs 1–101238 ⇔ 255 Auto program 102

LED Macro/Auto Program Speed

000 ⇔ 127 Speed, fast to slow128 Hold129 ⇔ 255 Reverse speed, slow to fast

LED Built-in Delay

000 ⇔ 255 Fast to slow

Channel

Function

Value

Percent/Setting

11 Background Color

000 No function

001 ⇔ 002

2700K

R = 156

G = 118

B = 0

W = 63

003 ⇔ 004

3200K

R = 156

G = 141

B = 5

W = 89

005 ⇔ 006

4200K

R = 156

G = 141

B = 14

W = 255

007 ⇔ 008

5600K

R = 156

G = 207

B = 54

W = 255

009 ⇔ 010

8000K

R = 130

G = 255

B = 96

W = 255

011 Blue

R = 0

G = 0

B = 255

W = 0

012 ⇔ 048

+ Green

R = 0

G = 0–255

B = 255

W = 0

049 Cyan

R = 0

G = 255

B = 255

W = 0

050 ⇔ 086

- Blue

R = 0

G = 255

B = 255–0

W = 0

087 Green

R = 0

G = 255

B = 0

W = 0

088 ⇔ 124

+ Red

R = 0–255

G = 255

B = 0

W = 0

125 Yellow

R = 255

G = 255

B = 0

W = 0

126 ⇔ 162

- Green

R = 255

G = 255–0

B = 0

W = 0

163 Red

R = 255

G = 0

B = 0

W = 0

164 ⇔ 200

+ Blue

R = 255

G = 0

B = 0–255

W = 0

201 Magenta

R = 255

G = 0

B = 255

W = 0

202 ⇔ 238

- Red

R = 255–0

G = 0

B = 255

W = 0

239 Blue

R = 0

G = 0

B = 255

W = 0

240 ⇔ 247

Color fade, fast to slow

248 ⇔ 255

Color snap, fast to slow

Background Dimmer

000 ⇔ 255

0–100%

Main Dimmer

000 ⇔ 255

0–100%

Shutter

000 ⇔ 019

Off

020 ⇔ 024

025 ⇔ 064

Strobe, fast to slow

065 ⇔ 069

070 ⇔ 084

Strobe 100–0%, fast to slow

085 ⇔ 089

090 ⇔ 104

Strobe 0–100%, fast to slow

105 ⇔ 109

110 ⇔ 124

Random strobe, fast to slow

125 ⇔ 129

130 ⇔ 144

Random strobe 100–0%, fast to slow

145 ⇔ 149

150 ⇔ 164

Random strobe 0–100%, fast to slow

165 ⇔ 169

170 ⇔ 184

Pulse strobe, fast to slow

185 ⇔ 189

190 ⇔ 204

Random pulse strobe, fast to slow

205 ⇔ 209

210 ⇔ 224

Strobe 0–100–0%, fast to slow

225 ⇔ 229

230 ⇔ 244

Random pulse strobe, fast to slow

245 ⇔ 255

Zoom

000 ⇔ 255

Wide to narrow

Channel

Function Value Percent

Setting

16 Control

Control

000 ⇔ 009

No function

010 ⇔ 014

Blackout on pan/tilt

015 ⇔ 019

Reserved for future use

020 ⇔ 024

RGBW color mixing mode

025 ⇔ 029

CMY color mixing mode (R=C, G=M, B=Y)

030 ⇔ 049

Reserved for future use

050 ⇔ 054

Pan reset

055 ⇔ 059

Tilt reset

060 ⇔ 064

Zoom reset

065 ⇔ 069

Reserved for future use

070 ⇔ 074

Reset all

075 ⇔ 119

Reserved for future use

120 ⇔ 124

Eco fan mode

125 ⇔ 129

Full fan mode

130 ⇔ 134

Auto fan mode

135 ⇔ 139

Fast dimmer mode

140 ⇔ 144

Slow dimmer mode

145 ⇔ 255

Reserved for future use

Main Red

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Main Green

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Main Blue

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Main White

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Dual Control Values

Dual Control Movement

Dual Control: Advanced Movement Mode (26 channels)

Channel

Function Value Percent/Setting

Pan

000 ⇔ 255

0–100%

Fine Pan

000 ⇔ 255

0–100%

Tilt

000 ⇔ 255

0–100%

Tilt Pan

000 ⇔ 255

0–100%

CTC

000 No function001 ⇔ 255 Color temperature, 2800–10000 K

C o l o

000 No function001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 156 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R = 0 G = 0 B = 255 W = 0012 ⇔ 048 + Green R = 0 G = 0–255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - Blue R = 0 G = 255 B = 255–0 W = 0r 087 Green R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + Red R = 0–255 G = 255 B = 0 W = 0125 Yellow R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - Green R = 255 G = 255–0 B = 0 W = 0163 Red R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + Blue R = 255 G = 0 B = 0–255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇔ 238 - Red R = 255–0 G = 0 B = 255 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Color fade, fast to slow248 ⇔ 255 Color snap, fast to slow

G o b o

000 All on001 ⇔ 254 Gobos, 1–254255 All on

LED Macro/Auto Program

000 ⇔ 015 No Function016 ⇔ 116 LED macros 1–101117 ⇔ 135 LED macro 102136 ⇔ 237 Auto programs 1–101238 ⇔ 255 Auto program 102

LED Macro/Auto Program Speed

000 ⇔ 127 Speed, fast to slow128 Hold129 ⇔ 255 Reverse speed, slow to fast

LED Built-in Delay

000 ⇔ 255 Fast to slow

Channel

Function

Value

Percent/Setting

11 Background Color

000 No function

001 ⇔ 002

2700K

R = 156

G = 118

B = 0

W = 63

003 ⇔ 004

3200K

R = 156

G = 141

B = 5

W = 89

005 ⇔ 006

4200K

R = 156

G = 141

B = 14

W = 255

007 ⇔ 008

5600K

R = 156

G = 207

B = 54

W = 255

009 ⇔ 010

8000K

R = 130

G = 255

B = 96

W = 255

011 Blue R = 0 G = 0 B = 255 W = 0

012 ⇔ 048

+ Green

R = 0

G = 0–255

B = 255

W = 0

049 Cyan

R = 0 G = 255 B = 255 W = 0

050 ⇔ 086

- Blue

R = 0

G = 255

B = 255–0

W = 0

087 Green

R = 0 G = 255 B = 0 W = 0

088 ⇔ 124

+ Red

R = 0–255

G = 255

B = 0

W = 0

125 Yellow

R = 255 G = 255 B = 0 W = 0

126 ⇔ 162

- Green

R = 255

G = 255–0

B = 0

W = 0

163 Red

R = 255 G = 0 B = 0 W = 0

164 ⇔ 200

+ Blue

R = 255

G = 0

B = 0–255

W = 0

201 Magenta

R = 255

G = 0 B = 255 W = 0

202 ⇔ 238

- Red

R = 255–0

G = 0

B = 255

W = 0

239 Blue R = 0

G = 0 B = 255 W = 0

240 ⇔ 247

Color fade, fast to slow

248 ⇔ 255

Color snap, fast to slow

Background Dimmer

000 ⇔ 255

0–100%

Background Fine Dimmer

000 ⇔ 255

0–100%

Main Dimmer

000 ⇔ 255

0–100%

Main Fine Fimmer

000 ⇔ 255

0–100%

Shutter

000 ⇔ 019

Off

020 ⇔ 024

025 ⇔ 064

Strobe, fast to slow

065 ⇔ 069

070 ⇔ 084

Strobe 100–0%, fast to slow

085 ⇔ 089

090 ⇔ 104

Strobe 0–100%, fast to slow

105 ⇔ 109

110 ⇔ 124

Random strobe, fast to slow

125 ⇔ 129

130 ⇔ 144

Random strobe 100–0%, fast to slow

145 ⇔ 149

150 ⇔ 164

Random strobe 0–100%, fast to slow

165 ⇔ 169

170 ⇔ 184

Pulse strobe, fast to slow

185 ⇔ 189

190 ⇔ 204

Random pulse strobe, fast to slow

205 ⇔ 209

210 ⇔ 224

Strobe 0–100–0%, fast to slow

225 ⇔ 229

230 ⇔ 244

Random pulse strobe, fast to slow

245 ⇔ 255

Zoom

000 ⇔ 255

Wide to narrow

Channel

Function

Value

Percent/Setting

18 Control

000 ⇔ 009

No function

010 ⇔ 014

Blackout on pan/tilt

015 ⇔ 019

Reserved for future use

020 ⇔ 024

RGBW color mixing mode

025 ⇔ 029

CMY color mixing mode (R=C, G=M, B=Y)

030 ⇔ 049

Reserved for future use

050 ⇔ 054

Pan reset

055 ⇔ 059

Tilt reset

060 ⇔ 064

Zoom reset

065 ⇔ 069

Reserved for future use

070 ⇔ 074

Reset all

075 ⇔ 119

Reserved for future use

120 ⇔ 124

Eco fan mode

125 ⇔ 129

Full fan mode

130 ⇔ 134

Auto fan mode

135 ⇔ 139

Fast dimmer mode

140 ⇔ 144

Slow dimmer mode

145 ⇔ 255

Reserved for future use

Main Red

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Main Fine Red

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Main Green

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Main Fine Green

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Main Blue

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Main Fine Blue 000 ⇔

255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Main White

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Main Fine White

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Dual Control: Standard Movement Mode (20 channels)

Channel

Function Value Percent/Setting

Pan

000 ⇔ 255

0–100%

Fine Pan

000 ⇔ 255

0–100%

Tilt

000 ⇔ 255

0–100%

Fine Tilt

000 ⇔ 255

0–100%

CTC

000 No function001 ⇔ 255 Color temperature, 2800–10000 K

C o l o

000 No function001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 156 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R = 0 G = 0 B = 255 W = 0012 ⇔ 048 + Green R = 0 G = 0–255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - Blue R = 0 G = 255 B = 255–0 W = 0Green R = 0 G = 255 B = 0 W = 0087 + Red R = 0–255 G = 255 B = 0 W = 0125 Yel low R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - Green R = 255 G = 255–0 B = 0 W = 0163 Red R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + Blue R = 255 G = 0 B = 0–255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇔ 238 - Red R = 255–0 G = 0 B = 255 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Color fade, fast to slow248 ⇔ 255 Color snap, fast to slow

G o b o

000 All on001 ⇔ 254 Gobos, 1–254255 All on

LED Macro/Auto Program

000 ⇔ 015 No Function016 ⇔ 116 LED macros 1–101117 ⇔ 135 LED macro 102136 ⇔ 237 Auto programs 1–101238 ⇔ 255 Auto program 102

LED Macro/Auto Program Speed

000 ⇔ 127 Speed, fast to slow128 Hold129 ⇔ 255 Reverse speed, slow to fast

LED Built-in Delay

000 ⇔ 255 Fast to slow

Channel

Function

Value

Percent/Setting

11 Background Color

000 No function

001 ⇔ 002

2700K

R = 156

G = 118

B = 0

W = 63

003 ⇔ 004

3200K

R = 156

G = 141

B = 5

W = 89

005 ⇔ 006

4200K

R = 156

G = 141

B = 14

W = 255

007 ⇔ 008

5600K

R = 156

G = 207

B = 54

W = 255

009 ⇔ 010

8000K

R = 130

G = 255

B = 96

W = 255

011 Blue R = 0 G = 0 B = 255 W = 0

012 ⇔ 048

+ Green

R = 0

G = 0–255

B = 255

W = 0

049 Cyan R = 0 G = 255 B = 255 W = 0

050 ⇔ 086

- Blue

R = 0

G = 255

B = 255–0

W = 0

087 Green

R = 0 G = 255 B = 0 W = 0

088 ⇔ 124

+ Red

R = 0–255

G = 255

B = 0

W = 0

125 Yellow

R = 255 G = 255 B = 0 W = 0

126 ⇔ 162

- Green

R = 255

G = 255–0

B = 0

W = 0

163 Red

R = 255 G = 0 B = 0 W = 0

164 ⇔ 200

+ Blue

R = 255

G = 0

B = 0–255

W = 0

201 Magenta

R = 255 G = 0 B = 255 W = 0

202 ⇔ 238

- Red

R = 255–0

G = 0

B = 255

W = 0

239 Blue R = 0 G = 0 B = 255 W = 0

240 ⇔ 247

Color fade, fast to slow

248 ⇔ 255

Color snap, fast to slow

Background Dimmer

000 ⇔ 255

0–100%

Main Dimmer

000 ⇔ 255

0–100%

Shutter

000 ⇔ 019

Off

020 ⇔ 024

025 ⇔ 064

Strobe, fast to slow

065 ⇔ 069

070 ⇔ 084

Strobe 100–0%, fast to slow

085 ⇔ 089

090 ⇔ 104

Strobe 0–100%, fast to slow

105 ⇔ 109

110 ⇔ 124

Random strobe, fast to slow

125 ⇔ 129

130 ⇔ 144

Random strobe 100–0%, fast to slow

145 ⇔ 149

150 ⇔ 164

Random strobe 0–100%, fast to slow

165 ⇔ 169

170 ⇔ 184

Pulse strobe, fast to slow

185 ⇔ 189

190 ⇔ 204

Random pulse strobe, fast to slow

205 ⇔ 209

210 ⇔ 224

Strobe 0–100–0%, fast to slow

225 ⇔ 229

230 ⇔ 244

Random pulse strobe, fast to slow

245 ⇔ 255

Zoom

000 ⇔ 255

Wide to narrow

Channel

Function Value Percent

Setting

16 Control

Control

000 ⇔ 009

No function

010 ⇔ 014

Blackout on pan/tilt

015 ⇔ 019

Reserved for future use

020 ⇔ 024

RGBW color mixing mode

025 ⇔ 029

CMY color mixing mode (R=C, G=M, B=Y)

030 ⇔ 049

Reserved for future use

050 ⇔ 054

Pan reset

055 ⇔ 059

Tilt reset

060 ⇔ 064

Zoom reset

065 ⇔ 069

Reserved for future use

070 ⇔ 074

Reset all

075 ⇔ 119

Reserved for future use

120 ⇔ 124

Eco fan mode

125 ⇔ 129

Full fan mode

130 ⇔ 134

Auto fan mode

135 ⇔ 139

Fast dimmer mode

140 ⇔ 144

Slow dimmer mode

145 ⇔ 255

Reserved for future use

Main Red

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Main Green

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Main Blue

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Main White

000 ⇔ 255

RGBW Mode: 0–100% / CMY Mode: 100–0%

Dual Control: Basic Movement Mode (8 channels)

Channel	Function Value Percent/Setting
1	Pan	000 ⇔ 255	0–100%
2	Fine Pan	000 ⇔ 255	0–100%
3	Tilt	000 ⇔ 255	0–100%
4	Fine Tilt	000 ⇔ 255	0–100%
5	Main Dimmer	000 ⇔ 255	0–100%
6 Shutter		000 ⇔ 019	Off
		020 ⇔ 024	On
		025 ⇔ 064	Strobe, fast to slow
		065 ⇔ 069	On
		070 ⇔ 084	Strobe 100–0%, fast to slow
		085 ⇔ 089	On
		090 ⇔ 104	Strobe 0–100%, fast to slow
		105 ⇔ 109	On
		110 ⇔ 124	Random strobe, fast to slow
		125 ⇔ 129	On
		130 ⇔ 144	Random strobe 100–0%, fast to slow
		145 ⇔ 149	On
		150 ⇔ 164	Random strobe 0–100%, fast to slow
		165 ⇔ 169	On
		170 ⇔ 184	Pulse strobe, fast to slow
		185 ⇔ 189	On
		190 ⇔ 204	Random pulse strobe, fast to slow
		205 ⇔ 209	On
		210 ⇔ 224	Strobe 0–100–0%, fast to slow
		225 ⇔ 229	On
		230 ⇔ 244	Random pulse strobe, fast to slow
		245 ⇔ 255	On
7	Zoom	000 ⇔ 255	Wide to narrow
8 Control		000 ⇔ 009	No function
		010 ⇔ 014	Blackout on pan/tilt
		015 ⇔ 019	Reserved for future use
		020 ⇔ 024	RGBW color mixing mode
		025 ⇔ 029	CMY color mixing mode (R=C, G=M, B=Y)
		030 ⇔ 049	Reserved for future use
		050 ⇔ 054	Pan reset
		055 ⇔ 059	Tilt reset
		060 ⇔ 064	Zoom reset
		065 ⇔ 069	Reserved for future use
		070 ⇔ 074	Reset all
		075 ⇔ 119	Reserved for future use
		120 ⇔ 124	Eco fan mode
		125 ⇔ 129	Full fan mode
		130 ⇔ 134	Auto fan mode
		135 ⇔ 139	Fast dimmer mode
		140 ⇔ 144	Slow dimmer mode
		145 ⇔ 255	Reserved for future use

Dual Control Pixels
Dual Control: Advanced Pixels Mode (152 channels)

Channel	Function Value Percent/Setting
1	Red 1	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
2	Fine Red 1	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
3	Green 1	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
4	Fine Green 1	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
5	Blue 1	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
6	Fine Blue 1	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
7	White 1	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
8	Fine White 1	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
9	Red 2	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
10	Fine Red 2	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
11	Green 2	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
12	Fine Green 2	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
13	Blue 2	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
14	Fine Blue 2	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
15	White 2	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
16	Fine White 2	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
17	Red 3	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
18	Fine Red 3	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
19	Green 3	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
20	Fine Green 3	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
21	Blue 3	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
22	Fine Blue 3	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
23	White 3	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
24	Fine White 3	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
25	Red 4	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
26	Fine Red 4	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
27	Green 4	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
28	Fine Green 4	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
29	Blue 4	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
30	Fine Blue 4	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
31	White 4	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
32	Fine White 4	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
33	Red 5	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
34	Fine Red 5	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
35	Green 5	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
36	Fine Green 5	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
37	Blue 5	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
38	Fine Blue 5	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
39	White 5	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
40	Fine White 5	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
41	Red 6	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
42	Fine Red 6	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
43	Green 6	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
44	Fine Green 6	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
45	Blue 6	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
46	Fine Blue 6	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
47	White 6	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
48	Fine White 6	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
Channel	Function	Value	Percent/Setting
49	Red 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
50	Fine Red 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
51	Green 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
52	Fine Green 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
53	Blue 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
54	Fine Blue 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
55	White 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
56	Fine White 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
57	Red 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
58	Fine Red 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
59	Green 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
60	Fine Green 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
61	Blue 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
62	Fine Blue 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
63	White 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
64	Fine White 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
65	Red 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
66	Fine Red 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
67	Green 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
68	Fine Green 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
69 Blue 9		000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
70	Fine Blue 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
71	White 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
72	Fine White 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
73	Red 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
74	Fine Red 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
75	Green 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
76	Fine Green 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
77	Blue 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
78	Fine Blue 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
79	White 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
80	Fine White 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
81	Red 11	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
82	Fine Red 11	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
83	Green 11	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
84	Fine Green 11	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
85	Blue 11	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
86	Fine Blue 11	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
87	White 11	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
88	Fine White 11	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
89 Red 12 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
90	Fine Red 12	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
91	Green 12	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
92	Fine Green 12	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
93	Blue 12	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
94	Fine Blue 12	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
95	White 12	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
96	Fine White 12	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
97	Red 13	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
98	Fine Red 13	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
99	Green 13	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
100	Fine Green 13	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
101	Blue 13	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
102	Fine Blue 13	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
103	White 13	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
104	Fine White 13	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
105	Red 14	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
106	Fine Red 14	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
107	Green 14	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
108	Fine Green 14	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
109	Blue 14	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
110	Fine Blue 14	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
111	White 14	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
112	Fine White 14	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
113	Red 15	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
114	Fine Red 15	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
115	Green 15	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
116	Fine Green 15	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
117	Blue 15	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
118	Fine Blue 15	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
119	White 15	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
120	Fine White 15	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
121	Red 16	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
122 Fine Red 16		000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
123	Green 16	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
124	Fine Green 16	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
125	Blue 16	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
126	Fine Blue 16	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
127	White 16	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
128	Fine White 16	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
129	Red 17	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
130	Fine Red 17	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
131	Green 17	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
132	Fine Green 17	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
133	Blue 17	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
134	Fine Blue 17	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
135	White 17	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
136	Fine White 17	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
137	Red 18	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
138	Fine Red 18	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
139	Green 18	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
140	Fine Green 18	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
141	Blue 18	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
142 Fine Blue 18 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
143	White 18	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
144	Fine White 18	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
145	Red 19	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
146	Fine Red 19	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
147	Green 19	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
148	Fine Green 19	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
149	Blue 19	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
150	Fine Blue 19	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
151	White 19	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
152	Fine White 19	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%

Dual Control: Standard Pixels Mode (76 channels)

Channel	Function Value Percent/Setting
1	Red 1	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
2	Green 1	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
3	Blue 1	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
4	White 1	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
5	Red 2	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
6	Green 2	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
7	Blue 2	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
8	White 2	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
9	Red 3	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
10	Green 3	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
11	Blue 3	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
12	White 3	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
13	Red 4	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
14	Green 4	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
15	Blue 4	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
16	White 4	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
17	Red 5	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
18	Green 5	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
19	Blue 5	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
20	White 5	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
21	Red 6	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
22	Green 6	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
23	Blue 6	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
24	White 6	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
25	Red 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
26	Green 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
27	Blue 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
28	White 7	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
29	Red 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
30	Green 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
31	Blue 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
32	White 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
33	Red 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
34	Green 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
35	Blue 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
36	White 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
37	Red 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
38	Green 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
39	Blue 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
40	White 10	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
41 Red 11		000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
42	Green 11	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
43	Blue 11	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
44	White 11	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
45	Red 12	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
46	Green 12	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
47	Blue 12	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
48	White 12	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
49	Red 13	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
50	Green 13	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
51	Blue 13	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
52	White 13	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
53	Red 14	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
54	Green 14	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
55	Blue 14	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
56	White 14	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
57	Red 15	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
58	Green 15	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
59	Blue 15	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
60	White 15	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
61	Red 16	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
62	Green 16	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
63	Blue 16	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
64	White 16	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
65	Red 17	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
66	Green 17	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
67	Blue 17	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
68	White 17	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
69	Red 18	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
70	Green 18	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
71	Blue 18	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
72	White 18	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
73 Red 19		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
74	Green 19	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
75	Blue 19	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
76	White 19	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%

Dual Control: Basic Pixels Mode (57 channels)

Channel	Function Value Percent/Setting
1	Red 1	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
2	Green 1	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
3	Blue 1	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
4	Red 2	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
5	Green 2	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
6	Blue 2	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
7	Red 3	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
8	Green 3	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
9	Blue 3	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
10	Red 4	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
11	Green 4	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
12	Blue 4	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
13	Red 5	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
14	Green 5	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
15	Blue 5	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
16	Red 6	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
17	Green 6	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
18	Blue 6	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
19	Red 7	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
20	Green 7	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
21	Blue 7	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
22	Red 8	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
23	Green 8	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
24	Blue 8	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
25	Red 9	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%

Channel	Function Value	Percent	Setting
26	Green 9		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
27	Blue 9		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
28	Red 10		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
29	Green 10		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
30	Blue 10		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
31	Red 11		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
32	Green 11		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
33	Blue 11		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
34	Red 12		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
35	Green 12		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
36	Blue 12		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
37	Red 13		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
38	Green 13		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
39	Blue 13		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
40	Red 14		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
41	Green 14		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
42	Blue 14		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
43	Red 15		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
44	Green 15		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
45	Blue 15		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
46 Red 16			000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
47	Green 16		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
48	Blue 16		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
49	Red 17		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
50	Green 17		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
51	Blue 17		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
52	Red 18		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
53	Green 18		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
54	Blue 18		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
55	Red 19		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
56	Green 19		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
57	Blue 19		000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%

Operating Settings Configuration

Home Screen

The Maverick Storm 1 Wash has a home screen that shows the current control protocols, personalities, starting addresses, IP addresses, and universes. To see the home screen, press

repeatedly until it shows on the display. From the home screen, press any of the menu buttons to immediately jump to any part of the menu (e.g., the personality, starting address, or universe), or press to reach the main menu.

Test Mode

Auto Test

To perform an auto test of the Maverick Storm 1 Wash functions, follow the instructions below:

Press repeatedly until the Home Screen shows on the display. Press .
Use , , , or to select Test Mode.
Press
Use or to select Auto test.
Press .

Manual Test

To test the functions of the product manually, do the following:

Press repeatedly until the Home Screen shows on the display. Press .
Use , , , or to select Test Mode.
Press
Use or to select Manual Test.
Press .
Use or to select the function to test, from Pan, Tilt, P/S Speed, Red, Green, Blue, White, CTC, Color, Pattern, LED Macro, LED Ma. Speed, LED Ma. Fade, Background, Background Dim., Dimmer, Shutter, Function, or Zoom.
Press
Use , , , or to increase or decrease the value of the tested function.
Press .

Setup

To reach the Setup menu, follow the instructions below:

Press
repeatedly until the Home Screen shows on the display. Press .
Use , , , or to select Setup.
Press .

Network Settings

To reach the Network Settings menu, do the following:

Navigate to the Setup menu.
Use or to select Network Settings.
Press .

IP Mode

The IP address of the Maverick Storm 1 Wash can be set manually, by the network, or to a preset static address specific to each product. To set the IP Mode, follow the instructions below:

Navigate to the Network Settings menu.
Use or to select IP Mode.
Press .
Use , , , or to select from:
Manual – set the IP address with the control panel
DHCP – the network sets the IP address
Static – a preset address specific to each product
Press .

IP Address

In Manual IP Mode, the IP address must be assigned through the product menu. To set the IP address in Manual IP Mode, do the following:

Navigate to the Network Settings menu.
Use or to select IpAddress.
Press .
Set the IP address (from 000.000.000.000 to 255.255.255.255) using the menu buttons: a. Use or to select the byte (set of three numbers) to be changed). b. Use or to increase or decrease the value. c. Repeat until the IP address is set as desired.
Press .

Subnet Mask

In Manual IP Mode, the Subnet Mask must be assigned through the product menu. To set the Subnet Mask in Manual IP Mode, do the following:

Navigate to the Network Settings menu.
Use or to select SubMask.
Press .
Set the Subnet Mask (from 000.000.000.000 to 255.255.255.255) with the buttons: a. Use or to select the byte (set of three numbers) to be changed. b. Use or to increase or decrease the value. c. Repeat until the Subnet Mask is set as desired.
Press .

Chauvet Maverick Storm 1 Wash - Subnet Mask - 1

In DHCP or Static IP Mode, the IP and SubMask menu settings have no effect on the product.

Pan/Tilt Orientation

To set whether the pan or tilt orientation is normal or inverted:

Navigate to the Setup menu.
Use or to select Pan Reverse or Tilt Reverse.
Press .
Use , , , or to select NO (normal orientation) or YES (inverted orientation).
Press .

Zoom Orientation

To set whether the zoom goes from wide to narrow or from narrow to wide, follow the instructions below:

Navigate to the Setup menu.
Use or to select Zoom Reverse.
Press .
Use , , , or to select NO (wide to narrow) or YES (narrow to wide).
Press .

Display Orientation

To set which way the display faces, do the following:

Navigate to the Setup menu.
Use or to select Screen Reverse.
Press .
Use , , , or to select NO (display is normal), YES (display is inverted), or AUTO (the display automatically detects which way the product is facing and orients itself accordingly).
Press .

Pan/Tilt Angle Range

To set the range of motion the pan or tilt is permitted:

Navigate to the Setup menu.
Use or to select Pan Angle or Tilt Angle.
Press
Use , , , or to select 540 (540° pan), 360 or 270 (360° or 270° for pan or tilt, respectively) or 180 (180° pan or tilt), or 90 (90° tilt).
Press .

Blackout on Pan/Tilt Movement

To set whether the product will black out during pan or tilt movement, follow the instructions below:

Navigate to the Setup menu.
Use or to select BL. O. P/T Move.
Press .
Use , , , or to select NO (do not black out) or YES (black out during movement).
Press .

Lock Screen

To completely lock or unlock the control panel, follow the instructions below:

Navigate to the Setup menu.
Use or to select Lock Screen.
Press
Use , , , or to select NO (control panel will not lock) or YES (control panel will require a passcode to access).
Press .

To access the control panel when it has been locked:

Press .
Enter the passcode 0920 with the buttons:
a. Use to select the number to be changed.
b. Use to increase the value.
c. Repeat until 0920 has been entered.
Press .

Swap Pan and Tilt

To switch the pan and tilt functions so that what normally controls the pan controls the tilt and what normally controls the tilt controls the pan, do the following:

Navigate to the Setup menu.
Use or to select Swap XY.
Press
Use , , , or to select NO (normal pan and tilt) or YES (pan controls tilt, tilt controls pan).
Press .

WDMX Reset

To reset the WDMX connection from the Maverick Storm 1 Wash and pair it to a WDMX transmitter, do the following:

Navigate to the Setup menu.
Use or to select WDMX Reset.
Press .
Use , , , or to select NO (do not reset connection) or YES (reset the connection).
Press .

Chauvet Maverick Storm 1 Wash - WDMX Reset - 1

Once a WDMX receiver has been linked to a specific WDMX transmitter, it will remain linked to that specific transmitter until it is linked to a different one.

Backlight Timer

To set the amount of time after inactivity before the display backlight turns off:

Navigate to the Setup menu.
Use or to select Backlight Timer.
Press
Use , , , or to select 30S (after 30 seconds of inactivity), 1M (after 1 minute of inactivity), 5M (after 5 minutes of inactivity), or ON (does not turn off).
Press .

Loss of Data

In case of an input signal being lost in any way, the Maverick Storm 1 Wash will respond in one of two ways: The product will either hold the last signal received or black out all LED output.

To set which way the product responds, follow the instructions below:

Navigate to the Setup menu.
Use or to select Loss of Data.
Press .
Use , , , or to select Hold (hold last signal received) or Close (black out all LED output).
Press .

Fan Speed

To set the speed of the fans, do the following:

Navigate to the Setup menu.
Use or to select Fans.
Press
Use , , , or to select Auto (fan speed set according to product temperature), Full (maximum speed), or ECO (quiet fans mode).
Press .

Color Mixing Mode

The Maverick Storm 1 Wash has a mode that emulates CMY (cyan, magenta, and yellow) color mixing. In this mode, the dimming is reversed (000=100%, 255=0%), and the red, green, and blue channels control cyan, magenta, and yellow, respectively.

To set the color mixing mode:

Navigate to the Setup menu.
Use or to select C Mixing Mode.
Press
Use , , , or to select RGBW (additive mode: red, green, blue, and white), or CMY (subtractive mode: red controls cyan, green controls magenta, blue controls yellow).
Press .

Dimmer Curve

To set the dimmer curve, follow the instructions below:

Navigate to the Setup menu.
Use or to select Dimmer Curve
Press .
Use , , , or to select Linear, Square, I Squa, or SCurve.
Press .

Dimmer Speed

To set the dimmer speed, do the following:

Navigate to the Setup menu.
Use or to select Dimmer Speed.
Press .
Use , , , or to select Smooth or Fast.
Press .

Pulse Width Modulation

To set the PWM frequency, follow the instructions below:

Navigate to the Setup menu.
Use or to select PWM Option.
Press
Use , , , or to select the PWM frequency, from 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, or 15000Hz.
Press .

Color Balance

To set the maximum values of a given color in the mix, follow the instructions below:

Navigate to the Setup menu.
Use or to select Color Balance.
Press .
Use or , to select the color value to be changed, from Red, Green, Blue, or White.
Press .
Use , , , or to increase or decrease the value, from 100–255.
Press .
Repeat steps 4–7 until the color balance is set as desired.

Preset Functions

The Maverick Storm 1 Wash has 3 presets. Every time a setting is changed in the Maverick Storm 1 Wash, the current preset is updated to include that change. To load a preset, follow the instructions below:

Navigate to the Setup menu.
Use or to select Preset Select.
Press .
Use , , , or to select the presets, from PRESET A, PRESET B, or PRESET C.
Press .
The selected preset will load, and all changes made to settings will save to that preset.

Presets can be uploaded to other Maverick Storm 1 Wash products through a DMX connection. To do so:

Connect the DMX Out of the product that has the desired presets to the DMX In of the product to be updated.
Power on both products.
On the product with the desired presets, navigate to the Setup menu.
Use or to select Preset Sync.
Press .
Use or to select NO (do not upload settings) or YES (upload settings).
Press .

Reset Functions

To reset the pan, tilt, or all functions as if from startup:

Navigate to the Setup menu.
Use or to select Reset Function.
Press .
Use or to select the function to reset, from Pan/Tilt, Zoom, or All.
If using the buttons instead of the touchscreen, press .
Use , , , or to select from NO (do not reset) or YES (reset).
Press .

Factory Reset

To restore the Maverick Storm 1 Wash to factory default settings, do the following:

Navigate to the Setup menu.
Use or to select Factory Settings.
Press .
Use , , , or to select NO (do not reset) or YES (reset to factory settings).
Press .

System Information

All information about the current status of the Maverick Storm 1 Wash is available through the product's Sys Info menu. To view this information, follow the instructions below:

Press
repeatedly until the Home Screen shows on the display. Press .
Use , , , or to select Sys Info.
Press
Use or to select from Fixture Information (shows firmware version, running mode, starting address, etc.), Fan Information (shows speed of the head fans in rpm), Error Information (shows any errors or No Error!), or Channel Information (shows the current value of all signal input channels).
Press .
Use or to scroll through the information.

Offset Mode

The Offset mode provides fine adjustments for the home position of all the moving parts in the optical path and the pan and tilt movements. This allows the moving parts to not show any border or to reduce the light output when in their home position. To access this mode, follow the instructions below:

Starting from the Main Level screen, press and hold
until the passcode screen appears.
Enter the passcode 2323 using the buttons:

a. Use to select the number to be changed.

b. Use to increase the value.

c. Repeat until 2323 has been entered.

Press .
This brings you into the Zero Adjust menu screen.

PAN

To adjust the starting point of the pan motor, follow the instructions below:

Use or to select PAN.
Press .
Use or to increase or decrease the starting value, from 000–255.
Press .

TILT

To adjust the starting point of the tilt motor, do the following:

Use or to select TILT.
Press .
Use or to increase or decrease the starting value, from 000–255.
Press .

ZOOM

To adjust the starting point of the zoom motor, follow the instructions below:

Use or to select ZOOM.
Press
Use or to increase or decrease the starting value, from 000–255.
Press .

MAC Address

To adjust the fourth, fifth, or sixth digit of the MAC address, do the following:

Use or to select MAC4, MAC5, or MAC6.
Press .
Use or to increase or decrease the value, from 000–255.
Press .

Web Server

The Maverick Storm 1 Wash Web Server can be accessed by any computer on the same network as the product. It allows network access to system information and settings (e.g., control setup, manual testing of all functions, firmware updates, and the ability to change the Web Server password).

Connect the product to power, and set the Control Protocol to Art-Net and the IP Mode to Static.
Connect the product to a Windows ^® computer with a network cable.
On the computer, set the IP address of the new network to have the same first 3 digits as the IP address of the product (see IP Address).
Enter the IP address of the product into the URL bar of a Web browser on the computer.
Enter both the User Name and Password as admin to log in.

Information

The Information page on the Web Server displays the current settings and the system information of the Maverick Storm 1 Wash.

Setup

The Setup page on the Web Server provides options for control, similar to the Setup menu on the product. Click Save Settings to send the new configuration to the product.

Manual Test

The Manual Test page on the Web Server allows all output functions of the product to be controlled through the browser. To set all functions back to default, click Reset.

Firmware Update

The Upgrade page on the Web Server allows the product to be updated with the latest firmware. Go to https://www.chauvetprofessional.com/products/maverick-storm-1-wash/ to download firmware updates.

Security

The Security page on the Web Server gives the option to change the password to the connected product's Web server. Enter the old password (admin, by default) and the new password twice, then click Submit to change the password.

5. Maintenance

Product Maintenance

Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source's life and/or mechanical wear. To maintain optimum performance and minimize wear, clean your lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency.

To clean the product, follow the instructions below:

Unplug the product from power.
Wait until the product is at room temperature.
Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external surface/vents.
Clean all transparent surfaces with a mild soap solution, ammonia-free glass cleaner, or isopropyl alcohol.
Apply the solution directly to a soft, lint-free cotton cloth or a lens-cleaning tissue.
Softly drag any dirt or grime to the outside of the transparent surface.
Gently polish the transparent surfaces until they are free of haze and lint.

Chauvet Maverick Storm 1 Wash - Product Maintenance - 1

Always dry the transparent surfaces carefully after cleaning them.

6. Technical Specifications

Dimensions and Weight

Length Width Height Weight

12.5 in (319 mm) 16.3 in (414 mm) 18.77 in (477 mm) 59 lb (27 kg)

Note: Dimensions in inches are rounded.

Power

Power Supply Type Range Voltage Selection
Switching (internal) 100 to 240 VAC, 50/60 Hz Auto-ranging

Parameter	120 V, 60 Hz	208 V, 60 Hz	230 V, 50 Hz
Consumption	443 W	443 W	430 W
Operating current 3.75 A	2.21 A		1.91 A
Power-linking current	13.6 A (3 products)	13.6 A (6 products)	13.6 A (7 products)
Fuse T 8 A, 250 V	T 8 A, 250 V		T 8 A, 250 V

Power I/O	U.S./Worldwide	UK/Europe
Power input connector	Seetronic Powerkon IP65	Seetronic Powerkon IP65
Power output connector	Seetronic Powerkon IP65	Seetronic Powerkon IP65
Power cord plug	Edison (U.S.)	Local plug

Light Source

Type	Color	Quantity	Power	Current	Lifespan
LED	Quad-color RGBW	19	20 W	1.3 A	50,000 hours

Photometrics

Beam Angle	Field Angle	Zoom Range	Illuminance @ 5 m (7°)	Illuminance @ 5 m (42°)	Color Temperature
7°–27°	11°–42°	6.7°–56.5°	11,032 lux	832 lux	2800–10,000 K

Thermal

Maximum External Temp. Cooling System

113 °F (45 °C) Fan-assisted convection

DMX

I/O Connector	Channel Range(Single Control)	Channel Range(Dual Control Movement)	Channel Range(Dual Control Pixels)
5-pin IP-rated XLR	20, 96, 178, or 216	8, 20, or 26	57, 76, or 152

Art-Net™/sACN

I/O Connector	Channel Range(Single Control)	Channel Range(Dual Control Movement)	Channel Range(Dual Control Pixels)
Neutrik IP-rated RJ45	20, 96, 178, or 216	8, 20, or 26	57, 76, or 152

ArKaos Kling-Net

I/O Connector Channel Range

Neutrik IP-rated RJ45 Determined per ArKaos MediaMaster software

Ordering

Product Name	Item Name	Item Code	UPC Number
Maverick Storm 1 Wash	MAVERICKSTORM1WASH	08011504	781462218522

Chauvet Maverick Storm 1 Wash - Ordering - 1

UL 1573

CSA C22.2 No. 166

E113093

Chauvet Maverick Storm 1 Wash - Ordering - 2

Chauvet Maverick Storm 1 Wash - Ordering - 3

RoHS

Chauvet Maverick Storm 1 Wash - Ordering - 4

Chauvet Maverick Storm 1 Wash - Ordering - 5

Returns

In case you need to get support or return a product:

If you are located in the U.S., contact Chauvet World Headquarters.
If you are located in the UK or Ireland, contact Chauvet Europe Ltd.
If you are located in Benelux, contact Chauvet Europe BVBA.
If you are located in France, contact Chauvet France.
If you are located in Germany, contact Chauvet Germany.
If you are located in Mexico, contact Chauvet Mexico.
If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetprofessional.com for distributors outside the U.S., UK, Ireland, Benelux, France, Germany, or Mexico.

Chauvet Maverick Storm 1 Wash - Returns - 1

If you are located outside the U.S., UK, Ireland, Benelux, France, Germany, or Mexico, contact your distributor of record and follow their instructions on how to return Chauvet products to them. Visit our website www.chauvetprofessional.com for contact details.

Call the corresponding Chauvet Technical Support office and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause for the return.

To submit a service request online, go to www.chauvetprofessional.com/service-request.

Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags.

Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA number.

Chauvet Maverick Storm 1 Wash - Returns - 2

Write the RMA number on a properly affixed label. DO NOT write the RMA number directly on the box.

Before sending the product, clearly write the following information on a piece of paper and place it inside the box:

Your name
Your address
Your phone number
RMA number
A brief description of the problem

Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended.

Chauvet Maverick Storm 1 Wash - Returns - 3

Chauvet reserves the right to use its own discretion to repair or replace returned product(s).

Contact Us

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: (844) 393-7575

Sunrise, FL 33351 Fax: (954) 756-8015

Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com

Fax: (954) 929-5560

Toll Free: (800) 762-1084 Website: www.chauvetprofessional.com

Chauvet Europe Ltd

Address: Unit 1C Email: UKtech@chauvetlighting.eu

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: +44 (0) 1773 511115

Fax: +44 (0) 1773 511110

Chauvet Europe BVBA

Address: Stokstraat 18 Email: BNLtech@chauvetlighting.eu

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: +32 9 388 93 97

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

France Website: www.chauvetprofessional.eu

Voice: +33 1 78 85 33 59

Chauvet Germany

Address: Bruno-Bürgel-Str. 11

28759 Bremen

Germany Website: www.chauvetprofessional.eu

Voice: +49 421 62 60 20

Chauvet Mexico

Address: Av. de las Partidas 34 - 3B

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Lerma, Edo. de México, CP 52000

Voice: +52 (728) 690-2010

Email: DEtech@chauvetlighting.de

Visit the applicable website above to verify our contact information and instructions to request support. Outside the US, UK, Ireland, Benelux, France, Germany, or Mexico, contact the dealer of the record.

1. Antes de Empezar

Qué va Incluido

• Maverick Storm 1 Wash
- Cable de alimentación Seetronic Powerkon IP65 a cable desnudo

- 2 soportes Omega con material de montaje

- Manual de usuario

Instrucciones de Desembalaje

Desembale el producto con cuidado inmediatamente y compruebe la caja para asegurarse de que todas las partes están en el paquete y en buen estado.

Reclamaciones

Si la caja o el contenido (el producto y los accesorios incluidos) parecen dañados a cause del transporte o muestran signos de manipulación inadecuada, notifíqueselo inmediatamente al transportista, y no a Chauvet. Si no lo a hace oportunamente, puede quedar invalidada su reclamación al transportista. Además, guarde la caja y todo el material de embalaje para su inspección.

Para otras incidencias, como componentes o partes que falten, daños no relacionados con el transporte o daños no evidentes, presente una reclamación a Chauvet en el plazo de 7 días de la entrega.

Convenciones del Manual

Convención Significado
1–512 Un rango de valores
50/60 Un conjunto de valores de los cuales solo se pude escoger uno
Settings Una opción de menú que no se puede modificar

ON Un valor que se tiene que introducir o seleccionar

Símbolos

Símbolo Significado
	Instalación, configuración o información sobre funcionamiento crítica. Hacer caso omiso de esta información puede hacer que el producto no funcione, que se averíe, o causar daños al usuario.
	Instalación o información de configuración importante. El producto puede no funcionar correctamente si esta información no se usa.
	Información útil.

Vida Útil Prevista del LED

Los LED van perdiendo brillo paulatinamente con el tiempo, principalmente a causa del calor. Agrupados, los LED arrojan unas temperaturas de funcionamiento superiores a las condiciones ideales de un LED individual. Por esta razón, usar LED agrupados a su máxima intensidad reduce significativamente la vida del LED. Bajo condiciones normales, esta vida puede ser de 40.000 o 50.000 horas. Si la extensión de la duración es vital, baje la temperatura de funcionamiento mejorando la ventilación alrededor del producto y reduzca la temperatura ambiente a un rango óptimo. Además, limitar la intensidad de proyección total puede contribuir a alargar la vida del LED.

Notas de Seguridad

Por favor, lea todas las siguientes notas de seguridad antes de poner en funcionamiento este producto. Estas notas incluyen información importante de seguridad sobre la instalación, uso y mantenimiento de este producto.

Chauvet Maverick Storm 1 Wash - Notas de Seguridad - 1

Todos los códigos locales y regulaciones correspondientes se aplican a la instalación adecuada de este producto.

Chauvet Maverick Storm 1 Wash - Notas de Seguridad - 2

Este producto no contiene piezas reparables por el usuario. Cualquier referencia a la reparación en este Manual de usuario se aplicará solamente a técnicos certificados, adecuadamente instruidos por Chauvet. No abra la carcasa ni intente ninguna reparación.

Seguridad Personal

Evite la exposición directa de los ojos a la fuente de luz mientras es producto esté encendido.
Desconecte siempre el producto de la fuente de alimentación antes de limpiarlo o cambiar el fusible.
Conecte siempre el producto a un circuito con toma de tierra para evitar el riesgo de electrocución.
No toque la carcasa del producto cuando esté en funcionamiento, porque podría estar muy caliente.

Montaje e Instalación

No sumerja este producto (IP65). Este producto es para uso en interiores o para uso temporal en exteriores.
Cuando utilice este producto en un entorno exterior, use cables de alimentación y datos con clasificación IP65 (o superior). Asegure los puertos de energía y datos no utilizados con las cubiertas IP65 adjuntas.
CUIDADO: Cuando transfiera el producto desde ambientes con temperatura extrema (p. ej., desde un camión frío a una sala de fiestas húmeda y caliente) se puede formar condensación en la electrónica interna del producto. Para evitar que se produzca un fallo, deje que el producto se aclimate totalmente al entorno antes de conectar la alimentación.
No es para la instalación al aire libre permanente en lugares con condiciones ambientales extremas. Esto incluye, pero no se limita a:
Exposición a un entorno marino / salino (a menos de 3 millas de una masa de agua salada).
Lugares donde las temperaturas altas o bajas normales exceden los rangos de temperatura en este manual.
Lugares que son propensos a inundarse o ser enterrados en la nieve.
Áreas donde el producto será sometido a radiación extrema o sustancias cáusticas.

- Monte este producto en una ubicación con ventilación adecuada, al menos a 20 in (50 cm) de superficies adyacentes.

- Asegúrese de que no hay materiales inflamables cerca del producto cuando esté en funcionamiento.

- Si cuelga este producto, asegúrelo siempre a un dispositivo de seguridad usando un cable de seguridad.

- Nunca mueva el producto agarrándolo por el cable de alimentación o por cualquier parte móvil.

Alimentación y Cableado

Asegúrese de que el cable de alimentación no está retorcido ni estropeado.
Asegúrese siempre de que conecta el producto a la tensión adecuada, en concordancia con las especificaciones de este manual o de la etiqueta de especificación del producto.
Para evitar un desgaste innecesario y alargar su vida útil, desconecte completamente el producto de la alimentación mediante el interruptor o desenchufándolo durante periodos en que no se use.
Nunca conecte este producto a un regulador de intensidad o reostato.
Nunca desconecte este producto agarrando o tirando del cable de alimentación.

Funcionamiento

No haga funcionar este producto si hay daño en la carcasa, las lentes o las cables. Haga que en técnico autorizado sustituya todas las piezas estropeadas.
No cubra las ranuras de ventilación cuando esté funcionando, para evitar sobrecalentamiento interno.
La temperatura ambiente máxima es de 113 °F (45 °C). No haga funcionar el producto a temperaturas más altas.
La temperatura mínima de arranque es de -4 ° F (-20 ° C). No arranque el producto a temperaturas más bajas.
La temperatura ambiente mínima es de -22^ (-30 ^ ). No opere el producto a temperaturas más bajas.
¡En caso de un problema grave de funcionamiento, deje de usar este producto inmediatamente!

Chauvet Maverick Storm 1 Wash - Funcionamiento - 1

Si su producto Chauvet necesita reparación, póngase en contacto con el Servicio Técnico de Chauvet.

2. Introducción

Descripción

El Maverick Storm 1 Wash es una potente cabeza móvil LED Osram RGBW con protección IP65. Integra una carcasa compacta y resistente de aluminio fundido construida con 316 tornillos de acero inoxidable para soportar incluso las condiciones más rigurosas. Con una emisión de 6000 lúmenes, su óptica a medida está perfectamente adaptada para baños de luz aéreos y de público, incluso en los espacios más grandes. Los efectos de mapeo de píxeles y su enorme rango de zoom añaden todavía más versatilidad a la unidad, mientras que una rueda de gobo virtual crea un conjunto de efectos ambientales envolventes. La unidad, habilitada para RDM, incorpora atenuación de 16 bits y se puede controlar a través de DMX, W-DMX, sACN, Art-Net™ y Kling-Net.

Características

Aparato LED RGBW de yugo de baño de luz con yugo con protección IP65, con funciones completas, mapeo de píxeles y zoom
Atenuador maestro de16 bits y colores individuales para transiciones suaves de color
Colores integrados para rápidas posibilidades de diseño
Rueda de gobo virtual integrada con colores de fondo para impresionantes efectos atmosféricos
Rápidos movimientos de inclinación, panorámicos y de zoom
Funcionamiento silencioso para una amplia gama de situaciones de instalación, tanto en interiores como en exteriores
Control DMX, WDMX, sACN, Art-Net™ y Kling-Net para una flexibilidad total
Habilitado para RDM para asignar direcciones y resolver problemas de forma remota
Rango de zoom de 6.7° a 56.5° para variar los tamaños del haz
Entrada de alimentación compatible con True 1
• Pantalla batería auxiliar con rotación automática dependiendo de la orientación del dispositivo
3 preconfiguraciones de menú de ajustes y sincronización de preconfiguración de carga cruzada a varios dispositivos similares para facilitar la configuración en el taller

Vista General del Producto
Chauvet Maverick Storm 1 Wash - Características - 1

Dimensiones del Producto
Chauvet Maverick Storm 1 Wash - Características - 2

Chauvet Maverick Storm 1 Wash - Características - 3

Chauvet Maverick Storm 1 Wash - Características - 4

3. Instalación

Corriente Alterna

El Maverick Storm 1 Wash tiene una fuente de alimentación con detección automática que puede funcionar con un rango de tensión de entrada de 100 a 240 VCA, 50/60 Hz. Para determinar los requerimientos de alimentación (disyuntor, toma de alimentación y cableado), use el valor de tensión que aparece en la etiqueta fijada en el panel trasero del producto o consulte las Especificaciones Técnicas de este manual. La especificación de corriente listada indica el consumo de corriente promedio en condiciones normales.

Chauvet Maverick Storm 1 Wash - Corriente Alterna - 1

Conecte siempre el producto a un circuito protegido (disyuntor o fusible). Asegúrese de que el producto tiene una toma de tierra adecuada para evitar el riesgo de electrocución o incendio.
Para evitar un desgaste innecesario y alargar su vida útil, desconecte complemente el producto de la alimentación, mediante el interruptor o desenchufándolo, durante los periodos en los que no se use.

Chauvet Maverick Storm 1 Wash - Corriente Alterna - 2

Nunca conecte el producto a un reostato (resistor variable) o circuito de atenuación, incluso si el canal del reostato o atenuador sirve solo como conmutador 0 a 100%.

Enchufe CA

El Maverick Storm 1 Wash viene con un cable de entrada de alimentación terminado con un conector Seetronic Powerkon en un extremo y un enchufe Edison en el otro extremo (mercado de los EE. UU.). Si el cable de entrada de alimentación que vino con su producto no tiene enchufe, o si necesita cambiar el enchufe, use la tabla a continuación para conectar el nuevo.

Conexión	Cable (EE. UU.)	Wire (Europa)	Color del tornillo
AC Cargado Negro	Marrón Amarillo/latón
AC Neutro Blanco	Azul Plata
AC Tierra Verde/a	marillo Verde/a marillo	Verde

Sustitución del Fusible

Desconecte el producto de la alimentación.
Utilizando un destornillador plano, desatornille la tapa del portafusibles de la carcasa.
Quite el fusible fundido del portafusibles y sustitúyalo con otro del mismo tipo y categoría exactamente (F 20 A, 250 V).
Vuelva a atornillar la tapa del portafusibles en su sitio y conecte de nuevo la alimentación.

Chauvet Maverick Storm 1 Wash - Sustitución del Fusible - 1

Chauvet Maverick Storm 1 Wash - Sustitución del Fusible - 2

Desconecte el producto de la alimentación antes de sustituir el fusible.

Sustituya siempre el fusible fundido con uno del mismo tipo y categoría.

Alimentación en Cadena

El Maverick Storm 1 Wash soporta la alimentacion en cadena. Puede conectar hasta 3 productos a 120 V, hasta 6 productos a 208 V o hasta 7 productos a 230 V.

Este producto viene con un cable de entrada de alimentación. Los cables de enlace de alimentación están disponibles en Chauvet para su compra.

Remote Device Management

Remote Device Management (gestión remota del dispositivo) o RDM, es un estándar que permite a los dispositivos con capacidad DMX comunicarse bidireccionalmente por un cableado DMX existente. Consulte el manual de usuario del controlador DMX o pregunte al fabricante, ya que no todos los controladores DMX tienen esta capacidad. El Maverick Storm 1 Wash es compatible con el protocolo RDM, que permite la comunicación para realizar cambios a las opciones del mapa de menú.

Montaje

Antes de montar el producto, lea y siga las recomendaciones de seguridad indicadas en las Notas de Seguridad.

Orientación

Monte siempre este producto en una posición segura y asegúrese de que haya espacio adecuado para la ventilación, la configuración y el mantenimiento. El Maverick Storm 1 Wash se puede suspender hacia arriba o hacia abajo con los dos soportes Omega incluidos, o se puede colocar sobre los pies de goma sobre una superficie plana.

Colocación

Antes de decidir una ubicación para el producto, asegúrese siempre de que hay fácil acceso al producto para su mantenimiento y programación.
El producto no está destinado a la instalación permanente.
Asegúrese de montar este producto lejos de cualquier material inflamable.
Nunca lo monte en lugares donde la lluvia, la alta humedad, los cambios extremos de temperatura o la ventilación restringida puedan afectar al producto.
Asegúrese de que la estructura o superficie sobre la que está montando el producto puede soportar su peso (vea las Especificaciones Técnicas).
Cuando monte este producto en alto, use siempre un cable de seguridad. Para conocer línea de cables de seguridad CHAUVET Professional, visite http://trusst.com/products/.
Cuando monte el producto en el piso, asegúrese de que el producto y los cables estén alejados de personas y vehículos.
Coloque el Maverick Storm 1 Wash para que pueda moverse libremente sin golpear a nada ni a nadie.
Deje suficiente holgura en los cables para evitar la tensión y tire de los enchufes.

Diagrama de montaje
Chauvet Maverick Storm 1 Wash - Colocación - 1

Conexiones de Señal

El Maverick Storm 1 Wash puede recibir señales DMX, WDMX, Art-Net™, sACN o Kling-Net. El Maverick Storm 1 Wash tiene dos puertos Ethernet, y puertos DMX de entrada y salida de 5 pines. Para obtener más información sobre DMX, lea el manual de DMX en: https://www.chauvetprofessional.com/wp-content/uploads/2016/06/DMX_Primer.pdf Para obtener instrucciones sobre el emparejamiento del Maverick Storm 1 Wash con un transmisor WDMX, consulte Restablecer WDMX.

Conexión Art-Net™

Art-Net ^™ es un protocolo Ethernet que usa TCP/IP que transfiere una gran cantidad de datos DMX512 usando una conexión Ethernet a través de una red grande. Un documento de protocolo Art-Net ^™ está disponible en www.chauvetprofessional.com. Art-Net ^™ diseñado por Artistic License Holdings Ltd.

Conexión sACN

Transmisión ACN, también conocido como ANSI E1.31, es un protocolo Ethernet que utiliza la disposición y el formato de la Architecture for Control Networks (ACN) para transportar datos DMX512 a través de IP o cualquier otra red compatible con ACN. ACN es mantenido por la Professional Lighting and Sound Association (PLASA).

Conexión Kling-Net

Kling-Net es un protocolo de red que permite la configuración automática de dispositivos de visualización utilizando una conexión Ethernet. Consulte el manual del software ArKaos para obtener instrucciones detalladas sobre la programación de este producto.

Chauvet Maverick Storm 1 Wash - Conexión Kling-Net - 1

ArKaos Kling-Net no admite las funciones de giro e inclinación, y debe combinarse con otro protocolo para una funcionalidad completa con el Maverick Storm 1 Wash.

Diagrama de Conexión
Chauvet Maverick Storm 1 Wash - Conexión Kling-Net - 2

4. Funcionamiento

Descripción del Panel de Control

Button Function
	Navega hacia arriba por la lista del menú o aumenta el valor numérico cuando está en una función
	Sale del menú o función actual
	Navega hacia abajo por la lista del menú o disminuye el valor numérico cuando está en una función
	Navega hacia la izquierda por la lista del menú
	Habilita el menú actualmente en pantalla o configura el valor seleccionado actualmente dentro de la función seleccionada
	Navega hacia la derecha por la lista del menú

Mapa de Menú

Niveles de Programación Descripción
Control Settings Control Settings Nivel Principal
Control Settings	Single Control	DMX	Personality	Basic	Configura la personalidad DMX:(ver Personalidades de Control)
				Standard
				Advanced
				Tour
			Start Address	1-512 Configura la dirección DMX de inicio
		ArtNet	Personality	Basic	Configura la personalidad Art-NetTM:(ver Personalidades de Control)
				Standard
				Advanced
				Tour
			Start Address	1-512 Configura la dirección Art-NetTM de inicio
			Universe 0-255 Configura el universo Art-NetTM
		sACN	Personality	Basic	Configura la personalidad sACN:(ver Personalidades de Control)
				Standard
				Advanced
				Tour
			Start Address	1-512 Configura la dirección sACN de inicio
			Universe 1-256 Configura la universo sACN
		WDMX	Personality	Basic	Configura la personalidad WDMX:(ver Personalidades de Control)
				Standard
				Advanced
				Tour
			Start Address	1-512 Configura la dirección WDMX de inicio

Niveles de Programación Descripción
Control Settings Control Settings Nivel Principal
Control Settings	Dual Control	Movement	DMX	Personality	Basic	Configura la personalidad DMX:(ver Personalidades de Control)
					Standard
					Advanced
				Start Address	1-512	Configura la dirección DMX de inicio
			ArtNet	Personality	Basic	Configura la personalidad Art-NetTM:(ver Personalidades de Control)
					Standard
					Advanced
				Start Address	1-512	Configura la dirección Art-NetTMde inicio
				Universe 0-255 Configura el universo Art-NetTM
			sACN	Personality	Basic	Configura la personalidad sACN:(ver Personalidades de Control)
					Standard
					Advanced
				Start Address	1-512	Configura la dirección sACN de inicio
				Universe 1-256 Configura el universo sACN
		Pixels	DMX	Personality	Basic	Configura la personalidad DMX:(ver Personalidades de Control)
					Standard
					Advanced
				Start Address	1-512	Configura la dirección DMX de inicio
			ArtNet	Personality	Basic	Configura la personalidad Art-NetTM:(ver Personalidades de Control)
ArtNet					Standard
					Advanced
			Start Address	1-512	Configura la dirección Art-NetTMde inicio
			Universe 0-255 Configura el universo Art-NetTM
		sACN	Personality	Basic	Configura la personalidad sACN:(ver Personalidades de Control)
				Standard
				Advanced
			Start Address	1-512	Configura la dirección sACN de inicio
			Universe 1-256 Configura el universo sACN
		Kling-Net	Personality	Basic	Configura la personalidad Kling-Net(36CH) o Estandár (48CH)
				Standard

Chauvet Maverick Storm 1 Wash - Funcionamiento - 7

En el Modo de Control Dual, el Protocolo de Movimiento y el Protocolo de Píxeles no pueden ser iguales.

Niveles de Programación Descripción
Test Mode Test Mode Nivel Principal
Auto Test Prueba automática de todas las funciones
Manual Test	Pan	000-255	Controlar y probar todas las funciones a través del panel de control
	Tilt
	P/T Speed
	Red
	Green
	Blue
	White
	CTC
	Color
	Pattern
	LED Macro
	LED Ma. Speed
	LED Ma. Fade
	Background
	Background Dim.
	Dimmer
	Shutter
	Function
	Zoom
Setup Setup Nivel Principal
Network Settings	IP Mode	Manual Configurar la dirección IP manualmente
		DHCP La red configura la dirección IP
		Static El producto configura la dirección IP
	IpAddress	Configurar la dirección IP en modo manual
	SubMask	Configurar la máscara de subred en modo manual
Pan Reverse	NO Desplazamiento lateral normal
	YES Desplazamiento lateral inversa
Tilt Reverse	NO Inclinación normal
	YES Inclinación inversa
Zoom Reverse	NO Zoom normal
	YES Zoom invertido
Screen Reverse	NO Pantalla normal
	YES Pantalla inversa
	AUTO Orientación de pantalla automático
Pan Angle	540 Rango de desplazamiento lateral: 540°
	360 Rango de desplazamiento lateral: 360°
	180 Rango de desplazamiento lateral: 180°
Tilt Angle	270 Rango de inclinación: 270°
	180 Rango de inclinación: 180°
	90 Rango de inclinación: 90°
BL. O. P/T Move	NO		No ir a blackout mientras hay movimiento panorámico/inclinación
	YES		Ir a blackout mientras hay movimiento panorámico/inclinación
Lock Screen	NO		Bloqueo los botones y pantalla táctil
	YES		Contraseña: 0920
Swap XY	NO No intercambiar panorámica e inclinación
	YES		Panorámica controla inclinación, inclinación controla panorámica
WDMX Reset	NO No restablecer WDMX
	YES Restablecer WDMX
Setup (cont.)			Setup Main Level (cont.)
Setup (cont.)	Backlight Timer	30S La pantalla se apaga a los 30 segundos
		1M La pantalla se apaga a los 1 minuto
		5M La pantalla se apaga a los 5 minutos
		ON La pantalla permanece encendida
	Loss of Data	Hold Mantiene la última señal recibida
		Close Pone el dispositivo en blackout
	Fans	Auto
		Full
		ECO Modo silencioso
	C Mixing Mode	RGBW Mezcla de color aditivo (0-100%)
		CMY Mezcla de color sustractivo (100-0%)
	Dimmer Curve	Linear
		Square
		I Squa
		SCurve
	Dimmer Speed	Smooth
		Fast
	PWM Option	600Hz
		1200Hz
		2000Hz
		4000Hz
		6000Hz
		15000Hz
	Color Balance	Red
		Green Configura el valor máximo del LED verde
		Blue Configura el valor máximo del LED azul
		White Configura el valor máximo del LED blanco
	Preset Select	PRESET A
		PRESET B
		PRESET C
	Preset Sync	NO Permite transferir las opciones de menú preconfiguradas grabadas
		YES
	Reset Function	Pan/Tilt	NO
			YES
		Zoom	NO
			YES
		All	NO
			YES
	Factory Settings	NO
		YES
Sys Info Sys Info Niveles Principal
Fixture Information	Ver V_Muestra	la versión de firmware
	Running Mode __ _	Muestra el modo	de ejecución actual
	Address __ Muestra la dirección	de inicio actual
	Temperature __		Muestra la temperatura actual del producto en °C
	Fixture Hours __ __		Muestra el número de horas que el producto ha estado encendido
	IP __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ ____
	SubMask	____ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ ____
	MAC	____ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ ____
Fan Information	Head Fan1 Speed	____ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ ____)
	Head Fan2 Speed	____ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ ____

Configuración de Protocolo

El Maverick Storm 1 Wash se puede configurar para responder a DMX, WDMX, Art-Net™, sACN, Kling-Net o una combinación de estos protocolos. La configuración del protocolo debe establecerse para que el producto repsonda correctamente a los controladores.

Personalidades de Control

Las siguientes personalidades de control están disponibles en el Maverick Storm 1 Wash:

Single Control	Dual Control Movement	Dual Control Pixels
Basic (20-canal)	Basic (8-canal)	Basic (57-canal)
Standard (96-canal)	Standard (20-canal)	Standard (76-canal)
Advanced (178-canal)	Advanced (26-canal)	Advanced (152-canal)
Tour (216-canal)	Utiliza DMX, Art-NetTM o sACN	Utiliza DMX, Art-NetTM , sACN o Kling-Net
Utiliza DMX, Art-NetTM , sACN o WDMX	Utiliza DMX, Art-NetTM o sACN	Utiliza DMX, Art-NetTM , sACN o Kling-Net

Single Control

En el modo "Single Control," el lavado de Maverick Storm 1 Wash se controla mediante única entrada de protocolo. Elija entre DMX, Art-Net™, sACN o WDMX. En este modo, las cuatro personalidades disponibles son: Basic (20 canales), Standard (96 canales), Advanced (178 canales), and Tour (216 canales).

Protocolo Single Control

Para seleccionar el Protocolo de Single Control, siga las instrucciones siguientes:

Pulse repetidamente hasta llegar a la Pantalla de Inicio. Pulse .
Utilice , , o para seleccionar los Ajustes de control.
Pulse
Utilice o para seleccionar Single Control.
Pulse .
Utilice o para seleccionar entre DMX, ArtNet, sACN o WDMX.
Pulse .

Personalidad de Single Control

Para seleccionar la personalidad de Single Control, establezca el Protocolo y luego haga lo siguiente:

Utilice o para seleccionar Personality.
Pulse .
Utilice , , o para seleccionar entre Basic (20 canales), Standard (96 canales), Advanced (178 canales) y Tour (216 canales).
Pulse .

Chauvet Maverick Storm 1 Wash - Personalidad de Single Control - 1

Para control WDMX, asegúrese de que la antena está levantada y de que no haya obstáculos entre el controlador y el producto. Para ver información sobre resolución de problemas, consulte Restablecer WDMX.

Dirección de Inicio de Single Control

Para establecer la dirección de inicio del modo Single Control, establezca el Protocolo y siga luego estas instrucciones:

Utilice o para seleccionar Start Address.
Pulse .
Introduzca la dirección de inicio (1–512) mediante uno de los métodos siguientes:
a. Utilice o para seleccionar el dígito que desee modificar.
b. Utilice o para aumentar o disminuir el valor numérico de ese dígito.
c. Repita hasta haber configurado la dirección deseada.
Pulse .

Universo de Single Control

Para establecer la dirección del universo del modo Single Control utilizando Art-Net™ o sACN, configure el Protocolo en ArtNet o sACN y luego haga lo siguiente:

Utilice o para seleccionar Universe.
Pulse .
Introduzca la dirección del universo (0–255 para Art-Net™, 0–255 para sACN) con uno de los métodos siguientes:
a. Utilice o para seleccionar el dígito que desee modificar.
b. Use o para aumentar o disminuir el valor numérico de ese dígito.
c. Repita hasta haber configurado la dirección deseada.
Pulse .

Dual Control

En el modo de Dual Control, el Maverick Storm 1 Wash se controla con dos entradas de protocolo. Una controla el movimiento del yugo y el zoom, así como de los atenuadores y el obturador, y la otra controla la salida individual del LED.

Movimiento de Dual Control

El protocolo de movimiento controla el movimiento del yugo y el zoom, así como de los atenuadores y el obturador. Escoja entre DMX, Art-Net™ o sACN. En este modo, las tres personalidades disponibles son: Basic (8 canales), Standard (20 canales), y Advanced (26 canales).

Protocolo de Movimiento de Dual Control

Para seleccionar el protocolo de movimiento de Dual Control, siga las instrucciones siguientes:

Pulse repetidamente hasta llegar a la Pantalla de Inicio. Pulse .
Utilice , , o para seleccionar los Control Settings.
Pulse
Utilice o para seleccionar Dual Control.
Pulse .
Utilice o para seleccionar Movement.
Pulse .
Utilice , , o para seleccionar entre DMX, ArtNet, o sACN.
Pulse .

Personalidad de Movimiento de Dual Control

Para seleccionar la personalidad de movimiento de Dual Control, establezca el Protocolo y luego haga lo siguiente:

Utilice o para seleccionar Personality.
Pulse
Utilice , , o para seleccionar entre Basic (8 canales), Standard (20 canales) o Advanced (26 canales).
Pulse .

Dirección de Inicio del Movimiento de Dual Control

Para establecer la dirección de inicio del modo Movimiento de Dual Control, establezca el Protocolo y siga luego estas instrucciones:

Utilice or para seleccionar Start Address.
Pulse .
Introduzca la dirección de inicio (1–512) mediante uno de los métodos siguientes:
a. Utilice o para seleccionar el dígito que desee modificar.
b. Utilice o para aumentar o disminuir el valor numérico de ese dígito.
c. Repita hasta haber configurado la dirección deseada.
Pulse .

Universo de Movimiento de Dual Control

Para establecer la dirección del universo del modo Movimiento de Dual Control utilizando Art-Net™ o sACN, configure el Protocolo en ArtNet o sACN y luego haga lo siguiente:

Utilice o para seleccionar Universe.
Pulse .
Introduzca la dirección del universo (0–255 para Art-Net™, 0–255 para sACN) con uno de los métodos siguientes:
a. Utilice o para seleccionar el dígito que desee modificar.
b. Utilice o para aumentar o disminuir el valor numérico de ese dígito.
c. Repita hasta haber configurado la dirección deseada.
Pulse .

Píxeles de Dual Control

El protocolo de Pixeles controla la emisión individual de los LED. Escoja entre DMX, Art-Net™, sACN o Kling-Net. En este modo, las tres personalidades disponibles son: Basic (57 canales), Standard (76 canales), and Advanced (152 canales).

Protocolo de Píxeles de Dual Control

Para seleccionar el protocolo de Píxeles de Dual Control, siga las instrucciones siguientes:

Pulse repetidamente hasta llegar a la Pantalla de Inicio. Pulse .
Utilice , , , o para seleccionar Control Settings.
Pulse
Utilice o para seleccionar Dual Control.
Pulse .
Utilice o para seleccionar Pixels.
Pulse .
Utilice , , o para seleccionar entre DMX, ArtNet, sACN o Kling-Net.
Pulse .

Personalidad de Píxeles de Dual Control

Para seleccionar la personalidad de Píxeles de Dual Control, establezca el Protocolo y luego haga lo siguiente:

Utilice o para seleccionar Personality.
Pulse
Utilice , , o para seleccionar entre Basic (57 canales), Standard (76 canales) o Advanced (152 canales).
Pulse .

Chauvet Maverick Storm 1 Wash - Personalidad de Píxeles de Dual Control - 1

ArKaos Kling-Net solo puede asignarse a las personalidades Basic y Standard Pixels.

Dirección de Inicio de Píxeles de Dual Control

Para establecer la dirección de inicio del modo Píxeles de Dual Control, establezca el Protocolo y siga luego estas instrucciones:

Utilice o para seleccionar Start Address.
Pulse .
Introduzca la dirección de inicio (1–512) mediante uno de los métodos siguientes:

a. Utilice o para seleccionar el dígito que desee modificar.
b. Utilice o para aumentar o disminuir el valor numérico de ese dígito.
c. Repita hasta haber configurado la dirección deseada.

Pulse .

Universo de Píxeles de Dual Control

Para establecer la dirección del universo del modo Píxeles de Dual Control utilizando Art-Net™ o sACN, configure el Protocolo en ArtNet o sACN y luego haga lo siguiente:

Utilice o para seleccionar Universe.
Pulse .
Introduzca la dirección del universo (0–255 para Art-Net™, 0–255 para sACN) con uno de los métodos siguientes:

a. Utilice o para seleccionar el dígito que desee modificar.
b. Utilice o para aumentar o disminuir el valor numérico de ese dígito.
c. Repita hasta haber configurado la dirección deseada.

Pulse .

Zonas para Control de Pixél

Chauvet Maverick Storm 1 Wash - Zonas para Control de Pixél - 1

Valores Single Control

Single Control: Modo "Tour" (216 canales)

Canal Función Valor Porcentaje/Configuración
1	Movimiento panorámico	000 ⇔ 255	0–100%
2	Movimiento panorámico fino	000 ⇔ 255	0–100%
3	Inclinación	000 ⇔ 255	0–100%
4	Inclinación fina	000 ⇔ 255	0–100%
5	CTC	000 Sin001 ⇔ 255	funciónTemperatura de color, 2800–10000 K
6	C o l o r	000 Sin001 ⇔ 002	función2700K R = 156 G = 118 B = 0 W = 63
		003 ⇔ 004	3200K R = 156 G = 141 B = 5 W = 89
		005 ⇔ 006	4200K R = 156 G = 141 B = 14 W = 255
		007 ⇔ 008	5600K R = 156 G = 207 B = 54 W = 255
		009 ⇔ 010	8000K R = 130 G = 255 B = 96 W = 255
		011	Azul R = 0 G = 0 B = 255 W = 0
		012 ⇔ 048	+ Verde R = 0 G = 0–255 B = 255 W = 0
		049	Cian R = 0 G = 255 B = 255 W = 0
		050 ⇔ 086	- Azul R = 0 G = 255 B = 255–0 W = 0
		087	Verde R = 0 G = 255 B = 0 W = 0
		088 ⇔ 124	+ Rojo R = 0–255 G = 255 B = 0 W = 0
		125	Amarillo R = 255 G = 255 B = 0 W = 0
		126 ⇔ 162	- Verde R = 255 G = 255–0 B = 0 W = 0
		163	Rojo R = 255 G = 0 B = 0 W = 0
		164 ⇔ 200	+ Azul R = 255 G = 0 B = 0–255 W = 0
		201	Magenta R = 255 G = 0 B = 255 W = 0
		202 ⇔ 238	- Rojo R = 255–0 G = 0 B = 255 W = 0
		239	Azul R = 0 G = 0 B = 255 W = 0
		240 ⇔ 247	Cambio de color, rápido a lentoSalto de color, rápido a lento
		248 ⇔ 255
7	G o b o	000 Sin001 ⇔ 255	funciónGobos (indexado)
8	Macro LED/Programa automático	000 ⇔ 015	Sin funciónMacros LED 1–101
		016 ⇔ 116	Macros LED 102
		117 ⇔ 135	Programas automáticos 1–101
		136 ⇔ 237	Programas automáticos 102
		238 ⇔ 255	Programas automáticos 102
9	Macro LED/Velocidad programaautomático	000 ⇔ 127	Velocidad automática, rápido a lentoMantener
		128	Velocidad automática, lento a rápido
		129 ⇔ 255	Velocidad automática, lento a rápido
10	Retardo LED integrado	000 ⇔ 255	Rápido a lento
Canal	Función	Valor	Porcentaje/Configuración
11 Color de fondo		000 Sin función
		001 ⇔ 002	2700K	R = 156	G = 118	B = 0	W = 63
		003 ⇔ 004	3200K	R = 156	G = 141	B = 5	W = 89
		005 ⇔ 006	4200K	R = 156	G = 141	B = 14	W = 255
		007 ⇔ 008	5600K	R = 156	G = 207	B = 54	W = 255
		009 ⇔ 010	8000K	R = 130	G = 255	B = 96	W = 255
		011 Azul	R = 0	G = 0	B = 255	W = 0
		012 ⇔ 048	+ Verde	R = 0	G = 0–255	B = 255	W = 0
		049 Cian	R = 0	G = 255	B = 255	W = 0
		050 ⇔ 086	- Azul	R = 0	G = 255	B = 255–0	W = 0
		087 Verde	R = 0	G = 255	B = 0	W = 0
		088 ⇔ 124	+ Rojo	R = 0–255	G = 255	B = 0	W = 0
		125 Amarillo	R = 255	G = 255	B = 0	W = 0
		126 ⇔ 162	- Verde	R = 255	G = 255–0	B = 0	W = 0
		163 Rojo	R = 255	G = 0	B = 0	W = 0
		164 ⇔ 200	+ Azul	R = 255	G = 0	B = 0–255	W = 0
		201 Magenta	R = 255	G = 0	B = 255	W = 0
		202 ⇔ 238	- Rojo	R = 255–0	G = 0	B = 255	W = 0
		239 Azul	R = 0	G = 0	B = 255	W = 0
		240 ⇔ 247	Cambio de color, rápido a lento
		248 ⇔ 255	Salto de color, rápido a lento
12	Atenuador BC	000 ⇔ 255	0–100%
13	Atenuador fino BC	000 ⇔ 255	0–100%
14	Atenuador principal	000 ⇔ 255	0–100%
15	Atenuador principal fino	000 ⇔ 255	0–100%
16 Obturador		000 ⇔ 019	Apagado
		020 ⇔ 024	Encendido
		025 ⇔ 064	Estroboscopio, rápido a lento
		065 ⇔ 069	Encendido
		070 ⇔ 084	Estroboscopio 100–0%, rápido a lento
		085 ⇔ 089	Encendido
		090 ⇔ 104	Estroboscopio 0–100%, rápido a lento
		105 ⇔ 109	Encendido
		110 ⇔ 124	Estroboscópica aleatoria, rápido a lento
		125 ⇔ 129	Encendido
		130 ⇔ 144	Estroboscópica aleatoria 100–0%, rápido a lento
		145 ⇔ 149	Encendido
		150 ⇔ 164	Estroboscópica aleatoria 0–100%, rápido a lento
		165 ⇔ 169	Encendido
		170 ⇔ 184	Pulso estroboscópico, rápido a lento
		185 ⇔ 189	Encendido
		190 ⇔ 204	Estroboscopio de pulso aleatorio, rápido a lento
		205 ⇔ 209	Encendido
		210 ⇔ 224	Estroboscopio 0–100–0%, rápido a lento
		225 ⇔ 229	Encendido
		230 ⇔ 244	Estroboscopio de pulso aleatorio, rápido a lento
		245 ⇔ 255	Encendido
17	Zoom	000 ⇔ 255	Ancho a estrecho
Canal	Función	Valor	Porcentaje/Configuración
18 Control		000 ⇔ 009	Sin función
		010 ⇔ 014	Blackout panorámica/inclinación
		015 ⇔ 019	Sin función (reservado para usos futuros)
		020 ⇔ 024	Modo de mezcla de color RGBW (adición)
		025 ⇔ 029	Modo de mezcla de color CMY (R=C, G=M, B=Y)
		030 ⇔ 049	Sin función (reservado para usos futuros)
		050 ⇔ 054	Reiniciar movimiento panorámico
		055 ⇔ 059	Reiniciar inclinación
		060 ⇔ 064	Restablecer zoom
		065 ⇔ 069	Sin función (reservado para usos futuros)
		070 ⇔ 074	Reiniciar todo
		075 ⇔ 109	Sin función (reservado para usos futuros)
		110 ⇔ 114	Velocidad panorámica/inclinación
		115 ⇔ 119	Velocidad baja panorámica/inclinación
		120 ⇔ 124	Modo de ventilador lento
		125 ⇔ 129	Modo ventilador al máximo
		130 ⇔ 134	Modo ventilador automático
		135 ⇔ 139	Modo de atenuador rá pido
		140 ⇔ 144	Modo de atenuador lento
		145 ⇔ 255	Sin función (reservado para usos futuros)
19	Rojo principal	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
20	Rojo fino principal	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
21	Verde principal	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
22	Verde fino principal	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
23	Azul principal	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
24	Azul fino principal	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
25	Blanco principal	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
26	Blanco fino principal	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
27	Atenuador 1	000 ⇔ 255	0–100%
28	Atenuador fino 1	000 ⇔ 255	0–100%
29	Rojo 1	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
30	Rojo fino 1	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
31	Verde 1	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
32	Verde fino 1	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
33	Azul 1	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
34	Azul fino 1	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
35	Blanco 1	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
36	Blanco fino 1	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
37	Atenuador 2	000 ⇔ 255	0–100%
38	Atenuador fino 2	000 ⇔ 255	0–100%
39	Rojo 2	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
40	Rojo fino 2	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
41	Verde 2	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
42	Verde fino 2	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
43 Azul 2		000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
44	Azul fino 2	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
45	Blanco 2	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
46	Blanco fino 2	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
47	Atenuador 3	000 ⇔ 255	0–100%
48	Atenuador fino 3	000 ⇔ 255	0–100%
49	Rojo 3	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
50	Rojo fino 3	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
51	Verde 3	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
52	Verde fino 3	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
53	Azul 3	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
54	Azul fino 3	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
55	Blanco 3	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
56	Blanco fino 3	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
57	Atenuador 4	000 ⇔ 255	0–100%
58	Atenuador fino 4	000 ⇔ 255	0–100%
59	Rojo 4	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
60	Rojo fino 4	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
61	Verde 4	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
62	Verde fino 4	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
63	Azul 4	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
64	Azul fino 4	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
65	Blanco 4	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
66	Blanco fino 4	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
67	Atenuador 5	000 ⇔ 255	0–100%
68	Atenuador fino 5	000 ⇔ 255	0–100%
69	Rojo 5	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
70	Rojo fino 5	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
71	Verde 5	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
72	Verde fino 5	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
73	Azul 5	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
74	Azul fino 5	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
75	Blanco 5	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
76	Blanco fino 5	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
77	Atenuador 6	000 ⇔ 255	0–100%
78	Atenuador fino 6	000 ⇔ 255	0–100%
79	Rojo 6	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
80	Rojo fino 6	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
81	Verde 6	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
82	Verde fino 6	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
83	Azul 6	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
84	Azul fino 6	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
85	Blanco 6	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
86	Blanco fino 6	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
87	Atenuador 7	000 ⇔ 255	0–100%
88	Atenuador fino 7	000 ⇔ 255	0–100%
89	Rojo 7	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
90	Rojo fino 7	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
91	Verde 7	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
92	Verde fino 7 000	⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
93	Azul 7	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
94	Azul fino 7	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
95	Blanco 7	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
96	Blanco fino 7	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
97	Atenuador 8	000 ⇔ 255	0–100%
98	Atenuador fino 8	000 ⇔ 255	0–100%
99	Rojo 8	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
100	Rojo fino 8	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
101	Verde 8	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
102	Verde fino 8	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
103	Azul 8	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
104	Azul fino 8	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
105	Blanco 8	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
106	Blanco fino 8	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
107	Atenuador 9	000 ⇔ 255	0–100%
108	Atenuador fino 9	000 ⇔ 255	0–100%
109	Rojo 9	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
110	Rojo fino 9	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
111	Verde 9	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
112	Verde fino 9	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
113	Azul 9	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
114	Azul fino 9	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
115	Blanco 9	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
116	Blanco fino 9	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
117	Atenuador 10	000 ⇔ 255	0–100%
118	Atenuador fino 10	000 ⇔ 255	0–100%
119	Rojo 10	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
120	Rojo fino 10	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
121	Verde 10	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
122	Verde fino 10	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
123	Azul 10	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
124	Azul fino 10	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
125	Blanco 10	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
126	Blanco fino 10	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
127	Atenuador 11	000 ⇔ 255	0–100%
128	Atenuador fino 11	000 ⇔ 255	0–100%
129	Rojo 11	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
130	Rojo fino 11	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
131	Verde 11	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
132	Verde fino 11	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
133	Azul 11	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
134	Azul fino 11	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
135	Blanco 11	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
136	Blanco fino 11	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
137	Atenuador 12	000 ⇔ 255	0–100%
138	Atenuador fino 12	000 ⇔ 255	0–100%
139	Rojo 12	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
140	Rojo fino 12	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
141	Verde 12	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
142	Verde fino 12	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
143	Azul 12	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
144	Azul fino 12	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
145	Blanco 12	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
146	Blanco fino 12	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
147	Atenuador 13	000 ⇔ 255	0–100%
148	Atenuador fino 13	000 ⇔ 255	0–100%
149	Rojo 13	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
150	Rojo fino 13	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
151	Verde 13	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
152	Verde fino 13	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
153	Azul 13	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
154	Azul fino 13	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
155	Blanco 13	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
156	Blanco fino 13	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
157	Atenuador 14	000 ⇔ 255	0–100%
158	Atenuador fino 14	000 ⇔ 255	0–100%
159	Rojo 14	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
160	Rojo fino 14	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
161	Verde 14	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
162	Verde fino 14	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
163	Azul 14	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
164	Azul fino 14	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
165	Blanco 14	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
166	Blanco fino 14	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
167	Atenuador 15	000 ⇔ 255	0–100%
168	Atenuador fino 1	000 ⇔ 255	0–100%
169	Rojo 15	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
170	Rojo fino 15	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
171	Verde 15	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
172	Verde fino 15	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
173	Azul 15	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
174	Azul fino 15	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
175	Blanco 15	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
176	Blanco fino 15	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
177	Atenuador 16	000 ⇔ 255	0–100%
178	Atenuador fino 16	000 ⇔ 255	0–100%
179	Rojo 16	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
180	Rojo fino 16	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
181	Verde 16	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
182	Verde fino 16	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
183	Azul 16	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
184	Azul fino 16	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
185	Blanco 16	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
186	Blanco fino 16	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
187	Atenuador 17	000 ⇔ 255	0–100%
188	Atenuador fino 17	000 ⇔ 255	0–100%
189	Rojo 17	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
190	Rojo fino 17	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
191	Verde 17	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
192	Verde fino 17	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
193	Azul 17	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
194	Azul fino 17	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
195	Blanco 17	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
196	Blanco fino 17	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
197	Atenuador 18	000 ⇔ 255	0–100%
198	Atenuador fino 18 000	⇔ 255	0–100%
199	Rojo 18	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
200	Rojo fino 18	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
201	Verde 18	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
202	Verde fino 18	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
203	Azul 18	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
204	Azul fino 18	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
205	Blanco 18	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
206	Blanco fino 18	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
207	Atenuador 19	000 ⇔ 255	0–100%
208	Atenuador fino 19	000 ⇔ 255	0–100%
209	Rojo 19	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
210	Rojo fino 19	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
211	Verde 19	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
212	Verde fino 19	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
213	Azul 19	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
214	Azul fino 19	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
215	Blanco 19	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%
216	Blanco fino 19	000 ⇔ 255	Modo RGBW: 0–100% / Modo CMY: 100–0%

Single Control: Modo "Advanced" (178 canales)

Canal Función Valor Porcentaje/Configuración

Movimiento panorámico

000 ⇔ 255

0–100%

Movimiento panorámico fino

000 ⇔ 255

0–100%

Inclinación

000 ⇔ 255

0–100%

Inclinación fina

000 ⇔ 255

0–100%

CTC

000 Sinfunción001 ⇔ 255 Temperatura de color, 2800–10000 K

Color

000 Sinfunción001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 156 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Azul R = 0 G = 0 B = 255 W = 0012 ⇔ 048 + Verde R = 0 G = 0–255 B = 255 W = 0049 Cian R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - Azul R = 0 G = 255 B = 255–0 W = 0087 Verde R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + Rojo R = 0–255 G = 255 B = 0 W = 0125 Amarillo R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - Verde R = 255 G = 255–0 B = 0 W = 0163 Rojo R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + Azul R = 255 G = 0 B = 0–255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇔ 238 - Rojo R = 255–0 G = 0 B = 255 W = 0239 Azul R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Cambio de color, rápido a lento248 ⇔ 255 Salto de color, rápido a lento

Gobo

000 Sinfunción001 ⇔ 255 Gobos (indexado)

Macro LED/Programa automático

000 ⇔ 015 Sin función016 ⇔ 116 Macros LED 1–101117 ⇔ 135 Macros LED 102136 ⇔ 237 Programas automáticos 1–101238 ⇔ 255 Programas automáticos 102

Velocidad de macro LED/Programa automático

000 ⇔ 127 Velocidad automática, rápida a lenta128 Mantener129 ⇔ 255 Velocidad automática, lenta a rápida

Retardo LED integrado

000 ⇔ 255 Rápido a lento

Canal

Función

Valor

Porcentaje/Configuración

11 Color de fondo

000 Sin

función

001 ⇔ 002

2700K

R = 156

G = 118

B = 0

W = 63

003 ⇔ 004

3200K

R = 156

G = 141

B = 5

W = 89

005 ⇔ 006

4200K

R = 156

G = 141

B = 14

W = 255

007 ⇔ 008

5600K

R = 156

G = 207

B = 54

W = 255

009 ⇔ 010

8000K

R = 130

G = 255

B = 96

W = 255

011 Azul

R = 0

G = 0

B = 255

W = 0

012 ⇔ 048

+ Verde

R = 0

G = 0–255

B = 255

W = 0

049 Cian

R = 0

G = 255

B = 255

W = 0

050 ⇔ 086

- Azul

R = 0

G = 255

B = 255–0

W = 0

087 Verde

R = 0

G = 255

B = 0

W = 0

088 ⇔ 124

+ Rojo

R = 0–255

G = 255

B = 0

W = 0

125 Amarillo

R = 255

G = 255

B = 0

W = 0

126 ⇔ 162

- Verde

R = 255

G = 255–0

B = 0

W = 0

163 Rojo

R = 255

G = 0

B = 0

W = 0

164 ⇔ 200

+ Azul

R = 255

G = 0

B = 0–255

W = 0

201 Magenta

R = 255

G = 0

B = 255

W = 0

202 ⇔ 238

- Rojo

R = 255–0

G = 0

B = 255

W = 0

239 Azul

R = 0

G = 0

B = 255

W = 0

240 ⇔ 247

Cambio de color, rápido a lento

248 ⇔ 255

Salto de color, rápido a lento

Atenuador fondo

000 ⇔ 255

0–100%

Atenuador fino fondo

000 ⇔ 255

0–100%

Atenuador principal

000 ⇔ 255

0–100%

Atenuado fino principal

000 ⇔ 255

0–100%

16 Obturador

000 ⇔ 019

Apagado

020 ⇔ 024

Encendido

025 ⇔ 064

Estroboscopio, rápido a lento

065 ⇔ 069

Encendido

070 ⇔ 084

Estroboscopio 100–0%, rápido a lento

085 ⇔ 089

Encendido

090 ⇔ 104

Estroboscopio 0–100%, rápido a lento

105 ⇔ 109

Encendido

110 ⇔ 124

Estroboscópica aleatoria, rápido a lento

125 ⇔ 129

Encendido

130 ⇔ 144

Estroboscópica aleatoria 100–0%, rápido a lento

145 ⇔ 149

Encendido

150 ⇔ 164

Estroboscópica aleatoria 0–100%, rápido a lento

165 ⇔ 169

Encendido

170 ⇔ 184

Pulso estroboscópico, rápido a lento

185 ⇔ 189

Encendido

190 ⇔ 204

Estroboscopio de pulso aleatorio, rápido a lento

205 ⇔ 209

Encendido

210 ⇔ 224

Estroboscopio 0–100–0%, rápido a lento

225 ⇔ 229

Encendido

230 ⇔ 244

Estroboscopio de pulso aleatorio, rápido a lento

245 ⇔ 255

Encendido

Zoom

000 ⇔ 255

Ancho a estrecho

Canal

Función

Valor

Porcentaje/Configuración

18 Control

000 ⇔ 009

Sin función

010 ⇔ 014

Blackout panorámica/inclinación

015 ⇔ 019

Sin función (reservado para usos futuros)

020 ⇔ 024

Modo de mezcla de color RGBW (adición)

025 ⇔ 029

Modo de mezcla de color CMY (R=C, G=M, B=Y)

030 ⇔ 049

Sin función (reservado para usos futuros)

050 ⇔ 054

Reiniciar movimiento panorámico

055 ⇔ 059

Reiniciar inclinación

060 ⇔ 064

Restablecer zoom

065 ⇔ 069

Sin función (reservado para usos futuros)

070 ⇔ 074

Reiniciar todo

075 ⇔ 109

Sin función (reservado para usos futuros)

110 ⇔ 114

Velocidad panorámica/inclinación

115 ⇔ 119

Velocidad baja panorámica/inclinación

120 ⇔ 124

Modo de ventilador lento

125 ⇔ 129

Modo ventilador al máximo

130 ⇔ 134

Modo ventilador automático

135 ⇔ 139

Modo de atenuador rá pido

140 ⇔ 144

Modo de atenuador lento

145 ⇔ 255

Sin función (reservado para usos futuros)

Rojo principal

000 ⇔ 255
