Ovation GR-1 Adapter - Electronic adapter Chauvet - Free user manual and instructions

Brand	Chauvet
Model	Ovation GR-1 Adapter
Product Type	Electronic projector adapter
Dimensions (approx.)	15 x 10 x 5 cm
Weight (approx.)	0.5 kg
Power	100-240 VAC, 50/60 Hz (universal)
Connectors	Neutrik® powerCON® (input and output), DMX connector
Control Protocol	DMX512, RDM (remote management)
Main Functions	Gobo rotation control (index, clockwise/counterclockwise rotation), master/slave mode, DMX address setting
Display	Screen with adjustable backlight (On, 10s, 20s, 30s)
Max Ambient Temperature	45 °C (113 °F)
Protection Rating	IP20 (indoor use only)
Mounting	Attachment to projector yoke using a mounting clamp
Safety	Do not open, use a safety cable, do not connect to a dimmer
Maintenance and Cleaning	Disconnect device before cleaning; use a dry cloth; avoid moisture
Package Contents	Ovation GR-1 Adapter, powerCON cable, reference manual
Warranty	Limited warranty (see terms on Chauvet website)

Frequently Asked Questions - Ovation GR-1 Adapter Chauvet

How to set the DMX address of the Ovation GR-1 Adapter?

Access the DMX Address menu via the control panel. Use the up/down buttons to select a value between 001 and 512, then press Enter to confirm.

How to use master/slave mode?

Set one device to Master mode via the menu (DMX Mode) and the others to Slave mode. The master controls the slaves without a DMX console.

How to configure gobo rotation?

Use the Gobo Rotator menu to set the speed (000-255) or index. DMX channel 1 also allows controlling the rotation in DMX mode.

What is RDM and how to use it?

RDM (Remote Device Management) allows bidirectional communication via the DMX cable. It allows monitoring and modifying parameters remotely. Refer to the full manual for more details.

What type of power cable is provided?

The device comes with a Neutrik® powerCON® cable. It can be used with a 100-240 VAC, 50/60 Hz power supply.

How to install the Ovation GR-1 Adapter on a projector?

Attach the adapter to the projector yoke using the mounting clamp. Connect the projector's power cable to the adapter, then connect the powerCON cable to the source.

What to do if the screen does not turn on?

Check that the adapter is properly powered. If the backlight is set to a timeout, press a button to reactivate it. If the issue persists, contact technical support.

Can I use this adapter outdoors?

No, the IP20 rating limits use to indoors. Avoid exposure to dust, excessive heat, water, or humidity.

How to reset the device to factory settings?

In the Reset Factory menu, select Yes and confirm. This will reset all parameters to default.

Where can I find the complete user manual?

Download the manual from www.chauvetprofessional.com. You can also scan the QR code on the packaging or contact customer service.

USER MANUAL Ovation GR-1 Adapter Chauvet

Line drawing of a portable kitchen appliance with control knobs and buttons (no text or symbols)

About This Guide

The Ovation GR-1 Adapter Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration/

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

• DO NOT open this product. It contains no user-serviceable parts.
  • To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
  • Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• USE a safety cable when mounting this product overhead.
  • DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
  • DO NOT operate this product if the housing or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
  • In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

Contact

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Visit Contact Us at the end of this QRG for contact information.

What is Included

• Ovation GR-1 Adapter
- Neutrik® powerCON® powerlinking cord
- Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Cable

The Ovation GR-1 Adapter comes with a Neutrik® powerCON® power linking cable. If another type of plug is needed, use the table below.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

DMX Linking

The Ovation GR-1 Adapter will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

Master/Slave Connection

The Ovation GR-1 Adapter uses the DMX data connection for its master/slave mode. The Master/Slave mode allows an Ovation GR-1 Adapter (the master) to control one or more Ovation GR-1 Adapter products (the slaves) without a DMX controller. One Ovation GR-1 Adapter becomes the master when running Gobo Rotator mode. You must configure each slave's control panel to operate in Slave mode. During Master/Slave operation, the slaves will operate in unison with the master.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The Ovation GR-1 Adapter supports RDM protocol that allows feedback to make changes to menu map options.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product.

Product Mounting Diagram

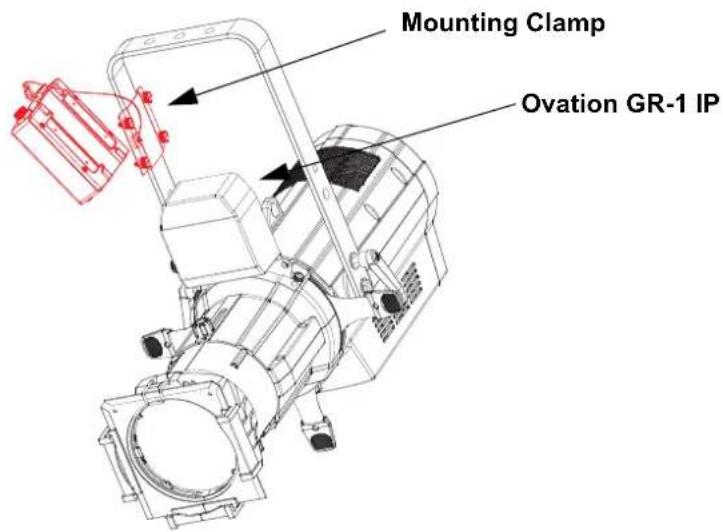

Unscrew mounting clamp from the Ovation GR-1 Adapter

Technical line drawing of a mechanical device with no visible text or symbols

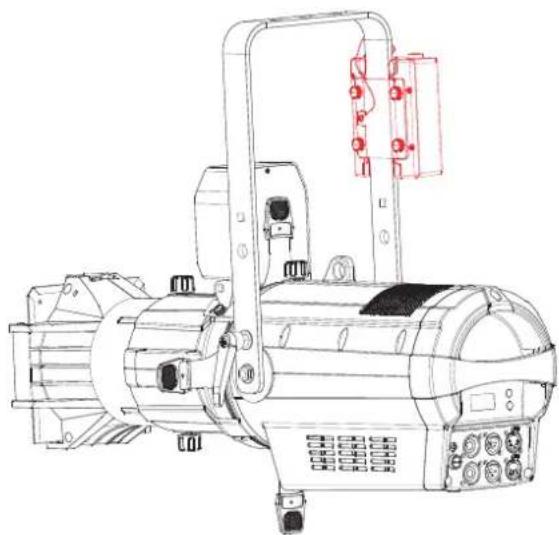

Attach the Ovation GR-1 Adapter to the yoke of the fixture

Technical line drawing of a mechanical device with hoses and control panel (no text or symbols)

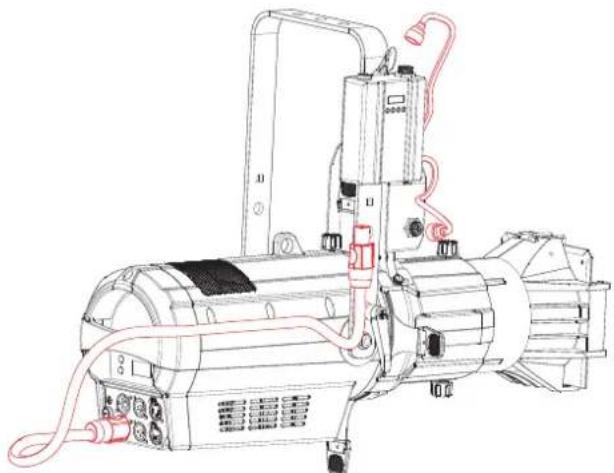

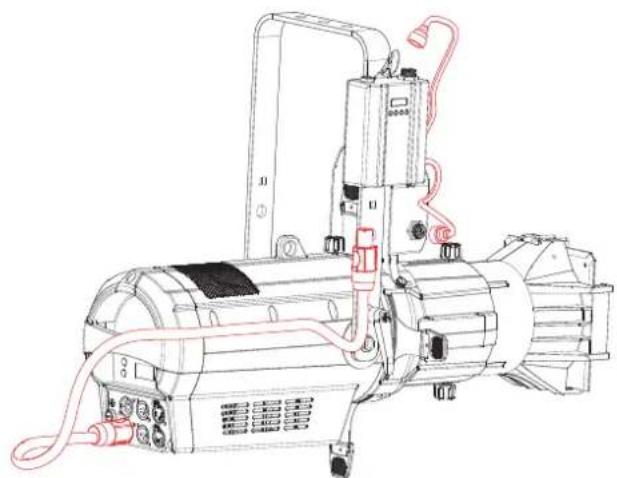

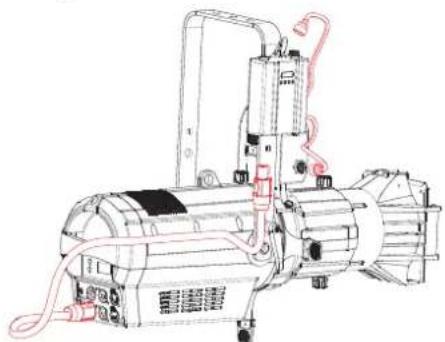

Connect the power cable from the fixture to the Ovation GR-1 Adapter and the power/data cable to the Ovation GR-1 IP.

Technical line drawing of a mechanical device with no visible text or symbols

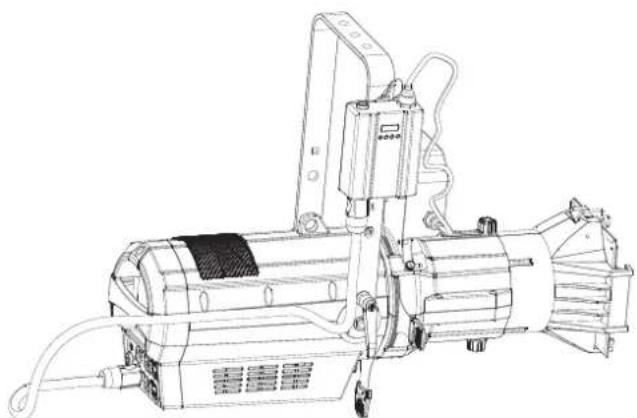

Power up fixture and set up the Ovation GR-1 Adapter as desired

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Navigates downwards through the menu list or decreases the numeric value when in a function

Menu Map

Main Level Programming Levels Description
DMX Address 001-512 Sets the DMX starting address
Gobo Rotator 000-255 Index/Speed of gobo rotation
Master/Slave	Master DMX mode (Master)
	Slave Slave mode
Back Light	On Display backlight always on
	10S		Turns off display backlight after 10 seconds of inactivity
	20S		Turns off display backlight after 20 seconds of inactivity
	30S		Turns off display backlight after 30 seconds of inactivity
Information	Fixture Hours <_ _H>		Shows total hours the product has been powered on
	Version <V_.> Shows current firmware version
	UID <____>		Shows product UID
Reset Factory	No		Resets the product to factory default settings
	Yes

DMX Values

Channel	Function	Value	Percent/Setting
1	Gobo Rotator	000 ⇔ 127	Index
		128 ⇔ 190	Clockwise fast to slow
		191 ⇔ 192	Stop
		193 ⇔ 255	Counter-clockwise slow to fast

Acerca de Esta Guía

Technical line drawing of a mechanical device with no visible text or symbols

Acople el Ovation GR-1 Adapter al yugo del aparato

Technical line drawing of a mechanical device with hoses and control panel (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with hoses and control panel (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

RDM (Remote Device Management)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with hoses and control panel (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Schroef de montageklem van de Ovation GR-1 Adapter los

Technical line drawing of an electric motor with attached wiring and control panel (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols
