DGS-1100-16V2 - Switch D-LINK - Free user manual and instructions

Brand	D-Link
Model	DGS-1100-16V2
Product Type	16-Port EasySmart Network Switch
Ports	16 Gigabit Ethernet Ports (10/100/1000 Mbps)
Dimensions (W x D x H)	280 x 180 x 44 mm
Weight	Approximately 2 kg
Power Supply	External Power Adapter, 100-240 V AC, 50-60 Hz
Power Consumption	12 W max
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90% non-condensing
Management	Web Interface, SmartConsole Utility
Key Features	VLAN, QoS, Link Aggregation, Flow Control, Loop Detection
Mounting	Desktop, Shelf, Wall, or 19-inch Rack
Included Items	Switch, Mounting Kit, Power Cord, CD with Guide, Quick Start Guide, Grounding Kit
Care and Cleaning	Clean with a soft, dry cloth; do not use liquid or abrasive cleaners
Safety	Use a grounded power outlet; ensure adequate ventilation; do not place heavy objects on the device
Spare Parts and Repairability	Replaceable external power supply; contact D-Link support for repairs
Default IP Address	10.90.90.90
Default Administrator Password	admin

Frequently Asked Questions - DGS-1100-16V2 D-LINK

How to reset the switch to factory defaults?

Press and hold the Reset button (on the front) for about 10 seconds until the LEDs flash. The device will reboot with factory defaults.

What is the default IP address of the switch?

The default IP address is 10.90.90.90 with subnet mask 255.0.0.0.

How to access the web management interface?

Connect your PC to one of the switch ports. Set your PC's IP address to the same range (e.g., 10.90.90.x). Open a browser and enter http://10.90.90.90. Log in with the password admin.

Can I manage multiple switches with SmartConsole utility?

Yes, the SmartConsole utility installed from the CD can detect and configure multiple EasySmart switches on the same Layer 2 network.

How to mount the switch on a wall?

Use the two mounting holes on the bottom of the switch. For a concrete wall, insert nylon wall plugs, then screw in T3 x 15L screws. For a wooden wall, screw directly. Hang the switch on the screws.

What cables to use to connect the switch?

Use RJ-45 Ethernet cables of Category 5e or higher for Gigabit connections. The provided power cord is for AC power.

Does the switch support PoE (Power over Ethernet)?

No, the DGS-1100-16V2 model is not PoE-powered. It requires an external power adapter.

How to install the switch in a rack?

Attach the provided mounting brackets to the sides of the switch using screws. Then, screw the switch into the 19-inch rack using appropriate screws (not provided).

What to do in case of a power failure?

Unplug the switch to avoid damage. Replug it once power is restored. Configuration settings are retained in non-volatile memory.

How to update the switch firmware?

Download the latest firmware from D-Link's website. Log into the web interface, go to Maintenance/Upgrade, select the file, and apply the update. Do not power off during the process.

USER MANUAL DGS-1100-16V2 D-LINK

Getting Started Guide For D-Link EasySmart Switch

Getting Started Guide

Erste Schritte

Guide de démarrage

Guida introduttiva

This guide gives step-by-step instructions for setting up all D-Link EasySmart switches. Please note that the model you have purchased may appear slightly different from those shown in the illustrations.

For more detailed information about your switch, its components, making network connections, and technical specifications, please refer to the User's Guide included with your switch.

Step 1 – Unpacking

Open the shipping carton and carefully unpack its contents. Please consult the packing list located in the User Guide to make sure all items are present and undamaged. If any item is missing or damaged, please contact your local D-Link reseller for replacement.

• One D-Link EasySmart Switch
• Rack mounting bracket
• Power cord
• User's Guide CD with SmartConsole Utility program
• One multilingual Getting Started Guide
• An accessory kit for one ground screw

Step 2 – Switch Installation

For safe switch installation and operation, it is recommended that you:

• Visually inspect the power cord to see that it is secured fully to the AC power connector
  ◆ Make sure that there is proper heat dissipation and adequate ventilation around the switch
  ♦ Do not place heavy objects on the switch

Desktop or Shelf Installation

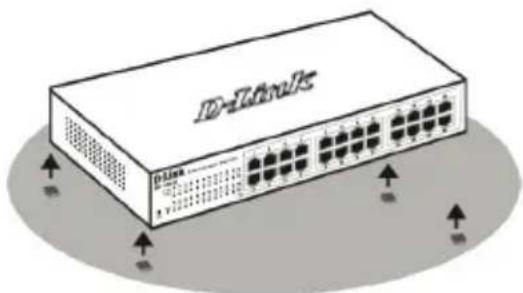

When installing the switch on a desktop or shelf, the rubber feet included with the device must be attached on the bottom at each corner of the device's base. Allow enough ventilation space between the device and the objects around it.

Figure 1. Attaching the rubber feet

Rack Installation

The switch can be mounted in an EIA standard size 11-inch rack, which can be placed in a wiring closet with other equipment. To install, attach the mounting brackets to the switch's side panels (one on each side) and secure them with the screws provided.

Diagram of a D-Link device showing Ethernet ports and connectors (no text labels)

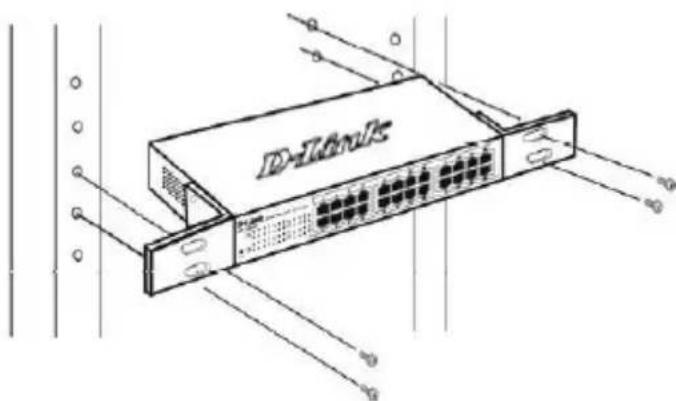

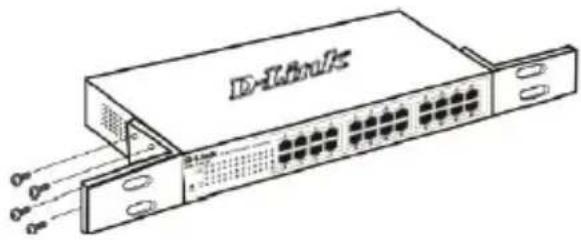

Figure 2. Attaching the mounting brackets

Then, use the screws provided with the equipment rack to mount the switch in the rack.

Figure 3. Installing the switch in a standard-sized equipment rack

Mounting the Switch on a Wall (Wall-Mount)

The desktop size DGS-1100 switch can also be mounted on a wall. Two mounting slots are provided on the bottom of the switch for this purpose. Please make sure that the front panel is exposed in order to view the LEDs. Please refer to the illustrations below:

A.) Mounting on a concrete wall
1. Fix the nylon screw anchors into the concrete wall.
2. Drive the T3 x 15L screws into the nylon screw anchors.
3. Hook the witch with the mounting holes on the bottom onto the screws, and it is completed.

B.) Mounting on a wooden wall

1. Drive the T3 x 15 L screws into the wooden wall.
2. Hook the witch with the mounting holes on the bottom onto the screws, and it is completed.

(1) 3/4 inch minimum for wooden wall.

(2) 3 inch minimum for concrete wall.

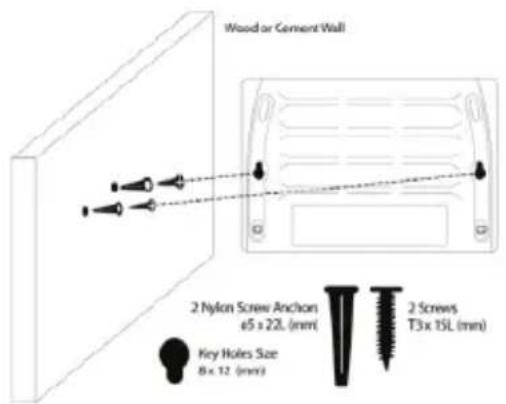

Figure 4. Mounting a desktop switch to a Wall

Step 3 – Plugging in the AC Power Cord

You can now connect the AC power cord into the rear of the switch and to an electrical outlet (preferably one that is grounded and surge protected).

Line drawing of a network switch device with ports and an attached cable (no text or symbols)

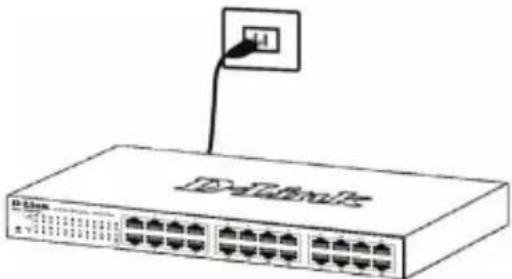

Figure 5. Plugging the switch into an outlet

Power Failure

As a precaution, the switch should be unplugged in case of power failure. When power is resumed, plug the switch back in.

Management Options

The D-Link EasySmart Switch can be managed through a web browser or through any PC using the SmartConsole Utility.

If you want to manage only one D-Link EasySmart Switch, the Web-Based Management is the better option. Each switch must be assigned its own IP Address, which is used for communication with Web-Based Management and the PC should have an IP address in the same range as the switch.

However, if you want to manage multiple D-Link EasySmart Switches, the SmartConsole Utility is the better option. Using the SmartConsole Utility, you don't need to change the IP address of your PC and it is easy to start the initial setting of multiple EasySmart Switches.

Please refer to the following detailed installation instructions for the Web-Based Management and SmartConsole Utility.

Web-based Management Interface

After a successful physical installation, you can configure the switch, monitor the LED panel, and display statistics graphically using a web browser, such as Netscape Navigator (version 6.2 and higher) or Microsoft® Internet Explorer (version 5.0 and higher).

You need the following equipment to begin the web configuration of your device:

• A PC with a RJ-45 Ethernet connection
• A standard Ethernet cable

Step 1

Connect the Ethernet cable to any of the ports on the front panel of the switch and to the Ethernet port on the PC.

Line drawing of a network switch connected to a laptop (no text or symbols present)

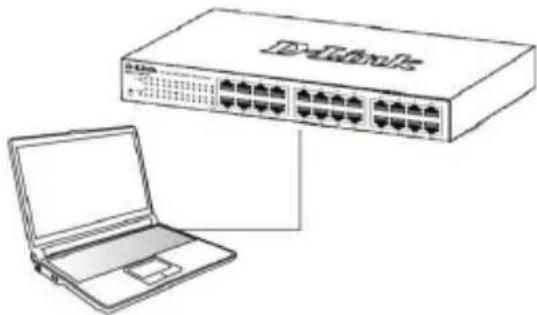

Figure 6. Connected Ethernet cable

Step 2

In order to login and configure the switch via an Ethernet connection, the PC must have an IP address in the same range as the switch. For example, if the switch has an IP address of 10.90.90.90, the PC should have an IP address of 10.x.y.z (where x/y is a number between 0 \~ 254 and z is a number between 1 \~254), and a subnet mask of 255.0.0.0.

Open your web browser and enter http://10.90.90.90 (the factory-default IP address) in the address box. Then press .

Figure 7. Enter the IP address 10.90.90.90 in the web browser

The web configuration can also be accessed through the SmartConsole Utility. Open the SmartConsole Utility and double-click the switch as it appears in the Device List. This will automatically load the web configuration in your web browser.

NOTE: The switch's factory default IP address is 10.90.90.90 with a subnet mask of 255.0.0.0 and a default gateway of 0.0.0.0

Step 3

When the following logon box appears, enter "admin" for the password. Press OK to enter the main configuration window.

Figure 8. User authentication window

SmartConsole Utility

The SmartConsole Utility included on the installation CD is a program for discovering EasySmart Switches with the same L2 network segment connected to your PC. This tool is only for computers running Windows 2000, Windows XP, and Windows Vista x64/86 operating systems. There are two options for the installation of SmartConsole Utility, one is through the autorun program on the installation CD and the other is manual installation.

Note: Please be sure to remove any existing SmartConsole Utility from your PC before installing the latest SmartConsole Utility.

Option 1: Follow these steps to install the SmartConsole Utility via the autorun program on the installation CD.

1. Insert the Utility CD into your CD-Rom Drive.
2. The autorun program will pop up automatically
3. Simply click on the "Install SmartConsole Utility" button and an installation wizard will guide you through the process.

4. After successfully installing the SmartConsole Utility, you can open the utility by clicking Start > Programs > D-Link SmartConsole Utility.

5. Just connect the EasySmart Switch to the same L2 network segment of your PC and use the SmartConsole Utility to discover the EasySmart Switches.

Option 2: Follow these steps to install the SmartConsole Utility manually.

1. Insert the Utility CD into your CD-Rom Drive.
2. From the Standnu on the Windows desktop, choose Run.
3. In the Run dialog box, type D:\D-Link SmartConsole Utility\setup.exe (where D:\ represents the drive letter of your CD-Rom) and click OK.
4. Follow the on-screen instructions to install the utility.
5. Upon completion, go to Start > Programs > D-Link SmartConsole Utility and open the SmartConsole Utility.
6. Just connect the EasySmart Switch to the same L2 network segment of your PC and use the SmartConsole Utility to discover the EasySmart Switches.

For a detailed look at SmartConsole's functions, please refer to the SmartConsole Utility introduction in the user manual.

Notes

Illustration of a D-Link network switch with multiple ports and connections (no text or symbols on the device itself)

Diagram of a D-Link device with multiple Ethernet ports and external connectors (no text or labels)

Line drawing of a network switch device with ports and an attached cable (no text or symbols)

Line drawing of a network switch connected to a laptop (no text or symbols present)

Line drawing of a network switch device with ports and connectors (no text or symbols)

Line drawing of a network switch device with ports and an attached cable (no text or symbols)

Line drawing of a network switch connected to a laptop (no text or symbols present)

Illustration of a D-Link network switch with multiple ports and signal arrows (no text or symbols on the device itself)

Line drawing of a network switch device with ports and connectors (no text or symbols)

Line drawing of a network switch device with ports and an attached port (no text or symbols)

Line drawing of a network switch connected to a laptop (no text or symbols present)
