USER MANUAL DAC II TANGENT

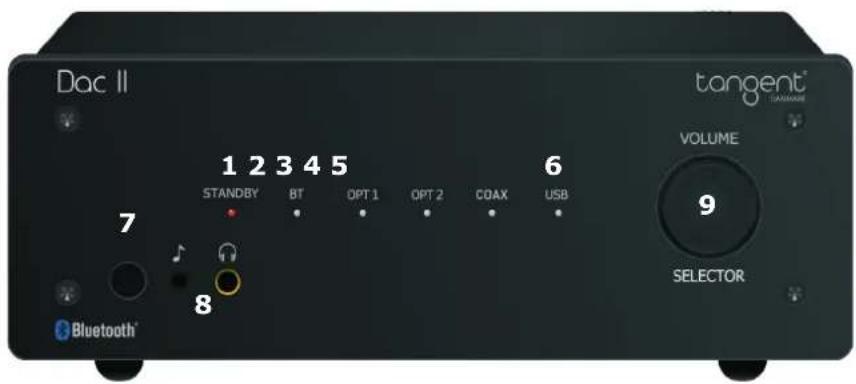

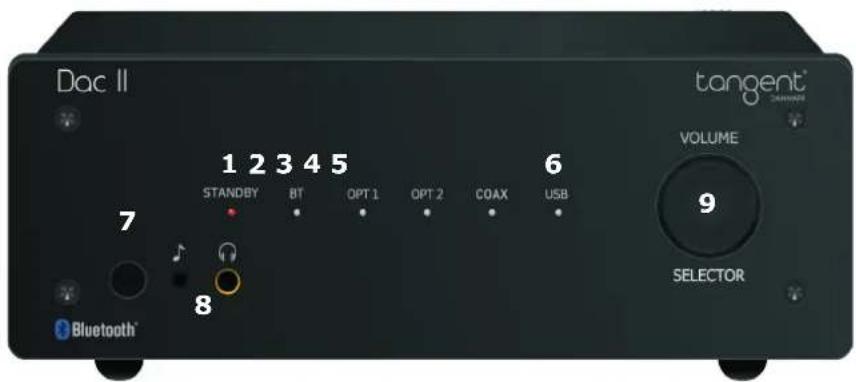

1. Power Indicator
2. Bluetooth Indicator
3. OPT 1 Indicator
4. OPT 2 Indicator
5. COAX Indicator
6. USB Indicator
7. Remote Sensor
8. Headphone out
9. Volume Knob/Input Selector

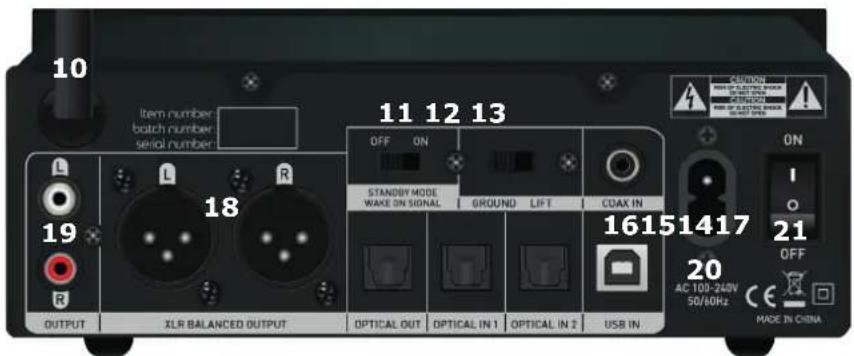

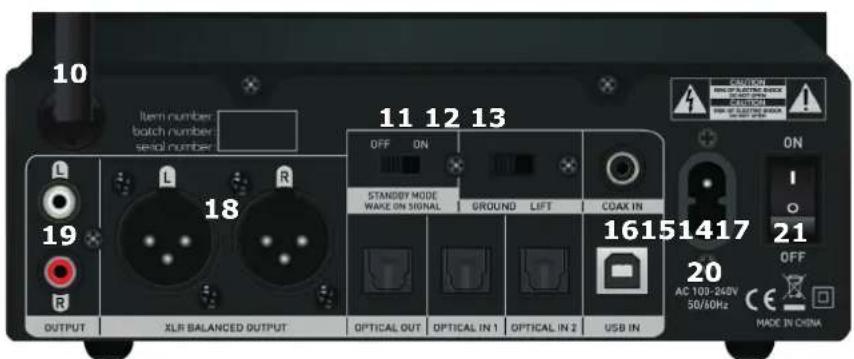

10. Antenna
11. Standby mode selector
12. Ground / Lift selector
13. Coaxial Input
14. Optical 1 Input
15. Optical 2 Input
16. USB Input
17. Optical Output
18. XLR Output L/R
19. Line Output RCA L/R
20. Power inlet
21. On/Off Switch

Including in the package:

Remote Control

Instruction Manual

(UK)

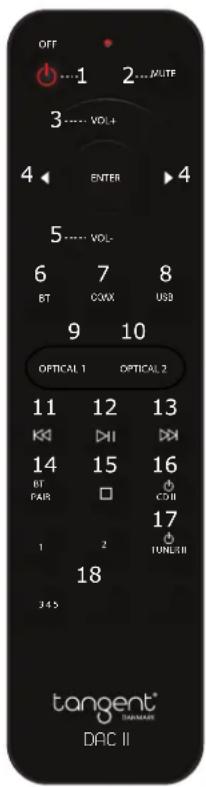

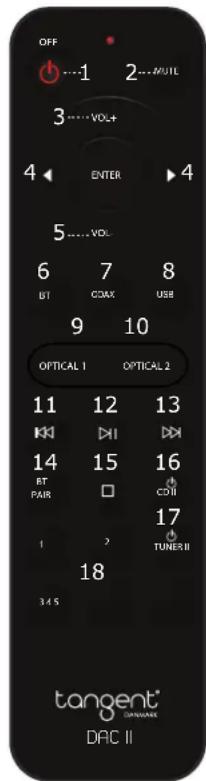

Remote control:

1. Off Button

Turn the DAC II OFF

And CD II & Tuner II

1. Mute Turn OFF sound
2. Volume + Increase Volume
3. Arrow L/R

Change Station on Tuner II or track on CD II

1. Volume - Decrease Volume
2. Bluetooth Select BT Input
3. COAX Select COAX Input
4. USB Select USB Input
5. Optical 1 Select Optical 1 Input
6. Optical 2 Select Optical 2 Input
7. Previous

Go to previous track in BT/CD mode

1. Play/Pause
   Play or Pause in BT mode
2. Next Go to Next track in BT/CD mode
3. BT Pairing Force BT pairing
4. Stop Stop in BT mode
5. Turn ON Tangent CD II
6. Turn ON Tangent TUNER II
7. Preset 1-5 for Tuner II

Long press for saving and short press

for recall preset.

Connect:

1. Connect the power cord to the back of the DAC II then connect it to a wall outlet.
2. Connect your devices to the desired input.
3. Turn the power button to the On position, after a few seconds the unit will enter working status and the input indicator will lit up.
4. Press the Bluetooth, OPT 1/2, COAX or USB button on the remote or the volume knob to choose the desired audio source.

Bluetooth Pairing:

1. Press the Bluetooth on the remote (or push the selector button) to activate the Bluetooth source.
2. Activate Bluetooth on your phone/tablet and start searching for new Bluetooth devices.
3. When your phone/tablet finds the Tangent DAC II, choose this unit and begin pairing up.
4. For activating pairing: First time it will activate automatically. after that you can pust the BT pair button and then BT pairing is active.

(UK)

Connect Your Device:

Connect your power amplifier to Left and Right RCA or XLR Output.

Use the Optical input by connecting a device using a optical fiber cable to the Optical Input 1 or 2.

Use the COAX input by connecting a CD transport or other unit to using a coax cable to the Optical Input 1 or 2.

Use the USB input by connecting a Computer to play music using a USB cable to the USB input.

Note:

Remember to change into the desired input source on the DAC II.

Standby Mode:

Standby ON: Only BT input can wake on signal
Standby OFF: All inputs can wake on signal

Note: Power consumption is higher in OFF mode.

OFF mode: 1.1Watt

ON mode: Below 0.5Watt

SPECIFICATIONS
(UK)

MODEL Tangent DAC II
Bluetooth Qualcomm QCC3031 Bluetooth v5.0 APTX-HD
DAC Sabre ES9023 24-Bit Stereo Audio DAC
USB 192kHz / 32-bit PCM [Stereo]	Support DSD audio 64/128/256/512
Optical Input 192kHz / 24-bit
Optical Output 192kHz / 24-bit
Headphone output 6,35mm & 3,5mm
Standby function Autostandby after	15min without signal
Standby powerconsumption < 0,5W	standby (EUP 2013)
Mains Voltage 100-240V AC 50/60Hz
Dimensioner (BxDxH) mm 195 x 194	x 70mm + feet and connectors
Weight	1.3 KG

Indicator Function

Power/Standby indicator

Power: Power on-The product in power off status, then push the power source button on rear panel at "ON" position the LED indicator blinks one time and the startup sound from electric relay in the unit, after about 2 seconds the amplifier will be in working status. Note that the unit will remember the settings from before it was powered off.

Power off:

Push the power source button at "OFF" position, and unit will go into power off status.

Standby:

Press the OFF button on the remote control, or push the Volume/selector button, then the unit will go into standby, and the standby LED will be red color. The unit is in standby status.

(When the DAC II goes into auto standby when inactive in 15min, you can wake it up via audio signal again)

Power on (from standby mode): Press the desired input on the remote control or push (long press) the Volume/ selector button. And after about 2 seconds the amplifier will be in last time working status before standby.

Bluetooth input indicator

Press BT to select Bluetooth as your audio source.

Optical input indicator

Press Optical 1 or 2 to select input method as optical audio source.

COAX input indicator

Press COAX to select COAX input.

USB input indicator

Press USB to select USB input.

Volume and input switch button

This selector can adjust volume (turn left or right) and also switch the input mode (push)

(For standby push and hold the button)

(UK)

Important Safety Instructions:

To reduce the risk of electrical shock, fire, etc.:

1. Do not place unit near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
2. Do not block any ventilation openings of unit.
3. The unit shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the unit.
4. Do not place any heavy loads onto the unit, and do not step on it, the load may fall and cause serious injury to the unit.
5. Never unplug your unit by pulling on the power cord. Always grap the plug firmly and pull straight out from the outlet.
6. Repair or replace all electric service cords that have become frayed or otherwise damaged immediately. Do not use a cord that shows cracks or abrasion damage along its length, the plug, or the connector end.
7. To prevent fire or shock hazard, do not expose unit to rain or moisture.
8. During lightning or raining days, unplug the unit for additional protection during thunderstorms or when the unit is not used for prolonged periods. This will prevent damage to the unit from lightning and power surges.
9. Do not attempt to carry out any service work yourself. By opening or removing the cabinet, you may be exposed to dangerous voltage or other hazards. Any service work should be carried out by qualified technicians.
10. In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.
11. Clean only with dry cloth
12. Please pay attention to the environmental aspects of battery disposal. Battery must be recycled or disposed of properly. This product must not be disposed together with the domestic waste. This product has to be disposed at an authorized place for recycling of electrical and electronic appliances. By collecting and recycling waste, you help save natural resources, and make sure the product is disposed in an environmental friendly and healthy way.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

UK)

DAC II:

Shift station p Tuner II ell spor pa CD II

1. Volume - Sænker lydstyrken
2. Bluetooth Vælger BT ingangen
3. COAX Vaelger COAX indgangen
4. USB Vaelger USB indgangen
5. Optical 1 Vaelger Optical 1 Ingang
6. Optical 2 Vaelger Optical 2 Ingang
7. Previous

Vaelger forrige nummer i BT mode

1. Play/Pause
   Afpiller erer Pause i BT mode
2. Next Vaelger forrige naeste i BT mode
3. BT Pairing Aktiverer BT pairing
4. Stop Stop i BT mode
5. Taender Tangent CD II
6. Taender Tangent TUNER II
7. Preset 1-5 for Tuner II

Langt tryk for at gemme og kort tryk for at vaelge.

Igang:

Indicator for strøm/standby

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

(DK)

DAC II:

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG., Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

DAC II:

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

DAC II:

Connect Your Device:

Connect your power amplifier to Left and Right RCA or XLR Output.

Use the Optical input by connecting a device using a optical fiber cable to the Optical Input 1 or 2.

Use the COAX input by connecting a CD transport or other unit to using a coax cable to the Optical Input 1 or 2.

Use the USB input by connecting a Computer to play music using a USB cable to the USB input.

Note:

Remember to change into the desired input source on the DAC II.

Standbylage:

Indikator for COAX-ingang

Tryck p 古 COAX for att valja COAX-ingang.

Indikator for USB-ingang

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

DAC II:

TEKNISET TIEDOT
(FIN)

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

(FIN)

DAC II:

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

DAC II:

1. Strömindikator
2. Bluetooth-indicator
3. OPT 1-indikator
4. OPT 2-indicator
5. COAX-indikator
6. USB-indikator
7. Ekstern sensor
8. Hodetelefonutgang
9. Volumknapp/inngangsvelger
   10.Antenne
10. Velger for standby-modus
11. Bakke/heve-velger
12. Koaksial inngang
13. Optisk 1 inngang
14. Optisk 2-inngang
15. USB-inngang
16. Optisk utgang
17. XLR-utgang L/R
18. Linjeutgang RCA L/R
19. Strøminngang
20. Av/pa-bryter

Inkludert i pakken:

Fjernkontroll

Bruksanvisning

(N)

Fjernkontroll:

1. Off Knapp

SIg DAC II AV

(Og CD II & Tuner II)

1. Mute Sià av lyd
2. Volume + Øke volumet
3. Pil L/R

Product name: Tangent DAC II
